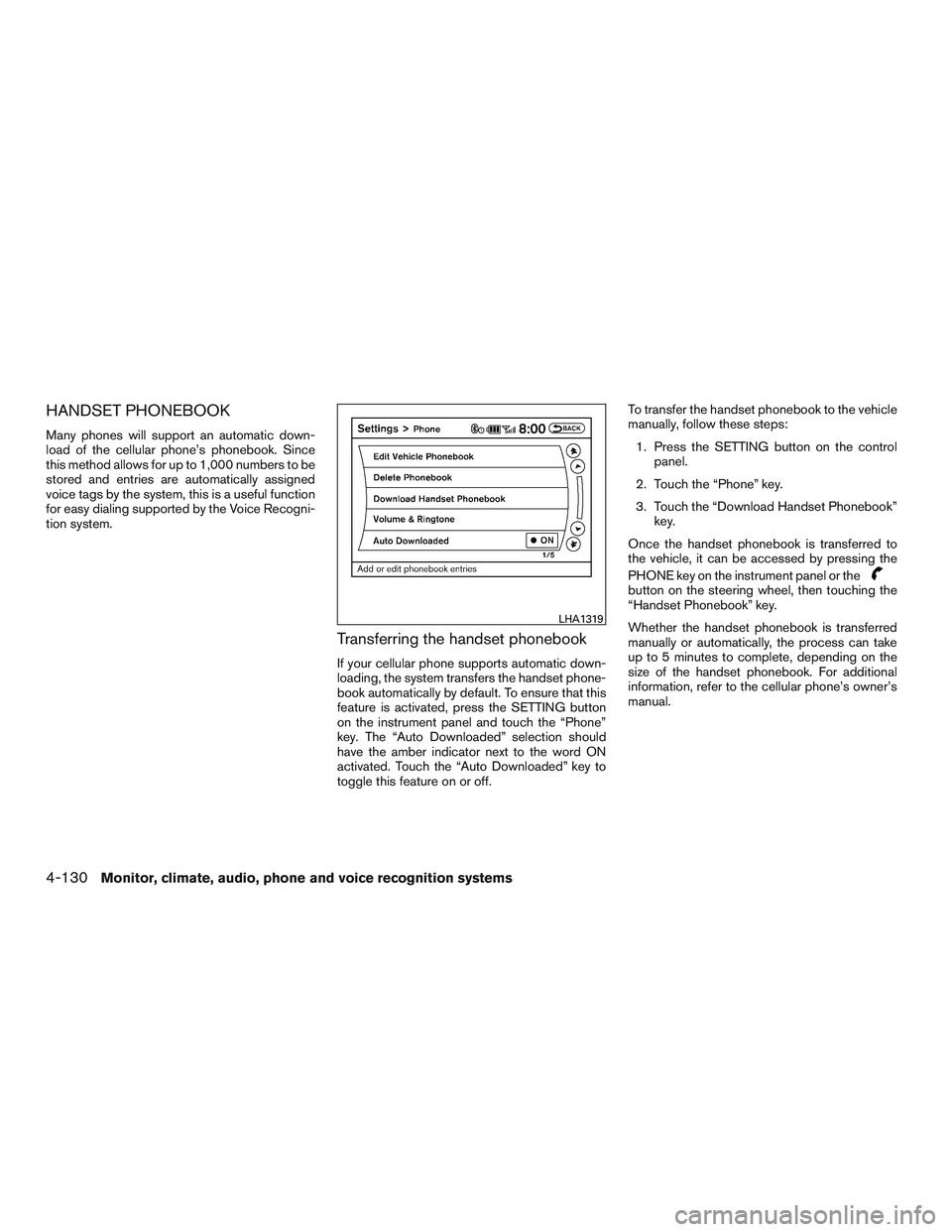

HANDSET PHONEBOOK
Many phones will support an automatic down-
load of the cellular phone’s phonebook. Since
this method allows for up to 1,000 numbers to be
stored and entries are automatically assigned
voice tags by the system, this is a useful function
for easy dialing supported by the Voice Recogni-
tion system.
Transferring the handset phonebook
If your cellular phone supports automatic down-
loading, the system transfers the handset phone-
book automatically by default. To ensure that this
feature is activated, press the SETTING button
on the instrument panel and touch the “Phone”
key. The “Auto Downloaded” selection should
have the amber indicator next to the word ON
activated. Touch the “Auto Downloaded” key to
toggle this feature on or off.To transfer the handset phonebook to the vehicle
manually, follow these steps:
1. Press the SETTING button on the control
panel.
2. Touch the “Phone” key.
3. Touch the “Download Handset Phonebook”
key.
Once the handset phonebook is transferred to
the vehicle, it can be accessed by pressing the
PHONE key on the instrument panel or the
button on the steering wheel, then touching the
“Handset Phonebook” key.
Whether the handset phonebook is transferred
manually or automatically, the process can take
up to 5 minutes to complete, depending on the
size of the handset phonebook. For additional
information, refer to the cellular phone’s owner’s
manual.
LHA1319
4-130Monitor, climate, audio, phone and voice recognition systems

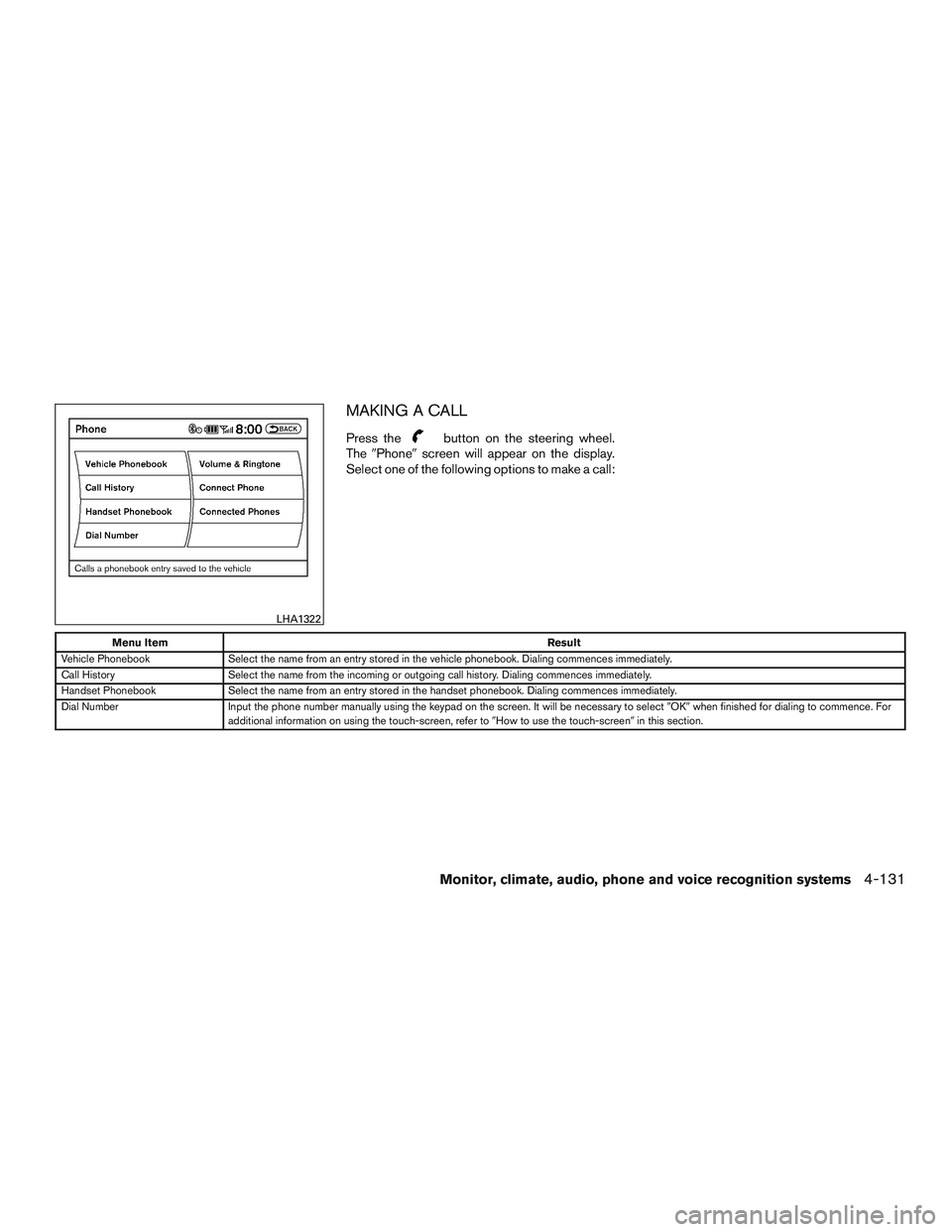

MAKING A CALL
Press thebutton on the steering wheel.
ThePhonescreen will appear on the display.
Select one of the following options to make a call:
Menu ItemResult
Vehicle Phonebook Select the name from an entry stored in the vehicle phonebook. Dialing commences immediately.
Call History Select the name from the incoming or outgoing call history. Dialing commences immediately.
Handset Phonebook Select the name from an entry stored in the handset phonebook. Dialing commences immediately.
Dial Number Input the phone number manually using the keypad on the screen. It will be necessary to selectOKwhen finished for dialing to commence. For
additional information on using the touch-screen, refer toHow to use the touch-screenin this section.
LHA1322
Monitor, climate, audio, phone and voice recognition systems4-131

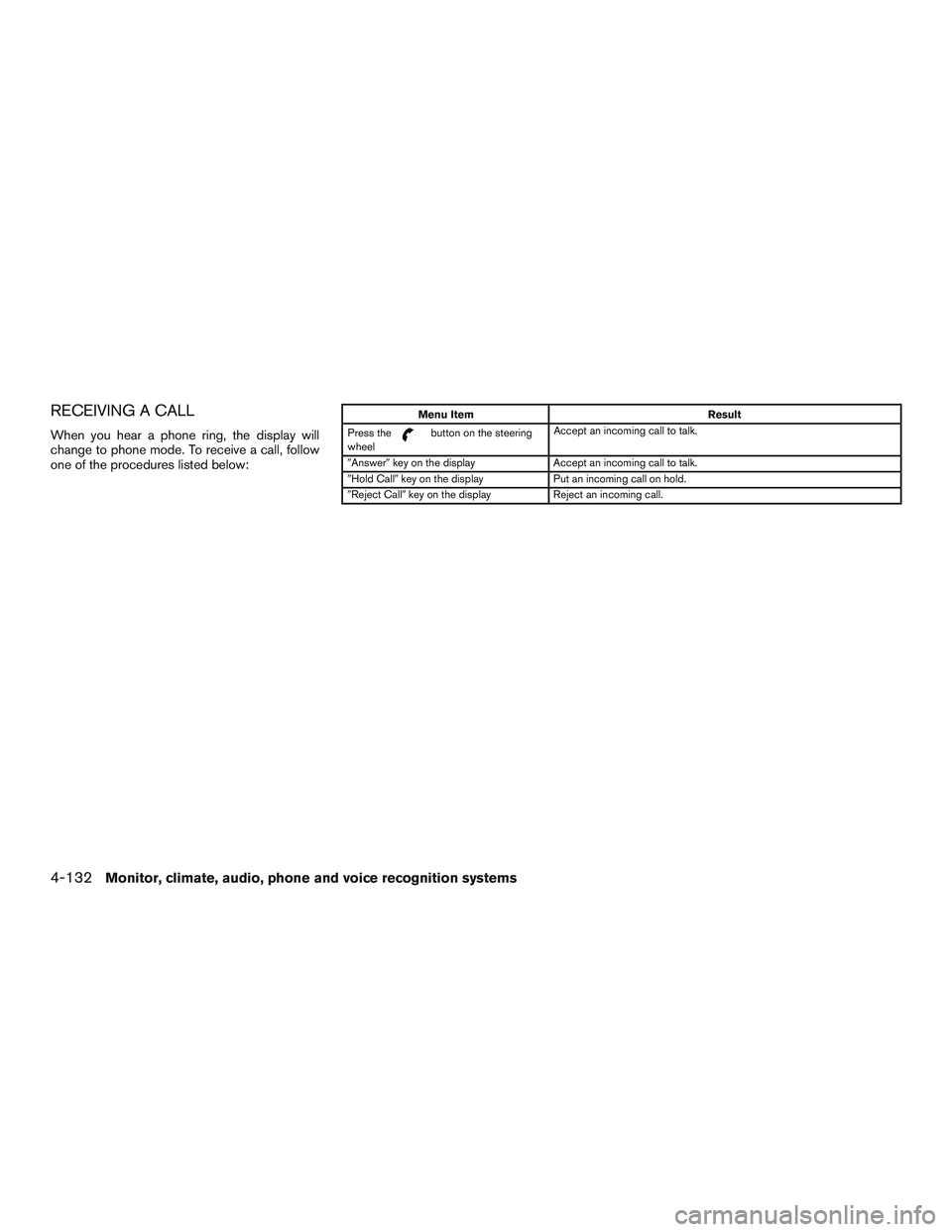

RECEIVING A CALL
When you hear a phone ring, the display will
change to phone mode. To receive a call, follow
one of the procedures listed below:
Menu Item Result
Press the
button on the steering
wheelAccept an incoming call to talk.
Answerkey on the display Accept an incoming call to talk.
Hold Callkey on the display Put an incoming call on hold.
Reject Callkey on the display Reject an incoming call.
4-132Monitor, climate, audio, phone and voice recognition systems

DURING A CALL
There are some options available during a call.
Select one of the following displayed on the
screen, if necessary:
Menu ItemResult
Hang Up Finish the call. If pressed while another caller is on hold, current call will be ended and user will be able to speak to the caller that was previously on hold.
Use Handset Transfer the call to the cellular phone.
Mute Mute your voice to the person.
Cancel
MuteThis will appear after theMutekey is selected. Mute will be cancelled.
Keypad Brings up a keypad. Enter digits when needed. For example, entering your PIN number for voicemail.
Note
Press the
button during a call to send numbers and digits using Voice Recognition.
Switch Call Select this option to answer another incoming call (function may not be available depending on the model of the phone) .
ENDING A CALL
To finish the call, perform one of the following
procedures:
Menu Item Result
Hang upkey on theCall in
ProgressDisplayFinish the call.
button on the steer-
ing wheelFinish the call.
Monitor, climate, audio, phone and voice recognition systems4-133

PHONE SETTINGS
To set up the Bluetooth® Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the control panel and touch the
Phonekey on the display.
Menu ItemResult
Edit Vehicle Phonebook For additional information on adding, editing, and deleting contacts in the vehicle phonebook, refer toVehicle Phonebookin this section.
Delete Phonebook Delete a phonebook stored on the system.
Download Handset Phonebook For additional information on adding, editing, and deleting contacts in the handset phonebook, refer toHandset Phonebookin this
section.
Volume and Ringtone Adjust the volume level of the ringtone, incoming call sound and outgoing call sound.
Automatic Hold When this option is turned on, an incoming call will be placed on hold automatically after several rings.
Vehicle Ringtone When this option is turned on, a specific ringtone that is different than the cellular phone’s will sound when receiving a call.
Auto Downloaded For additional information about automatically downloading the handset phonebook, refer to “Handset Phonebook” in this section.
4-134Monitor, climate, audio, phone and voice recognition systems

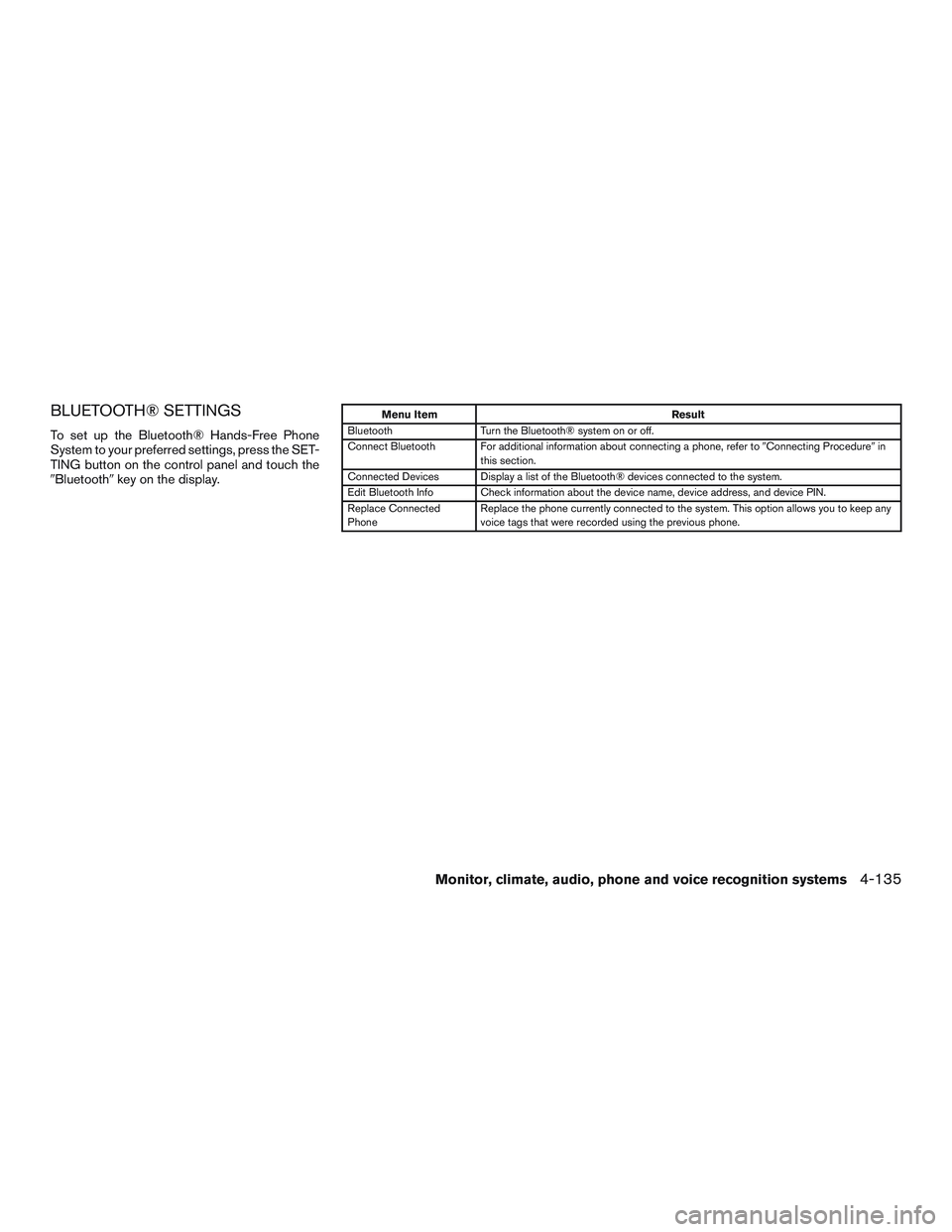

BLUETOOTH® SETTINGS
To set up the Bluetooth® Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the control panel and touch the
Bluetoothkey on the display.
Menu Item Result
Bluetooth Turn the Bluetooth® system on or off.
Connect Bluetooth For additional information about connecting a phone, refer toConnecting Procedurein
this section.
Connected Devices Display a list of the Bluetooth® devices connected to the system.
Edit Bluetooth Info Check information about the device name, device address, and device PIN.
Replace Connected
PhoneReplace the phone currently connected to the system. This option allows you to keep any
voice tags that were recorded using the previous phone.
Monitor, climate, audio, phone and voice recognition systems4-135

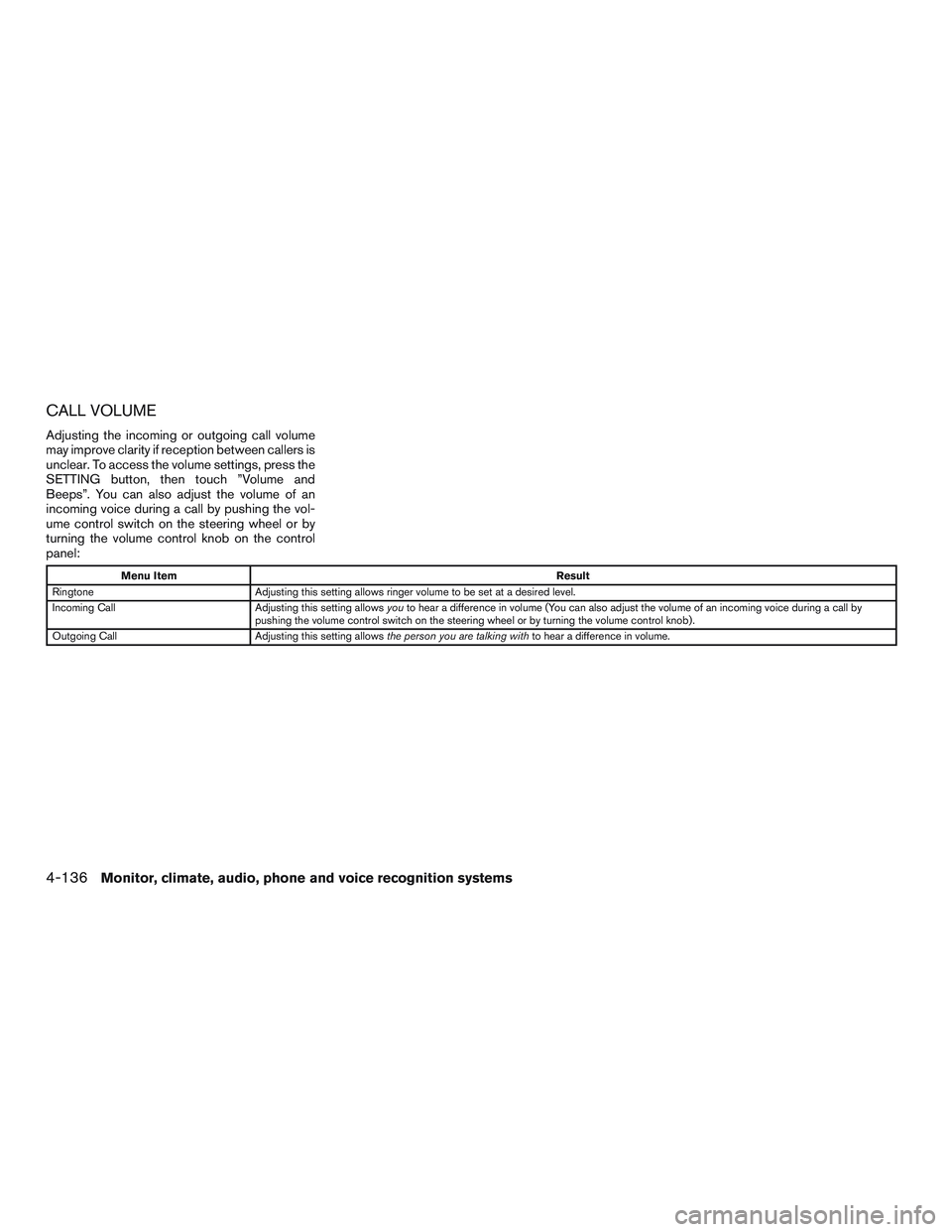

CALL VOLUME
Adjusting the incoming or outgoing call volume
may improve clarity if reception between callers is
unclear. To access the volume settings, press the
SETTING button, then touch ”Volume and
Beeps”. You can also adjust the volume of an
incoming voice during a call by pushing the vol-
ume control switch on the steering wheel or by
turning the volume control knob on the control
panel:
Menu ItemResult
Ringtone Adjusting this setting allows ringer volume to be set at a desired level.
Incoming Call Adjusting this setting allowsyouto hear a difference in volume (You can also adjust the volume of an incoming voice during a call by
pushing the volume control switch on the steering wheel or by turning the volume control knob) .
Outgoing Call Adjusting this setting allowsthe person you are talking withto hear a difference in volume.
4-136Monitor, climate, audio, phone and voice recognition systems

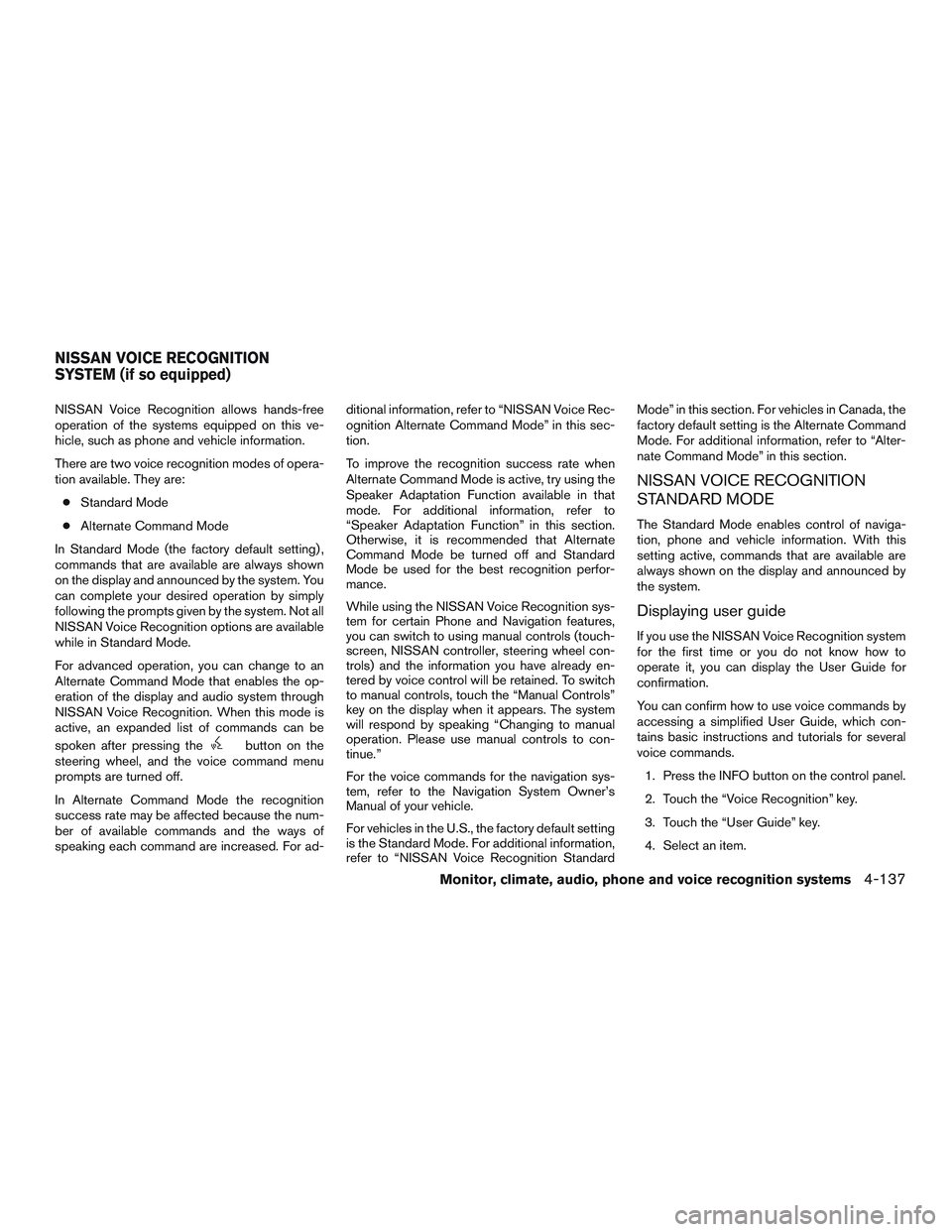

NISSAN Voice Recognition allows hands-free
operation of the systems equipped on this ve-
hicle, such as phone and vehicle information.
There are two voice recognition modes of opera-
tion available. They are:
●Standard Mode
●Alternate Command Mode
In Standard Mode (the factory default setting) ,
commands that are available are always shown
on the display and announced by the system. You
can complete your desired operation by simply
following the prompts given by the system. Not all
NISSAN Voice Recognition options are available
while in Standard Mode.
For advanced operation, you can change to an
Alternate Command Mode that enables the op-
eration of the display and audio system through
NISSAN Voice Recognition. When this mode is
active, an expanded list of commands can be
spoken after pressing the
button on the
steering wheel, and the voice command menu
prompts are turned off.
In Alternate Command Mode the recognition
success rate may be affected because the num-
ber of available commands and the ways of
speaking each command are increased. For ad-ditional information, refer to “NISSAN Voice Rec-
ognition Alternate Command Mode” in this sec-
tion.
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. For additional information, refer to
“Speaker Adaptation Function” in this section.
Otherwise, it is recommended that Alternate
Command Mode be turned off and Standard
Mode be used for the best recognition perfor-
mance.
While using the NISSAN Voice Recognition sys-
tem for certain Phone and Navigation features,
you can switch to using manual controls (touch-
screen, NISSAN controller, steering wheel con-
trols) and the information you have already en-
tered by voice control will be retained. To switch
to manual controls, touch the “Manual Controls”
key on the display when it appears. The system
will respond by speaking “Changing to manual
operation. Please use manual controls to con-
tinue.”
For the voice commands for the navigation sys-
tem, refer to the Navigation System Owner’s
Manual of your vehicle.
For vehicles in the U.S., the factory default setting
is the Standard Mode. For additional information,
refer to “NISSAN Voice Recognition StandardMode” in this section. For vehicles in Canada, the
factory default setting is the Alternate Command
Mode. For additional information, refer to “Alter-
nate Command Mode” in this section.
NISSAN VOICE RECOGNITION
STANDARD MODE
The Standard Mode enables control of naviga-
tion, phone and vehicle information. With this
setting active, commands that are available are
always shown on the display and announced by
the system.
Displaying user guide
If you use the NISSAN Voice Recognition system
for the first time or you do not know how to
operate it, you can display the User Guide for
confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Press the INFO button on the control panel.
2. Touch the “Voice Recognition” key.
3. Touch the “User Guide” key.
4. Select an item.
NISSAN VOICE RECOGNITION
SYSTEM (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-137

NOTE:
You can skip steps 1 to 3 by pressing
the
button and saying “Help” fol-
lowed by “User Guide”.
Menu ItemResult
Getting Started The following message will appear:With voice recognition, you can use voice commands to control navigation, audio, phone, and other
functions. To start the voice recognition system, push the TALK switch on the steering wheel, then say a command after the tone.
Let’s Practice Initiates a practice session that demonstrates how to improve voice recognition by the system. The system will prompt you to say a phone
number. After you say the number, the system will provide feedback to improve voice recognition. When you are ready, push the TALK
switch.
Try again Allows user to repeat the session if improvement is needed.
Done Completes practice session and returns user to the User Guide screen.
Using the Address Book Initiates tutorial for using the Address Book.
Finding a Street Address Initiates a tutorial for finding a street address.
Placing Calls Initiates tutorial for making a phone call by voice command operation.
Help on Speaking Displays useful tips of speaking for correct command recognition by the system:Say commands when there are minimal background
sounds; Say voice commands clearly; Avoid talking slow or with long pauses; Say commands after the tone.
4-138Monitor, climate, audio, phone and voice recognition systems

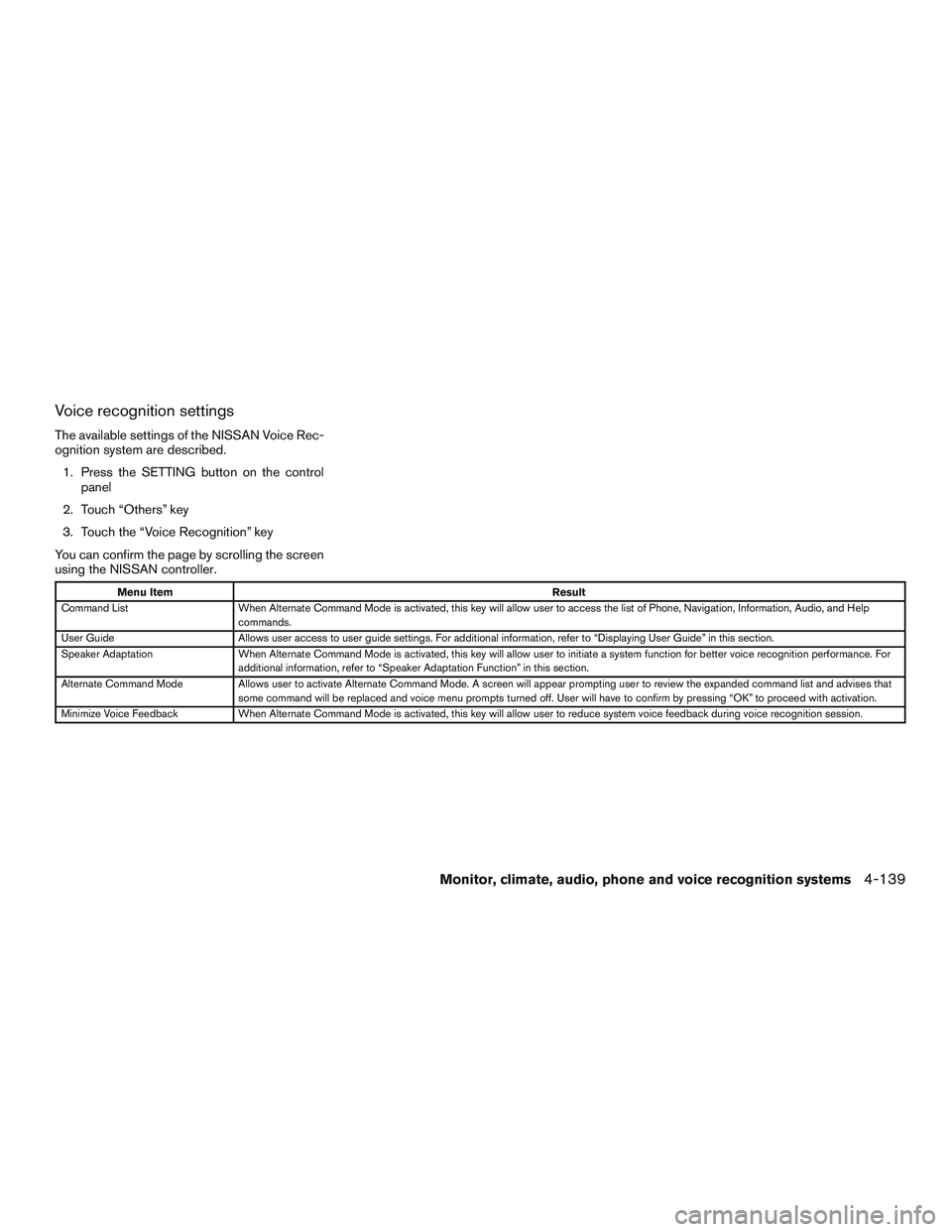

Voice recognition settings
The available settings of the NISSAN Voice Rec-
ognition system are described.
1. Press the SETTING button on the control
panel
2. Touch “Others” key
3. Touch the “Voice Recognition” key
You can confirm the page by scrolling the screen
using the NISSAN controller.
Menu ItemResult
Command List When Alternate Command Mode is activated, this key will allow user to access the list of Phone, Navigation, Information, Audio, and Help
commands.
User Guide Allows user access to user guide settings. For additional information, refer to “Displaying User Guide” in this section.
Speaker Adaptation When Alternate Command Mode is activated, this key will allow user to initiate a system function for better voice recognition performance. For
additional information, refer to “Speaker Adaptation Function” in this section.
Alternate Command Mode Allows user to activate Alternate Command Mode. A screen will appear prompting user to review the expanded command list and advises that
some command will be replaced and voice menu prompts turned off. User will have to confirm by pressing “OK” to proceed with activation.
Minimize Voice Feedback When Alternate Command Mode is activated, this key will allow user to reduce system voice feedback during voice recognition session.
Monitor, climate, audio, phone and voice recognition systems4-139
