NISSAN PATROL 2000 Electronic User Guide

Wiring Diagram Ð A/T Ð
TAT013M
OVERALL SYSTEM
AT-1009

TAT014M
OVERALL SYSTEM
Wiring Diagram Ð A/T Ð (Cont'd)
AT-1010

TAT015M
OVERALL SYSTEM
Wiring Diagram Ð A/T Ð (Cont'd)
AT-1011

TAT026M
OVERALL SYSTEM
Wiring Diagram Ð A/T Ð (Cont'd)
AT-1012

TAT016M
OVERALL SYSTEM
Wiring Diagram Ð A/T Ð (Cont'd)
AT-1013

TAT017M
OVERALL SYSTEM

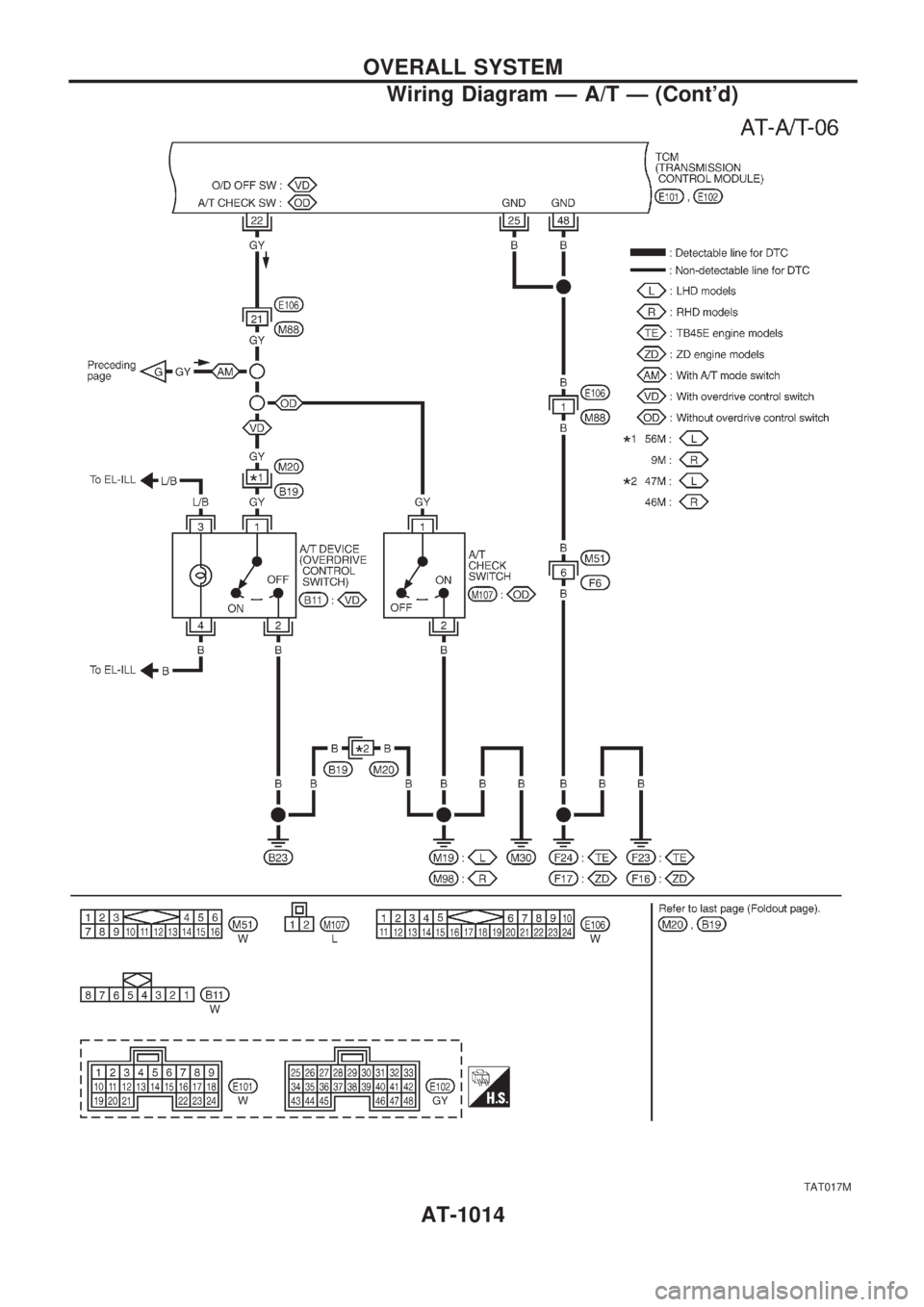

Wiring Diagram Ð A/T Ð (Cont'd)
AT-1014

TAT018M
OVERALL SYSTEM

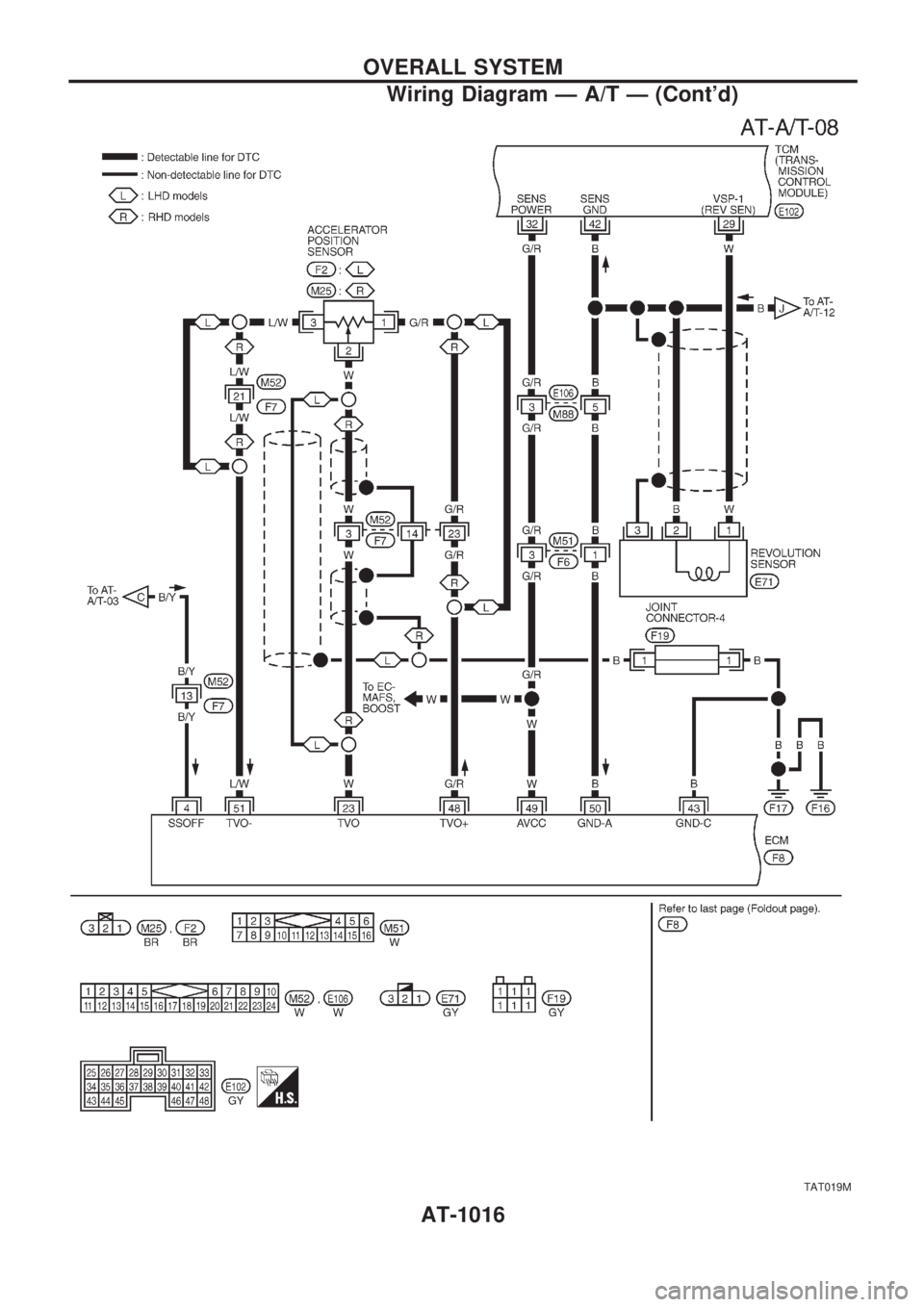

Wiring Diagram Ð A/T Ð (Cont'd)
AT-1015

TAT019M
OVERALL SYSTEM

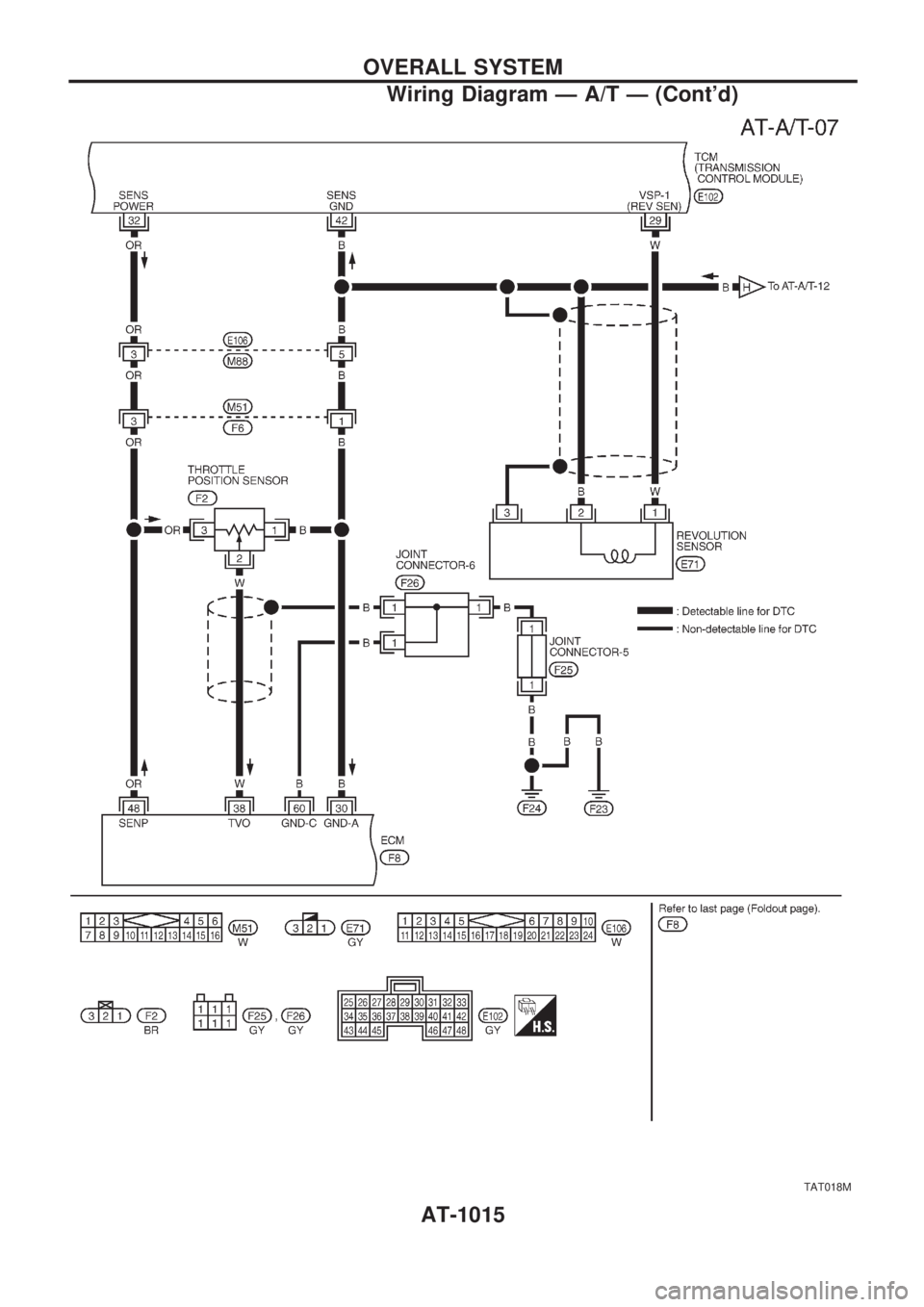

Wiring Diagram Ð A/T Ð (Cont'd)
AT-1016

TAT020M
OVERALL SYSTEM

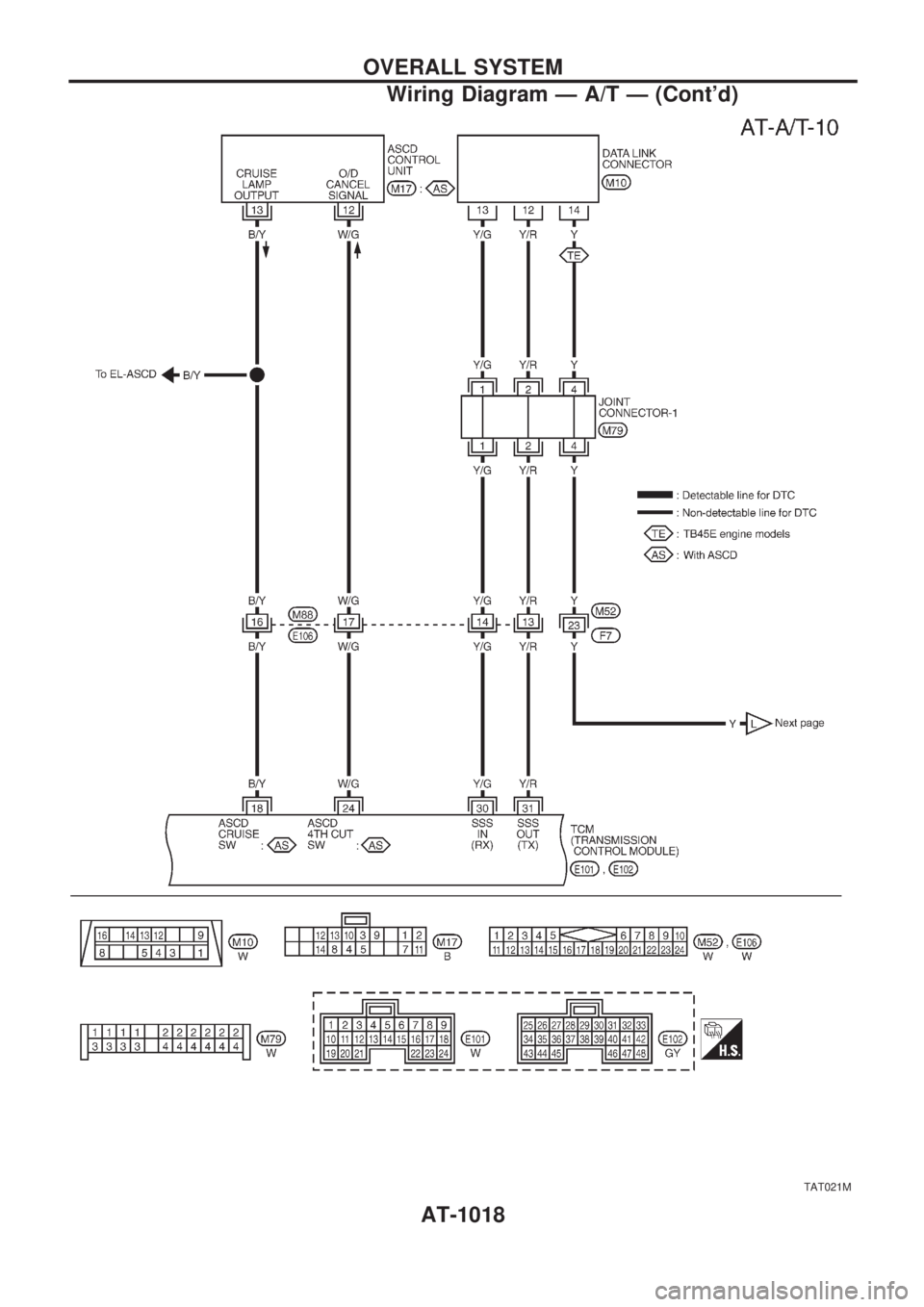

Wiring Diagram Ð A/T Ð (Cont'd)
AT-1017

TAT021M
OVERALL SYSTEM

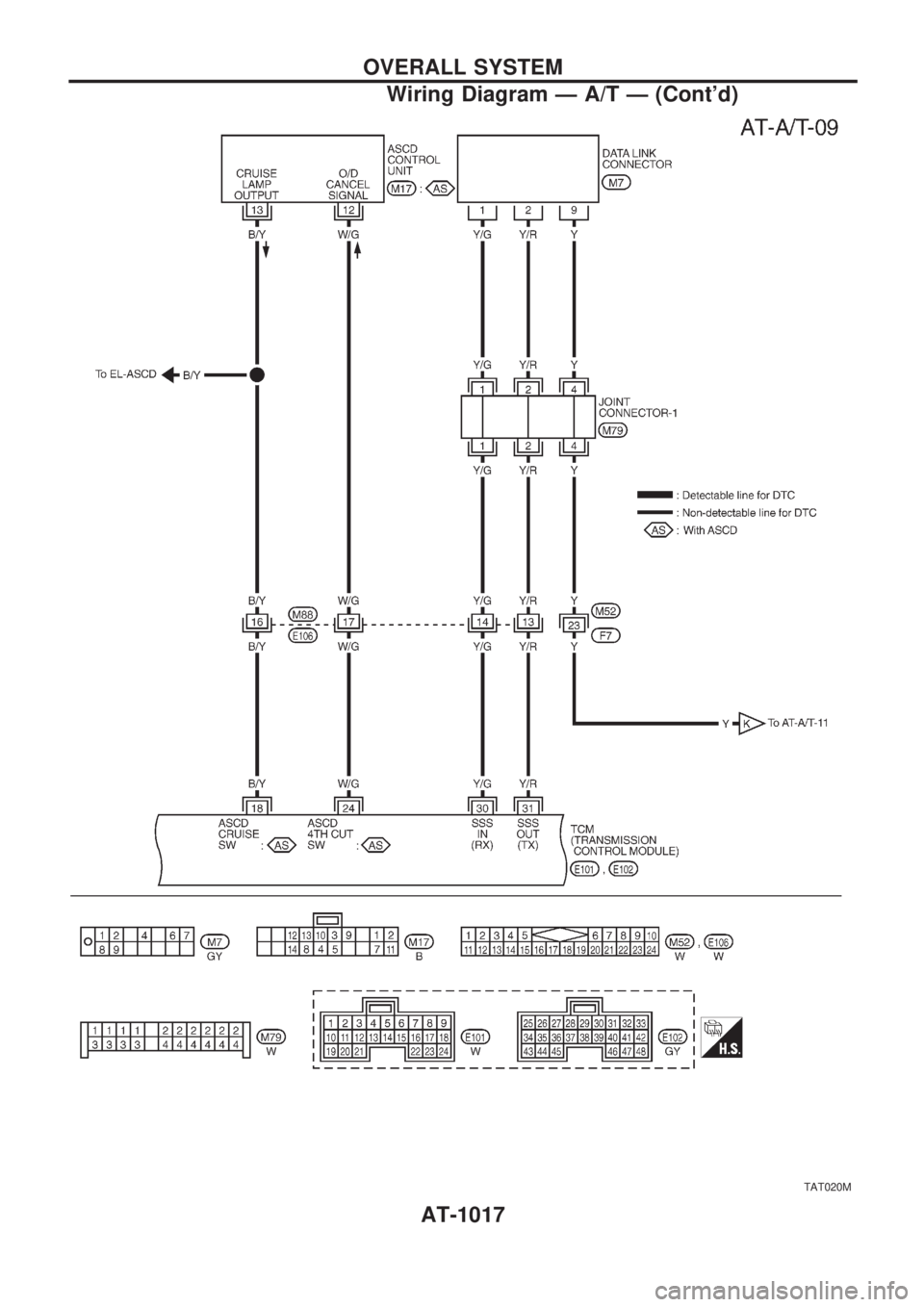

Wiring Diagram Ð A/T Ð (Cont'd)
AT-1018
