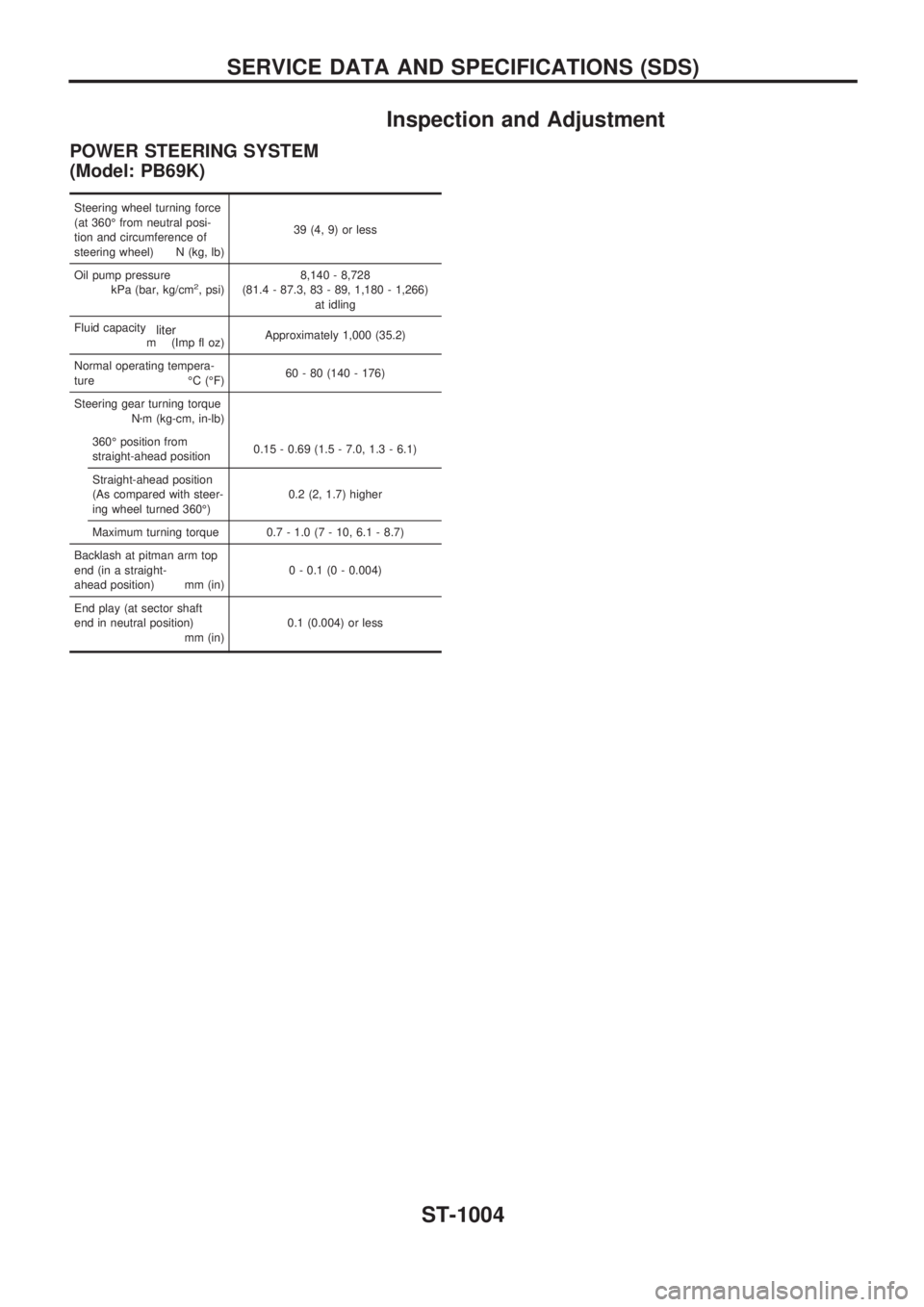

Inspection and Adjustment
POWER STEERING SYSTEM
(Model: PB69K)
Steering wheel turning force
(at 360É from neutral posi-
tion and circumference of
steering wheel) N (kg, lb)39 (4, 9) or less
Oil pump pressure
kPa (bar, kg/cm
2, psi)8,140 - 8,728
(81.4 - 87.3, 83 - 89, 1,180 - 1,266)
at idling
Fluid capacity
m
liter(Imp fl oz)Approximately 1,000 (35.2)
Normal operating tempera-
ture ÉC (ÉF)60 - 80 (140 - 176)
Steering gear turning torque
Nzm (kg-cm, in-lb)
360É position from
straight-ahead position0.15 - 0.69 (1.5 - 7.0, 1.3 - 6.1)
Straight-ahead position
(As compared with steer-
ing wheel turned 360É)0.2 (2, 1.7) higher
Maximum turning torque 0.7 - 1.0 (7 - 10, 6.1 - 8.7)
Backlash at pitman arm top
end (in a straight-
ahead position) mm (in)0 - 0.1 (0 - 0.004)
End play (at sector shaft
end in neutral position)
mm (in)0.1 (0.004) or less
SERVICE DATA AND SPECIFICATIONS (SDS)
ST-1004

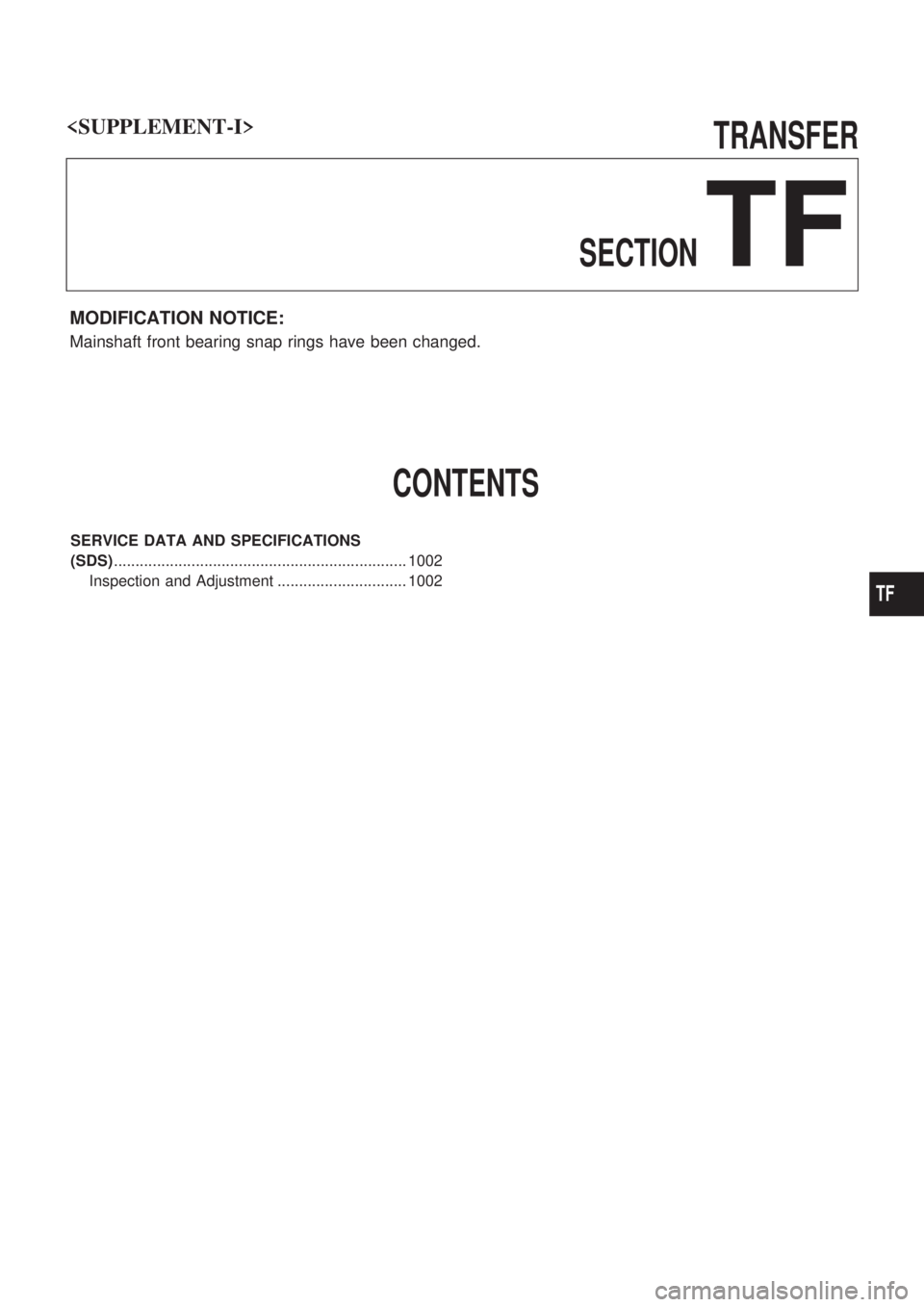

TRANSFER
SECTION
TF
MODIFICATION NOTICE:
Mainshaft front bearing snap rings have been changed.
CONTENTS
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 1002
Inspection and Adjustment .............................. 1002

TF

Inspection and Adjustment

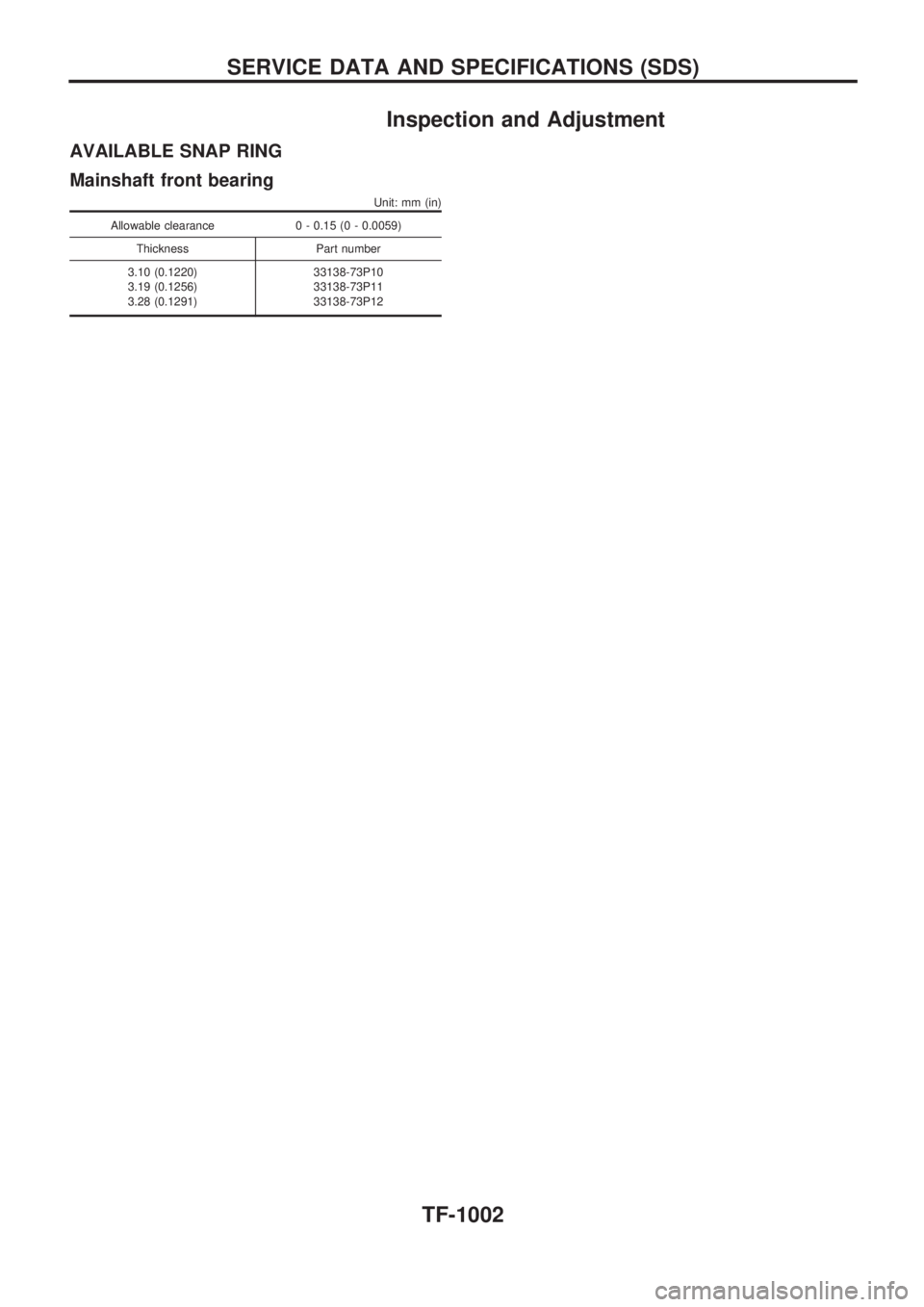

AVAILABLE SNAP RING
Mainshaft front bearing
Unit: mm (in)
Allowable clearance 0 - 0.15 (0 - 0.0059)Thickness Part number
3.10 (0.1220)
3.19 (0.1256)
3.28 (0.1291) 33138-73P10
33138-73P11
33138-73P12
SERVICE DATA AND SPECIFICATIONS (SDS)
