NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð CD/CHG Ð/RHD Hardtop TEL455M AUDIO/WAGON AND HARDTOP MODELS EL-2094

Page 172 of 273

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð REMOTE Ð TEL456M AUDIO/WAGON AND HARDTOP MODELS EL-2095

Page 173 of 273

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð P/ANT Ð/LHD Models TEL492M AUDIO/WAGON AND HARDTOP MODELS EL-2096

Page 174 of 273

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð P/ANT Ð/RHD Models TEL493M AUDIO/WAGON AND HARDTOP MODELS EL-2097

Page 175 of 273

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð MIRROR Ð/LHD Models TEL465M POWER DOOR MIRROR/WAGON AND HARDTOP MODELS EL-2098

Page 176 of 273

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð MIRROR Ð/RHD Models TEL466M POWER DOOR MIRROR/WAGON AND HARDTOP MODELS EL-2099

Page 177 of 273

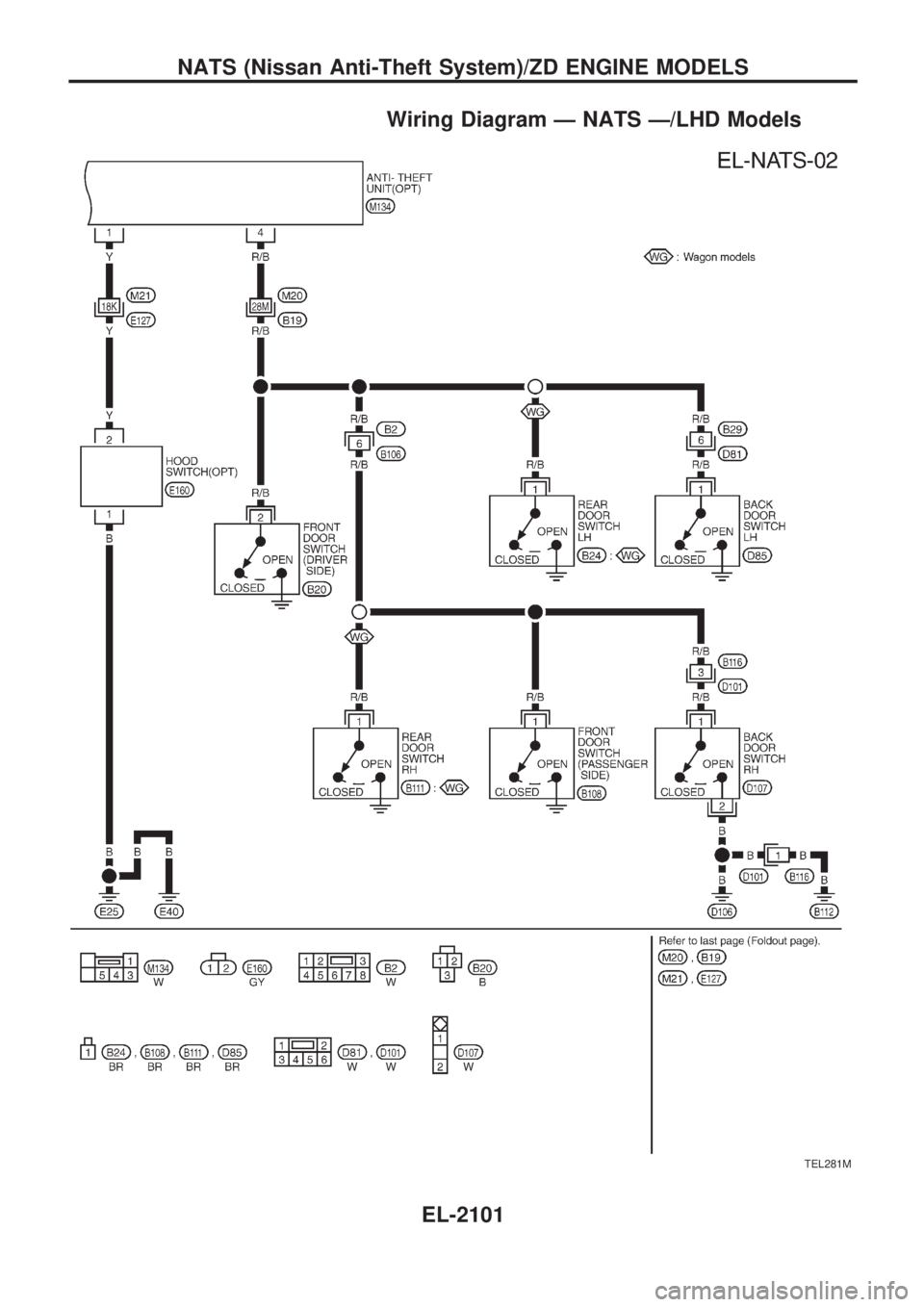

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð NATS Ð TEL477M NATS (Nissan Anti-Theft System)/ZD ENGINE MODELS EL-2100

Page 178 of 273

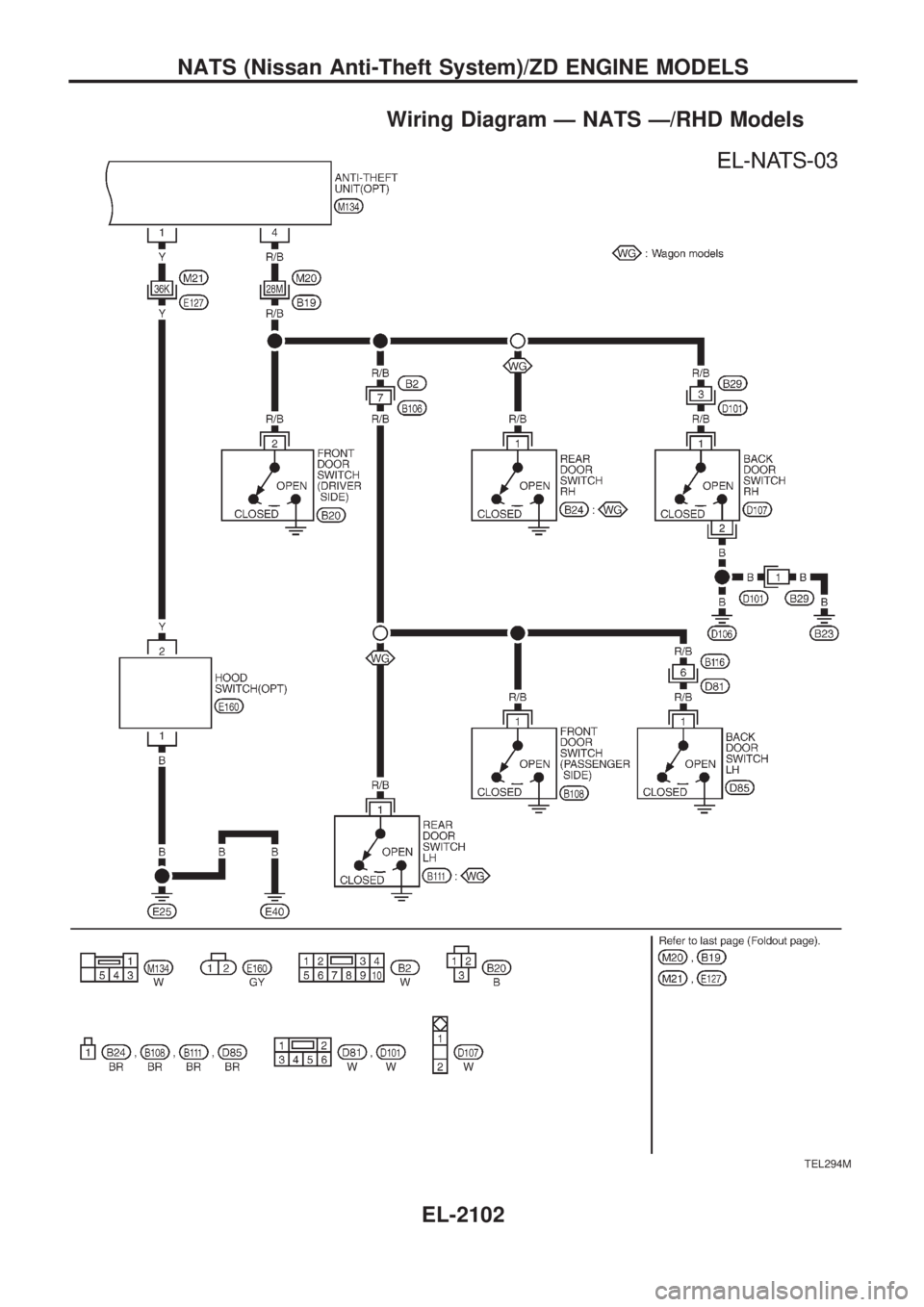

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð NATS Ð/LHD Models TEL281M NATS (Nissan Anti-Theft System)/ZD ENGINE MODELS EL-2101

Page 179 of 273

NISSAN PATROL 2001 Electronic Repair Manual Wiring Diagram Ð NATS Ð/RHD Models TEL294M NATS (Nissan Anti-Theft System)/ZD ENGINE MODELS EL-2102

Page 180 of 273

NISSAN PATROL 2001 Electronic Repair Manual Engine Compartment CEL233M LOCATION OF ELECTRICAL UNITS/WAGON AND HARDTOP MODELS EL-2103
