Terminal Arrangement
CEL271M
FUSE BLOCK Ð Junction Box (J/B)

Terminal Arrangement
CEL272M
FUSE AND FUSIBLE LINK BOX

Terminal Arrangement
CEL273M
ELECTRICAL UNITS

CEL274M
ELECTRICAL UNITS
Terminal Arrangement (Cont'd)

Terminal Arrangement
CEL275M
JOINT CONNECTOR (J/C)

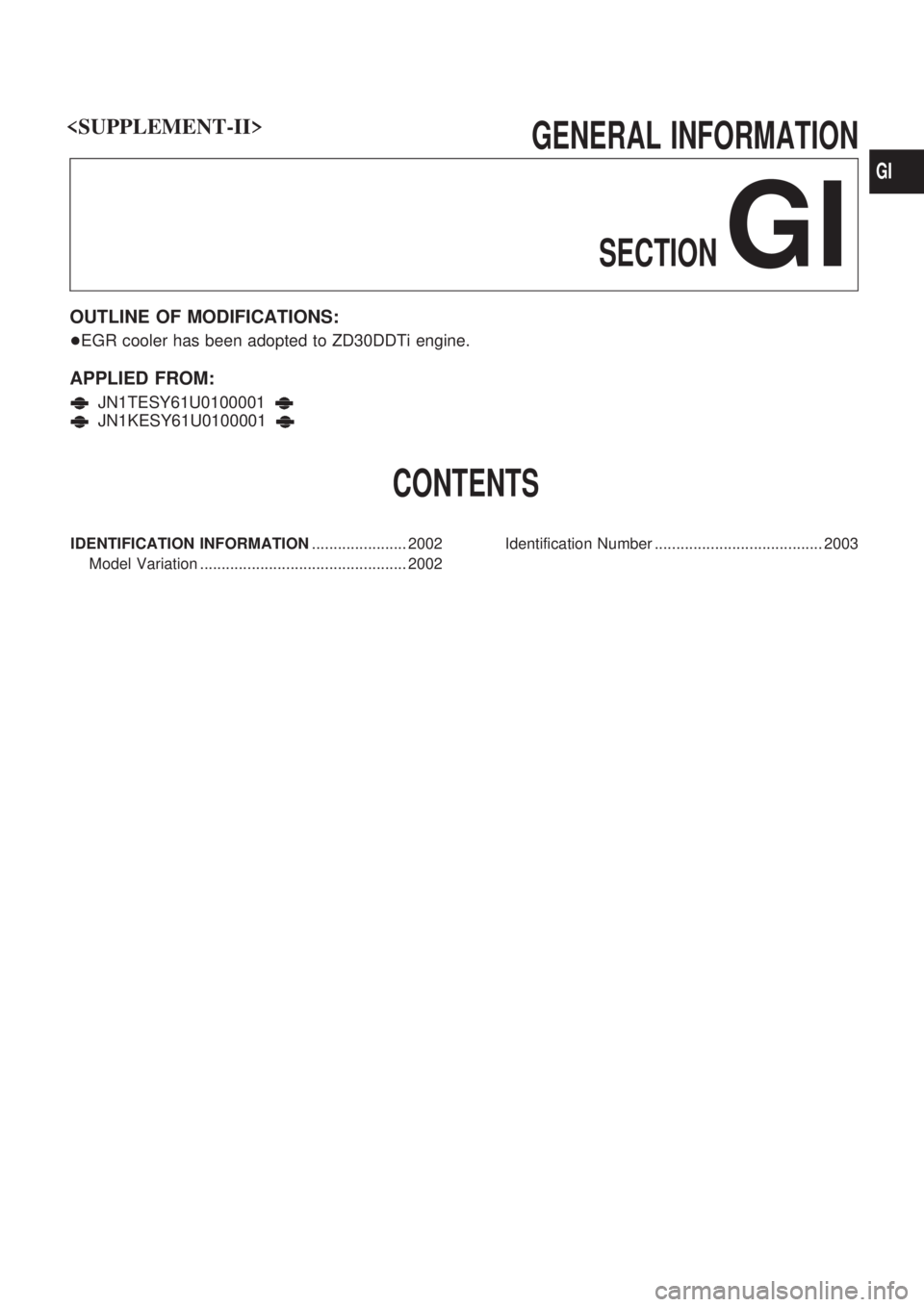

GENERAL INFORMATION
SECTION
GI
OUTLINE OF MODIFICATIONS:
+EGR cooler has been adopted to ZD30DDTi engine.
APPLIED FROM:
JN1TESY61U0100001
JN1KESY61U0100001
CONTENTS
IDENTIFICATION INFORMATION...................... 2002
Model Variation ................................................ 2002Identification Number ....................................... 2003

GI

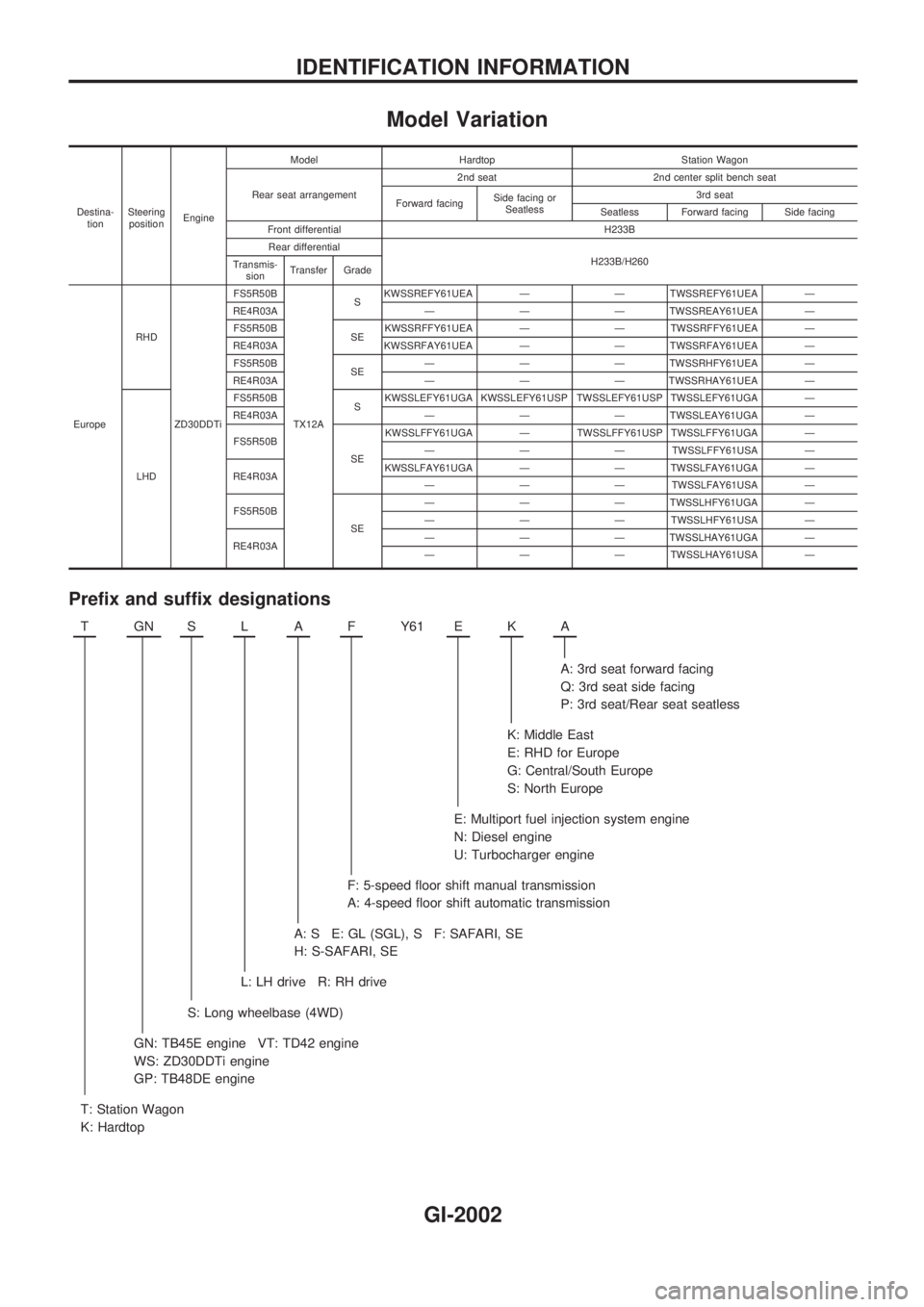

Model Variation
Destina-
tionSteering
positionEngineModel Hardtop Station Wagon
Rear seat arrangement2nd seat 2nd center split bench seat
Forward facingSide facing or
Seatless3rd seat
Seatless Forward facing Side facing
Front differential H233B
Rear differential
H233B/H260
Transmis-
sionTransfer Grade
EuropeRHD
ZD30DDTiFS5R50B
TX12ASKWSSREFY61UEA Ð Ð TWSSREFY61UEA Ð
RE4R03A Ð Ð Ð TWSSREAY61UEA Ð
FS5R50B
SEKWSSRFFY61UEA Ð Ð TWSSRFFY61UEA Ð
RE4R03A KWSSRFAY61UEA Ð Ð TWSSRFAY61UEA Ð
FS5R50B
SEÐ Ð Ð TWSSRHFY61UEA Ð
RE4R03A Ð Ð Ð TWSSRHAY61UEA Ð
LHDFS5R50B
SKWSSLEFY61UGA KWSSLEFY61USP TWSSLEFY61USP TWSSLEFY61UGA Ð
RE4R03A Ð Ð Ð TWSSLEAY61UGA Ð
FS5R50B
SEKWSSLFFY61UGA Ð TWSSLFFY61USP TWSSLFFY61UGA Ð
Ð Ð Ð TWSSLFFY61USA Ð
RE4R03AKWSSLFAY61UGA Ð Ð TWSSLFAY61UGA Ð
Ð Ð Ð TWSSLFAY61USA Ð
FS5R50B
SEÐ Ð Ð TWSSLHFY61UGA Ð
Ð Ð Ð TWSSLHFY61USA Ð
RE4R03AÐ Ð Ð TWSSLHAY61UGA Ð
Ð Ð Ð TWSSLHAY61USA Ð
Prefix and suffix designations
TGNSLAFY61 EKA
A: 3rd seat forward facing
Q: 3rd seat side facing
P: 3rd seat/Rear seat seatless
K: Middle East
E: RHD for Europe
G: Central/South Europe
S: North Europe
E: Multiport fuel injection system engine
N: Diesel engine
U: Turbocharger engine
F: 5-speed floor shift manual transmission
A: 4-speed floor shift automatic transmission
A: S E: GL (SGL), S F: SAFARI, SE
H: S-SAFARI, SE
L: LH drive R: RH drive
S: Long wheelbase (4WD)
GN: TB45E engine VT: TD42 engine
WS: ZD30DDTi engine
GP: TB48DE engine
T: Station Wagon
K: Hardtop
IDENTIFICATION INFORMATION
GI-2002

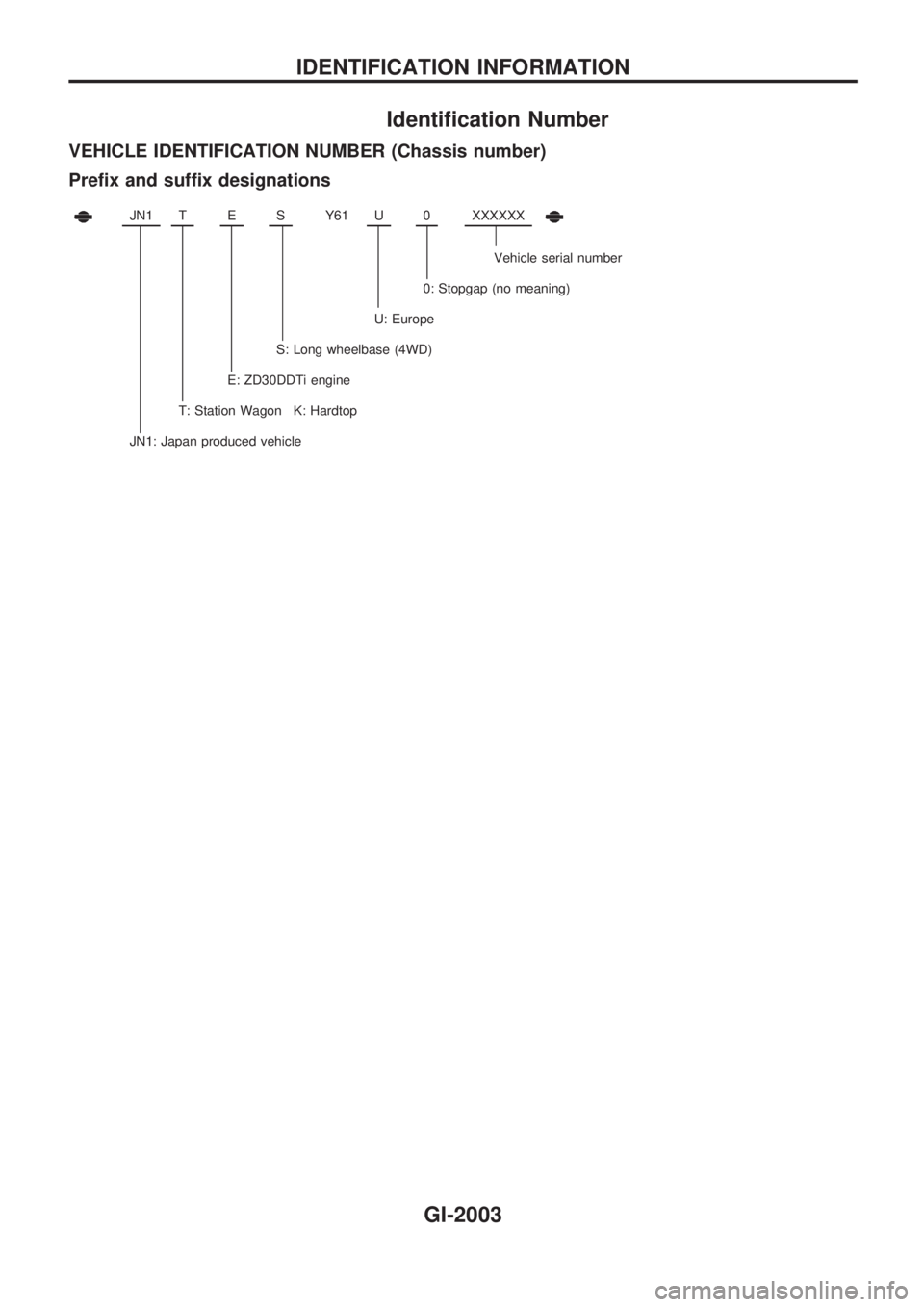

Identification Number
VEHICLE IDENTIFICATION NUMBER (Chassis number)
Prefix and suffix designations
JN1TESY61 U0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
U: Europe
S: Long wheelbase (4WD)
E: ZD30DDTi engine
T: Station Wagon K: Hardtop
JN1: Japan produced vehicle
IDENTIFICATION INFORMATION
GI-2003

IDENTIFICATION INFORMATION
GI-2004

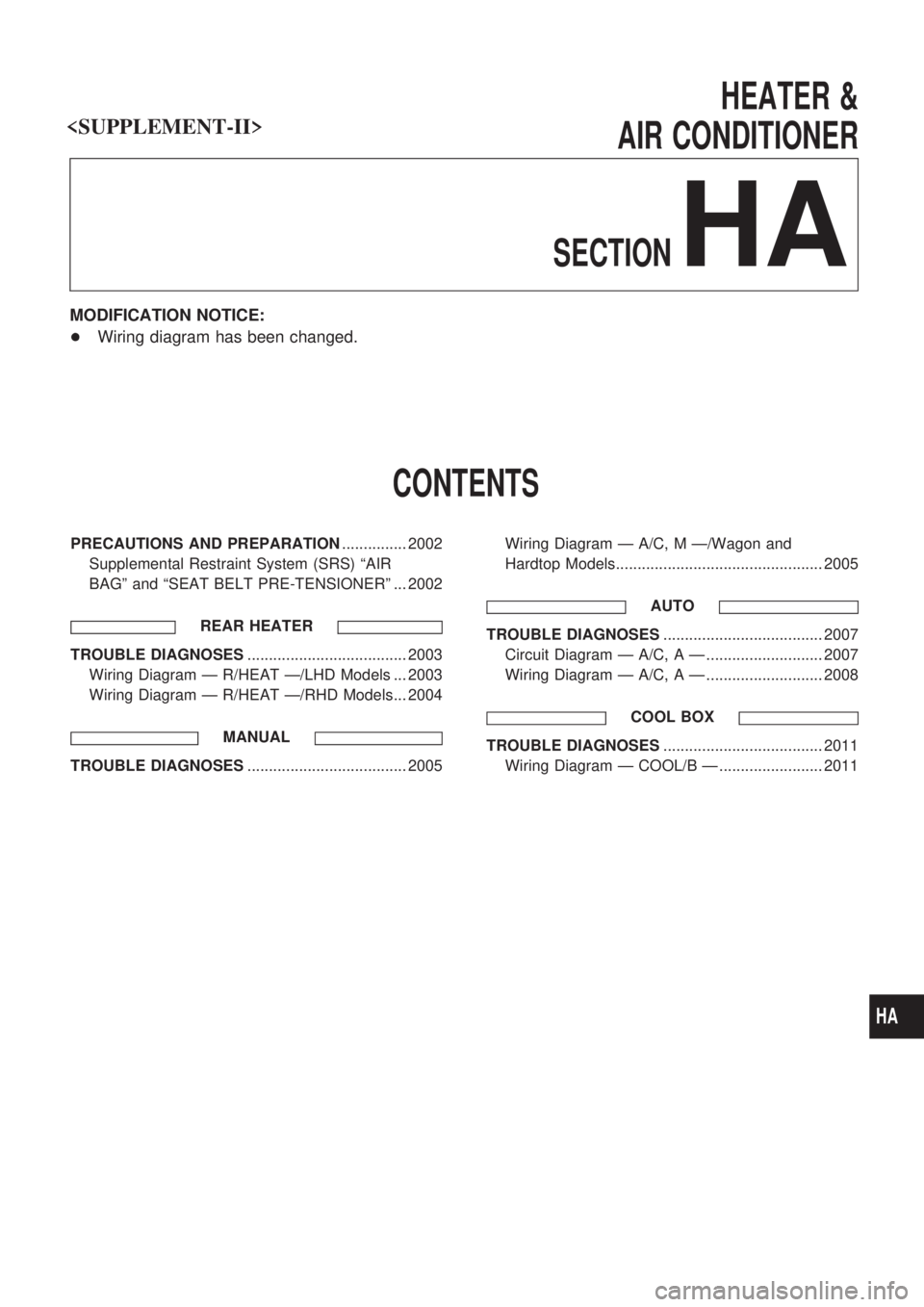

HEATER &
AIR CONDITIONER
SECTION
HA
MODIFICATION NOTICE:
+Wiring diagram has been changed.
CONTENTS
PRECAUTIONS AND PREPARATION............... 2002
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº ... 2002
REAR HEATER
TROUBLE DIAGNOSES..................................... 2003
Wiring Diagram Ð R/HEAT Ð/LHD Models ... 2003
Wiring Diagram Ð R/HEAT Ð/RHD Models... 2004
MANUAL
TROUBLE DIAGNOSES..................................... 2005Wiring Diagram Ð A/C, M Ð/Wagon and
Hardtop Models................................................ 2005
AUTO
TROUBLE DIAGNOSES..................................... 2007
Circuit Diagram Ð A/C, A Ð ........................... 2007
Wiring Diagram Ð A/C, A Ð ........................... 2008
COOL BOX
TROUBLE DIAGNOSES..................................... 2011
Wiring Diagram Ð COOL/B Ð ........................ 2011

HA
