NISSAN PATROL 2001 Electronic Repair Manual

Wiring Diagram Ð HORN Ð
TEL457M
HORN
EL-2084

Wiring Diagram Ð CIGAR Ð
TEL458M
CIGARETTE LIGHTER/WAGON AND HARDTOP MODELS
EL-2085

Wiring Diagram Ð DEICER Ð
TEL459M
WIPER DEICER/WAGON AND HARDTOP MODELS
EL-2086

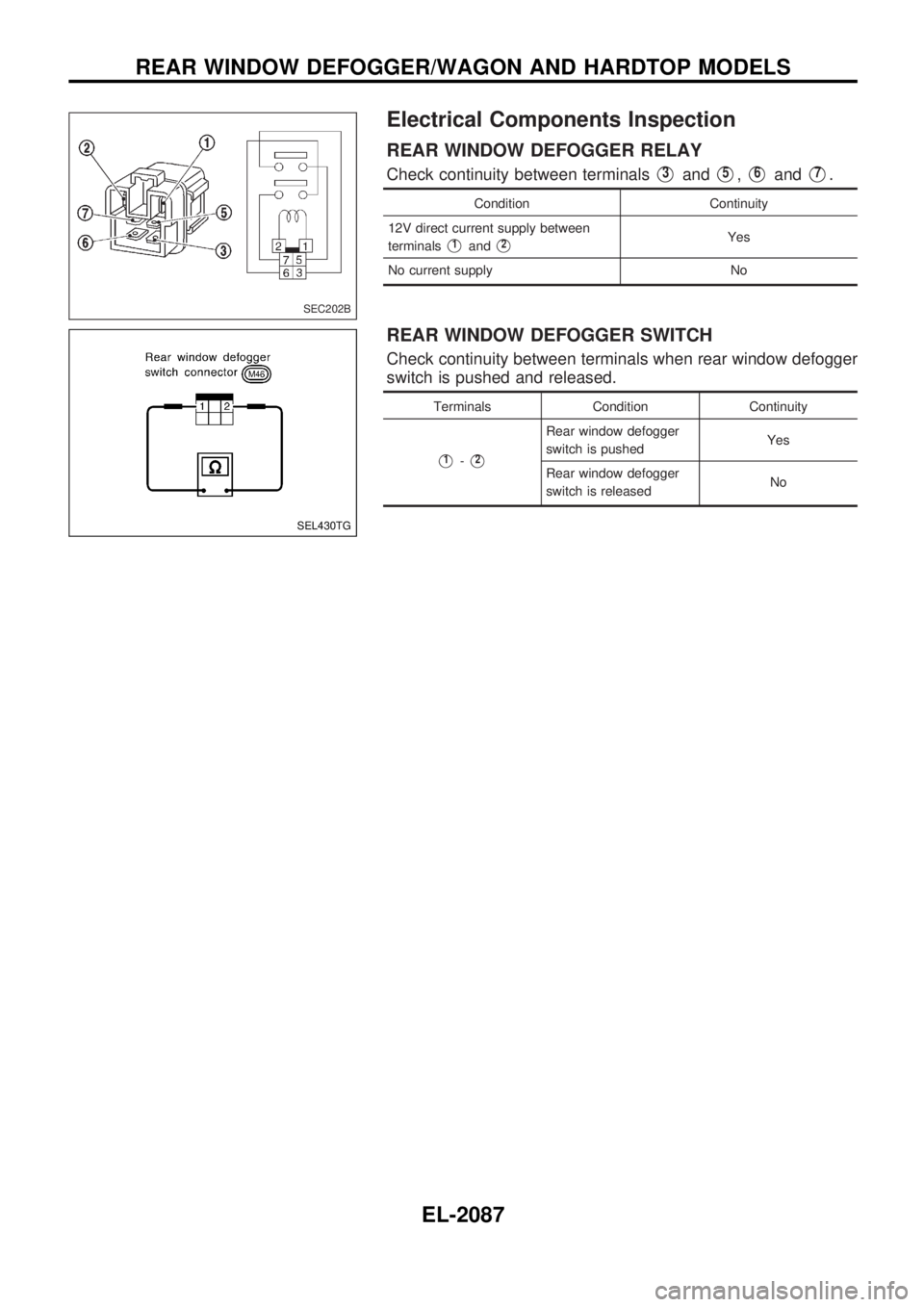

Electrical Components Inspection
REAR WINDOW DEFOGGER RELAY
Check continuity between terminalsV3andV5,V6andV7.
Condition Continuity
12V direct current supply between
terminals
V1andV2Yes
No current supply No
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
Terminals Condition Continuity
V1-V2
Rear window defogger
switch is pushedYes
Rear window defogger
switch is releasedNo
SEC202B
SEL430TG
REAR WINDOW DEFOGGER/WAGON AND HARDTOP MODELS
EL-2087

Wiring Diagram Ð AUDIO Ð/LHD Models
TEL451M
AUDIO/WAGON AND HARDTOP MODELS
EL-2088

TEL488M
AUDIO/WAGON AND HARDTOP MODELS
Wiring Diagram Ð AUDIO Ð/LHD Models
(Cont'd)
EL-2089

Wiring Diagram Ð AUDIO Ð/RHD Models
TEL452M
AUDIO/WAGON AND HARDTOP MODELS
EL-2090

TEL489M
AUDIO/WAGON AND HARDTOP MODELS
Wiring Diagram Ð AUDIO Ð/RHD Models
(Cont'd)
EL-2091

Wiring Diagram Ð CD/CHG Ð/LHD Wagon
TEL453M
AUDIO/WAGON AND HARDTOP MODELS
EL-2092

Wiring Diagram Ð CD/CHG Ð/LHD Hardtop
TEL454M
AUDIO/WAGON AND HARDTOP MODELS
EL-2093
