NISSAN PATROL 2002 Electronic Repair Manual

CEL452M
LOCATION OF ELECTRICAL UNITS
Passenger Compartment Ð LHD Models
(Cont'd)
EL-3175

Passenger Compartment Ð RHD Models
CEL453M
LOCATION OF ELECTRICAL UNITS
EL-3176

CEL454M
LOCATION OF ELECTRICAL UNITS
Passenger Compartment Ð RHD Models
(Cont'd)
EL-3177

NOTE
LOCATION OF ELECTRICAL UNITS
EL-3178

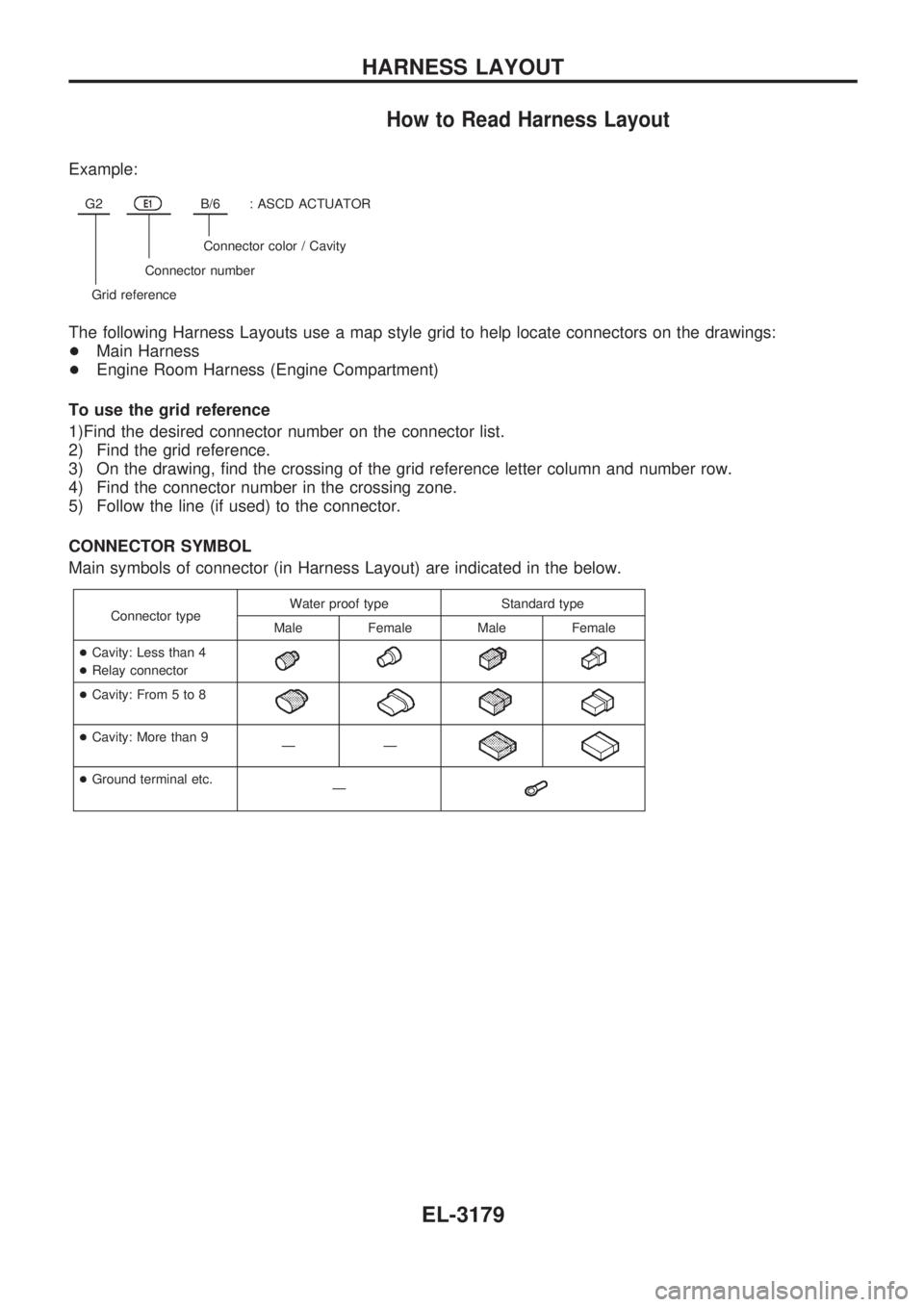

How to Read Harness Layout
Example:
G2E1B/6: ASCD ACTUATOR
Connector color / Cavity
Connector number
Grid reference
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
+Main Harness
+Engine Room Harness (Engine Compartment)
To use the grid reference
1)Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing, find the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
+Cavity: Less than 4
+Relay connector
+Cavity: From 5 to 8
+Cavity: More than 9
ÐÐ
+Ground terminal etc.
Ð
HARNESS LAYOUT
EL-3179

Main Harness/LHD Models
CEL455M
HARNESS LAYOUT
EL-3180

CEL456M
HARNESS LAYOUT
Main Harness/LHD Models (Cont'd)
EL-3181

CEL457M
HARNESS LAYOUT
Main Harness/LHD Models (Cont'd)
EL-3182

NOTE
HARNESS LAYOUT
EL-3183

Main Harness/RHD Models
CEL458M
HARNESS LAYOUT
EL-3184
