NISSAN PATROL 2002 Electronic Repair Manual

HARDTOP
CEL419M
HARNESS LAYOUT
Body No. 2 Harness/LHD Models (Cont'd)
EL-3205

Body No. 2 Harness/RHD Models
WAGON
CEL482M
HARNESS LAYOUT
EL-3206

HARDTOP
CEL483M
HARNESS LAYOUT
Body No. 2 Harness/RHD Models (Cont'd)
EL-3207

Chassis Harness
CEL489M
HARNESS LAYOUT
EL-3208

Back Door Harness and Rear Window Defogger
Harness
CEL420M
HARNESS LAYOUT
EL-3209

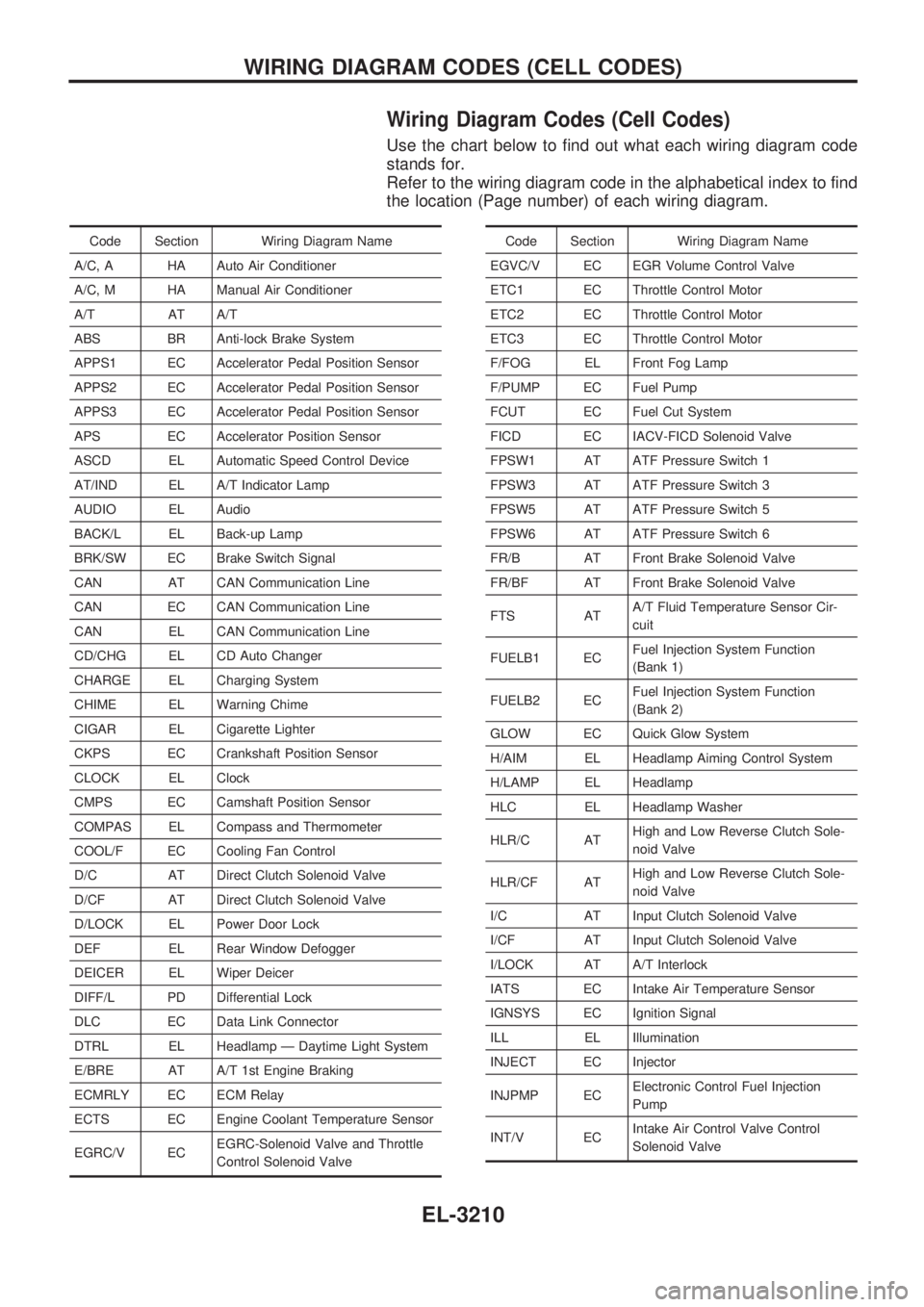

Wiring Diagram Codes (Cell Codes)
Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (Page number) of each wiring diagram.
Code Section Wiring Diagram Name
A/C, A HA Auto Air Conditioner
A/C, M HA Manual Air Conditioner
A/T AT A/T
ABS BR Anti-lock Brake System
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
APS EC Accelerator Position Sensor
ASCD EL Automatic Speed Control Device
AT/IND EL A/T Indicator Lamp
AUDIO EL Audio
BACK/L EL Back-up Lamp
BRK/SW EC Brake Switch Signal
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN EL CAN Communication Line
CD/CHG EL CD Auto Changer
CHARGE EL Charging System
CHIME EL Warning Chime
CIGAR EL Cigarette Lighter
CKPS EC Crankshaft Position Sensor
CLOCK EL Clock
CMPS EC Camshaft Position Sensor
COMPAS EL Compass and Thermometer
COOL/F EC Cooling Fan Control
D/C AT Direct Clutch Solenoid Valve
D/CF AT Direct Clutch Solenoid Valve
D/LOCK EL Power Door Lock
DEF EL Rear Window Defogger
DEICER EL Wiper Deicer
DIFF/L PD Differential Lock
DLC EC Data Link Connector
DTRL EL Headlamp Ð Daytime Light System
E/BRE AT A/T 1st Engine Braking
ECMRLY EC ECM Relay
ECTS EC Engine Coolant Temperature Sensor
EGRC/V ECEGRC-Solenoid Valve and Throttle
Control Solenoid ValveCode Section Wiring Diagram Name
EGVC/V EC EGR Volume Control Valve
ETC1 EC Throttle Control Motor
ETC2 EC Throttle Control Motor
ETC3 EC Throttle Control Motor
F/FOG EL Front Fog Lamp
F/PUMP EC Fuel Pump
FCUT EC Fuel Cut System
FICD EC IACV-FICD Solenoid Valve
FPSW1 AT ATF Pressure Switch 1
FPSW3 AT ATF Pressure Switch 3
FPSW5 AT ATF Pressure Switch 5
FPSW6 AT ATF Pressure Switch 6
FR/B AT Front Brake Solenoid Valve
FR/BF AT Front Brake Solenoid Valve
FTS ATA/T Fluid Temperature Sensor Cir-
cuit
FUELB1 ECFuel Injection System Function
(Bank 1)
FUELB2 ECFuel Injection System Function
(Bank 2)
GLOW EC Quick Glow System
H/AIM EL Headlamp Aiming Control System
H/LAMP EL Headlamp
HLC EL Headlamp Washer
HLR/C ATHigh and Low Reverse Clutch Sole-
noid Valve
HLR/CF ATHigh and Low Reverse Clutch Sole-
noid Valve
I/C AT Input Clutch Solenoid Valve
I/CF AT Input Clutch Solenoid Valve
I/LOCK AT A/T Interlock
IATS EC Intake Air Temperature Sensor
IGNSYS EC Ignition Signal
ILL EL Illumination
INJECT EC Injector
INJPMP ECElectronic Control Fuel Injection
Pump
INT/V ECIntake Air Control Valve Control
Solenoid Valve
WIRING DIAGRAM CODES (CELL CODES)
EL-3210

Code Section Wiring Diagram Name
IVC ECIntake Valve Timing Control Solenoid
Valve
KS EC Knock Sensor
LC/B AT Low Coast Brake Solenoid Valve
LC/BF AT Low Coast Brake Solenoid Valve
LOAD EC Electrical Load Signal
LPSV AT Line Pressure Solenoid Valve
MAFS EC Mass Air Flow Sensor
MAIN ECMain Power Supply and Ground Cir-
cuit
METER EL Meter and Gauges
MIL EC Mulfunction Indicator Lamp
MMSW AT Manual Mode Switch
MULTI EL Multi-remote Control System
NATS EL Nissan Anti-Theft System
NLS EC Needle Lift Sensor
NONDTC AT Non-detective Items
O2H1B1 ECHeated Oxygen Sensor 1 Heater
(B1) (Front)
O2H1B2 ECHeated Oxygen Sensor 1 Heater
(B2) (Front)
O2H2B1 ECHeated Oxygen Sensor 2 Heater
(B1) (Rear)
O2H2B2 ECHeated Oxygen Sensor 2 Heater
(B2) (Rear)
O2S1B1 ECHeated Oxygen Sensor 1 (B1)
(Front)
O2S1B2 ECHeated Oxygen Sensor 1 (B2)
(Front)
O2S2B1 ECHeated Oxygen Sensor 2 (B1)
(Rear)
O2S2B2 ECHeated Oxygen Sensor 2 (B2)
(Rear)
OILP/W ECEngine Oil Pressure Warning Sys-
tem
PGC/V ECEVAP Canister Purge Volume Con-
trol Solenoid Valve
PNP/SW AT Park/Neutral Position Switch
PNP/SW EC Park/Neutral Position Switch
POWER ATTransmission Control Module (Power
Supply)
POWER EC ECM Power Supply For Back-up
POWER EL Power Supply Routing
PS/SEN EC Power Steering Pressure Sensor
R/COOL HA Rear Cooler System
R/FOG EL Rear Fog LampCode Section Wiring Diagram Name
ROOM/L EL Interior Room Lamp
RP/SEN EC Refrigerant Pressure Sensor
S/LOCK EL Power Door Lock - Super Lock -
S/SIG EC Start Signal
S/TANK FE Sub Fuel Tank Control System
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SRS RS Supplemental Restraint System
STAB RA Stabilizer Release Device
START EL Starting System
STSIG AT Start Signal Circuit
TAIL/L EL Parking, License and Tail Lamps
TCCSIG AT A/T TCC Signal (Lock Up)
TCV ATTorque Converter Clutch Solenoid
Valve
TCV EC Injection Timing Control Valve
THEFT EL Theft Warning System
TPS1 EC Throttle Position Sensor
TPS2 EC Throttle Position Sensor
TPS3 EC Throttle Position Sensor
TRQ/SG EC Engine Torque Control Signal
TRSA/T AT Turbine Revolution Sensor
TURN ELTurn Signal and Hazard Warning
Lamps
VIAS/V ECVariable Induction Air Control Sys-
tem
VSS EC Vehicle Speed Sensor
VSSA/T AT Vehicle Speed Sensor A/T
WARN EL Warning Lamps
WIPER EL Front Wiper and Washer
WIRING DIAGRAM CODES (CELL CODES)
Wiring Diagram Codes (Cell Codes) (Cont'd)
EL-3211

WIRING DIAGRAM CODES (CELL CODES)
Wiring Diagram Codes (Cell Codes) (Cont'd)
EL-3212

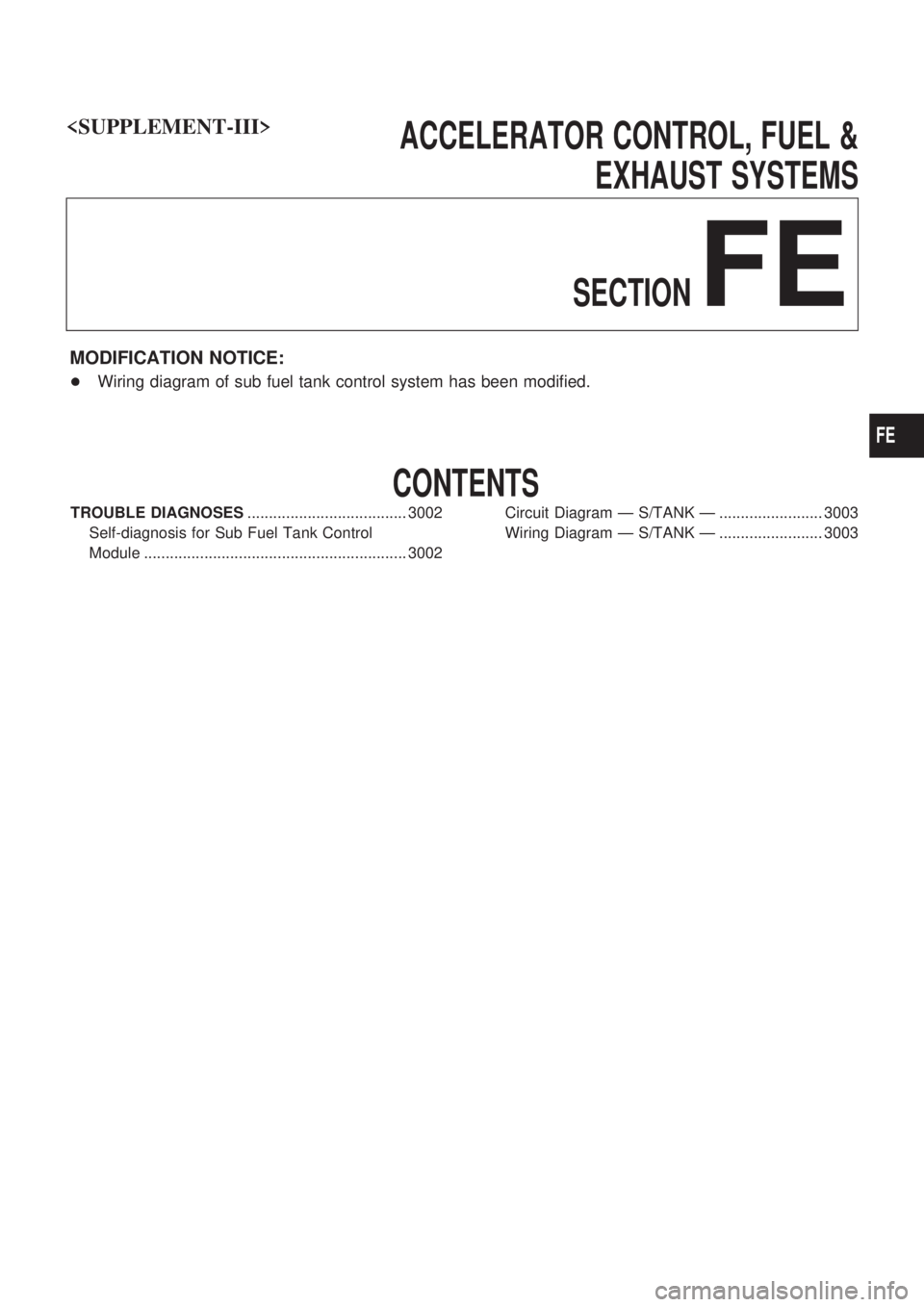

ACCELERATOR CONTROL, FUEL &
EXHAUST SYSTEMS
SECTION
FE
MODIFICATION NOTICE:
+Wiring diagram of sub fuel tank control system has been modified.
CONTENTS
TROUBLE DIAGNOSES..................................... 3002
Self-diagnosis for Sub Fuel Tank Control
Module ............................................................. 3002Circuit Diagram Ð S/TANK Ð ........................ 3003
Wiring Diagram Ð S/TANK Ð ........................ 3003

FE

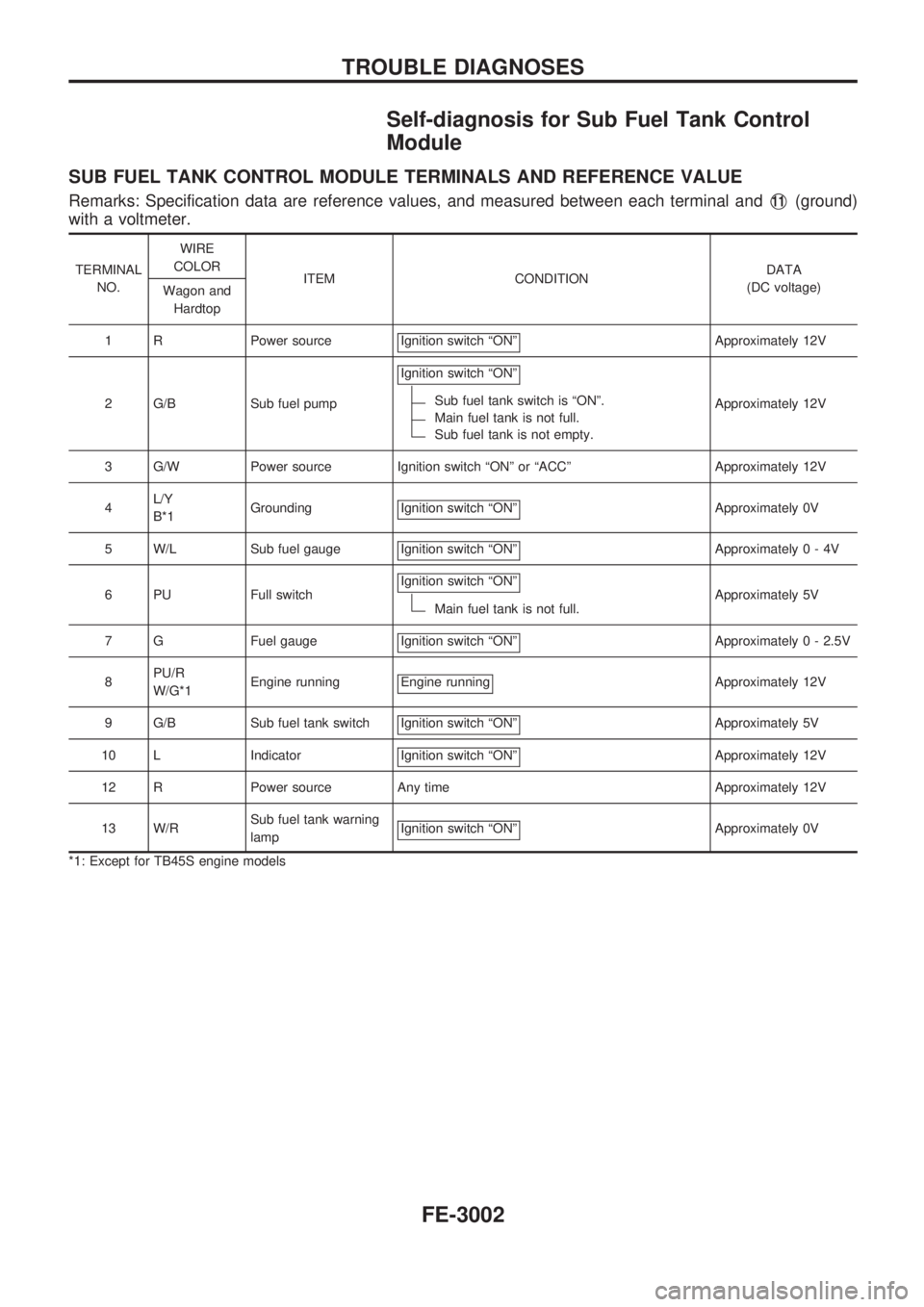

Self-diagnosis for Sub Fuel Tank Control
Module
SUB FUEL TANK CONTROL MODULE TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values, and measured between each terminal andV11(ground)
with a voltmeter.
TERMINAL
NO.WIRE
COLOR
ITEM CONDITIONDATA
(DC voltage)
Wagon and
Hardtop
1 R Power source Ignition switch ªONº
Approximately 12V
2 G/B Sub fuel pumpIgnition switch ªONº
Sub fuel tank switch is ªONº.
Main fuel tank is not full.
Sub fuel tank is not empty.Approximately 12V
3 G/W Power source Ignition switch ªONº or ªACCº Approximately 12V
4L/Y
B*1Grounding Ignition switch ªONº
Approximately 0V
5 W/L Sub fuel gauge Ignition switch ªONº
Approximately0-4V
6 PU Full switchIgnition switch ªONº
Main fuel tank is not full.Approximately 5V
7 G Fuel gauge Ignition switch ªONº
Approximately 0 - 2.5V
8PU/R
W/G*1Engine running Engine running
Approximately 12V
9 G/B Sub fuel tank switch Ignition switch ªONº
Approximately 5V
10 L Indicator Ignition switch ªONº
Approximately 12V
12 R Power source Any time Approximately 12V
13 W/RSub fuel tank warning
lampIgnition switch ªONº
Approximately 0V
*1: Except for TB45S engine models
TROUBLE DIAGNOSES
FE-3002
