Trouble Diagnoses without CONSULT
DIAGNOSTIC PROCEDURE 6
Inspecting SRS malfunctioning parts by using ``AIR BAG''
warning lamp Ð Diagnosis mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is
detected in User mode.
1. Open driver's door.
2. Turn ignition switch from ``OFF'' to ``ON''.
3. Press driver's door switch at least 5 times within 7 seconds
after turning ignition switch ``ON''.
SRS is now in Diagnosis mode.
4. ``AIR BAG'' warning lamp operates in Diagnosis mode as fol-
lows:
NOTE:
If SRS does not enter Diagnosis mode even though malfunc-
tion is detected in User mode, go to DIAGNOSTIC PROCE-
DURE 11, page RS-44.
No. ``AIR BAG'' warning lamp operation Ð Diagnosis mode Ð SRS condition
1
MRS100A
jathroughjbare repeated.+Diagnosis
results (pre-
viously
stored in the
memory)
might not be
erased after
repair.
+Intermittent
problem has
been
detected in
the past.
Go to DIAG-
NOSTIC PRO-
CEDURE 8
(RS-42).
2
MRS099A
jathroughjbare repeated.
NOTE:
j
aÐ Interval I
jbÐ Start signal (Start signal
identi®es display modes)
j
cÐ Interval II
jdÐ Indicates
malfunctioning part (0.5
sec. ON and 0.5 sec. OFF
is counted as one ¯ash.)The system
has a problem
and needs to
be repaired.
5. Malfunctioning part is indicated by the number of ¯ashes (part
j
d). Compare the number of ¯ashes to ``AIR BAG WARNING
LAMP FLASH CODE CHART'', page RS-40, and locate mal-
functioning part.
6. Turn ignition switch ``OFF'', and disconnect both battery cables.
7. Repair the system as outlined by the ``Repair order'' in ``AIR
BAG WARNING LAMP FLASH CODE CHART'' that corre-
sponds to the ¯ash code. For replacement procedure of com-
ponent parts, refer to RS-12.
8. After repairing the system, go to DIAGNOSTIC PROCEDURE
7, page RS-40.
SRS465
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-39

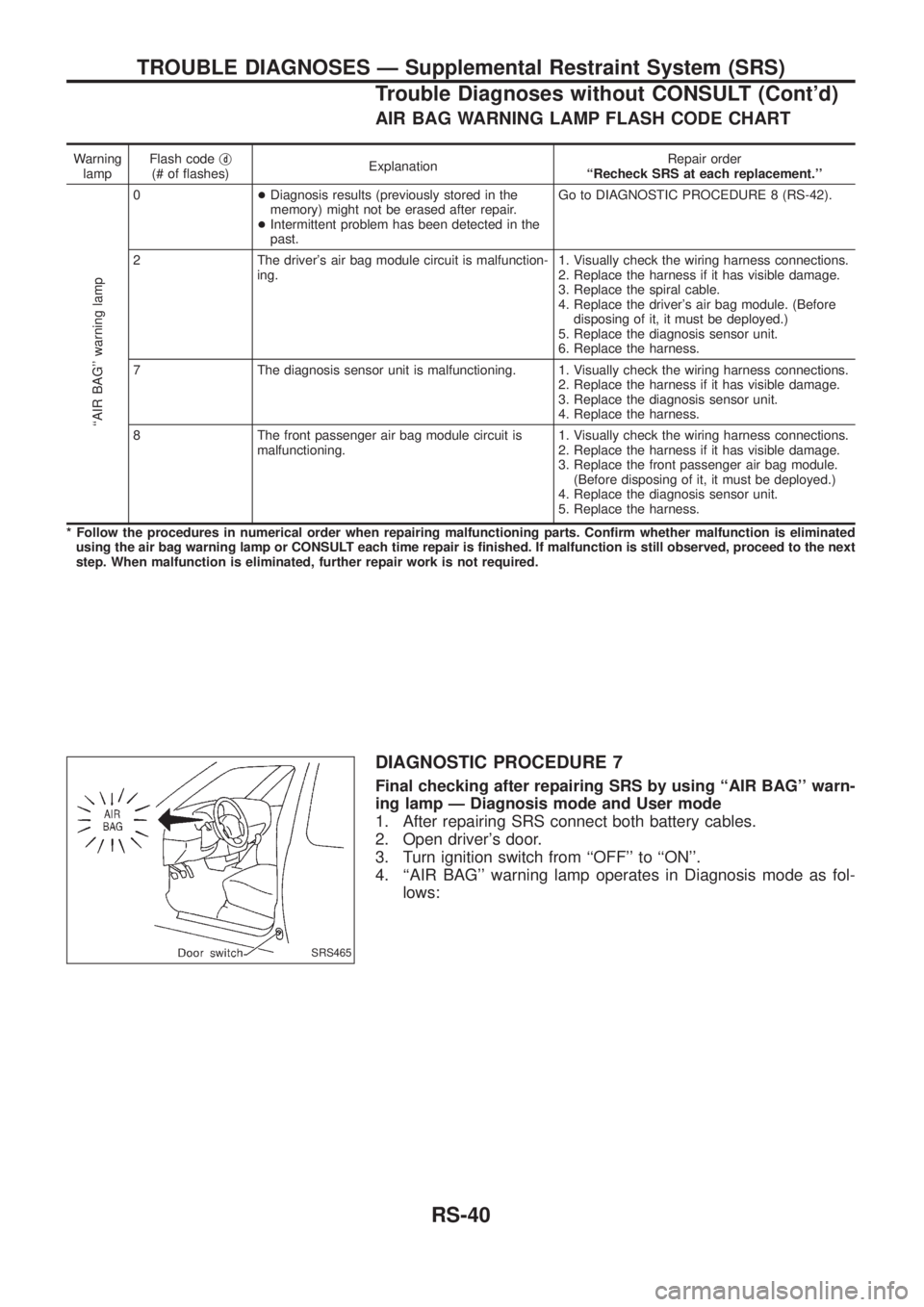

AIR BAG WARNING LAMP FLASH CODE CHART
Warning
lampFlash codejd(# of ¯ashes)ExplanationRepair order
``Recheck SRS at each replacement.''
``AIR BAG'' warning lamp
0+Diagnosis results (previously stored in the
memory) might not be erased after repair.
+Intermittent problem has been detected in the
past.Go to DIAGNOSTIC PROCEDURE 8 (RS-42).
2 The driver's air bag module circuit is malfunction-
ing.1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the spiral cable.
4. Replace the driver's air bag module. (Before
disposing of it, it must be deployed.)
5. Replace the diagnosis sensor unit.
6. Replace the harness.
7 The diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the diagnosis sensor unit.
4. Replace the harness.
8 The front passenger air bag module circuit is
malfunctioning.1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the front passenger air bag module.
(Before disposing of it, it must be deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the harness.
* Follow the procedures in numerical order when repairing malfunctioning parts. Con®rm whether malfunction is eliminated
using the air bag warning lamp or CONSULT each time repair is ®nished. If malfunction is still observed, proceed to the next
step. When malfunction is eliminated, further repair work is not required.
DIAGNOSTIC PROCEDURE 7
Final checking after repairing SRS by using ``AIR BAG'' warn-
ing lamp Ð Diagnosis mode and User mode
1. After repairing SRS connect both battery cables.
2. Open driver's door.
3. Turn ignition switch from ``OFF'' to ``ON''.
4. ``AIR BAG'' warning lamp operates in Diagnosis mode as fol-
lows:
SRS465
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses without CONSULT (Cont'd)
RS-40

No. ``AIR BAG'' warning lamp operation Ð Diagnosis mode Ð SRS condition
1
MRS100A
jathroughjbare repeated. No malfunc-
tion is
detected or
repair is com-
pleted.
No further
action is nec-
essary.
2
MRS099A
jathroughjdare repeated.
NOTE:
j
aÐ Interval I
jbÐ Start signal (Start signal
identi®es display modes)
j
cÐ Interval II
jdÐ Indicates malfunctioning
part (0.5 sec. ON and 0.5
sec. OFF is counted as one
¯ash.)The system
has a problem
and needs to
be repaired.
NOTE:
When diagnosis sensor unit is replaced with new one, ``AIR
BAG'' warning lamp will operate in User mode. Checking ``AIR
BAG'' warning lamp operation in Diagnosis mode is not
required. Go to step 6.
5. If ``AIR BAG'' warning lamp operates as shown in No. 1 in chart
above, turn ignition switch ``OFF'' to reset from Diagnosis mode
to User mode and to erase the memory of the malfunction.
Then go to step 6.
If ``AIR BAG'' warning lamp operates as shown in No. 2 in chart
above, the malfunctioning part is not repaired completely, or
another malfunctioning part is detected. Go to DIAGNOSTIC
PROCEDURE 6, page RS-39, and repair malfunctioning part
completely.
6. Turn ignition switch ``ON''. ``AIR BAG'' warning lamp operates
in User mode. Compare ``AIR BAG'' warning lamp operation to
the chart below.
NOTE:
If switching Diagnosis mode to User mode is required while
malfunction is being detected, turn ignition switch from ``OFF''
to ``ON''. Then press driver's door switch at least 5 times
within 7 seconds after turning ignition switch ``ON''. SRS is
now in User mode.
``AIR BAG'' warning lamp operation Ð User mode Ð SRS condition Reference item
MRS095A
No malfunction is
detected.
No further action is neces-
sary.
Ð
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses without CONSULT (Cont'd)
RS-41

``AIR BAG'' warning lamp operation Ð User mode Ð SRS condition Reference item
MRS096A
The system has a problem
and needs to be repaired
as indicated.Go to DIAGNOSTIC PRO-
CEDURE 2 or 6 (RS-32 or
RS-39).
MRS097A
Air bag is deployed. Go to COLLISION DIAG-
NOSIS (RS-45).
Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-43).
MRS098A
One of the following has
occurred and needs to be
repaired.
+Meter fuse is blown.
+``AIR BAG'' warning
lamp circuit has open or
short.
+Diagnosis sensor unit is
malfunctioning.Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-43).
DIAGNOSTIC PROCEDURE 8 (Continued from
DIAGNOSTIC PROCEDURE 6) (
without CONSULT)
Inspecting SRS malfunctioning record
Is it the ®rst time for maintenance of
SRS?
Ye s
cNo
Diagnosis results (previ-
ously stored in the
memory) might not be
erased after repair.
Go to DIAGNOSTIC PRO-
CEDURE 7, step 5 (RS-
40).
GO TO DIAGNOSTIC PROCEDURE 5
(RS-36).Further inspection cannot be per-
formed without CONSULT.
.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses without CONSULT (Cont'd)
RS-42

Trouble Diagnoses: ``AIR BAG'' Warning Lamp
Does Not Turn Off
DIAGNOSTIC PROCEDURE 9
Is air bag deployed?
NocYe s
Refer to COLLISION DIAG-
NOSIS (RS-45).
Is SRS ``Air Bag'' fuse OK?
Ye scNo
Replace fuse.
Connect CONSULT and touch
``START''.
+Is ``AIRBAG'' displayed on
CONSULT?
Ye s
cNo
Visually check the wiring
harness connection of diag-
nosis sensor unit. If the har-
ness connection check is
OK, replace diagnosis sen-
sor unit.
Is harness connection between warning
lamp and diagnosis sensor unit OK?
Ye s
cNo
Connect warning lamp and
diagnosis sensor unit con-
nector properly. If warning
lamp still does not go off,
replace harness.
Replace diagnosis sensor unit.
Trouble Diagnoses: ``AIR BAG'' Warning Lamp
Does Not Turn On
DIAGNOSTIC PROCEDURE 10
Is meter fuse OK?
Ye scNo
Replace fuse.
Is warning lamp LED OK?
Ye scNo
Replace warning lamp LED.
1. Disconnect diagnosis sensor unit con-
nector.
2. Turn the ignition key to ON position.
+Does warning lamp turn on?
Ye s
cNo
Check the ground circuit of
``AIR BAG'' warning lamp.
Replace diagnosis sensor unit.
SRS307
SRS180
SRS469
.
.
.
.
.
.
.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-43

Trouble Diagnoses: SRS Does Not Enter
Diagnosis Mode Using Door Switch
DIAGNOSTIC PROCEDURE 11
Disconnect both battery cables and check
battery voltage using circuit tester.
+Is battery voltage more than 9V?
Ye s
cNo
Charge battery.
Remove driver's door switch and check
continuity between driver's door switch
connector terminals
V1andV3under the
following conditions.
Ye s
cNo
Replace driver's door
switch.
Check harness continuity between driver's
door switch connector terminal
V3and
body ground.
+Does continuity exist?
Ye s
cNo
Replace or repair harness.
Replace diagnosis sensor unit.
Go to SRS Operation Check (RS-30).
Condition Continuity
Door switch is depressed
(Door is closed).NO
Door switch is released
(Door is open).YES
SRS263
SRS470
SRS265-D
.
.
.
.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-44

To repair the SRS for a frontal collision, perform the following steps.
When SRS (except the side air bag) is activated in a collision:
V1Replace the diagnosis sensor unit.
V2Remove the air bag modules.
V3Check the SRS components using the table shown below:
+Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
V4Install new air bag modules.
V5Conduct self-diagnosis using CONSULT and ``AIR BAG'' warning lamp. Refer to ``SRS Operation Check''
for details (RS-30). Ensure entire SRS operates properly.
When SRS is not activated in a collision:
V1Check the SRS components using the table shown below:
+Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
V2Conduct self-diagnosis using CONSULT and ``AIR BAG'' warning lamp. Refer to ``SRS Operation Check''
for details (RS-30). Ensure entire SRS operates properly.
SRS inspection
Part SRS (except the
side air bag) is acti-
vatedSRS is NOT activated
Air bag module
(driver and passen-
ger side)REPLACE
Install air bag mod-
ule with new bolts
coated with bonding
agent.1. Remove air bag module. Check harness cover and connectors for damage, ter-
minals for deformities, and harness for binding.
2-1. Install driver air bag module into the steering wheel to check ®t and alignment
with the wheel.
2-2. Install passenger air bag module into the instrument panel to check ®t with the
instrument panel.
3. No damage found, reinstall with new bolts coated with bonding agent.
4. If damagedÐREPLACE. Air bag must be deployed before discarding.
Diagnosis sensor
unitREPLACE
Install diagnosis sen-
sor unit with new
bolts coated with
bonding agent.1. Check case and bracket for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall with new bolts coated with bonding agent.
4. If damagedÐREPLACE. Install diagnosis sensor unit with new bolts coated with
bonding agent.
Seat belt pre-ten-
sioner assemblyREPLACE
Install seat belt pre-
tensioner with new
bolts coated with
bonding agent.1. Remove seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformities, and
harness for binding.
2. Check belts for damage and anchors for loose mounting.
3. Check retractor for smooth operation.
4. If no damage is found, reinstall with new bolts coated with bonding agent.
5. If damagedÐREPLACE. Install the seat belt pre-tensioners with new bolts coated
with bonding agent. Seat belt pre-tensioners must be deployed before discarding.
Steering wheel 1. Visually check steering wheel for deformities.
2. Check harness (built into steering wheel) and connectors for damage, and terminals for deformities.
3. Install air bag module to check ®t or alignment with steering wheel.
4. Check steering wheel for excessive free play.
5. If no damage is found, reinstall the steering wheel.
6. If damagedÐREPLACE.
Spiral cable 1. Visually check spiral cable and combination switch for damage.
2. Check connectors, ¯at cable and protective tape for damage.
3. Check steering wheel for noise, binding or heavy operation.
4. If no damage is found, reinstall the spiral cable.
5. If damagedÐREPLACE.
Harness and Con-
nectors1. Check connectors for poor connection, damage, and terminals for deformities.
2. Check harness for binding, cha®ng, cuts, or deformities.
3. If no damage is found, reinstall harness and connectors.
4. DamagedÐREPLACE damaged section of harness. Do not attempt to repair, splice or modify any SRS
harness.
Instrument panel Refer to the table on the next page.
COLLISION DIAGNOSIS
RS-45

Part SRS (except the
side air bag) is acti-
vatedSRS is NOT activated
Instrument panel 1. When passenger air bag in¯ates, check the following points for bending, deformities or cracks.
+Opening portion for passenger air bag
SRS472
+Passenger air bag module brackets
SRS473
+The portions securing the instrument panel
SRS474
2. If no damage is found, reinstall the instrument panel.
3. If damagedÐREPLACE the instrument panel with bolts.
COLLISION DIAGNOSIS
RS-46

STEERING SYSTEM
SECTION
ST
CONTENTS
PRECAUTIONS AND PREPARATION............................1
Supplemental Restraint System (SRS) ``AIR
BAG'' and ``SEAT BELT PRE-TENSIONER''...............1
Precautions for Steering System .................................1
Special Service Tools ..................................................1
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING.....................................................3
NVH Troubleshooting Chart.........................................3
ON-VEHICLE SERVICE..................................................4
Checking Steering Wheel Play ....................................4
Checking Neutral Position on Steering Wheel ............4
Front Wheel Turning Angle ..........................................4
Checking and Adjusting Drive Belts ............................5
Checking Fluid Level ...................................................5
Checking Fluid Leakage ..............................................5
Bleeding Hydraulic System..........................................6
Checking Steering Wheel Turning Force ....................6
Checking Hydraulic System.........................................6
STEERING WHEEL AND STEERING COLUMN............8
Removal and Installation .............................................8
Disassembly and Assembly .......................................10Inspection................................................................... 11
POWER STEERING SYSTEM (Model: PB69K)..........12
Description .................................................................12
POWER STEERING GEAR (Model: PB69K)...............13
Removal and Installation ...........................................13
Inspection...................................................................13
POWER STEERING OIL PUMP....................................15
Removal and Installation ...........................................15
Disassembly and Assembly .......................................16
Pre-disassembly Inspection .......................................16
Inspection...................................................................17
Disassembly...............................................................17
Assembly ...................................................................18
STEERING LINKAGE....................................................19
Removal and Installation ...........................................19
Disassembly...............................................................20
Inspection...................................................................20
SERVICE DATA AND SPECIFICATIONS (SDS)..........22
General Speci®cations ...............................................22
Inspection and Adjustment ........................................22
ST

Supplemental Restraint System (SRS) ``AIR
BAG'' and ``SEAT BELT PRE-TENSIONER''
The Supplemental Restraint System such as ``AIR BAG'' and ``SEAT BELT PRE-TENSIONER'' used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger in a frontal collision.
The SRS system composition which is available to NISSAN MODEL Y61 is as follows (The composition var-
ies according to the destination.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), seat belt pre-tensioner, a diagnosis sensor unit, warning lamp,
wiring harness and spiral cable.
Information necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:
+To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag in¯ation, all maintenance must be performed
by an authorized NISSAN dealer.
+Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation either just before
the harness connectors or for the complete harness are related to the SRS.
Precautions for Steering System
+Before disassembly, thoroughly clean the outside of the unit.
+Disassembly should be done in a clean work area. It is important to prevent the internal parts from
becoming contaminated by dirt or other foreign matter.
+Place disassembled parts in order, on a parts rack, for easier and proper assembly.
+Use nylon cloths or paper towels to clean the parts; common shop rags can leave lint that might
interfere with their operation.
+Before inspection or reassembly, carefully clean all parts with a general purpose, non-¯ammable
solvent.
+Before assembly, apply a coat of recommended ATF* to hydraulic parts. Vaseline may be applied
to O-rings and seals. Do not use any grease.
+Replace all gaskets, seals and O-rings. Avoid damaging O-rings, seals and gaskets during instal-
lation. Perform functional tests whenever designated.
*: Automatic Transmission Fluid type DEXRON
TMIII or equivalent
Special Service Tools
Tool number
Tool nameDescription
KV48100700
Torque adapter
NT169
Measuring turning torque
ST27180001
Steering wheel puller
NT544
Removing steering wheel
PRECAUTIONS AND PREPARATION
ST-1
