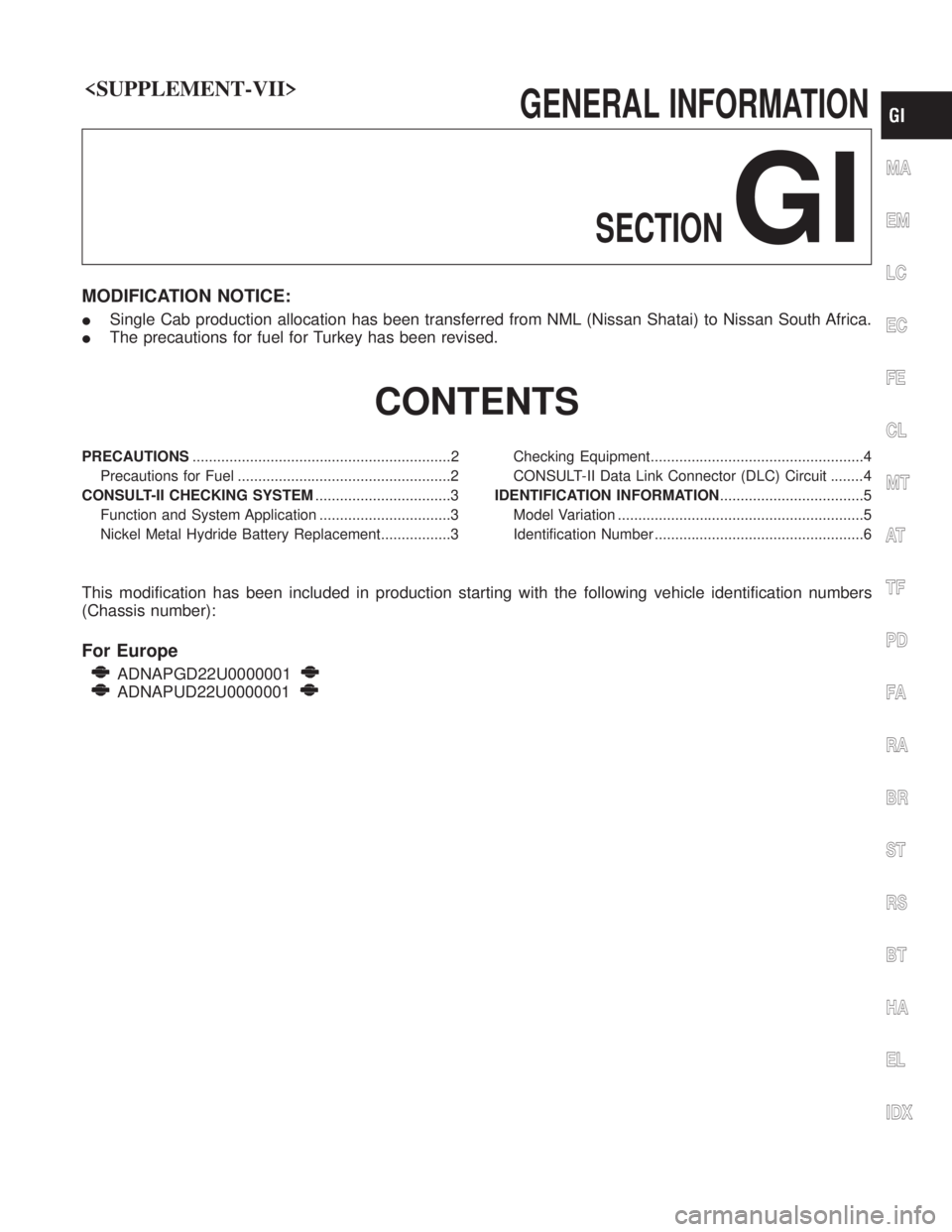

GENERALINFORMATIONSECTION
GI
MODIFICATION NOTICE:
ISingle Cab production allocation has been transferred from NML (Nissan Shatai) to Nissan South Africa.
I The precautions for fuel for Turkey has been revised.
CONTENTS
PRECAUTIONS ...............................................................2
Precautions for Fuel ....................................................2
CONSULT-II CHECKING SYSTEM .................................3
Function and System Application ................................3
Nickel Metal Hydride Battery Replacement.................3 Checking Equipment....................................................4
CONSULT-II Data Link Connector (DLC) Circuit ........4
IDENTIFICATION INFORMATION ...................................5
Model Variation ............................................................5
Identification Number ...................................................6
This modification has been included in production starting with the following vehicle identification numbers
(Chassis number):
For Europe
ADNAPGD22U0000001
ADNAPUD22U0000001
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX

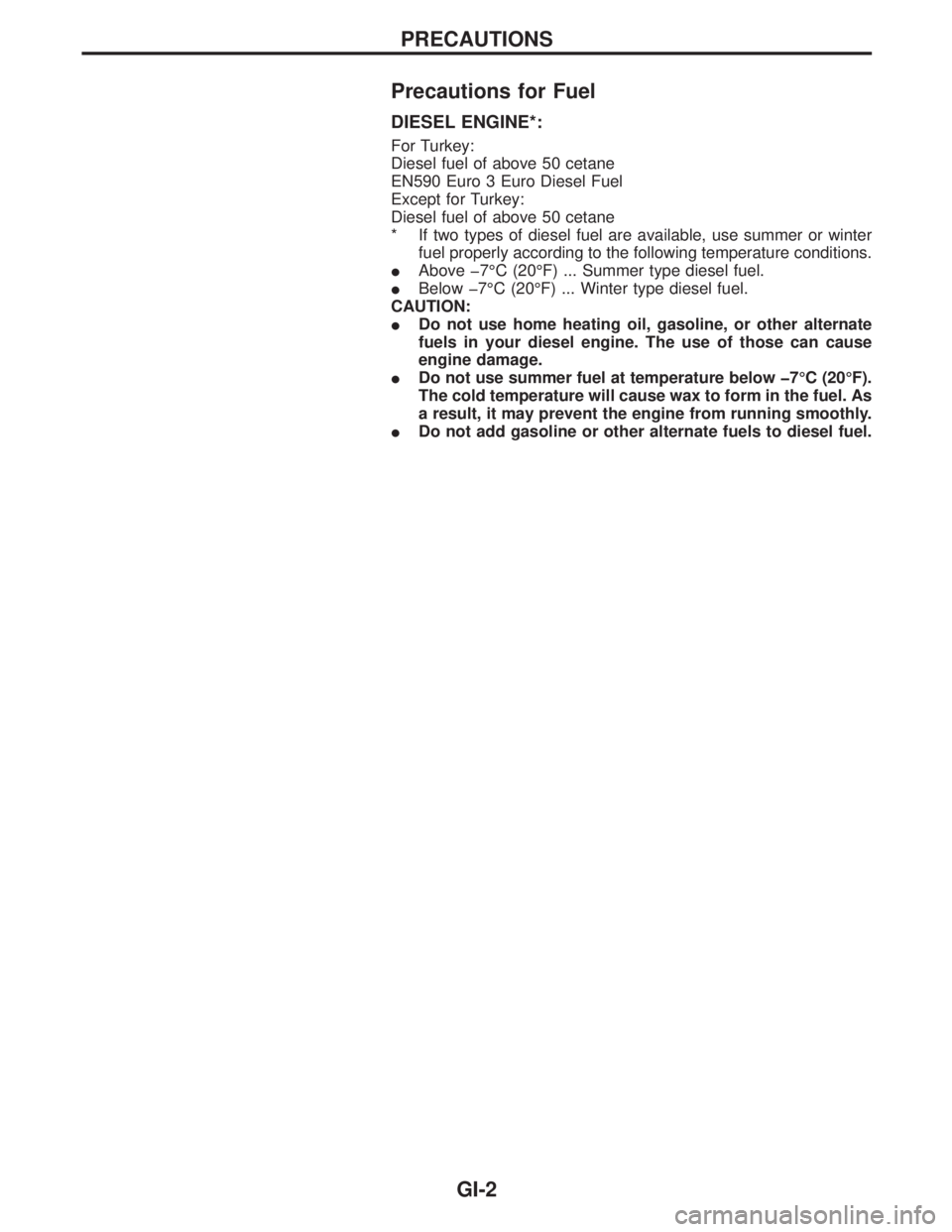

Precautions for Fuel
DIESEL ENGINE*:
For Turkey:
Diesel fuel of above 50 cetane
EN590 Euro 3 Euro Diesel Fuel
Except for Turkey:
Diesel fuel of above 50 cetane
* If two types of diesel fuel are available, use summer or winterfuel properly according to the following temperature conditions.
I Above þ7ÉC (20ÉF) ... Summer type diesel fuel.
I Below þ7ÉC (20ÉF) ... Winter type diesel fuel.
CAUTION:
I Do not use home heating oil, gasoline, or other alternate
fuels in your diesel engine. The use of those can cause
engine damage.
I Do not use summer fuel at temperature below þ7ÉC (20ÉF).
The cold temperature will cause wax to form in the fuel. As
a result, it may prevent the engine from running smoothly.
I Do not add gasoline or other alternate fuels to diesel fuel.
PRECAUTIONS
GI-2

Function and System Application
Diagnostic testmode Function ENGINE A/T ABS AIR BAG
Work support This mode enables a technician to
adjust some devices faster and more
accurate by following the indications
on CONSULT-II. xxÐÐ
Self-diagnostic
results Self-diagnostic results can be read
and erased quickly.
xxxx
Trouble diagnos-
tic record Current self-diagnostic results and all
trouble diagnostic records previously
stored can be read.
ÐÐÐ x
ECU discrimi-
nated No. Classification number of a replace-
ment ECU can be read to prevent an
incorrect ECU from being installed.
ÐÐÐ x
Data monitor Input/Output data in the ECU can be
read. xxxÐ
DTC work sup-
port The operating condition to confirm
Diagnosis Trouble Codes can be
selected.
ÐxÐÐ
Active test Diagnostic Test Mode in which CON-
SULT-II drives some actuators apart
from the ECUs and also shifts some
parameters in a specified range. xÐxÐ
ECU (ECM/TCM)
part number ECU (ECM/TCM) part number can
be read.
xxxÐ
Function test This mode can show results of self-
diagnosis of ECU with either ªOKº or
ªNGº. For engine, more practical
tests regarding sensors/switches
and/or actuators are available. xxxx
x: Applicable
Nickel Metal Hydride Battery Replacement
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with Genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard if
mistreated. Do not recharge, disassemble of dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regulations.
CONSULT-II CHECKING SYSTEM
GI-3
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX

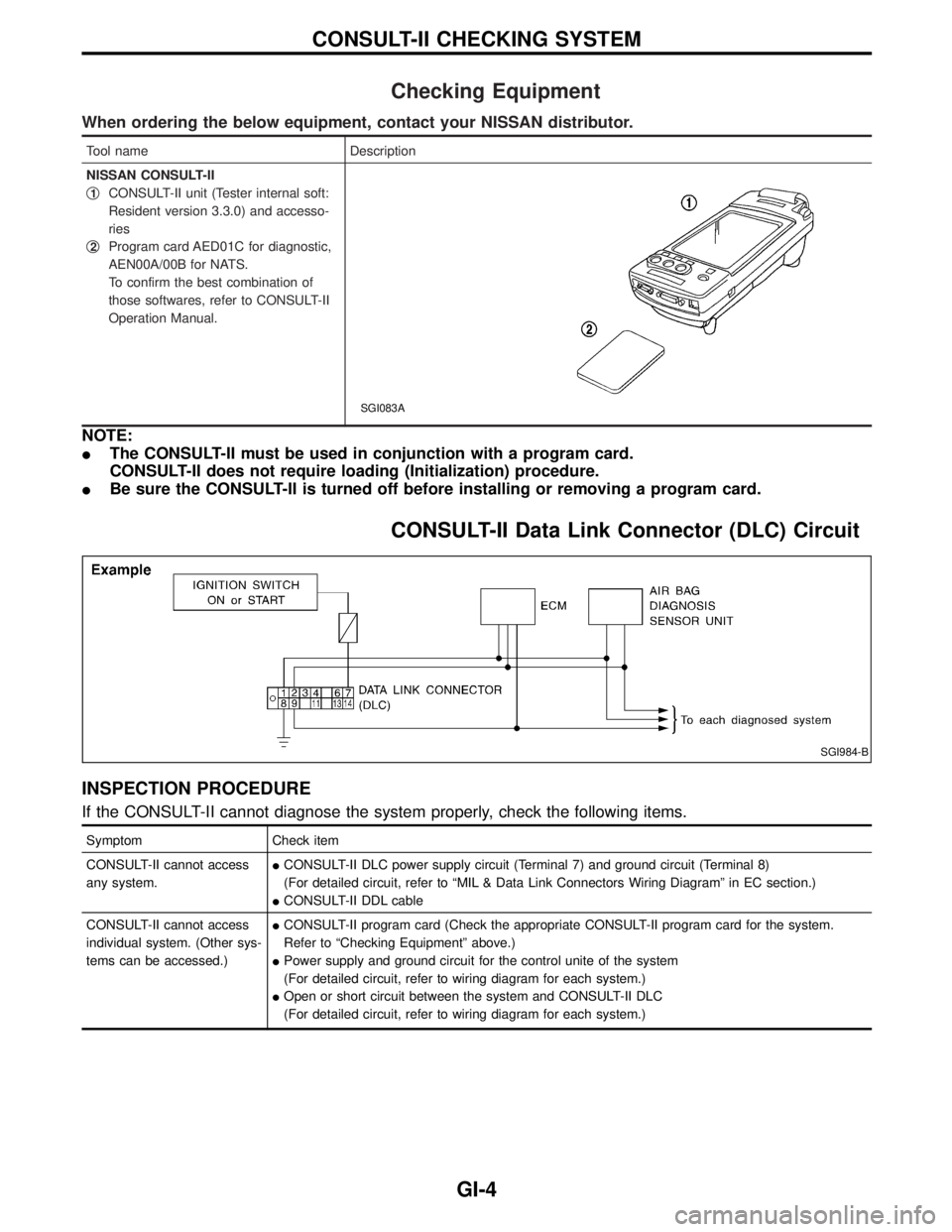

Checking Equipment
When ordering the below equipment, contact your NISSAN distributor.
Tool name Description
NISSAN CONSULT-II
q
1CONSULT-II unit (Tester internal soft:
Resident version 3.3.0) and accesso-
ries
q
2Program card AED01C for diagnostic,
AEN00A/00B for NATS.
To confirm the best combination of
those softwares, refer to CONSULT-II
Operation Manual.
SGI083A
NOTE:
I The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.
I Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II Data Link Connector (DLC) Circuit
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
Symptom Check item
CONSULT-II cannot access
any system. I
CONSULT-II DLC power supply circuit (Terminal 7) and ground circuit (Terminal 8)
(For detailed circuit, refer to ªMIL & Data Link Connectors Wiring Diagramº in EC section.)
I CONSULT-II DDL cable
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.) I
CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to ªChecking Equipmentº above.)
I Power supply and ground circuit for the control unite of the system
(For detailed circuit, refer to wiring diagram for each system.)
I Open or short circuit between the system and CONSULT-II DLC
(For detailed circuit, refer to wiring diagram for each system.)
SGI984-B
CONSULT-II CHECKING SYSTEM
GI-4

Model Variation
DestinationClass
AxleModel
Engine Transmission Differential carrier
Cab Wheelbase Grade LH drive RH drive Front Rear
Europe Single Long DX
2WD Ð AVLGRDF-UQL
YD25DDTi FS5R30AÐ
C200
STD AVLGLCF-UQL Ð
DX AVLGLDF-UQL Ð
STD
4WD Ð AVLURCF-UQL
R180
DX Ð AVLURDF-UQL
STD AVLULCF-UQL Ð DX AVLULDF-UQL Ð
IDENTIFICATION INFORMATION
GI-5
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX

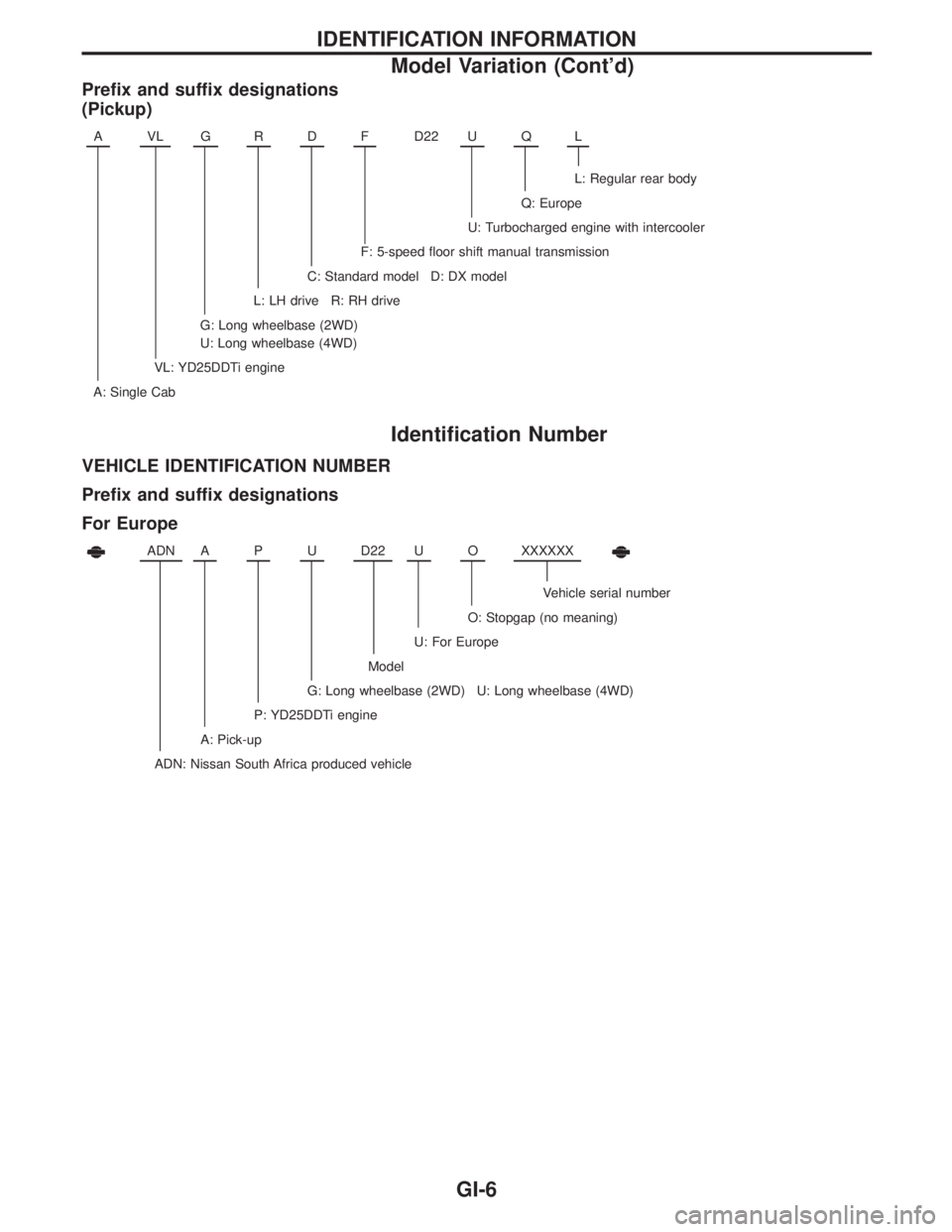

Prefix and suffix designations
(Pickup)
AVLGRDFD22 UQL
L: Regular rear body
Q: Europe
U: Turbocharged engine with intercooler
F: 5-speed floor shift manual transmission
C: Standard model D: DX model
L: LH drive R: RH drive
G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
VL: YD25DDTi engine
A: Single Cab
Identification Number
VEHICLE IDENTIFICATION NUMBER
Prefix and suffix designations
For Europe
ADNAPUD22UOXXXXXX
Vehicle serial number
O: Stopgap (no meaning)
U: For Europe
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
P: YD25DDTi engine
A: Pick-up
ADN: Nissan South Africa produced vehicle
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-6

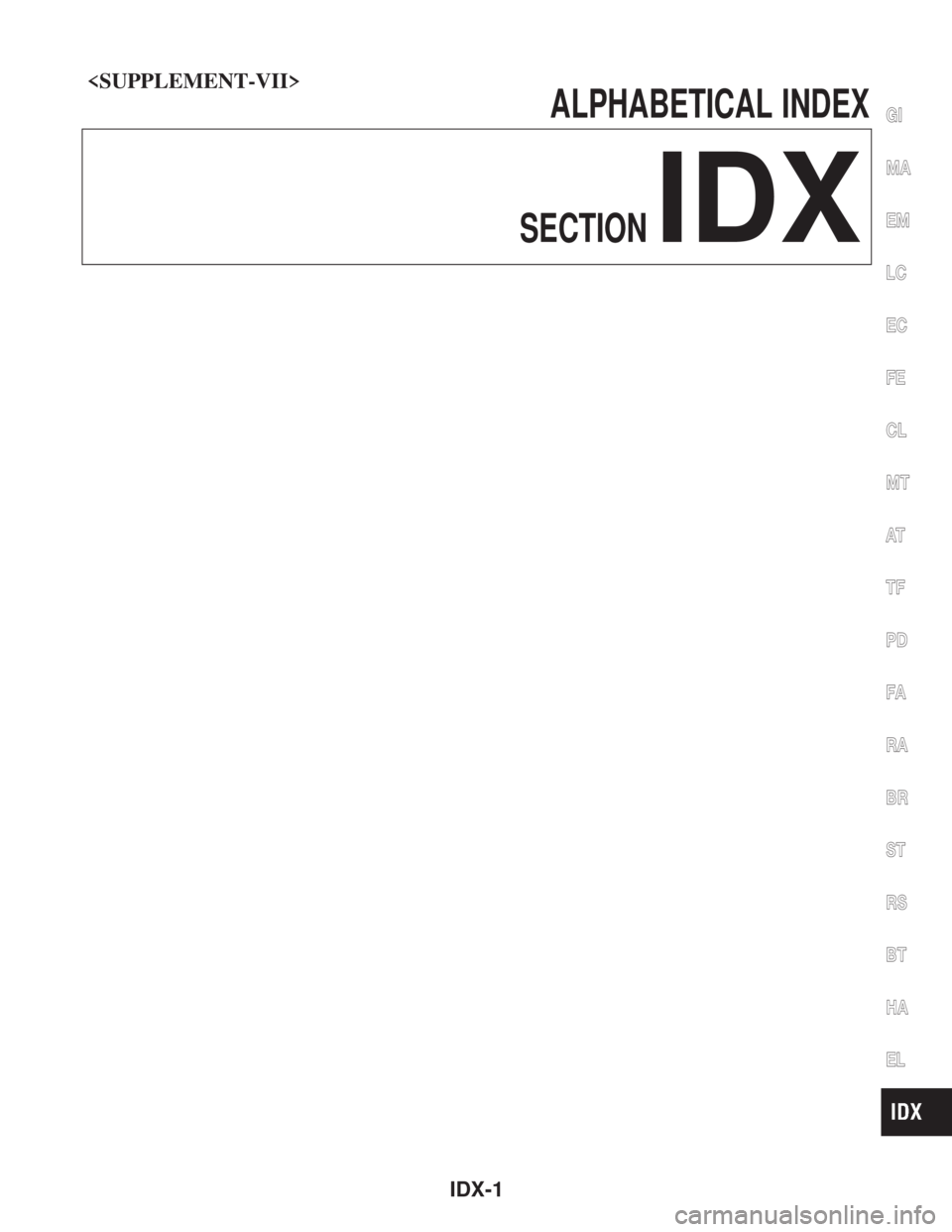

ALPHABETICALINDEX
