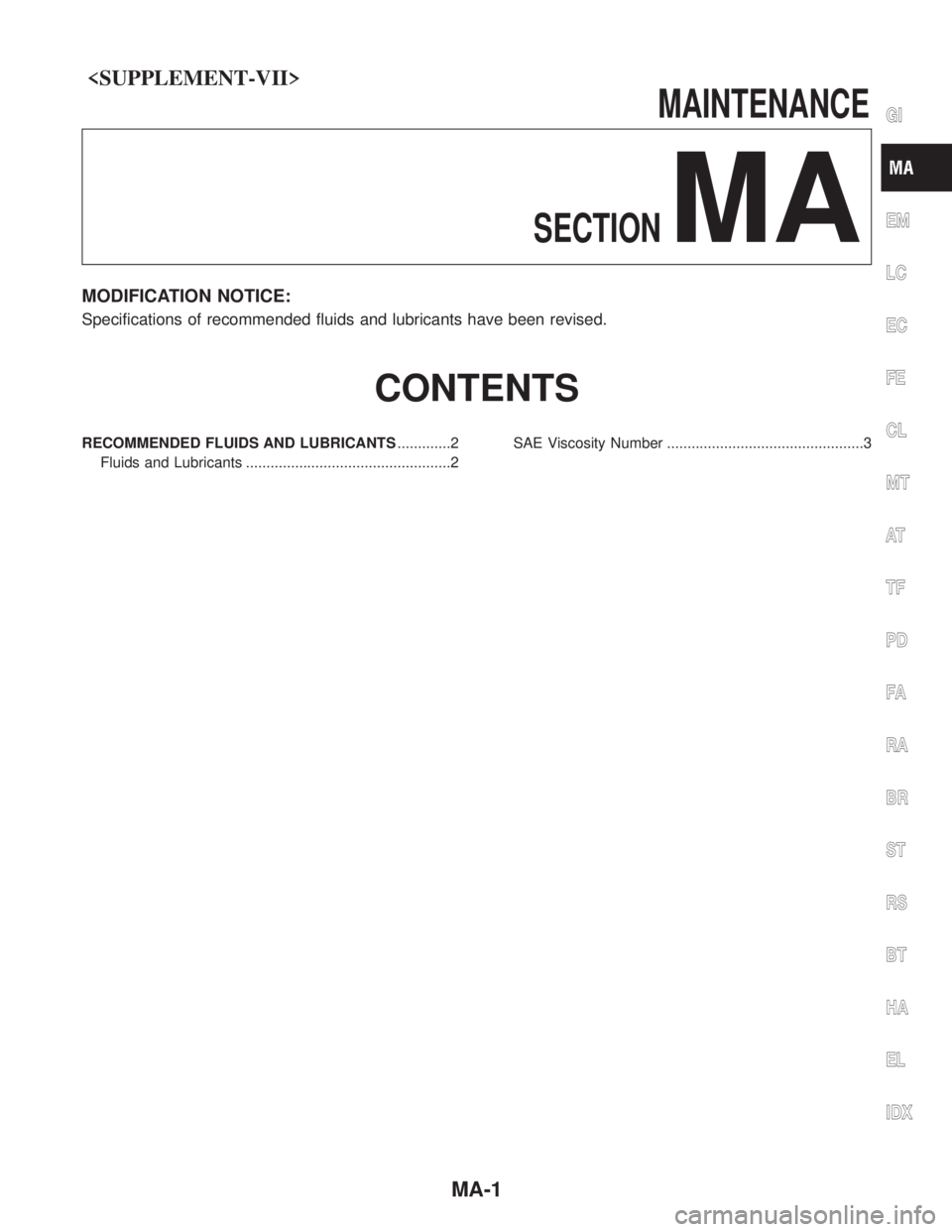

MAINTENANCE
SECTION
MA
MODIFICATION NOTICE:
Specifications of recommended fluids and lubricants have been revised.
CONTENTS
RECOMMENDED FLUIDS AND LUBRICANTS .............2
Fluids and Lubricants ..................................................2 SAE Viscosity Number ................................................3
GI
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX
MA-1

FluidsandLubricants
Capacity (Approximate)Recommended Fluids/Lubricants
Liter Imp
measure
Engine oil (Refill) With oil filter YD25DDTi 2WD 5.6
4WD 4.3*6 4-7/8 qt
3-3/4 qt*6 For Europe:
Genuine NISSAN engine oil
API CF-4 for YD engine*1, *4
ACEA B1 for YD engine
Without oil filter YD25DDTi
2WD 5.3
4WD 4.0*6 4-5/8 qt
3-1/2 qt*6
Cooling system (With
reservoir) YD25DDTi 9.4 8-1/4 qt For Europe:
Genuine NISSAN Anti-freeze Coolant (L250) or equiva-
lent*5
Manual transmission
gear oil FS5R30A2WD 2.8
4WD 5.1 4-7/8 pt
9pt API GL-4, Viscosity SAE 75W-85 only
Transfer fluid TX10A 2.2 2 qt Genuine NISSAN ATF Matic Fluid D or equivalent*2 or
API GL-4*1
Differential gear oil
Front R180A 1.3 2-1/4 pt Standard differential gear: Differential Oil Hypoid Super
GL-5, 80W-90 (Part No.: KLD33-8090201) or API GL-5*1
Limited-slip differential (LSD) gear: Differential Oil
Hypoid LSD (Part No.: KLD31-8090403) or equivalent
Rear C200 1.3 2-1/4 pt
Power steering fluid Ð Ð Genuine NISSAN PSF or equivalent*7
Brake and clutch fluid Ð Ð For Europe: DOT 3 or DOT 4 (U.S. FMVSS No. 116)*3
Propeller shaft grease Ð Ð NLGI No. 2 (Lithium soap base)
Multi-purpose grease Ð Ð NLGI No. 2 (Lithium soap base)
*1: For further details, see ªSAE Viscosity Numberº.
*2: Contact a NISSAN dealership for more information regarding suitable fluid, including recommended brand(s) of DEXRON
TMIII/MERCONTMAuto-
matic Transmission Fluid.
*3: Never mix DOT 3 and DOT 4. (DOT 3 is filled at factory.)
*4: Never use CG-4 grade oil.
*5: Use NISSAN Genuine Engine Coolant, or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be covered by
the warranty even if such incidents occurred during the warranty period.
*6: Including 4WD appearance 2WD models
*7: DEXRON
TMIII type ATF can be used.
RECOMMENDEDFLUIDSANDLUBRICANTS
MA-2

SAEViscosityNumber
DIESEL ENGINE
I5W-30 is preferable.
If 5W-30 is not available, select the viscosity, from the chart,
that is suitable for the outside temperature range.
SMA204D
RECOMMENDED FLUIDS AND LUBRICANTS
MA-3
GI
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX

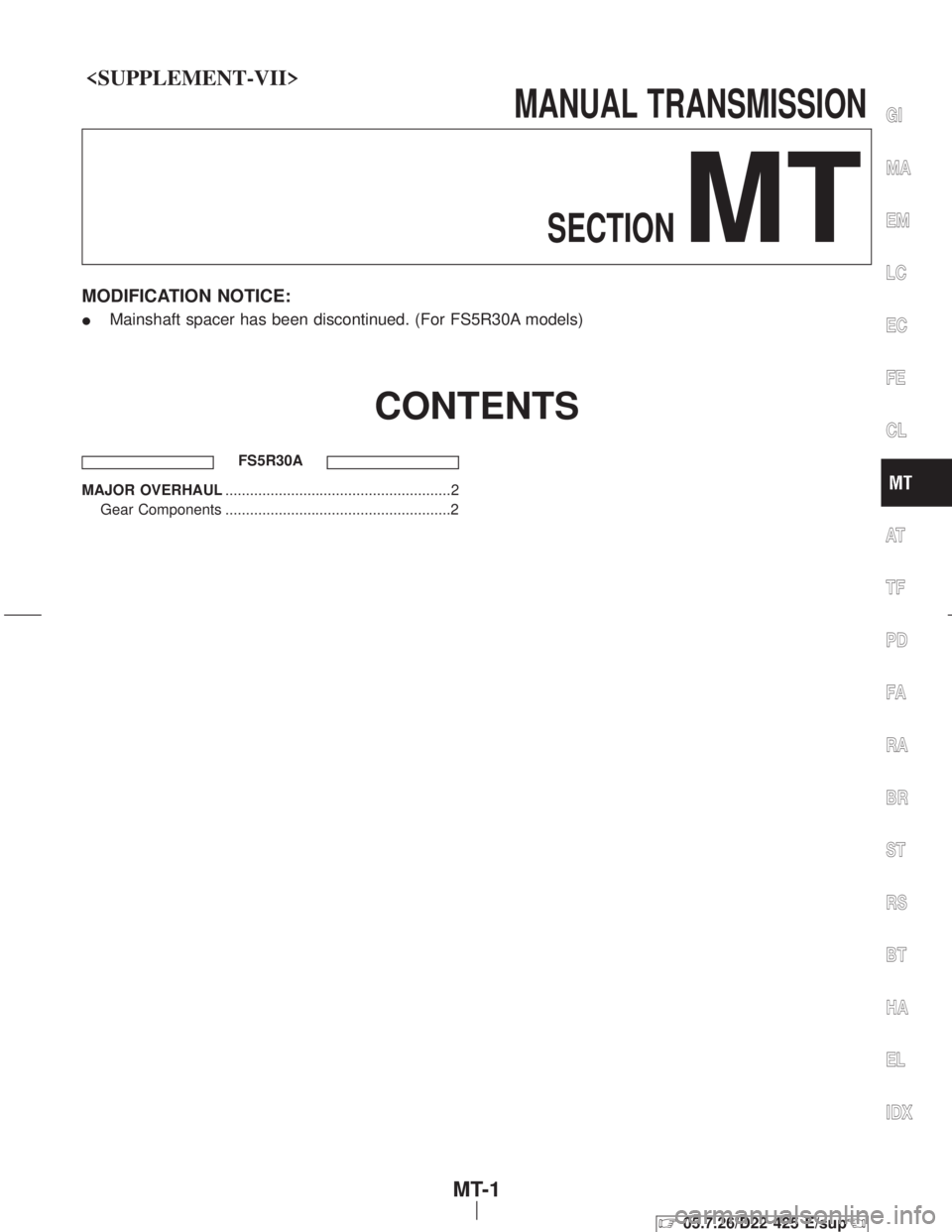

MANUALTRANSMISSIONSECTION
MT
MODIFICATION NOTICE:
I Mainshaft spacer has been discontinued. (For FS5R30A models)
CONTENTS
FS5R30A
MAJOR OVERHAUL .......................................................2
Gear Components .......................................................2
GI
MA
EM
LC
EC
FE
CL
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX
MT-1
Z05.7.26/D22 425 E/supX

Gear Components
SMT222E
MAJOR OVERHAULFS5R30A
MT-2

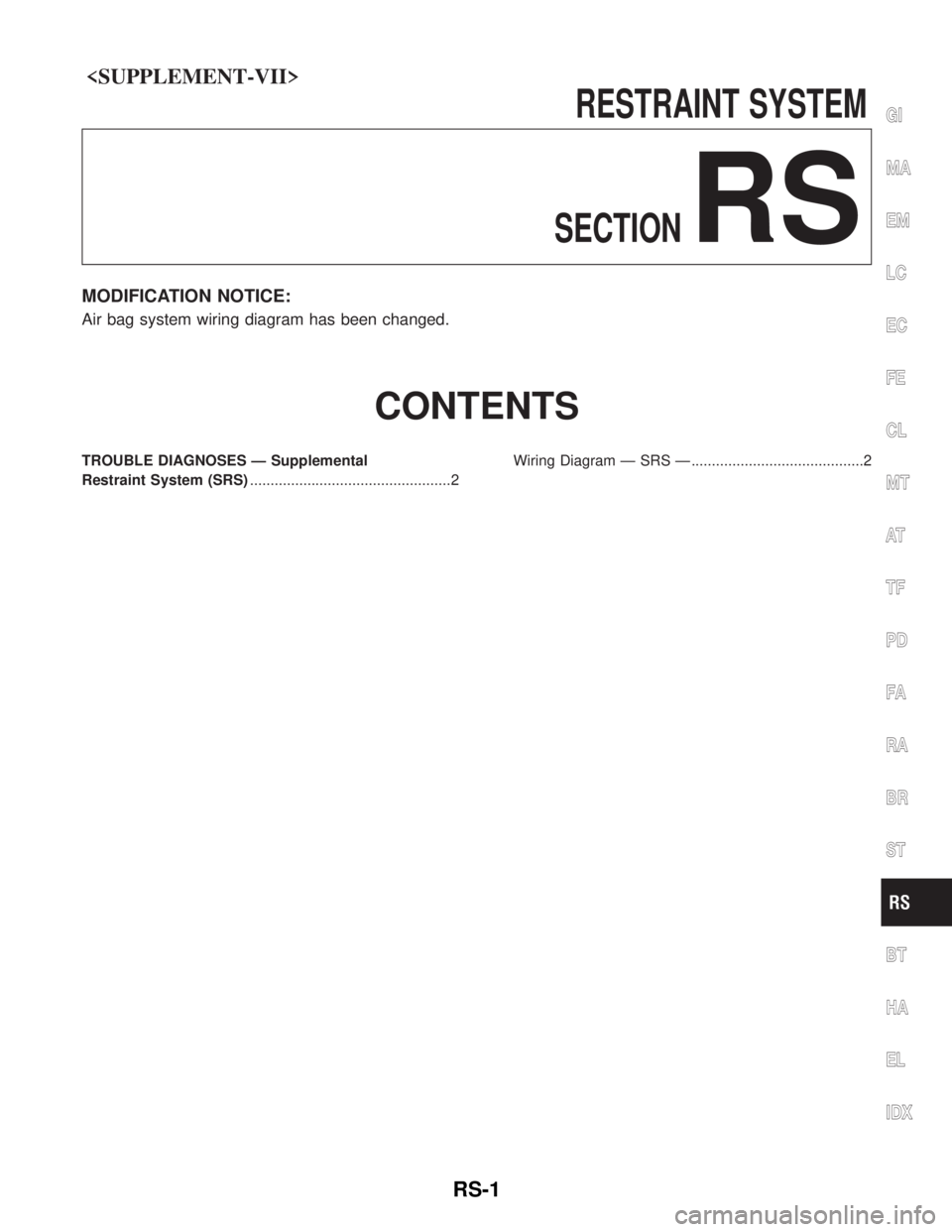

RESTRAINTSYSTEM
SECTION
RS
MODIFICATION NOTICE:
Air bag system wiring diagram has been changed.
CONTENTS
TROUBLE DIAGNOSES Ð Supplemental
Restraint System (SRS) .................................................2 Wiring Diagram Ð SRS Ð ..........................................2
GI
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
BT
HA
EL
IDX
RS-1

WiringDiagramÐSRSÐ
GRS032A
TROUBLEDIAGNOSESÐSupplementalRestraintSystem(SRS)
RS-2

GRS026A
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Wiring Diagram Ð SRS Ð (Cont'd)RS-3
