FOREWORD
This manual contains maintenance and repair procedures for NISSAN
PICKUP, model D22 series.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.
All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in speci-
®cations and methods at any time without notice.
IMPORTANT SAFETY NOTICE
The proper performance of service is essential for both the safety of the
technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a man-
ner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician and the
tools and parts available. Accordingly, anyone using service procedures,
tools or parts which are not speci®cally recommended by NISSAN must
®rst completely satisfy himself that neither his safety nor the vehicle's
safety will be jeopardized by the service method selected.
NISSAN EUROPE S.A.S.
Service Engineering Section
Paris, France

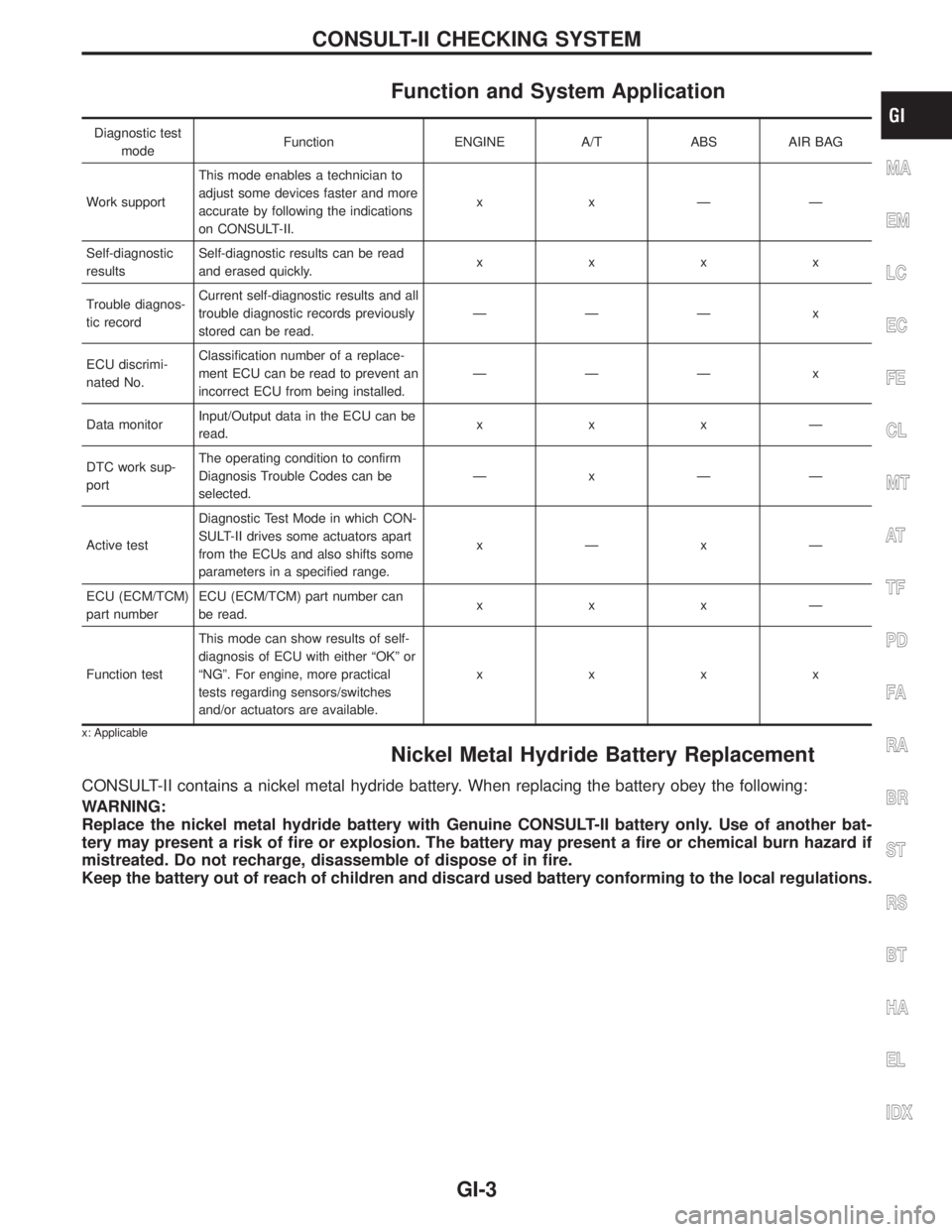

Function and System Application
Diagnostic testmode Function ENGINE A/T ABS AIR BAG
Work support This mode enables a technician to
adjust some devices faster and more
accurate by following the indications
on CONSULT-II. xxÐÐ
Self-diagnostic
results Self-diagnostic results can be read
and erased quickly.
xxxx
Trouble diagnos-
tic record Current self-diagnostic results and all
trouble diagnostic records previously
stored can be read.
ÐÐÐ x
ECU discrimi-
nated No. Classification number of a replace-
ment ECU can be read to prevent an
incorrect ECU from being installed.
ÐÐÐ x
Data monitor Input/Output data in the ECU can be
read. xxxÐ
DTC work sup-
port The operating condition to confirm
Diagnosis Trouble Codes can be
selected.
ÐxÐÐ
Active test Diagnostic Test Mode in which CON-
SULT-II drives some actuators apart
from the ECUs and also shifts some
parameters in a specified range. xÐxÐ
ECU (ECM/TCM)
part number ECU (ECM/TCM) part number can
be read.
xxxÐ
Function test This mode can show results of self-
diagnosis of ECU with either ªOKº or
ªNGº. For engine, more practical
tests regarding sensors/switches
and/or actuators are available. xxxx
x: Applicable
Nickel Metal Hydride Battery Replacement
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with Genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard if
mistreated. Do not recharge, disassemble of dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regulations.
CONSULT-II CHECKING SYSTEM
GI-3
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX

FluidsandLubricants
Capacity (Approximate)Recommended Fluids/Lubricants
Liter Imp
measure
Engine oil (Refill) With oil filter YD25DDTi 2WD 5.6
4WD 4.3*6 4-7/8 qt
3-3/4 qt*6 For Europe:
Genuine NISSAN engine oil
API CF-4 for YD engine*1, *4
ACEA B1 for YD engine
Without oil filter YD25DDTi
2WD 5.3
4WD 4.0*6 4-5/8 qt
3-1/2 qt*6
Cooling system (With
reservoir) YD25DDTi 9.4 8-1/4 qt For Europe:
Genuine NISSAN Anti-freeze Coolant (L250) or equiva-
lent*5
Manual transmission
gear oil FS5R30A2WD 2.8
4WD 5.1 4-7/8 pt
9pt API GL-4, Viscosity SAE 75W-85 only
Transfer fluid TX10A 2.2 2 qt Genuine NISSAN ATF Matic Fluid D or equivalent*2 or
API GL-4*1
Differential gear oil
Front R180A 1.3 2-1/4 pt Standard differential gear: Differential Oil Hypoid Super
GL-5, 80W-90 (Part No.: KLD33-8090201) or API GL-5*1
Limited-slip differential (LSD) gear: Differential Oil
Hypoid LSD (Part No.: KLD31-8090403) or equivalent
Rear C200 1.3 2-1/4 pt
Power steering fluid Ð Ð Genuine NISSAN PSF or equivalent*7
Brake and clutch fluid Ð Ð For Europe: DOT 3 or DOT 4 (U.S. FMVSS No. 116)*3
Propeller shaft grease Ð Ð NLGI No. 2 (Lithium soap base)
Multi-purpose grease Ð Ð NLGI No. 2 (Lithium soap base)
*1: For further details, see ªSAE Viscosity Numberº.
*2: Contact a NISSAN dealership for more information regarding suitable fluid, including recommended brand(s) of DEXRON
TMIII/MERCONTMAuto-
matic Transmission Fluid.
*3: Never mix DOT 3 and DOT 4. (DOT 3 is filled at factory.)
*4: Never use CG-4 grade oil.
*5: Use NISSAN Genuine Engine Coolant, or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be covered by
the warranty even if such incidents occurred during the warranty period.
*6: Including 4WD appearance 2WD models
*7: DEXRON
TMIII type ATF can be used.
RECOMMENDEDFLUIDSANDLUBRICANTS
