NISSAN PRIMERA 1999 Electronic Repair Manual

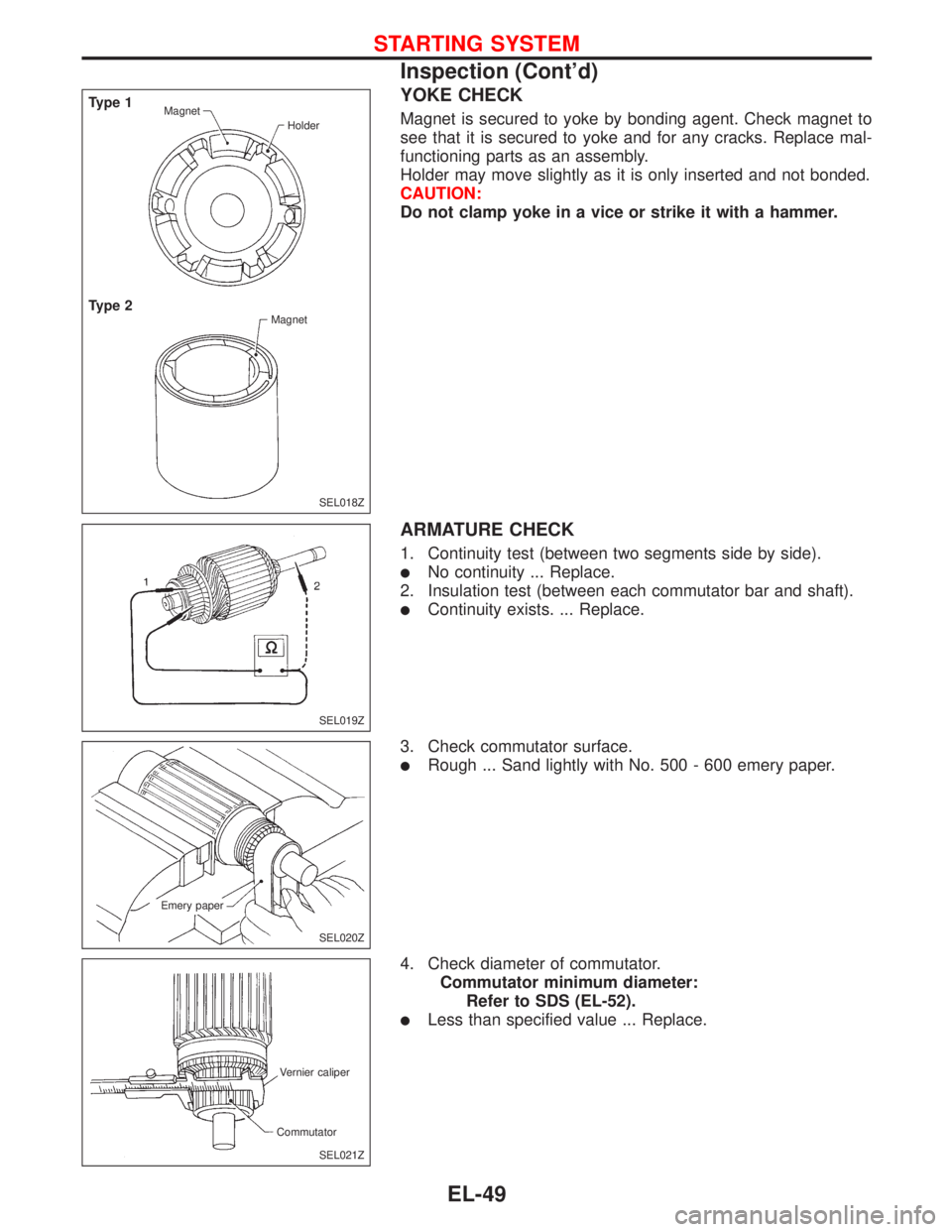

YOKE CHECK
Magnet is secured to yoke by bonding agent. Check magnet to
see that it is secured to yoke and for any cracks. Replace mal-
functioning parts as an assembly.
Holder may move slightly as it is only inserted and not bonded.
CAUTION:
Do not clamp yoke in a vice or strike it with a hammer.
ARMATURE CHECK
1. Continuity test (between two segments side by side).

No continuity ... Replace.
2. Insulation test (between each commutator bar and shaft).

Continuity exists. ... Replace.
3. Check commutator surface.

Rough ... Sand lightly with No. 500 - 600 emery paper.
4. Check diameter of commutator.
Commutator minimum diameter:
Refer to SDS (EL-52).

Less than specified value ... Replace.
SEL018Z
Type 1
Type 2Magnet
Holder
Magnet
SEL019Z
SEL020Z Emery paper
SEL021Z Vernier caliper
Commutator
STARTING SYSTEM
Inspection (Cont’d)
EL-49

M70R

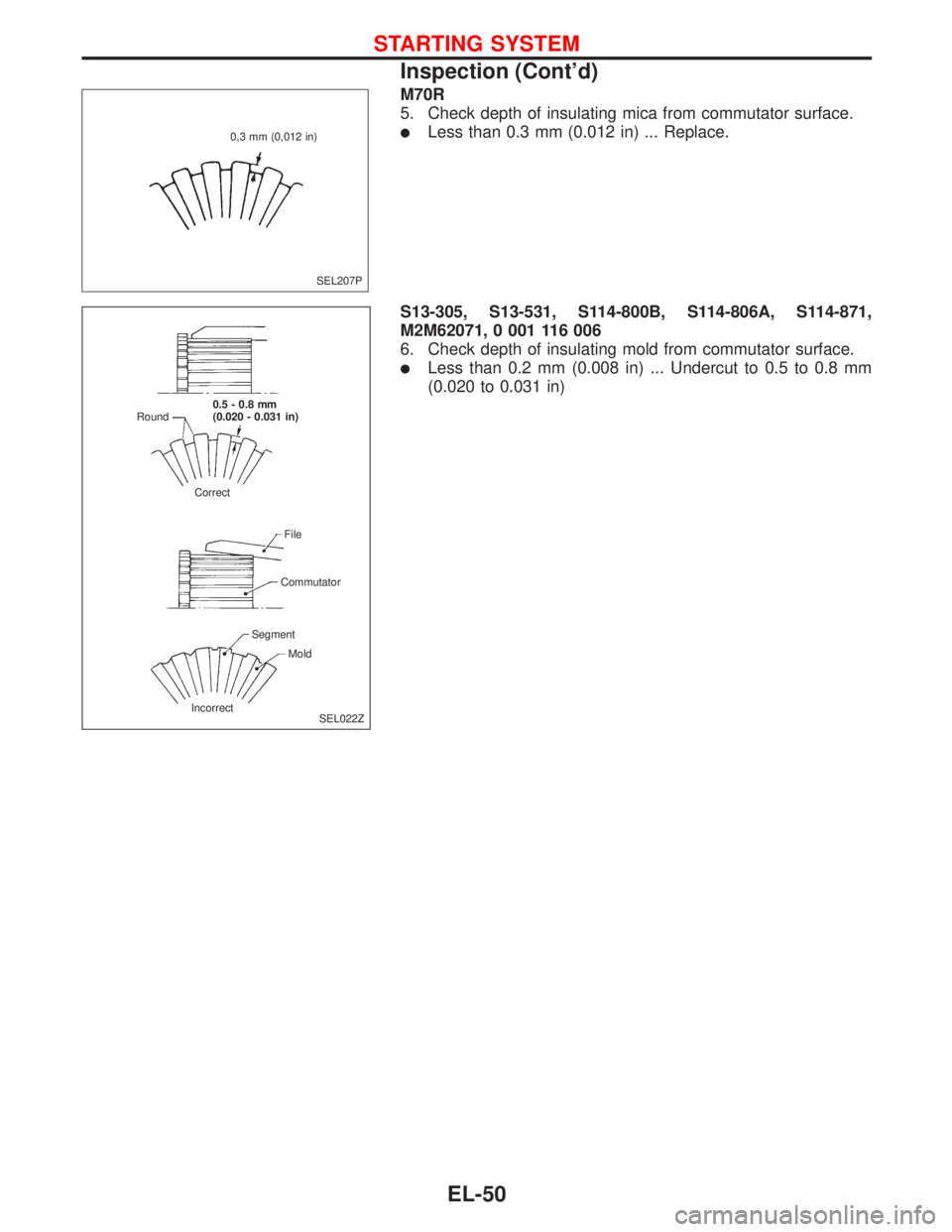

5. Check depth of insulating mica from commutator surface.

Less than 0.3 mm (0.012 in) ... Replace.
S13-305, S13-531, S114-800B, S114-806A, S114-871,
M2M62071, 0 001 116 006
6. Check depth of insulating mold from commutator surface.

Less than 0.2 mm (0.008 in) ... Undercut to 0.5 to 0.8 mm
(0.020 to 0.031 in)
SEL207P 0,3 mm (0,012 in)
SEL022Z Round0.5 - 0.8 mm
(0.020 - 0.031 in)
Correct
File
Commutator
Segment
Mold
Incorrect
STARTING SYSTEM
Inspection (Cont’d)
EL-50

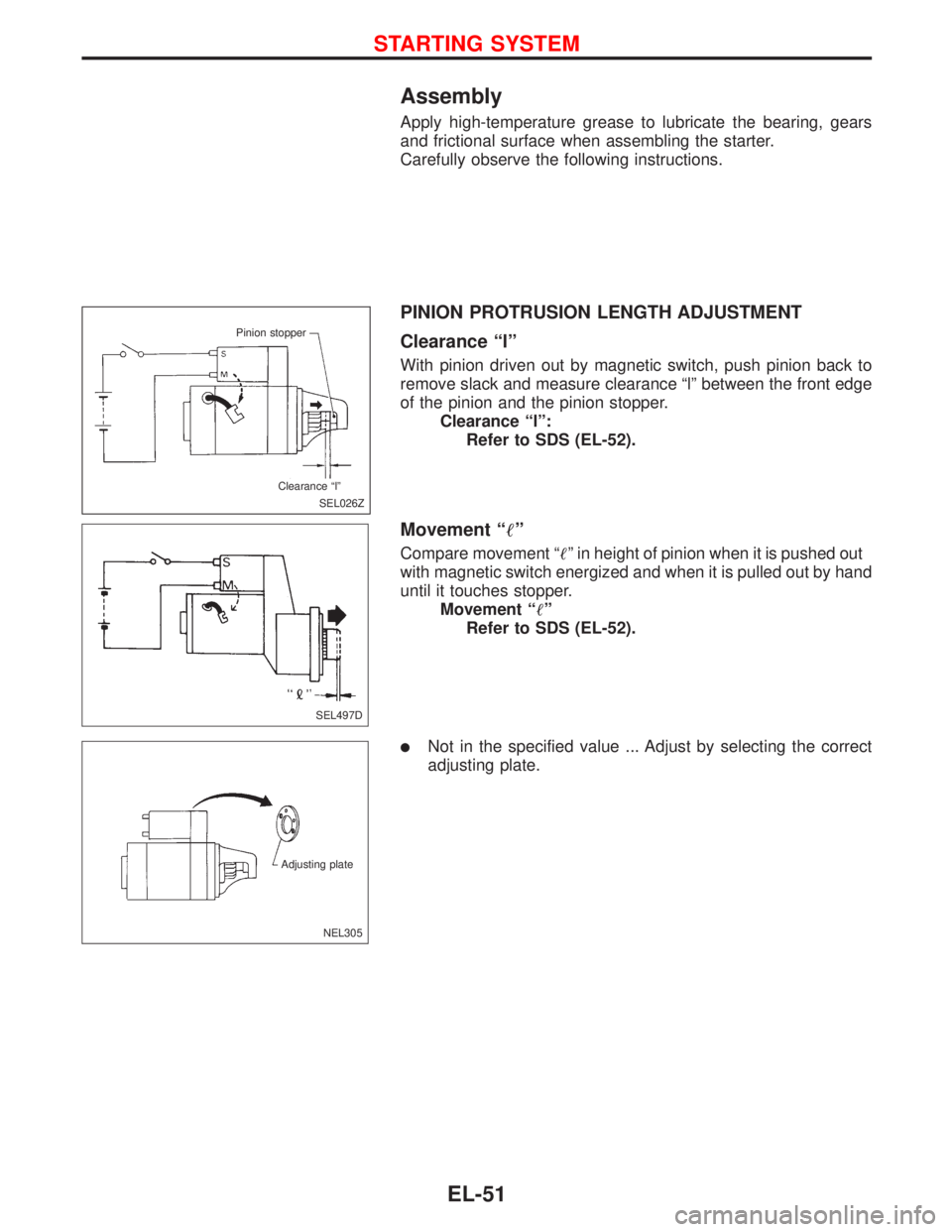

Assembly
Apply high-temperature grease to lubricate the bearing, gears
and frictional surface when assembling the starter.
Carefully observe the following instructions.
PINION PROTRUSION LENGTH ADJUSTMENT
Clearance“l”
With pinion driven out by magnetic switch, push pinion back to
remove slack and measure clearance“l”between the front edge
of the pinion and the pinion stopper.
Clearance“l”:
Refer to SDS (EL-52).
Movement“
”
Compare movement“
”in height of pinion when it is pushed out
with magnetic switch energized and when it is pulled out by hand
until it touches stopper.
Movement“
”
Refer to SDS (EL-52).

Not in the specified value ... Adjust by selecting the correct
adjusting plate.
SEL026Z Pinion stopper
Clearance“l”
SEL497D
NEL305 Adjusting plate
STARTING SYSTEM
EL-51

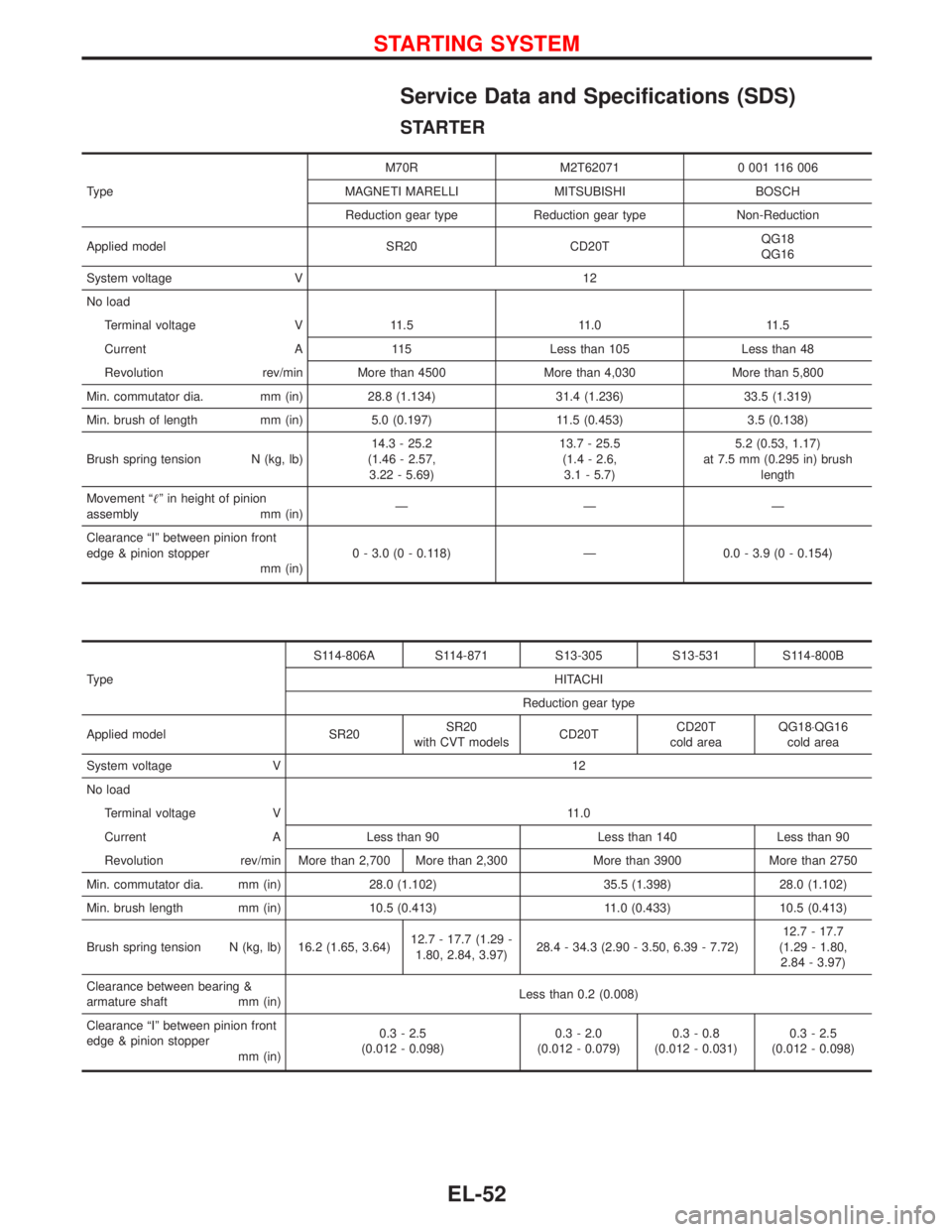

Service Data and Specifications (SDS)
STARTER
TypeM70R M2T62071 0 001 116 006
MAGNETI MARELLI MITSUBISHI BOSCH
Reduction gear type Reduction gear type Non-Reduction
Applied model SR20 CD20TQG18
QG16
System voltage V 12
No load
Terminal voltage V 11.5 11.0 11.5
Current A 115 Less than 105 Less than 48
Revolution rev/min More than 4500 More than 4,030 More than 5,800
Min. commutator dia. mm (in) 28.8 (1.134) 31.4 (1.236) 33.5 (1.319)
Min. brush of length mm (in) 5.0 (0.197) 11.5 (0.453) 3.5 (0.138)
Brush spring tension N (kg, lb)14.3 - 25.2
(1.46 - 2.57,
3.22 - 5.69)13.7 - 25.5
(1.4 - 2.6,
3.1-5.7)5.2 (0.53, 1.17)
at 7.5 mm (0.295 in) brush
length
Movement“
”in height of pinion
assembly mm (in)———
Clearance“I”between pinion front
edge & pinion stopper
mm (in)0-3.0(0-0.118)—0.0 - 3.9 (0 - 0.154)
Ty p eS114-806A S114-871 S13-305 S13-531 S114-800B
HITACHI
Reduction gear type
Applied model SR20SR20
with CVT modelsCD20TCD20T
cold areaQG18⋅QG16
cold area
System voltage V 12
No load
Terminal voltage V 11.0
Current A Less than 90 Less than 140 Less than 90
Revolution rev/min More than 2,700 More than 2,300 More than 3900 More than 2750
Min. commutator dia. mm (in) 28.0 (1.102) 35.5 (1.398) 28.0 (1.102)
Min. brush length mm (in) 10.5 (0.413) 11.0 (0.433) 10.5 (0.413)
Brush spring tension N (kg, lb) 16.2 (1.65, 3.64)12.7 - 17.7 (1.29 -
1.80, 2.84, 3.97)28.4 - 34.3 (2.90 - 3.50, 6.39 - 7.72)12.7 - 17.7
(1.29 - 1.80,
2.84 - 3.97)
Clearance between bearing &
armature shaft mm (in)Less than 0.2 (0.008)
Clearance“I”between pinion front
edge & pinion stopper
mm (in)0.3-2.5
(0.012 - 0.098)0.3-2.0
(0.012 - 0.079)0.3-0.8
(0.012 - 0.031)0.3 - 2.5
(0.012 - 0.098)
STARTING SYSTEM
EL-52

Wiring Diagram—CHARGE—
GASOLINE ENGINE MODELS
YEL001D
CHARGING SYSTEM
EL-53

DIESEL ENGINE MODELS
YEL002D
CHARGING SYSTEM
Wiring Diagram—CHARGE—(Cont’d)
EL-54

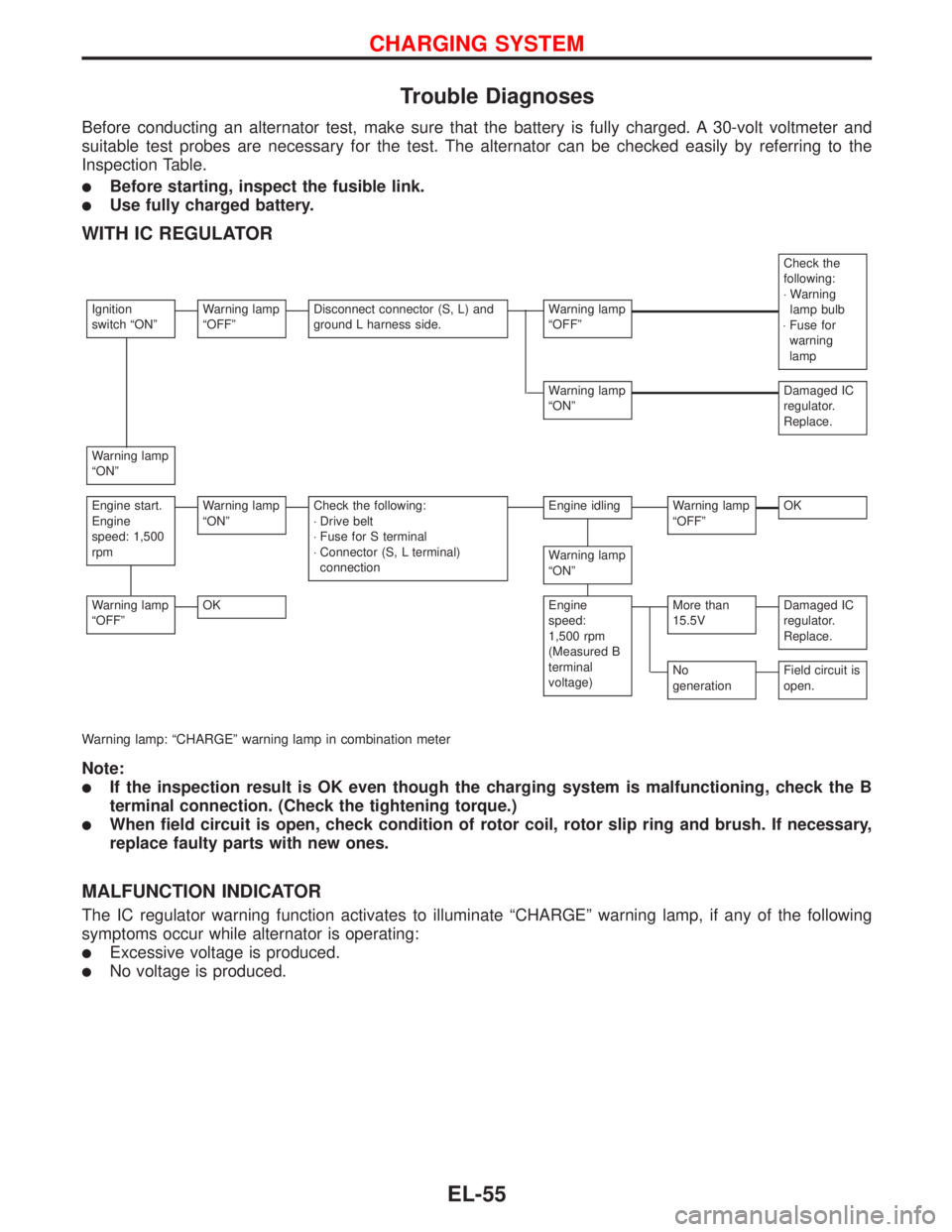

Trouble Diagnoses
Before conducting an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and
suitable test probes are necessary for the test. The alternator can be checked easily by referring to the
Inspection Table.

Before starting, inspect the fusible link.

Use fully charged battery.
WITH IC REGULATOR
Check the
following:
⋅Warning
lamp bulb
⋅Fuse for
warning
lamp
Ignition
switch“ON”Warning lamp
“OFF”Disconnect connector (S, L) and
ground L harness side.Warning lamp
“OFF”
Warning lamp
“ON”Damaged IC
regulator.
Replace.
Warning lamp
“ON”
Engine start.
Engine
speed: 1,500
rpmWarning lamp
“ON”Check the following:
⋅Drive belt
⋅Fuse for S terminal
⋅Connector (S, L terminal)
connectionEngine idlingWarning lamp
“OFF”OK
Warning lamp
“ON”
Warning lamp
“OFF”OKEngine
speed:
1,500 rpm
(Measured B
terminal
voltage)More than
15.5VDamaged IC
regulator.
Replace.
No
generationField circuit is
open.
Warning lamp:“CHARGE”warning lamp in combination meter
Note:

If the inspection result is OK even though the charging system is malfunctioning, check the B
terminal connection. (Check the tightening torque.)

When field circuit is open, check condition of rotor coil, rotor slip ring and brush. If necessary,
replace faulty parts with new ones.
MALFUNCTION INDICATOR
The IC regulator warning function activates to illuminate“CHARGE”warning lamp, if any of the following
symptoms occur while alternator is operating:

Excessive voltage is produced.

No voltage is produced.
CHARGING SYSTEM
EL-55

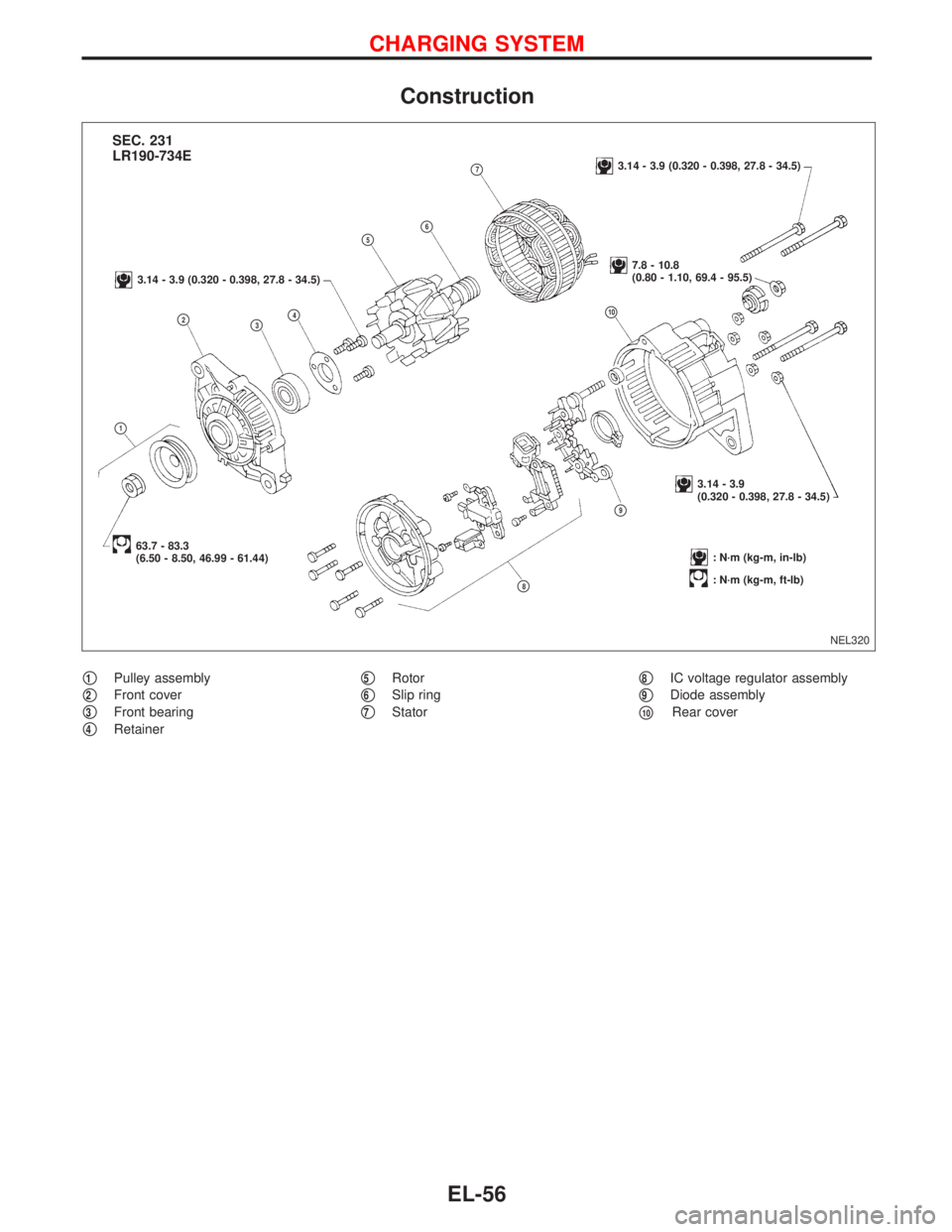

Construction

1Pulley assembly

2Front cover

3Front bearing

4Retainer

5Rotor

6Slip ring

7Stator

8IC voltage regulator assembly

9Diode assembly

10Rear cover
NEL320
SEC. 231
LR190-734E

2

1

3
4
3.14 - 3.9 (0.320 - 0.398, 27.8 - 34.5)

5
6

73.14 - 3.9 (0.320 - 0.398, 27.8 - 34.5)
7.8 - 10.8
(0.80 - 1.10, 69.4 - 95.5)

10
3.14 - 3.9
(0.320 - 0.398, 27.8 - 34.5)
63.7 - 83.3
(6.50 - 8.50, 46.99 - 61.44):N·m (kg-m, in-lb)
:N·m (kg-m, ft-lb)

9

8
CHARGING SYSTEM
EL-56

1Pulley assembly

2Front cover

3Front bearing

4Bearing retainer

5Rotor

6Rear bearing

7Stator

8IC voltage regulator assembly

9Diode assembly

10Rear cover
YEL427B
3.5 - 5.3
(0.36 - 0.54, 31.0 - 46.9)
99 - 137
(10.1 - 12.9, 73 - 101)
:N·m (kg-m, in-lb)
:N·m (kg-m, ft-lb)
SEC. 231
A2TB3691
A2TB3891
2.0 - 5.3
(0.20 - 0.54, 17.7 - 46.9)
12.8 - 18.6
(1.3 - 1.9,
10 - 13)
2.0 - 5.3
(0.20 - 0.54,
17.7 - 46.9)
CHARGING SYSTEM

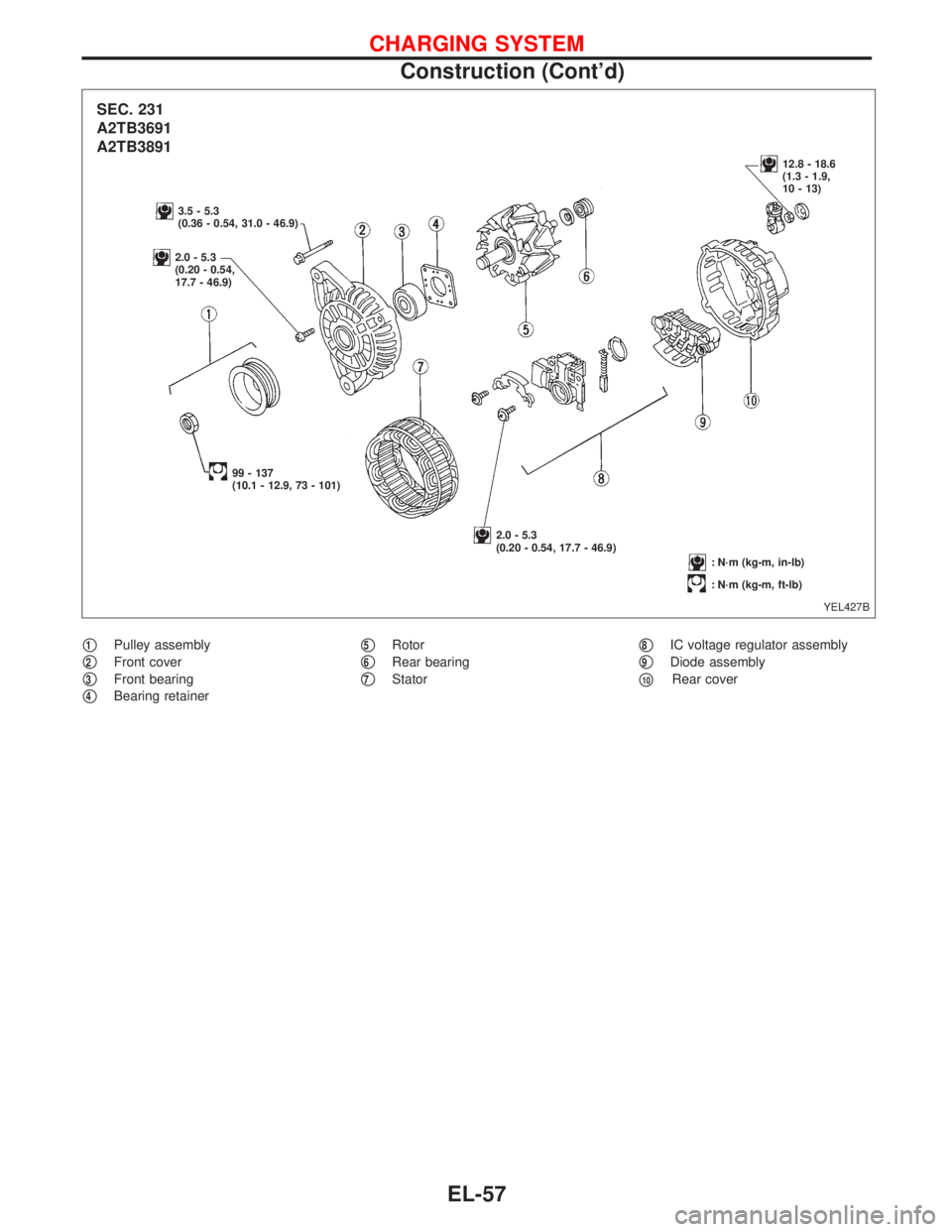

Construction (Cont’d)
EL-57

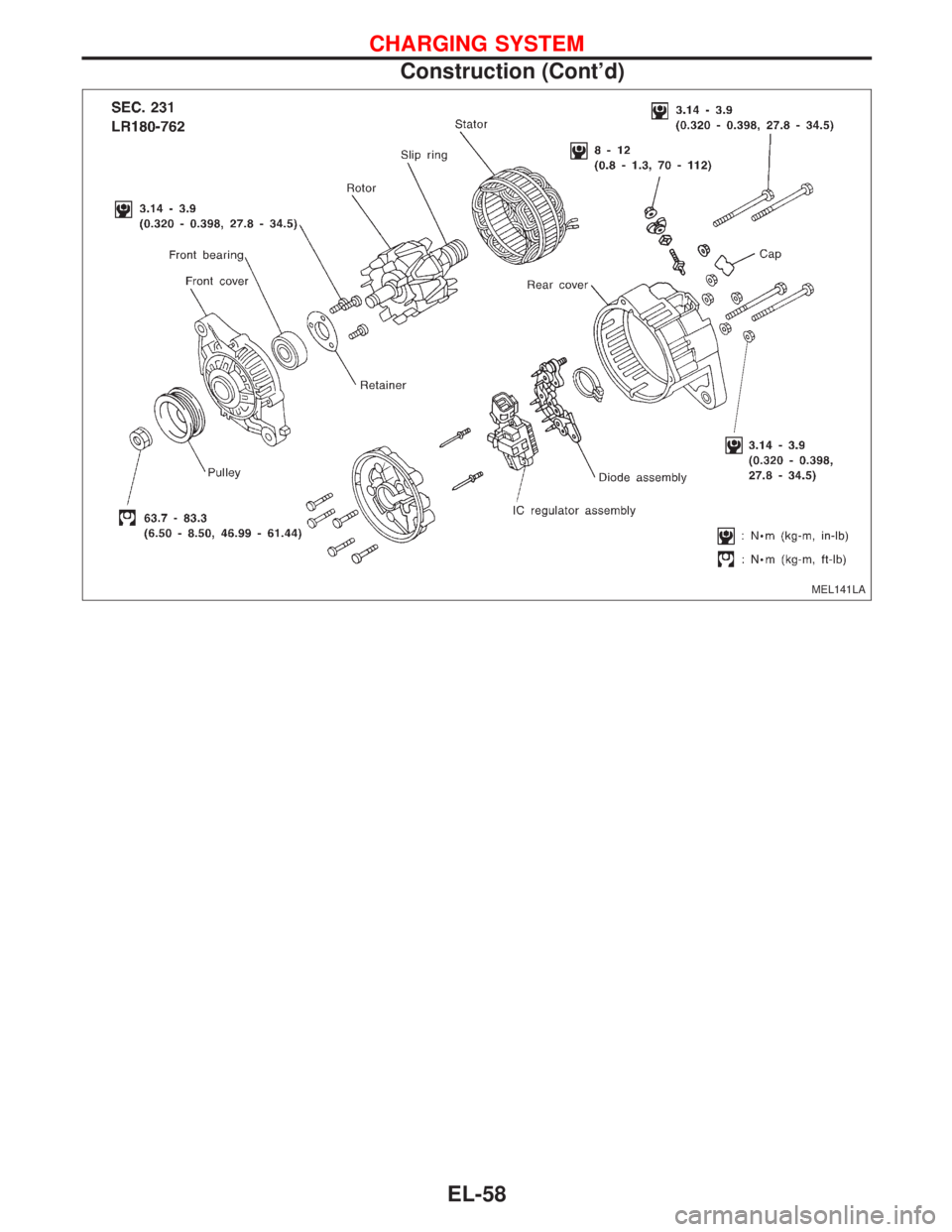

MEL141LA
CHARGING SYSTEM
Construction (Cont’d)
EL-58
