NISSAN PRIMERA 1999 Electronic Repair Manual

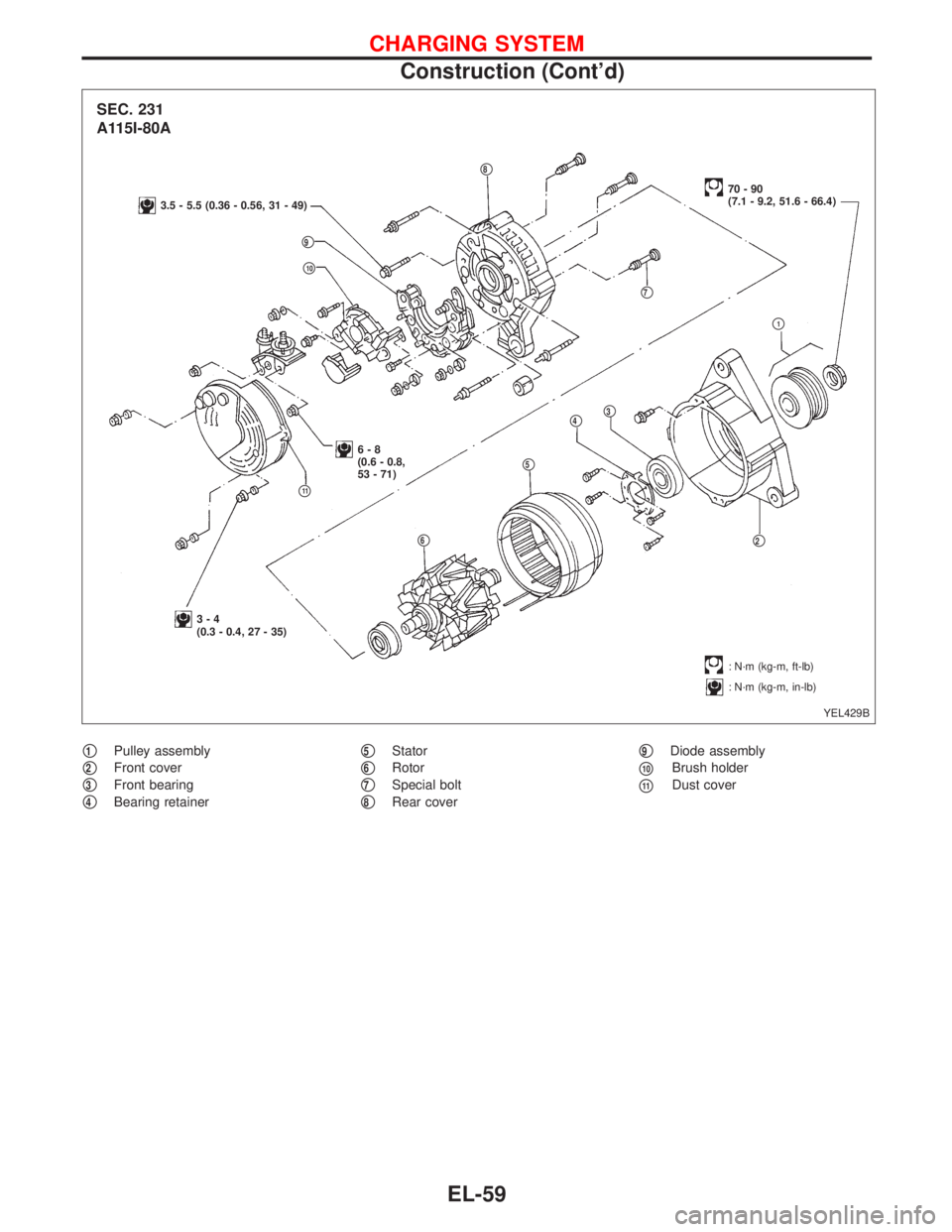

1Pulley assembly

2Front cover

3Front bearing

4Bearing retainer

5Stator

6Rotor

7Special bolt

8Rear cover

9Diode assembly

10Brush holder

11Dust cover
YEL429B

8

7

1

2

3
4

5

6
3-4
(0.3 - 0.4, 27 - 35)

11
6-8
(0.6 - 0.8,
53 - 71)

10

9
3.5 - 5.5 (0.36 - 0.56, 31 - 49)
SEC. 231
A115I-80A
70 - 90
(7.1 - 9.2, 51.6 - 66.4)
:N·m (kg-m, ft-lb)
:N·m (kg-m, in-lb)
CHARGING SYSTEM
Construction (Cont’d)
EL-59

Removal and Installation

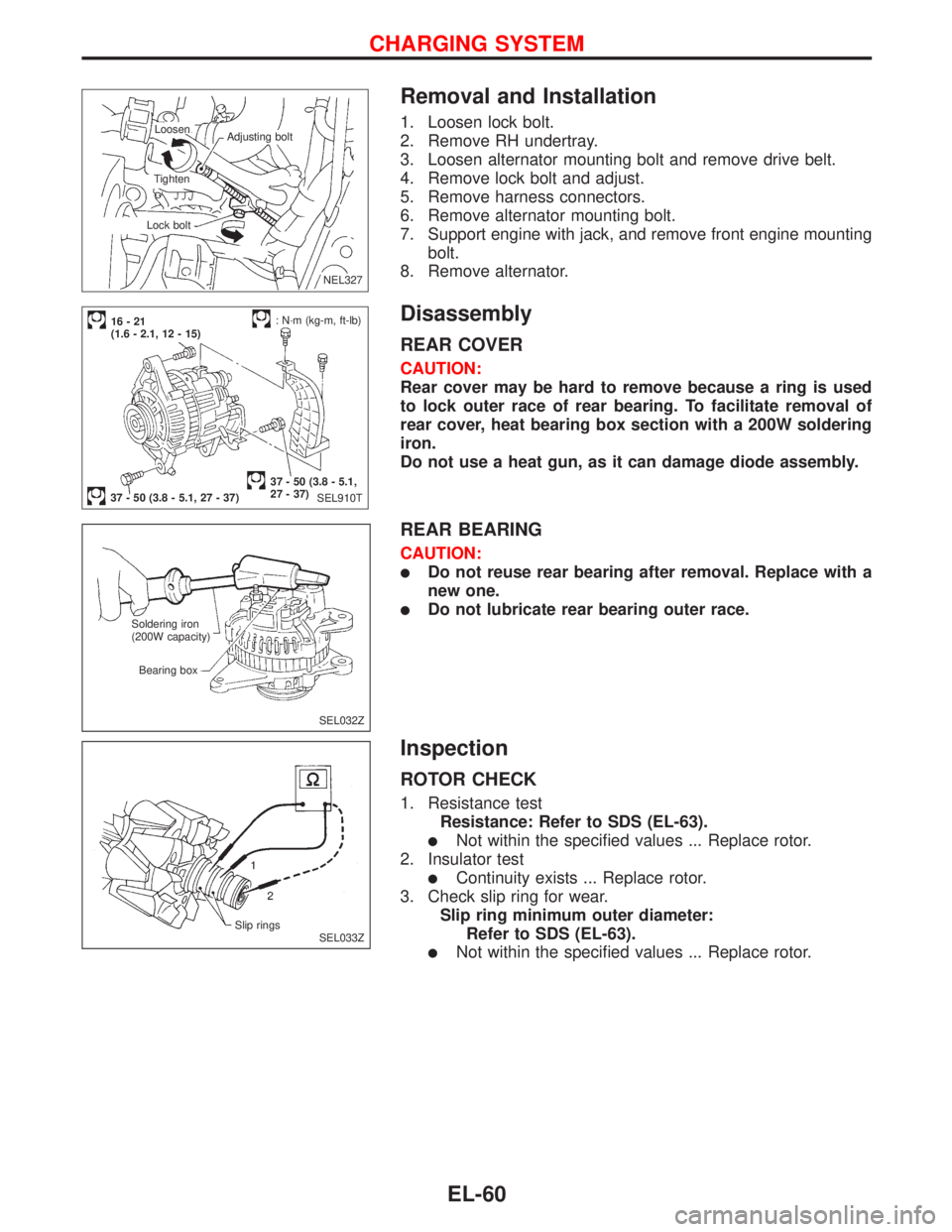

1. Loosen lock bolt.
2. Remove RH undertray.
3. Loosen alternator mounting bolt and remove drive belt.
4. Remove lock bolt and adjust.
5. Remove harness connectors.
6. Remove alternator mounting bolt.
7. Support engine with jack, and remove front engine mounting
bolt.
8. Remove alternator.
Disassembly
REAR COVER
CAUTION:
Rear cover may be hard to remove because a ring is used
to lock outer race of rear bearing. To facilitate removal of
rear cover, heat bearing box section with a 200W soldering
iron.
Do not use a heat gun, as it can damage diode assembly.
REAR BEARING
CAUTION:

Do not reuse rear bearing after removal. Replace with a
new one.

Do not lubricate rear bearing outer race.
Inspection
ROTOR CHECK
1. Resistance test
Resistance: Refer to SDS (EL-63).

Not within the specified values ... Replace rotor.
2. Insulator test

Continuity exists ... Replace rotor.
3. Check slip ring for wear.
Slip ring minimum outer diameter:
Refer to SDS (EL-63).

Not within the specified values ... Replace rotor.
.NEL327 Loosen
Adjusting bolt
Tighten
Lock bolt
SEL910T
16 - 21
(1.6 - 2.1, 12 - 15)
37 - 50 (3.8 - 5.1, 27 - 37)
37 - 50 (3.8 - 5.1,
27 - 37)
:N·m (kg-m, ft-lb)
SEL032Z Soldering iron
(200W capacity)
Bearing box
SEL033Z Slip rings
CHARGING SYSTEM
EL-60

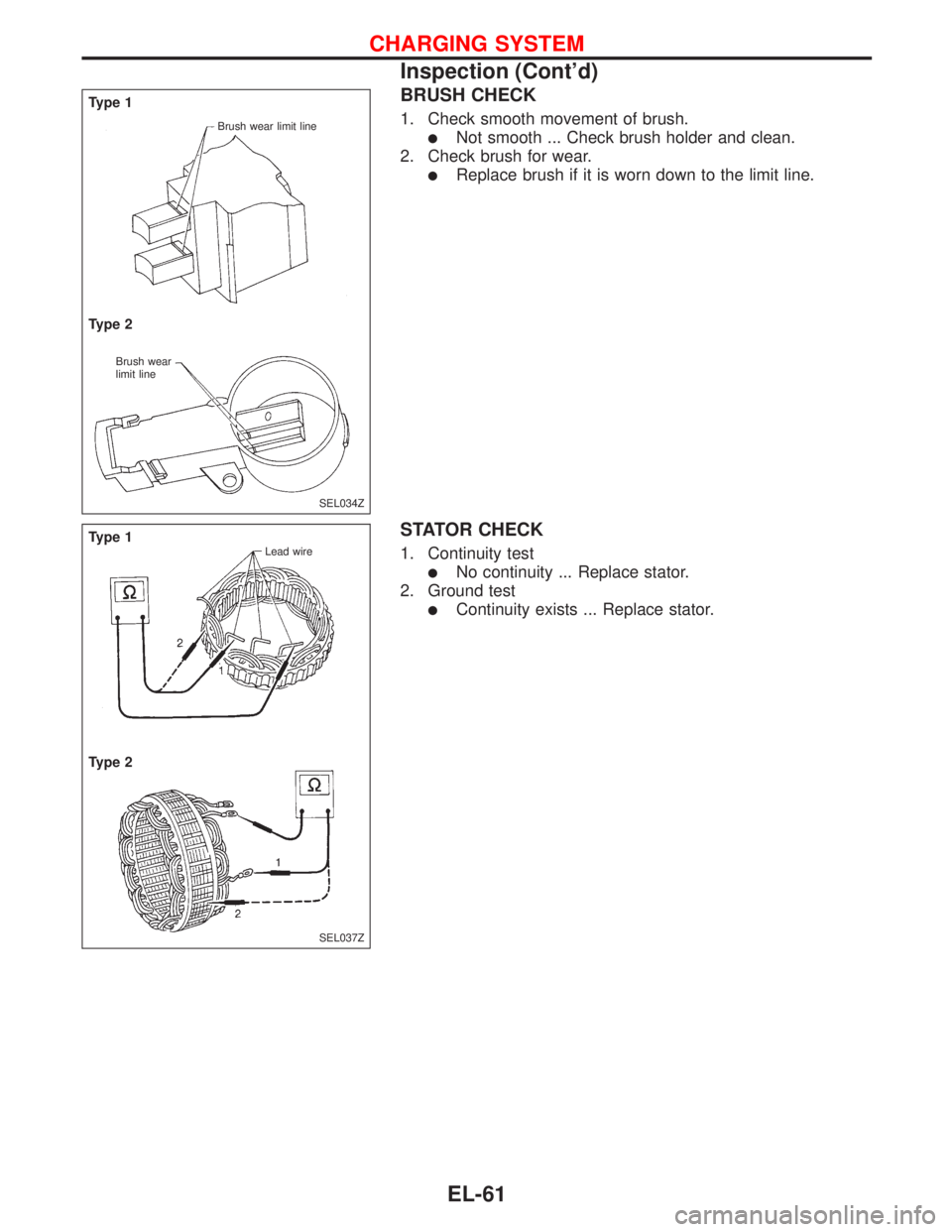

BRUSH CHECK
1. Check smooth movement of brush.

Not smooth ... Check brush holder and clean.
2. Check brush for wear.

Replace brush if it is worn down to the limit line.
STATOR CHECK
1. Continuity test

No continuity ... Replace stator.
2. Ground test

Continuity exists ... Replace stator.
SEL034Z
Type 1
Brush wear limit line
Type 2
Brush wear
limit line
SEL037Z
Type 1Lead wire
Type 2
CHARGING SYSTEM
Inspection (Cont’d)
EL-61

Assembly

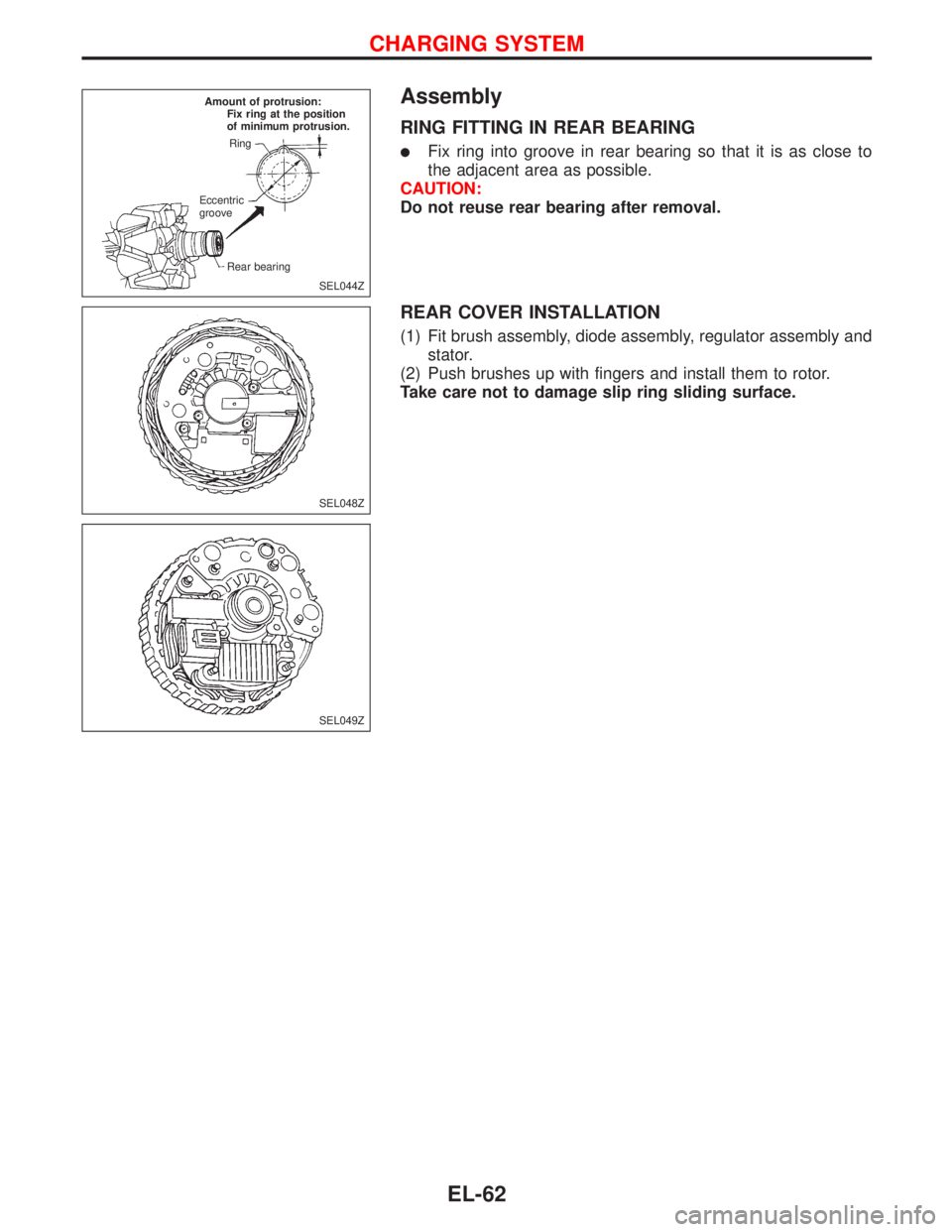

RING FITTING IN REAR BEARING

Fix ring into groove in rear bearing so that it is as close to
the adjacent area as possible.
CAUTION:
Do not reuse rear bearing after removal.
REAR COVER INSTALLATION
(1) Fit brush assembly, diode assembly, regulator assembly and
stator.
(2) Push brushes up with fingers and install them to rotor.
Take care not to damage slip ring sliding surface.
SEL044Z Amount of protrusion:
Fix ring at the position
of minimum protrusion.
Ring
Eccentric
groove
Rear bearing
SEL048Z
SEL049Z
CHARGING SYSTEM
EL-62

Service Data and Specifications (SDS)

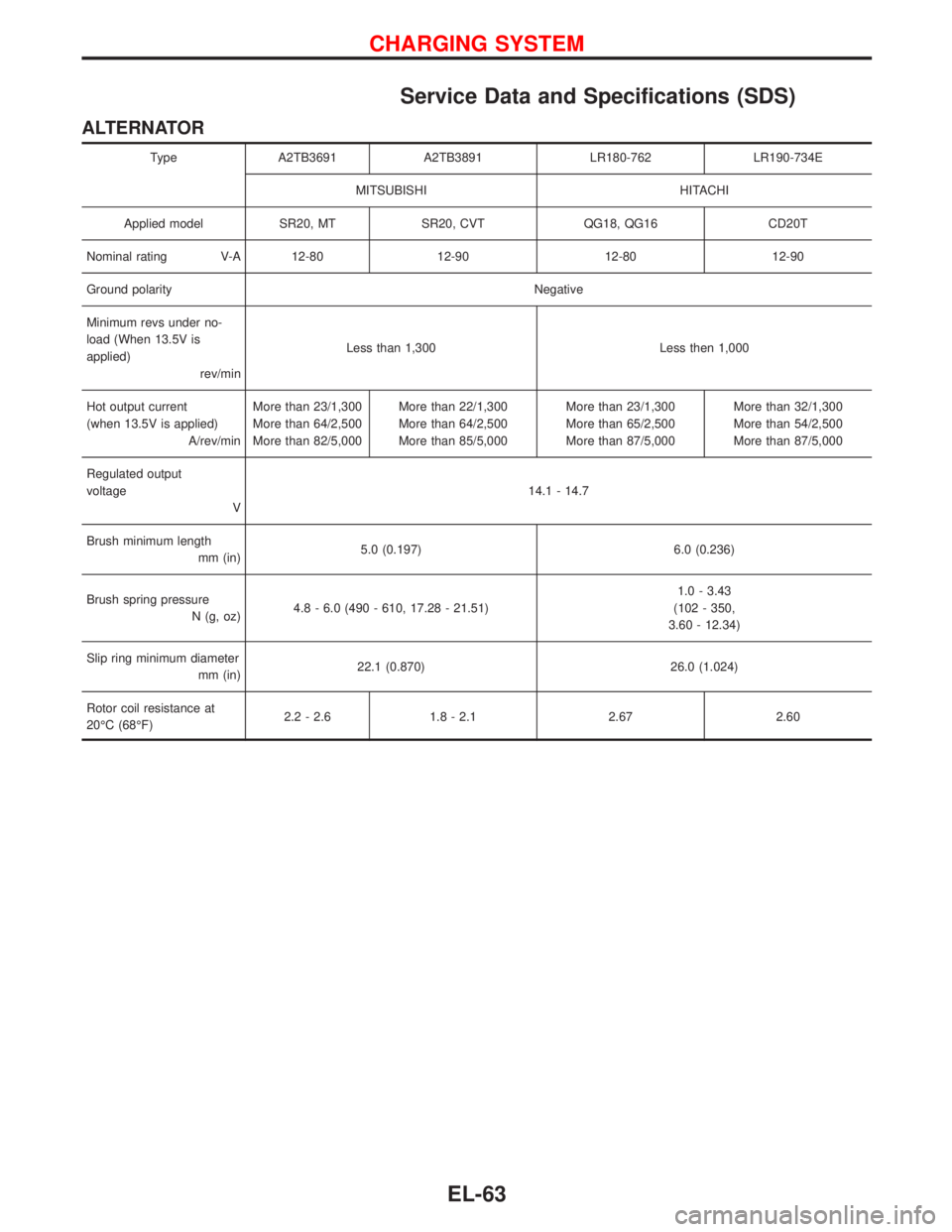

ALTERNATOR
Type A2TB3691 A2TB3891 LR180-762 LR190-734E
MITSUBISHI HITACHI
Applied model SR20, MT SR20, CVT QG18, QG16 CD20T
Nominal rating V-A 12-80 12-90 12-80 12-90
Ground polarity Negative
Minimum revs under no-
load (When 13.5V is
applied)
rev/minLess than 1,300 Less then 1,000
Hot output current
(when 13.5V is applied)
A/rev/minMore than 23/1,300
More than 64/2,500
More than 82/5,000More than 22/1,300
More than 64/2,500
More than 85/5,000More than 23/1,300
More than 65/2,500
More than 87/5,000More than 32/1,300
More than 54/2,500
More than 87/5,000
Regulated output
voltage
V14.1 - 14.7
Brush minimum length
mm (in)5.0 (0.197) 6.0 (0.236)
Brush spring pressure
N (g, oz)4.8 - 6.0 (490 - 610, 17.28 - 21.51)1.0-3.43
(102 - 350,
3.60 - 12.34)
Slip ring minimum diameter
mm (in)22.1 (0.870) 26.0 (1.024)
Rotor coil resistance at
20°C(68°F)2.2 - 2.6 1.8 - 2.1 2.67 2.60
CHARGING SYSTEM
EL-63

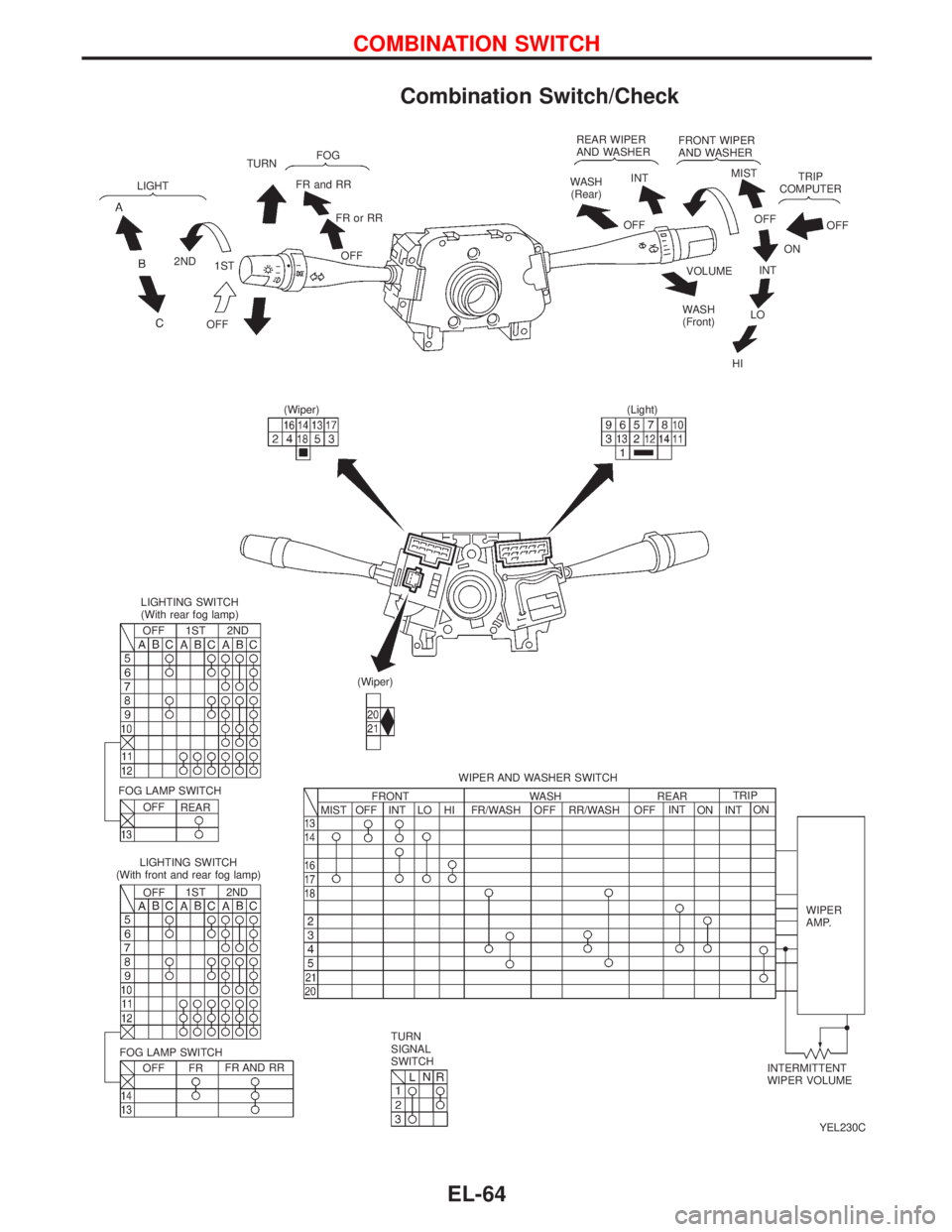

Combination Switch/Check
YEL230C LIGHTFOG
FR and RR
FR or RR
2ND
1ST
OFFOFFREAR WIPER
AND WASHERFRONT WIPER
AND WASHER
TRIP
COMPUTER WASH
(Rear)
OFFINTMIST
OFF
OFF
ON
VOLUMEINT
WASH
(Front)LO
HI
(Wiper)(Light)
(Wiper)
FOG LAMP SWITCHLIGHTING SWITCH
(With rear fog lamp)
WIPER AND WASHER SWITCH OFF
1ST2ND
FRONT
WASH
REAR
REARTRIP
MISTOFF
INT LO HI
FR/WASH
OFFRR/WASH
OFFINT
ONINTON OFF
FOG LAMP SWITCHLIGHTING SWITCH
(With front and rear fog lamp)
OFF1ST
2ND
TURN
SIGNAL
SWITCHWIPER
AMP.
INTERMITTENT
WIPER VOLUME TURN
OFF FRFR AND RR
COMBINATION SWITCH
EL-64

Check
YEL954C
STEERING SWITCH
EL-65

Replacement
For removal and installation of spiral cable, refer to RS sec-
tion [“Installation—Air Bag Module and Spiral Cable”,
“SUPPLEMENTAL RESTRAINT SYSTEM (SRS)”].

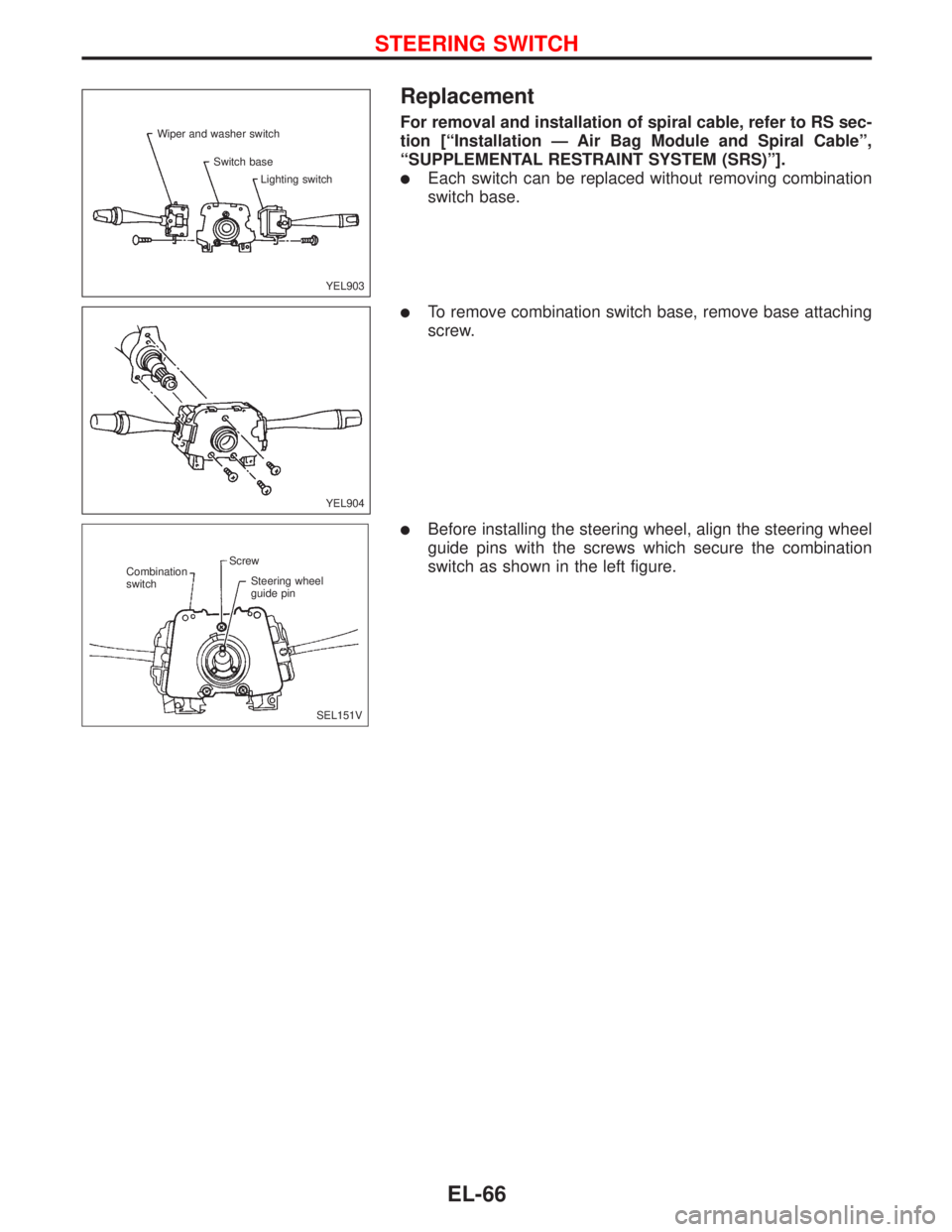

Each switch can be replaced without removing combination
switch base.

To remove combination switch base, remove base attaching
screw.

Before installing the steering wheel, align the steering wheel
guide pins with the screws which secure the combination
switch as shown in the left figure.
YEL903 Wiper and washer switch
Lighting switch Switch base
YEL904
SEL151V Combination
switchScrew
Steering wheel
guide pin
STEERING SWITCH
EL-66

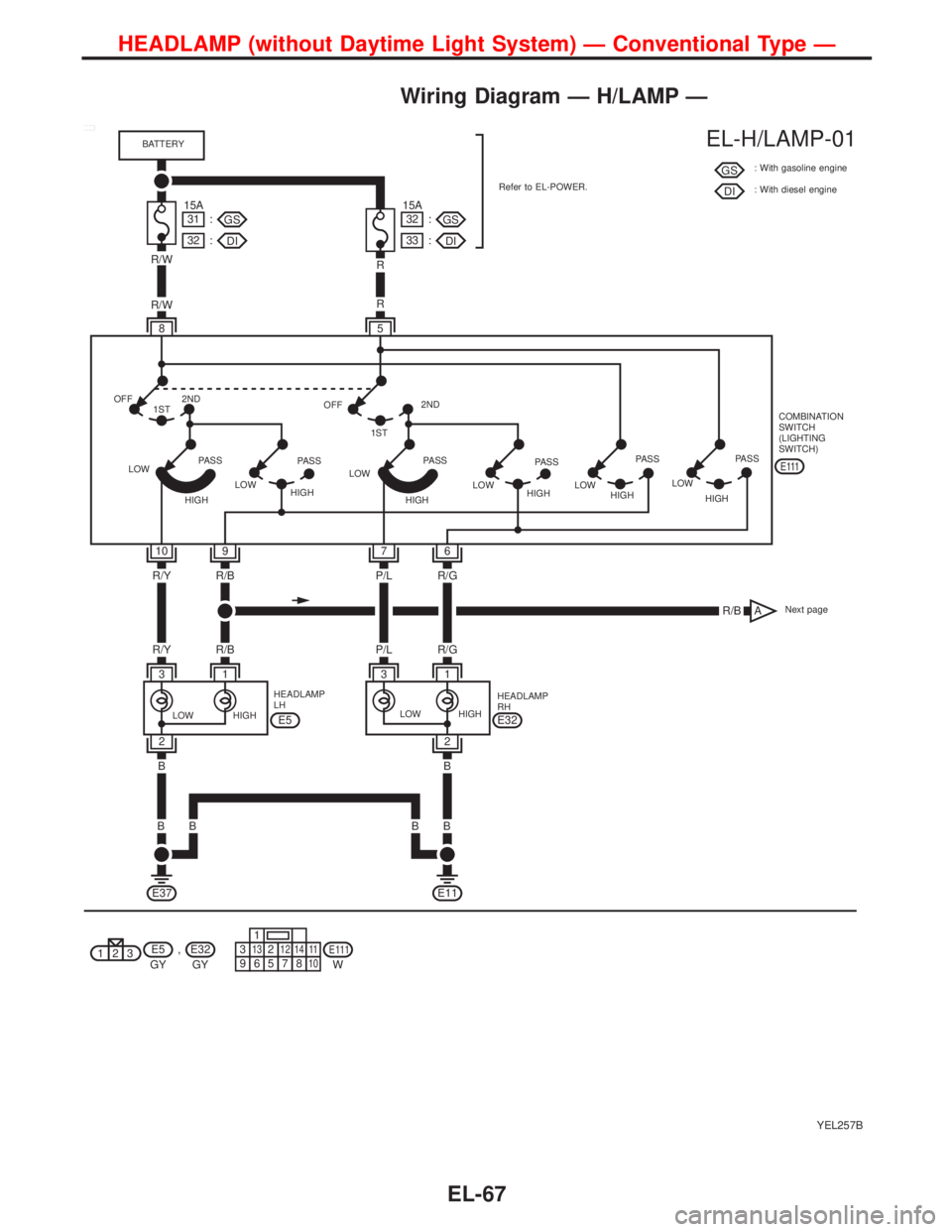

Wiring Diagram—H/LAMP—
YEL257B
910
2
58 R/WR
R/B R/Y
B
113639127251110148W
7
P/L6
R/G
R/WR
3 R/Y1 R/B
E5P/L
B R/GE32
E11E37
GYE5 ,GY E32
3
2
1
:
::
:
R/BA
EL-H/LAMP-01
E111
E111
B BGS
DI
15A
31
32GS
DI15A
32
33GS
DI
BB
3 2 1
BATTERY
Refer to EL-POWER.: With gasoline engine
: With diesel engine
OFF
1ST2ND
LOW
HIGHPASSOFF
1ST2ND
LOW
HIGHPASS
LOW
HIGHPASS
LOW
HIGHPASSCOMBINATION
SWITCH
(LIGHTING
SWITCH)
LOW HIGHHEADLAMP
LH
LOW HIGHHEADLAMP
RHNext page PASS
HIGH LOW PASS
HIGH LOW
HEADLAMP (without Daytime Light System)—Conventional Type—
EL-67

YEL003D
HEADLAMP (without Daytime Light System)—Conventional Type—
Wiring Diagram—H/LAMP—(Cont’d)
EL-68
