NISSAN QASHQAI 2016 Owner´s Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: QASHQAI, Model: NISSAN QASHQAI 2016Pages: 338, PDF Size: 4.87 MB
Page 31 of 338

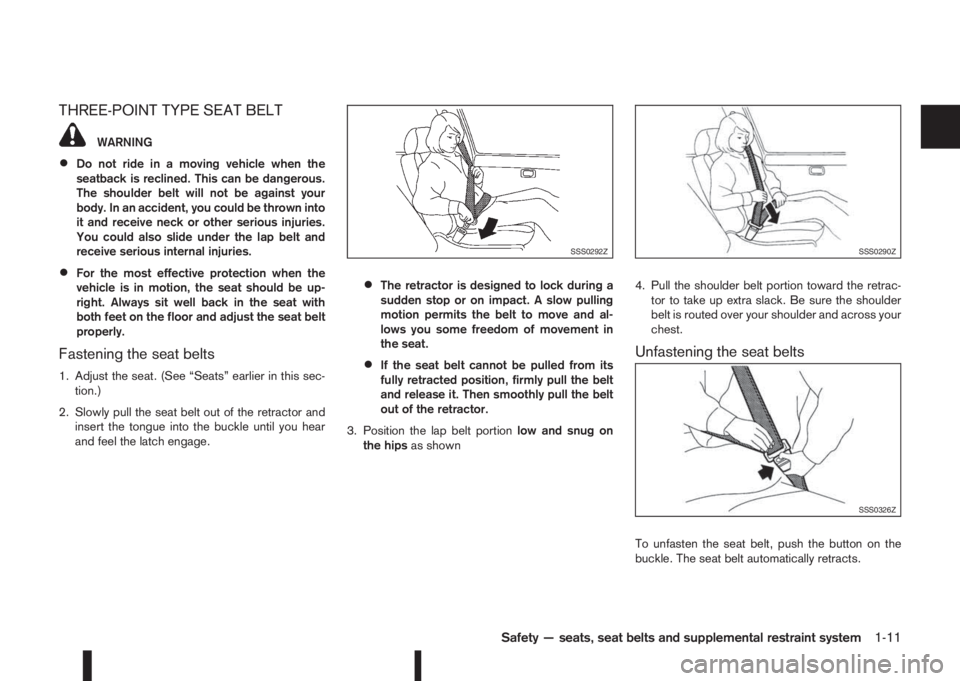

THREE-POINT TYPE SEAT BELT
WARNING
•Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown into
it and receive neck or other serious injuries.
You could also slide under the lap belt and
receive serious internal injuries.
•For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly.
Fastening the seat belts
1. Adjust the seat. (See “Seats” earlier in this sec-
tion.)
2. Slowly pull the seat belt out of the retractor and
insert the tongue into the buckle until you hear
and feel the latch engage.
•The retractor is designed to lock during a
sudden stop or on impact. A slow pulling
motion permits the belt to move and al-
lows you some freedom of movement in
the seat.
•If the seat belt cannot be pulled from its
fully retracted position, firmly pull the belt
and release it. Then smoothly pull the belt
out of the retractor.
3. Position the lap belt portionlow and snug on
the hipsas shown4. Pull the shoulder belt portion toward the retrac-
tor to take up extra slack. Be sure the shoulder
belt is routed over your shoulder and across your
chest.Unfastening the seat belts
To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.
SSS0292ZSSS0290Z
SSS0326Z
Safety — seats, seat belts and supplemental restraint system1-11

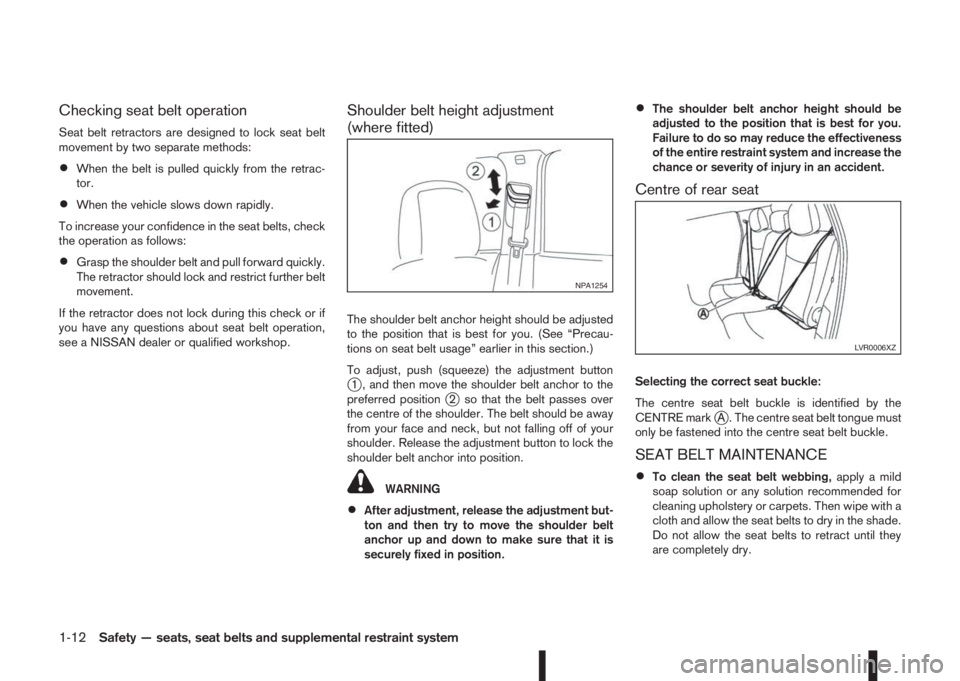

Page 32 of 338
Checking seat belt operation
Seat belt retractors are designed to lock seat belt
movement by two separate methods:
•When the belt is pulled quickly from the retrac-
tor.
•When the vehicle slows down rapidly.
To increase your confidence in the seat belts, check
the operation as follows:
•Grasp the shoulder belt and pull forward quickly.
The retractor should lock and restrict further belt
movement.
If the retractor does not lock during this check or if
you have any questions about seat belt operation,
see a NISSAN dealer or qualified workshop.
Shoulder belt height adjustment
(where fitted)
The shoulder belt anchor height should be adjusted
to the position that is best for you. (See “Precau-
tions on seat belt usage” earlier in this section.)
To adjust, push (squeeze) the adjustment button
j1 , and then move the shoulder belt anchor to the
preferred positionj2 so that the belt passes over
the centre of the shoulder. The belt should be away
from your face and neck, but not falling off of your
shoulder. Release the adjustment button to lock the
shoulder belt anchor into position.
WARNING
•After adjustment, release the adjustment but-
ton and then try to move the shoulder belt
anchor up and down to make sure that it is
securely fixed in position.
•The shoulder belt anchor height should be
adjusted to the position that is best for you.
Failure to do so may reduce the effectiveness
of the entire restraint system and increase the
chance or severity of injury in an accident.
Centre of rear seat
Selecting the correct seat buckle:
The centre seat belt buckle is identified by the
CENTRE mark
jA . The centre seat belt tongue must
only be fastened into the centre seat belt buckle.
SEAT BELT MAINTENANCE
•To clean the seat belt webbing,apply a mild
soap solution or any solution recommended for
cleaning upholstery or carpets. Then wipe with a
cloth and allow the seat belts to dry in the shade.
Do not allow the seat belts to retract until they
are completely dry.
NPA1254
LVR0006XZ
1-12Safety — seats, seat belts and supplemental restraint system
Page 33 of 338

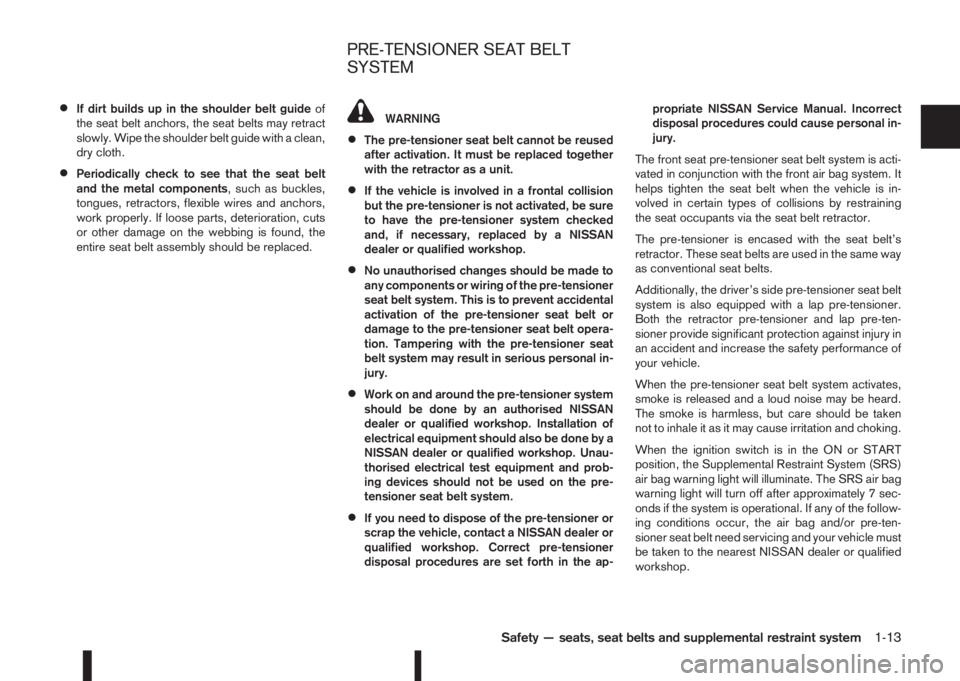

•If dirt builds up in the shoulder belt guideof
the seat belt anchors, the seat belts may retract
slowly. Wipe the shoulder belt guide with a clean,
dry cloth.
•Periodically check to see that the seat belt
and the metal components, such as buckles,
tongues, retractors, flexible wires and anchors,
work properly. If loose parts, deterioration, cuts
or other damage on the webbing is found, the
entire seat belt assembly should be replaced.
WARNING
•The pre-tensioner seat belt cannot be reused
after activation. It must be replaced together
with the retractor as a unit.
•If the vehicle is involved in a frontal collision
but the pre-tensioner is not activated, be sure
to have the pre-tensioner system checked
and, if necessary, replaced by a NISSAN
dealer or qualified workshop.
•No unauthorised changes should be made to
any components or wiring of the pre-tensioner
seat belt system. This is to prevent accidental
activation of the pre-tensioner seat belt or
damage to the pre-tensioner seat belt opera-
tion. Tampering with the pre-tensioner seat
belt system may result in serious personal in-
jury.
•Work on and around the pre-tensioner system
should be done by an authorised NISSAN
dealer or qualified workshop. Installation of
electrical equipment should also be done by a
NISSAN dealer or qualified workshop. Unau-
thorised electrical test equipment and prob-
ing devices should not be used on the pre-
tensioner seat belt system.
•If you need to dispose of the pre-tensioner or
scrap the vehicle, contact a NISSAN dealer or
qualified workshop. Correct pre-tensioner
disposal procedures are set forth in the ap-propriate NISSAN Service Manual. Incorrect
disposal procedures could cause personal in-
jury.
The front seat pre-tensioner seat belt system is acti-
vated in conjunction with the front air bag system. It
helps tighten the seat belt when the vehicle is in-
volved in certain types of collisions by restraining
the seat occupants via the seat belt retractor.
The pre-tensioner is encased with the seat belt’s
retractor. These seat belts are used in the same way
as conventional seat belts.
Additionally, the driver’s side pre-tensioner seat belt
system is also equipped with a lap pre-tensioner.
Both the retractor pre-tensioner and lap pre-ten-
sioner provide significant protection against injury in
an accident and increase the safety performance of
your vehicle.
When the pre-tensioner seat belt system activates,
smoke is released and a loud noise may be heard.
The smoke is harmless, but care should be taken
not to inhale it as it may cause irritation and choking.
When the ignition switch is in the ON or START
position, the Supplemental Restraint System (SRS)
air bag warning light will illuminate. The SRS air bag
warning light will turn off after approximately 7 sec-
onds if the system is operational. If any of the follow-
ing conditions occur, the air bag and/or pre-ten-
sioner seat belt need servicing and your vehicle must
be taken to the nearest NISSAN dealer or qualified
workshop.
PRE-TENSIONER SEAT BELT
SYSTEM
Safety — seats, seat belts and supplemental restraint system1-13
Page 34 of 338

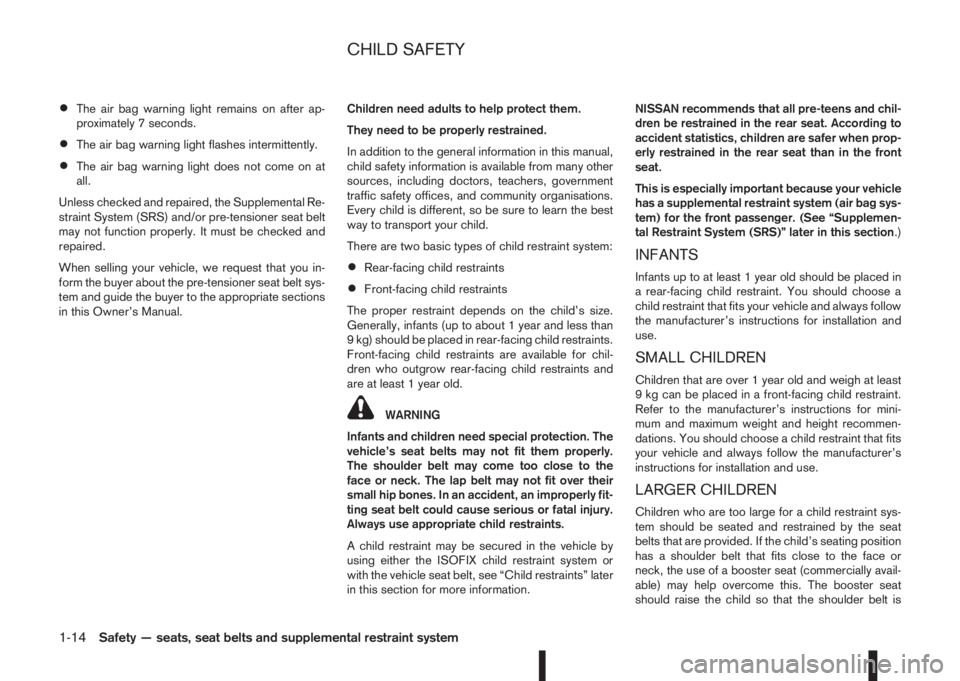

•The air bag warning light remains on after ap-
proximately 7 seconds.
•The air bag warning light flashes intermittently.
•The air bag warning light does not come on at
all.
Unless checked and repaired, the Supplemental Re-
straint System (SRS) and/or pre-tensioner seat belt
may not function properly. It must be checked and
repaired.
When selling your vehicle, we request that you in-
form the buyer about the pre-tensioner seat belt sys-
tem and guide the buyer to the appropriate sections
in this Owner’s Manual.Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this manual,
child safety information is available from many other
sources, including doctors, teachers, government
traffic safety offices, and community organisations.
Every child is different, so be sure to learn the best
way to transport your child.
There are two basic types of child restraint system:
•Rear-facing child restraints
•Front-facing child restraints
The proper restraint depends on the child’s size.
Generally, infants (up to about 1 year and less than
9 kg) should be placed in rear-facing child restraints.
Front-facing child restraints are available for chil-
dren who outgrow rear-facing child restraints and
are at least 1 year old.
WARNING
Infants and children need special protection. The
vehicle’s seat belts may not fit them properly.
The shoulder belt may come too close to the
face or neck. The lap belt may not fit over their
small hip bones. In an accident, an improperly fit-
ting seat belt could cause serious or fatal injury.
Always use appropriate child restraints.
A child restraint may be secured in the vehicle by
using either the ISOFIX child restraint system or
with the vehicle seat belt, see “Child restraints” later
in this section for more information.NISSAN recommends that all pre-teens and chil-
dren be restrained in the rear seat. According to
accident statistics, children are safer when prop-
erly restrained in the rear seat than in the front
seat.
This is especially important because your vehicle
has a supplemental restraint system (air bag sys-
tem) for the front passenger. (See “Supplemen-
tal Restraint System (SRS)” later in this section.)
INFANTS
Infants up to at least 1 year old should be placed in
a rear-facing child restraint. You should choose a
child restraint that fits your vehicle and always follow
the manufacturer’s instructions for installation and
use.
SMALL CHILDREN
Children that are over 1 year old and weigh at least
9 kg can be placed in a front-facing child restraint.
Refer to the manufacturer’s instructions for mini-
mum and maximum weight and height recommen-
dations. You should choose a child restraint that fits
your vehicle and always follow the manufacturer’s
instructions for installation and use.
LARGER CHILDREN
Children who are too large for a child restraint sys-
tem should be seated and restrained by the seat
belts that are provided. If the child’s seating position
has a shoulder belt that fits close to the face or
neck, the use of a booster seat (commercially avail-
able) may help overcome this. The booster seat
should raise the child so that the shoulder belt is
CHILD SAFETY
1-14Safety — seats, seat belts and supplemental restraint system

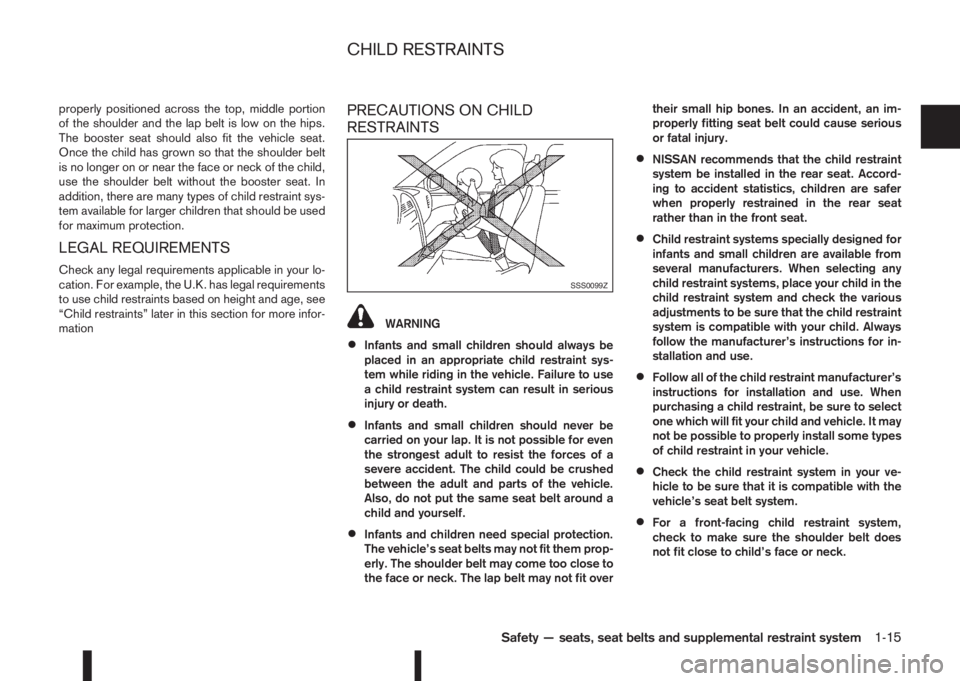

Page 35 of 338
properly positioned across the top, middle portion
of the shoulder and the lap belt is low on the hips.
The booster seat should also fit the vehicle seat.
Once the child has grown so that the shoulder belt
is no longer on or near the face or neck of the child,
use the shoulder belt without the booster seat. In
addition, there are many types of child restraint sys-
tem available for larger children that should be used
for maximum protection.
LEGAL REQUIREMENTS
Check any legal requirements applicable in your lo-
cation. For example, the U.K. has legal requirements
to use child restraints based on height and age, see
“Child restraints” later in this section for more infor-
mation
PRECAUTIONS ON CHILD
RESTRAINTS
WARNING
•Infants and small children should always be
placed in an appropriate child restraint sys-
tem while riding in the vehicle. Failure to use
a child restraint system can result in serious
injury or death.
•Infants and small children should never be
carried on your lap. It is not possible for even
the strongest adult to resist the forces of a
severe accident. The child could be crushed
between the adult and parts of the vehicle.
Also, do not put the same seat belt around a
child and yourself.
•Infants and children need special protection.
The vehicle’s seat belts may not fit them prop-
erly. The shoulder belt may come too close to
the face or neck. The lap belt may not fit overtheir small hip bones. In an accident, an im-
properly fitting seat belt could cause serious
or fatal injury.
•NISSAN recommends that the child restraint
system be installed in the rear seat. Accord-
ing to accident statistics, children are safer
when properly restrained in the rear seat
rather than in the front seat.
•Child restraint systems specially designed for
infants and small children are available from
several manufacturers. When selecting any
child restraint systems, place your child in the
child restraint system and check the various
adjustments to be sure that the child restraint
system is compatible with your child. Always
follow the manufacturer’s instructions for in-
stallation and use.
•Follow all of the child restraint manufacturer’s
instructions for installation and use. When
purchasing a child restraint, be sure to select
one which will fit your child and vehicle. It may
not be possible to properly install some types
of child restraint in your vehicle.
•Check the child restraint system in your ve-
hicle to be sure that it is compatible with the
vehicle’s seat belt system.
•For a front-facing child restraint system,
check to make sure the shoulder belt does
not fit close to child’s face or neck.
SSS0099Z
CHILD RESTRAINTS
Safety — seats, seat belts and supplemental restraint system1-15
Page 36 of 338

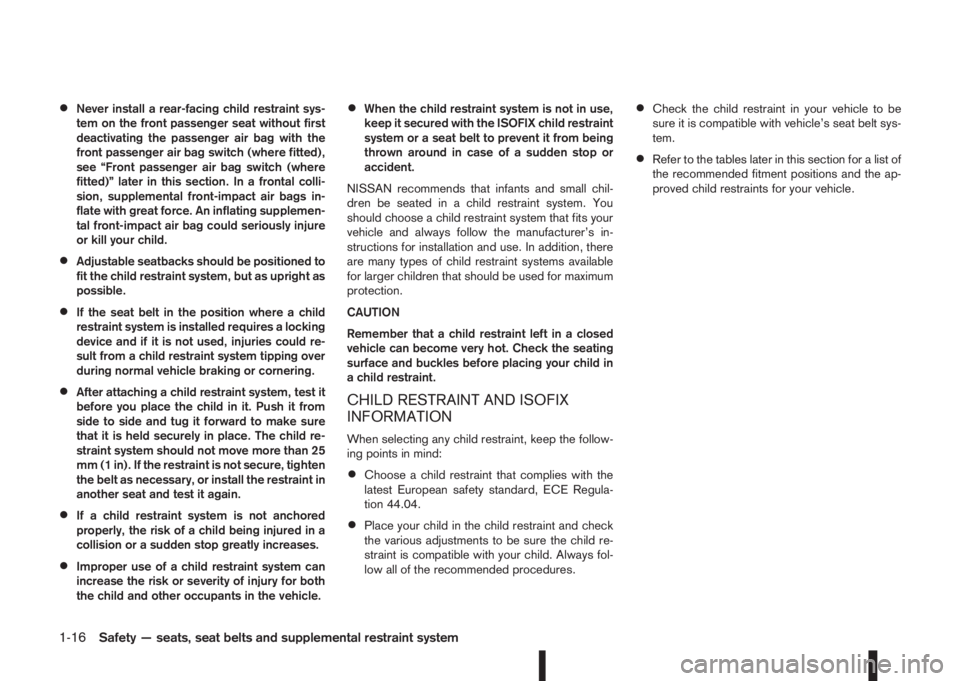

•Never install a rear-facing child restraint sys-
tem on the front passenger seat without first
deactivating the passenger air bag with the
front passenger air bag switch (where fitted),
see “Front passenger air bag switch (where
fitted)” later in this section. In a frontal colli-
sion, supplemental front-impact air bags in-
flate with great force. An inflating supplemen-
tal front-impact air bag could seriously injure
or kill your child.
•Adjustable seatbacks should be positioned to
fit the child restraint system, but as upright as
possible.
•If the seat belt in the position where a child
restraint system is installed requires a locking
device and if it is not used, injuries could re-
sult from a child restraint system tipping over
during normal vehicle braking or cornering.
•After attaching a child restraint system, test it
before you place the child in it. Push it from
side to side and tug it forward to make sure
that it is held securely in place. The child re-
straint system should not move more than 25
mm (1 in). If the restraint is not secure, tighten
the belt as necessary, or install the restraint in
another seat and test it again.
•If a child restraint system is not anchored
properly, the risk of a child being injured in a
collision or a sudden stop greatly increases.
•Improper use of a child restraint system can
increase the risk or severity of injury for both
the child and other occupants in the vehicle.
•When the child restraint system is not in use,
keep it secured with the ISOFIX child restraint
system or a seat belt to prevent it from being
thrown around in case of a sudden stop or
accident.
NISSAN recommends that infants and small chil-
dren be seated in a child restraint system. You
should choose a child restraint system that fits your
vehicle and always follow the manufacturer’s in-
structions for installation and use. In addition, there
are many types of child restraint systems available
for larger children that should be used for maximum
protection.
CAUTION
Remember that a child restraint left in a closed
vehicle can become very hot. Check the seating
surface and buckles before placing your child in
a child restraint.
CHILD RESTRAINT AND ISOFIX
INFORMATION
When selecting any child restraint, keep the follow-
ing points in mind:
•Choose a child restraint that complies with the
latest European safety standard, ECE Regula-
tion 44.04.
•Place your child in the child restraint and check
the various adjustments to be sure the child re-
straint is compatible with your child. Always fol-
low all of the recommended procedures.
•Check the child restraint in your vehicle to be
sure it is compatible with vehicle’s seat belt sys-
tem.
•Refer to the tables later in this section for a list of
the recommended fitment positions and the ap-
proved child restraints for your vehicle.
1-16Safety — seats, seat belts and supplemental restraint system
Page 37 of 338

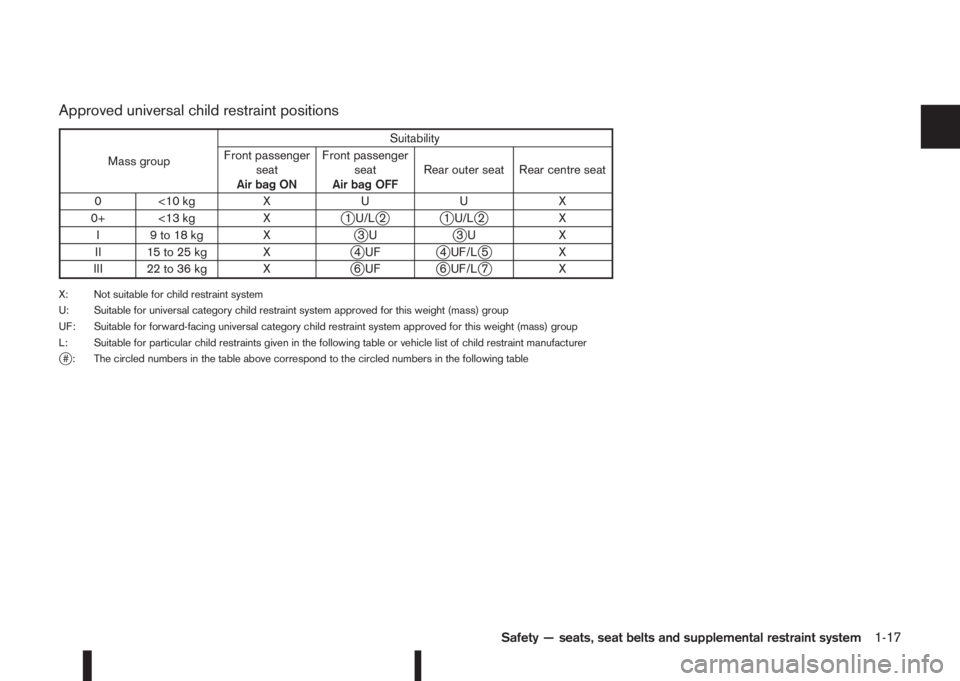

Approved universal child restraint positions
Mass groupSuitability
Front passenger
seat
Air bag ONFront passenger
seat
Air bag OFFRear outer seat Rear centre seat
0 <10 kg X U U X
0+ <13 kg X
j1 U/Lj2j1 U/Lj2X
I 9 to 18 kg X
j3Uj3U X
II 15 to 25 kg X
j4UFj4 UF/Lj5X
III 22 to 36 kg X
j6UFj6 UF/Lj7X
X: Not suitable for child restraint system
U: Suitable for universal category child restraint system approved for this weight (mass) group
UF: Suitable for forward-facing universal category child restraint system approved for this weight (mass) group
L: Suitable for particular child restraints given in the following table or vehicle list of child restraint manufacturer
j# : The circled numbers in the table above correspond to the circled numbers in the following table
Safety — seats, seat belts and supplemental restraint system1-17
Page 38 of 338

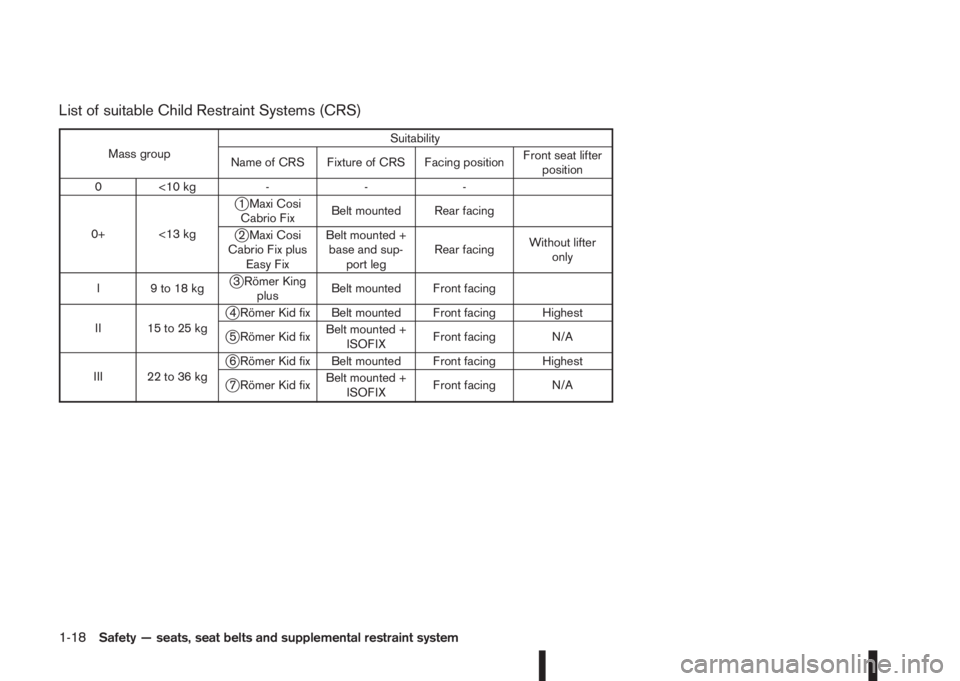

List of suitable Child Restraint Systems (CRS)
Mass groupSuitability
Name of CRS Fixture of CRS Facing positionFront seat lifter
position
0 <10 kg - - -
0+ <13 kg
j1 Maxi Cosi
Cabrio FixBelt mounted Rear facing
j2 Maxi Cosi
Cabrio Fix plus
Easy FixBelt mounted +
base and sup-
port legRear facingWithout lifter
only
I 9 to 18 kg
j3 Römer King
plusBelt mounted Front facing
II 15 to 25 kg
j4 Römer Kid fix Belt mounted Front facing Highest
j5 Römer Kid fixBelt mounted +
ISOFIXFront facing N/A
III 22 to 36 kg
j6 Römer Kid fix Belt mounted Front facing Highest
j7 Römer Kid fixBelt mounted +
ISOFIXFront facing N/A
1-18Safety — seats, seat belts and supplemental restraint system
Page 39 of 338
Approved ISOFIX child restraint positions
Mass groupSuitability
Front passenger seat Rear outer seat Rear centre seat
Carry-cotF ISO/L1 X X X
G ISO/L2 X X X
0 (< 10 kg) E ISO/R1 X IL X
0+ (< 13 kg)E ISO/R1 X IL
j8X
D ISO/R2 X IL X
C ISO/R3 X IL
j9X
I(9to18kg)D ISO/R2 X IL X
C ISO/R3 X IL
j9X
B ISO/F2 X IL, IUF X
B1 ISO/F2X X
j10 IL, IUFj11X
A ISO/F3 X IL, IUF X
II (15 to 25 kg) X IL, IUF X
III (22 to 36 kg) X IL, IUF X
X: Not suitable for ISOFIX child restraint system
IUF: Suitable for universal category forward-facing child restraint system approved for this weight (mass) group
IL: Suitable for particular ISOFIX category child restraint system (CRS) given in the following table or vehicle list of child
restraint manufacturer
j# : The circled numbers in the table above correspond to the circled numbers in the following table
Safety — seats, seat belts and supplemental restraint system1-19
Page 40 of 338
List of suitable ISOFIX Child Restraint Systems (CRS)
Mass group Name of CRS Facing position Category
0+ (<13 kg) E ISO/R1Maxi Cosi Cabrio
Fix plus Easy Fix
BaseRear facing Semi-universal
j8
0+ /1 (<18
kg)E ISO/R3BeSafe iZi Kid X3
IsofixRear facing Semi-universal
j9
I (9 to 18 kg) B1 ISO/F2XMaxi Cosi pearl
plus family fixFront facing Semi-universal
j10
Römer Duo plus Front facing Universalj11
1-20Safety — seats, seat belts and supplemental restraint system
