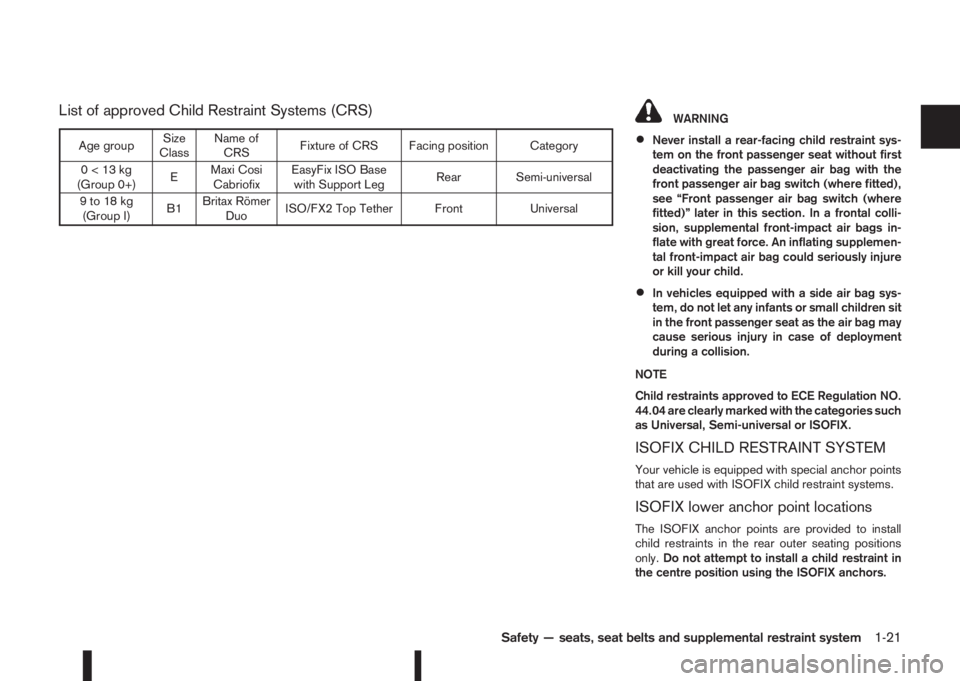

List of approved Child Restraint Systems (CRS)WARNING
•Never install a rear-facing child restraint sys-
tem on the front passenger seat without first
deactivating the passenger air bag with the
front passenger air bag switch (where fitted),
see “Front passenger air bag switch (where
fitted)” later in this section. In a frontal colli-
sion, supplemental front-impact air bags in-
flate with great force. An inflating supplemen-
tal front-impact air bag could seriously injure
or kill your child.
•In vehicles equipped with a side air bag sys-
tem, do not let any infants or small children sit
in the front passenger seat as the air bag may
cause serious injury in case of deployment
during a collision.
NOTE
Child restraints approved to ECE Regulation NO.
44.04 are clearly marked with the categories such
as Universal, Semi-universal or ISOFIX.
ISOFIX CHILD RESTRAINT SYSTEM
Your vehicle is equipped with special anchor points
that are used with ISOFIX child restraint systems.
ISOFIX lower anchor point locations
The ISOFIX anchor points are provided to install
child restraints in the rear outer seating positions
only.Do not attempt to install a child restraint in
the centre position using the ISOFIX anchors.
Age groupSize
ClassName of
CRSFixture of CRS Facing position Category
0<13kg
(Group 0+)EMaxi Cosi
CabriofixEasyFix ISO Base
with Support LegRear Semi-universal
9to18kg
(Group I)B1Britax Römer
DuoISO/FX2 Top Tether Front Universal
Safety — seats, seat belts and supplemental restraint system1-21
Page 42 of 338

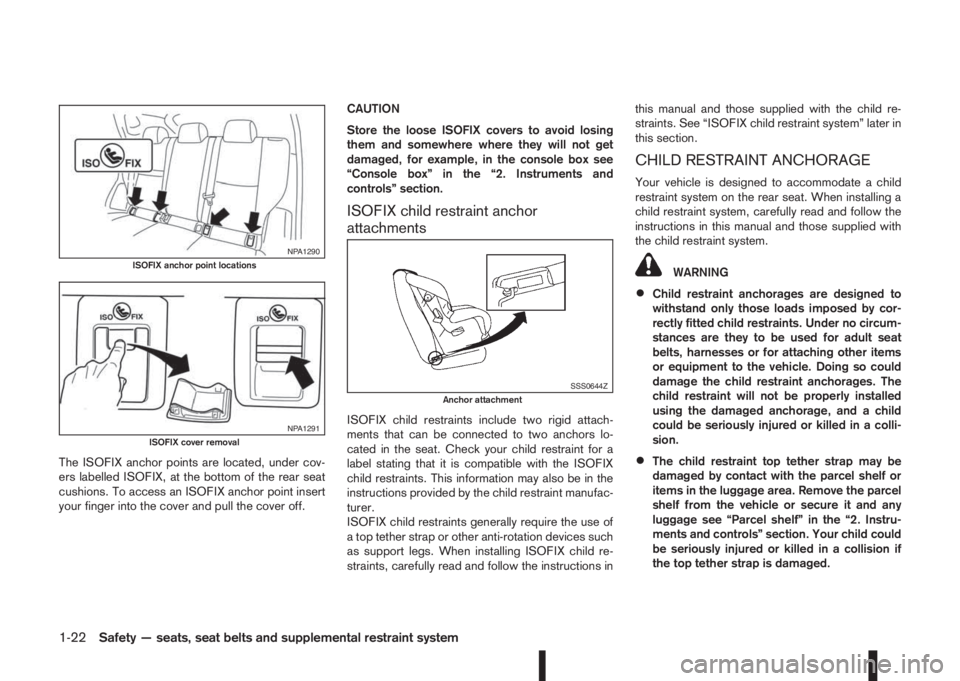

The ISOFIX anchor points are located, under cov-
ers labelled ISOFIX, at the bottom of the rear seat
cushions. To access an ISOFIX anchor point insert
your finger into the cover and pull the cover off.CAUTION
Store the loose ISOFIX covers to avoid losing
them and somewhere where they will not get
damaged, for example, in the console box see
“Console box” in the “2. Instruments and
controls” section.
ISOFIX child restraint anchor
attachments
ISOFIX child restraints include two rigid attach-
ments that can be connected to two anchors lo-
cated in the seat. Check your child restraint for a
label stating that it is compatible with the ISOFIX
child restraints. This information may also be in the
instructions provided by the child restraint manufac-
turer.
ISOFIX child restraints generally require the use of
a top tether strap or other anti-rotation devices such
as support legs. When installing ISOFIX child re-
straints, carefully read and follow the instructions inthis manual and those supplied with the child re-
straints. See “ISOFIX child restraint system” later in
this section.
CHILD RESTRAINT ANCHORAGE
Your vehicle is designed to accommodate a child
restraint system on the rear seat. When installing a
child restraint system, carefully read and follow the
instructions in this manual and those supplied with
the child restraint system.
WARNING
•Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no circum-
stances are they to be used for adult seat
belts, harnesses or for attaching other items
or equipment to the vehicle. Doing so could
damage the child restraint anchorages. The
child restraint will not be properly installed
using the damaged anchorage, and a child
could be seriously injured or killed in a colli-
sion.
•The child restraint top tether strap may be
damaged by contact with the parcel shelf or
items in the luggage area. Remove the parcel
shelf from the vehicle or secure it and any
luggage see “Parcel shelf” in the “2. Instru-
ments and controls” section. Your child could
be seriously injured or killed in a collision if
the top tether strap is damaged.
NPA1290ISOFIX anchor point locations
NPA1291ISOFIX cover removal
SSS0644ZAnchor attachment
1-22Safety — seats, seat belts and supplemental restraint system
Page 43 of 338

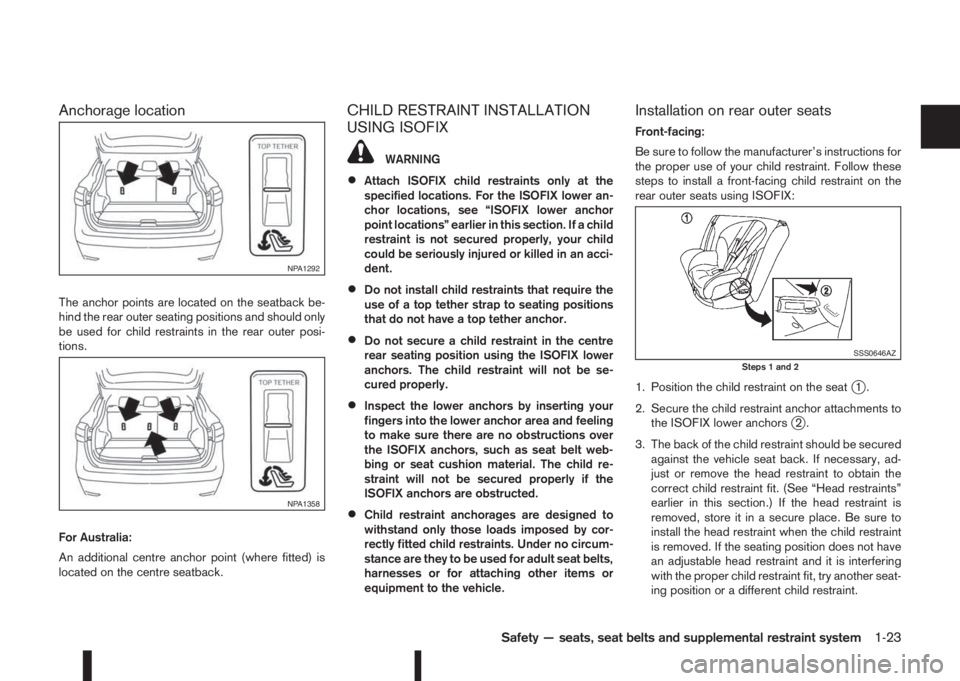

Anchorage location
The anchor points are located on the seatback be-
hind the rear outer seating positions and should only
be used for child restraints in the rear outer posi-
tions.
For Australia:
An additional centre anchor point (where fitted) is
located on the centre seatback.
CHILD RESTRAINT INSTALLATION
USING ISOFIX
WARNING
•Attach ISOFIX child restraints only at the
specified locations. For the ISOFIX lower an-
chor locations, see “ISOFIX lower anchor
point locations” earlier in this section. If a child
restraint is not secured properly, your child
could be seriously injured or killed in an acci-
dent.
•Do not install child restraints that require the
use of a top tether strap to seating positions
that do not have a top tether anchor.
•Do not secure a child restraint in the centre
rear seating position using the ISOFIX lower
anchors. The child restraint will not be se-
cured properly.
•Inspect the lower anchors by inserting your
fingers into the lower anchor area and feeling
to make sure there are no obstructions over
the ISOFIX anchors, such as seat belt web-
bing or seat cushion material. The child re-
straint will not be secured properly if the
ISOFIX anchors are obstructed.
•Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no circum-
stance are they to be used for adult seat belts,
harnesses or for attaching other items or
equipment to the vehicle.
Installation on rear outer seats
Front-facing:
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a front-facing child restraint on the
rear outer seats using ISOFIX:
1. Position the child restraint on the seat
j1.
2. Secure the child restraint anchor attachments to
the ISOFIX lower anchors
j2.
3. The back of the child restraint should be secured
against the vehicle seat back. If necessary, ad-
just or remove the head restraint to obtain the
correct child restraint fit. (See “Head restraints”
earlier in this section.) If the head restraint is
removed, store it in a secure place. Be sure to
install the head restraint when the child restraint
is removed. If the seating position does not have
an adjustable head restraint and it is interfering
with the proper child restraint fit, try another seat-
ing position or a different child restraint.
NPA1292
NPA1358
SSS0646AZSteps 1 and 2
Safety — seats, seat belts and supplemental restraint system1-23
Page 44 of 338
4. Shorten the rigid attachment to have the child
restraint firmly tightened; press downwardj3
and rearwardj4 firmly in the centre of the child
restraint with your knee to compress the vehicle
seat cushion and seatback.
5. If the child restraint is equipped with a top tether
strap, route the top tether strap and secure the
tether strap to the tether anchor point. (See
“Child restraint anchorage” earlier in this sec-
tion.)
6. If the child restraint is equipped with other anti-
rotation devices such as support legs, use them
instead of the top tether strap following the child
restraint manufacturer’s instructions.7. Test the child restraint before you place the child
in itj5 . Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.
8. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 7.Rear-facing:
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a rear-facing child restraint on the
rear outer seats using ISOFIX:
1. Position the child restraint on the seat
j1.
2. Secure the child restraint anchor attachments to
the ISOFIX lower anchors
j2.
SSS0754AZStep 4SSS0755AZStep 7
SSS0649AZSteps 1 and 2
SSS0756AZStep 3
1-24Safety — seats, seat belts and supplemental restraint system
Page 45 of 338

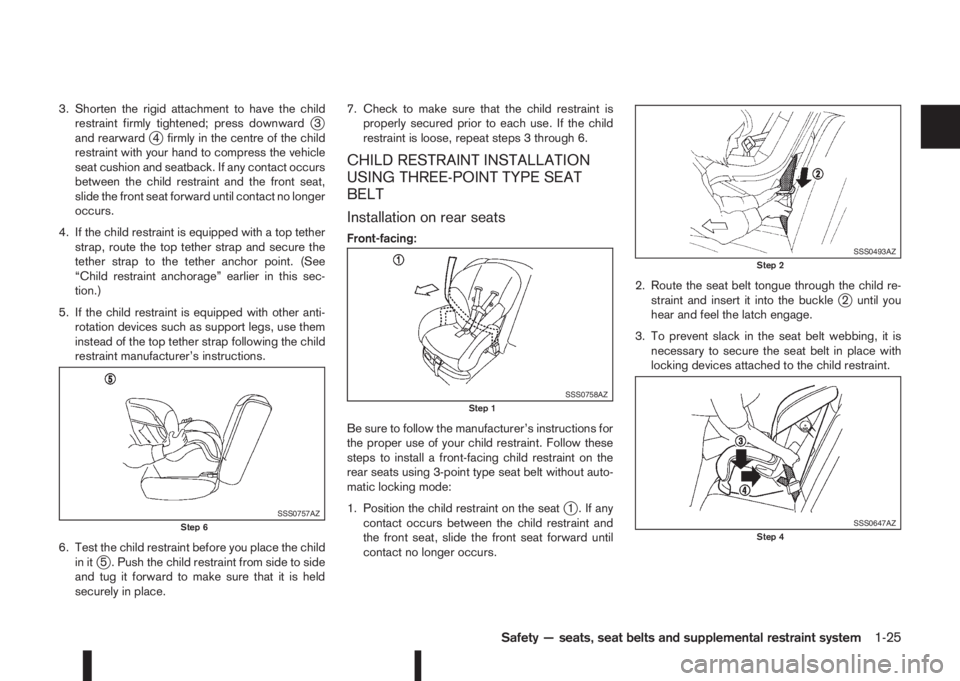

3. Shorten the rigid attachment to have the child
restraint firmly tightened; press downwardj3
and rearwardj4 firmly in the centre of the child
restraint with your hand to compress the vehicle
seat cushion and seatback. If any contact occurs
between the child restraint and the front seat,
slide the front seat forward until contact no longer
occurs.
4. If the child restraint is equipped with a top tether
strap, route the top tether strap and secure the
tether strap to the tether anchor point. (See
“Child restraint anchorage” earlier in this sec-
tion.)
5. If the child restraint is equipped with other anti-
rotation devices such as support legs, use them
instead of the top tether strap following the child
restraint manufacturer’s instructions.
6. Test the child restraint before you place the child
in it
j5 . Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.7. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 6.
CHILD RESTRAINT INSTALLATION
USING THREE-POINT TYPE SEAT
BELT
Installation on rear seats
Front-facing:
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a front-facing child restraint on the
rear seats using 3-point type seat belt without auto-
matic locking mode:
1. Position the child restraint on the seat
j1 . If any
contact occurs between the child restraint and
the front seat, slide the front seat forward until
contact no longer occurs.2. Route the seat belt tongue through the child re-
straint and insert it into the buckle
j2 until you
hear and feel the latch engage.
3. To prevent slack in the seat belt webbing, it is
necessary to secure the seat belt in place with
locking devices attached to the child restraint.
SSS0757AZStep 6
SSS0758AZStep 1
SSS0493AZStep 2
SSS0647AZStep 4
Safety — seats, seat belts and supplemental restraint system1-25
Page 46 of 338

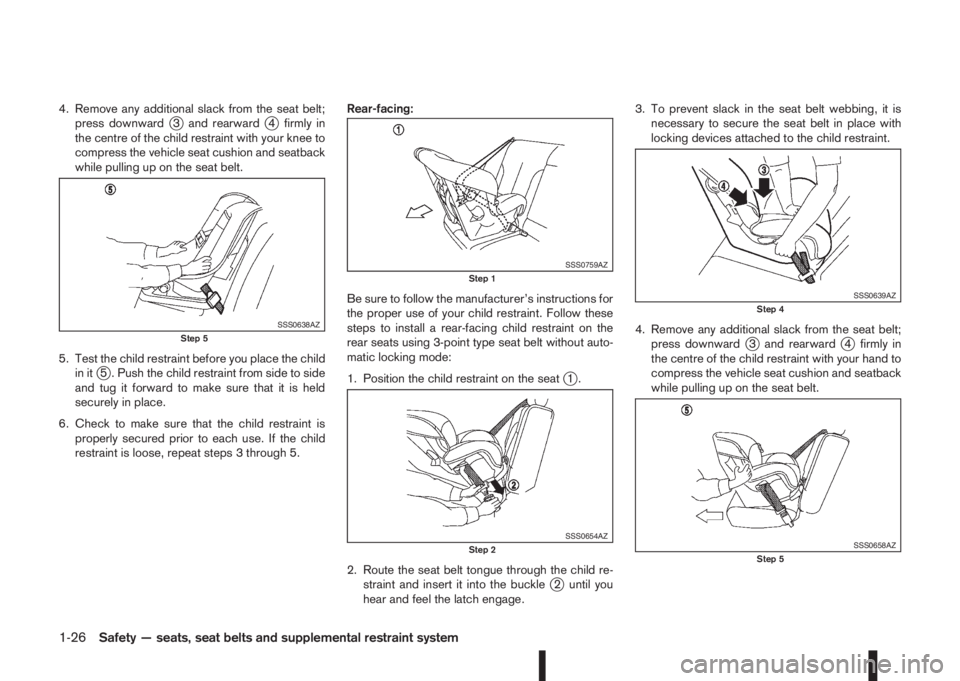

4. Remove any additional slack from the seat belt;
press downwardj3 and rearwardj4 firmly in
the centre of the child restraint with your knee to
compress the vehicle seat cushion and seatback
while pulling up on the seat belt.
5. Test the child restraint before you place the child
in it
j5 . Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.
6. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 5.Rear-facing:
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a rear-facing child restraint on the
rear seats using 3-point type seat belt without auto-
matic locking mode:
1. Position the child restraint on the seatj1.
2. Route the seat belt tongue through the child re-
straint and insert it into the buckle
j2 until you
hear and feel the latch engage.3. To prevent slack in the seat belt webbing, it is
necessary to secure the seat belt in place with
locking devices attached to the child restraint.
4. Remove any additional slack from the seat belt;
press downward
j3 and rearwardj4 firmly in
the centre of the child restraint with your hand to
compress the vehicle seat cushion and seatback
while pulling up on the seat belt.
SSS0638AZStep 5
SSS0759AZStep 1
SSS0654AZStep 2
SSS0639AZStep 4
SSS0658AZStep 5
1-26Safety — seats, seat belts and supplemental restraint system
Page 47 of 338

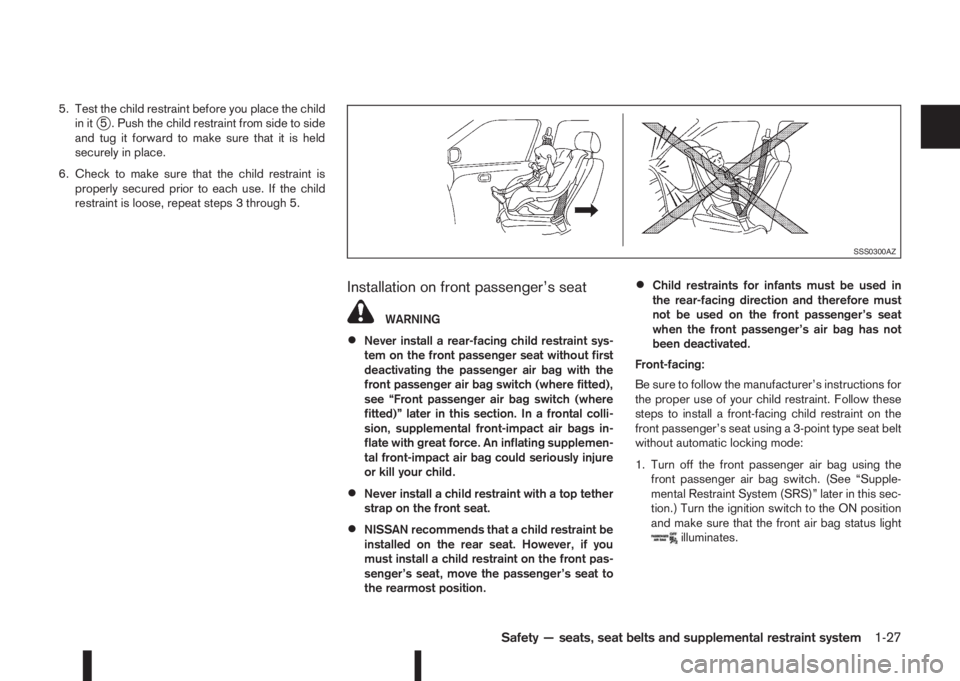

5. Test the child restraint before you place the child
in itj5 . Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.
6. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 5.
Installation on front passenger’s seat
WARNING
•Never install a rear-facing child restraint sys-
tem on the front passenger seat without first
deactivating the passenger air bag with the
front passenger air bag switch (where fitted),
see “Front passenger air bag switch (where
fitted)” later in this section. In a frontal colli-
sion, supplemental front-impact air bags in-
flate with great force. An inflating supplemen-
tal front-impact air bag could seriously injure
or kill your child.
•Never install a child restraint with a top tether
strap on the front seat.
•NISSAN recommends that a child restraint be
installed on the rear seat. However, if you
must install a child restraint on the front pas-
senger’s seat, move the passenger’s seat to
the rearmost position.
•Child restraints for infants must be used in
the rear-facing direction and therefore must
not be used on the front passenger’s seat
when the front passenger’s air bag has not
been deactivated.
Front-facing:
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a front-facing child restraint on the
front passenger’s seat using a 3-point type seat belt
without automatic locking mode:
1. Turn off the front passenger air bag using the
front passenger air bag switch. (See “Supple-
mental Restraint System (SRS)” later in this sec-
tion.) Turn the ignition switch to the ON position
and make sure that the front air bag status light
illuminates.
SSS0300AZ
Safety — seats, seat belts and supplemental restraint system1-27
Page 48 of 338

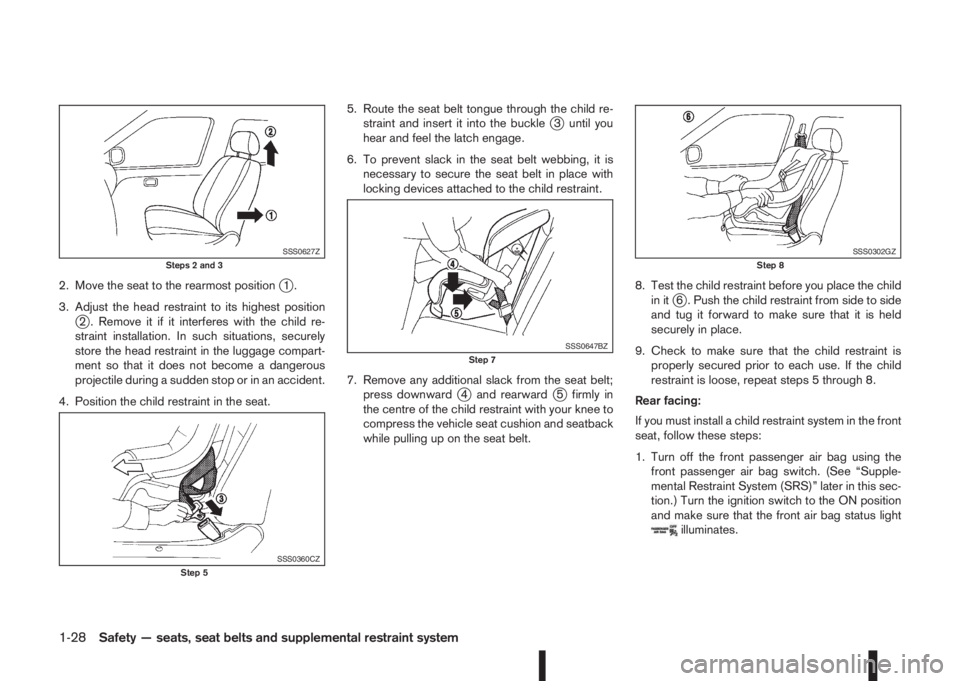

2. Move the seat to the rearmost positionj1.
3. Adjust the head restraint to its highest position
j2 . Remove it if it interferes with the child re-
straint installation. In such situations, securely
store the head restraint in the luggage compart-
ment so that it does not become a dangerous
projectile during a sudden stop or in an accident.
4. Position the child restraint in the seat.5. Route the seat belt tongue through the child re-
straint and insert it into the buckle
j3 until you
hear and feel the latch engage.
6. To prevent slack in the seat belt webbing, it is
necessary to secure the seat belt in place with
locking devices attached to the child restraint.
7. Remove any additional slack from the seat belt;
press downward
j4 and rearwardj5 firmly in
the centre of the child restraint with your knee to
compress the vehicle seat cushion and seatback
while pulling up on the seat belt.8. Test the child restraint before you place the child
in it
j6 . Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.
9. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 5 through 8.
Rear facing:
If you must install a child restraint system in the front
seat, follow these steps:
1. Turn off the front passenger air bag using the
front passenger air bag switch. (See “Supple-
mental Restraint System (SRS)” later in this sec-
tion.) Turn the ignition switch to the ON position
and make sure that the front air bag status light
illuminates.
SSS0627ZSteps 2 and 3
SSS0360CZStep 5
SSS0647BZStep 7
SSS0302GZStep 8
1-28Safety — seats, seat belts and supplemental restraint system
Page 49 of 338

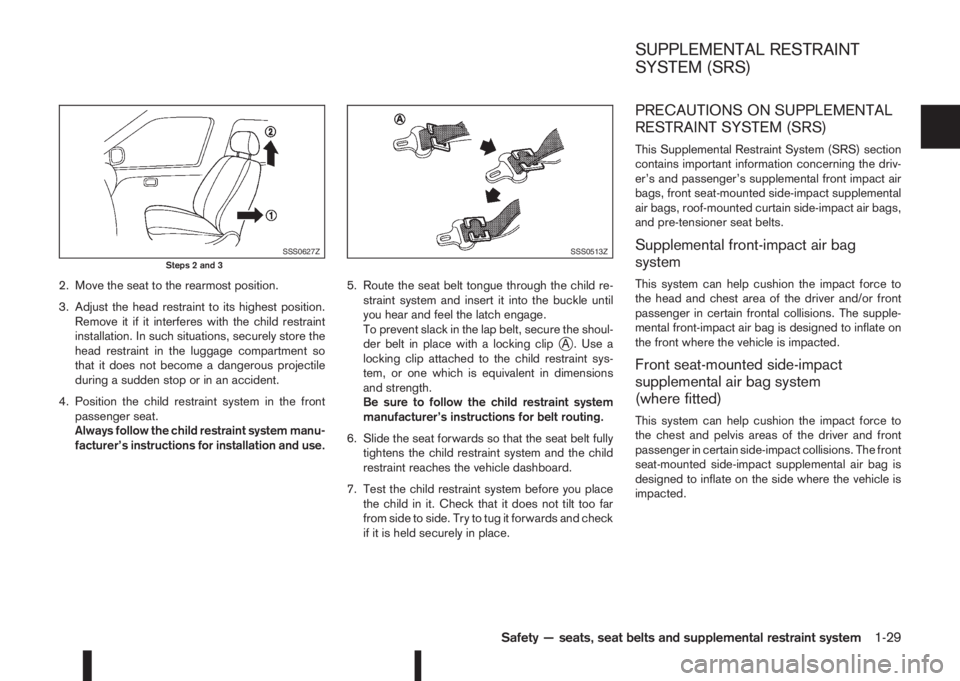

2. Move the seat to the rearmost position.
3. Adjust the head restraint to its highest position.
Remove it if it interferes with the child restraint
installation. In such situations, securely store the
head restraint in the luggage compartment so
that it does not become a dangerous projectile
during a sudden stop or in an accident.
4. Position the child restraint system in the front
passenger seat.
Always follow the child restraint system manu-
facturer’s instructions for installation and use.5. Route the seat belt tongue through the child re-
straint system and insert it into the buckle until
you hear and feel the latch engage.
To prevent slack in the lap belt, secure the shoul-
der belt in place with a locking clip
jA . Use a
locking clip attached to the child restraint sys-
tem, or one which is equivalent in dimensions
and strength.
Be sure to follow the child restraint system
manufacturer’s instructions for belt routing.
6. Slide the seat forwards so that the seat belt fully
tightens the child restraint system and the child
restraint reaches the vehicle dashboard.
7. Test the child restraint system before you place
the child in it. Check that it does not tilt too far
from side to side. Try to tug it forwards and check
if it is held securely in place.
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
This Supplemental Restraint System (SRS) section
contains important information concerning the driv-
er’s and passenger’s supplemental front impact air
bags, front seat-mounted side-impact supplemental
air bags, roof-mounted curtain side-impact air bags,
and pre-tensioner seat belts.
Supplemental front-impact air bag
system
This system can help cushion the impact force to
the head and chest area of the driver and/or front
passenger in certain frontal collisions. The supple-
mental front-impact air bag is designed to inflate on
the front where the vehicle is impacted.
Front seat-mounted side-impact
supplemental air bag system
(where fitted)
This system can help cushion the impact force to
the chest and pelvis areas of the driver and front
passenger in certain side-impact collisions. The front
seat-mounted side-impact supplemental air bag is
designed to inflate on the side where the vehicle is
impacted.
SSS0627ZSteps 2 and 3SSS0513Z
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
Safety — seats, seat belts and supplemental restraint system1-29
Page 50 of 338

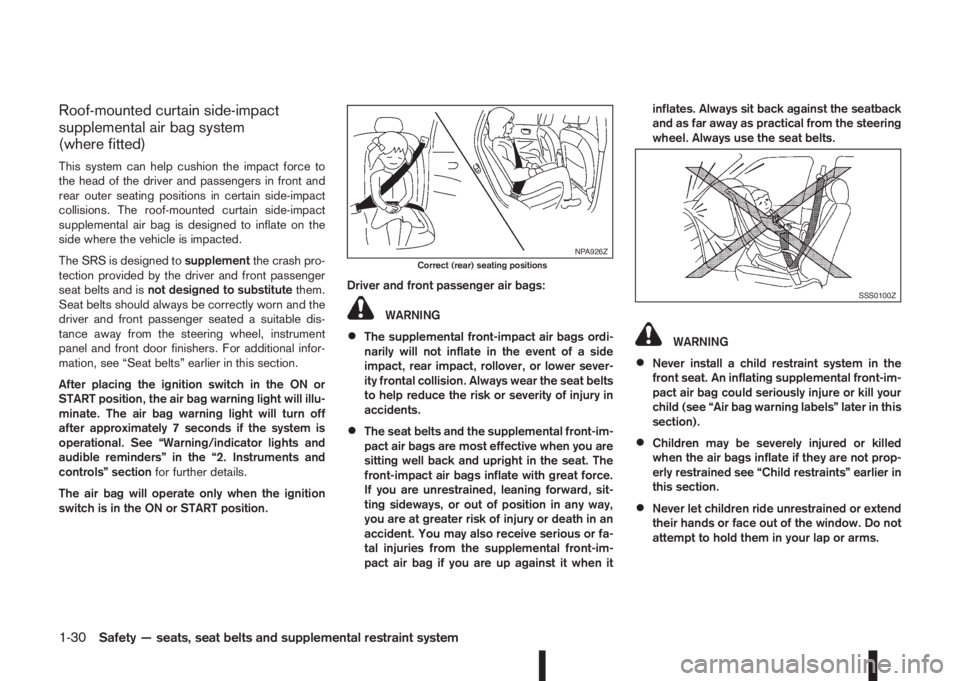

Roof-mounted curtain side-impact
supplemental air bag system
(where fitted)
This system can help cushion the impact force to
the head of the driver and passengers in front and
rear outer seating positions in certain side-impact
collisions. The roof-mounted curtain side-impact
supplemental air bag is designed to inflate on the
side where the vehicle is impacted.
The SRS is designed tosupplementthe crash pro-
tection provided by the driver and front passenger
seat belts and isnot designed to substitutethem.
Seat belts should always be correctly worn and the
driver and front passenger seated a suitable dis-
tance away from the steering wheel, instrument
panel and front door finishers. For additional infor-
mation, see “Seat belts” earlier in this section.
After placing the ignition switch in the ON or
START position, the air bag warning light will illu-
minate. The air bag warning light will turn off
after approximately 7 seconds if the system is
operational. See “Warning/indicator lights and
audible reminders” in the “2. Instruments and
controls” sectionfor further details.
The air bag will operate only when the ignition
switch is in the ON or START position.Driver and front passenger air bags:
WARNING
•The supplemental front-impact air bags ordi-
narily will not inflate in the event of a side
impact, rear impact, rollover, or lower sever-
ity frontal collision. Always wear the seat belts
to help reduce the risk or severity of injury in
accidents.
•The seat belts and the supplemental front-im-
pact air bags are most effective when you are
sitting well back and upright in the seat. The
front-impact air bags inflate with great force.
If you are unrestrained, leaning forward, sit-
ting sideways, or out of position in any way,
you are at greater risk of injury or death in an
accident. You may also receive serious or fa-
tal injuries from the supplemental front-im-
pact air bag if you are up against it when itinflates. Always sit back against the seatback
and as far away as practical from the steering
wheel. Always use the seat belts.
WARNING
•Never install a child restraint system in the
front seat. An inflating supplemental front-im-
pact air bag could seriously injure or kill your
child (see “Air bag warning labels” later in this
section).
•Children may be severely injured or killed
when the air bags inflate if they are not prop-
erly restrained see “Child restraints” earlier in
this section.
•Never let children ride unrestrained or extend
their hands or face out of the window. Do not
attempt to hold them in your lap or arms.
NPA926ZCorrect (rear) seating positions
SSS0100Z
1-30Safety — seats, seat belts and supplemental restraint system
