NISSAN QUEST 2000 V41 / 2.G Owner's Manual
Manufacturer: NISSAN, Model Year: 2000, Model line: QUEST, Model: NISSAN QUEST 2000 V41 / 2.GPages: 292, PDF Size: 2.48 MB
Page 21 of 292
Removing second row bucket seats

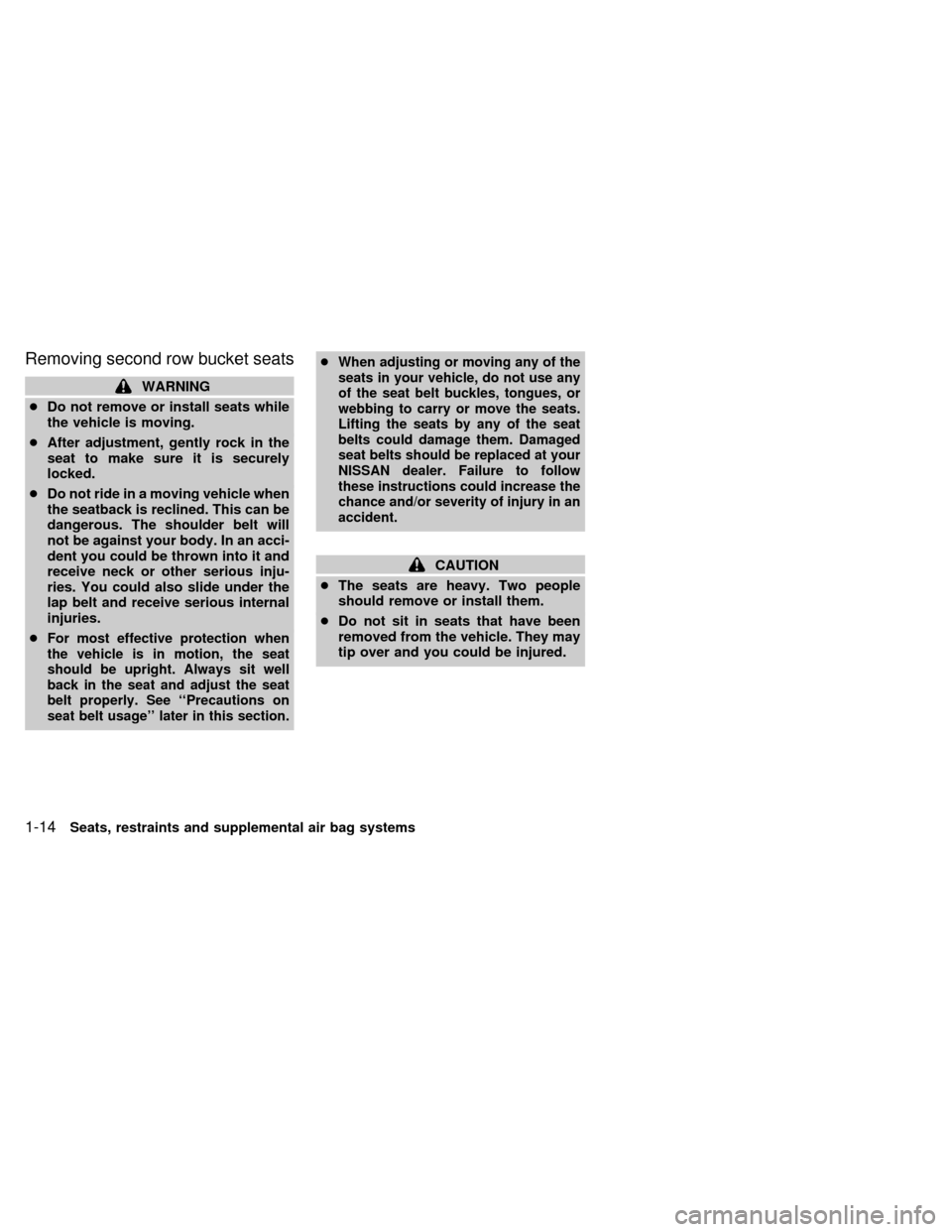

WARNING
cDo not remove or install seats while
the vehicle is moving.
cAfter adjustment, gently rock in the
seat to make sure it is securely
locked.
cDo not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will
not be against your body. In an acci-
dent you could be thrown into it and
receive neck or other serious inju-
ries. You could also slide under the
lap belt and receive serious internal
injuries.
c
For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See ``Precautions on
seat belt usage'' later in this section.cWhen adjusting or moving any of the
seats in your vehicle, do not use any
of the seat belt buckles, tongues, or
webbing to carry or move the seats.
Lifting the seats by any of the seat
belts could damage them. Damaged
seat belts should be replaced at your
NISSAN dealer. Failure to follow
these instructions could increase the
chance and/or severity of injury in an
accident.
CAUTION
cThe seats are heavy. Two people
should remove or install them.
cDo not sit in seats that have been
removed from the vehicle. They may
tip over and you could be injured.
1-14Seats, restraints and supplemental air bag systems
ZX
Page 22 of 292
1. Lift the recliner lever.
2. Fold the seatback fully forward.
ARS1141
Seats, restraints and supplemental air bag systems1-15
ZX
Page 23 of 292
3. Unlock the seat legs at the two rear floor
latch levers by pulling up on the two
straps.
4. Lift the back of the seat and slide it
rearward off the front anchor positions.
ARS1143
1-16Seats, restraints and supplemental air bag systems
ZX
Page 24 of 292
Installing the second row bucket
seats
Clean the area around the seat leg floor
anchors before installing the seat.
1. With the seatback fully folded, place the
seat behind the floor anchors and slide
seat leg hooks so they catch into each
floor anchor.
2. Push down on the rear of the seat to
secure the two rear floor latches.
3. Lift the recliner lever and raise the seat-
back.4. Rock the seat back and forth to be sure it
is securely latched.
The second row bucket seats are not
interchangeable. If you are having diffi-
culty installing the seats, you may have
them in the wrong location.
Second row passenger side bucket
seat
The bucket seat near the passenger side
sliding door can be moved forward to allow
easier entry and exit for third seat passen-
gers.
ARS1142ARS1144
Seats, restraints and supplemental air bag systems1-17
ZX
Page 25 of 292
TABLETOP SEATS
The second and third row seats convert into
tabletops with built-in cupholders. To use
the tabletop seats, lift up on the seatback
release lever and fold the seatback forward.
WARNING
cNever place hard items such as cof-
fee mugs or drinking glasses on the
tabletop seats when the vehicle is
moving. Any item can become a pro-
jectile inside a vehicle involved in a
collision. To help prevent personal
injury, never leave loose items on
the folded-down tabletop seats when
the vehicle is moving.
cDo not use the tabletop and cup
holder feature while the vehicle is in
motion unless you are properly
seated with your seat belt on.
ARS1138
1-18Seats, restraints and supplemental air bag systems
ZX
Page 26 of 292
There is also a lever behind the passenger
bucket seat that allows third seat passen-
gers to move the bucket seat forward with-
out help from another passenger.
SEATING ARRANGEMENTS
Many different arrangements for passenger
seating or cargo hauling are available as
you will see in the following illustrations. The
second row seats may be removed and the
third row seat may be moved forward to the
second row seating position. The second
and third row seats have a folddown table-
top feature. This offers a variety of uses for
the vehicle when moving or stopped.
The illustrations shown reflect the different
seating positions available.
Before you begin to arrange the seats in
your vehicle, read all of the cautions and
warnings in this section, including the
information on the removable floor mats.
Also observe any labels that are in the
vehicle.
LRS0050
SEATS/FLOOR MATS
Seats, restraints and supplemental air bag systems1-19
ZX
Page 27 of 292
WARNING
cWhile the vehicle is in motion, pas-
sengers should always be seated in
a forward facing direction in a seat
which is properly secured and ad-
justed. Seat belts should always be
used. Sitting without a seat belt in a
seat that is not properly secured in
one of the locations shown in this
chapter, or in a place without a seat
and seat belt can result in personal
injury in a sudden stop or collision.
cDo not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will
not be against your body. In an acci-
dent, you could be thrown into it and
receive neck or other serious inju-
ries. You could also slide under the
lap belt and receive serious internal
injuries.
cFor the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly.cIt is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these ar-
eas are more likely to be seriously
injured or killed.
cDo not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
cBe sure everyone in your vehicle is
in a seat and using a seat belt prop-
erly.
cDo not place hard items such as
coffee mugs or drinking glasses on
the tabletop seats when the vehicle
is moving. Any item can become a
projectile inside a vehicle involved in
a collision. To help prevent personal
injury, never leave loose items on
the fold-down tabletop seats when
the vehicle is moving.
WITH SECOND ROW BENCH
SEAT
The most common seating arrangement for
seven passengers is with the three-
passenger bench seat in seating position
#1. This provides more leg room for the
passengers sitting in the third row.
APD0096
SEAT POSITIONS
1-20Seats, restraints and supplemental air bag systems
ZX
Page 28 of 292
When more cargo area room is necessary,
the three-passenger sliding bench seat can
be moved to seating position #2 or #3.
These seating arrangements provide less
leg room for third row passengers, but more
cargo room.The fold-down tabletop seats in the second
and third rows provide a surface for eating
or playing games on long trips.
ARS1204APD0042
Seats, restraints and supplemental air bag systems1-21
ZX
Page 29 of 292
If a considerable amount of cargo area is
needed, the seat cushion of the three-
passenger sliding bench seat can be flipped
up and the seat can be moved up to storage
position #2, just behind the second row
seat.When maximum cargo area is needed and
there are no rear seat passengers, the
second row seat can be removed and the
three-passenger sliding bench seat can be
moved up to storage position #1, just behind
the front seats.The second row bench seat can be folded
down to serve as a tabletop for passengers
sitting in the three-passenger bench seat.
APD0043APD0049APD0044
1-22Seats, restraints and supplemental air bag systems
ZX
Page 30 of 292
The second and third row bench seats can
be folded down to tabletops.To increase cargo area space, the second
row bench seat can be removed and the
three-passenger sliding seat can be moved
up to the second row position.The third seat can be folded down into a
tabletop.
APD0045APD0046APD0047
Seats, restraints and supplemental air bag systems1-23
ZX
