NISSAN QUEST 2015 RE52 / 4.G User Guide
Manufacturer: NISSAN, Model Year: 2015, Model line: QUEST, Model: NISSAN QUEST 2015 RE52 / 4.GPages: 491, PDF Size: 4.54 MB
Page 11 of 491
> ( G L W 0 R G H O ( ' @
GUID-2BA1AA4B-361D-47D3-9E65-B62E825A4E89
JVO0058X
1. Front view camera* (P.4-31)
2. Hood (P.3-25)
3. Windshield wiper and washerÐ Switch operation (P.2-30)
Ð Blade replacement (P.8-17)
Ð Window washer fluid (P.8-13)
4. Moonroof* (P.2-53) 5. Outside mirrors (P.3-35)
- Side view camera* (P.4-31)
6. Power windows (P.2-51)
7. Side turn signal light*
Ð Switch operation (P.2-37)
Ð Bulb replacement (P.8-27)
8. Roof rack (rail)* (P.2-49) 9. Recovery hook (P.6-16)
10. License plate installation (P.9-11)
11. Fog lights*
Ð Switch operation (P.2-38)
Ð Bulb replacement (P.8-27)
12. Headlight and turn signal lights Ð Switch operation (P.2-33)
Ð Bulb replacement (P.8-27)
13. Tires Ð Wheel and tires (P. 8-30, P.9-7)
Ð Flat tire (P.6-3)
Ð Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-3)
14. Doors Ð Keys (P.3-3)
Ð Door locks (P.3-5)
Ð Intelligent Key system (P.3-13)
Ð Security system (P.2-27)
15. Child safety rear door lock (P.3-9)
16. Sliding doors (P.3-7)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT
& R Q G L W L R Q
Page 12 of 491
> ( G L W 0 R G H O ( ' @
0-4Illustrated table of contents
GUID-299D8FFF-E598-4546-98D3-42DC52234B1C
SSI0822
1. Antenna (P.4-104)Ð Satellite radio antenna* (P.4-104)
2. Rear window wiper and washer
Ð Switch operation (P.2-31)
Ð Window washer fluid (P.8-13)
3. High-mounted stop light Ð Bulb replacement (P.8-27) 4. Rear window defroster (P.2-32)
5. Fuel-filler door
Ð Operation (P.3-30)
Ð Fuel information (P.9-3)
6. Rear combination light Ð Bulb replacement (P.8-27) 7. Rear view camera*
Ð RearView Monitor (P.4-24)
Ð Around View Monitor (P. 4-31)
8. Lift gate (P.3-26) Ð Remote keyless entry system (P.3-21)
Ð Intelligent Key system (P.3-13)
*: if so equipped
EXTERIOR REAR
& R Q G L W L R Q
Page 13 of 491
> ( G L W 0 R G H O ( ' @

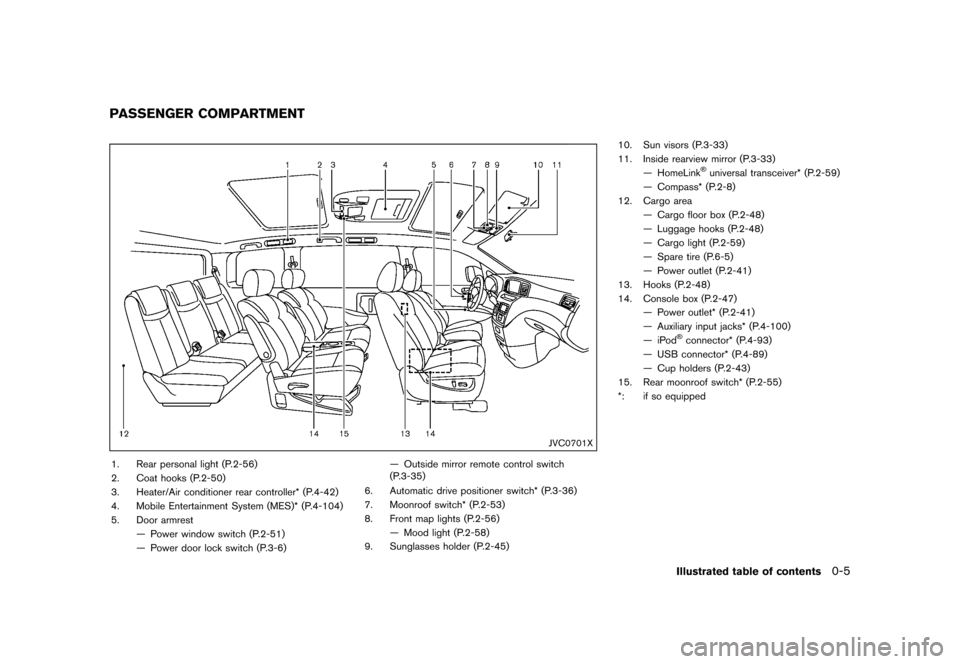

GUID-83D78A9F-C85B-4FB2-9367-6DA62D57DF38
JVC0701X
1. Rear personal light (P.2-56)
2. Coat hooks (P.2-50)
3. Heater/Air conditioner rear controller* (P.4-42)
4. Mobile Entertainment System (MES)* (P.4-104)
5. Door armrestÐ Power window switch (P.2-51)
Ð Power door lock switch (P.3-6) Ð Outside mirror remote control switch
(P.3-35)
6. Automatic drive positioner switch* (P.3-36)
7. Moonroof switch* (P.2-53)
8. Front map lights (P.2-56) Ð Mood light (P.2-58)
9. Sunglasses holder (P.2-45) 10. Sun visors (P.3-33)
11. Inside rearview mirror (P.3-33)
Ð HomeLink
Page 14 of 491
> ( G L W 0 R G H O ( ' @

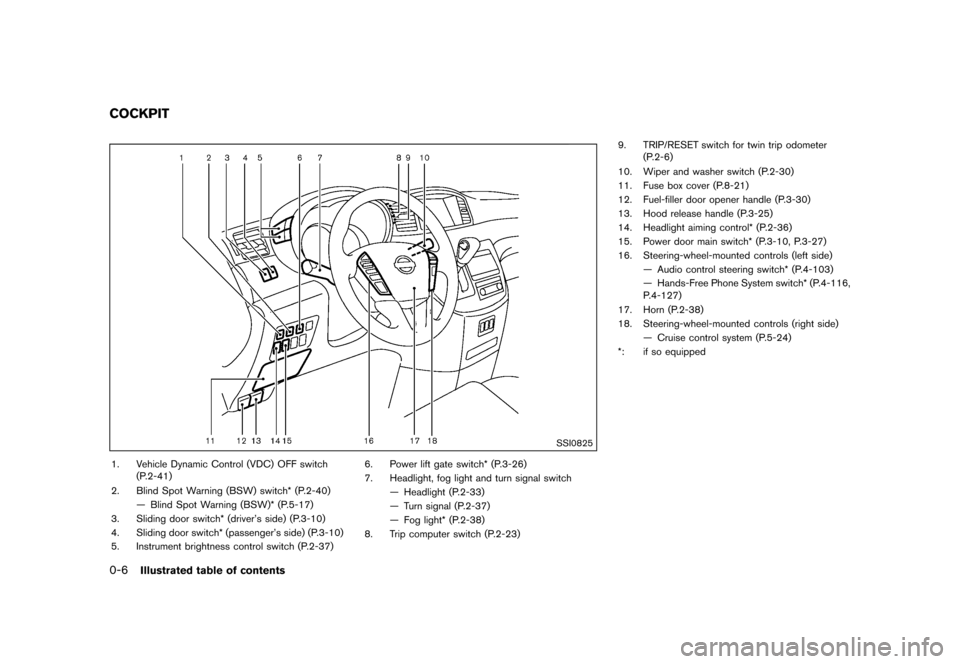

0-6Illustrated table of contents
GUID-F7B216D8-F960-48DA-8767-559E890BB396
SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch(P.2-41)
2. Blind Spot Warning (BSW) switch* (P.2-40) Ð Blind Spot Warning (BSW)* (P.5-17)
3. Sliding door switch* (driver's side) (P.3-10)
4. Sliding door switch* (passenger's side) (P.3-10)
5. Instrument brightness control switch (P.2-37) 6. Power lift gate switch* (P.3-26)
7. Headlight, fog light and turn signal switch
Ð Headlight (P.2-33)
Ð Turn signal (P.2-37)
Ð Fog light* (P.2-38)
8. Trip computer switch (P.2-23) 9. TRIP/RESET switch for twin trip odometer
(P.2-6)
10. Wiper and washer switch (P.2-30)
11. Fuse box cover (P.8-21)
12. Fuel-filler door opener handle (P.3-30)
13. Hood release handle (P.3-25)
14. Headlight aiming control* (P.2-36)
15. Power door main switch* (P.3-10, P.3-27)
16. Steering-wheel-mounted controls (left side) Ð Audio control steering switch* (P.4-103)
Ð Hands-Free Phone System switch* (P.4-116,
P.4-127)
17. Horn (P.2-38)
18. Steering-wheel-mounted controls (right side) Ð Cruise control system (P.5-24)
*: if so equipped
COCKPIT
& R Q G L W L R Q
Page 15 of 491
> ( G L W 0 R G H O ( ' @

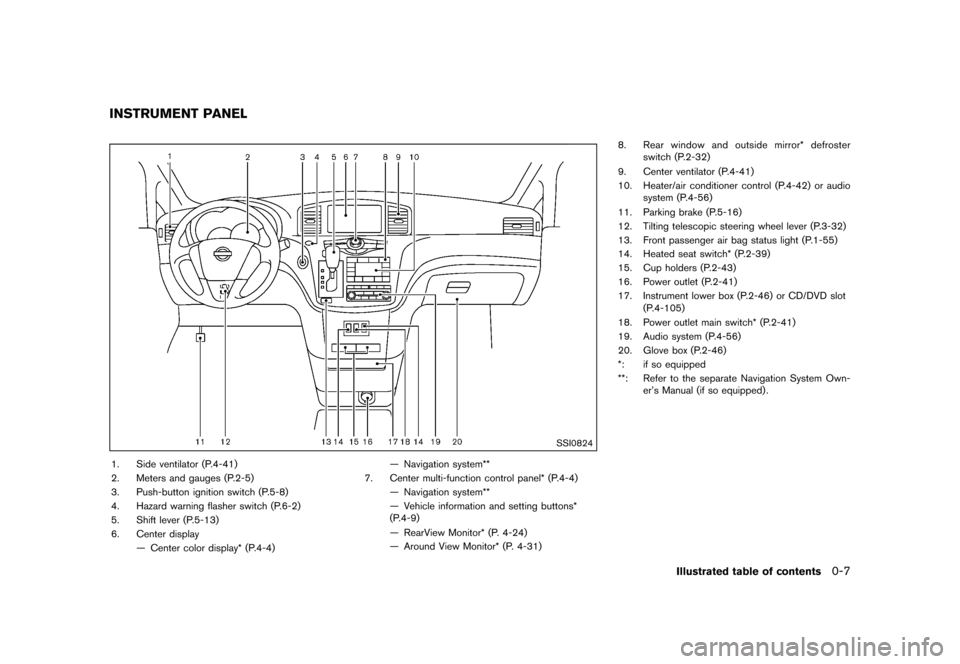

GUID-3F5BDD52-9AA5-463B-87CB-C132C6049CB4
SSI0824
1. Side ventilator (P.4-41)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-8)
4. Hazard warning flasher switch (P.6-2)
5. Shift lever (P.5-13)
6. Center displayÐ Center color display* (P.4-4) Ð Navigation system**
7. Center multi-function control panel* (P.4-4) Ð Navigation system**
Ð Vehicle information and setting buttons*
(P.4-9)
Ð RearView Monitor* (P. 4-24)
Ð Around View Monitor* (P. 4-31) 8.
Rear window and outside mirror* defroster
switch (P.2-32)
9. Center ventilator (P.4-41)
10. Heater/air conditioner control (P.4-42) or audio system (P.4-56)
11. Parking brake (P.5-16)
12. Tilting telescopic steering wheel lever (P.3-32)
13. Front passenger air bag status light (P.1-55)
14. Heated seat switch* (P.2-39)
15. Cup holders (P.2-43)
16. Power outlet (P.2-41)
17. Instrument lower box (P.2-46) or CD/DVD slot (P.4-105)
18. Power outlet main switch* (P.2-41)
19. Audio system (P.4-56)
20. Glove box (P.2-46)
*: if so equipped
**: Refer to the separate Navigation System Own- er's Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL
& R Q G L W L R Q
Page 16 of 491
> ( G L W 0 R G H O ( ' @
0-8Illustrated table of contents
GUID-073633CE-DDD1-43BA-93E3-2242C44257FC
JVC0210X
1. Instrument brightness control switch (P.2-37)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-23)7. Vehicle information display (P.2-18)
Ð Trip computer (P.2-23)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu- ously Variable Transmission (CVT) position
indicator (P.2-16)
10. TRIP/RESET switch for twin trip odometer (P.2-6)
METERS AND GAUGES
& R Q G L W L R Q
Page 17 of 491
> ( G L W 0 R G H O ( ' @
GUID-3A4CEA77-5BE4-4FE6-B1A8-2659A7636D0E
SDI2715
VQ35DE ENGINEGUID-EEC870E3-1878-4751-8AE6-5D5884DD625A1. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-17)
6. Fuse/fusible link holder (P.8-21)7. Window washer fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)
Illustrated table of contents0-9
ENGINE COMPARTMENT
& R Q G L W L R Q
Page 18 of 491
> ( G L W 0 R G H O ( ' @

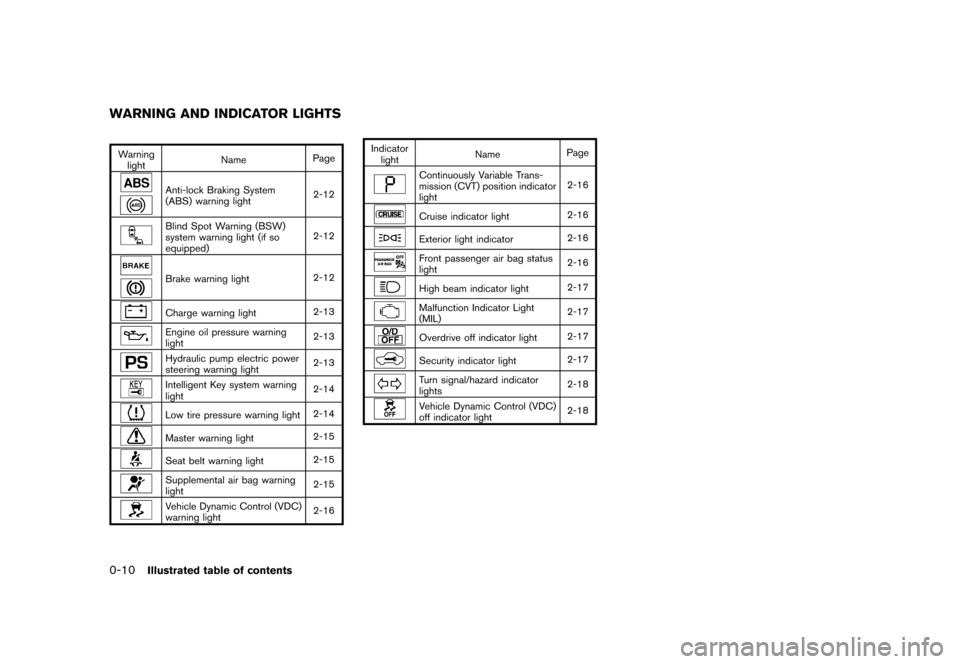

0-10Illustrated table of contents
GUID-6043B04C-5484-4ADB-BE61-405D49B73B56
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-12
Blind Spot Warning (BSW)
system warning light (if so
equipped)2-12
Brake warning light
2-12
Charge warning light2-13
Engine oil pressure warning
light2-13
Hydraulic pump electric power
steering warning light
2-13
Intelligent Key system warning
light2-14
Low tire pressure warning light
2-14
Master warning light2-15
Seat belt warning light2-15
Supplemental air bag warning
light2-15
Vehicle Dynamic Control (VDC)
warning light
2-16Indicator
light Name
Page
Continuously Variable Trans-
mission (CVT) position indicator
light 2-16
Cruise indicator light
2-16
Exterior light indicator2-16
Front passenger air bag status
light2-16
High beam indicator light
2-17
Malfunction Indicator Light
(MIL)2-17
Overdrive off indicator light
2-17
Security indicator light2-17
Turn signal/hazard indicator
lights2-18
Vehicle Dynamic Control (VDC)
off indicator light2-18
WARNING AND INDICATOR LIGHTS
& R Q G L W L R Q
Page 19 of 491
> ( G L W 0 R G H O ( ' @

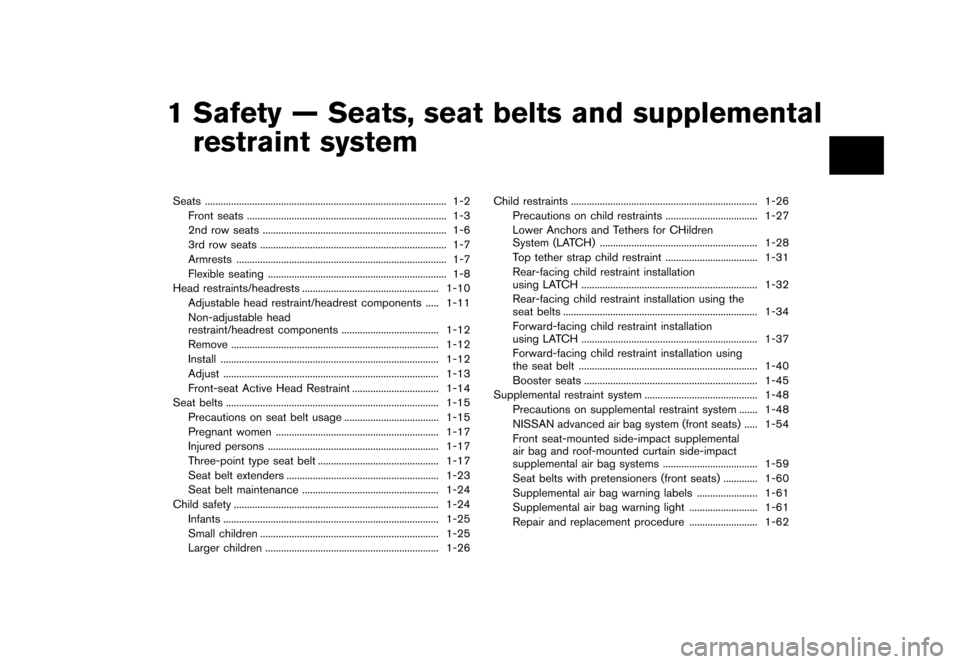

1 Safety Ð Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
2nd row seats ...
...................................................................... 1-6
3rd row seats ...
....................................................................... 1-7
Armrests ...
........................................................................\
........ 1-7
Flexible seating ...
.................................................................... 1-8
Head restraints/headrests ...
.................................................... 1-10
Adjustable head restraint/headrest components ...
..... 1-11
Non-adjustable head
restraint/headrest components ...
..................................... 1-12
Remove ...
........................................................................\
....... 1-12
Install ...
........................................................................\
........... 1-12
Adjust ...
........................................................................\
.......... 1-13
Front-seat Active Head Restraint ...
................................. 1-14
Seat belts ...
........................................................................\
......... 1-15
Precautions on seat belt usage ...
.................................... 1-15
Pregnant women ...
.............................................................. 1-17
Injured persons ...
................................................................. 1-17
Three-point type seat belt ...
.............................................. 1-17
Seat belt extenders ...
.......................................................... 1-23
Seat belt maintenance ...
.................................................... 1-24
Child safety ...
........................................................................\
...... 1-24
Infants ...
........................................................................\
.......... 1-25
Small children ...
.................................................................... 1-25
Larger children ...
.................................................................. 1-26 Child restraints
...
....................................................................... 1-26
Precautions on child restraints ...
................................... 1-27
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................................ 1-28
Top tether strap child restraint ...
................................... 1-31
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-32
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-34
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-37
Forward-facing child restraint installation using
the seat belt ...
.................................................................... 1-40
Booster seats ...
.................................................................. 1-45
Supplemental restraint system ...
........................................... 1-48
Precautions on supplemental restraint system ...
....... 1-48
NISSAN advanced air bag system (front seats) ...
..... 1-54
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-59
Seat belts with pretensioners (front seats) ...
............. 1-60
Supplemental air bag warning labels ...
....................... 1-61
Supplemental air bag warning light ...
.......................... 1-61
Repair and replacement procedure ...
.......................... 1-62
& R Q G L W L R Q
Page 20 of 491
> ( G L W 0 R G H O ( ' @

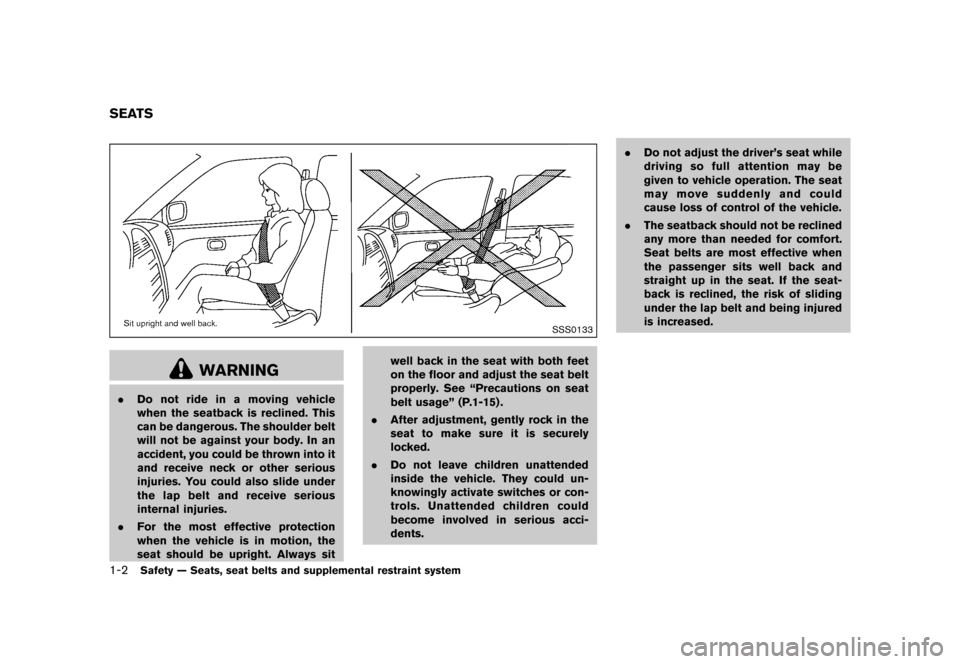

1-2Safety Ð Seats, seat belts and supplemental restraint system
GUID-DE2C7BDD-4D98-4DFC-BCAF-32596CEFB86B
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See ªPrecautions on seat
belt usageº (P.1-15) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
Do not adjust the driver's seat while
driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
SEATS
& R Q G L W L R Q
