> ( G L W 0 R G H O ( ' @

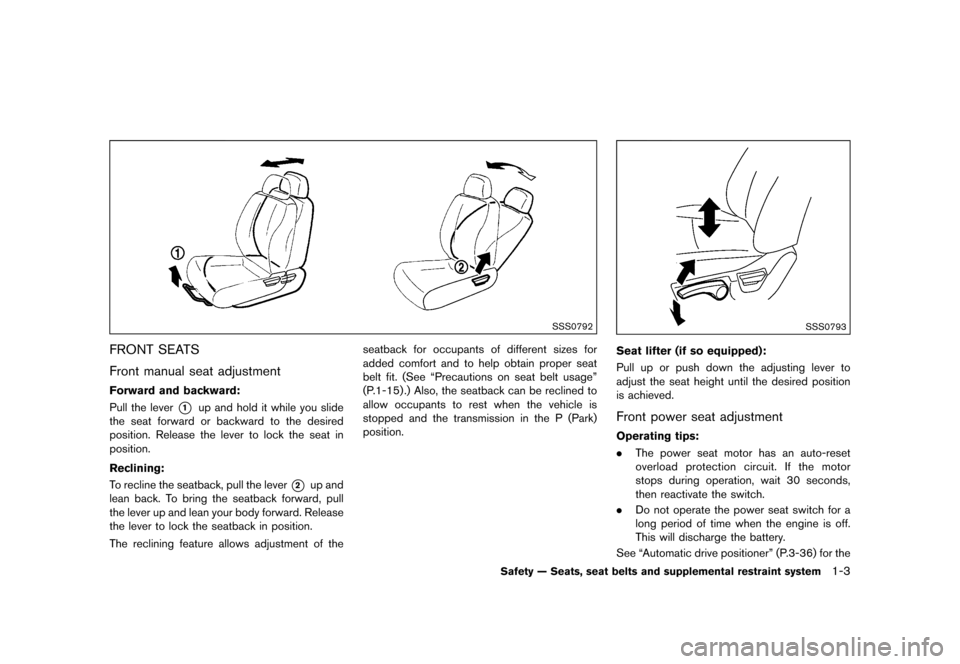

SSS0792
FRONT SEATSGUID-307D5A41-7EBD-493D-9945-9B4D20449743
Front manual seat adjustmentGUID-A88B0604-0482-4E80-9991-EE2DA9ABA481
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-15) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission in the P (Park)
position.
SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Front power seat adjustmentGUID-F70E7AF5-80AF-4C06-A9D0-0B5CAA04522F
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See ªAutomatic drive positionerº (P.3-36) for the
Safety Ð Seats, seat belts and supplemental restraint system1-3
& R Q G L W L R Q
Page 22 of 491
> ( G L W 0 R G H O ( ' @

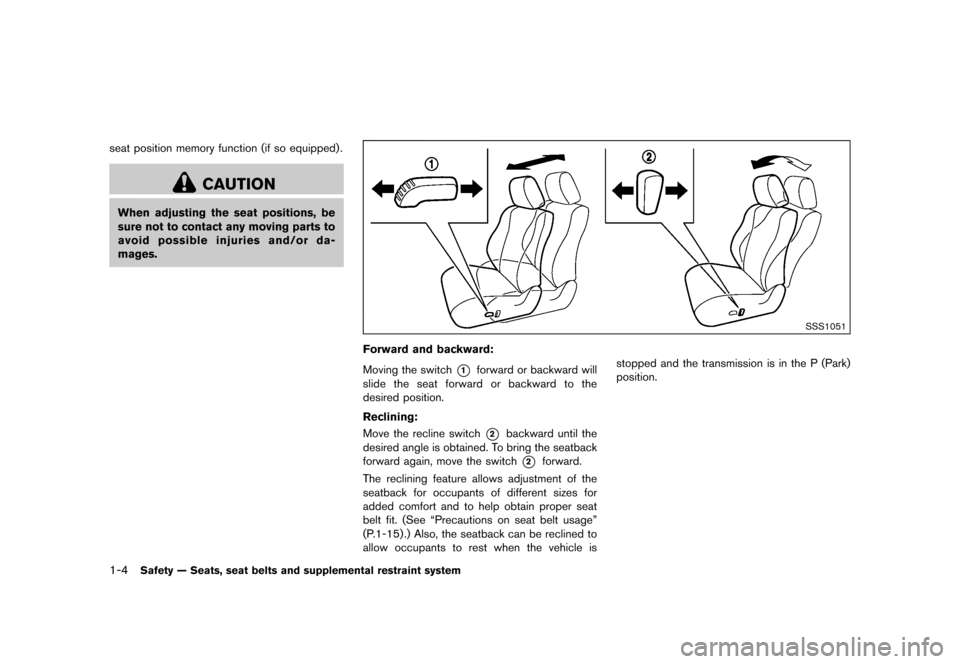

1-4Safety Ð Seats, seat belts and supplemental restraint system
seat position memory function (if so equipped) .
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SSS1051
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-15) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park)
position.
& R Q G L W L R Q
Page 23 of 491
> ( G L W 0 R G H O ( ' @

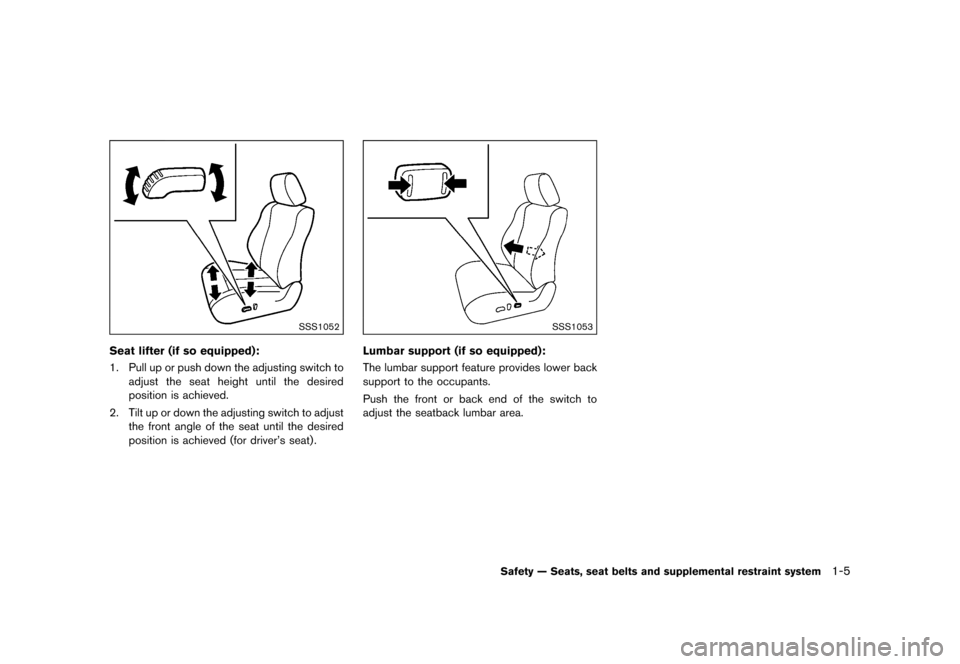

SSS1052
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Pull up or push down the adjusting switch toadjust the seat height until the desired
position is achieved.
2. Tilt up or down the adjusting switch to adjust the front angle of the seat until the desired
position is achieved (for driver's seat) .
SSS1053
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the occupants.
Push the front or back end of the switch to
adjust the seatback lumbar area.
Safety Ð Seats, seat belts and supplemental restraint system1-5
& R Q G L W L R Q
Page 24 of 491
> ( G L W 0 R G H O ( ' @

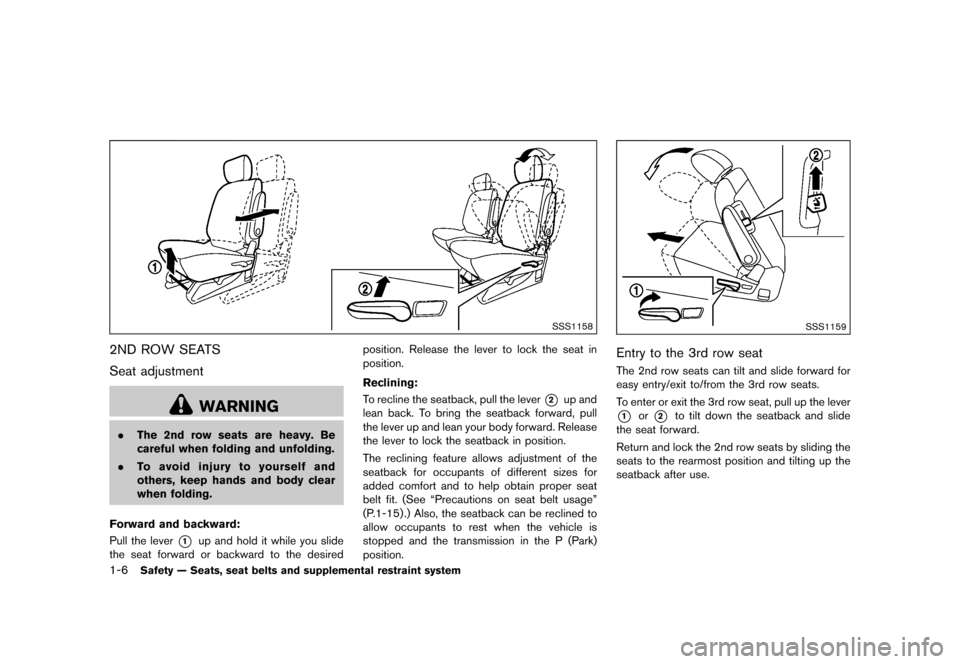

1-6Safety Ð Seats, seat belts and supplemental restraint system
SSS1158
2ND ROW SEATSGUID-2240C526-61B5-4CAA-B4A1-DFBFD534D67A
Seat adjustmentGUID-192F3E84-B91C-48ED-8CA8-20B30DF09154
WARNING
.The 2nd row seats are heavy. Be
careful when folding and unfolding.
. To avoid injury to yourself and
others, keep hands and body clear
when folding.
Forward and backward:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-15) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission in the P (Park)
position.
SSS1159
Entry to the 3rd row seatGUID-259686ED-D6B9-4228-94B1-ABE2875BB4A6The 2nd row seats can tilt and slide forward for
easy entry/exit to/from the 3rd row seats.
To enter or exit the 3rd row seat, pull up the lever
*1or*2to tilt down the seatback and slide
the seat forward.
Return and lock the 2nd row seats by sliding the
seats to the rearmost position and tilting up the
seatback after use.
& R Q G L W L R Q
Page 25 of 491
> ( G L W 0 R G H O ( ' @

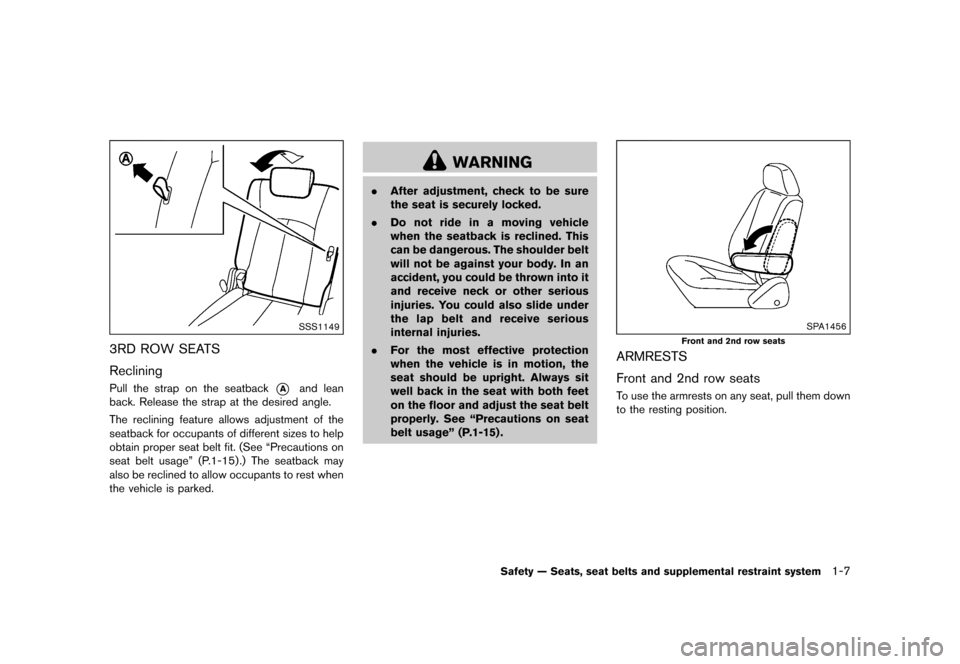

SSS1149
3RD ROW SEATSGUID-8B174BCB-55A9-4070-AE4A-06F3342E7335
RecliningGUID-6FD9F8E0-B172-4C02-918D-29C8C54903D6Pull the strap on the seatback*Aand lean
back. Release the strap at the desired angle.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See ªPrecautions on
seat belt usageº (P.1-15) .) The seatback may
also be reclined to allow occupants to rest when
the vehicle is parked.
WARNING
. After adjustment, check to be sure
the seat is securely locked.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly. See ªPrecautions on seat
belt usageº (P.1-15) .
SPA1456
Front and 2nd row seats
ARMRESTSGUID-16EF2763-6783-4401-9358-77E5AC3DEC94
Front and 2nd row seatsGUID-3495E38D-4395-4737-9E1B-ABC7A43B6E87To use the armrests on any seat, pull them down
to the resting position.
Safety Ð Seats, seat belts and supplemental restraint system1-7
& R Q G L W L R Q
Page 26 of 491
> ( G L W 0 R G H O ( ' @

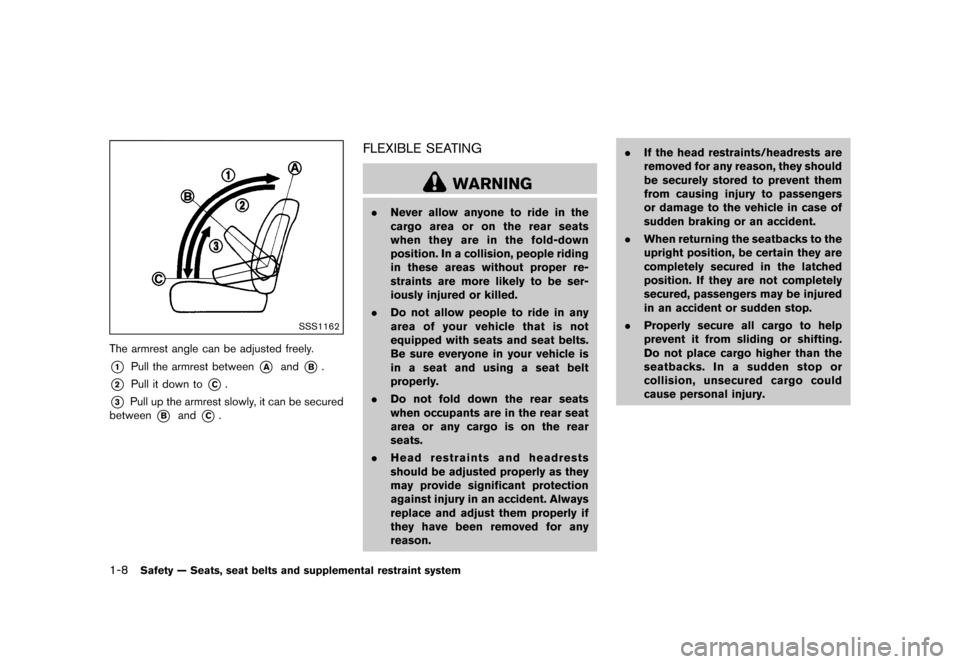

1-8Safety Ð Seats, seat belts and supplemental restraint system
SSS1162
The armrest angle can be adjusted freely.
*1Pull the armrest between*Aand*B.
*2Pull it down to*C.
*3Pull up the armrest slowly, it can be secured
between
*Band*C.
FLEXIBLE SEATINGGUID-66453B23-9B97-441E-8F66-55F330B008AD
WARNING
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. In a collision, people riding
in these areas without proper re-
straints are more likely to be ser-
iously injured or killed.
. Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.
. Do not fold down the rear seats
when occupants are in the rear seat
area or any cargo is on the rear
seats.
. Head restraints and headrests
should be adjusted properly as they
may provide significant protection
against injury in an accident. Always
replace and adjust them properly if
they have been removed for any
reason. .
If the head restraints/headrests are
removed for any reason, they should
be securely stored to prevent them
from causing injury to passengers
or damage to the vehicle in case of
sudden braking or an accident.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
& R Q G L W L R Q
Page 27 of 491
> ( G L W 0 R G H O ( ' @

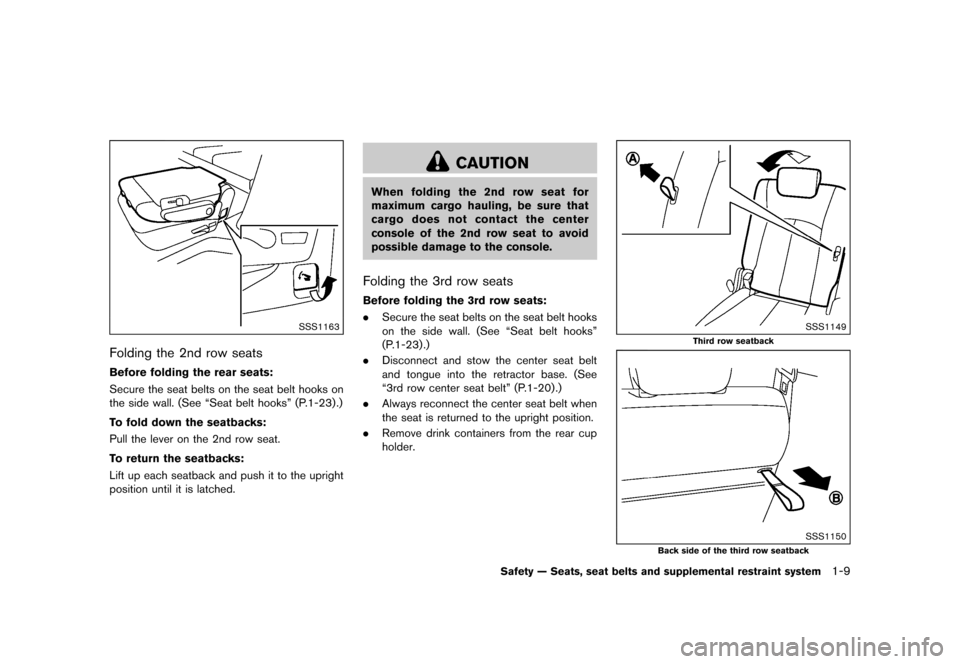

SSS1163
Folding the 2nd row seatsGUID-3B7D99A2-3421-40DA-8D4B-AC4F06EF9D93
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Secure the seat belts on the seat belt hooks on
the side wall. (See ªSeat belt hooksº (P.1-23) .)
To fold down the seatbacks:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever on the 2nd row seat.
To return the seatbacks:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Lift up each seatback and push it to the upright
position until it is latched.
CAUTION
When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center
console of the 2nd row seat to avoid
possible damage to the console.
Folding the 3rd row seatsGUID-B00DC0B2-8166-4AA2-B328-836A43E43FB6
Before folding the 3rd row seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Secure the seat belts on the seat belt hooks
on the side wall. (See ªSeat belt hooksº
(P.1-23) .)
. Disconnect and stow the center seat belt
and tongue into the retractor base. (See
ª3rd row center seat beltº (P.1-20) .)
. Always reconnect the center seat belt when
the seat is returned to the upright position.
. Remove drink containers from the rear cup
holder.SSS1149
Third row seatback
SSS1150
Back side of the third row seatback
Safety Ð Seats, seat belts and supplemental restraint system1-9
& R Q G L W L R Q
Page 28 of 491
> ( G L W 0 R G H O ( ' @
1-10Safety Ð Seats, seat belts and supplemental restraint system

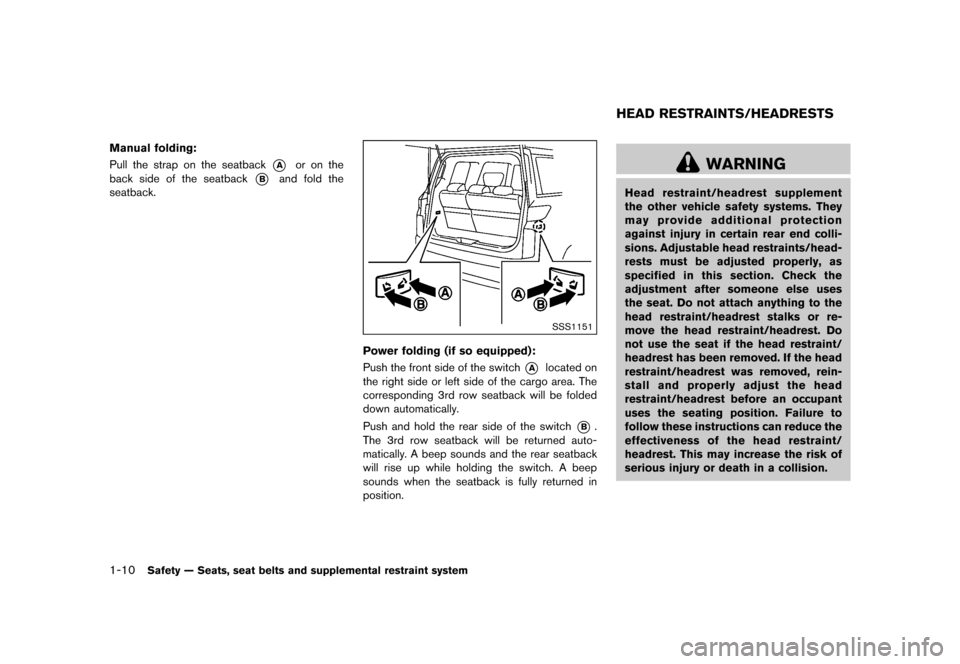

Manual folding:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the strap on the seatback*Aor on the
back side of the seatback
*Band fold the
seatback.
SSS1151
Power folding (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the front side of the switch*Alocated on
the right side or left side of the cargo area. The
corresponding 3rd row seatback will be folded
down automatically.
Push and hold the rear side of the switch
*B.
The 3rd row seatback will be returned auto-
matically. A beep sounds and the rear seatback
will rise up while holding the switch. A beep
sounds when the seatback is fully returned in
position.
GUID-D3AB025F-F8D3-4E68-B9EC-18DE1462D6A0
WARNING
Head restraint/headrest supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/head-
rests must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.
HEAD RESTRAINTS/HEADRESTS
& R Q G L W L R Q
Page 29 of 491
> ( G L W 0 R G H O ( ' @

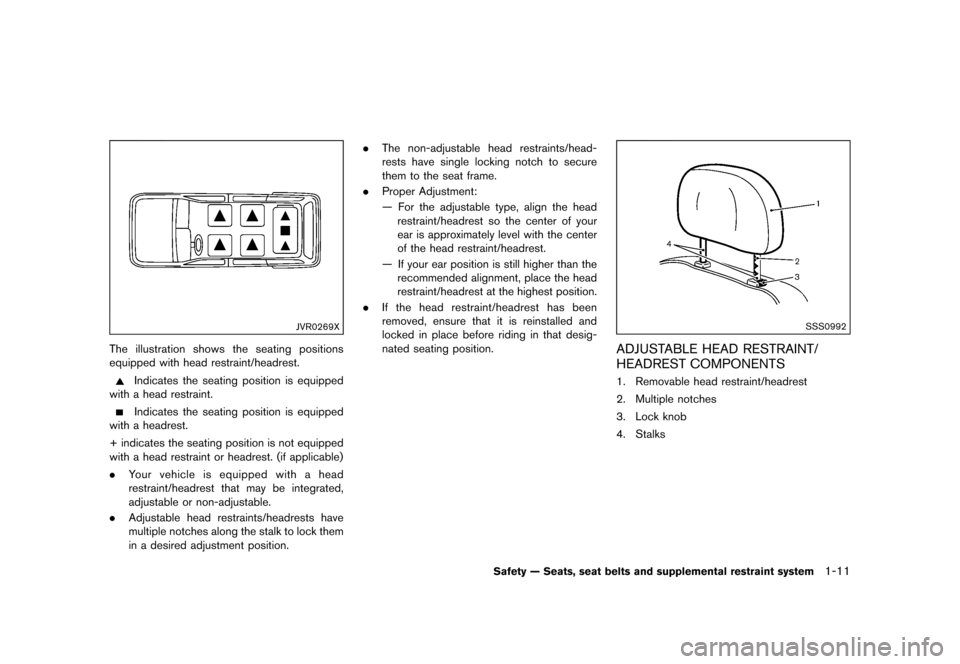

JVR0269X
The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with a headrest.
+ indicates the seating position is not equipped
with a head restraint or headrest. (if applicable)
. Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
. Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position. .
The non-adjustable head restraints/head-
rests have single locking notch to secure
them to the seat frame.
. Proper Adjustment:
Ð For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
Ð If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
GUID-5C119838-4038-49C0-9346-9010437E97BF1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
Safety Ð Seats, seat belts and supplemental restraint system1-11
& R Q G L W L R Q
Page 30 of 491
> ( G L W 0 R G H O ( ' @

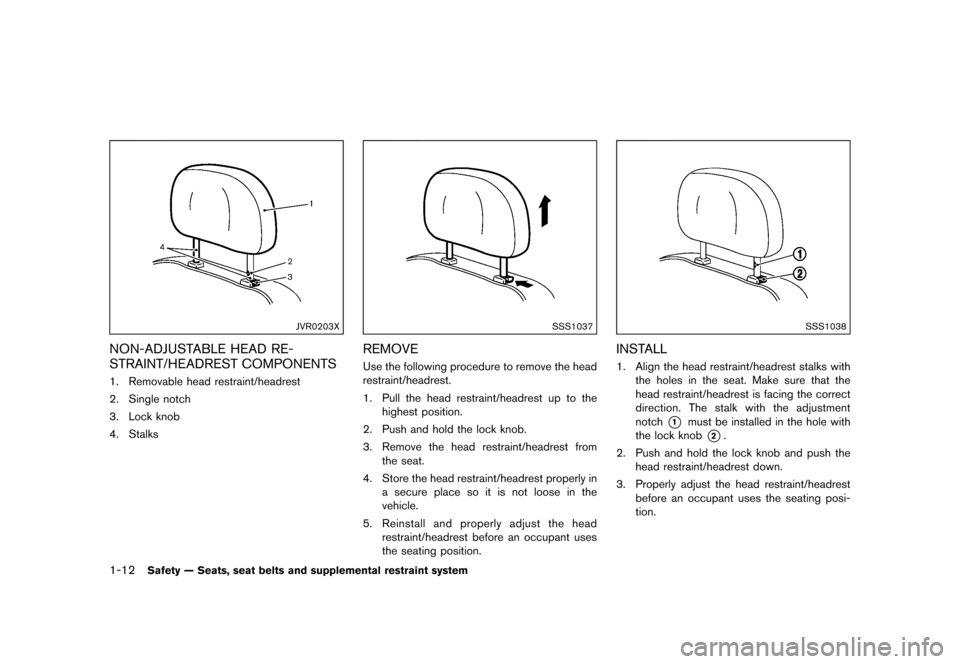

1-12Safety Ð Seats, seat belts and supplemental restraint system
JVR0203X
NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
GUID-27CA7AD9-B2AB-43C3-B7A0-D0C6FC3C25BC1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVEGUID-CEE94709-EBFB-4E0C-9DBE-D1237155CA80Use the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
SSS1038
INSTALLGUID-5EFE2FCB-BFE5-4BAD-B0D6-E956D9CA4E9C1. Align the head restraint/headrest stalks with
the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch
*1must be installed in the hole with
the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
& R Q G L W L R Q
