> ( G L W 0 R G H O ( ' @

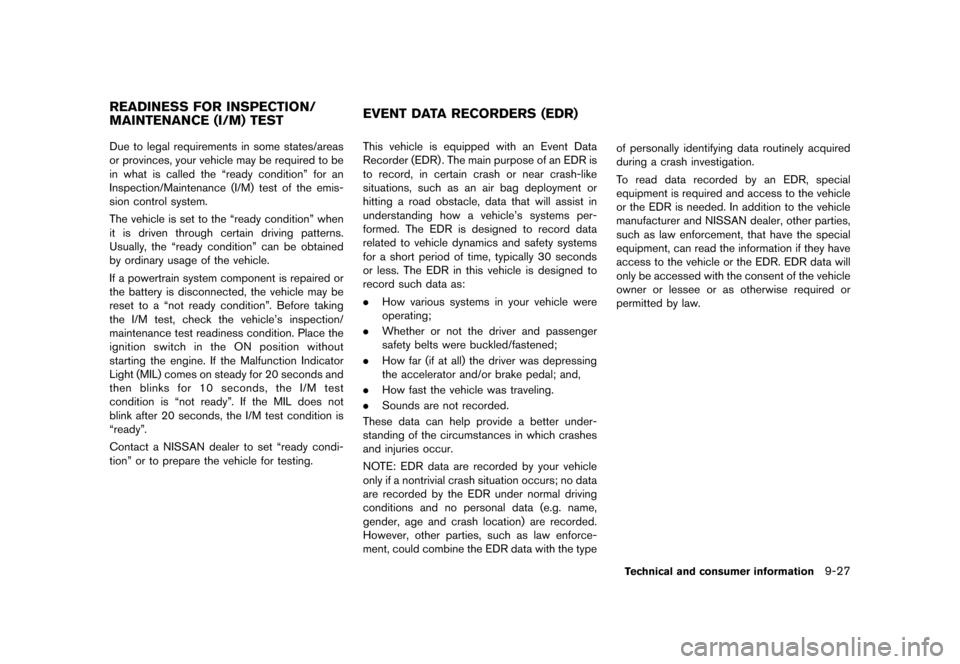

GUID-9B46412B-2B34-4BF5-B9C4-00B324CA4A49Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the ªready conditionº for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the ªready conditionº when
it is driven through certain driving patterns.
Usually, the ªready conditionº can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a ªnot ready conditionº. Before taking
the I/M test, check the vehicle's inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is ªnot readyº. If the MIL does not
blink after 20 seconds, the I/M test condition is
ªreadyº.
Contact a NISSAN dealer to set ªready condi-
tionº or to prepare the vehicle for testing.GUID-7824A4D3-21BE-411F-9D51-571D8AF5B839This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle's systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
Technical and consumer information9-27
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
& R Q G L W L R Q
Page 482 of 491
> ( G L W 0 R G H O ( ' @
9-28Technical and consumer information

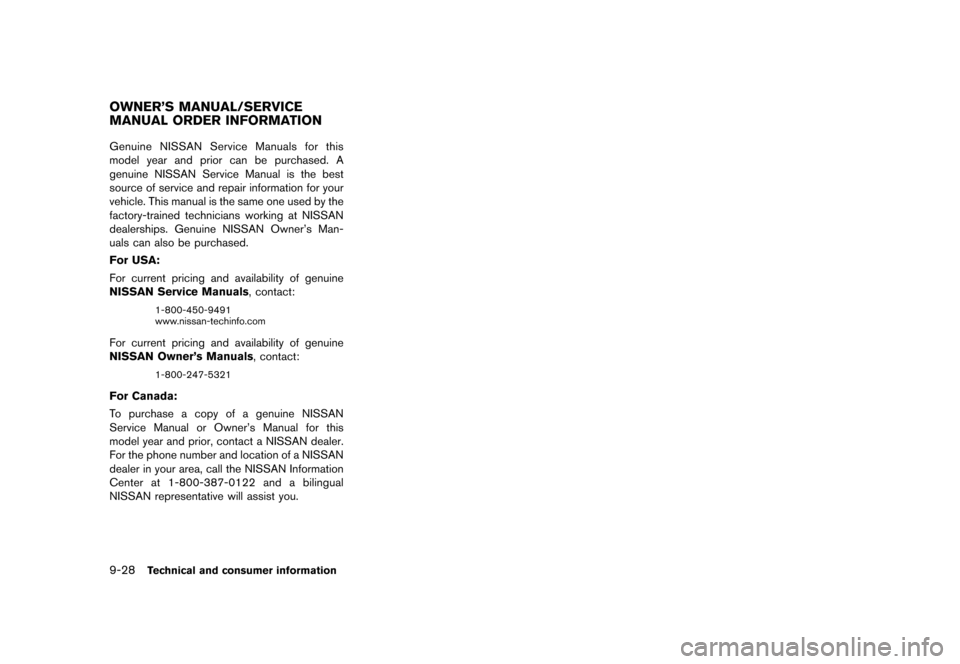

GUID-3865EDB4-DDFE-4AA7-8DDA-5BB382713F6DGenuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory-trained technicians working at NISSAN
dealerships. Genuine NISSAN Owner's Man-
uals can also be purchased.
For USA:
For current pricing and availability of genuine
NISSAN Service Manuals, contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner's Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner's Manual for this
model year and prior, contact a NISSAN dealer.
For the phone number and location of a NISSAN
dealer in your area, call the NISSAN Information
Center at 1-800-387-0122 and a bilingual
NISSAN representative will assist you.
OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION
& R Q G L W L R Q
Page 483 of 491
> ( G L W 0 R G H O ( ' @
10 Index
A
A/C (Air Conditioner) operation...
.............................. 4-44
ABS (Anti-lock Braking System) ...
............................ 5-29
Advanced air bag system ...
......................................... 1-54
Aiming control, Headlights ...
........................................ 2-36
Air bag system Advanced air bag system ...
.................................. 1-54
Front passenger air bag and status light ...
....... 1-55
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-59
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-59
Air bag warning labels ...
............................................... 1-61
Air bag warning light ...
...................................... 1-61, 2-15
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-42
Air conditioner service ...
........................................ 4-55
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-55, 9-6
In-cabin microfilter ...
............................................... 4-55
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-29
Alcohol, drugs and driving ...
.......................................... 5-8
Antenna ...
....................................................................... 4-104
Anti-lock Braking System (ABS) ...
............................ 5-29
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Armrests ...
.......................................................................... 1-7
Around view
Page 484 of 491
> ( G L W 0 R G H O ( ' @
10-2
Console box...
................................................................. 2-47
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Control panel button ...
.................................. 4-4
Coolant Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-24
Cup holders ...
.................................................................. 2-43
CVT, Driving with CVT (Continuously
Variable Transmission) ...
............................................... 5-13
D
Daytime running light system ...
................................... 2-36
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-32
Dimensions and weights ...
............................................. 9-8
DISP button ...
.................................................................... 4-9
Drive belt ...
....................................................................... 8-15
Drive positioner ...
............................................................ 3-36
Driving Cold weather driving ...
........................................... 5-32
Driving with CVT (Continuously
Variable Transmission) ...
........................................ 5-13
Precautions when starting and driving ...
.............. 5-2
DVD player, NISSAN mobile entertainment ...
...... 4-104
E
ECON button ...
............................................................... 4-10
Economy, Fuel ...
.............................................................. 5-27
Elapsed time ...
................................................................. 2-24
Emission control information label ...
.......................... 9-10 Emission control system warranty
...
........................... 9-25
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-25
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-10
Engine block heater ...
............................................. 5-33
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil replacement indicator ...
...................... 2-22
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
Engine start operation indicator ...
....................... 2-20
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-12
Entry/exit function, Automatic drive positioner ...
.... 3-36
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-21
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3 Flat towing
...
.................................................................... 9-24
Flexible seating ...
.............................................................. 1-8
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-12
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Power steering fluid ...
............................................. 8-11
Window washer fluid ...
.......................................... 8-13
FM-AM radio with Compact Disc (CD) player ...
.... 4-69
FM-AM-SAT radio with Compact Disc
(CD) player ...
....................................................... 4-72, 4-82
Fog light switch ...
........................................................... 2-38
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-55
Front power seat adjustment ...
..................................... 1-3
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraint ...
............................... 1-14
Fuel Capacities and
recommended fluids/lubricants ...
............................ 9-2
Fuel economy ...
........................................................ 5-27
Fuel economy information (display) ...
................. 4-11
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-30
Fuel-filler door ...
....................................................... 3-30
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-32
Fuel efficient driving tips ...
........................................... 5-26
Fuses ...
.............................................................................. 8-21
Fusible links ...
.................................................................. 8-21
& R Q G L W L R Q
Page 485 of 491
> ( G L W 0 R G H O ( ' @
G
Garage door opener, HomeLink
Page 486 of 491
> ( G L W 0 R G H O ( ' @
10-4
Lights, Exterior and interior light replacement...
..... 8-27
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-7
Door locks ...
................................................................. 3-5
Lift gate lock ...
.......................................................... 3-26
Power door lock ...
...................................................... 3-5
Locking with mechanical key ...
...................................... 3-5
Loose fuel cap warning ...
................................. 2-21, 3-30
Low outside temperature warning ...
.......................... 2-21
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-24
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-44
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-56
Master warning light ...
................................................... 2-15
Mechanical key (Intelligent Key system) ...
................. 3-4
Memory storage, Automatic drive positioner ...
....... 3-37
Meter Trip computer ...
........................................................ 2-23
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37 Mirror
Inside mirror ...
........................................................... 3-33
Outside mirrors ...
..................................................... 3-35
Vanity mirror ...
........................................................... 3-36
Monitor, RearView Monitor ...
....................................... 4-24
Mood lights ...
................................................................... 2-58
Moonroof ...
....................................................................... 2-53
Moving Object Detection (MOD) function ...
........... 4-38
Multi-function controller ...
............................................... 4-6
N
New vehicle break-in ...
.................................................. 5-25
NISSAN Mobile entertainment
system (MES) ...
........................................................... 4-104
NISSAN Vehicle Immobilizer System ...
..................... 2-29
NISSAN voice recognition system ...
...................... 4-148
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Oil filter replacement indicator ...
......................... 2-22
Operation, Operational indicators ...
........................... 2-20
Outside air temperature display ...
.............................. 2-25
Outside mirrors ...
............................................................ 3-35
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-12 Owner's Manual/Service Manual
order information
...
......................................................... 9-28
P
Panic alarm ...
................................................................... 3-23
Parking Brake break-in ...
....................................................... 5-29
Parking brake operation ...
..................................... 5-16
Parking on hills ...
..................................................... 5-27
Phone Bluetooth
Page 487 of 491
> ( G L W 0 R G H O ( ' @
R
Radio...
.............................................................................. 4-56
Car phone or CB radio ...
.................................... 4-116
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................. 4-72, 4-82
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear personal lights ...
.................................................... 2-56
Rear window and outside mirror
defroster switch ...
........................................................... 2-32
Rear window wiper and washer switch ...
................ 2-31
RearView Monitor ...
........................................................ 4-24
Recorders, Event data ...
............................................... 9-27
Registering your vehicle in another country ...
........... 9-8
Remote controller (DVD) ...
....................................... 4-114
Remote keyless entry system ...
................................... 3-21
Reporting safety defects (US only) ...
........................ 9-26
Rollover ...
............................................................................ 5-6
Roof, Roof rack ...
............................................................ 2-49
S
Safety
Child seat belts ...
.................................................... 1-24
Reporting safety defects (US only) ...
................. 9-26
Towing safety ...
......................................................... 9-20
Satellite radio operation ...
............................................ 4-82
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-24
Infants ...
...................................................................... 1-25
Injured persons ...
..................................................... 1-17 Larger children
...
...................................................... 1-26
Precautions on seat belt usage ...
........................ 1-15
Pregnant women ...
.................................................. 1-17
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-23
Seat belt hooks ...
.................................................... 1-23
Seat belt maintenance ...
........................................ 1-24
Seat belt warning light and chime ...
................... 2-15
Seat belts ...
............................................................... 1-15
Seat belts with pretensioners ...
........................... 1-60
Shoulder belt height adjustment ...
...................... 1-23
Small children ...
........................................................ 1-25
Three-point type ...
................................................... 1-17
Seat(s) Driver-side memory ...
.............................................. 3-36
Heated seats ...
......................................................... 2-39
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-29
Security system, Vehicle security system ...
............. 2-28
Servicing air conditioner ...
............................................ 4-55
SETTING button ...
.......................................................... 4-14
Shift lever Shift lock release ...
.................................................. 5-16
Shift lock release, Transmission ...
.............................. 5-16
Shifting, CVT (Continuously
Variable Transmission) ...
............................................... 5-13
Shoulder belt height adjustment ...
............................. 1-23
Sliding doors ...
.................................................................. 3-7
SOURCE select switch ...
.......................................... 4-104
Spare tire ...
.............................................................. 8-39, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-11
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2 Push starting
...
......................................................... 6-12
Starting the engine ...
.............................................. 5-12
STATUS button ...
.............................................................. 4-9
Status light, Front passenger air bag ...
.................... 1-55
Steering Power steering fluid ...
............................................. 8-11
Steering-wheel-mounted controls
for audio ...
............................................................... 4-103
Tilt/telescopic steering ...
........................................ 3-32
Storage ...
.......................................................................... 2-43
Sun visors ...
..................................................................... 3-33
Sunglasses holder ...
...................................................... 2-45
Supplemental air bag warning labels ...
..................... 1-61
Supplemental air bag warning light ...
............ 1-61, 2-15
Supplemental restraint system ...
................................. 1-48
Precautions on supplemental
restraint system ...
..................................................... 1-48
Switch Autolight switch ...
.................................................... 2-34
Fog light switch ...
.................................................... 2-38
Hazard warning flasher switch ...
............................. 6-2
Headlight aiming control ...
.................................... 2-36
Headlight switch ...
................................................... 2-33
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-6
Rear window and outside mirror
defroster switch ...
.................................................... 2-32
Turn signal switch ...
................................................ 2-37
Vehicle dynamic control (VDC) off switch ...
..... 2-41
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
.................................................... 2-25
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
10-5
& R Q G L W L R Q
Page 488 of 491
> ( G L W 0 R G H O ( ' @
10-6
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start...
................................................................... 2-29
Three-way catalyst ...
........................................................ 5-3
Tilt/telescopic steering ...
............................................... 3-32
Tire Pressure, Low tire pressure warning light ...
..... 2-14
Tire replacement indicator ...
................................. 2-22
Tires Flat tire ...
....................................................................... 6-3
Low tire pressure warning system ...
...................... 5-3
Tire and Loading Information label ...
....... 8-31, 9-10
Tire chains ...
.............................................................. 8-36
Tire dressing ...
............................................................. 7-4
Tire pressure ...
......................................................... 8-30
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-3
Tire rotation ...
............................................................ 8-37
Types of tires ...
......................................................... 8-35
Uniform tire quality grading ...
............................... 9-24
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-30
Top tether strap child restraints ...
.............................. 1-31
Touch screen system ...
................................................... 4-6
Towing Flat towing ...
............................................................. 9-24
Tow truck towing ...
.................................................. 6-14
Towing a trailer ...
..................................................... 9-15
Towing safety ...
......................................................... 9-20
TPMS, Tire pressure monitoring system ...
................. 5-3
TPMS with Easy Fill Tire Alert ...
............................. 5-6
TPMS, Tire pressure warning system ...
...................... 6-3
Trailer towing ...
................................................................ 9-15
Transceiver, HomeLink
Page 489 of 491
> ( G L W 0 R G H O ( ' @
Windshield wiper and washer switch...
.................... 2-30
Wiper Rear window wiper and washer switch ...
......... 2-31
Rear window wiper blade ...
.................................. 8-20
Windshield wiper and washer switch ...
............. 2-30
Wiper blades ...
......................................................... 8-17
X
Xenon headlights ...
......................................................... 2-33
10-7
& R Q G L W L R Q
Page 490 of 491
> ( G L W 0 R G H O ( ' @
11 Gas station information
GUID-D4B61AE0-C999-4BCC-A670-8752BF4F23B6FUEL INFORMATION:GUID-E37D8BA3-6635-43D4-931B-6B249DE3CA57Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index)
number (Research octane number 91) .
CAUTION
.Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty. .
U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.ENGINE OIL RECOMMENDATION:GUID-943D473A-CCCE-4DD7-A634-36897510F363.Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark,
Viscosity SAE 0W-20
See ªCapacities and recommended fluids/lubri-
cantsº (P.9-2) for engine oil and oil filter
recommendation.
COLD TIRE PRESSURES:GUID-8743EE01-6284-47D0-8150-C642E47F8FE3The label is typically located on the driver side
center pillar or on the driver's door. For
additional information, see ªWheels and tiresº
(P.8-30) .
NEW VEHICLE BREAK-IN PROCE-
DURES RECOMMENDATION:
GUID-3B9900B2-C14D-42A3-871D-9953D697F8A5During the first 1,200 miles (2,000 km) of
vehicle use, follow the recommendations out-
lined in the ªBreak-in scheduleº (P.5-25) of this
Owner's Manual. Follow these recommenda-
tions for the future reliability and economy of
your new vehicle.
GAS STATION INFORMATION
& R Q G L W L R Q
