NISSAN QUEST 2016 RE52 / 4.G Repair Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: QUEST, Model: NISSAN QUEST 2016 RE52 / 4.GPages: 503, PDF Size: 4.46 MB
Page 61 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
SSS0653
Forward-facing Ð step 6
6. Remove any additional slack from the seatbelt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.
7. Tighten the tether strap according to the manufacturer's instructions to remove any
slack.
SSS0641
Forward-facing Ð step 8
8. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm) ,
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
9. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 2
through 8.
Safety Ð Seats, seat belts and supplemental restraint system1-43
& R Q G L W L R Q
Page 62 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-44Safety Ð Seats, seat belts and supplemental restraint system
SSS0676
Forward-facing Ð step 10
10. If the child restraint is installed in the frontpassenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light
should illuminate. If this light
is not illuminated, see ªFront passenger air
bag and status lightº in this section. Move
the child restraint to another seating
position. Have the system checked. It is
recommended you visit a NISSAN dealer for
this service.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
SSS1088
2nd row seat
Installing top tether strap (2nd row seats)GUID-358B4C8C-C7C4-4FA0-9652-6B70368BAC4E
WARNING
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a child could be seriously injured or killed
in a collision.
First, secure the child restraint with the seat belt.
1. If necessary, raise or remove the head
restraint to position the top tether strap over
the top of the seatback. If the head restraint
is removed, store it in a secure place. Be
sure to reinstall the head restraint when the
child restraint is removed. See ªHead
restraints/headrestsº (P.1-10) for head re-
straint adjustment, removal and installation
information.
2. Secure the tether strap to the tether anchor point on the back of each seatback behind
the child restraint.
3. Tighten the tether strap according to the manufacturer's instructions to remove any
slack. Make sure the head restraint does not
contact the top tether strap.
If you have any questions when installing a
top tether strap on the rear seat, it is
recommended you visit a NISSAN dealer
for this service.
& R Q G L W L R Q
Page 63 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
JVR0408X
3rd row seat
Installing top tether strap (3rd row seat)GUID-C8BC33B0-1993-4E13-AE34-B240538F9F51

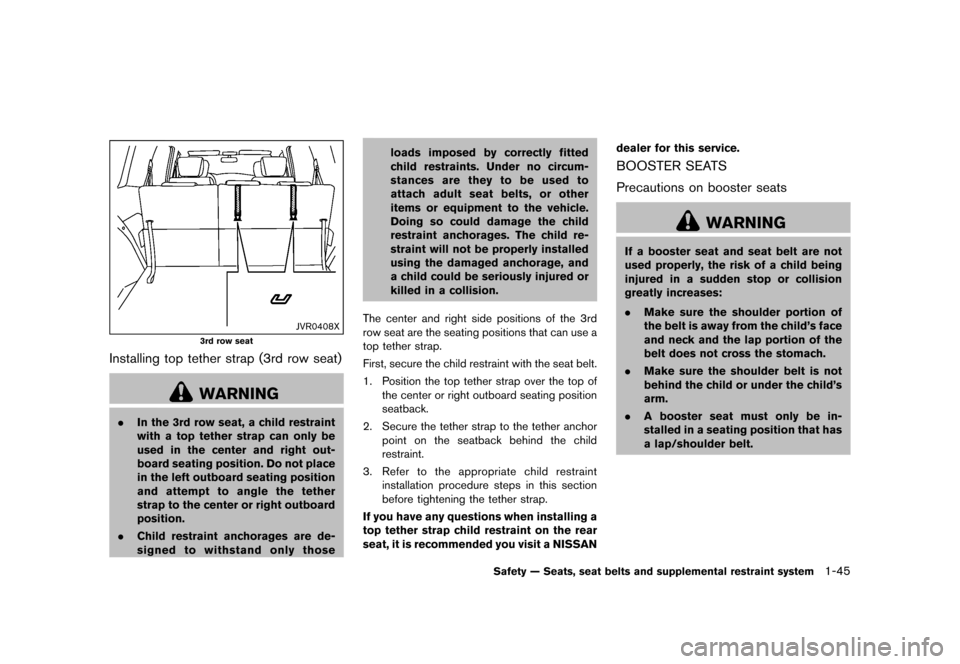

WARNING
.In the 3rd row seat, a child restraint
with a top tether strap can only be
used in the center and right out-
board seating position. Do not place
in the left outboard seating position
and attempt to angle the tether
strap to the center or right outboard
position.
. Child restraint anchorages are de-
signed to withstand only those loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used to
attach adult seat belts, or other
items or equipment to the vehicle.
Doing so could damage the child
restraint anchorages. The child re-
straint will not be properly installed
using the damaged anchorage, and
a child could be seriously injured or
killed in a collision.
The center and right side positions of the 3rd
row seat are the seating positions that can use a
top tether strap.
First, secure the child restraint with the seat belt.
1. Position the top tether strap over the top of the center or right outboard seating position
seatback.
2. Secure the tether strap to the tether anchor point on the seatback behind the child
restraint.
3. Refer to the appropriate child restraint
installation procedure steps in this section
before tightening the tether strap.
If you have any questions when installing a
top tether strap child restraint on the rear
seat, it is recommended you visit a NISSAN dealer for this service.
BOOSTER SEATSGUID-142BB47C-39A7-40F2-8E20-B58D9AFC7AB3
Precautions on booster seatsGUID-C543B7D2-304C-4F13-9287-D9E9B1ED6ED6
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:
.
Make sure the shoulder portion of
the belt is away from the child's face
and neck and the lap portion of the
belt does not cross the stomach.
. Make sure the shoulder belt is not
behind the child or under the child's
arm.
. A booster seat must only be in-
stalled in a seating position that has
a lap/shoulder belt.
Safety Ð Seats, seat belts and supplemental restraint system1-45
& R Q G L W L R Q
Page 64 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-46Safety Ð Seats, seat belts and supplemental restraint system
LRS0455
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
.Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
. Check the booster seat in your vehicle to be
sure it is compatible with the vehicle's seat
and seat belt system.
LRS0453
.Make sure the child's head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child's ears. For example, if a
low back booster seat
*1is chosen, the
vehicle seatback must be at or above the
center of the child's ears. If the seatback is
lower than the center of the child's ears, a
high back booster seat
*2should be used.
. If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
LRS0464
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
& R Q G L W L R Q
Page 65 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
Booster seat installationGUID-DEA3A58A-24E8-4995-AEA5-A7D013560F12

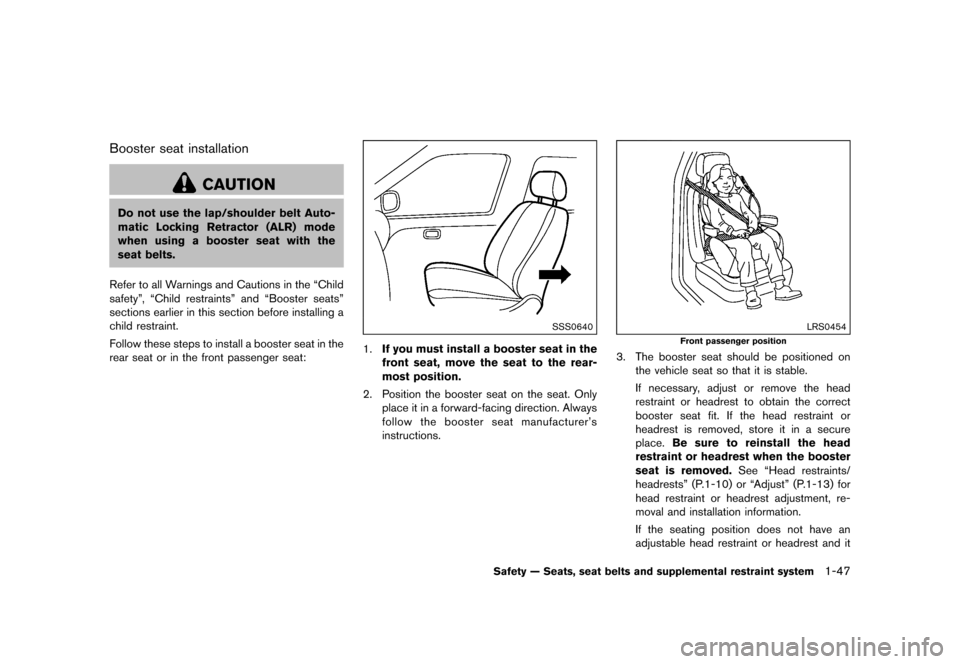

CAUTION
Do not use the lap/shoulder belt Auto-
matic Locking Retractor (ALR) mode
when using a booster seat with the
seat belts.
Refer to all Warnings and Cautions in the ªChild
safetyº, ªChild restraintsº and ªBooster seatsº
sections earlier in this section before installing a
child restraint.
Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:
SSS0640
1. If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a forward-facing direction. Always
follow the booster seat manufacturer's
instructions.
LRS0454
Front passenger position
3. The booster seat should be positioned onthe vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
booster seat fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint or headrest when the booster
seat is removed. See ªHead restraints/
headrestsº (P.1-10) or ªAdjustº (P.1-13) for
head restraint or headrest adjustment, re-
moval and installation information.
If the seating position does not have an
adjustable head restraint or headrest and it
Safety Ð Seats, seat belts and supplemental restraint system1-47
& R Q G L W L R Q
Page 66 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-48Safety Ð Seats, seat belts and supplemental restraint system
is interfering with the proper booster seat fit,
try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt low and snug on the child's hips. Be sure to
follow the booster seat manufacturer's
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child's
shoulder. Be sure to follow the booster seat
manufacturer's instructions for adjusting the
seat belt routing.
6. Follow the warnings, cautions and instruc- tions for properly fastening a seat belt
shown in ªSeat beltsº (P.1-15) .
SSS0676
7. If the booster seat is installed in the front
passenger seat, push the ignition switch to
the ON position. The front passenger air bag
status light
may or may not illuminate
depending on the size of the child and the
type of booster seat used. See ªFront
passenger air bag and status lightº (P.1-56) .
& R Q G L W L R Q
Page 67 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
GUID-3A5BC41E-E3F1-459B-8891-BC1FF1BF518EPRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
GUID-AF2C3F47-A68E-41D2-905A-0F1892F3D7BAThis Supplemental Restraint System (SRS)
section contains important information concern-
ing the following systems.
.Driver and passenger supplemental front-
impact air bag (NISSAN Advanced Air Bag
System)
. Front seat-mounted side-impact supple-
mental air bag
. Roof-mounted curtain side-impact supple-
mental air bag
. Seat belt with pretensioner
Supplemental front-impact air bag system:
The NISSAN Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system: This system can help
cushion the impact force to the chest and pelvis
area of the driver and front passenger in certain
side impact collisions. The supplemental side air
bag is designed to inflate on the side where the
vehicle is impacted.
Roof-mounted curtain side-impact supple-
mental air bag system: This system can help
cushion the impact force to the head of occupants in front and rear (2nd and 3rd)
outboard seating positions in certain side impact
collisions. The curtain air bags are designed to
inflate on the side where the vehicle is impacted.
These supplemental restraint systems are de-
signed to
supplement the crash protection
provided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the
occupant seated a suitable distance away from
the steering wheel, instrument panel and door
finishers. (See ªSeat beltsº (P.1-15) for instruc-
tions and precautions on seat belt usage.)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
Safety Ð Seats, seat belts and supplemental restraint system1-49
SUPPLEMENTAL RESTRAINT
SYSTEM
& R Q G L W L R Q
Page 68 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-50Safety Ð Seats, seat belts and supplemental restraint system
SSS0131
SSS0132

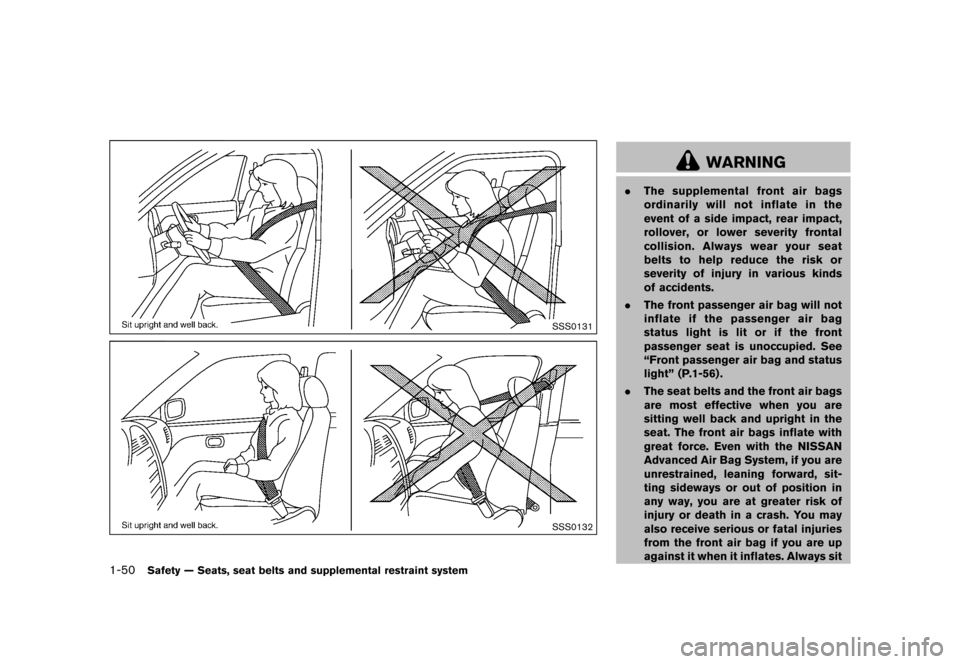

WARNING
.The supplemental front air bags
ordinarily will not inflate in the
event of a side impact, rear impact,
rollover, or lower severity frontal
collision. Always wear your seat
belts to help reduce the risk or
severity of injury in various kinds
of accidents.
. The front passenger air bag will not
inflate if the passenger air bag
status light is lit or if the front
passenger seat is unoccupied. See
ªFront passenger air bag and status
lightº (P.1-56) .
. The seat belts and the front air bags
are most effective when you are
sitting well back and upright in the
seat. The front air bags inflate with
great force. Even with the NISSAN
Advanced Air Bag System, if you are
unrestrained, leaning forward, sit-
ting sideways or out of position in
any way, you are at greater risk of
injury or death in a crash. You may
also receive serious or fatal injuries
from the front air bag if you are up
against it when it inflates. Always sit
& R Q G L W L R Q
Page 69 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @

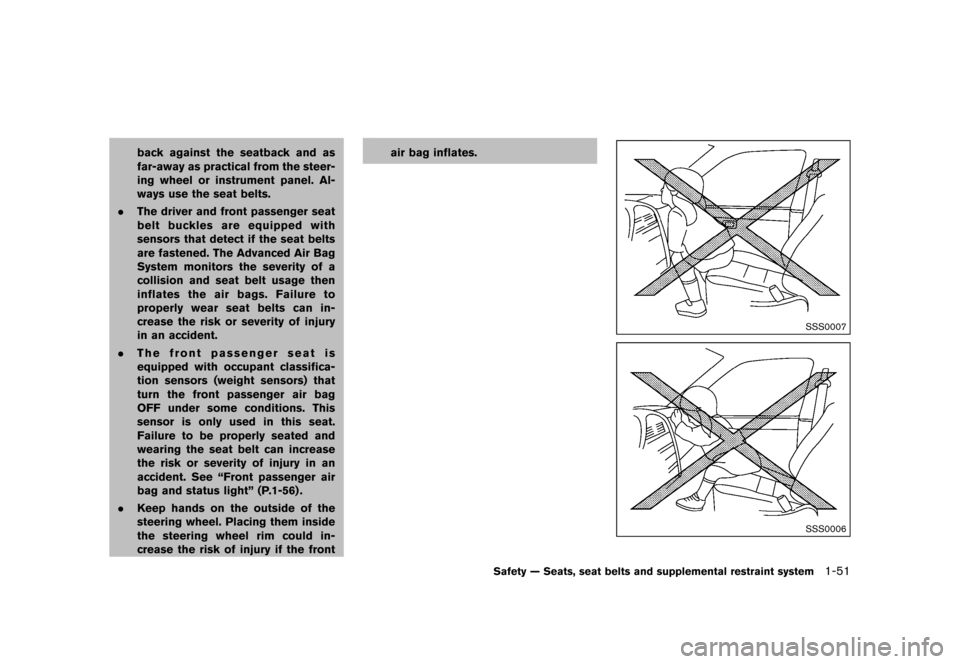

back against the seatback and as
far-away as practical from the steer-
ing wheel or instrument panel. Al-
ways use the seat belts.
. The driver and front passenger seat
belt buckles are equipped with
sensors that detect if the seat belts
are fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags. Failure to
properly wear seat belts can in-
crease the risk or severity of injury
in an accident.
. The front passenger seat is
equipped with occupant classifica-
tion sensors (weight sensors) that
turn the front passenger air bag
OFF under some conditions. This
sensor is only used in this seat.
Failure to be properly seated and
wearing the seat belt can increase
the risk or severity of injury in an
accident. See ªFront passenger air
bag and status lightº (P.1-56) .
. Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could in-
crease the risk of injury if the front air bag inflates.
SSS0007
SSS0006
Safety Ð Seats, seat belts and supplemental restraint system1-51
& R Q G L W L R Q
Page 70 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-52Safety Ð Seats, seat belts and supplemental restraint system
SSS0008
SSS0009
SSS0099
SSS0100

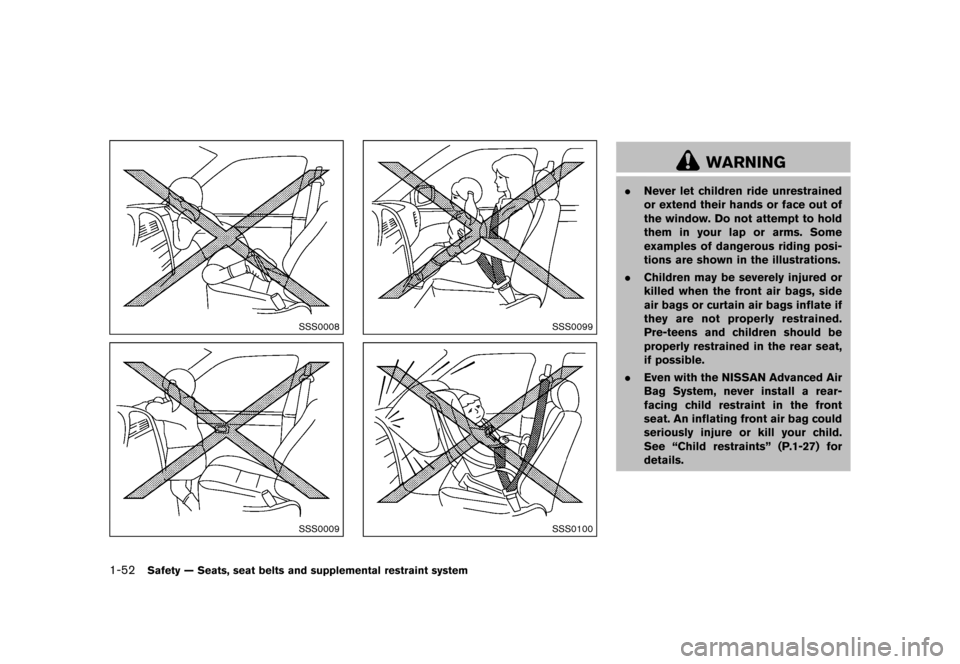

WARNING
.Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some
examples of dangerous riding posi-
tions are shown in the illustrations.
. Children may be severely injured or
killed when the front air bags, side
air bags or curtain air bags inflate if
they are not properly restrained.
Pre-teens and children should be
properly restrained in the rear seat,
if possible.
. Even with the NISSAN Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child.
See ªChild restraintsº (P.1-27) for
details.
& R Q G L W L R Q
