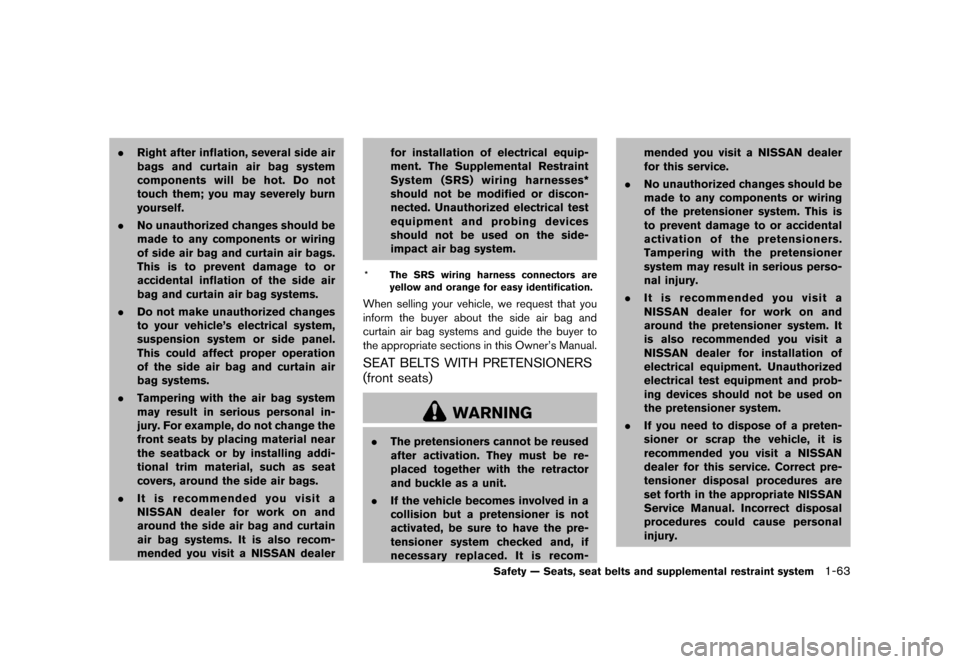

.Right after inflation, several side air
bags and curtain air bag system
components will be hot. Do not
touch them; you may severely burn
yourself.
. No unauthorized changes should be
made to any components or wiring
of side air bag and curtain air bags.
This is to prevent damage to or
accidental inflation of the side air
bag and curtain air bag systems.
. Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.
. Tampering with the air bag system
may result in serious personal in-
jury. For example, do not change the
front seats by placing material near
the seatback or by installing addi-
tional trim material, such as seat
covers, around the side air bags.
. It is recommended you visit a
NISSAN dealer for work on and
around the side air bag and curtain
air bag systems. It is also recom-
mended you visit a NISSAN dealer for installation of electrical equip-
ment. The Supplemental Restraint
System (SRS) wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices
should not be used on the side-
impact air bag system.
*
The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner's Manual.
SEAT BELTS WITH PRETENSIONERS
(front seats)
GUID-5CE4D685-C7FC-47D9-96FB-427C1AC73F78
WARNING
.The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.
. If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if
necessary replaced. It is recom- mended you visit a NISSAN dealer
for this service.
. No unauthorized changes should be
made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.
. It is recommended you visit a
NISSAN dealer for work on and
around the pretensioner system. It
is also recommended you visit a
NISSAN dealer for installation of
electrical equipment. Unauthorized
electrical test equipment and prob-
ing devices should not be used on
the pretensioner system.
. If you need to dispose of a preten-
sioner or scrap the vehicle, it is
recommended you visit a NISSAN
dealer for this service. Correct pre-
tensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.
Safety Ð Seats, seat belts and supplemental restraint system1-63
& R Q G L W L R Q
Page 82 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-64Safety Ð Seats, seat belts and supplemental restraint system
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. (See ªSupplemental air bag warning
lightº (P.1-65) for more details.) If the operation
of the supplemental air bag warning light
indicates there is a malfunction, have the system
checked. It is recommended you visit a NISSAN
dealer for this service.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system and guide the buyer to the appropriate sections
in this Owner's Manual.
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-0EA3B290-8955-4EA3-8685-BAC6D9314233Warning labels about the supplemental front-
impact air bag system are placed in the vehicle
as shown in the illustration.
SRS air bagGUID-B2F0F0C1-BEEE-4454-AE2C-ED3E54106A68The warning labels*1are located on the
surface of the sun visors.
& R Q G L W L R Q
Page 83 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-63CE3EBF-C153-41F1-8ADB-13B5BEF67FA8The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the SRS air bag systems are
operational.
If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing: .
The supplemental air bag warning light
remains on approximately 7 seconds after
the ignition switch is pushed to the ON
position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. It is
recommended you visit a NISSAN dealer for
this service.

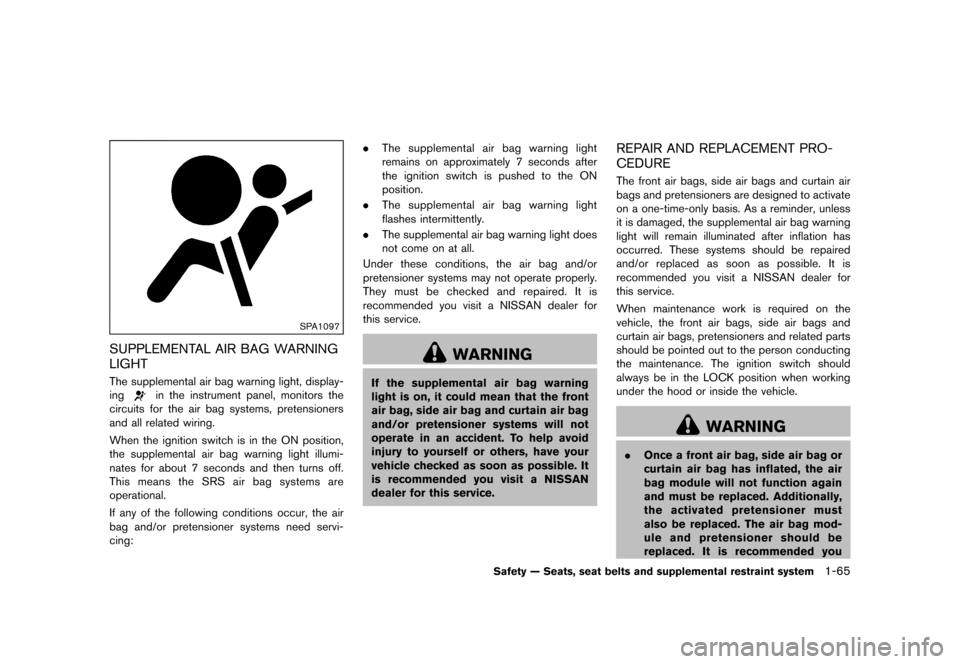

WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It
is recommended you visit a NISSAN
dealer for this service.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-F52DD8FA-AF84-402B-A3CD-7BF3DE1C4982The front air bags, side air bags and curtain air
bags and pretensioners are designed to activate
on a one-time-only basis. As a reminder, unless
it is damaged, the supplemental air bag warning
light will remain illuminated after inflation has
occurred. These systems should be repaired
and/or replaced as soon as possible. It is
recommended you visit a NISSAN dealer for
this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags and
curtain air bags, pretensioners and related parts
should be pointed out to the person conducting
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced. It is recommended you
Safety Ð Seats, seat belts and supplemental restraint system1-65
& R Q G L W L R Q
Page 84 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
1-66Safety Ð Seats, seat belts and supplemental restraint system

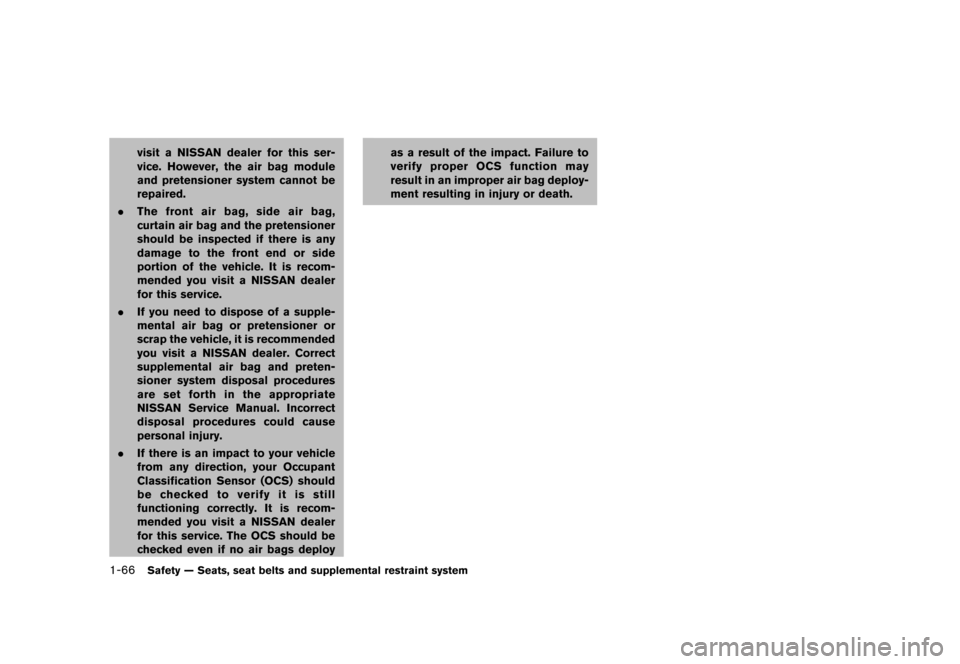

visit a NISSAN dealer for this ser-
vice. However, the air bag module
and pretensioner system cannot be
repaired.
. The front air bag, side air bag,
curtain air bag and the pretensioner
should be inspected if there is any
damage to the front end or side
portion of the vehicle. It is recom-
mended you visit a NISSAN dealer
for this service.
. If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, it is recommended
you visit a NISSAN dealer. Correct
supplemental air bag and preten-
sioner system disposal procedures
are set forth in the appropriate
NISSAN Service Manual. Incorrect
disposal procedures could cause
personal injury.
. If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should
be checked to verify it is still
functioning correctly. It is recom-
mended you visit a NISSAN dealer
for this service. The OCS should be
checked even if no air bags deploy as a result of the impact. Failure to
verify proper OCS function may
result in an improper air bag deploy-
ment resulting in injury or death.
& R Q G L W L R Q
Page 85 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Meter/ring illumination and needle sweep ...
.................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Compass (if so equipped) ...
...................................................... 2-8
Zone variation change procedure ...
................................ 2-10
Warning lights, indicator lights and
audible reminders ...
................................................................... 2-11
Checking lights ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Vehicle information display ...
.................................................. 2-19
Operational indicators ...
..................................................... 2-21
Maintenance indicators ...
................................................... 2-23
Trip computer ...
.................................................................... 2-24
Security systems ...
.................................................................... 2-28
Vehicle security system ...
.................................................. 2-28
NISSAN vehicle immobilizer system ...
........................... 2-30
Wiper and washer switch ...
.................................................... 2-31
Rear window wiper and washer switch ...
..................... 2-32 Rear window and outside mirror defroster switch
...
....... 2-33
Headlight and turn signal switch ...
....................................... 2-33
Xenon headlights (if so equipped) ...
............................ 2-33
Headlight switch ...
............................................................ 2-34
Turn signal switch ...
.......................................................... 2-38
Fog light switch (if so equipped) ...
.............................. 2-39
Horn ...
........................................................................\
.................. 2-39
Heated seats (if so equipped) ...
........................................... 2-39
Blind Spot Warning (BSW) switch (if so equipped) ...
..... 2-41
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-41
Power outlet ...
........................................................................\
.... 2-42
Storage ...
........................................................................\
............ 2-44
Cup holders ...
..................................................................... 2-44
Sunglasses holder ...
......................................................... 2-46
Glove box ...
........................................................................\
. 2-47
Instrument lower box (if so equipped) ...
..................... 2-47
Console box ...
.................................................................... 2-47
Cargo floor box ...
............................................................... 2-48
Hooks ...
........................................................................\
........ 2-49
Roof rack (if so equipped) ...
.......................................... 2-50
Coat hooks ...
...................................................................... 2-51
Sunshade (if so equipped) ...
................................................. 2-51
Windows ...
........................................................................\
......... 2-52
Power windows ...
.............................................................. 2-52
& R Q G L W L R Q
!
Page 86 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
Moonroof (if so equipped)...
................................................... 2-54
Power moonroof ...
............................................................... 2-54
Front moonroof ...
................................................................. 2-55
Rear moonroof ...
.................................................................. 2-56
If the front or rear moonroof does not operate ...
........ 2-56
Interior lights ...
........................................................................\
.. 2-57
Map lights ...
........................................................................\
... 2-57
Rear personal lights ...
......................................................... 2-57
Interior light control switch ...
............................................ 2-58
Mood lights ...
........................................................................\
...... 2-59
Vanity mirror lights ...
................................................................. 2-59 Cargo lights
...
........................................................................\
.... 2-60
HomeLink
Page 87 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
GUID-DCC2794A-4B62-4A96-BA3A-A529DCB296EE
SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch
2. Blind Spot Warning (BSW) switch*Ð Blind Spot Warning (BSW)*
3. Sliding door switch* (driver's side)
4. Sliding door switch* (passenger's side)
5. Instrument brightness control switch
6. Power lift gate switch* 7. Headlight, fog light and turn signal switch
Ð Headlight
Ð Turn signal
Ð Fog light*
8. Trip computer switch
9. TRIP/RESET switch for twin trip odometer
10. Wiper and washer switch 11. Fuse box cover
12. Fuel-filler door opener handle
13. Hood release handle
14. Headlight aiming control*
15. Power door main switch*
16. Steering-wheel-mounted controls (left side)
Ð Audio control steering switch*
Ð Hands-Free Phone System switch*
17. Horn
18. Steering-wheel-mounted controls (right side) Ð Cruise control system
*: if so equipped
Instruments and controls2-3
COCKPIT
& R Q G L W L R Q
Page 88 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
2-4Instruments and controls
GUID-0C8F786C-EE91-435E-980B-4A330DFE7B46
SSI0824
1. Side ventilator
2. Meters and gauges
3. Push-button ignition switch
4. Hazard warning flasher switch
5. Shift lever
6. Center displayÐ Center color display* Ð Navigation system**
7. Center multi-function control panel* Ð Navigation system**
Ð Vehicle information and setting buttons*
Ð RearView Monitor*
Ð Around View
Page 89 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
GUID-37D11D36-26FF-4EBB-A6F1-92389D9391F7
JVC0210X
1. Instrument brightness control switch
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Warning/indicator lights
6. Trip computer switch7. Vehicle information display
Ð Trip computer
8. Engine coolant temperature gauge
9. Odometer/twin trip odometer/Continuously Vari- able Transmission (CVT) position indicator
10. TRIP/RESET switch for twin trip odometer
The needle indicators may move slightly
after the ignition switch is pushed to the
OFF position. This is not a malfunction.

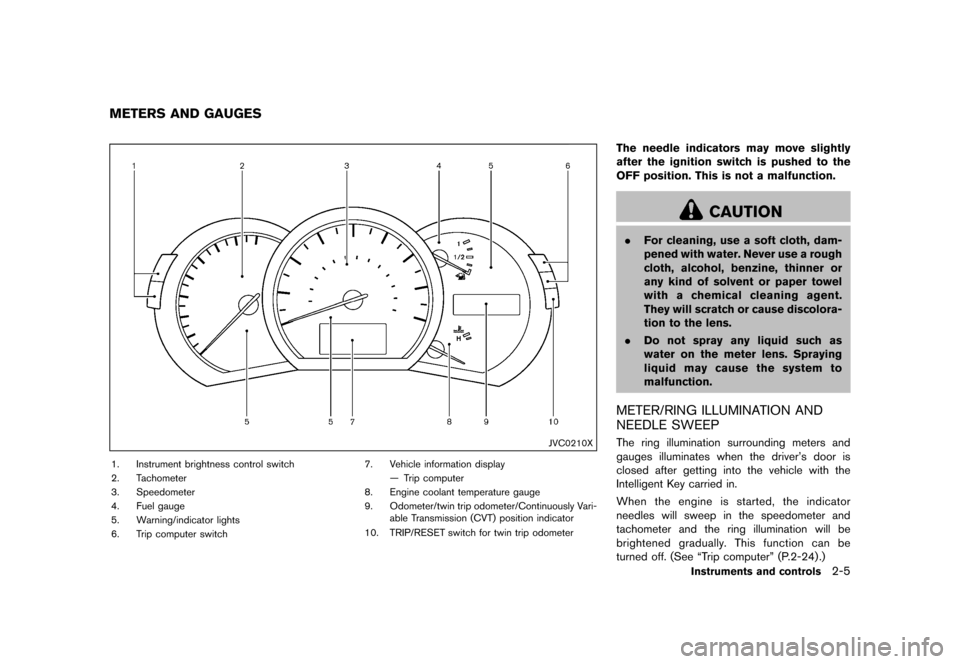

CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
METER/RING ILLUMINATION AND
NEEDLE SWEEP
GUID-6FB96EED-2227-43A8-9F52-B32907E5E8C9The ring illumination surrounding meters and
gauges illuminates when the driver's door is
closed after getting into the vehicle with the
Intelligent Key carried in.
When the engine is started, the indicator
needles will sweep in the speedometer and
tachometer and the ring illumination will be
brightened gradually. This function can be
turned off. (See ªTrip computerº (P.2-24) .)
Instruments and controls2-5
METERS AND GAUGES
& R Q G L W L R Q
Page 90 of 503
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 4 8 ( 6 7 ( 2 0 ( ( 8 @
2-6Instruments and controls
JVI0252X
Speedometer
SPEEDOMETER AND ODOMETERGUID-77958C18-38E6-4515-81A8-602B476070B8
SpeedometerGUID-149DA615-AB5B-4172-8BCC-7CBFBA50FC98The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC4632
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-2708C880-F080-4F4D-98C7-A14C9193EC2EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3on the right
side of the combination meter panel changes
the display as follows:
TRIP A ?TRIP B ?TRIP A Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3for more
than 1 second resets the trip odometer to zero.
& R Q G L W L R Q
