NISSAN ROGUE 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: ROGUE, Model: NISSAN ROGUE 2013 2.GPages: 371, PDF Size: 3.67 MB
Page 201 of 371
Black plate (199,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

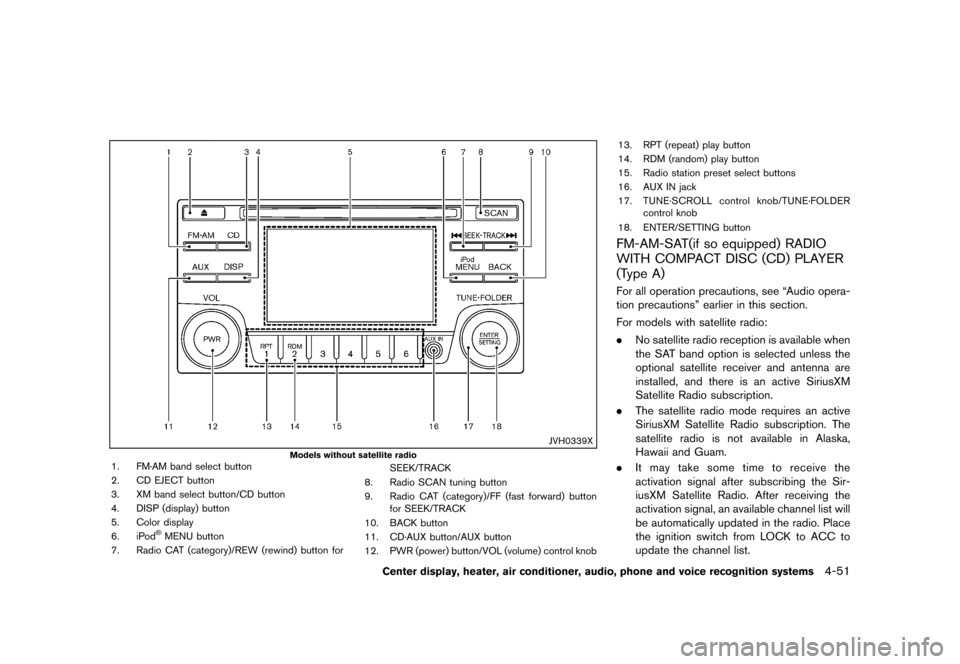

JVH0339X
Models without satellite radio1. FM·AM band select button
2. CD EJECT button
3. XM band select button/CD button
4. DISP (display) button
5. Color display
6. iPod
®MENU button
7. Radio CAT (category)/REW (rewind) button for SEEK/TRACK
8. Radio SCAN tuning button
9. Radio CAT (category)/FF (fast forward) button for SEEK/TRACK
10. BACK button
11. CD·AUX button/AUX button
12. PWR (power) button/VOL (volume) control knob 13. RPT (repeat) play button
14. RDM (random) play button
15. Radio station preset select buttons
16. AUX IN jack
17.
TUNE·SCROLL control knob/TUNE·FOLDER
control knob
18. ENTER/SETTING button
FM-AM-SAT(if so equipped) RADIO
WITH COMPACT DISC (CD) PLAYER
(Type A)
S35-D-110201-36B80692-3C57-45F7-900C-1872B77C8641For all operation precautions, see “Audio opera-
tion precautions” earlier in this section.
For models with satellite radio:
. No satellite radio reception is available when
the SAT band option is selected unless the
optional satellite receiver and antenna are
installed, and there is an active SiriusXM
Satellite Radio subscription.
. The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The
satellite radio is not available in Alaska,
Hawaii and Guam.
. It may take some time to receive the
activation signal after subscribing the Sir-
iusXM Satellite Radio. After receiving the
activation signal, an available channel list will
be automatically updated in the radio. Place
the ignition switch from LOCK to ACC to
update the channel list.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-51
Page 202 of 371
Black plate (200,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-52Center display, heater, air conditioner, audio, phone and voice recognition systems

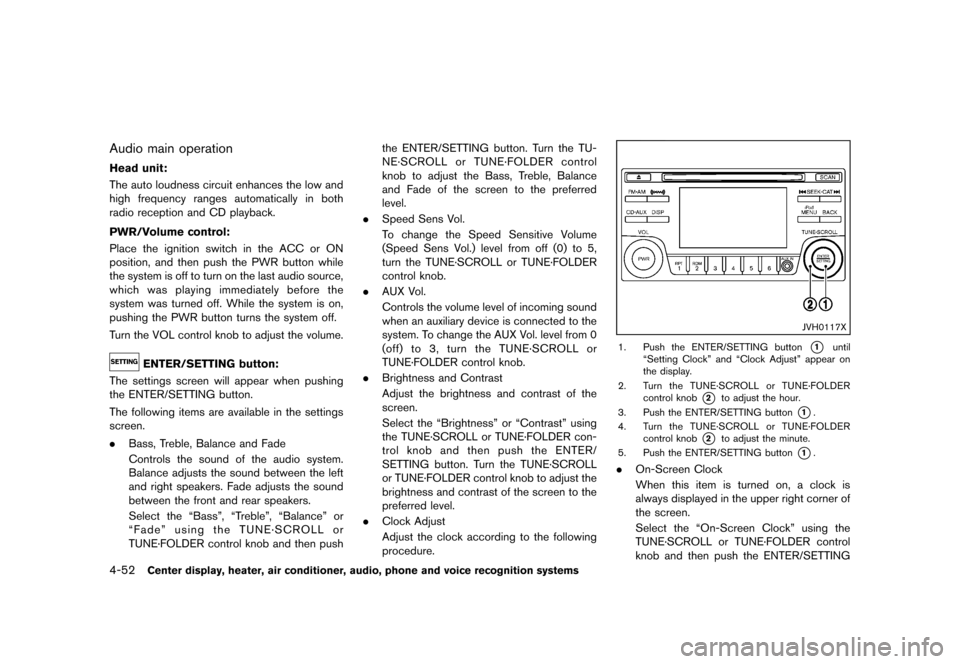

Audio main operationS35-D-110201-62364244-60D7-41AF-886E-4DC38A679472
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
PWR/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to turn on the last audio source,
which was playing immediately before the
system was turned off. While the system is on,
pushing the PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
ENTER/SETTING button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The settings screen will appear when pushing
the ENTER/SETTING button.
The following items are available in the settings
screen.
.Bass, Treble, Balance and Fade
Controls the sound of the audio system.
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or
“Fade” using the TUNE·SCROLL or
TUNE·FOLDER control knob and then push the ENTER/SETTING button. Turn the TU-
NE·SCROLL or TUNE·FOLDER control
knob to adjust the Bass, Treble, Balance
and Fade of the screen to the preferred
level.
. Speed Sens Vol.
To change the Speed Sensitive Volume
(Speed Sens Vol.) level from off (0) to 5,
turn the TUNE·SCROLL or TUNE·FOLDER
control knob.
. AUX Vol.
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. To change the AUX Vol. level from 0
(off) to 3, turn the TUNE·SCROLL or
TUNE·FOLDER control knob.
. Brightness and Contrast
Adjust the brightness and contrast of the
screen.
Select the “Brightness” or “Contrast” using
the TUNE·SCROLL or TUNE·FOLDER con-
trol knob and then push the ENTER/
SETTING button. Turn the TUNE·SCROLL
or TUNE·FOLDER control knob to adjust the
brightness and contrast of the screen to the
preferred level.
. Clock Adjust
Adjust the clock according to the following
procedure.
JVH0117X
1. Push the ENTER/SETTING button*1until
“Setting Clock” and “Clock Adjust” appear on
the display.
2. Turn the TUNE·SCROLL or TUNE·FOLDER
control knob
*2to adjust the hour.
3. Push the ENTER/SETTING button
*1.
4. Turn the TUNE·SCROLL or TUNE·FOLDER
control knob
*2to adjust the minute.
5. Push the ENTER/SETTING button
*1.
. On-Screen Clock
When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the “On-Screen Clock” using the
TUNE·SCROLL or TUNE·FOLDER control
knob and then push the ENTER/SETTING
Page 203 of 371
Black plate (201,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

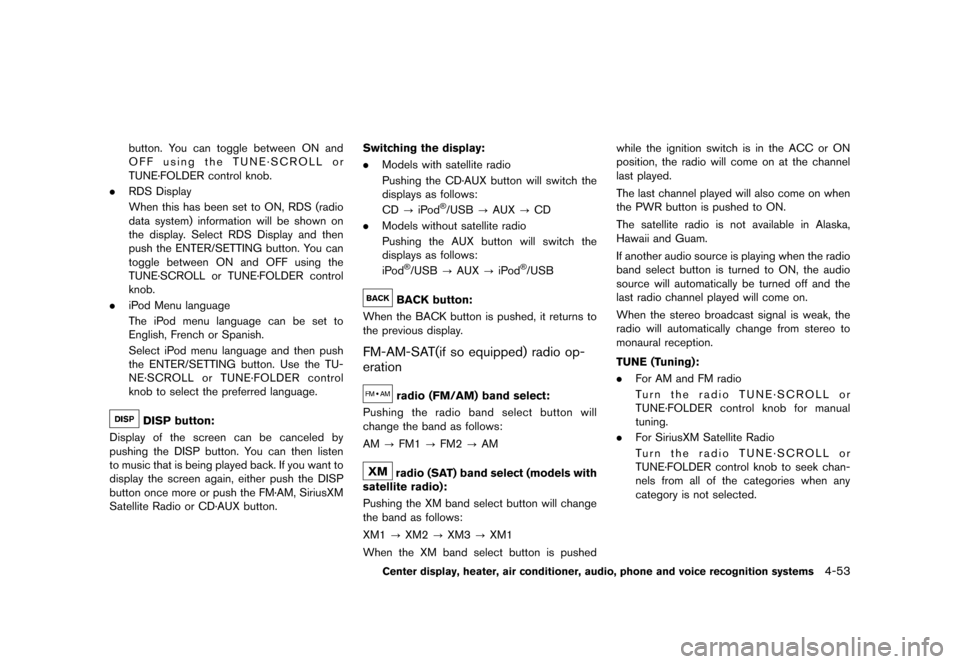

button. You can toggle between ON and
OFF using the TUNE·SCROLL or
TUNE·FOLDER control knob.
. RDS Display
When this has been set to ON, RDS (radio
data system) information will be shown on
the display. Select RDS Display and then
push the ENTER/SETTING button. You can
toggle between ON and OFF using the
TUNE·SCROLL or TUNE·FOLDER control
knob.
. iPod Menu language
The iPod menu language can be set to
English, French or Spanish.
Select iPod menu language and then push
the ENTER/SETTING button. Use the TU-
NE·SCROLL or TUNE·FOLDER control
knob to select the preferred language.
DISP button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Display of the screen can be canceled by
pushing the DISP button. You can then listen
to music that is being played back. If you want to
display the screen again, either push the DISP
button once more or push the FM·AM, SiriusXM
Satellite Radio or CD·AUX button. Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Models with satellite radio
Pushing the CD·AUX button will switch the
displays as follows:
CD ?iPod
®/USB ?AUX ?CD
. Models without satellite radio
Pushing the AUX button will switch the
displays as follows:
iPod
®/USB ?AUX ?iPod®/USB
BACK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the BACK button is pushed, it returns to
the previous display.
FM-AM-SAT(if so equipped) radio op-
eration
S35-D-110201-60FFC3FC-9361-461B-81BC-20D3709F43CC
radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the radio band select button will
change the band as follows:
AM ?FM1 ?FM2 ?AM
radio (SAT) band select (models with
satellite radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the XM band select button will change
the band as follows:
XM1 ?XM2 ?XM3 ?XM1
When the XM band select button is pushed while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the PWR button is pushed to ON.
The satellite radio is not available in Alaska,
Hawaii and Guam.
If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
TUNE (Tuning):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
For AM and FM radio
Turn the radio TUNE·SCROLL or
TUNE·FOLDER control knob for manual
tuning.
. For SiriusXM Satellite Radio
Turn the radio TUNE·SCROLL or
TUNE·FOLDER control knob to seek chan-
nels from all of the categories when any
category is not selected.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-53
Page 204 of 371
Black plate (202,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-54Center display, heater, air conditioner, audio, phone and voice recognition systems

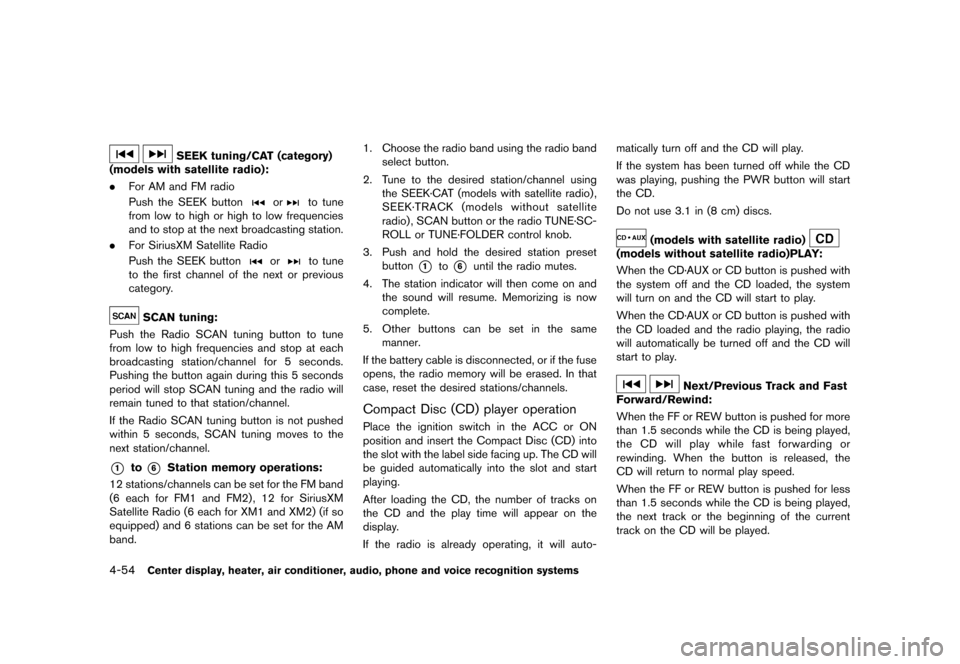

SEEK tuning/CAT (category)
(models with satellite radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. For AM and FM radio
Push the SEEK button
orto tune
from low to high or high to low frequencies
and to stop at the next broadcasting station.
. For SiriusXM Satellite Radio
Push the SEEK button
orto tune
to the first channel of the next or previous
category.
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the Radio SCAN tuning button to tune
from low to high frequencies and stop at each
broadcasting station/channel for 5 seconds.
Pushing the button again during this 5 seconds
period will stop SCAN tuning and the radio will
remain tuned to that station/channel.
If the Radio SCAN tuning button is not pushed
within 5 seconds, SCAN tuning moves to the
next station/channel.
*1to*6Station memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 12 for SiriusXM
Satellite Radio (6 each for XM1 and XM2) (if so
equipped) and 6 stations can be set for the AM
band. 1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK·CAT (models with satellite radio) ,
SEEK·TRACK (models without satellite
radio), SCAN button or the radio TUNE·SC-
ROLL or TUNE·FOLDER control knob.
3. Push and hold the desired station preset button
*1to*6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
Compact Disc (CD) player operationS35-D-110201-958C8E38-8A90-4269-B514-51CE021D428BPlace the ignition switch in the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will auto- matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the PWR button will start
the CD.
Do not use 3.1 in (8 cm) discs.
(models with satellite radio)
(models without satellite radio)PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD·AUX or CD button is pushed with
the system off and the CD loaded, the system
will turn on and the CD will start to play.
When the CD·AUX or CD button is pushed with
the CD loaded and the radio playing, the radio
will automatically be turned off and the CD will
start to play.
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FF or REW button is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.
Page 205 of 371
Black plate (203,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

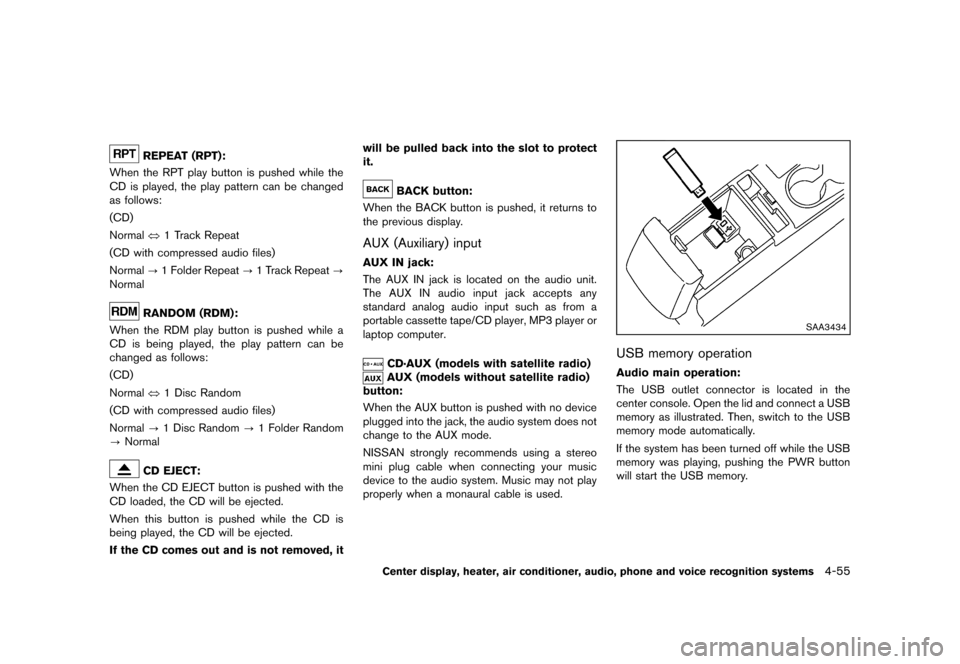

REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT play button is pushed while the
CD is played, the play pattern can be changed
as follows:
(CD)
NormalÛ1 Track Repeat
(CD with compressed audio files)
Normal ?1 Folder Repeat ?1 Track Repeat ?
Normal
RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM play button is pushed while a
CD is being played, the play pattern can be
changed as follows:
(CD)
Normal Û1 Disc Random
(CD with compressed audio files)
Normal ?1 Disc Random ?1 Folder Random
? Normal
CD EJECT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it will be pulled back into the slot to protect
it.
BACK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the BACK button is pushed, it returns to
the previous display.
AUX (Auxiliary) inputS35-D-110201-E0FF4825-DE84-48E0-9279-016D03B82FF0
AUX IN jack:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The AUX IN jack is located on the audio unit.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape/CD player, MP3 player or
laptop computer.
CD·AUX (models with satellite radio)
AUX (models without satellite radio)
button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the AUX button is pushed with no device
plugged into the jack, the audio system does not
change to the AUX mode.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
SAA3434
USB memory operationS35-D-110201-BBB7A1D4-6F01-42CB-BE51-82F827F232A4
Audio main operation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The USB outlet connector is located in the
center console. Open the lid and connect a USB
memory as illustrated. Then, switch to the USB
memory mode automatically.
If the system has been turned off while the USB
memory was playing, pushing the PWR button
will start the USB memory.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-55
Page 206 of 371
Black plate (204,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

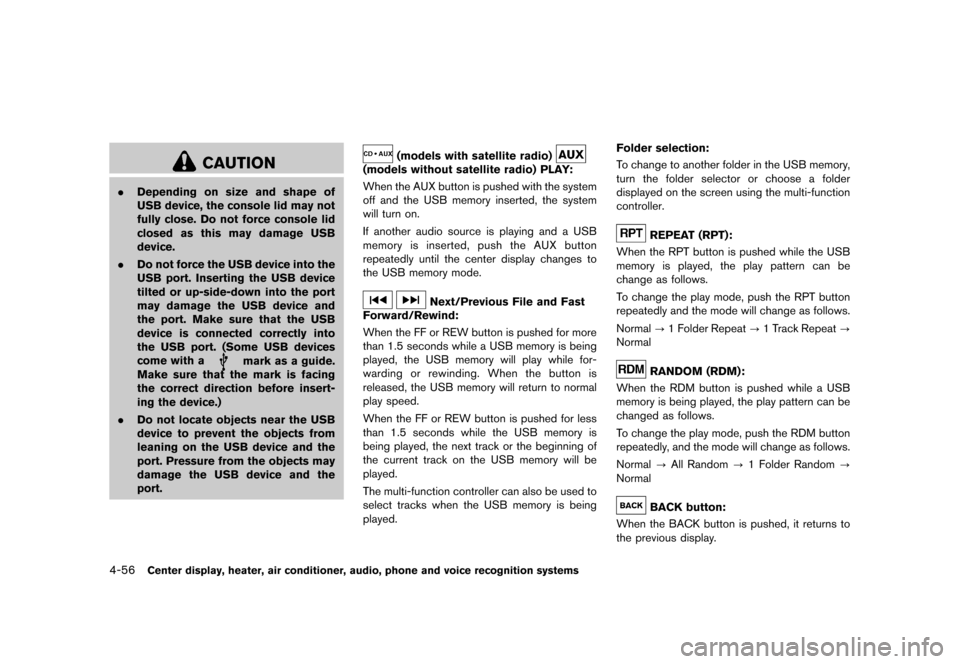

4-56Center display, heater, air conditioner, audio, phone and voice recognition systems
CAUTION
.Depending on size and shape of
USB device, the console lid may not
fully close. Do not force console lid
closed as this may damage USB
device.
. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the USB device and
the port. Make sure that the USB
device is connected correctly into
the USB port. (Some USB devices
come with a
mark as a guide.
Make sure that the mark is facing
the correct direction before insert-
ing the device.)
. Do not locate objects near the USB
device to prevent the objects from
leaning on the USB device and the
port. Pressure from the objects may
damage the USB device and the
port.
(models with satellite radio)
(models without satellite radio) PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the AUX button is pushed with the system
off and the USB memory inserted, the system
will turn on.
If another audio source is playing and a USB
memory is inserted, push the AUX button
repeatedly until the center display changes to
the USB memory mode.
Next/Previous File and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FF or REW button is pushed for more
than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
The multi-function controller can also be used to
select tracks when the USB memory is being
played. Folder selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the multi-function
controller.
REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal
?1 Folder Repeat ?1 Track Repeat ?
Normal
RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.
To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.
Normal ?All Random ?1 Folder Random ?
Normal
BACK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the BACK button is pushed, it returns to
the previous display.
Page 207 of 371
Black plate (205,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

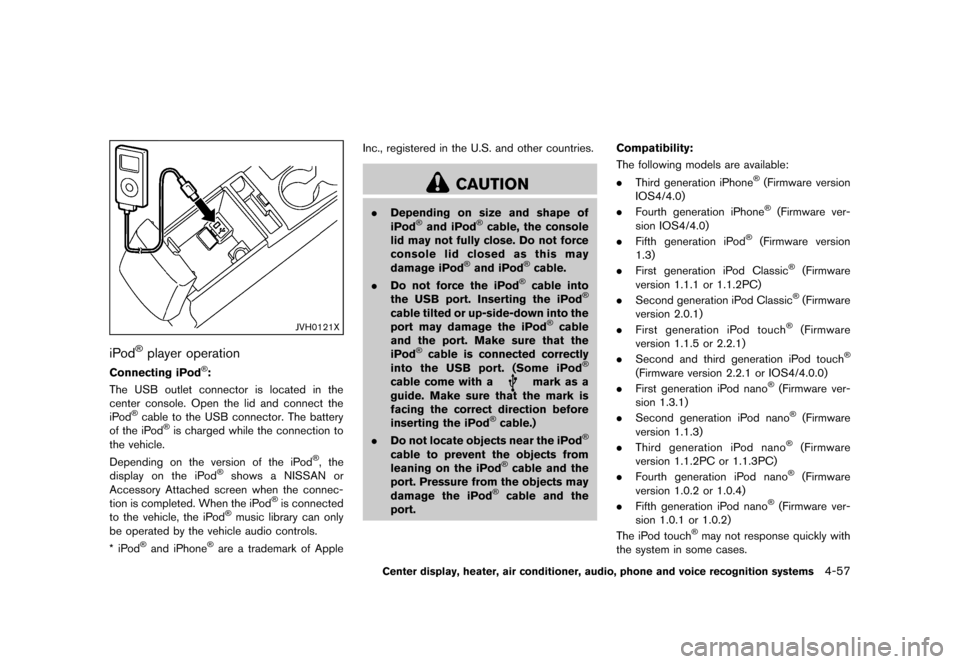

JVH0121X
iPod®player operationS35-D-110201-45FBF3C4-1CC5-4DB6-A3EE-952B17BC488A
Connecting iPod®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The USB outlet connector is located in the
center console. Open the lid and connect the
iPod
®cable to the USB connector. The battery
of the iPod®is charged while the connection to
the vehicle.
Depending on the version of the iPod
®, the
display on the iPod®shows a NISSAN or
Accessory Attached screen when the connec-
tion is completed. When the iPod
®is connected
to the vehicle, the iPod®music library can only
be operated by the vehicle audio controls.
* iPod
®and iPhone®are a trademark of Apple Inc., registered in the U.S. and other countries.
CAUTION
.
Depending on size and shape of
iPod®and iPod®cable, the console
lid may not fully close. Do not force
console lid closed as this may
damage iPod
®and iPod®cable.
. Do not force the iPod®cable into
the USB port. Inserting the iPod®
cable tilted or up-side-down into the
port may damage the iPod®cable
and the port. Make sure that the
iPod
®cable is connected correctly
into the USB port. (Some iPod®
cable come with amark as a
guide. Make sure that the mark is
facing the correct direction before
inserting the iPod
®cable.)
. Do not locate objects near the iPod®
cable to prevent the objects from
leaning on the iPod®cable and the
port. Pressure from the objects may
damage the iPod
®cable and the
port. Compatibility:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following models are available:
.
Third generation iPhone®(Firmware version
IOS4/4.0)
. Fourth generation iPhone
®(Firmware ver-
sion IOS4/4.0)
. Fifth generation iPod
®(Firmware version
1.3)
. First generation iPod Classic
®(Firmware
version 1.1.1 or 1.1.2PC)
. Second generation iPod Classic
®(Firmware
version 2.0.1)
. First generation iPod touch
®(Firmware
version 1.1.5 or 2.2.1)
. Second and third generation iPod touch
®
(Firmware version 2.2.1 or IOS4/4.0.0)
. First generation iPod nano®(Firmware ver-
sion 1.3.1)
. Second generation iPod nano
®(Firmware
version 1.1.3)
. Third generation iPod nano
®(Firmware
version 1.1.2PC or 1.1.3PC)
. Fourth generation iPod nano
®(Firmware
version 1.0.2 or 1.0.4)
. Fifth generation iPod nano
®(Firmware ver-
sion 1.0.1 or 1.0.2)
The iPod touch
®may not response quickly with
the system in some cases.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-57
Page 208 of 371
Black plate (206,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

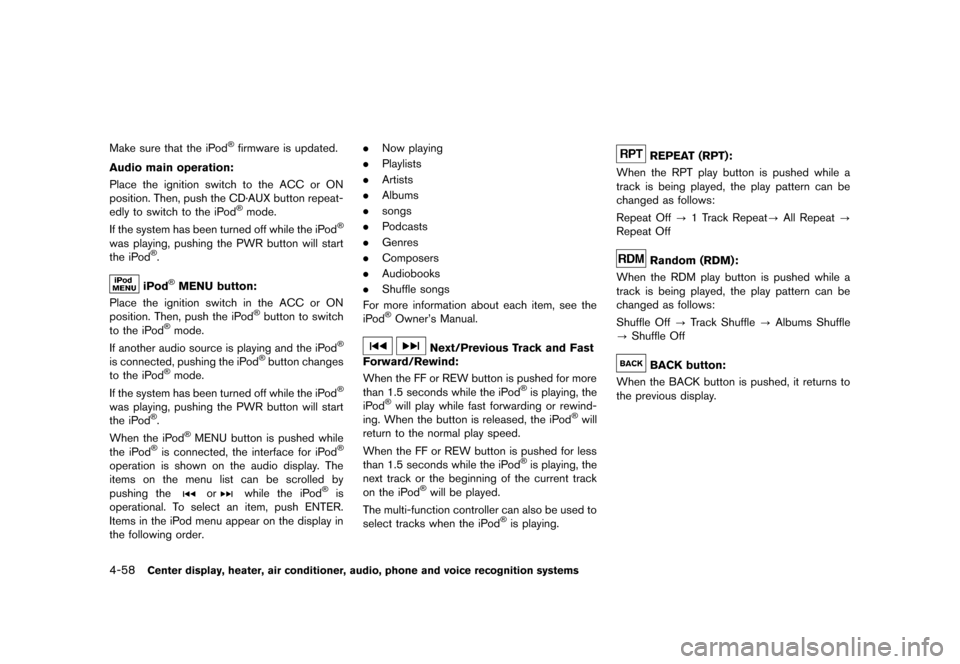

4-58Center display, heater, air conditioner, audio, phone and voice recognition systems
Make sure that the iPod®firmware is updated.
Audio main operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch to the ACC or ON
position. Then, push the CD·AUX button repeat-
edly to switch to the iPod
®mode.
If the system has been turned off while the iPod®
was playing, pushing the PWR button will start
the iPod®.
iPod®MENU button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position. Then, push the iPod®button to switch
to the iPod®mode.
If another audio source is playing and the iPod®
is connected, pushing the iPod®button changes
to the iPod®mode.
If the system has been turned off while the iPod®
was playing, pushing the PWR button will start
the iPod®.
When the iPod®MENU button is pushed while
the iPod®is connected, the interface for iPod®
operation is shown on the audio display. The
items on the menu list can be scrolled by
pushing the
orwhile the iPod®is
operational. To select an item, push ENTER.
Items in the iPod menu appear on the display in
the following order. .
Now playing
. Playlists
. Artists
. Albums
. songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle songs
For more information about each item, see the
iPod
®Owner’s Manual.
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FF or REW button is pushed for more
than 1.5 seconds while the iPod®is playing, the
iPod®will play while fast forwarding or rewind-
ing. When the button is released, the iPod®will
return to the normal play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the iPod
®is playing, the
next track or the beginning of the current track
on the iPod
®will be played.
The multi-function controller can also be used to
select tracks when the iPod
®is playing.
REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT play button is pushed while a
track is being played, the play pattern can be
changed as follows:
Repeat Off ?1 Track Repeat? All Repeat?
Repeat Off
Random (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM play button is pushed while a
track is being played, the play pattern can be
changed as follows:
Shuffle Off ?Track Shuffle ?Albums Shuffle
? Shuffle Off
BACK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the BACK button is pushed, it returns to
the previous display.
Page 209 of 371
Black plate (207,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

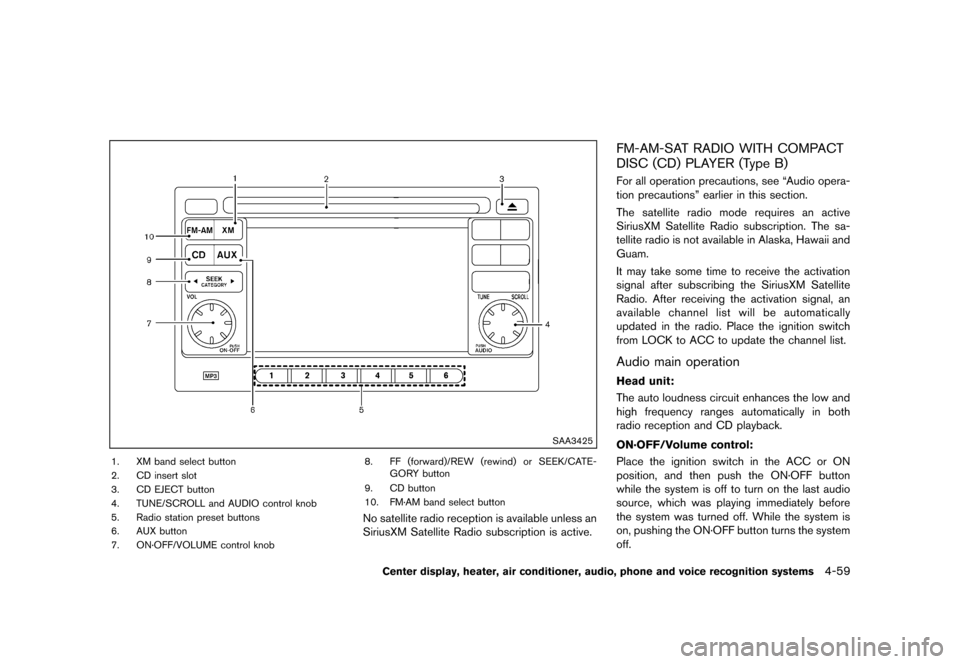

SAA3425
1. XM band select button
2. CD insert slot
3. CD EJECT button
4. TUNE/SCROLL and AUDIO control knob
5. Radio station preset buttons
6. AUX button
7. ON·OFF/VOLUME control knob8.
FF (forward)/REW (rewind) or SEEK/CATE-
GORY button
9. CD button
10. FM·AM band select button
No satellite radio reception is available unless an
SiriusXM Satellite Radio subscription is active.
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B)
S35-D-110201-A34993EA-D4E6-4D0E-A0D9-4178E013D125For all operation precautions, see “Audio opera-
tion precautions” earlier in this section.
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Place the ignition switch
from LOCK to ACC to update the channel list.
Audio main operationS35-D-110201-EC1E62D8-FD17-46CD-9549-AB5994BB95AB
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON·OFF button turns the system
off.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-59
Page 210 of 371
Black plate (208,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

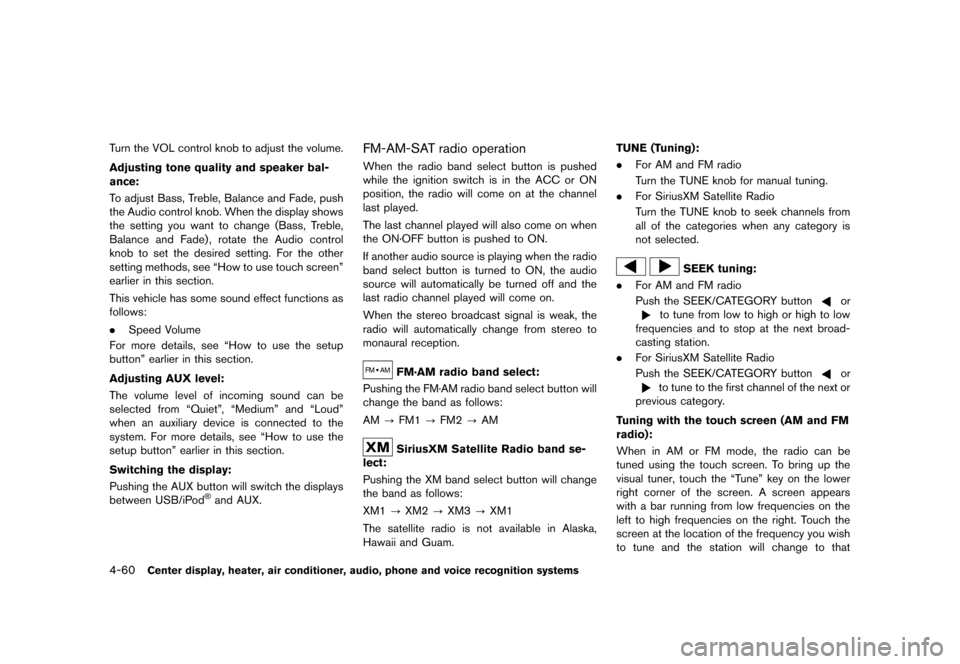

4-60Center display, heater, air conditioner, audio, phone and voice recognition systems
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see “How to use touch screen”
earlier in this section.
This vehicle has some sound effect functions as
follows:
.Speed Volume
For more details, see “How to use the setup
button” earlier in this section.
Adjusting AUX level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The volume level of incoming sound can be
selected from “Quiet”, “Medium” and “Loud”
when an auxiliary device is connected to the
system. For more details, see “How to use the
setup button” earlier in this section.
Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the AUX button will switch the displays
between USB/iPod®and AUX.
FM-AM-SAT radio operationS35-D-110201-0C647E9F-E647-4371-8C51-BFF85FD6BA69When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the ON·OFF button is pushed to ON.
If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
FM·AM radio band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the FM·AM radio band select button will
change the band as follows:
AM ?FM1 ?FM2 ?AM
SiriusXM Satellite Radio band se-
lect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the XM band select button will change
the band as follows:
XM1 ?XM2 ?XM3 ?XM1
The satellite radio is not available in Alaska,
Hawaii and Guam. TUNE (Tuning):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
For AM and FM radio
Turn the TUNE knob for manual tuning.
. For SiriusXM Satellite Radio
Turn the TUNE knob to seek channels from
all of the categories when any category is
not selected.
SEEK tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.For AM and FM radio
Push the SEEK/CATEGORY button
or
to tune from low to high or high to low
frequencies and to stop at the next broad-
casting station.
. For SiriusXM Satellite Radio
Push the SEEK/CATEGORY button
or
to tune to the first channel of the next or
previous category.
Tuning with the touch screen (AM and FM
radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When in AM or FM mode, the radio can be
tuned using the touch screen. To bring up the
visual tuner, touch the “Tune” key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that
