CAUTION
●TPMS is not a substitute for the regular
tire pressure check. Be sure to check
the tire pressure regularly.
● If the vehicle is being driven at speeds
of less than 16 mph (25 km/h), the
TPMS may not operate correctly.
● Be sure to install the specified size of
tires to the four wheels correctly.
Low windshield-washer fluid
warning light (if so equipped)
This light comes on when the windshield-washer
fluid is at a low level. Add windshield-washer fluid
as necessary. For additional information, refer to
“Windshield-washer fluid” in the “Maintenance
and do-it-yourself” section of this manual.
Master warning light
When the ignition is in the ON position, the
master warning light illuminates if any of the fol-
lowing are displayed on the vehicle information
display.
● All-Wheel Drive (AWD) Tire Size Incorrect
See Owner’s Manual
● All-Wheel Drive (AWD) High Temp. Stop
vehicle ●
All-Wheel Drive (AWD) Error See Owner’s
Manual
● No key warning
● Low fuel warning
● Low windshield-washer fluid warning
● Parking brake release warning
● Door/liftgate open warning
● Loose fuel cap warning
If the All-Wheel Drive (AWD) system malfunc-
tions, or the diameter of the front and the rear
wheels are different, the master warning light will
illuminate. For additional information, refer to “All-
Wheel Drive (AWD)” in the “Starting and driving”
section of this manual. ● If the warning light comes on while driving
there may be a malfunction in the AWD
system. Reduce the vehicle speed and have
your vehicle checked by a NISSAN dealer as
soon as possible.
CAUTION
● If the master warning light was illumi-
nated while driving:
—AWD High Temp Stop vehicle
Pull off the road in a safe area and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again.
—Tire Size Incorrect See Owner’s Manual
Pull off the road in a safe area and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the
above operations, have your vehicle
checked as soon as possible. It is rec-
ommended you visit a NISSAN dealer
for this service.
Power steering warning light
WARNING
● If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.
2-14Instruments and controls
Page 102 of 478

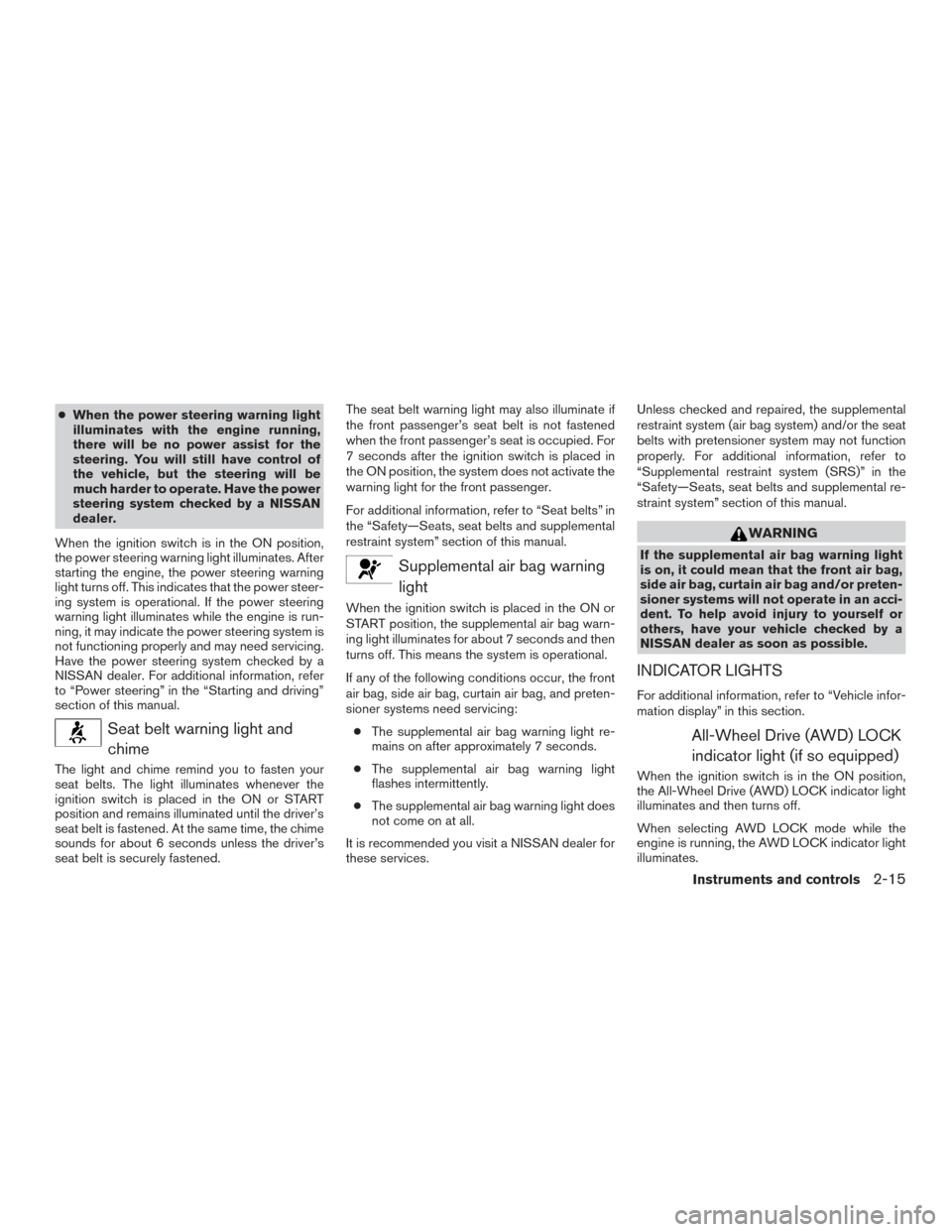

●When the power steering warning light
illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of
the vehicle, but the steering will be
much harder to operate. Have the power
steering system checked by a NISSAN
dealer.
When the ignition switch is in the ON position,
the power steering warning light illuminates. After
starting the engine, the power steering warning
light turns off. This indicates that the power steer-
ing system is operational. If the power steering
warning light illuminates while the engine is run-
ning, it may indicate the power steering system is
not functioning properly and may need servicing.
Have the power steering system checked by a
NISSAN dealer. For additional information, refer
to “Power steering” in the “Starting and driving”
section of this manual.
Seat belt warning light and chime
The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driver’s
seat belt is securely fastened. The seat belt warning light may also illuminate if
the front passenger’s seat belt is not fastened
when the front passenger’s seat is occupied. For
7 seconds after the ignition switch is placed in
the ON position, the system does not activate the
warning light for the front passenger.
For additional information, refer to “Seat belts” in
the “Safety—Seats, seat belts and supplemental
restraint system” section of this manual.
Supplemental air bag warning
light
When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag, and preten-
sioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
It is recommended you visit a NISSAN dealer for
these services. Unless checked and repaired, the supplemental
restraint system (air bag system) and/or the seat
belts with pretensioner system may not function
properly. For additional information, refer to
“Supplemental restraint system (SRS)” in the
“Safety—Seats, seat belts and supplemental re-
straint system” section of this manual.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.
INDICATOR LIGHTS
For additional information, refer to “Vehicle infor-
mation display” in this section.
All-Wheel Drive (AWD) LOCK
indicator light (if so equipped)
When the ignition switch is in the ON position,
the All-Wheel Drive (AWD) LOCK indicator light
illuminates and then turns off.
When selecting AWD LOCK mode while the
engine is running, the AWD LOCK indicator light
illuminates.
Instruments and controls2-15
Page 103 of 478

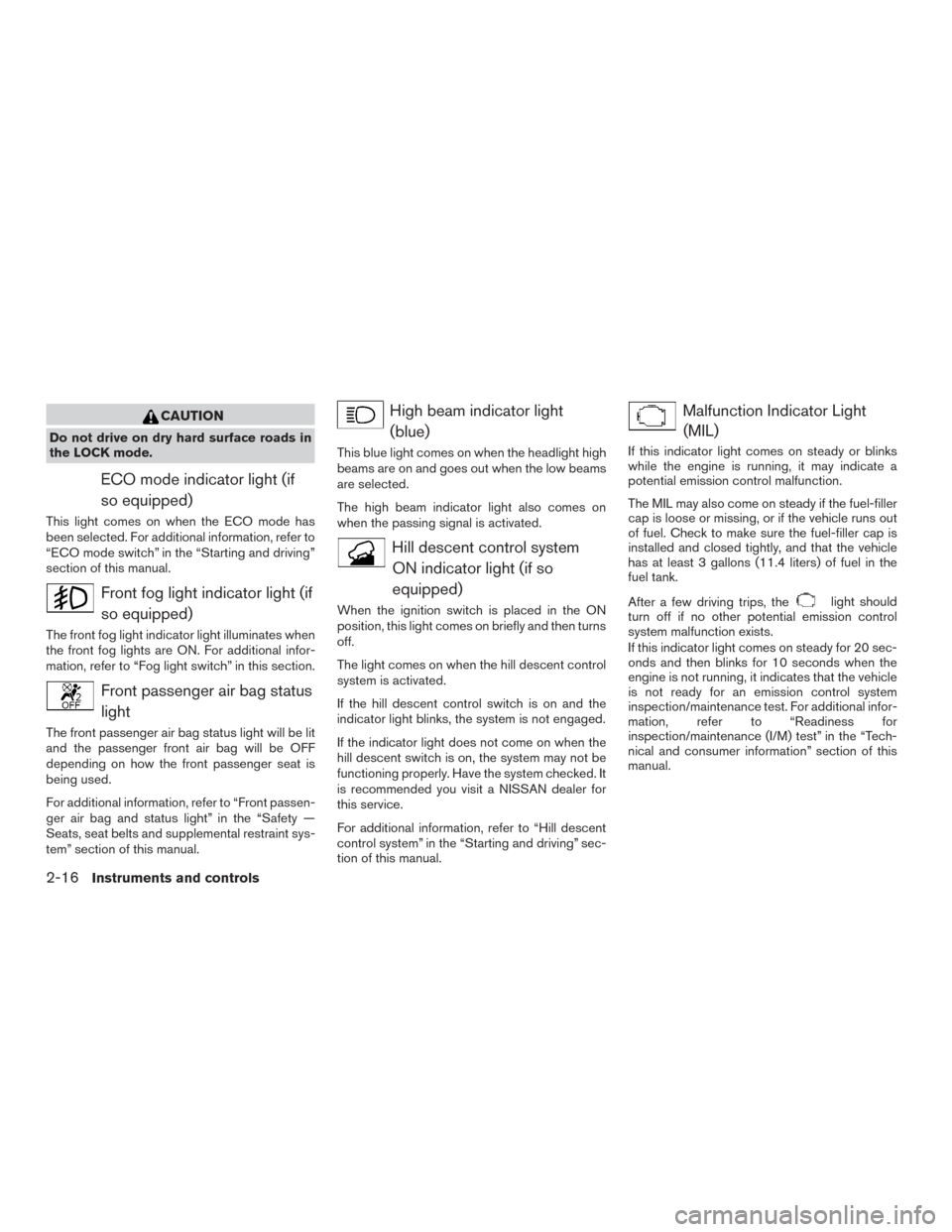

CAUTION
Do not drive on dry hard surface roads in
the LOCK mode.
ECO mode indicator light (ifso equipped)
This light comes on when the ECO mode has
been selected. For additional information, refer to
“ECO mode switch” in the “Starting and driving”
section of this manual.
Front fog light indicator light (ifso equipped)
The front fog light indicator light illuminates when
the front fog lights are ON. For additional infor-
mation, refer to “Fog light switch” in this section.
Front passenger air bag statuslight
The front passenger air bag status light will be lit
and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.
For additional information, refer to “Front passen-
ger air bag and status light” in the “Safety —
Seats, seat belts and supplemental restraint sys-
tem” section of this manual.
High beam indicator light(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Hill descent control systemON indicator light (if so
equipped)
When the ignition switch is placed in the ON
position, this light comes on briefly and then turns
off.
The light comes on when the hill descent control
system is activated.
If the hill descent control switch is on and the
indicator light blinks, the system is not engaged.
If the indicator light does not come on when the
hill descent switch is on, the system may not be
functioning properly. Have the system checked. It
is recommended you visit a NISSAN dealer for
this service.
For additional information, refer to “Hill descent
control system” in the “Starting and driving” sec-
tion of this manual.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The MIL may also come on steady if the fuel-filler
cap is loose or missing, or if the vehicle runs out
of fuel. Check to make sure the fuel-filler cap is
installed and closed tightly, and that the vehicle
has at least 3 gallons (11.4 liters) of fuel in the
fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. For additional infor-
mation, refer to “Readiness for
inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual.
2-16Instruments and controls
Page 104 of 478

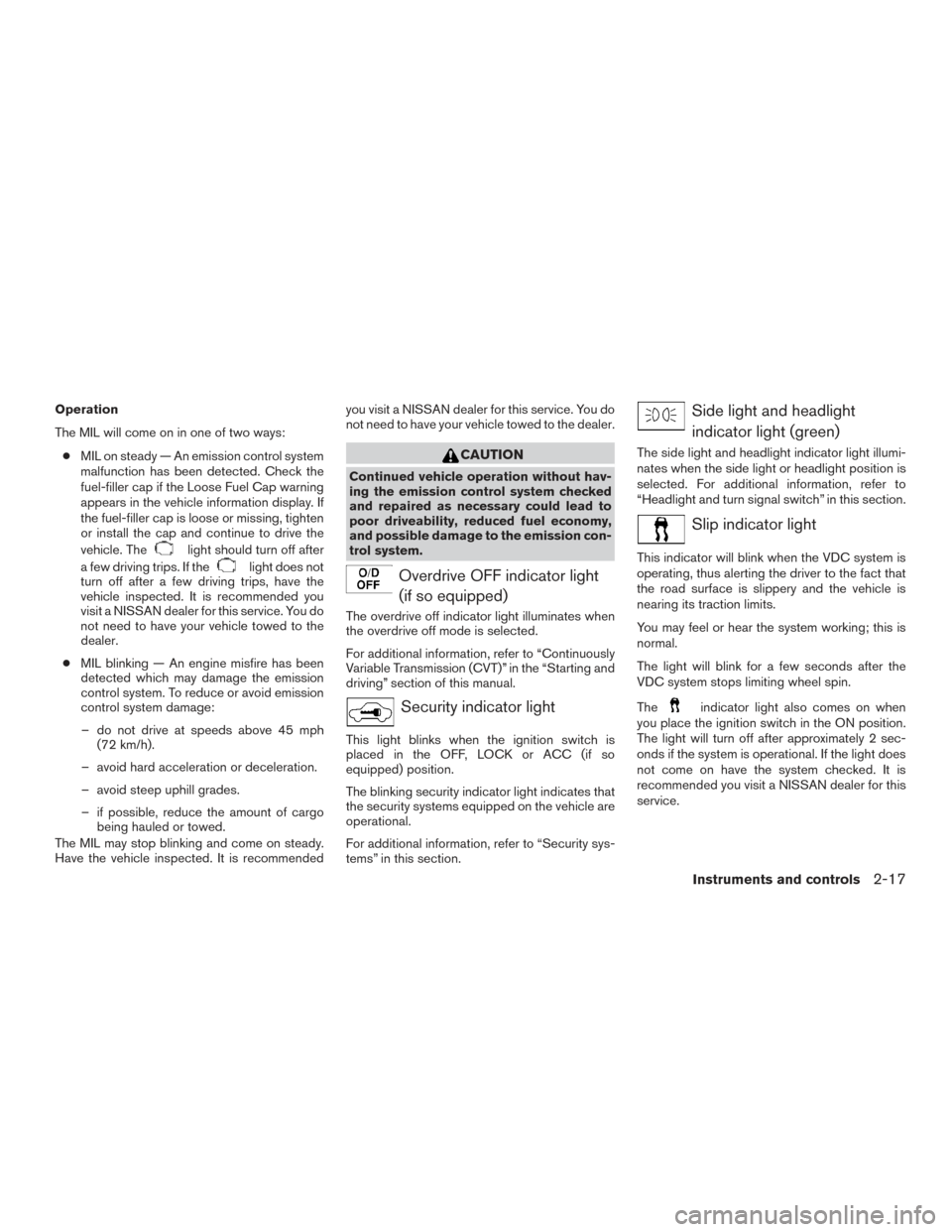

Operation
The MIL will come on in one of two ways:● MIL on steady — An emission control system
malfunction has been detected. Check the
fuel-filler cap if the Loose Fuel Cap warning
appears in the vehicle information display. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after
a few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected. It is recommended you
visit a NISSAN dealer for this service. You do
not need to have your vehicle towed to the
dealer.
● MIL blinking — An engine misfire has been
detected which may damage the emission
control system. To reduce or avoid emission
control system damage:
– do not drive at speeds above 45 mph (72 km/h).
– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo being hauled or towed.
The MIL may stop blinking and come on steady.
Have the vehicle inspected. It is recommended you visit a NISSAN dealer for this service. You do
not need to have your vehicle towed to the dealer.
CAUTION
Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.
Overdrive OFF indicator light
(if so equipped)
The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, refer to “Continuously
Variable Transmission (CVT)” in the “Starting and
driving” section of this manual.
Security indicator light
This light blinks when the ignition switch is
placed in the OFF, LOCK or ACC (if so
equipped) position.
The blinking security indicator light indicates that
the security systems equipped on the vehicle are
operational.
For additional information, refer to “Security sys-
tems” in this section.
Side light and headlight
indicator light (green)
The side light and headlight indicator light illumi-
nates when the side light or headlight position is
selected. For additional information, refer to
“Headlight and turn signal switch” in this section.
Slip indicator light
This indicator will blink when the VDC system is
operating, thus alerting the driver to the fact that
the road surface is slippery and the vehicle is
nearing its traction limits.
You may feel or hear the system working; this is
normal.
The light will blink for a few seconds after the
VDC system stops limiting wheel spin.
The
indicator light also comes on when
you place the ignition switch in the ON position.
The light will turn off after approximately 2 sec-
onds if the system is operational. If the light does
not come on have the system checked. It is
recommended you visit a NISSAN dealer for this
service.
Instruments and controls2-17
Page 105 of 478

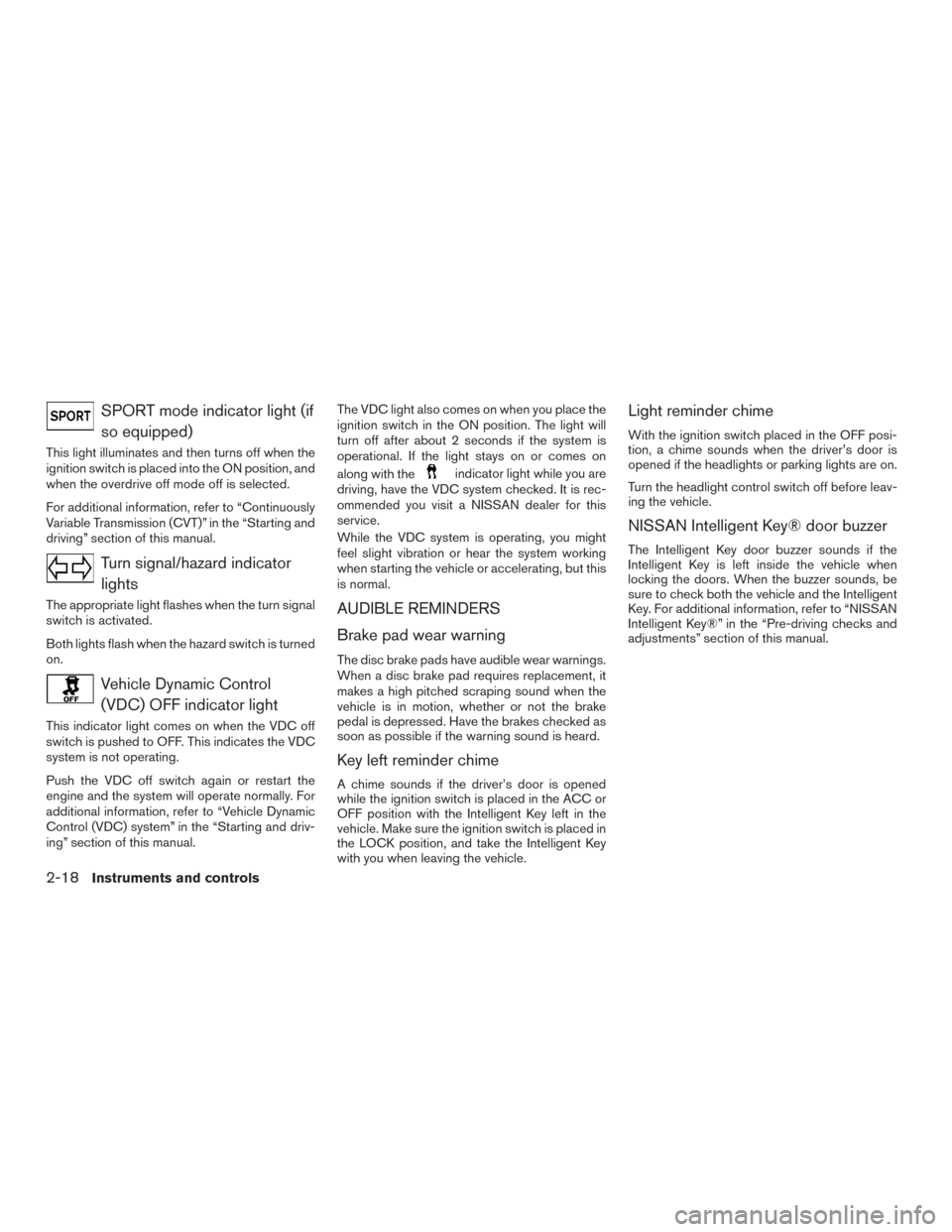

SPORT mode indicator light (ifso equipped)
This light illuminates and then turns off when the
ignition switch is placed into the ON position, and
when the overdrive off mode off is selected.
For additional information, refer to “Continuously
Variable Transmission (CVT)” in the “Starting and
driving” section of this manual.
Turn signal/hazard indicatorlights
The appropriate light flashes when the turn signal
switch is activated.
Both lights flash when the hazard switch is turned
on.
Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC off
switch is pushed to OFF. This indicates the VDC
system is not operating.
Push the VDC off switch again or restart the
engine and the system will operate normally. For
additional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and driv-
ing” section of this manual. The VDC light also comes on when you place the
ignition switch in the ON position. The light will
turn off after about 2 seconds if the system is
operational. If the light stays on or comes on
along with the
indicator light while you are
driving, have the VDC system checked. It is rec-
ommended you visit a NISSAN dealer for this
service.
While the VDC system is operating, you might
feel slight vibration or hear the system working
when starting the vehicle or accelerating, but this
is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Key left reminder chime
A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC or
OFF position with the Intelligent Key left in the
vehicle. Make sure the ignition switch is placed in
the LOCK position, and take the Intelligent Key
with you when leaving the vehicle.
Light reminder chime
With the ignition switch placed in the OFF posi-
tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.
Turn the headlight control switch off before leav-
ing the vehicle.
NISSAN Intelligent Key® door buzzer
The Intelligent Key door buzzer sounds if the
Intelligent Key is left inside the vehicle when
locking the doors. When the buzzer sounds, be
sure to check both the vehicle and the Intelligent
Key. For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.
2-18Instruments and controls
Page 106 of 478
The vehicle information display is located to the
left of the speedometer. It displays such items as:● Vehicle settings
● Trip computer information
● Drive system warnings and settings
● Cruise control system information
● NISSAN Intelligent Key® operation informa-
tion
● Chassis Control
● Indicators and warnings
● Tire Pressure informationHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the buttons
and ENTER located on
the steering wheel.
1— navigate through the items in ve-
hicle information
ENTER — change or select an item in the
vehicle information display
2— select/enter the Vehicle informa-
tion menu items or to change from one dis-
play screen to the next (i.e. trip, TPMS, Fuel
economy)
3— go back to the previous menu
The ENTER andbuttons also control audio
and control panel functions. For additional informa-
tion, refer to “Steering wheel switch for audio con-
trol” in the “Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
STARTUP DISPLAY
When the vehicle is placed in the ON or ACC (if
so equipped) position, the vehicle information
display may display the following screens:
● Home
● Range
● Average speed
● Trip
● Fuel Economy
● Compass
● Audio
● Driving Aids
● Tire Pressure
● 4x4–i
● Chassis Control
● Warnings
● Settings
LIC2630LIC2671
VEHICLE INFORMATION DISPLAY
Instruments and controls2-19
Page 107 of 478
Warnings will only display if there are any pres-
ent. For additional information, refer to “Vehicle
information display warnings and indicators” in
this section.
To control which items display in the vehicle
information display, refer to “Settings” in this sec-
tion.

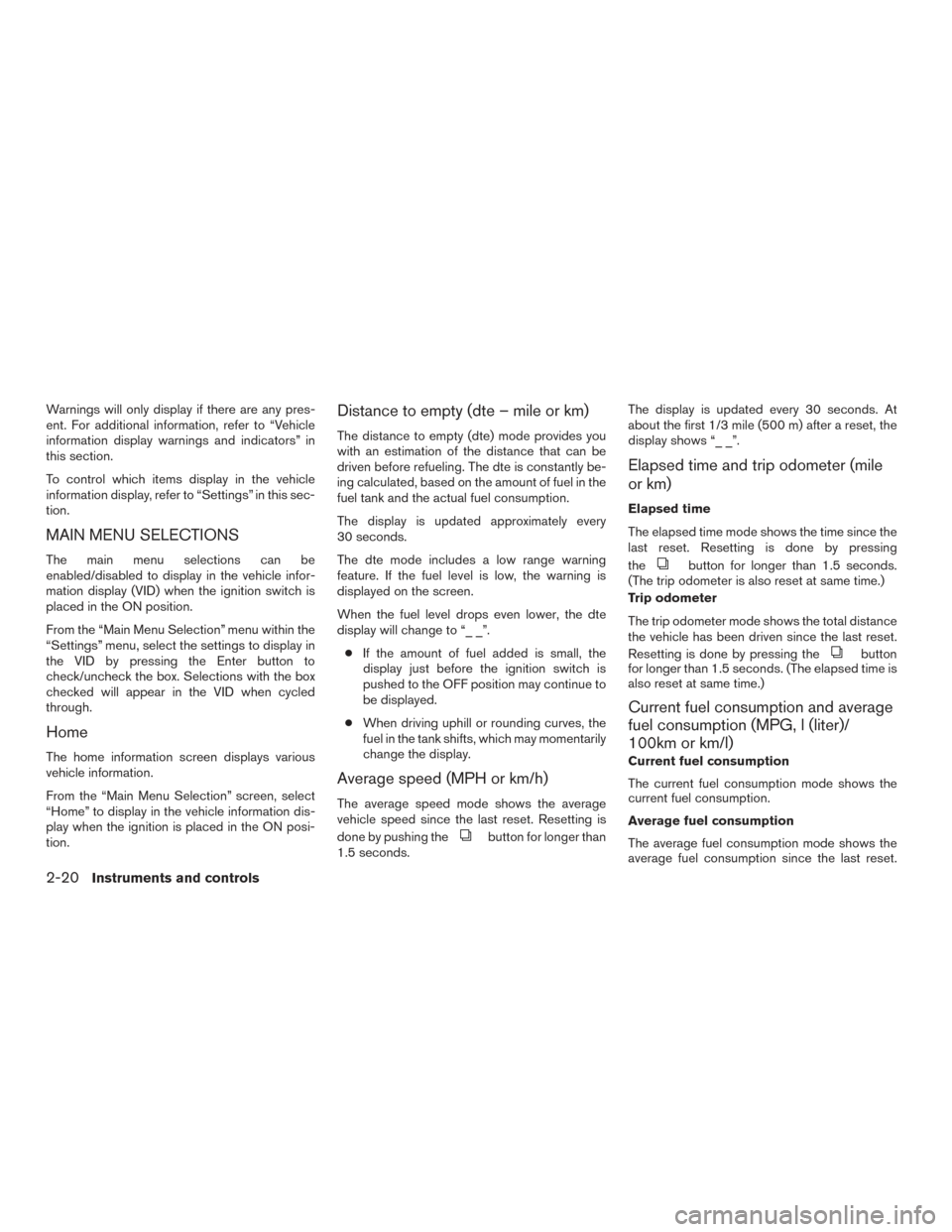

MAIN MENU SELECTIONS
The main menu selections can be
enabled/disabled to display in the vehicle infor-
mation display (VID) when the ignition switch is
placed in the ON position.
From the “Main Menu Selection” menu within the
“Settings” menu, select the settings to display in
the VID by pressing the Enter button to
check/uncheck the box. Selections with the box
checked will appear in the VID when cycled
through.
Home
The home information screen displays various
vehicle information.
From the “Main Menu Selection” screen, select
“Home” to display in the vehicle information dis-
play when the ignition is placed in the ON posi-
tion.
Distance to empty (dte – mile or km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly be-
ing calculated, based on the amount of fuel in the
fuel tank and the actual fuel consumption.
The display is updated approximately every
30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “_ _”.● If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momentarily
change the display.
Average speed (MPH or km/h)
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
button for longer than
1.5 seconds. The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “_ _”.
Elapsed time and trip odometer (mile
or km)
Elapsed time
The elapsed time mode shows the time since the
last reset. Resetting is done by pressing
the
button for longer than 1.5 seconds.
(The trip odometer is also reset at same time.)
Trip odometer
The trip odometer mode shows the total distance
the vehicle has been driven since the last reset.
Resetting is done by pressing the
button
for longer than 1.5 seconds. (The elapsed time is
also reset at same time.)
Current fuel consumption and average
fuel consumption (MPG, l (liter)/
100km or km/l)
Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
Average fuel consumption
The average fuel consumption mode shows the
average fuel consumption since the last reset.
2-20Instruments and controls
Page 108 of 478
Resetting is done by pressing thebutton
for longer than 1.5 seconds.
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “_ _”.
Navigation (if so equipped)
When the route guidance is set in the navigation
system, this item shows the navigation route in-
formation.
Audio
The audio mode shows the status of audio infor-
mation.
Driving aids (if so equipped)
The driving aids mode shows the operating con-
dition for the following systems.
● Blind Spot Warning (BSW)
● Forward Emergency Braking (FEB)
For additional information, refer to “Blind Spot
Warning (BSW)” and “Forward Emergency Brak-
ing (FEB) ” in the “Starting and driving” section of
this manual.
Tire pressure
The tire pressure mode shows the pressure of all
four tires while the vehicle is driven. The axle
between the tires will also display the recom-
mended tire pressure.
When the “Tire Pressure Low Add Air” or “Flat
Tire - Visit Dealer” (if so equipped) warning ap-
pears, the display can be switched to the tire
pressure mode by pushing the
button.
The tire pressure unit can be changed in the TPMS
setting under the Settings menu on the vehicle
information display. For additional information, refer
to “Vehicle information display” in this section.
4x4–i
The 4x4–i information display shows the distribu-
tion of torque amongst the wheels in the various
drive modes.
From the “Main Menu Selection” select “4x4–i to
display in the vehicle information display when
the ignition is placed in the ON position.
For additional information, refer to “All-wheel
drive (AWD)” in the “Starting and driving” section
of this manual.
Chassis control
When the Active Trace Control, Active Engine
Brake, or the Active Ride Control is operated, it
shows the operating condition. It also shows operating condition of hill start assist or hill de-
scent control. For additional information, refer to
“Active trace control, Active engine brake, Active
ride control, Hill start assist system or Hill De-
scent Control system” in the “Starting and driv-
ing” section of this manual.
RESETTING THE TRIP COMPUTER
1. Press thebutton until you reach the
trip computer mode.
2. Press the
button again for more than
1.5 seconds to reset average fuel consump-
tion, average speed, distance to empty, and
journey time.
SETTINGS
The setting mode allows you to change the infor-
mation displayed in the vehicle information display:
● Driver Assistance
● Clock
● Meter Settings
● Vehicle Settings
● Maintenance
● Alarm
● Tire Pressures
● Unit
● Language
● Factory Reset
Instruments and controls2-21
Page 109 of 478

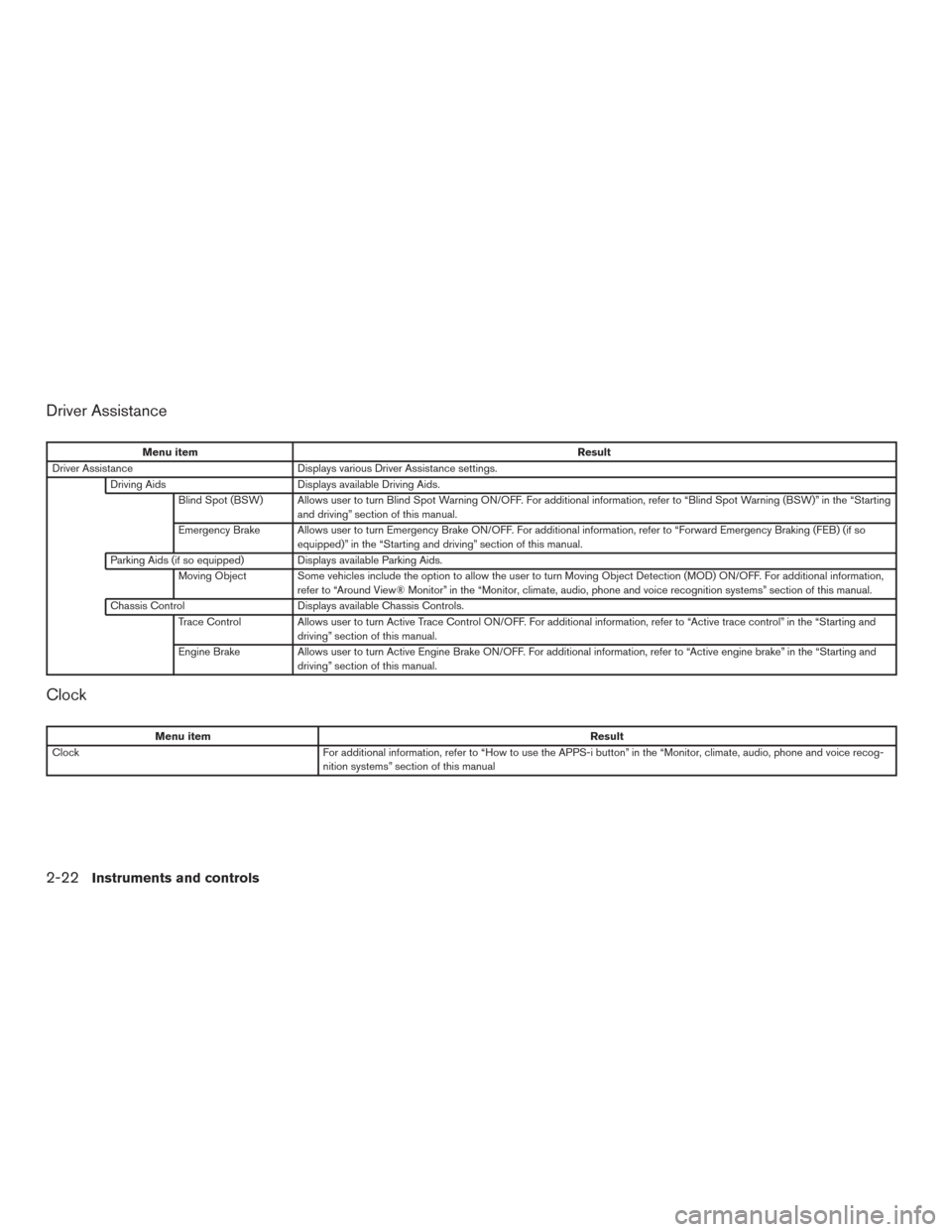

Driver Assistance
Menu itemResult
Driver Assistance Displays various Driver Assistance settings.
Driving Aids Displays available Driving Aids.
Blind Spot (BSW) Allows user to turn Blind Spot Warning ON/OFF. For additional information, refer to “Blind Spot Warning (BSW)” in the “Starting and driving” section of this manual.
Emergency Brake Allows user to turn Emergency Brake ON/OFF. For additional information, refer to “Forward Emergency Braking (FEB) (if so equipped)” in the “Starting and driving” section of this manual.
Parking Aids (if so equipped) Displays available Parking Aids. Moving Object Some vehicles include the option to allow the user to turn Moving Object Detection (MOD) ON/OFF. For additional information, refer to “Around View® Monitor” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual.
Chassis Control Displays available Chassis Controls.
Trace Control Allows user to turn Active Trace Control ON/OFF. For additional information, refer to “Active trace control” in the “Starting and
driving” section of this manual.
Engine Brake Allows user to turn Active Engine Brake ON/OFF. For additional information, refer to “Active engine brake” in the “Starting and
driving” section of this manual.
Clock
Menu item Result
Clock For additional information, refer to “How to use the APPS-i button” in the “Monitor, climate, audio, phone and voice recog-
nition systems” section of this manual
2-22Instruments and controls
Page 110 of 478

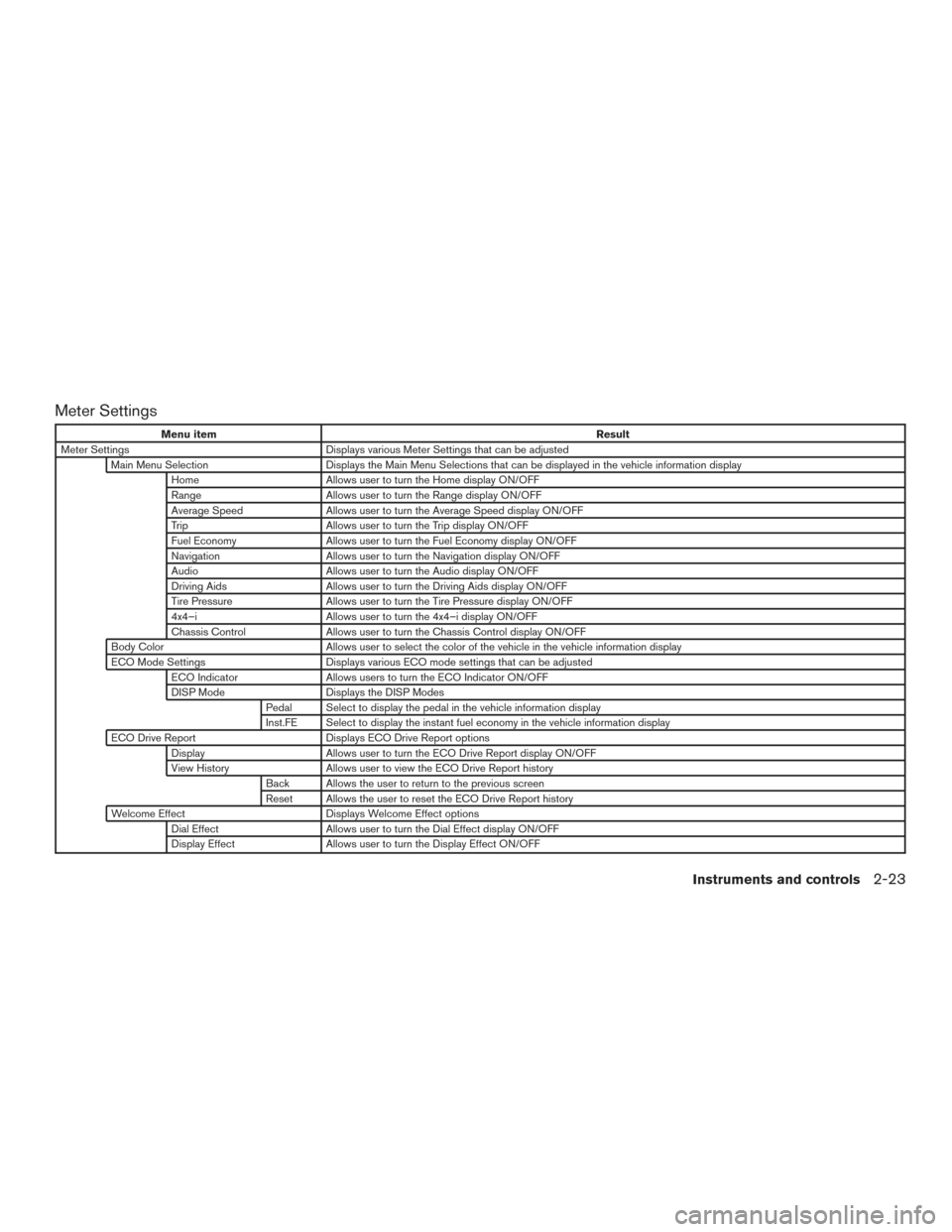

Meter Settings
Menu itemResult
Meter Settings Displays various Meter Settings that can be adjusted
Main Menu Selection Displays the Main Menu Selections that can be displayed in the vehicle information display
Home Allows user to turn the Home display ON/OFF
Range Allows user to turn the Range display ON/OFF
Average Speed Allows user to turn the Average Speed display ON/OFF
Trip Allows user to turn the Trip display ON/OFF
Fuel Economy Allows user to turn the Fuel Economy display ON/OFF
Navigation Allows user to turn the Navigation display ON/OFF
Audio Allows user to turn the Audio display ON/OFF
Driving Aids Allows user to turn the Driving Aids display ON/OFF
Tire Pressure Allows user to turn the Tire Pressure display ON/OFF
4x4–i Allows user to turn the 4x4–i display ON/OFF
Chassis Control Allows user to turn the Chassis Control display ON/OFF
Body Color Allows user to select the color of the vehicle in the vehicle information display
ECO Mode Settings Displays various ECO mode settings that can be adjusted
ECO Indicator Allows users to turn the ECO Indicator ON/OFF
DISP Mode Displays the DISP Modes
Pedal Select to display the pedal in the vehicle information display
Inst.FE Select to display the instant fuel economy in the vehicle information display
ECO Drive Report Displays ECO Drive Report options
Display Allows user to turn the ECO Drive Report display ON/OFF
View History Allows user to view the ECO Drive Report history
Back Allows the user to return to the previous screen
Reset Allows the user to reset the ECO Drive Report history
Welcome Effect Displays Welcome Effect options
Dial Effect Allows user to turn the Dial Effect display ON/OFF
Display Effect Allows user to turn the Display Effect ON/OFF
Instruments and controls2-23
