Page 131 of 478

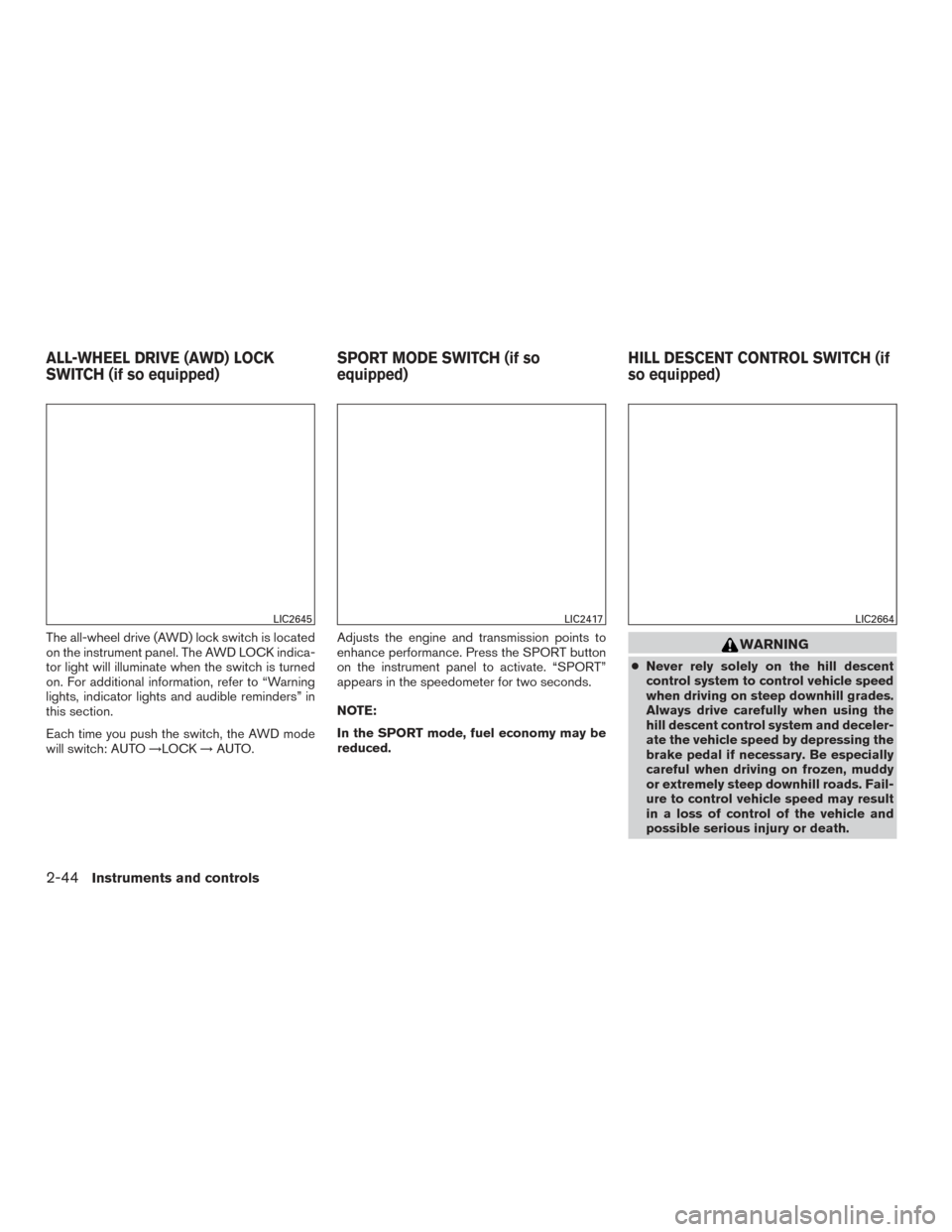

The all-wheel drive (AWD) lock switch is located
on the instrument panel. The AWD LOCK indica-
tor light will illuminate when the switch is turned
on. For additional information, refer to “Warning
lights, indicator lights and audible reminders” in
this section.
Each time you push the switch, the AWD mode
will switch: AUTO→LOCK→AUTO. Adjusts the engine and transmission points to
enhance performance. Press the SPORT button
on the instrument panel to activate. “SPORT”
appears in the speedometer for two seconds.
NOTE:
In the SPORT mode, fuel economy may be
reduced.WARNING
●
Never rely solely on the hill descent
control system to control vehicle speed
when driving on steep downhill grades.
Always drive carefully when using the
hill descent control system and deceler-
ate the vehicle speed by depressing the
brake pedal if necessary. Be especially
careful when driving on frozen, muddy
or extremely steep downhill roads. Fail-
ure to control vehicle speed may result
in a loss of control of the vehicle and
possible serious injury or death.
LIC2645LIC2417LIC2664
ALL-WHEEL DRIVE (AWD) LOCK
SWITCH (if so equipped) SPORT MODE SWITCH (if so
equipped)HILL DESCENT CONTROL SWITCH (if
so equipped)
2-44Instruments and controls
Page 132 of 478

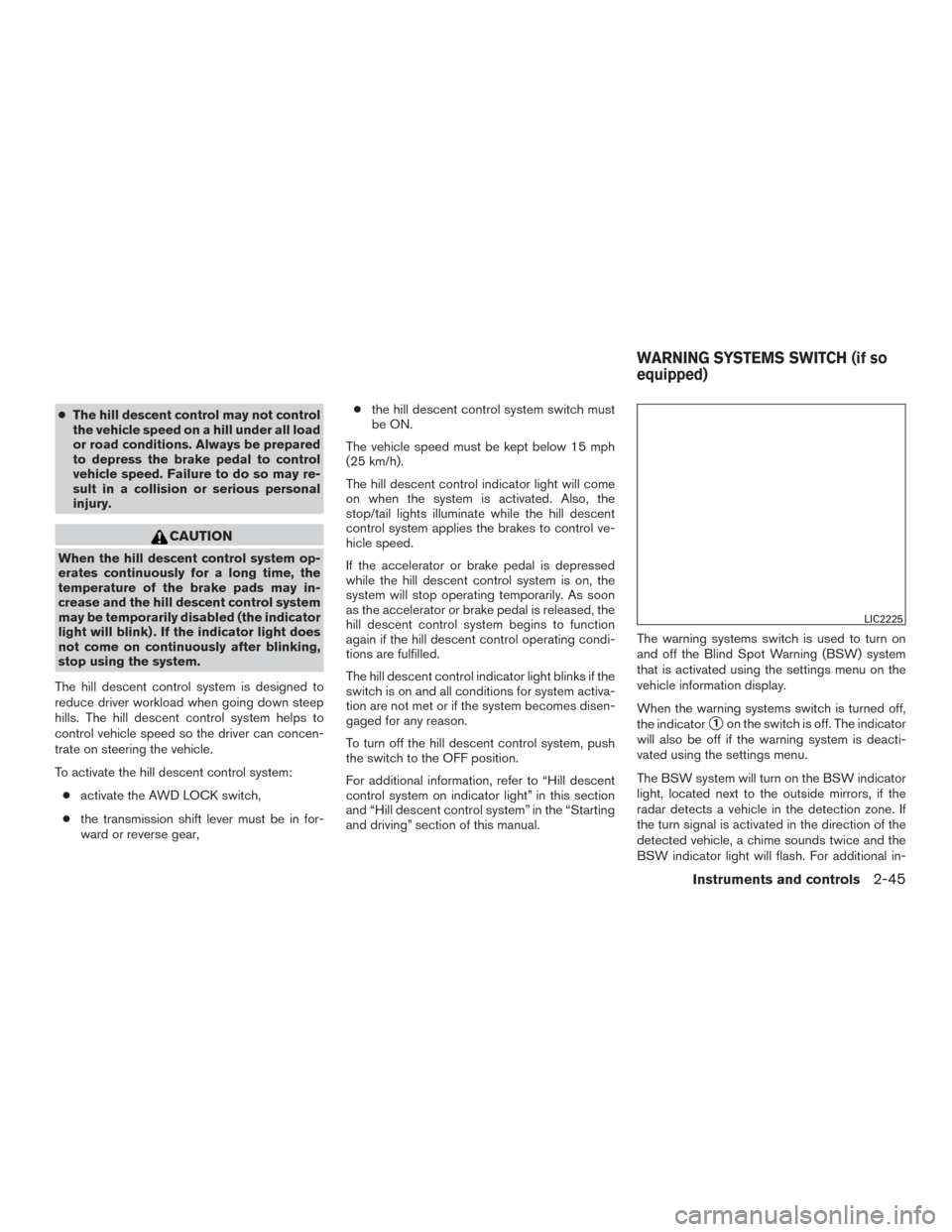

●The hill descent control may not control
the vehicle speed on a hill under all load
or road conditions. Always be prepared
to depress the brake pedal to control
vehicle speed. Failure to do so may re-
sult in a collision or serious personal
injury.
CAUTION
When the hill descent control system op-
erates continuously for a long time, the
temperature of the brake pads may in-
crease and the hill descent control system
may be temporarily disabled (the indicator
light will blink) . If the indicator light does
not come on continuously after blinking,
stop using the system.
The hill descent control system is designed to
reduce driver workload when going down steep
hills. The hill descent control system helps to
control vehicle speed so the driver can concen-
trate on steering the vehicle.
To activate the hill descent control system: ● activate the AWD LOCK switch,
● the transmission shift lever must be in for-
ward or reverse gear, ●
the hill descent control system switch must
be ON.
The vehicle speed must be kept below 15 mph
(25 km/h).
The hill descent control indicator light will come
on when the system is activated. Also, the
stop/tail lights illuminate while the hill descent
control system applies the brakes to control ve-
hicle speed.
If the accelerator or brake pedal is depressed
while the hill descent control system is on, the
system will stop operating temporarily. As soon
as the accelerator or brake pedal is released, the
hill descent control system begins to function
again if the hill descent control operating condi-
tions are fulfilled.
The hill descent control indicator light blinks if the
switch is on and all conditions for system activa-
tion are not met or if the system becomes disen-
gaged for any reason.
To turn off the hill descent control system, push
the switch to the OFF position.
For additional information, refer to “Hill descent
control system on indicator light” in this section
and “Hill descent control system” in the “Starting
and driving” section of this manual. The warning systems switch is used to turn on
and off the Blind Spot Warning (BSW) system
that is activated using the settings menu on the
vehicle information display.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the warning system is deacti-
vated using the settings menu.
The BSW system will turn on the BSW indicator
light, located next to the outside mirrors, if the
radar detects a vehicle in the detection zone. If
the turn signal is activated in the direction of the
detected vehicle, a chime sounds twice and the
BSW indicator light will flash. For additional in-
LIC2225
WARNING SYSTEMS SWITCH (if so
equipped)
Instruments and controls2-45

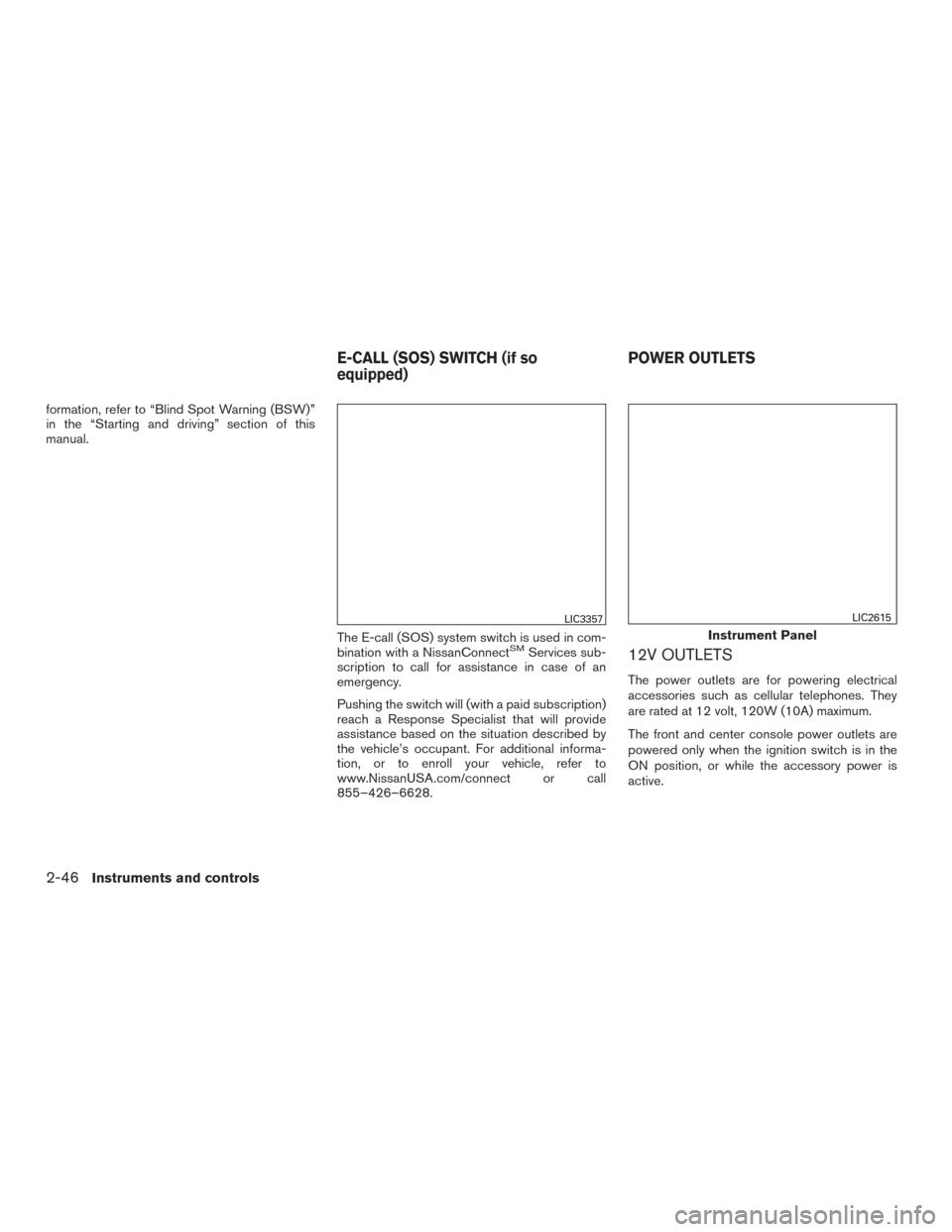

Page 133 of 478
formation, refer to “Blind Spot Warning (BSW)”
in the “Starting and driving” section of this
manual.The E-call (SOS) system switch is used in com-
bination with a NissanConnect
SMServices sub-
scription to call for assistance in case of an
emergency.
Pushing the switch will (with a paid subscription)
reach a Response Specialist that will provide
assistance based on the situation described by
the vehicle’s occupant. For additional informa-
tion, or to enroll your vehicle, refer to
www.NissanUSA.com/connect or call
855–426–6628.12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The front and center console power outlets are
powered only when the ignition switch is in the
ON position, or while the accessory power is
active.
LIC3357
Instrument Panel
LIC2615
E-CALL (SOS) SWITCH (if so
equipped) POWER OUTLETS
2-46Instruments and controls
Page 134 of 478

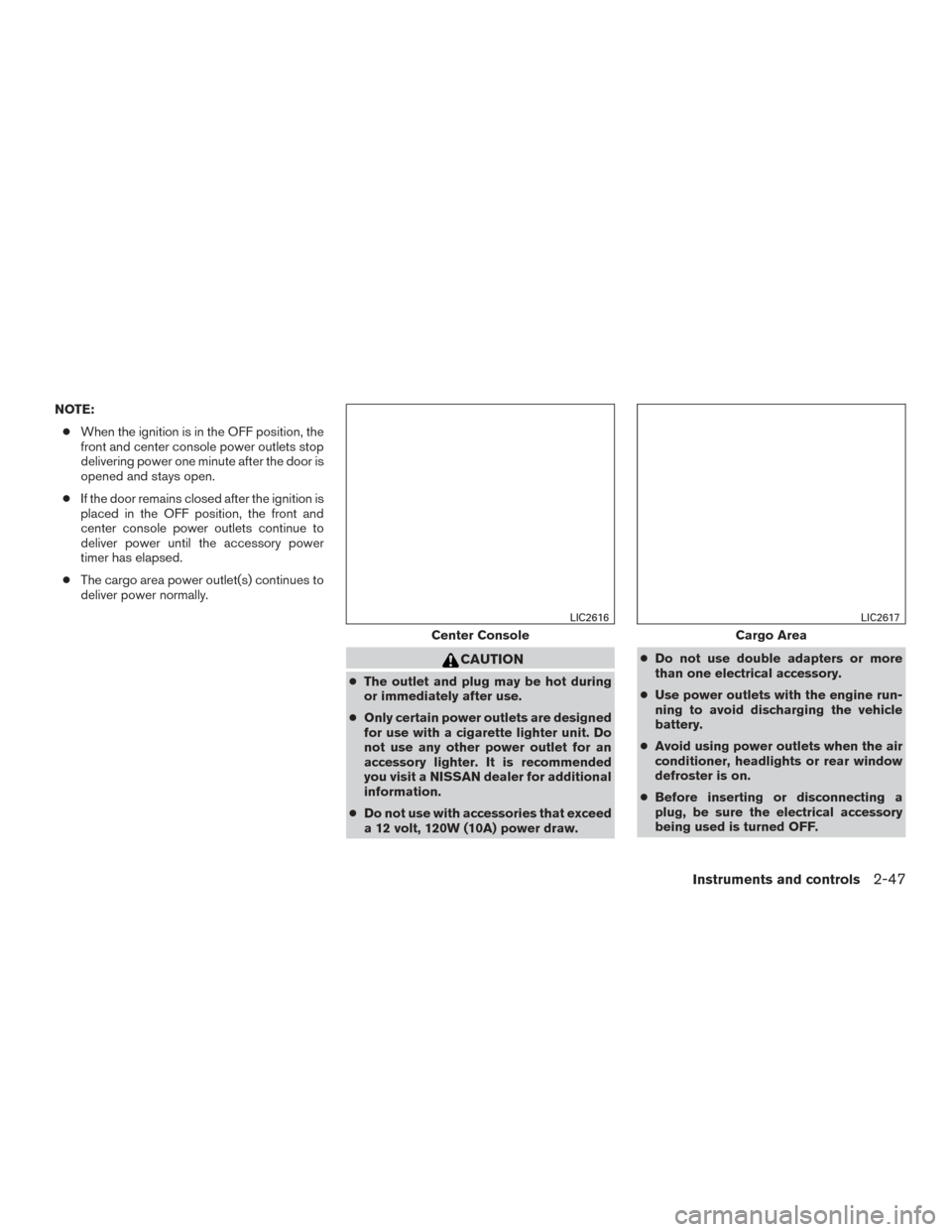

NOTE:● When the ignition is in the OFF position, the
front and center console power outlets stop
delivering power one minute after the door is
opened and stays open.
● If the door remains closed after the ignition is
placed in the OFF position, the front and
center console power outlets continue to
deliver power until the accessory power
timer has elapsed.
● The cargo area power outlet(s) continues to
deliver power normally.
CAUTION
● The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
you visit a NISSAN dealer for additional
information.
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. ●
Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
Center Console
LIC2616
Cargo Area
LIC2617
Instruments and controls2-47
Page 135 of 478

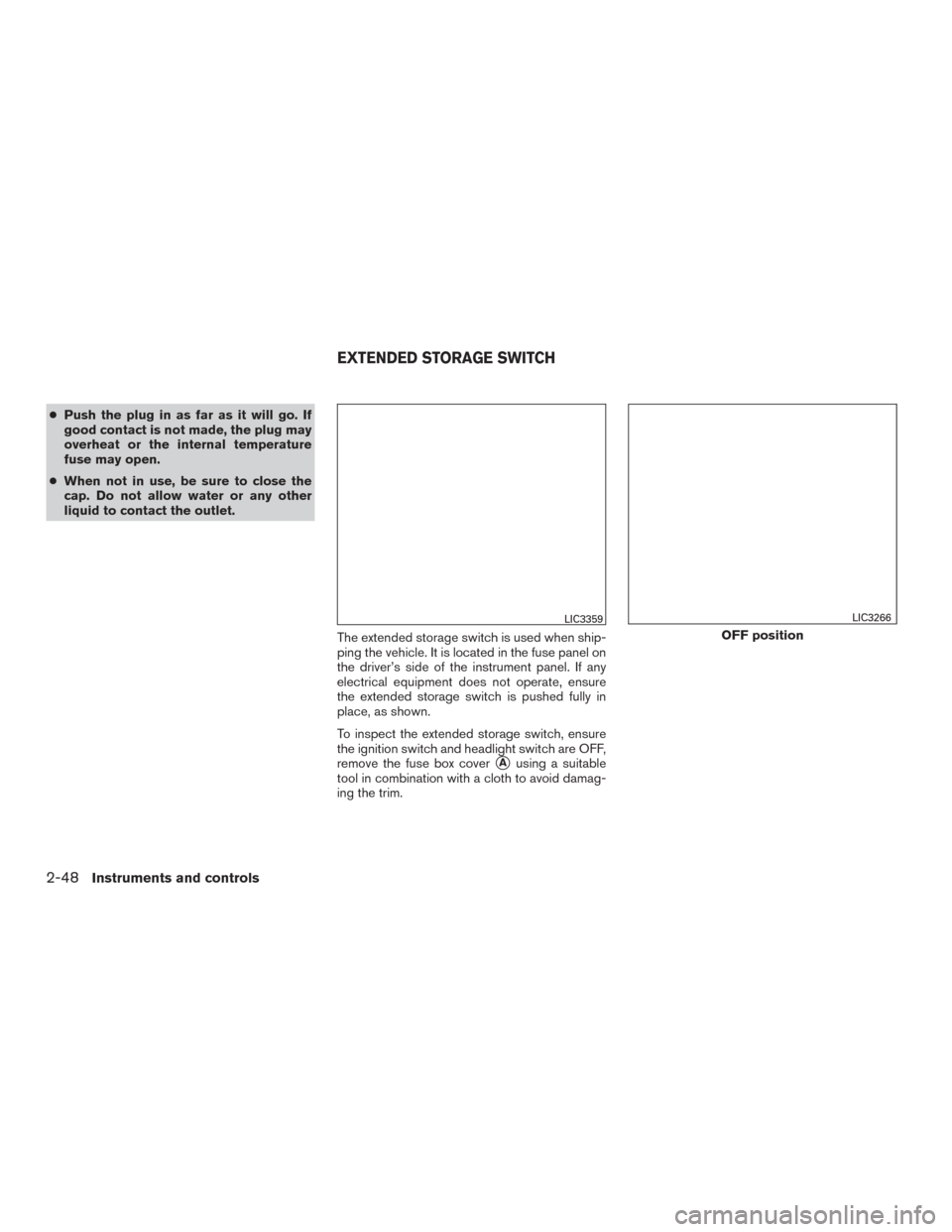

●Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
The extended storage switch is used when ship-
ping the vehicle. It is located in the fuse panel on
the driver’s side of the instrument panel. If any
electrical equipment does not operate, ensure
the extended storage switch is pushed fully in
place, as shown.
To inspect the extended storage switch, ensure
the ignition switch and headlight switch are OFF,
remove the fuse box cover
Ausing a suitable
tool in combination with a cloth to avoid damag-
ing the trim.
LIC3359
OFF position
LIC3266
EXTENDED STORAGE SWITCH
2-48Instruments and controls
Page 136 of 478
SEATBACK POCKETS
There is a pocket located on the back of the driver
and passenger seats. These pockets can be
used to store maps.
WARNING
To ensure proper operation of the passen-
ger’s advanced air bag system, please ob-
serve the following items:
●Do not allow a passenger in the 2nd row
to push or pull on the seatback pocket.
● Do not place heavy loads heavier than
2.2 lbs. (1 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
ON position
LIC3268LIC2618
STORAGE
Instruments and controls2-49
Page 137 of 478

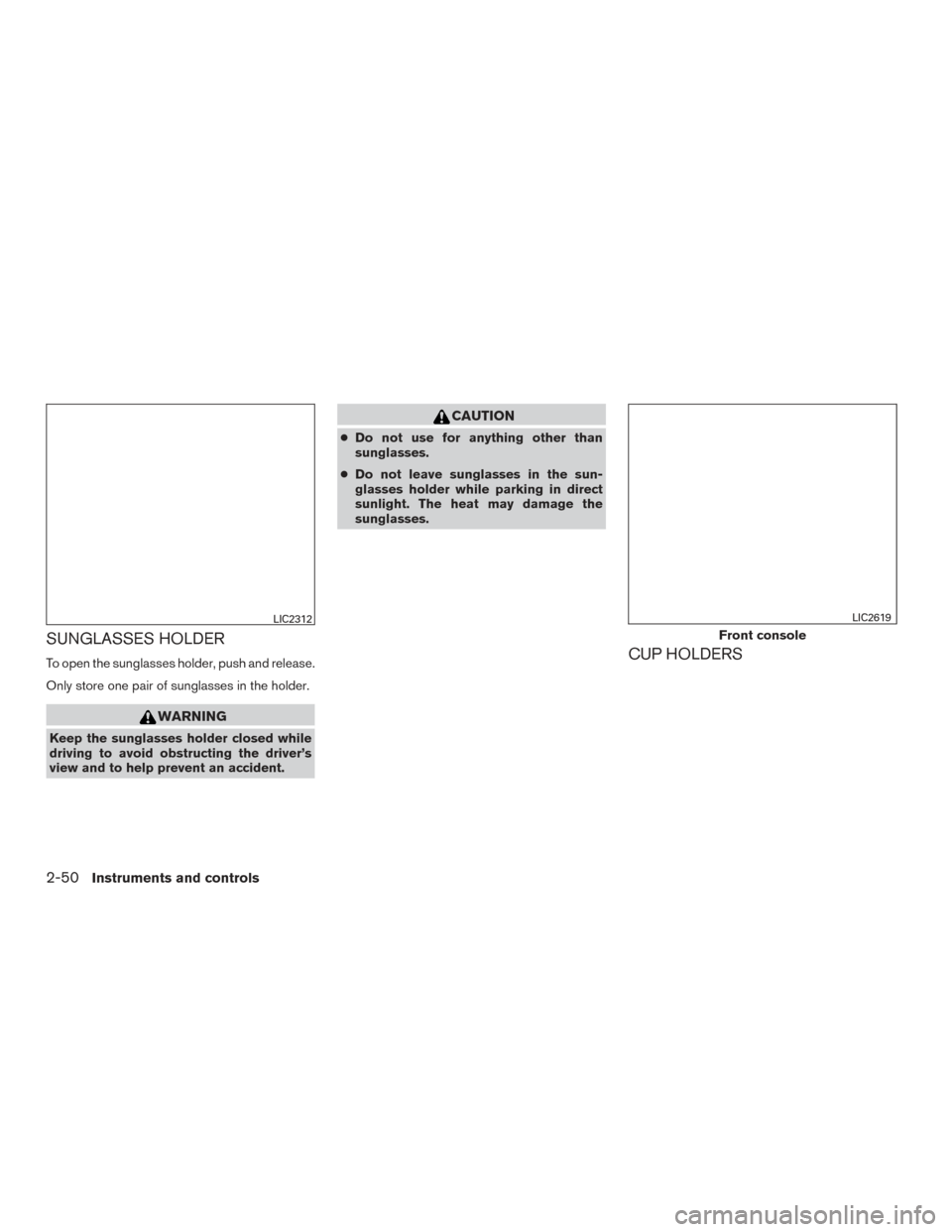

SUNGLASSES HOLDER
To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
●Do not use for anything other than
sunglasses.
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
CUP HOLDERS
LIC2312
Front console
LIC2619
2-50Instruments and controls
Page 138 of 478
CAUTION
Do not recline the rear seatback when you
use the cup holders on the rear armrest.
Doing so may cause the beverages to spill
over, and if they are hot, they may scald
the passengers.
CAUTION
●Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
● Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
2nd row
LIC2620
Bottle holder — front
LIC2622
Instruments and controls2-51
Page 139 of 478

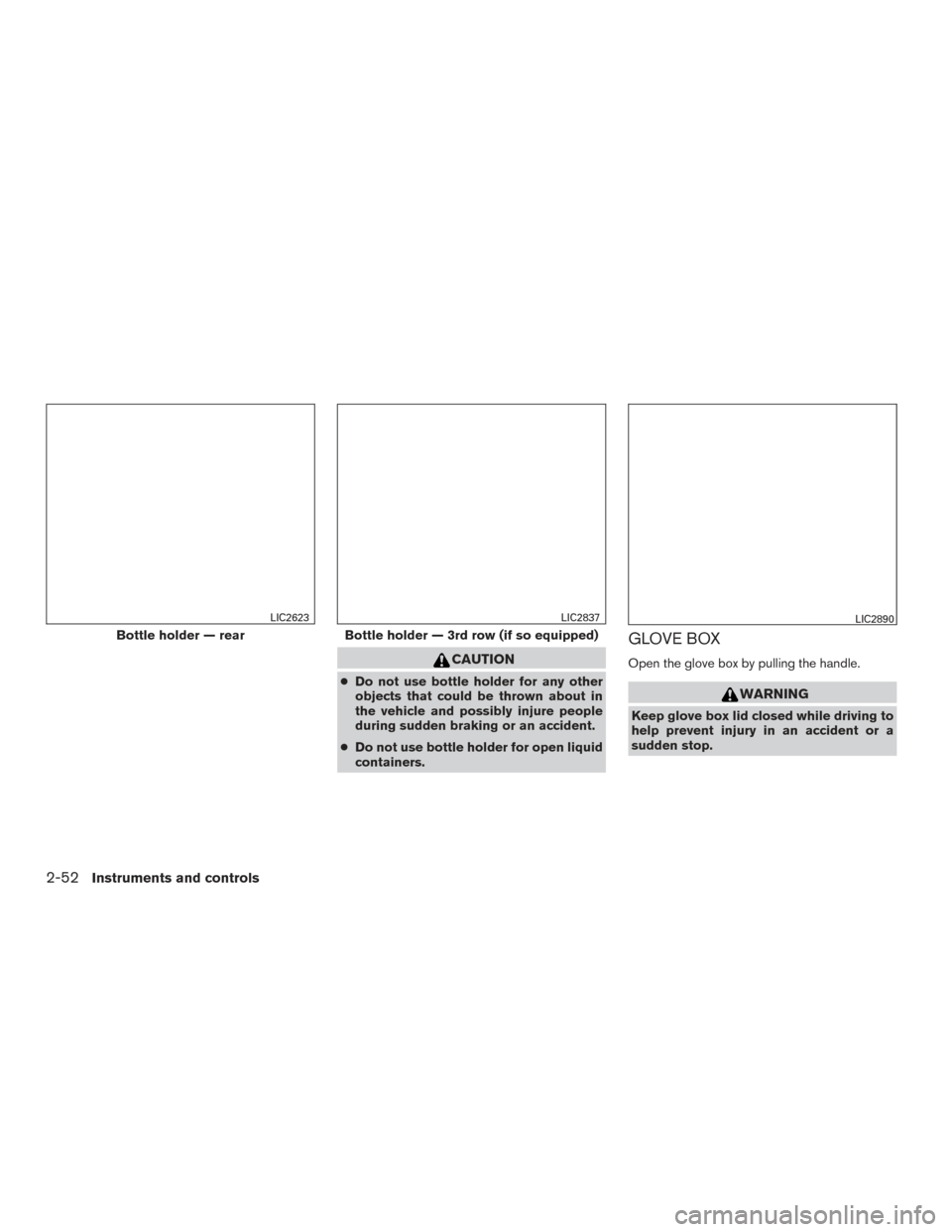

CAUTION
●Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
● Do not use bottle holder for open liquid
containers.
GLOVE BOX
Open the glove box by pulling the handle.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
Bottle holder — rear
LIC2623
Bottle holder — 3rd row (if so equipped)
LIC2837LIC2890
2-52Instruments and controls
Page 140 of 478

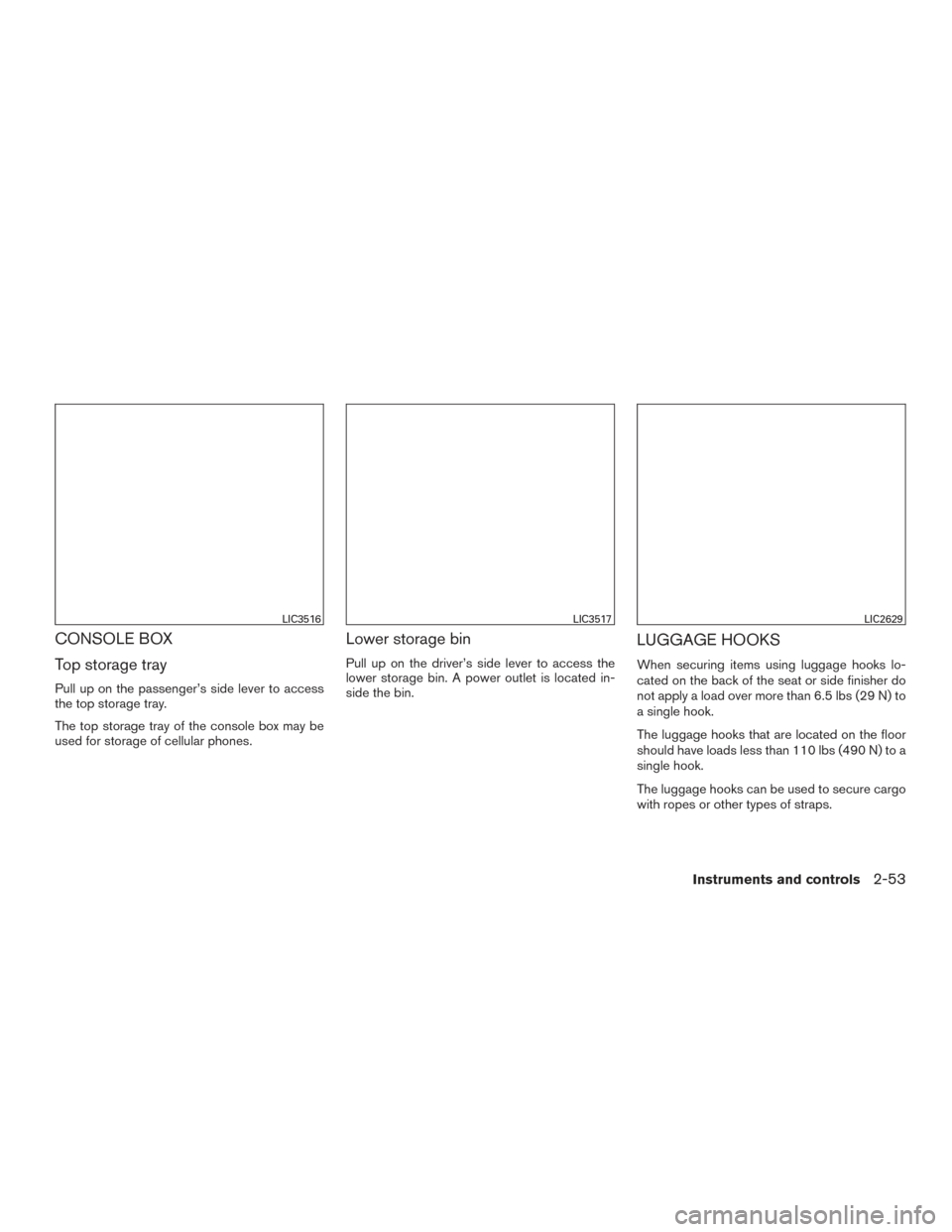

CONSOLE BOX
Top storage tray
Pull up on the passenger’s side lever to access
the top storage tray.
The top storage tray of the console box may be
used for storage of cellular phones.
Lower storage bin
Pull up on the driver’s side lever to access the
lower storage bin. A power outlet is located in-
side the bin.
LUGGAGE HOOKS
When securing items using luggage hooks lo-
cated on the back of the seat or side finisher do
not apply a load over more than 6.5 lbs (29 N) to
a single hook.
The luggage hooks that are located on the floor
should have loads less than 110 lbs (490 N) to a
single hook.
The luggage hooks can be used to secure cargo
with ropes or other types of straps.
LIC3516LIC3517LIC2629
Instruments and controls2-53
