Page 111 of 478

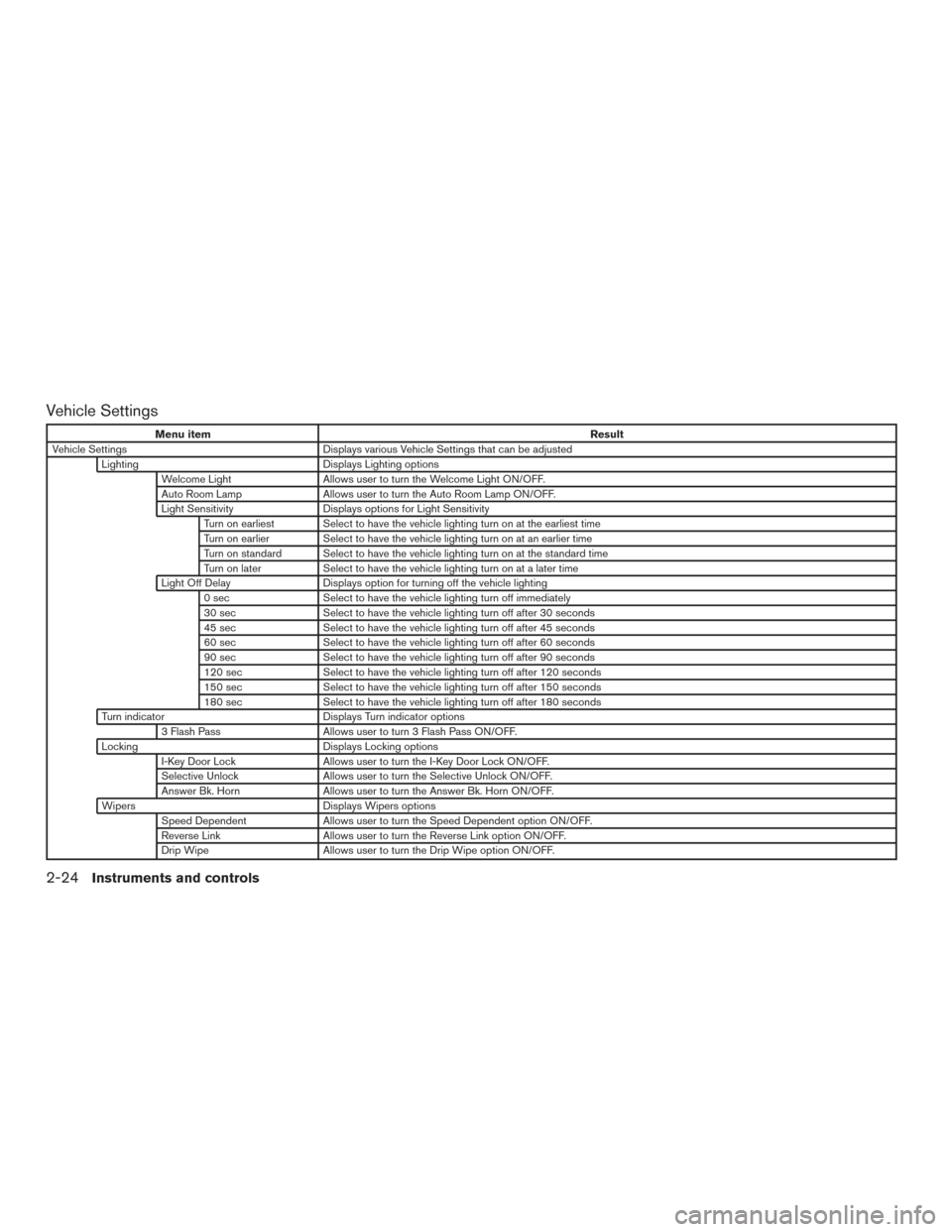

Vehicle Settings
Menu itemResult
Vehicle Settings Displays various Vehicle Settings that can be adjusted
Lighting Displays Lighting options
Welcome Light Allows user to turn the Welcome Light ON/OFF.
Auto Room Lamp Allows user to turn the Auto Room Lamp ON/OFF.
Light Sensitivity Displays options for Light Sensitivity
Turn on earliest Select to have the vehicle lighting turn on at the earliest time
Turn on earlier Select to have the vehicle lighting turn on at an earlier time
Turn on standard Select to have the vehicle lighting turn on at the standard time
Turn on later Select to have the vehicle lighting turn on at a later time
Light Off Delay Displays option for turning off the vehicle lighting
0 sec Select to have the vehicle lighting turn off immediately
30 sec Select to have the vehicle lighting turn off after 30 seconds
45 sec Select to have the vehicle lighting turn off after 45 seconds
60 sec Select to have the vehicle lighting turn off after 60 seconds
90 sec Select to have the vehicle lighting turn off after 90 seconds
120 sec Select to have the vehicle lighting turn off after 120 seconds
150 sec Select to have the vehicle lighting turn off after 150 seconds
180 sec Select to have the vehicle lighting turn off after 180 seconds
Turn indicator Displays Turn indicator options
3 Flash Pass Allows user to turn 3 Flash Pass ON/OFF.
Locking Displays Locking options
I-Key Door Lock Allows user to turn the I-Key Door Lock ON/OFF.
Selective Unlock Allows user to turn the Selective Unlock ON/OFF.
Answer Bk. Horn Allows user to turn the Answer Bk. Horn ON/OFF.
Wipers Displays Wipers options
Speed Dependent Allows user to turn the Speed Dependent option ON/OFF.
Reverse Link Allows user to turn the Reverse Link option ON/OFF.
Drip Wipe Allows user to turn the Drip Wipe option ON/OFF.
2-24Instruments and controls
Page 112 of 478

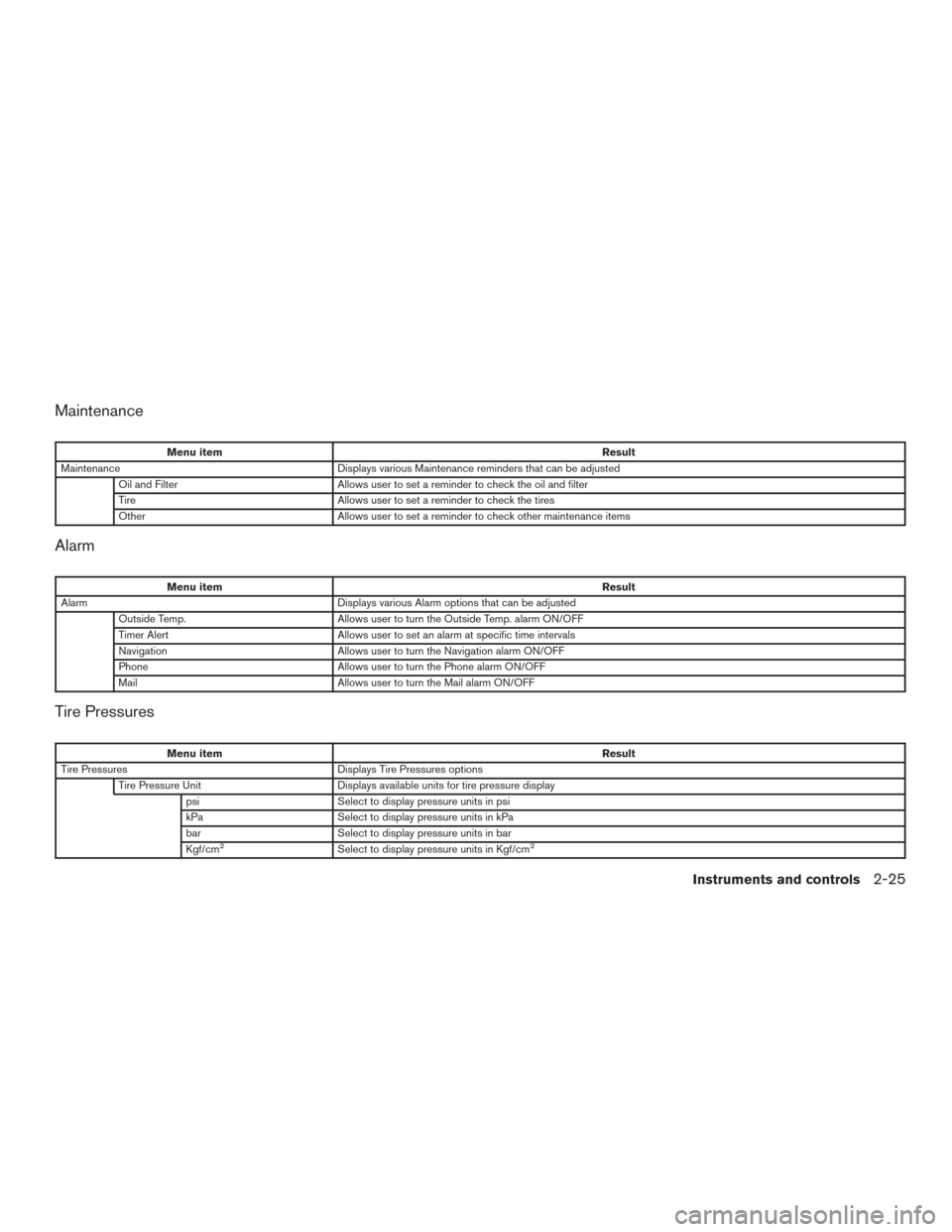

Maintenance
Menu itemResult
Maintenance Displays various Maintenance reminders that can be adjusted
Oil and Filter Allows user to set a reminder to check the oil and filter
Tire Allows user to set a reminder to check the tires
Other Allows user to set a reminder to check other maintenance items
Alarm
Menu item Result
Alarm Displays various Alarm options that can be adjusted
Outside Temp. Allows user to turn the Outside Temp. alarm ON/OFF
Timer Alert Allows user to set an alarm at specific time intervals
Navigation Allows user to turn the Navigation alarm ON/OFF
Phone Allows user to turn the Phone alarm ON/OFF
Mail Allows user to turn the Mail alarm ON/OFF
Tire Pressures
Menu item Result
Tire Pressures Displays Tire Pressures options
Tire Pressure Unit Displays available units for tire pressure display
psi Select to display pressure units in psi
kPa Select to display pressure units in kPa
bar Select to display pressure units in bar
Kgf/cm
2Select to display pressure units in Kgf/cm2
Instruments and controls2-25
Page 113 of 478

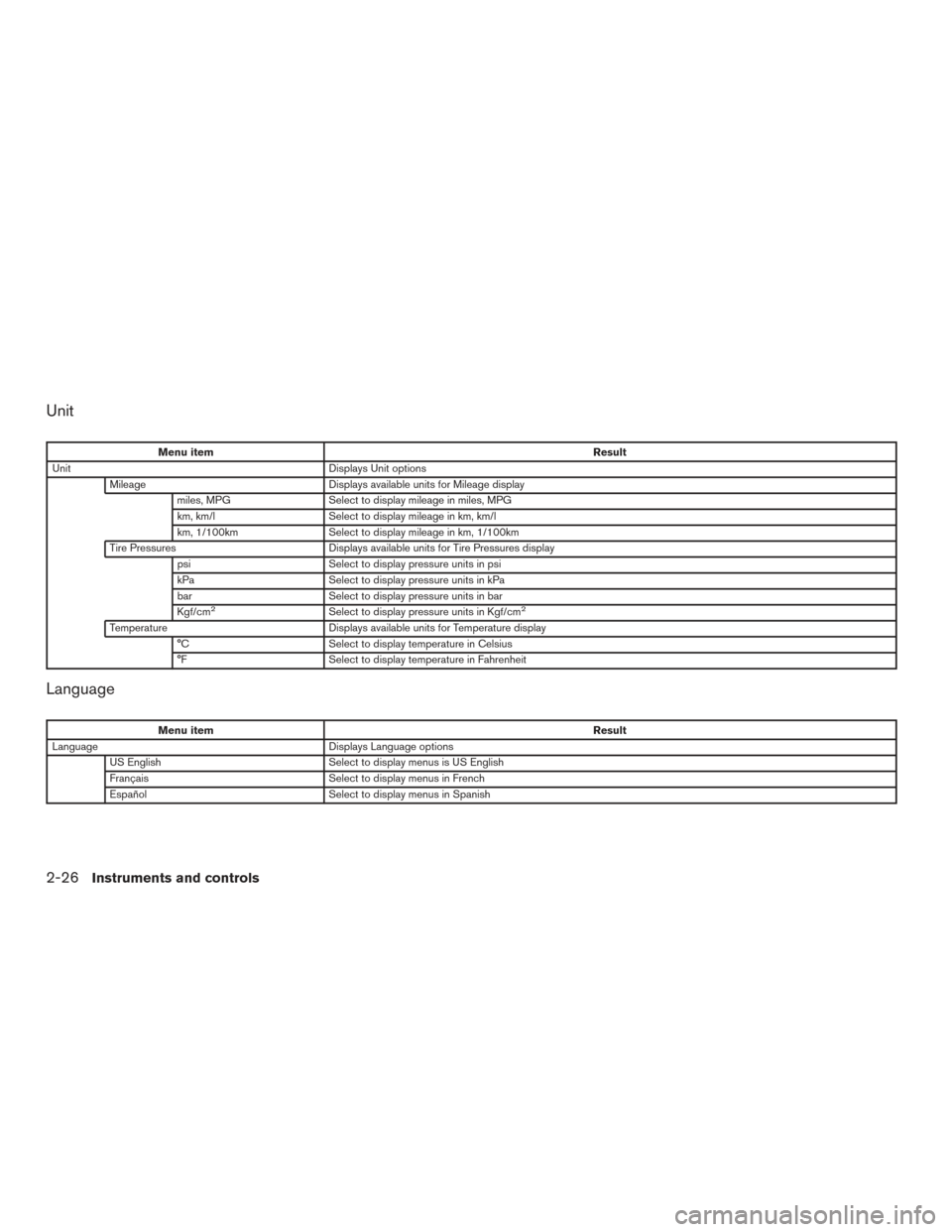

Unit
Menu itemResult
Unit Displays Unit options
Mileage Displays available units for Mileage display
miles, MPG Select to display mileage in miles, MPG
km, km/l Select to display mileage in km, km/l
km, 1/100km Select to display mileage in km, 1/100km
Tire Pressures Displays available units for Tire Pressures display
psi Select to display pressure units in psi
kPa Select to display pressure units in kPa
bar Select to display pressure units in bar
Kgf/cm
2Select to display pressure units in Kgf/cm2
Temperature Displays available units for Temperature display
°C Select to display temperature in Celsius
°F Select to display temperature in Fahrenheit
Language
Menu item Result
Language Displays Language options
US English Select to display menus is US English
Français Select to display menus in French
Español Select to display menus in Spanish
2-26Instruments and controls
Page 114 of 478

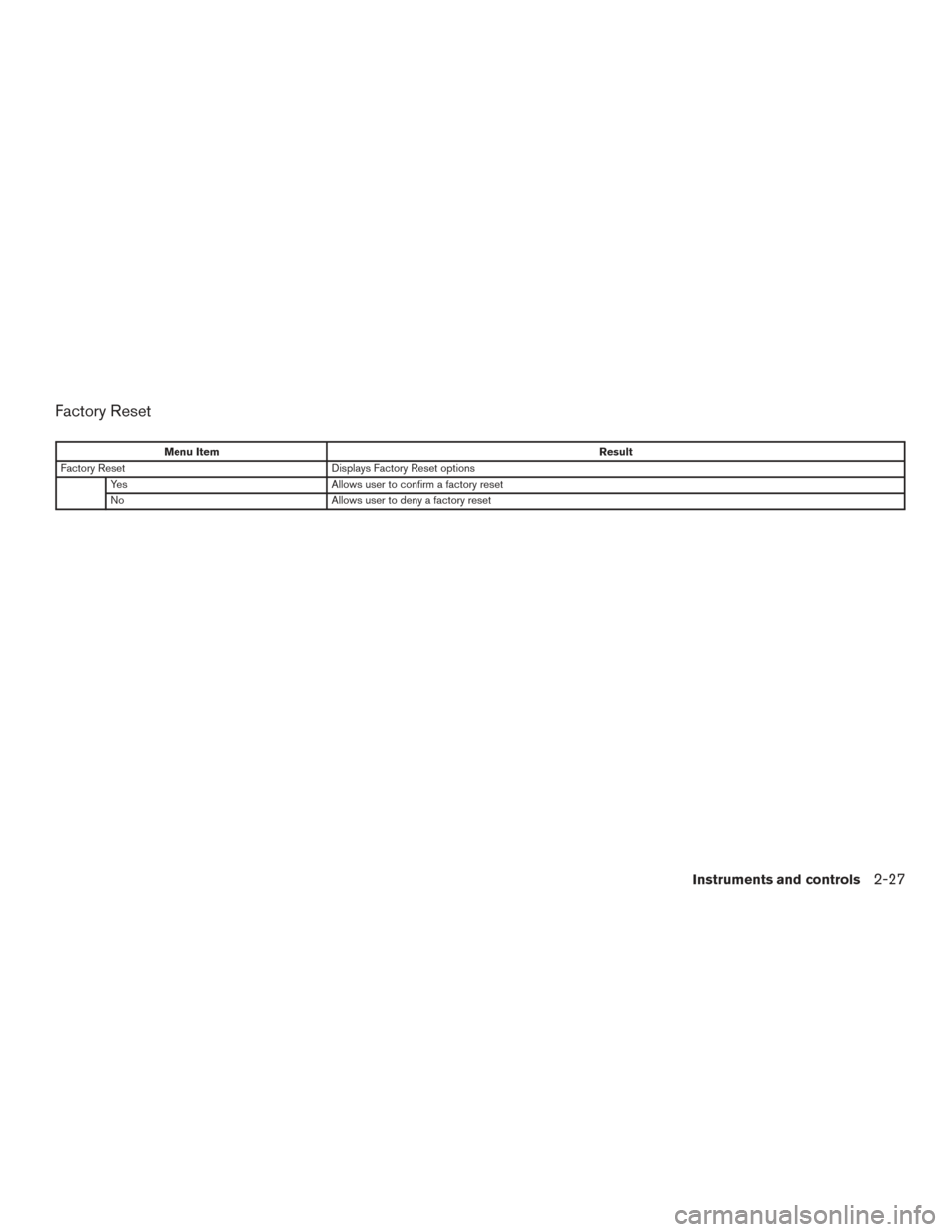

Factory Reset
Menu ItemResult
Factory Reset Displays Factory Reset options
Yes Allows user to confirm a factory reset
No Allows user to deny a factory reset
Instruments and controls2-27
Page 115 of 478
LIC3412
2-28Instruments and controls
Page 116 of 478

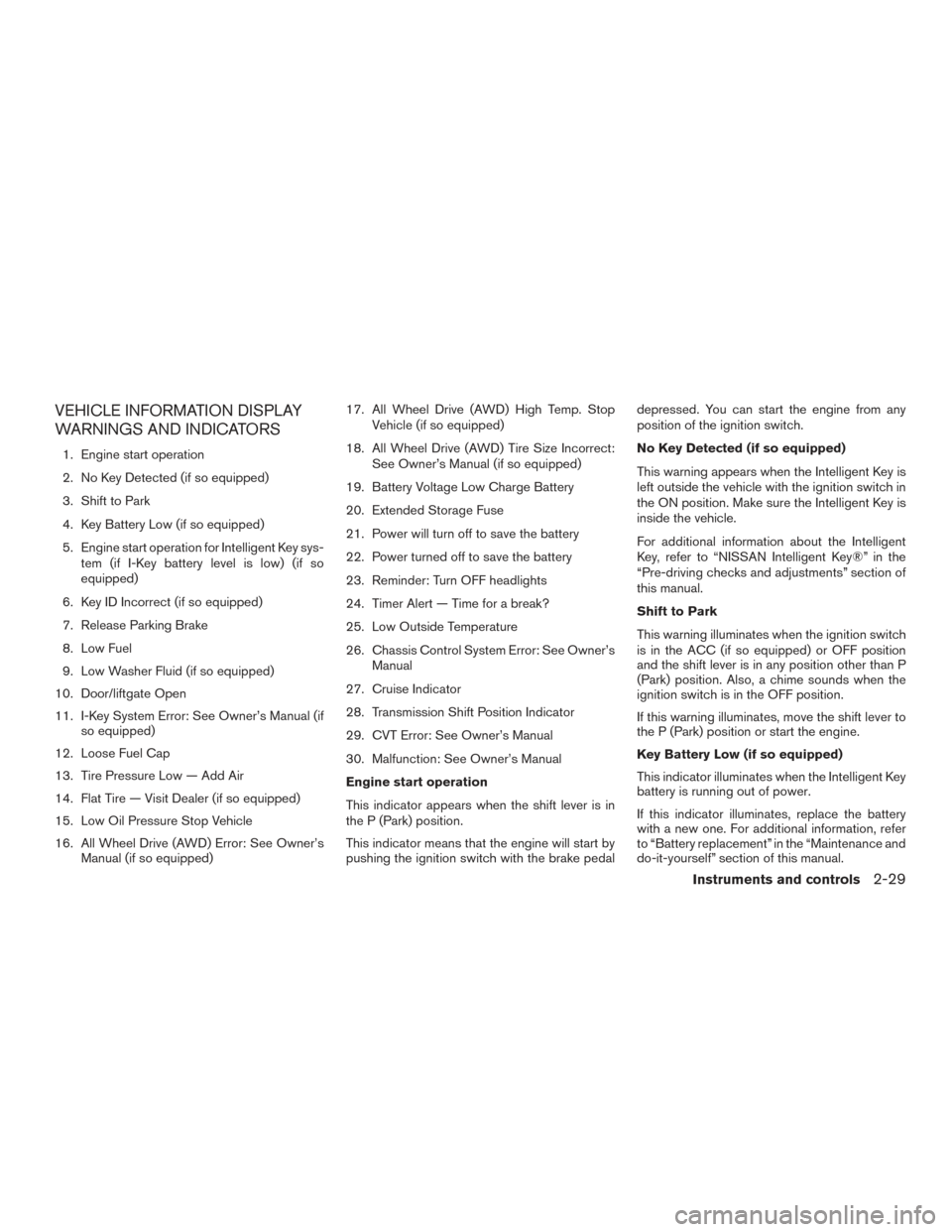

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. Engine start operation
2. No Key Detected (if so equipped)
3. Shift to Park
4. Key Battery Low (if so equipped)
5. Engine start operation for Intelligent Key sys-tem (if I-Key battery level is low) (if so
equipped)
6. Key ID Incorrect (if so equipped)
7. Release Parking Brake
8. Low Fuel
9. Low Washer Fluid (if so equipped)
10. Door/liftgate Open
11. I-Key System Error: See Owner’s Manual (if so equipped)
12. Loose Fuel Cap
13. Tire Pressure Low — Add Air
14. Flat Tire — Visit Dealer (if so equipped)
15. Low Oil Pressure Stop Vehicle
16. All Wheel Drive (AWD) Error: See Owner’s Manual (if so equipped) 17. All Wheel Drive (AWD) High Temp. Stop
Vehicle (if so equipped)
18. All Wheel Drive (AWD) Tire Size Incorrect: See Owner’s Manual (if so equipped)
19. Battery Voltage Low Charge Battery
20. Extended Storage Fuse
21. Power will turn off to save the battery
22. Power turned off to save the battery
23. Reminder: Turn OFF headlights
24. Timer Alert — Time for a break?
25. Low Outside Temperature
26. Chassis Control System Error: See Owner’s Manual
27. Cruise Indicator
28. Transmission Shift Position Indicator
29. CVT Error: See Owner’s Manual
30. Malfunction: See Owner’s Manual
Engine start operation
This indicator appears when the shift lever is in
the P (Park) position.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal depressed. You can start the engine from any
position of the ignition switch.
No Key Detected (if so equipped)
This warning appears when the Intelligent Key is
left outside the vehicle with the ignition switch in
the ON position. Make sure the Intelligent Key is
inside the vehicle.
For additional information about the Intelligent
Key, refer to “NISSAN Intelligent Key®” in the
“Pre-driving checks and adjustments” section of
this manual.
Shift to Park
This warning illuminates when the ignition switch
is in the ACC (if so equipped) or OFF position
and the shift lever is in any position other than P
(Park) position. Also, a chime sounds when the
ignition switch is in the OFF position.
If this warning illuminates, move the shift lever to
the P (Park) position or start the engine.
Key Battery Low (if so equipped)
This indicator illuminates when the Intelligent Key
battery is running out of power.
If this indicator illuminates, replace the battery
with a new one. For additional information, refer
to “Battery replacement” in the “Maintenance and
do-it-yourself” section of this manual.
Instruments and controls2-29
Page 117 of 478
Engine start operation for Intelligent Key
system (if I-Key battery is low) (if so
equipped)
This indicator appears when the battery of the
Intelligent Key is low and when the Intelligent Key
system and the vehicle are not communicating
normally.
If this appears, touch the ignition switch with the
Intelligent Key while depressing the brake pedal.
For additional information, refer to “NISSAN In-
telligent Key® battery discharge” in the “Starting
and driving” section of this manual.
Key ID Incorrect (if so equipped)
This warning appears when the ignition switch is
placed from the OFF position and the Intelligent
Key is not recognized by the system. You cannot
start the engine with an unregistered key.
For additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.
Release Parking Brake
This warning illuminates in the message area of
the vehicle information display when the parking
brake is set and the vehicle is driven.Low Fuel
This warning illuminates when the fuel level in the
fuel tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches 0 (Empty) .
There will be a small re-
serve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty) .
Low Washer Fluid (if so equipped)
This warning illuminates when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional informa-
tion, refer to “Windshield-washer fluid” in the
“Maintenance and do-it-yourself” section of this
manual.
Door/liftgate Open
This warning illuminates when a door has been
opened when the engine is running.
Key System Error: See Owner’s Manual (if
so equipped)
After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
The Key System Error message warns of a mal-
function with the Intelligent Key system. If the light
comes on while the engine is stopped, it may be
impossible to start the engine. If the light comes on while the engine is running,
you can drive the vehicle. However in these
cases, contact a NISSAN dealer for repair as
soon as possible.
Loose Fuel Cap
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. For additional information, refer to
“Fuel-filler cap” in the “Pre-driving checks and
adjustments” section of this manual.
Tire Pressure Low - Add Air
This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressures of
all four tires to the recommended COLD tire
pressure shown on the Tire and Loading Informa-
tion label. For additional information, refer to
“Low tire pressure warning light” in this section
and “Tire Pressure Monitoring System (TPMS)”
in the “Starting and driving” section of this
manual.
2-30Instruments and controls
Page 118 of 478

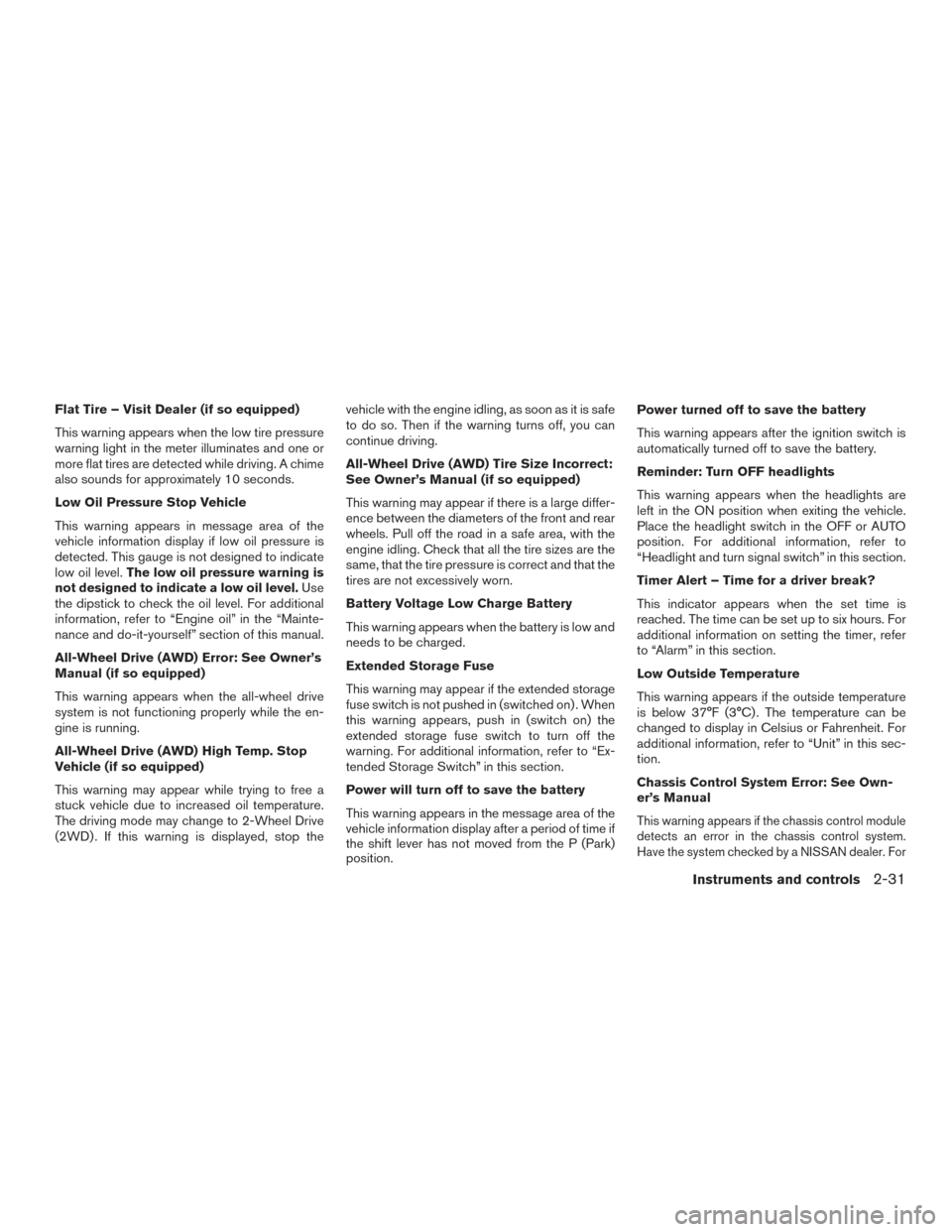

Flat Tire – Visit Dealer (if so equipped)
This warning appears when the low tire pressure
warning light in the meter illuminates and one or
more flat tires are detected while driving. A chime
also sounds for approximately 10 seconds.
Low Oil Pressure Stop Vehicle
This warning appears in message area of the
vehicle information display if low oil pressure is
detected. This gauge is not designed to indicate
low oil level.The low oil pressure warning is
not designed to indicate a low oil level. Use
the dipstick to check the oil level. For additional
information, refer to “Engine oil” in the “Mainte-
nance and do-it-yourself” section of this manual.
All-Wheel Drive (AWD) Error: See Owner’s
Manual (if so equipped)
This warning appears when the all-wheel drive
system is not functioning properly while the en-
gine is running.
All-Wheel Drive (AWD) High Temp. Stop
Vehicle (if so equipped)
This warning may appear while trying to free a
stuck vehicle due to increased oil temperature.
The driving mode may change to 2-Wheel Drive
(2WD) . If this warning is displayed, stop the vehicle with the engine idling, as soon as it is safe
to do so. Then if the warning turns off, you can
continue driving.
All-Wheel Drive (AWD) Tire Size Incorrect:
See Owner’s Manual (if so equipped)
This warning may appear if there is a large differ-
ence between the diameters of the front and rear
wheels. Pull off the road in a safe area, with the
engine idling. Check that all the tire sizes are the
same, that the tire pressure is correct and that the
tires are not excessively worn.
Battery Voltage Low Charge Battery
This warning appears when the battery is low and
needs to be charged.
Extended Storage Fuse
This warning may appear if the extended storage
fuse switch is not pushed in (switched on) . When
this warning appears, push in (switch on) the
extended storage fuse switch to turn off the
warning. For additional information, refer to “Ex-
tended Storage Switch” in this section.
Power will turn off to save the battery
This warning appears in the message area of the
vehicle information display after a period of time if
the shift lever has not moved from the P (Park)
position.Power turned off to save the battery
This warning appears after the ignition switch is
automatically turned off to save the battery.
Reminder: Turn OFF headlights
This warning appears when the headlights are
left in the ON position when exiting the vehicle.
Place the headlight switch in the OFF or AUTO
position. For additional information, refer to
“Headlight and turn signal switch” in this section.
Timer Alert – Time for a driver break?
This indicator appears when the set time is
reached. The time can be set up to six hours. For
additional information on setting the timer, refer
to “Alarm” in this section.
Low Outside Temperature
This warning appears if the outside temperature
is below 37°F (3°C) . The temperature can be
changed to display in Celsius or Fahrenheit. For
additional information, refer to “Unit” in this sec-
tion.
Chassis Control System Error: See Own-
er’s Manual
This warning appears if the chassis control module
detects an error in the chassis control system.
Have the system checked by a NISSAN dealer. For
Instruments and controls2-31
Page 119 of 478

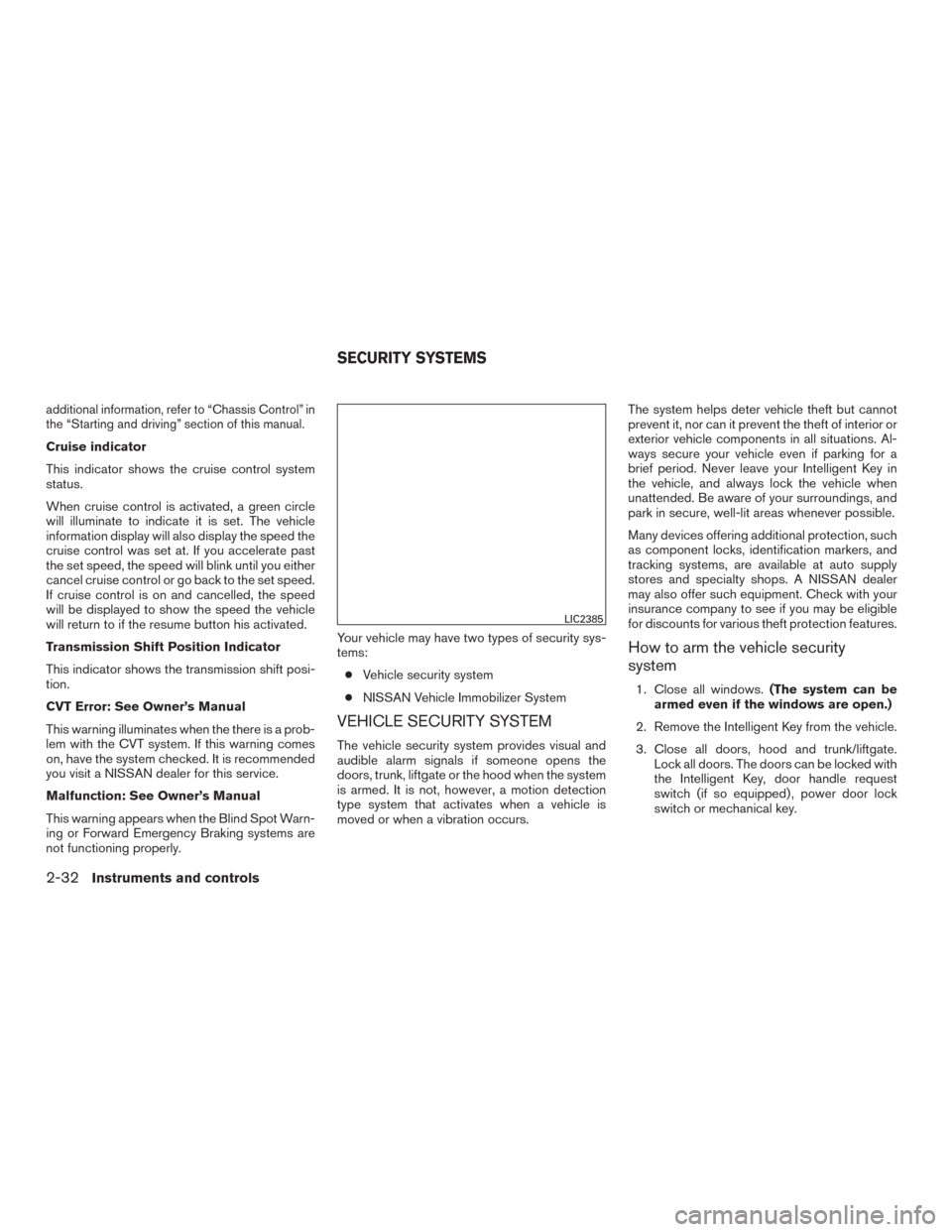

additional information, refer to “Chassis Control” in
the “Starting and driving” section of this manual.
Cruise indicator
This indicator shows the cruise control system
status.
When cruise control is activated, a green circle
will illuminate to indicate it is set. The vehicle
information display will also display the speed the
cruise control was set at. If you accelerate past
the set speed, the speed will blink until you either
cancel cruise control or go back to the set speed.
If cruise control is on and cancelled, the speed
will be displayed to show the speed the vehicle
will return to if the resume button his activated.
Transmission Shift Position Indicator
This indicator shows the transmission shift posi-
tion.
CVT Error: See Owner’s Manual
This warning illuminates when the there is a prob-
lem with the CVT system. If this warning comes
on, have the system checked. It is recommended
you visit a NISSAN dealer for this service.
Malfunction: See Owner’s Manual
This warning appears when the Blind Spot Warn-
ing or Forward Emergency Braking systems are
not functioning properly.Your vehicle may have two types of security sys-
tems:
● Vehicle security system
● NISSAN Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audible alarm signals if someone opens the
doors, trunk, liftgate or the hood when the system
is armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior or
exterior vehicle components in all situations. Al-
ways secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key in
the vehicle, and always lock the vehicle when
unattended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection, such
as component locks, identification markers, and
tracking systems, are available at auto supply
stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection features.
How to arm the vehicle security
system
1. Close all windows.
(The system can be
armed even if the windows are open.)
2. Remove the Intelligent Key from the vehicle.
3. Close all doors, hood and trunk/liftgate. Lock all doors. The doors can be locked with
the Intelligent Key, door handle request
switch (if so equipped) , power door lock
switch or mechanical key.
LIC2385
SECURITY SYSTEMS
2-32Instruments and controls
Page 120 of 478

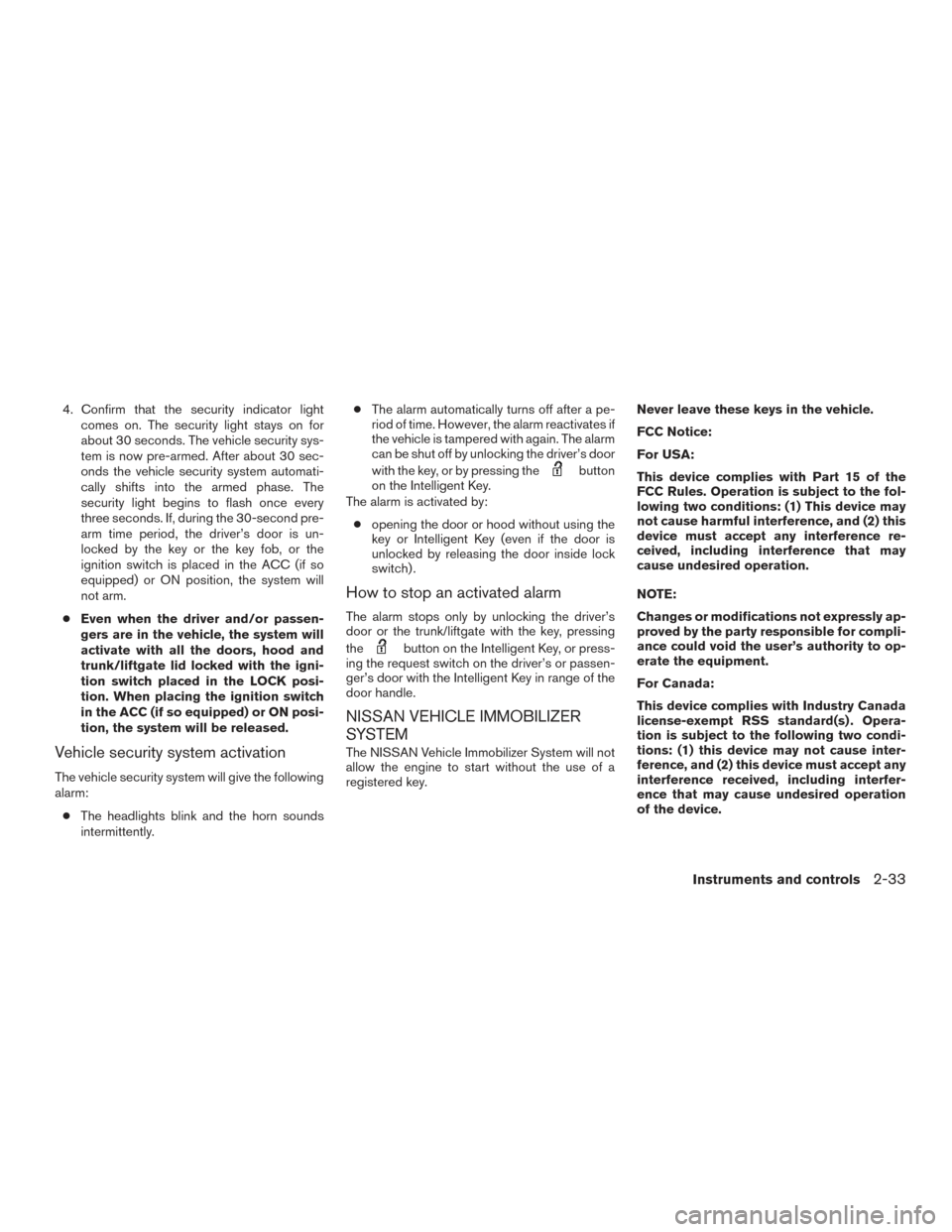

4. Confirm that the security indicator lightcomes on. The security light stays on for
about 30 seconds. The vehicle security sys-
tem is now pre-armed. After about 30 sec-
onds the vehicle security system automati-
cally shifts into the armed phase. The
security light begins to flash once every
three seconds. If, during the 30-second pre-
arm time period, the driver’s door is un-
locked by the key or the key fob, or the
ignition switch is placed in the ACC (if so
equipped) or ON position, the system will
not arm.
● Even when the driver and/or passen-
gers are in the vehicle, the system will
activate with all the doors, hood and
trunk/liftgate lid locked with the igni-
tion switch placed in the LOCK posi-
tion. When placing the ignition switch
in the ACC (if so equipped) or ON posi-
tion, the system will be released.
Vehicle security system activation
The vehicle security system will give the following
alarm:
● The headlights blink and the horn sounds
intermittently. ●
The alarm automatically turns off after a pe-
riod of time. However, the alarm reactivates if
the vehicle is tampered with again. The alarm
can be shut off by unlocking the driver’s door
with the key, or by pressing the
button
on the Intelligent Key.
The alarm is activated by:
● opening the door or hood without using the
key or Intelligent Key (even if the door is
unlocked by releasing the door inside lock
switch) .
How to stop an activated alarm
The alarm stops only by unlocking the driver’s
door or the trunk/liftgate with the key, pressing
the
button on the Intelligent Key, or press-
ing the request switch on the driver’s or passen-
ger’s door with the Intelligent Key in range of the
door handle.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of a
registered key. Never leave these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation
of the device.
Instruments and controls2-33
