bluetooth NISSAN ROGUE 2017 Owner´s Manual

BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Visteon and Bosch.
SiriusXM® services
require a subscription
after trial period and
are sold separately or
as a package. The
satellite service is
available only in the
48 contiguous USA
and DC. SiriusXM®
satellite service is
also available in
Canada; see
www.siriusxm.ca.
© 2017 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a retrieval
system, or transmitted in any form, or by any
means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written
permission of Nissan North America, Inc.

15. Cruise control main/set switches(if so equipped) (P. 5-56)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-58)
Bluetooth® Hands-Free Phone System
(P. 4-82, 4-95)
16. Driver supplemental air bag (P. 1-46) Horn (P. 2-47)
17. Tilt and telescopic steering (P. 3-37)
18. Control panel and vehicle information
display switches (P. 2-20)
19. Hood release (P. 3-26) Fuel door release (P. 3-34)
20. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-50)
SPORT mode switch (P. 5-26)
ECO mode switch (P. 5-26)
Power liftgate switch (if so equipped)
(P. 3-27)
Power liftgate main switch
(if so equipped) (P. 3-27)
All-Wheel Drive (AWD) lock switch
(if so equipped) (P. 2-50)
Warning systems switch
(if so equipped) (P. 2-49)
Heated steering wheel switch
(if so equipped) (P. 2-48) 21. Instrument brightness control (P. 2-39)
Twin trip odometer reset switch (P. 2-4)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

15. Cruise control main/set switches(if so equipped) (P. 5-56)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-58)
Bluetooth® Hands-Free Phone System
(P. 4-82, 4-95)
16. Driver supplemental air bag (P. 1-46) Horn (P. 2-47)
17. Tilt and telescopic steering (P. 3-37)
18. Control panel and vehicle information
display switches (P. 2-20)
19. Hood release (P. 3-26) Fuel door release (P. 3-34)
20. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-50)
SPORT mode switch (P. 5-26)
ECO mode switch (P. 5-26)
Power liftgate switch (if so equipped)
(P. 3-27)
Power liftgate main switch
(if so equipped) (P. 3-27)
All-Wheel Drive (AWD) lock switch
(if so equipped) (P. 2-50)
Warning systems switch
(if so equipped) (P. 2-49)
Heated steering wheel switch
(if so equipped) (P. 2-48) 21. Instrument brightness control (P. 2-39)
Twin trip odometer reset switch (P. 2-4)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

FM radio reception............................ 4-44
AM radio reception ............................ 4-44
Satellite radio reception ........................ 4-45
Audio operation precautions ....................4-45
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-52
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-57
USB (Universal Serial Bus) Connection Port
(models without Navigation System)
(if so equipped) ............................... 4-64
USB (Universal Serial Bus) Connection Port
(models with Navigation System)
(if so equipped) ............................... 4-66
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-68
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-70
Bluetooth® streaming audio without
Navigation System (if so equipped) ..............4-73
Bluetooth® streaming audio with Navigation
System (if so equipped) ........................ 4-74
CD care and cleaning .......................... 4-75
Steering wheel switch for audio control ..........4-76 Antenna
...................................... 4-77
NissanConnectSMMobile Apps (if so equipped) .....4-77
Registering with NissanConnectSMMobile
Apps . ........................................ 4-77
Connect Phone ............................... 4-77
Application Download .......................... 4-78
NissanConnect
SMServices (if so equipped) . ........4-78
Siri® Eyes Free .................................. 4-78
Requirements ................................. 4-79
Siri® Activation ............................... 4-79
Operating Siri® Eyes Free ......................4-79
Changing Siri® Eyes Free Settings
(models without navigation system) ..............4-80
Changing Siri® Eyes Free Settings
(models with navigation system) .................4-80
Troubleshooting guide ......................... 4-81
Car phone or CB radio ............................ 4-82
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) .................4-82
Regulatory information ......................... 4-84
Using the system .............................. 4-84
Control buttons ............................... 4-86
Connecting procedure ......................... 4-87
Voice commands .............................. 4-88

Making a call.................................. 4-89
Receiving a call ............................... 4-90
During a call .................................. 4-90
Ending a call .................................. 4-90
Text messaging (if so equipped) .................4-90
Bluetooth® settings ........................... 4-92
Manual control ................................ 4-94
Troubleshooting guide ......................... 4-94
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) .................4-95
Regulatory information ......................... 4-97
Voice commands .............................. 4-97
Connecting procedure ......................... 4-97
Vehicle phonebook ............................ 4-98
Making a call .................................. 4-98
Receiving a call ............................... 4-98
During a call .................................. 4-98Ending a call
.................................. 4-98
Text messaging (if so equipped) .................4-99
Bluetooth® settings .......................... 4-101
Phone settings ............................... 4-102
Troubleshooting guide ........................ 4-103
NISSAN Voice Recognition System
(if so equipped) ................................. 4-104
Using the system ............................. 4-104
System features .............................. 4-105
Bluetooth® Hands-Free Phone System
voice commands ............................. 4-106
Navigation System voice commands ............4-107
Audio system voice commands .................4-107
Information voice commands ...................4-107
My Apps voice commands .....................4-107
Help voice commands ........................ 4-108
Troubleshooting guide ........................ 4-108

9. CAMERA button
10. NAV button*
* For additional information, refer to the separate
Navigation System Owner’s Manual regarding
the Navigation system control buttons .
** For additional information, refer to “Bluetooth®
Hands-Free Phone System with Navigation Sys-
tem” in this section regarding the Bluetooth®
Hands-Free Phone System control button.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running for a long time, it will discharge the
battery, and the engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.HOW TO USE THE TOUCH-
SCREEN
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
Monitor, climate, audio, phone and voice recognition systems4-5

Menu itemResult
Audio For additional information, refer to “Audio system” in this section.
Navigation For additional information, refer to the separate Navigation System Owner’s Manual.
Phone & Bluetooth For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System” in this section.
System Touch this key to select and/or adjust various functions of this system. A screen with additional options will appear.
Display Touch this key to adjust the appearance of the display.
Brightness Adjusts the brightness of the display.
Display Mode Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are suited for the respec- tive times of day while “Auto” controls the display automatically.
Scroll Direction Adjusts the direction of the menu scroll. Choose to either move up or down.
Clock Touch this key to adjust the time.
LHA3712
4-8Monitor, climate, audio, phone and voice recognition systems

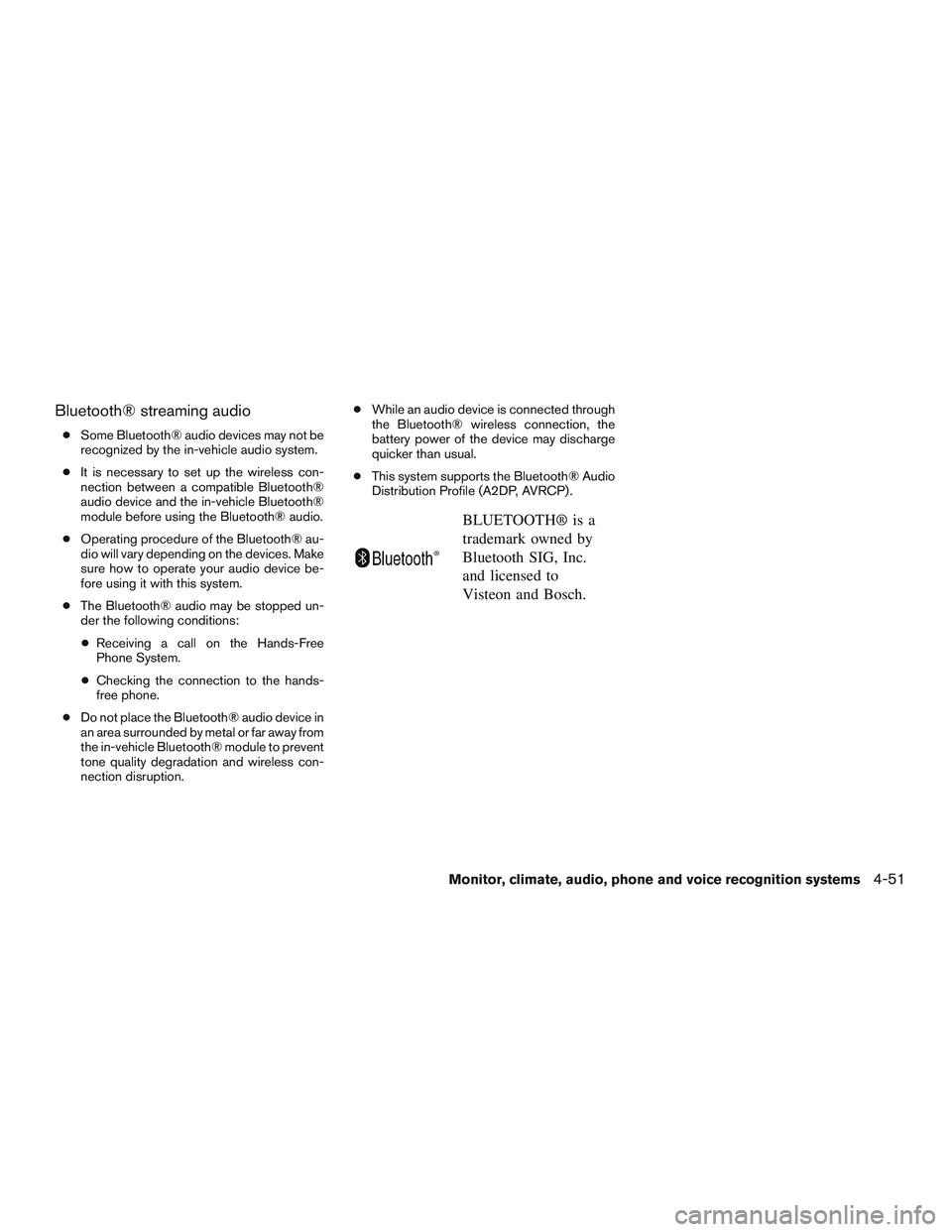

Bluetooth® streaming audio
●Some Bluetooth® audio devices may not be
recognized by the in-vehicle audio system.
● It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
audio device and the in-vehicle Bluetooth®
module before using the Bluetooth® audio.
● Operating procedure of the Bluetooth® au-
dio will vary depending on the devices. Make
sure how to operate your audio device be-
fore using it with this system.
● The Bluetooth® audio may be stopped un-
der the following conditions:
● Receiving a call on the Hands-Free
Phone System.
● Checking the connection to the hands-
free phone.
● Do not place the Bluetooth® audio device in
an area surrounded by metal or far away from
the in-vehicle Bluetooth® module to prevent
tone quality degradation and wireless con-
nection disruption. ●
While an audio device is connected through
the Bluetooth® wireless connection, the
battery power of the device may discharge
quicker than usual.
● This system supports the Bluetooth® Audio
Distribution Profile (A2DP, AVRCP) .
BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Visteon and Bosch.
Monitor, climate, audio, phone and voice recognition systems4-51

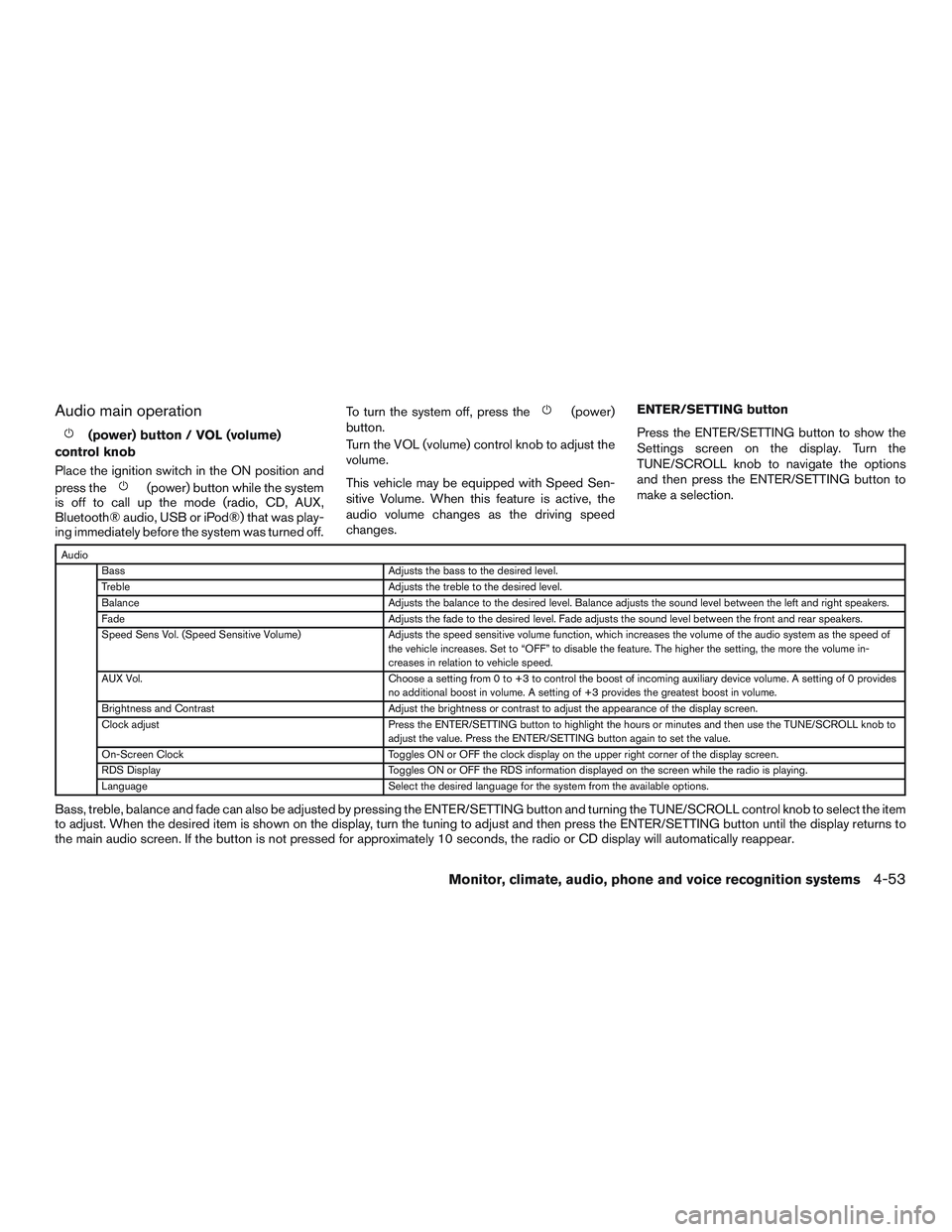

Audio main operation
(power) button / VOL (volume)
control knob
Place the ignition switch in the ON position and
press the
(power) button while the system
is off to call up the mode (radio, CD, AUX,
Bluetooth® audio, USB or iPod®) that was play-
ing immediately before the system was turned off. To turn the system off, press the
(power)
button.
Turn the VOL (volume) control knob to adjust the
volume.
This vehicle may be equipped with Speed Sen-
sitive Volume. When this feature is active, the
audio volume changes as the driving speed
changes. ENTER/SETTING button
Press the ENTER/SETTING button to show the
Settings screen on the display. Turn the
TUNE/SCROLL knob to navigate the options
and then press the ENTER/SETTING button to
make a selection.
Audio
Bass Adjusts the bass to the desired level.
Treble Adjusts the treble to the desired level.
Balance Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers.
Fade Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers.
Speed Sens Vol. (Speed Sensitive Volume) Adjusts the speed sensitive volume function, which increases the volume of the audio system as the speed of
the vehicle increases. Set to “OFF” to disable the feature. The higher the setting, the more the volume in-
creases in relation to vehicle speed.
AUX Vol. Choose a setting from 0 to +3 to control the boost of incoming auxiliary device volume. A setting of 0 provides
no additional boost in volume. A setting of +3 provides the greatest boost in volume.
Brightness and Contrast Adjust the brightness or contrast to adjust the appearance of the display screen.
Clock adjust Press the ENTER/SETTING button to highlight the hours or minutes and then use the TUNE/SCROLL knob to
adjust the value. Press the ENTER/SETTING button again to set the value.
On-Screen Clock Toggles ON or OFF the clock display on the upper right corner of the display screen.
RDS Display Toggles ON or OFF the RDS information displayed on the screen while the radio is playing.
Language Select the desired language for the system from the available options.
Bass, treble, balance and fade can also be adjusted by pressing the ENTER/SETTING button and turning the TUNE/SCROLL control knob to select the item
to adjust. When the desired item is shown on the display, turn the tuning to adjust and then press the ENTER/SETTING button until the display returns to
the main audio screen. If the button is not pressed for approximately 10 seconds, the radio or CD display will automatically reappear.
Monitor, climate, audio, phone and voice recognition systems4-53

CD with MP3 or WMA:
1 Disc Random→1 Folder Random →OFF
1 Disc Random: all tracks on the disc will be
played randomly.
1 Folder Random: all tracks in the current folder
will be played randomly.
OFF: No random play pattern is applied. The
indicator on the display will turn off.
The current play pattern of the CD is displayed on
the screen unless no pattern is applied.
CD EJECT button
When the
CD EJECT button is pressed
with a compact disc loaded, the compact disc
will eject and the last source will be played.
When the
CD EJECT button is pressed
twice with a compact disc loaded, the compact
disc will be ejected further for easier CD removal.
If the disc is not removed within 20 seconds, the
disc will reload.
Additional features
For additional information, refer to “iPod® player
operation without Navigation System” regarding
the iPod® player available with this system in this
section.
For additional information, refer to “USB (Univer-
sal Serial Bus) Connection Port (models without
Navigation System)” regarding the USB connec-
tion port available with this system in this section.
For additional information, refer to “Bluetooth®
streaming audio without Navigation System”
about the Bluetooth® audio interface available
with this system in this section.
4-56Monitor, climate, audio, phone and voice recognition systems
