Page 301 of 547

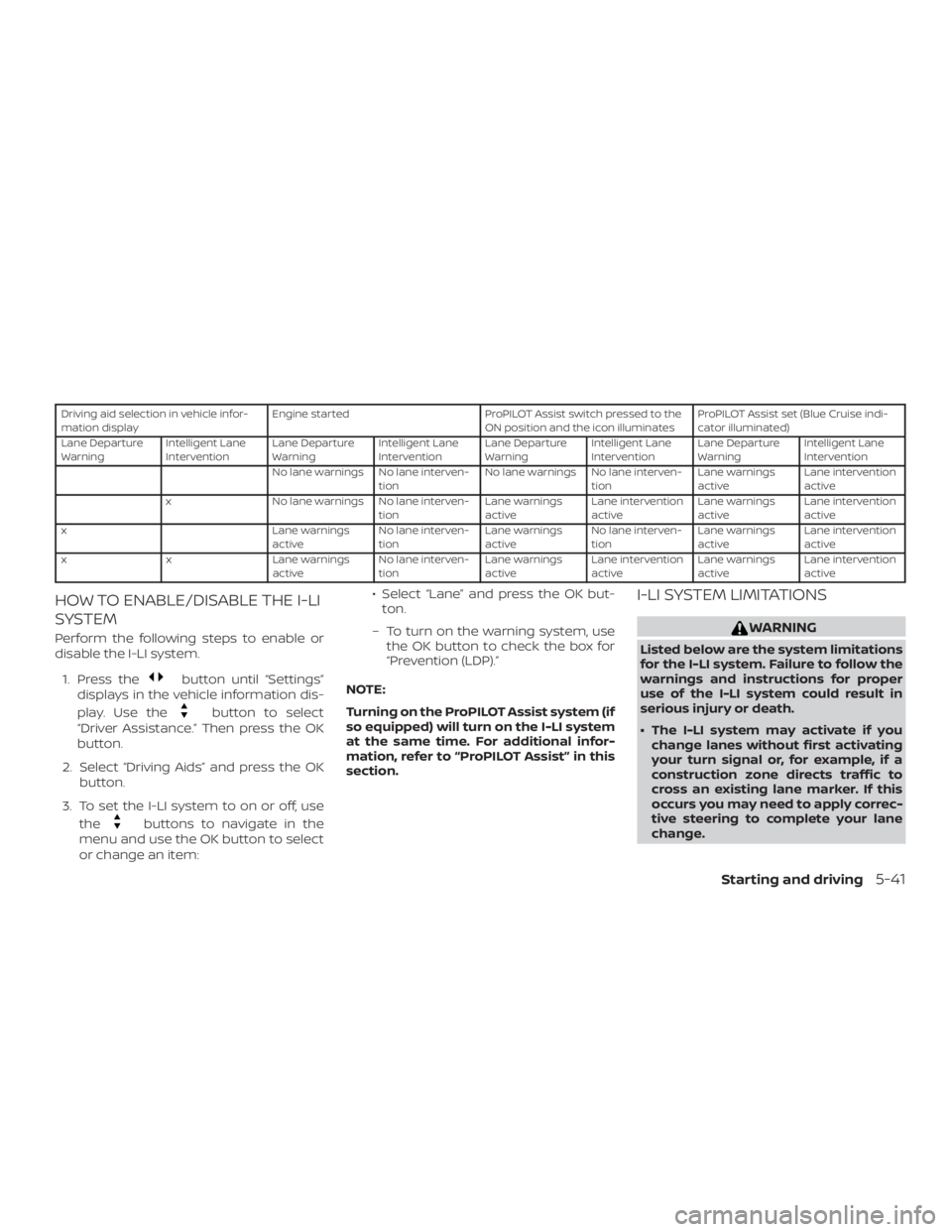

NISSAN ROGUE 2018  Owner´s Manual Driving aid selection in vehicle infor-
mation displayEngine started
ProPILOT Assist switch pressed to the
ON position and the icon illuminates ProPILOT Assist set (Blue Cruise indi-
cator illuminated

Page 302 of 547

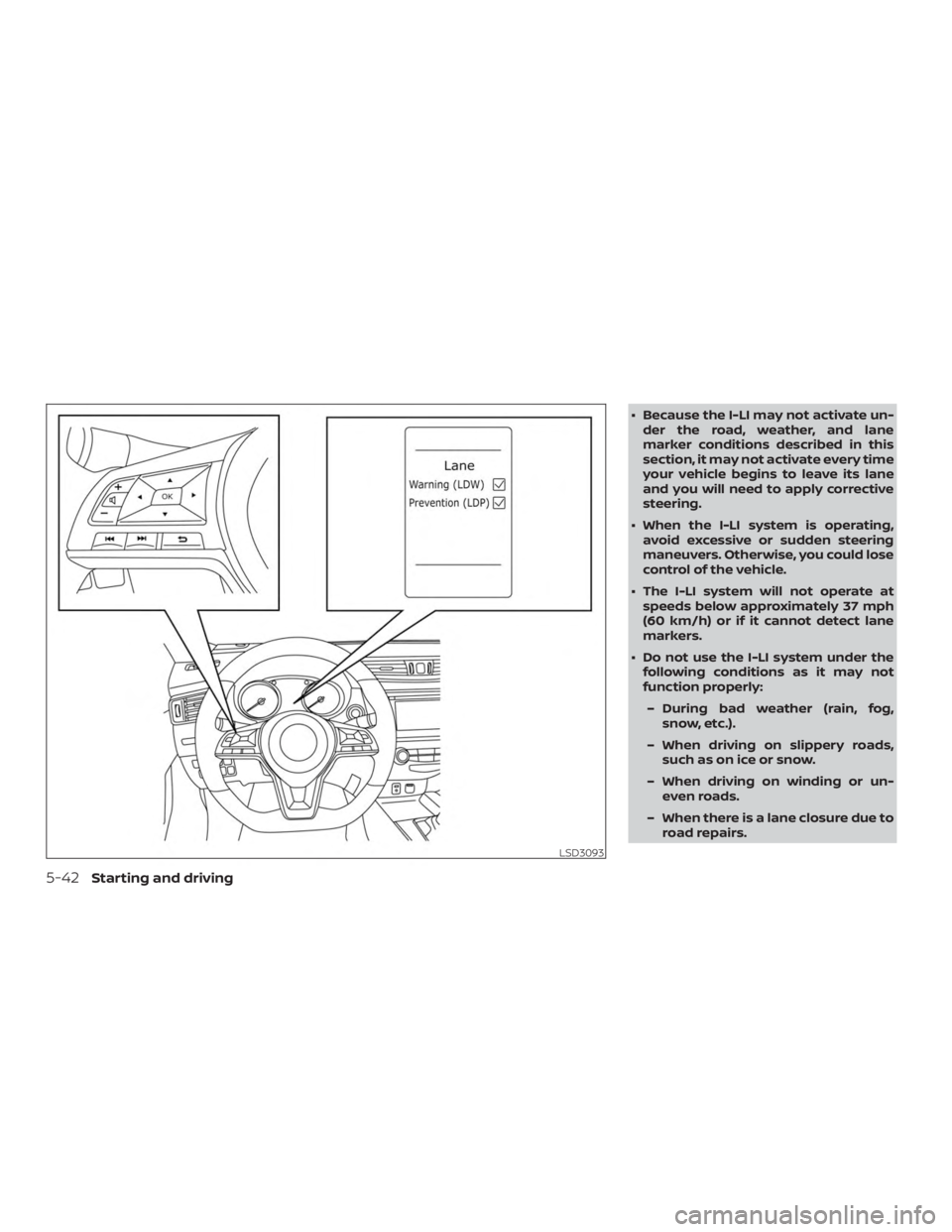

NISSAN ROGUE 2018  Owner´s Manual ∙ Because the I-LI may not activate un-der the road, weather, and lane
marker conditions described in this
section, it may not activate every time
your vehicle begins to leave its lane
and you will

Page 303 of 547

NISSAN ROGUE 2018  Owner´s Manual – When driving in a makeshif t ortemporary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear,
low tire press

Page 304 of 547

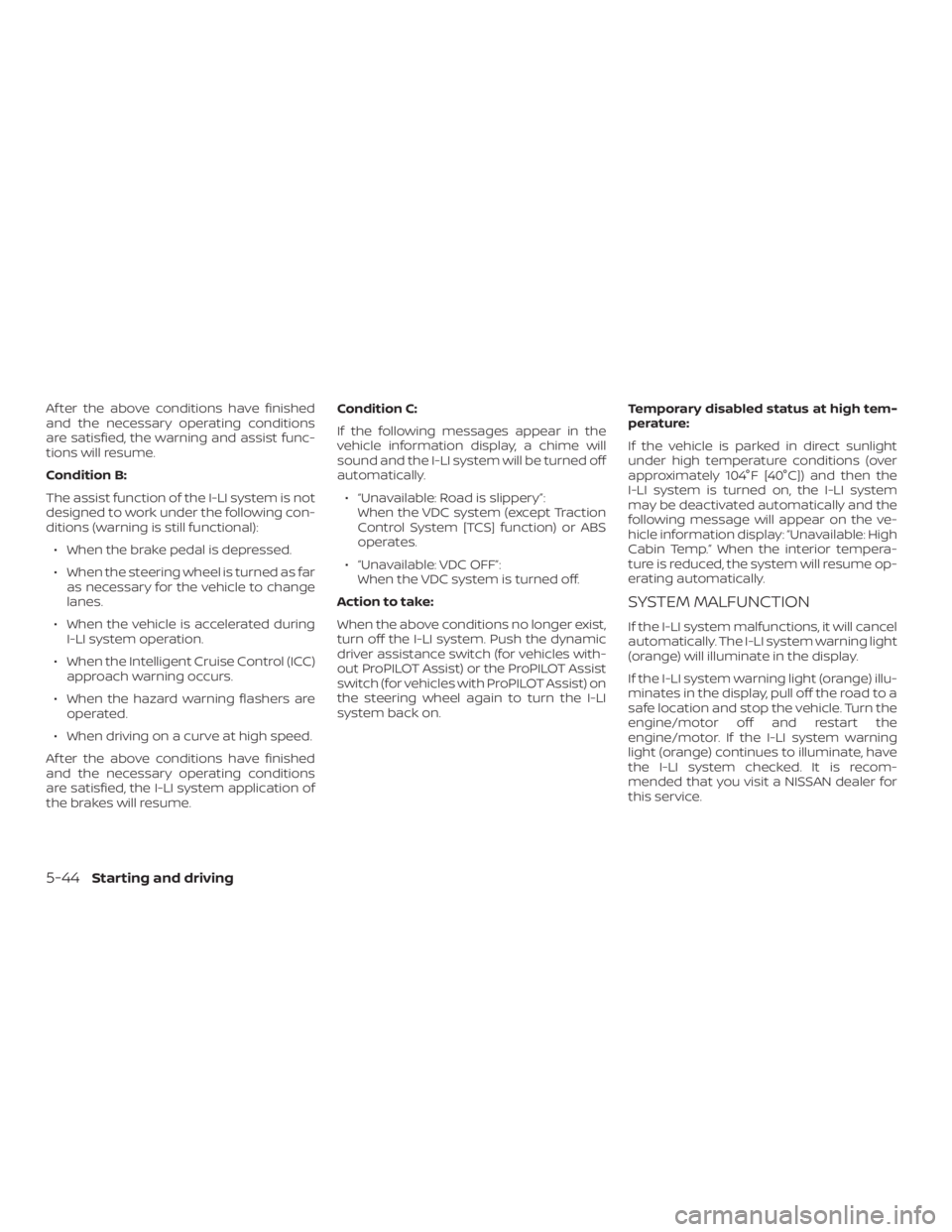

NISSAN ROGUE 2018  Owner´s Manual Af ter the above conditions have finished
and the necessary operating conditions
are satisfied, the warning and assist func-
tions will resume.
Condition B:
The assist function of the I-LI system is n

Page 305 of 547

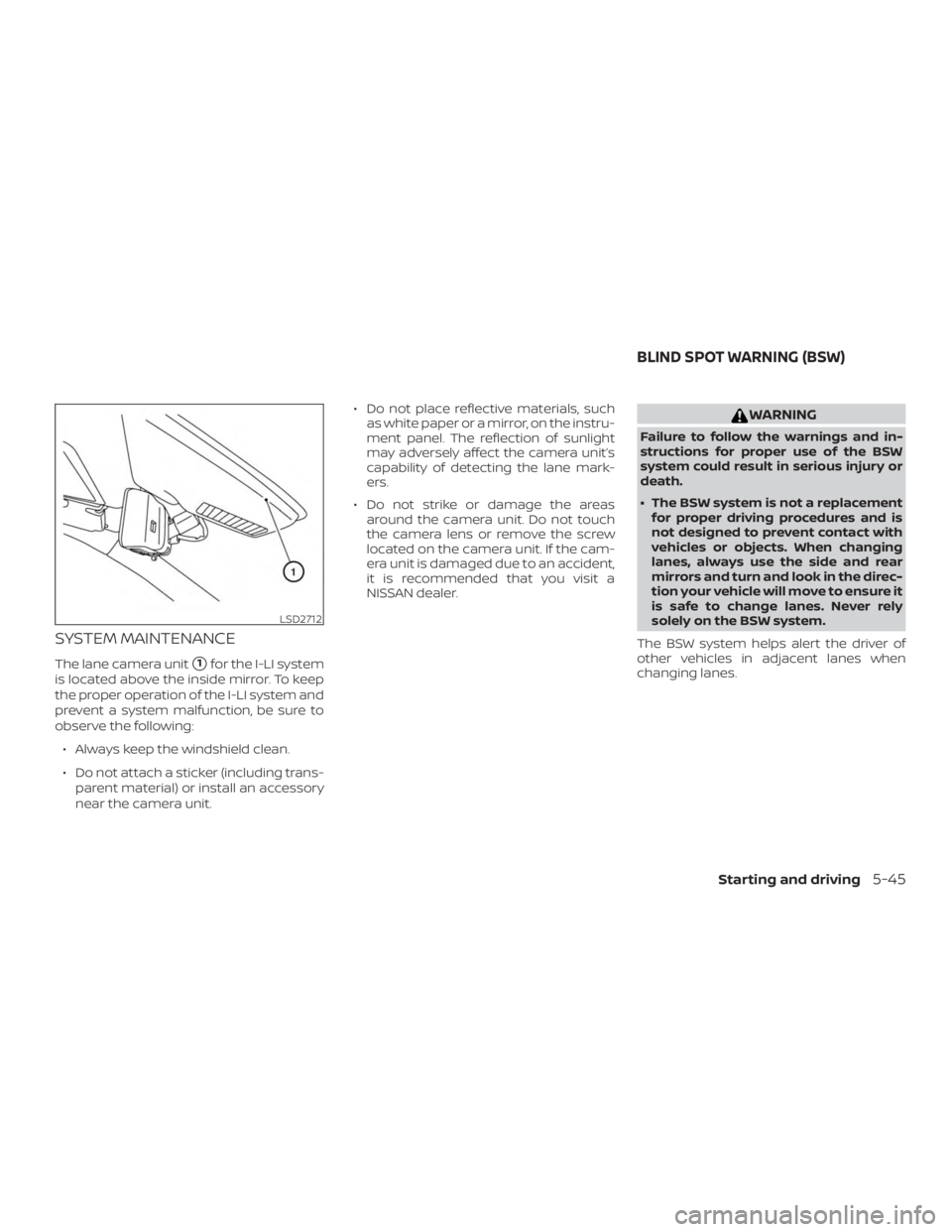

NISSAN ROGUE 2018  Owner´s Manual SYSTEM MAINTENANCE
The lane camera unit1for the I-LI system
is located above the inside mirror. To keep
the proper operation of the I-LI system and
prevent a system malfunction, be sure to
observe th

Page 306 of 547

NISSAN ROGUE 2018  Owner´s Manual The BSW system uses radar sensors1
installed near the rear bumper to detect
other vehicles in an adjacent lane.The radar sensors can detect vehicles on
either side of your vehicle within the detec-
t

Page 307 of 547

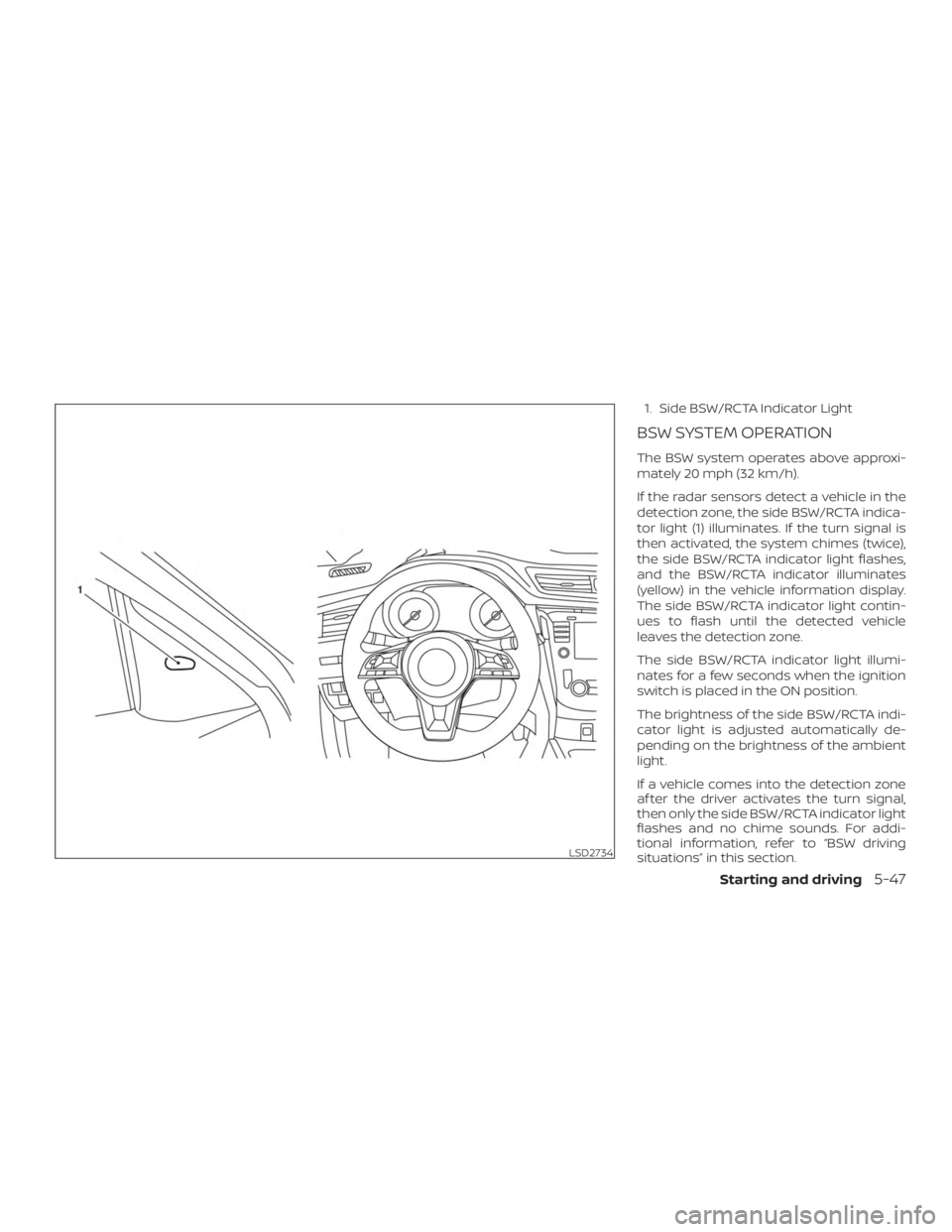

NISSAN ROGUE 2018  Owner´s Manual 1. Side BSW/RCTA Indicator Light
BSW SYSTEM OPERATION
The BSW system operates above approxi-
mately 20 mph (32 km/h).
If the radar sensors detect a vehicle in the
detection zone, the side BSW/RCTA ind

Page 308 of 547

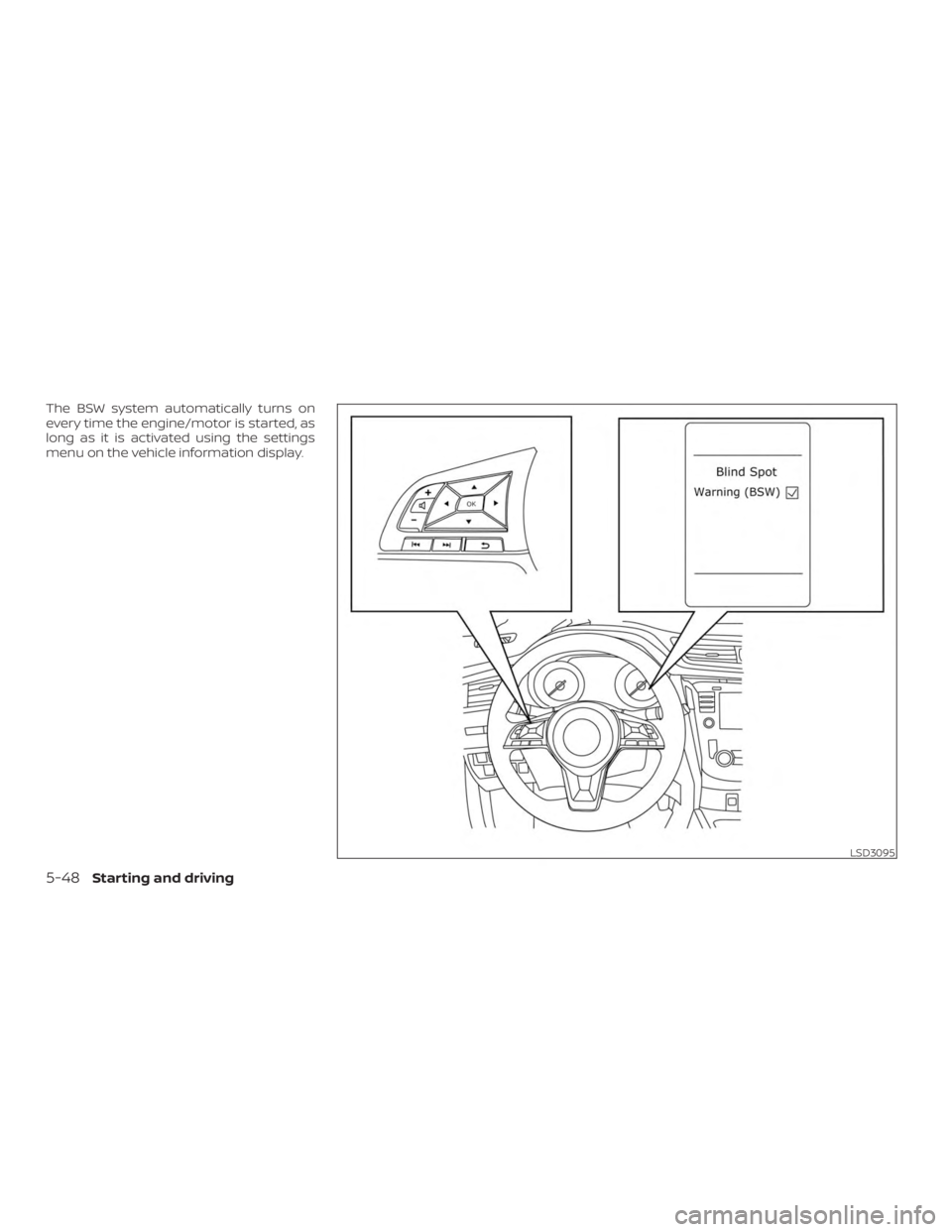

NISSAN ROGUE 2018  Owner´s Manual The BSW system automatically turns on
every time the engine/motor is started, as
long as it is activated using the settings
menu on the vehicle information display.
LSD3095
5-48Starting and driving

Page 309 of 547

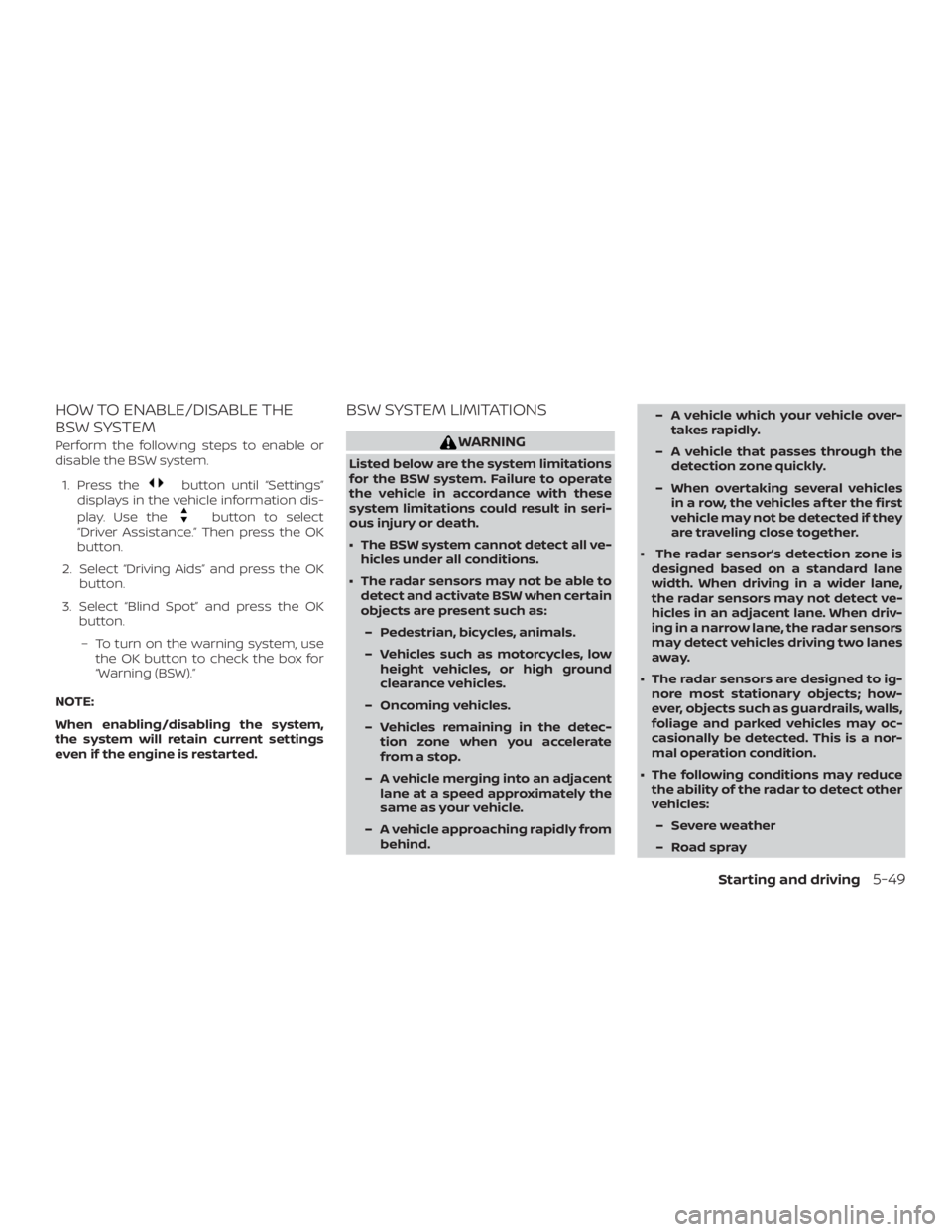

NISSAN ROGUE 2018  Owner´s Manual HOW TO ENABLE/DISABLE THE
BSW SYSTEM
Perform the following steps to enable or
disable the BSW system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
but

Page 310 of 547

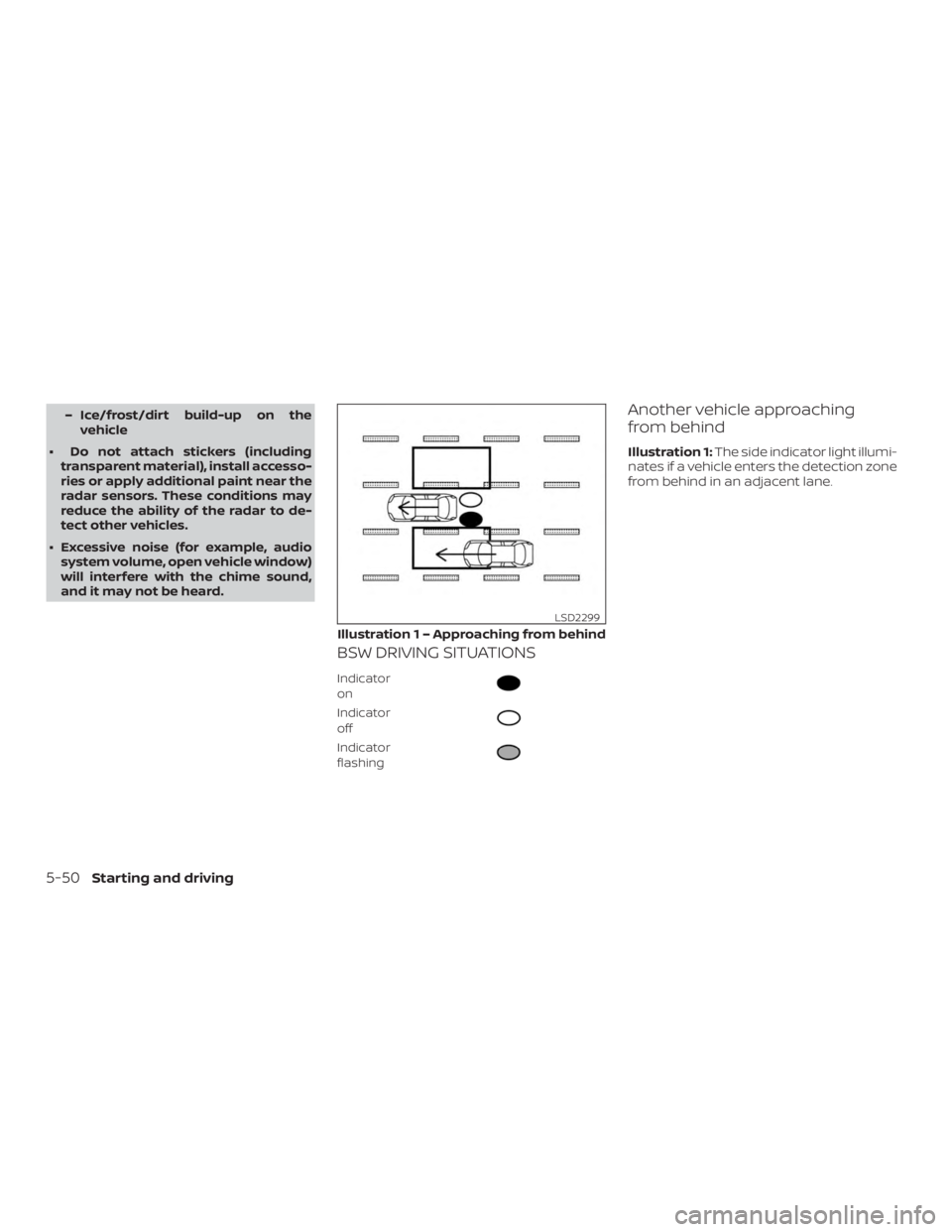

NISSAN ROGUE 2018  Owner´s Manual – Ice/frost/dirt build-up on thevehicle
∙ Do not attach stickers (including transparent material), install accesso-
ries or apply additional paint near the
radar sensors. These conditions may
redu
