NISSAN ROGUE HYBRID 2018 Owners Manual

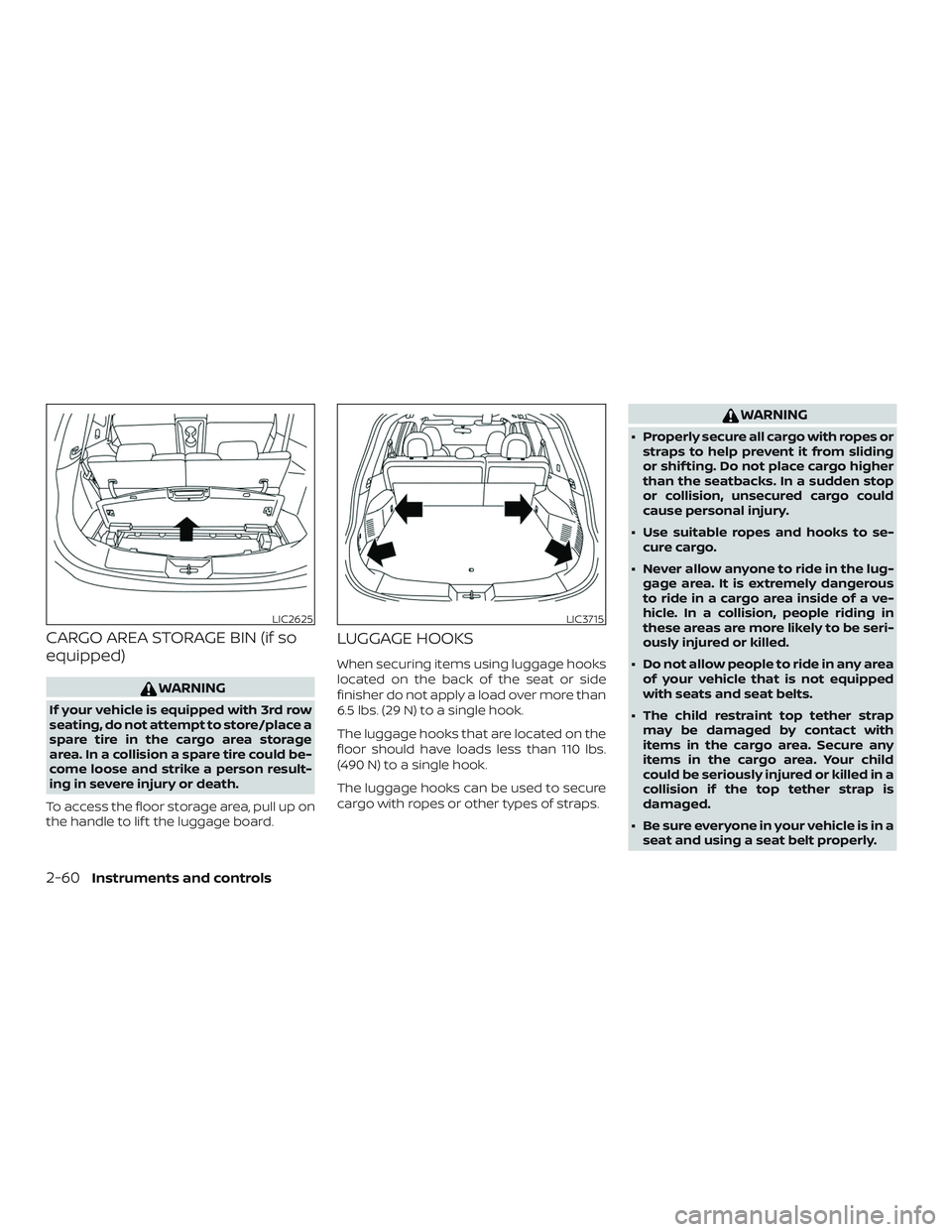

CARGO AREA STORAGE BIN (if so
equipped)
WARNING
If your vehicle is equipped with 3rd row
seating, do not attempt to store/place a
spare tire in the cargo area storage
area. In a collision a spare tire could be-
come loose and strike a person result-
ing in severe injury or death.
To access the floor storage area, pull up on
the handle to lif t the luggage board.
LUGGAGE HOOKS
When securing items using luggage hooks
located on the back of the seat or side
finisher do not apply a load over more than
6.5 lbs. (29 N) to a single hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ Use suitable ropes and hooks to se- cure cargo.
∙ Never allow anyone to ride in the lug- gage area. It is extremely dangerous
to ride in a cargo area inside of a ve-
hicle. In a collision, people riding in
these areas are more likely to be seri-
ously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
LIC2625LIC3715
2-60Instruments and controls

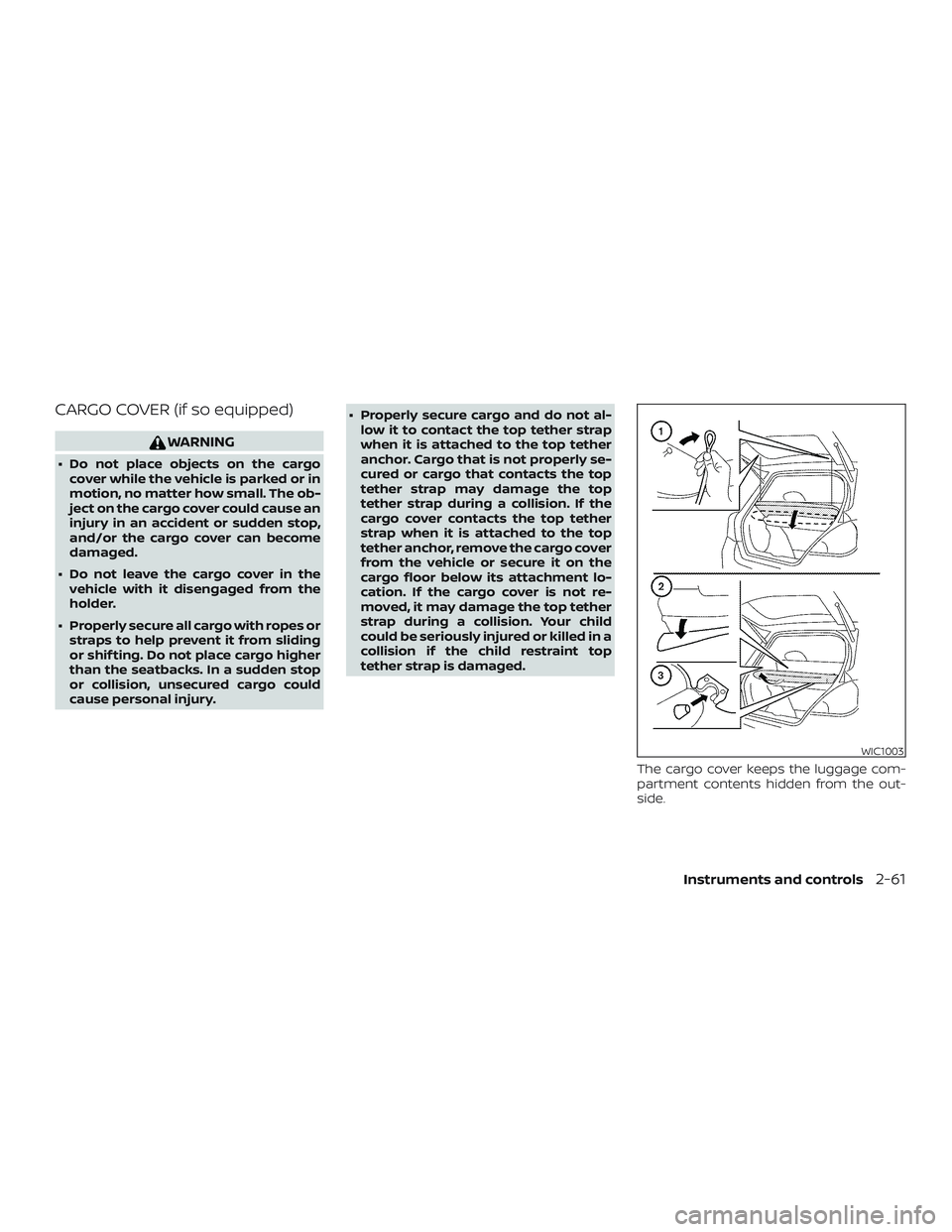

CARGO COVER (if so equipped)
WARNING
∙ Do not place objects on the cargocover while the vehicle is parked or in
motion, no matter how small. The ob-
ject on the cargo cover could cause an
injury in an accident or sudden stop,
and/or the cargo cover can become
damaged.
∙ Do not leave the cargo cover in the vehicle with it disengaged from the
holder.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury. ∙ Properly secure cargo and do not al-
low it to contact the top tether strap
when it is attached to the top tether
anchor. Cargo that is not properly se-
cured or cargo that contacts the top
tether strap may damage the top
tether strap during a collision. If the
cargo cover contacts the top tether
strap when it is attached to the top
tether anchor, remove the cargo cover
from the vehicle or secure it on the
cargo floor below its attachment lo-
cation. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child
could be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
The cargo cover keeps the luggage com-
partment contents hidden from the out-
side.
WIC1003
Instruments and controls2-61

Only attach the hook and loop fastener on
the cargo cover privacy cloth to the area on
the rear seatback where it is supposed to
be attached. Otherwise, the seat surface
could be damaged.
To remove the cargo cover:
1Remove the straps from the rear
hatch.
2Remove the edge of the cargo cover
privacy cloth from the rear seatback.
3Remove the cargo cover holders from
the rear pillar.
ROOF RACK (if so equipped)
Do not apply any load directly to the roof side
rails. Cross bars must be installed before ap-
plying load/cargo/luggage to the roof of the
vehicle. Genuine NISSAN accessory cross
bars are available through a NISSAN dealer. It
is recommended that you visit a NISSAN
dealer for additional information.
The service load capacity for the roof side
rails is 74 kg (165 lbs.), however, do not exceed
the accessory cross bars load capacity.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and rear). For additional information regarding
GVWR and GAWR, refer to “Vehicle loading
information” in the “Technical and consumer
information” section of this manual.
WARNING
∙ Always install the cross bars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto
the roof side rails or the vehicle’s roof
may cause vehicle damage.
∙ Drive extra carefully when the vehicle is loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars.
∙ Heavy loading of the cross bars has the potential to affect the vehicle sta-
bility and handling during sudden or
unusual handling maneuvers.
∙ Roof rack cross bars should be evenly distributed.
∙ Do not exceed maximum roof rack cross bars load capacity.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.
LIC2386
2-62Instruments and controls

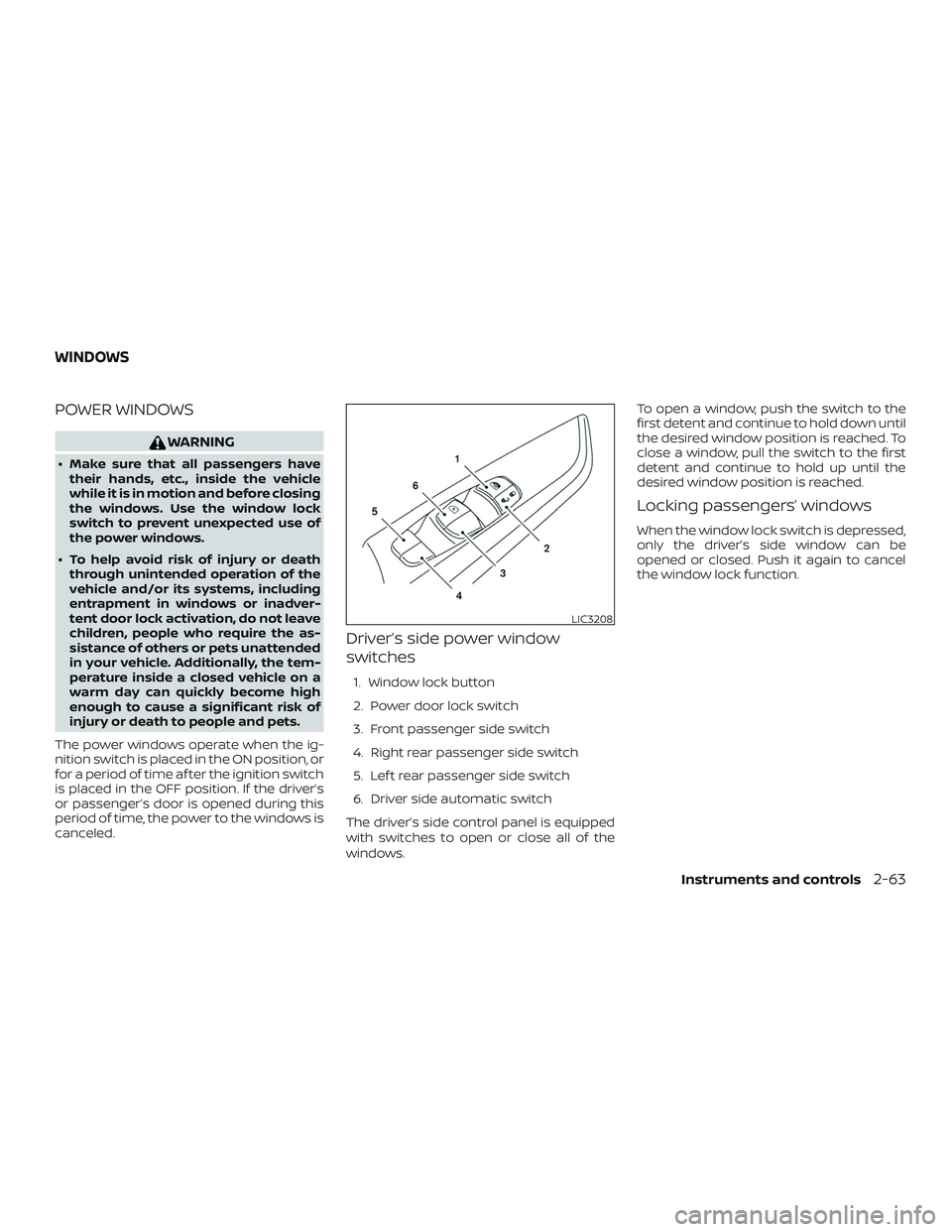

POWER WINDOWS
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position, or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.
Driver’s side power window
switches
1. Window lock button
2. Power door lock switch
3. Front passenger side switch
4. Right rear passenger side switch
5. Lef t rear passenger side switch
6. Driver side automatic switch
The driver’s side control panel is equipped
with switches to open or close all of the
windows. To open a window, push the switch to the
first detent and continue to hold down until
the desired window position is reached. To
close a window, pull the switch to the first
detent and continue to hold up until the
desired window position is reached.
Locking passengers’ windows
When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
LIC3208
WINDOWS
Instruments and controls2-63

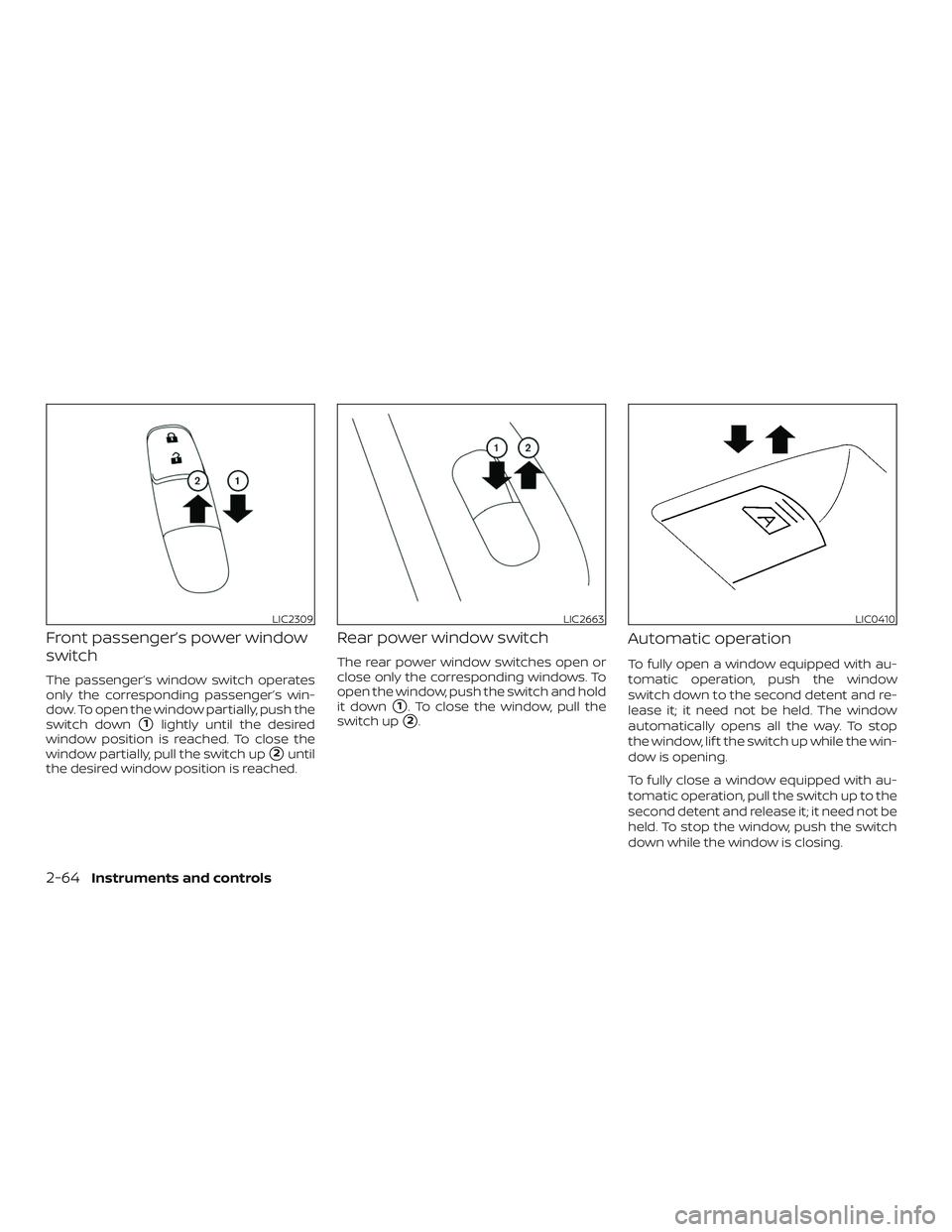

Front passenger’s power window
switch
The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window partially, push the
switch down
1lightly until the desired
window position is reached. To close the
window partially, pull the switch up
2until
the desired window position is reached.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down
1. To close the window, pull the
switch up
2.
Automatic operation
To fully open a window equipped with au-
tomatic operation, push the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
To fully close a window equipped with au-
tomatic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.
LIC2309LIC2663LIC0410
2-64Instruments and controls

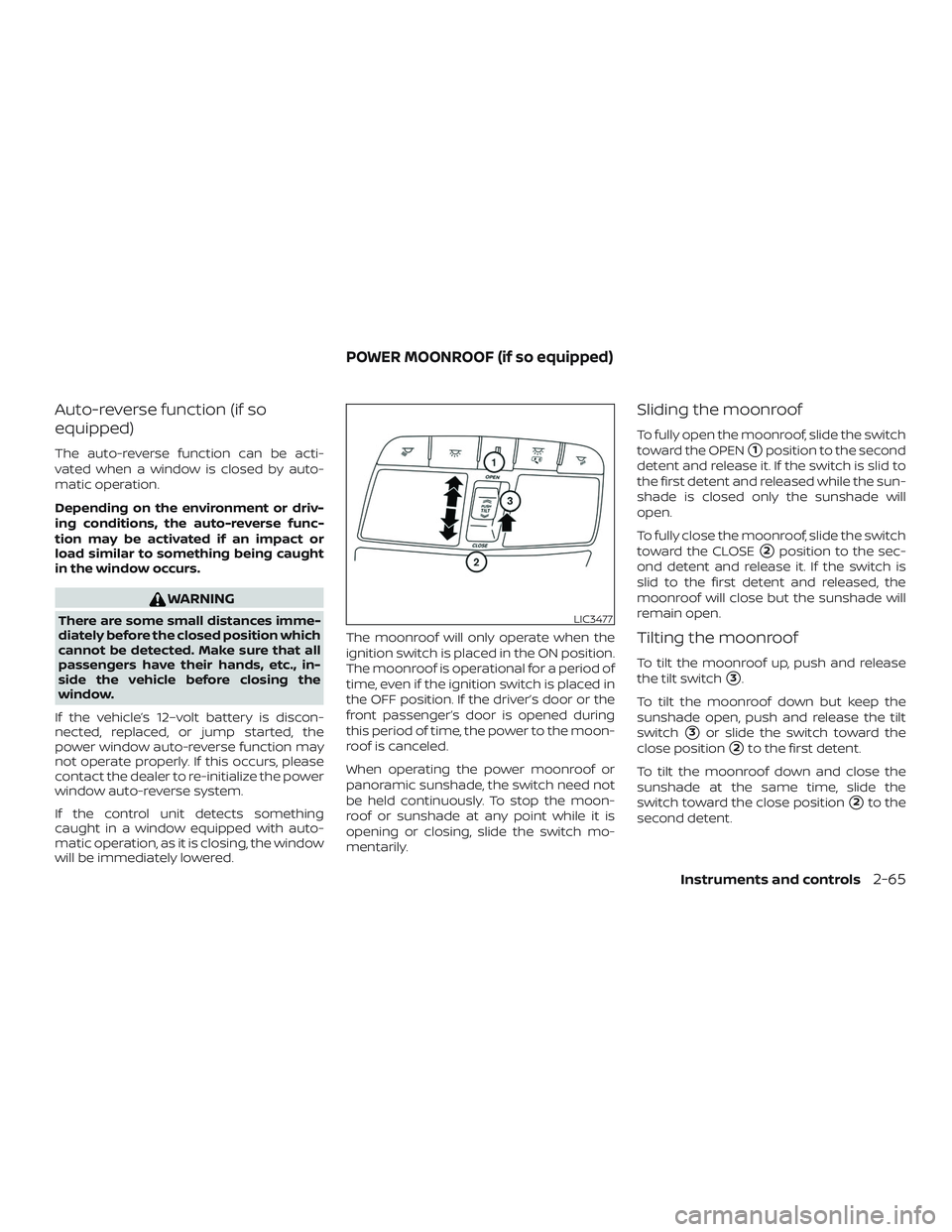

Auto-reverse function (if so
equipped)
The auto-reverse function can be acti-
vated when a window is closed by auto-
matic operation.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the vehicle’s 12–volt battery is discon-
nected, replaced, or jump started, the
power window auto-reverse function may
not operate properly. If this occurs, please
contact the dealer to re-initialize the power
window auto-reverse system.
If the control unit detects something
caught in a window equipped with auto-
matic operation, as it is closing, the window
will be immediately lowered. The moonroof will only operate when the
ignition switch is placed in the ON position.
The moonroof is operational for a period of
time, even if the ignition switch is placed in
the OFF position. If the driver’s door or the
front passenger’s door is opened during
this period of time, the power to the moon-
roof is canceled.
When operating the power moonroof or
panoramic sunshade, the switch need not
be held continuously. To stop the moon-
roof or sunshade at any point while it is
opening or closing, slide the switch mo-
mentarily.
Sliding the moonroof
To fully open the moonroof, slide the switch
toward the OPEN
1position to the second
detent and release it. If the switch is slid to
the first detent and released while the sun-
shade is closed only the sunshade will
open.
To fully close the moonroof, slide the switch
toward the CLOSE
2position to the sec-
ond detent and release it. If the switch is
slid to the first detent and released, the
moonroof will close but the sunshade will
remain open.
Tilting the moonroof
To tilt the moonroof up, push and release
the tilt switch
3.
To tilt the moonroof down but keep the
sunshade open, push and release the tilt
switch
3or slide the switch toward the
close position
2to the first detent.
To tilt the moonroof down and close the
sunshade at the same time, slide the
switch toward the close position
2to the
second detent.
LIC3477
POWER MOONROOF (if so equipped)
Instruments and controls2-65

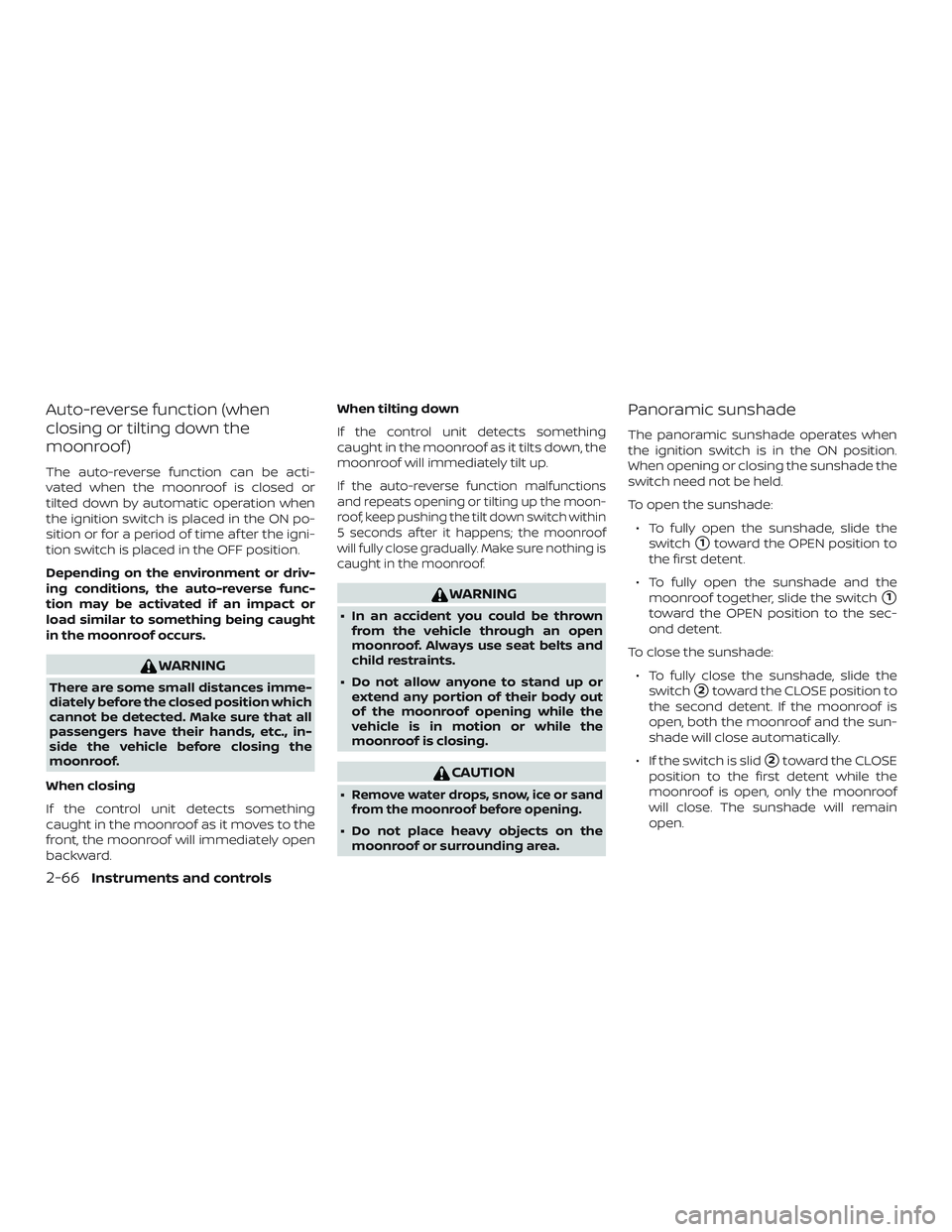

Auto-reverse function (when
closing or tilting down the
moonroof )
The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time af ter the igni-
tion switch is placed in the OFF position.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
When closing
If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward. When tilting down
If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.
If the auto-reverse function malfunctions
and repeats opening or tilting up the moon-
roof, keep pushing the tilt down switch within
5 seconds af ter it happens; the moonroof
will fully close gradually. Make sure nothing is
caught in the moonroof.
WARNING
∙ In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts and
child restraints.
∙ Do not allow anyone to stand up or extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
∙Remove water drops, snow, ice or sand
from the moonroof before opening.
∙ Do not place heavy objects on the moonroof or surrounding area.
Panoramic sunshade
The panoramic sunshade operates when
the ignition switch is in the ON position.
When opening or closing the sunshade the
switch need not be held.
To open the sunshade:
∙ To fully open the sunshade, slide the switch
1toward the OPEN position to
the first detent.
∙ To fully open the sunshade and the moonroof together, slide the switch
1
toward the OPEN position to the sec-
ond detent.
To close the sunshade: ∙ To fully close the sunshade, slide the switch
2toward the CLOSE position to
the second detent. If the moonroof is
open, both the moonroof and the sun-
shade will close automatically.
∙ If the switch is slid
2toward the CLOSE
position to the first detent while the
moonroof is open, only the moonroof
will close. The sunshade will remain
open.
2-66Instruments and controls

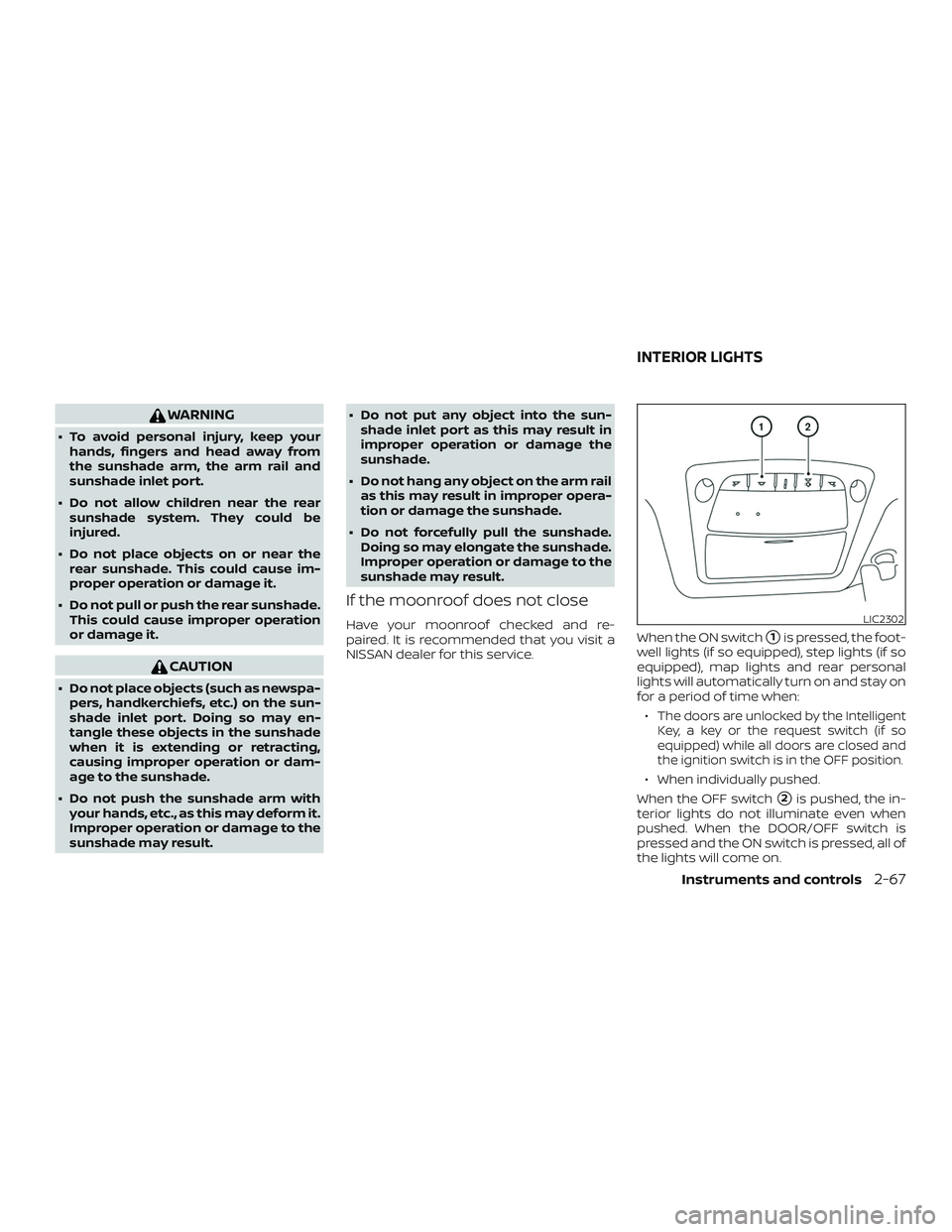

WARNING
∙ To avoid personal injury, keep yourhands, fingers and head away from
the sunshade arm, the arm rail and
sunshade inlet port.
∙ Do not allow children near the rear sunshade system. They could be
injured.
∙ Do not place objects on or near the rear sunshade. This could cause im-
proper operation or damage it.
∙ Do not pull or push the rear sunshade. This could cause improper operation
or damage it.
CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may en-
tangle these objects in the sunshade
when it is extending or retracting,
causing improper operation or dam-
age to the sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result. ∙ Do not put any object into the sun-
shade inlet port as this may result in
improper operation or damage the
sunshade.
∙ Do not hang any object on the arm rail as this may result in improper opera-
tion or damage the sunshade.
∙ Do not forcefully pull the sunshade. Doing so may elongate the sunshade.
Improper operation or damage to the
sunshade may result.
If the moonroof does not close
Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service. When the ON switch1is pressed, the foot-
well lights (if so equipped), step lights (if so
equipped), map lights and rear personal
lights will automatically turn on and stay on
for a period of time when:
∙
The doors are unlocked by the Intelligent
Key, a key or the request switch (if so
equipped) while all doors are closed and
the ignition switch is in the OFF position.
∙ When individually pushed.
When the OFF switch
2is pushed, the in-
terior lights do not illuminate even when
pushed. When the DOOR/OFF switch is
pressed and the ON switch is pressed, all of
the lights will come on.
LIC2302
INTERIOR LIGHTS
Instruments and controls2-67

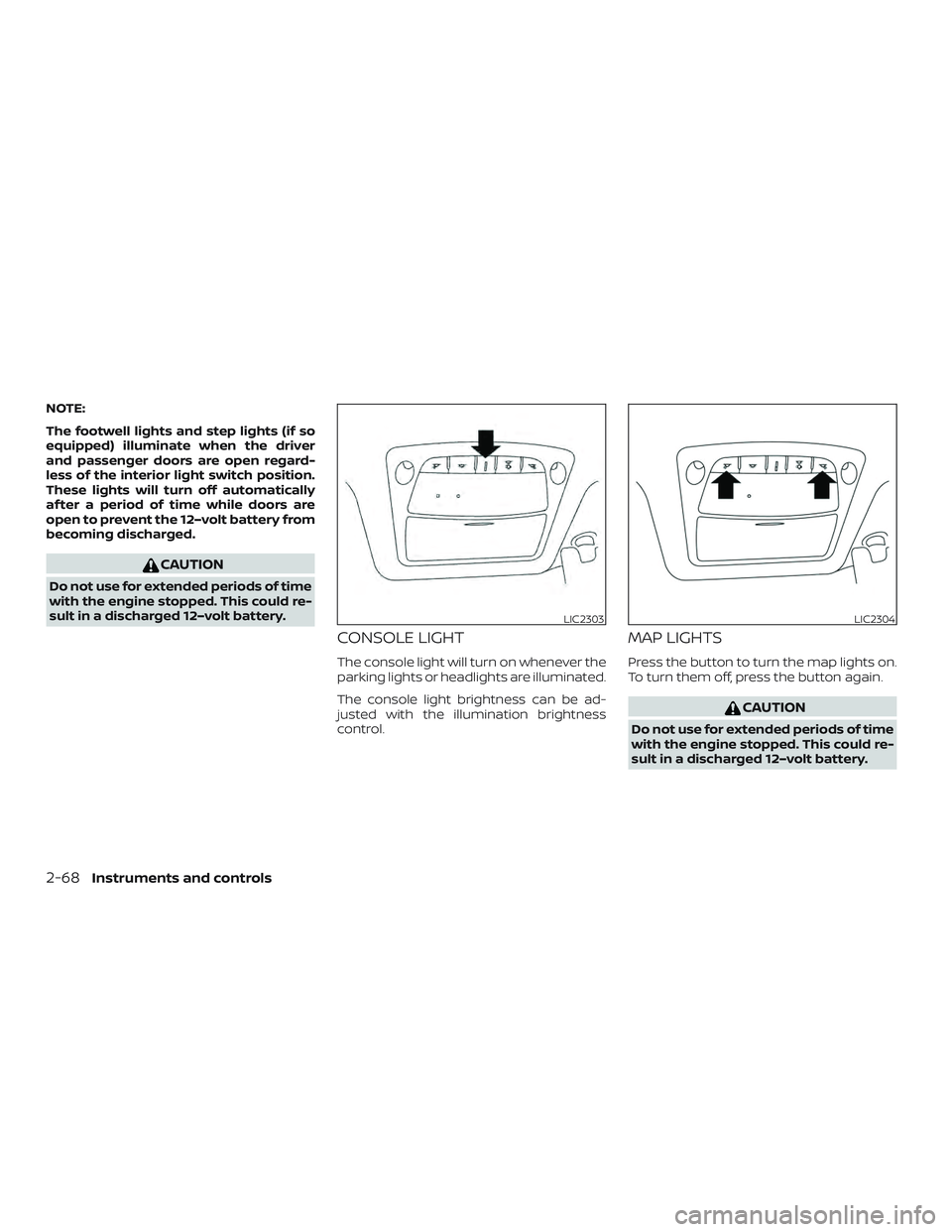

NOTE:
The footwell lights and step lights (if so
equipped) illuminate when the driver
and passenger doors are open regard-
less of the interior light switch position.
These lights will turn off automatically
af ter a period of time while doors are
open to prevent the 12–volt battery from
becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged 12–volt battery.
CONSOLE LIGHT
The console light will turn on whenever the
parking lights or headlights are illuminated.
The console light brightness can be ad-
justed with the illumination brightness
control.
MAP LIGHTS
Press the button to turn the map lights on.
To turn them off, press the button again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged 12–volt battery.
LIC2303LIC2304
2-68Instruments and controls

PERSONAL LIGHTS (if so equipped)
To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.
ROOM LIGHT (if so equipped)
The room light on the overhead trim has a
three-position switch. To operate, push the
switch to the desired position.
1ON: The light is illuminated, regardless
of door position.
2DOOR: The light illuminates when a
door or the lif tgate is opened. The light
turns off when the door or lif tgate is
closed.
3OFF: The light does not illuminate. The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the 12–volt battery from becoming
discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged 12–volt battery.
Rear personal lights
LIC1083SIC2063A
Instruments and controls2-69
