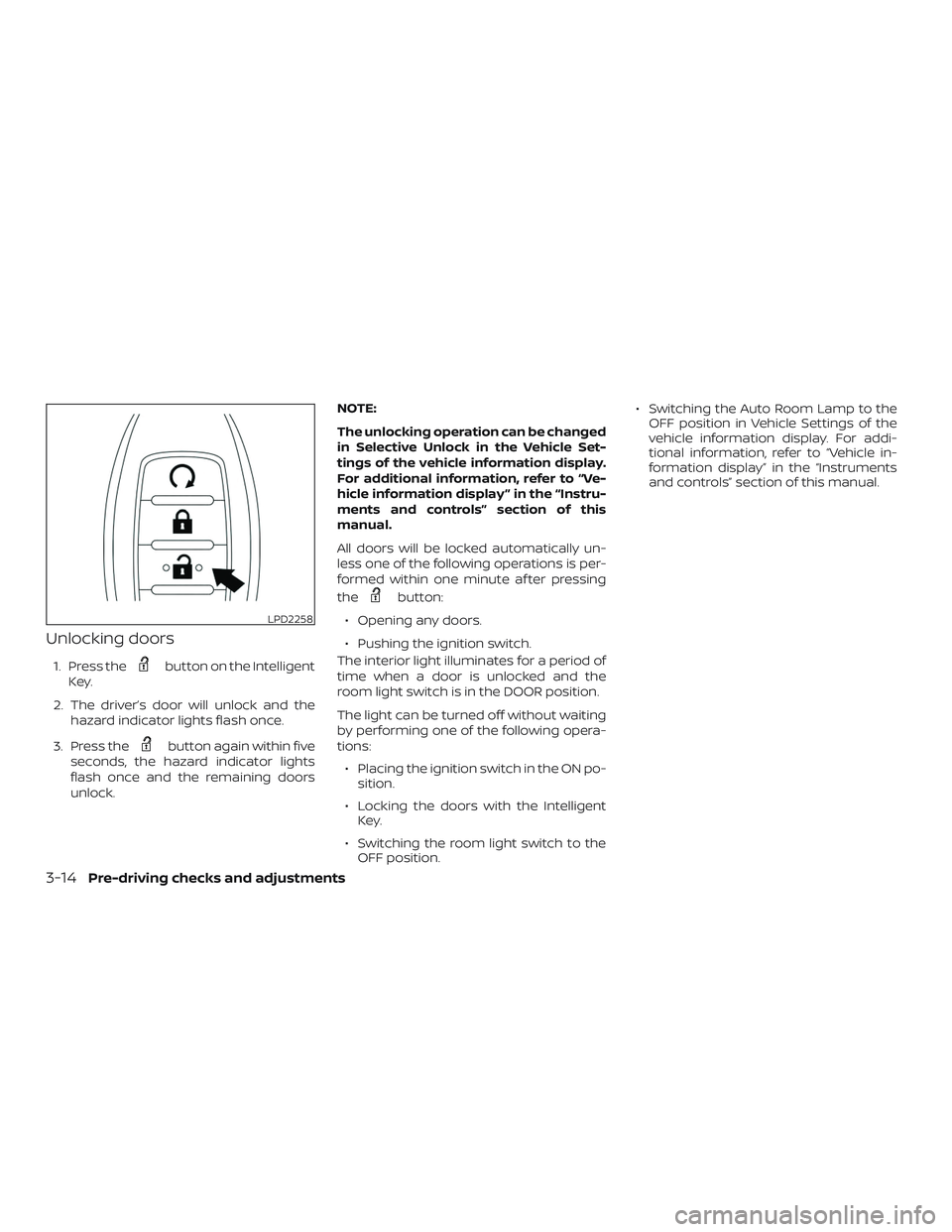

Unlocking doors
1. Press thebutton on the Intelligent
Key.
2. The driver’s door will unlock and the hazard indicator lights flash once.
3. Press the
button again within five
seconds, the hazard indicator lights
flash once and the remaining doors
unlock. NOTE:
The unlocking operation can be changed
in Selective Unlock in the Vehicle Set-
tings of the vehicle information display.
For additional information, refer to “Ve-
hicle information display ” in the “Instru-
ments and controls” section of this
manual.
All doors will be locked automatically un-
less one of the following operations is per-
formed within one minute af ter pressing
the
button:
∙ Opening any doors.
∙ Pushing the ignition switch.
The interior light illuminates for a period of
time when a door is unlocked and the
room light switch is in the DOOR position.
The light can be turned off without waiting
by performing one of the following opera-
tions:
∙ Placing the ignition switch in the ON po- sition.
∙ Locking the doors with the Intelligent Key.
∙ Switching the room light switch to the OFF position. ∙ Switching the Auto Room Lamp to the
OFF position in Vehicle Settings of the
vehicle information display. For addi-
tional information, refer to “Vehicle in-
formation display” in the “Instruments
and controls” section of this manual.
LPD2258
3-14Pre-driving checks and adjustments

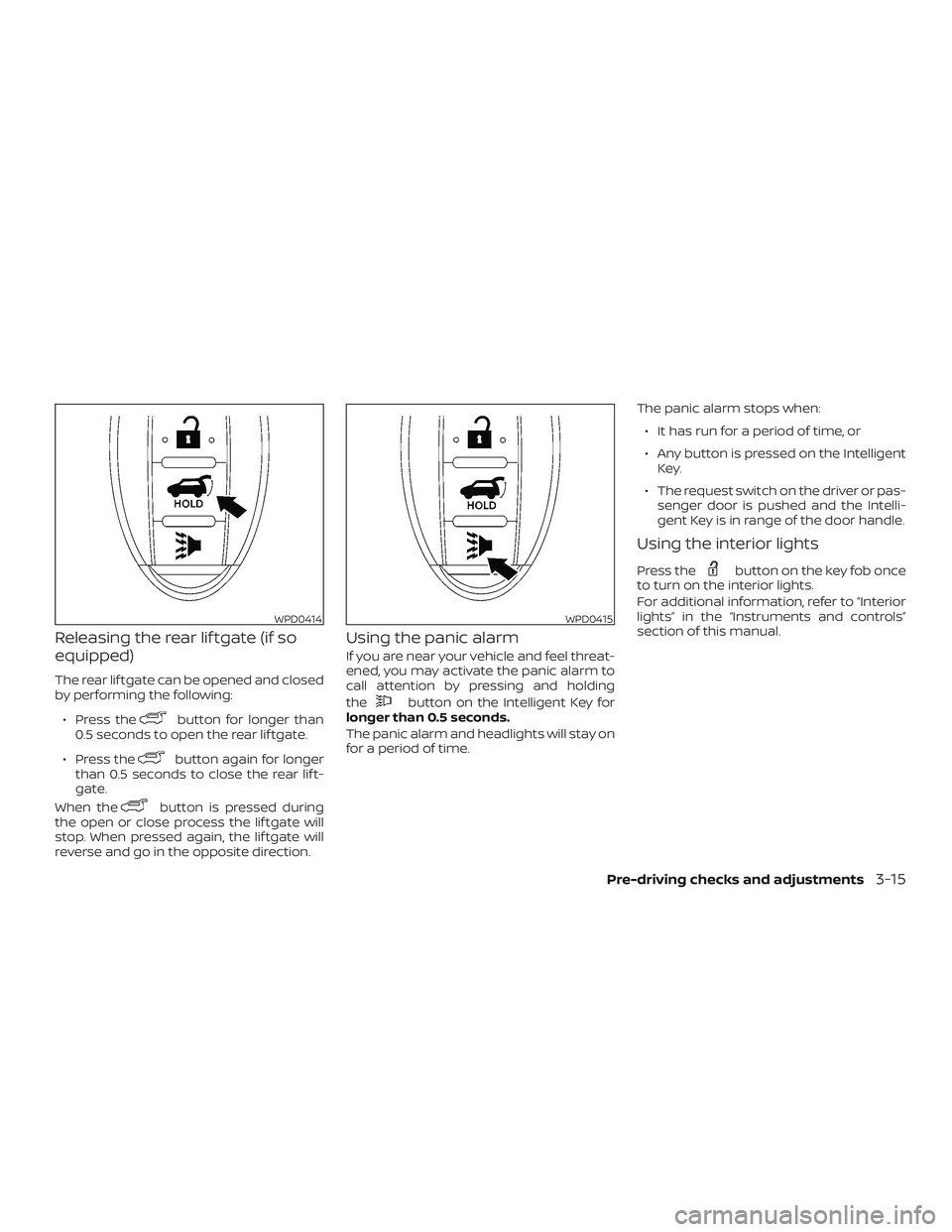

Releasing the rear lif tgate (if so
equipped)
The rear lif tgate can be opened and closed
by performing the following:∙ Press the
button for longer than
0.5 seconds to open the rear lif tgate.
∙ Press the
button again for longer
than 0.5 seconds to close the rear lif t-
gate.
When the
button is pressed during
the open or close process the lif tgate will
stop. When pressed again, the lif tgate will
reverse and go in the opposite direction.
Using the panic alarm
If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to
call attention by pressing and holding
the
button on the Intelligent Key for
longer than 0.5 seconds.
The panic alarm and headlights will stay on
for a period of time. The panic alarm stops when:
∙ It has run for a period of time, or
∙ Any button is pressed on the Intelligent Key.
∙ The request switch on the driver or pas- senger door is pushed and the Intelli-
gent Key is in range of the door handle.
Using the interior lights
Press thebutton on the key fob once
to turn on the interior lights.
For additional information, refer to “Interior
lights” in the “Instruments and controls”
section of this manual.
WPD0414WPD0415
Pre-driving checks and adjustments3-15

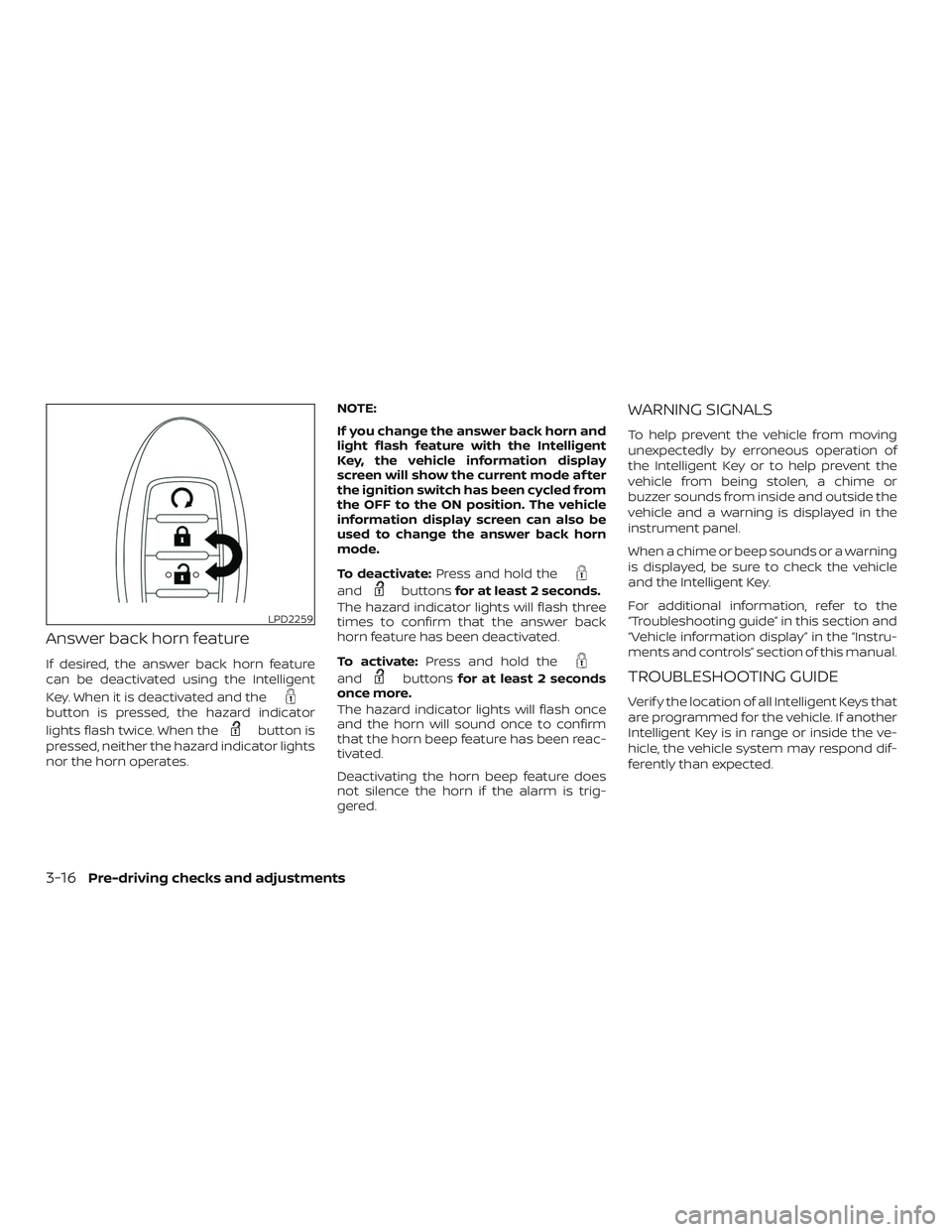

Answer back horn feature
If desired, the answer back horn feature
can be deactivated using the Intelligent
Key. When it is deactivated and the
button is pressed, the hazard indicator
lights flash twice. When the
button is
pressed, neither the hazard indicator lights
nor the horn operates. NOTE:
If you change the answer back horn and
light flash feature with the Intelligent
Key, the vehicle information display
screen will show the current mode af ter
the ignition switch has been cycled from
the OFF to the ON position. The vehicle
information display screen can also be
used to change the answer back horn
mode.
To deactivate:
Press and hold the
andbuttonsfor at least 2 seconds.
The hazard indicator lights will flash three
times to confirm that the answer back
horn feature has been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds
once more.
The hazard indicator lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.
Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.
WARNING SIGNALS
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, a chime or
buzzer sounds from inside and outside the
vehicle and a warning is displayed in the
instrument panel.
When a chime or beep sounds or a warning
is displayed, be sure to check the vehicle
and the Intelligent Key.
For additional information, refer to the
“Troubleshooting guide” in this section and
“Vehicle information display” in the “Instru-
ments and controls” section of this manual.
TROUBLESHOOTING GUIDE
Verif y the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the ve-
hicle, the vehicle system may respond dif-
ferently than expected.
LPD2259
3-16Pre-driving checks and adjustments

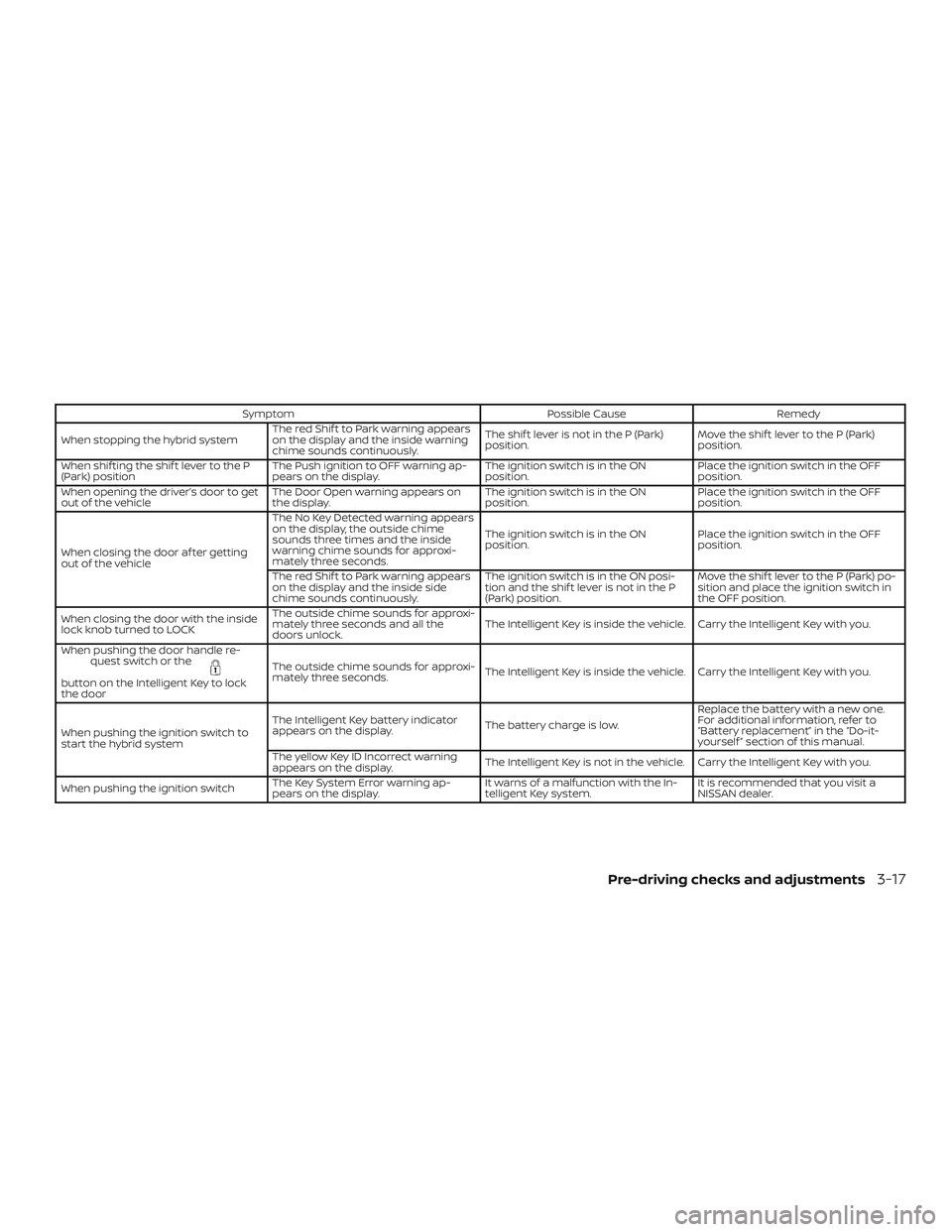

SymptomPossible CauseRemedy
When stopping the hybrid system The red Shif t to Park warning appears
on the display and the inside warning
chime sounds continuously. The shif t lever is not in the P (Park)
position.
Move the shif t lever to the P (Park)
position.
When shif ting the shif t lever to the P
(Park) position The Push ignition to OFF warning ap-
pears on the display. The ignition switch is in the ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicle The Door Open warning appears on
the display. The ignition switch is in the ON
position.Place the ignition switch in the OFF
position.
When closing the door af ter getting
out of the vehicle The No Key Detected warning appears
on the display, the outside chime
sounds three times and the inside
warning chime sounds for approxi-
mately three seconds.
The ignition switch is in the ON
position.
Place the ignition switch in the OFF
position.
The red Shif t to Park warning appears
on the display and the inside side
chime sounds continuously. The ignition switch is in the ON posi-
tion and the shif t lever is not in the P
(Park) position.Move the shif t lever to the P (Park) po-
sition and place the ignition switch in
the OFF position.
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for approxi-
mately three seconds and all the
doors unlock.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the door handle re- quest switch or the
button on the Intelligent Key to lock
the door The outside chime sounds for approxi-
mately three seconds.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch to
start the hybrid system The Intelligent Key battery indicator
appears on the display.
The battery charge is low.Replace the battery with a new one.
For additional information, refer to
“Battery replacement” in the “Do-it-
yourself ” section of this manual.
The yellow Key ID Incorrect warning
appears on the display. The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch The Key System Error warning ap-
pears on the display. It warns of a malfunction with the In-
telligent Key system.It is recommended that you visit a
NISSAN dealer.
Pre-driving checks and adjustments3-17

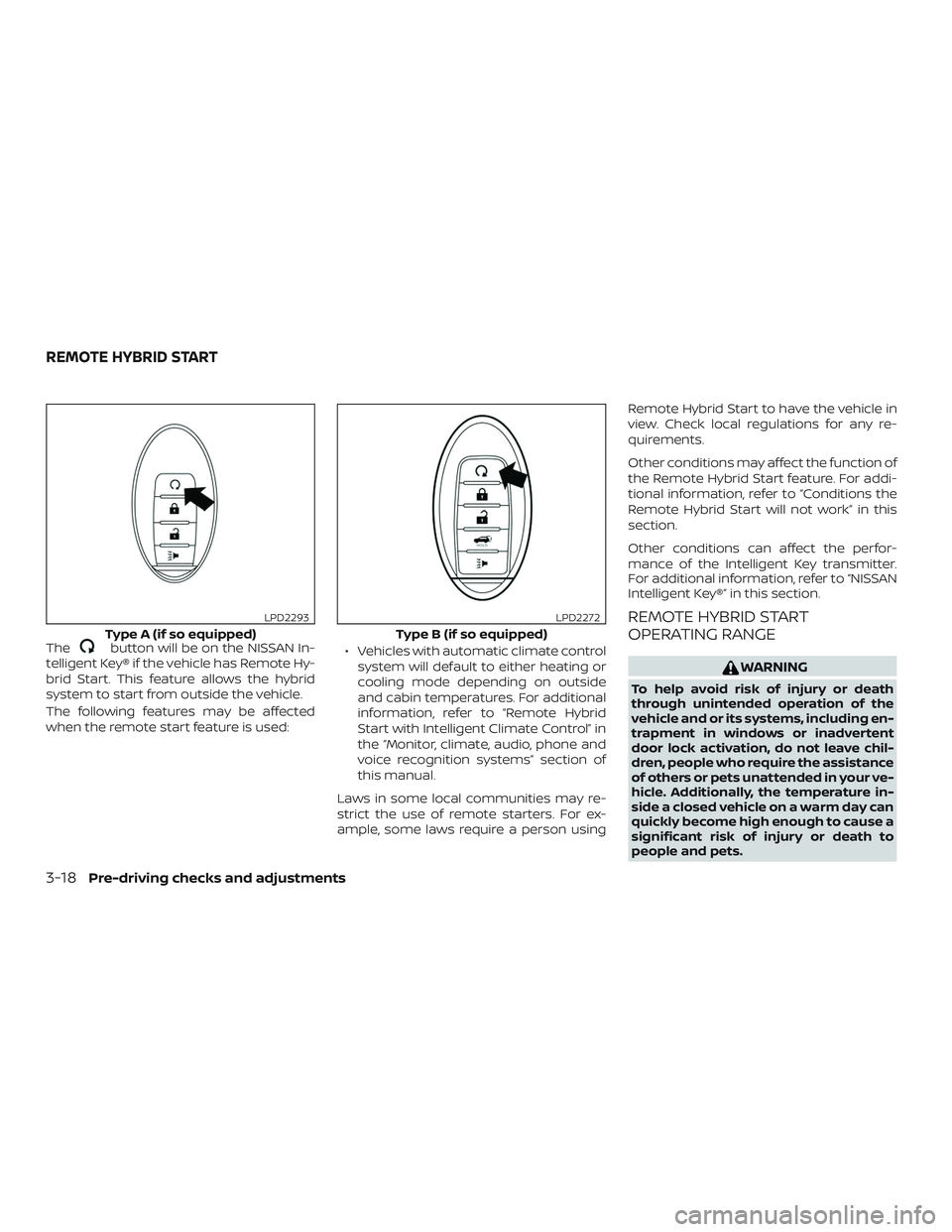

Thebutton will be on the NISSAN In-
telligent Key® if the vehicle has Remote Hy-
brid Start. This feature allows the hybrid
system to start from outside the vehicle.
The following features may be affected
when the remote start feature is used: ∙ Vehicles with automatic climate control
system will default to either heating or
cooling mode depending on outside
and cabin temperatures. For additional
information, refer to “Remote Hybrid
Start with Intelligent Climate Control” in
the “Monitor, climate, audio, phone and
voice recognition systems” section of
this manual.
Laws in some local communities may re-
strict the use of remote starters. For ex-
ample, some laws require a person using Remote Hybrid Start to have the vehicle in
view. Check local regulations for any re-
quirements.
Other conditions may affect the function of
the Remote Hybrid Start feature. For addi-
tional information, refer to “Conditions the
Remote Hybrid Start will not work” in this
section.
Other conditions can affect the perfor-
mance of the Intelligent Key transmitter.
For additional information, refer to “NISSAN
Intelligent Key®” in this section.
REMOTE HYBRID START
OPERATING RANGE
WARNING
To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
Type A (if so equipped)
LPD2293
Type B (if so equipped)
LPD2272
REMOTE HYBRID START
3-18Pre-driving checks and adjustments

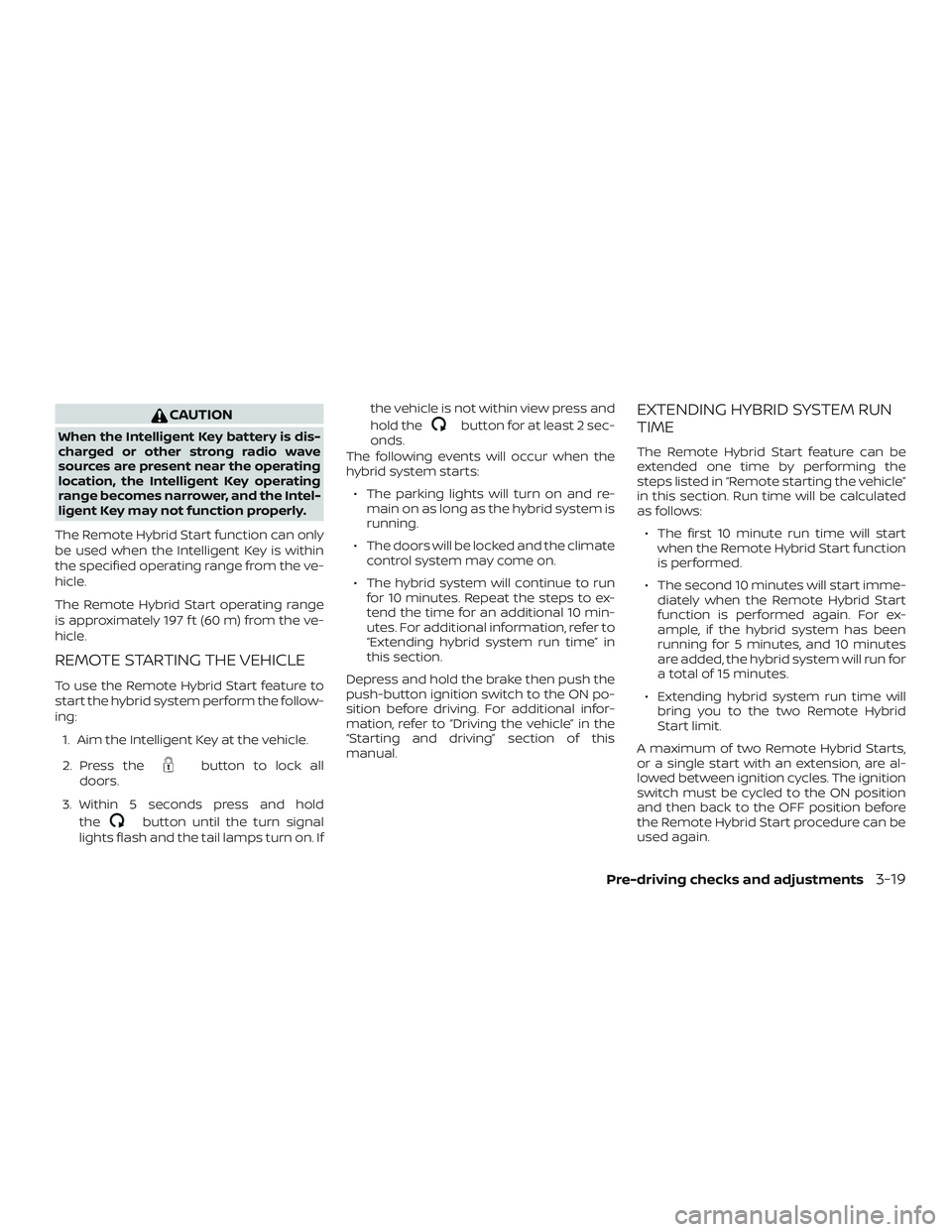

CAUTION
When the Intelligent Key battery is dis-
charged or other strong radio wave
sources are present near the operating
location, the Intelligent Key operating
range becomes narrower, and the Intel-
ligent Key may not function properly.
The Remote Hybrid Start function can only
be used when the Intelligent Key is within
the specified operating range from the ve-
hicle.
The Remote Hybrid Start operating range
is approximately 197 f t (60 m) from the ve-
hicle.
REMOTE STARTING THE VEHICLE
To use the Remote Hybrid Start feature to
start the hybrid system perform the follow-
ing: 1. Aim the Intelligent Key at the vehicle.
2. Press the
button to lock all
doors.
3. Within 5 seconds press and hold the
button until the turn signal
lights flash and the tail lamps turn on. If the vehicle is not within view press and
hold the
button for at least 2 sec-
onds.
The following events will occur when the
hybrid system starts:
∙ The parking lights will turn on and re- main on as long as the hybrid system is
running.
∙ The doors will be locked and the climate control system may come on.
∙ The hybrid system will continue to run for 10 minutes. Repeat the steps to ex-
tend the time for an additional 10 min-
utes. For additional information, refer to
“Extending hybrid system run time” in
this section.
Depress and hold the brake then push the
push-button ignition switch to the ON po-
sition before driving. For additional infor-
mation, refer to “Driving the vehicle” in the
“Starting and driving” section of this
manual.EXTENDING HYBRID SYSTEM RUN
TIME
The Remote Hybrid Start feature can be
extended one time by performing the
steps listed in “Remote starting the vehicle”
in this section. Run time will be calculated
as follows: ∙ The first 10 minute run time will start when the Remote Hybrid Start function
is performed.
∙ The second 10 minutes will start imme- diately when the Remote Hybrid Start
function is performed again. For ex-
ample, if the hybrid system has been
running for 5 minutes, and 10 minutes
are added, the hybrid system will run for
a total of 15 minutes.
∙ Extending hybrid system run time will bring you to the two Remote Hybrid
Start limit.
A maximum of two Remote Hybrid Starts,
or a single start with an extension, are al-
lowed between ignition cycles. The ignition
switch must be cycled to the ON position
and then back to the OFF position before
the Remote Hybrid Start procedure can be
used again.
Pre-driving checks and adjustments3-19

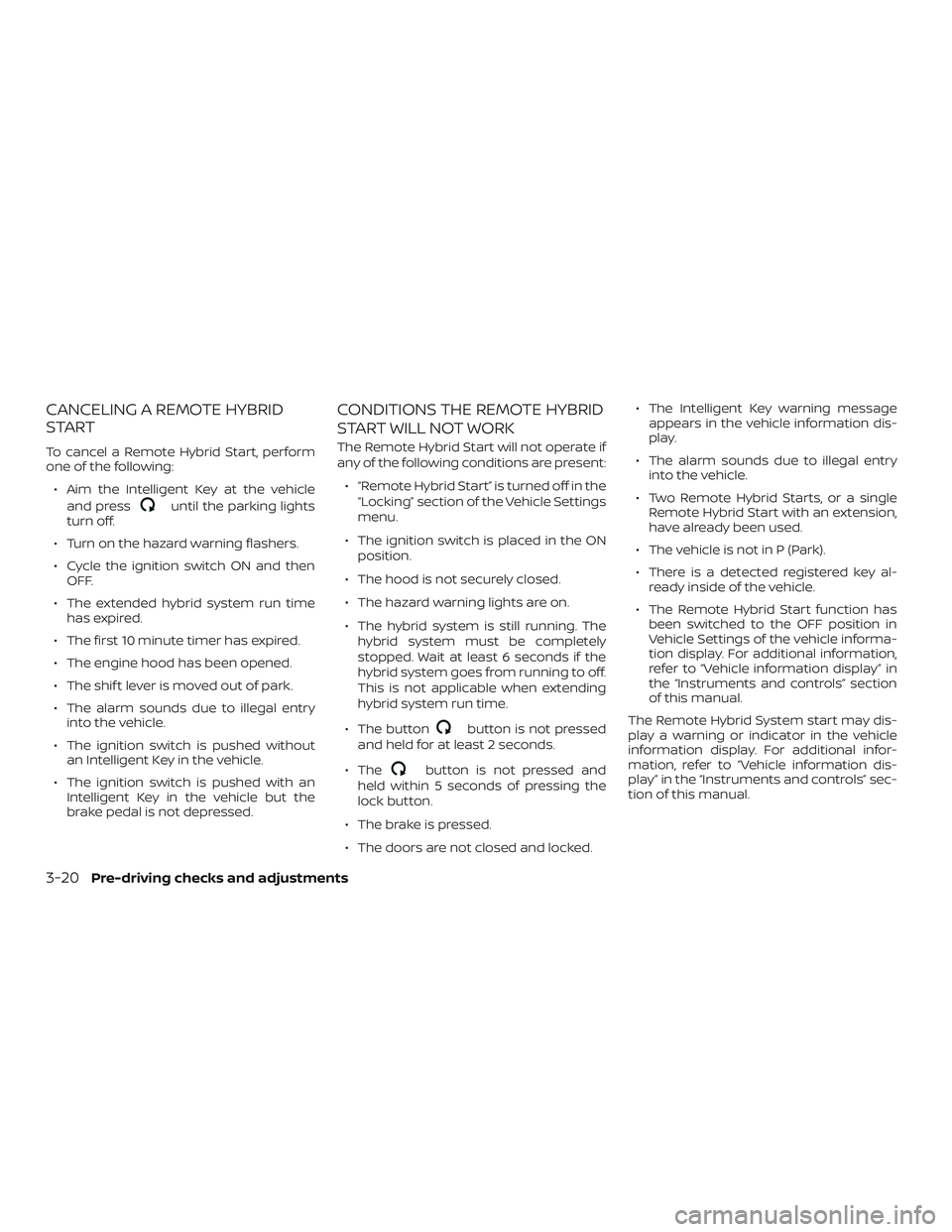

CANCELING A REMOTE HYBRID
START
To cancel a Remote Hybrid Start, perform
one of the following:∙ Aim the Intelligent Key at the vehicle and press
until the parking lights
turn off.
∙ Turn on the hazard warning flashers.
∙ Cycle the ignition switch ON and then OFF.
∙ The extended hybrid system run time has expired.
∙ The first 10 minute timer has expired.
∙ The engine hood has been opened.
∙ The shif t lever is moved out of park.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ The ignition switch is pushed without an Intelligent Key in the vehicle.
∙ The ignition switch is pushed with an Intelligent Key in the vehicle but the
brake pedal is not depressed.
CONDITIONS THE REMOTE HYBRID
START WILL NOT WORK
The Remote Hybrid Start will not operate if
any of the following conditions are present:
∙ “Remote Hybrid Start” is turned off in the “Locking” section of the Vehicle Settings
menu.
∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard warning lights are on.
∙ The hybrid system is still running. The hybrid system must be completely
stopped. Wait at least 6 seconds if the
hybrid system goes from running to off.
This is not applicable when extending
hybrid system run time.
∙ The button
button is not pressed
and held for at least 2 seconds.
∙ The
button is not pressed and
held within 5 seconds of pressing the
lock button.
∙ The brake is pressed.
∙ The doors are not closed and locked. ∙ The Intelligent Key warning message
appears in the vehicle information dis-
play.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ Two Remote Hybrid Starts, or a single Remote Hybrid Start with an extension,
have already been used.
∙ The vehicle is not in P (Park).
∙ There is a detected registered key al- ready inside of the vehicle.
∙ The Remote Hybrid Start function has been switched to the OFF position in
Vehicle Settings of the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display” in
the “Instruments and controls” section
of this manual.
The Remote Hybrid System start may dis-
play a warning or indicator in the vehicle
information display. For additional infor-
mation, refer to “Vehicle information dis-
play” in the “Instruments and controls” sec-
tion of this manual.
3-20Pre-driving checks and adjustments

1. Pull the hood lock release handle1
located below the instrument panel
until the hood springs up slightly.
2. Locate the lever
2in between the
hood and grille and push the lever side-
ways with your fingertips.
3. Raise the hood
3.
4. Remove the support rod
4and insert
it into the slot
5. Hold the coated parts
Awhen removing
or resetting the support rod. Avoid direct
contact with the metal parts, as they
may be hot immediately af ter the hybrid
system has been stopped.
When closing the hood, return the support
rod to its original position, lower the hood
to approximately 12 in (30 cm) above the
latch and release it. This allows proper en-
gagement of the hood latch.
WARNING
∙ Make sure the hood is completely closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to
avoid injury do not open the hood.
LPD2751
HOOD
Pre-driving checks and adjustments3-21

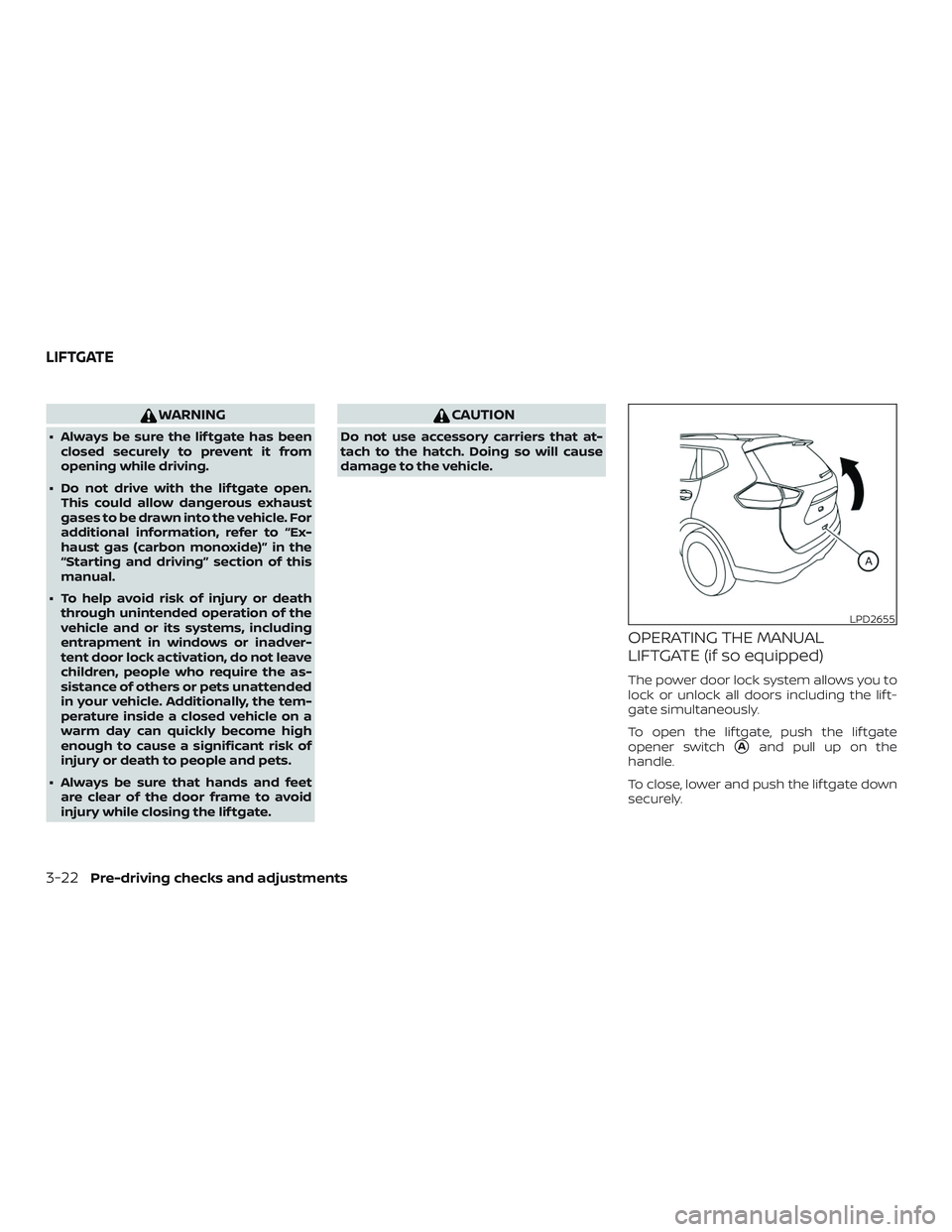

WARNING
∙ Always be sure the lif tgate has beenclosed securely to prevent it from
opening while driving.
∙ Do not drive with the lif tgate open. This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of this
manual.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
∙ Always be sure that hands and feet are clear of the door frame to avoid
injury while closing the lif tgate.
CAUTION
Do not use accessory carriers that at-
tach to the hatch. Doing so will cause
damage to the vehicle.
OPERATING THE MANUAL
LIFTGATE (if so equipped)
The power door lock system allows you to
lock or unlock all doors including the lif t-
gate simultaneously.
To open the lif tgate, push the lif tgate
opener switch
Aand pull up on the
handle.
To close, lower and push the lif tgate down
securely.
LPD2655
LIFTGATE
3-22Pre-driving checks and adjustments

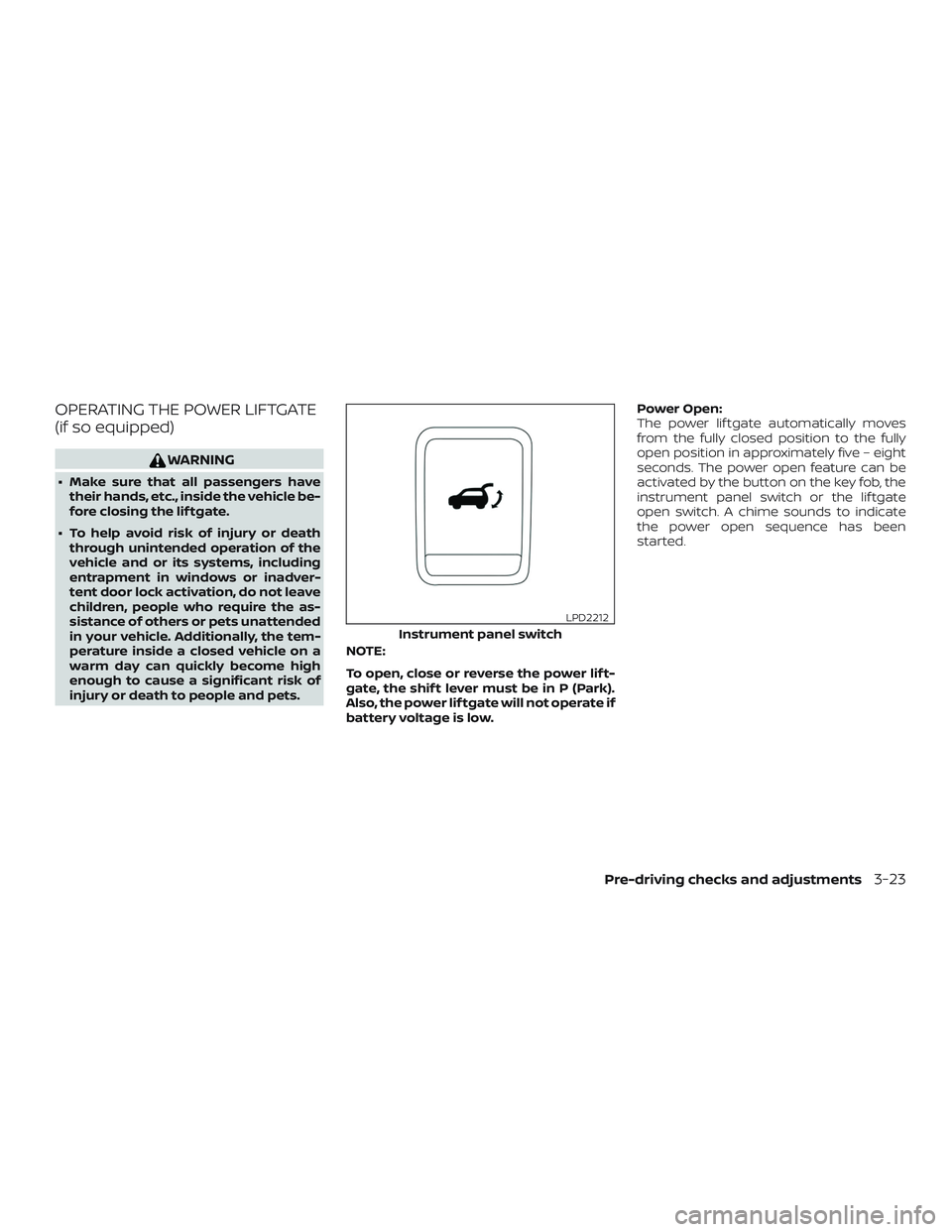

OPERATING THE POWER LIFTGATE
(if so equipped)
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle be-
fore closing the lif tgate.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets. NOTE:
To open, close or reverse the power lif t-
gate, the shif t lever must be in P (Park).
Also, the power lif tgate will not operate if
battery voltage is low. Power Open:
The power lif tgate automatically moves
from the fully closed position to the fully
open position in approximately five – eight
seconds. The power open feature can be
activated by the button on the key fob, the
instrument panel switch or the lif tgate
open switch. A chime sounds to indicate
the power open sequence has been
started.
Instrument panel switch
LPD2212
Pre-driving checks and adjustments3-23
