NISSAN ROGUE SELECT 2014 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2014, Model line: ROGUE SELECT, Model: NISSAN ROGUE SELECT 2014 2.GPages: 323, PDF Size: 3.05 MB
Page 261 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (259,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-53E17982-E39E-49B7-A947-15ED15FB35C8CLEANINGS35-D-110201-73406825-1B4C-487C-8E06-80AA8D836FC2If your windshield is not clear after NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (259,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-53E17982-E39E-49B7-A947-15ED15FB35C8CLEANINGS35-D-110201-73406825-1B4C-487C-8E06-80AA8D836FC2If your windshield is not clear after](/img/5/395/w960_395-260.png)
Black plate (259,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-53E17982-E39E-49B7-A947-15ED15FB35C8CLEANINGS35-D-110201-73406825-1B4C-487C-8E06-80AA8D836FC2If your windshield is not clear after using the

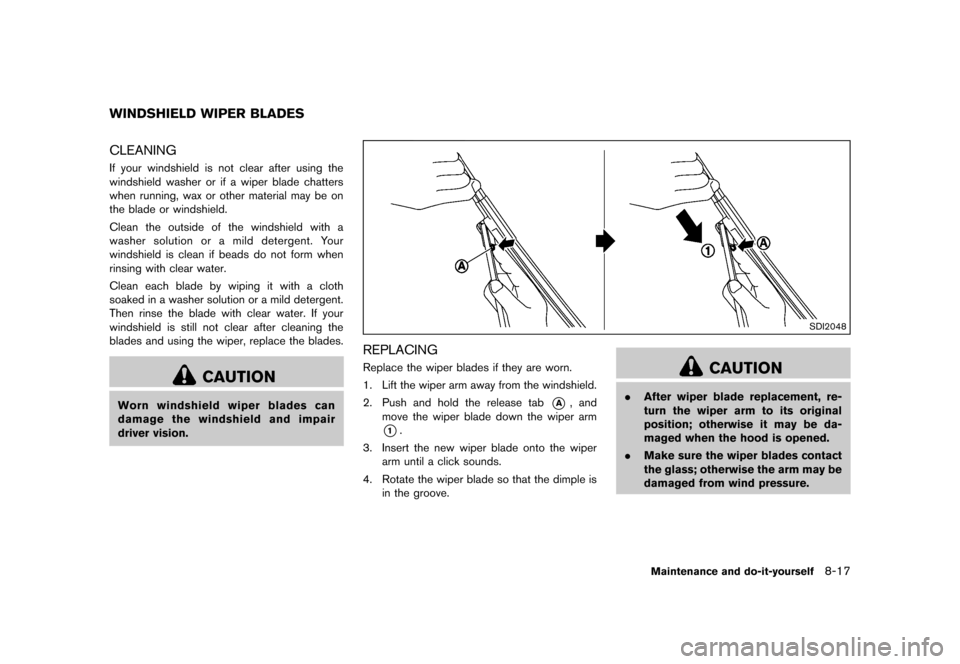

windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild detergent.
Then rinse the blade with clear water. If your
windshield is still not clear after cleaning the
blades and using the wiper, replace the blades.
CAUTION
Worn windshield wiper blades can
damage the windshield and impair
driver vision.
SDI2048
REPLACINGS35-D-110201-4CA420D3-F635-4329-9322-56E2AF5BBC2AReplace the wiper blades if they are worn.
1. Lift the wiper arm away from the windshield.
2. Push and hold the release tab
*A, and
move the wiper blade down the wiper arm
*1.
3. Insert the new wiper blade onto the wiper arm until a click sounds.
4. Rotate the wiper blade so that the dimple is in the groove.
CAUTION
.After wiper blade replacement, re-
turn the wiper arm to its original
position; otherwise it may be da-
maged when the hood is opened.
. Make sure the wiper blades contact
the glass; otherwise the arm may be
damaged from wind pressure.
Maintenance and do-it-yourself8-17
WINDSHIELD WIPER BLADES
Condition:
Page 262 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (260,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-18Maintenance and do-it-yourself

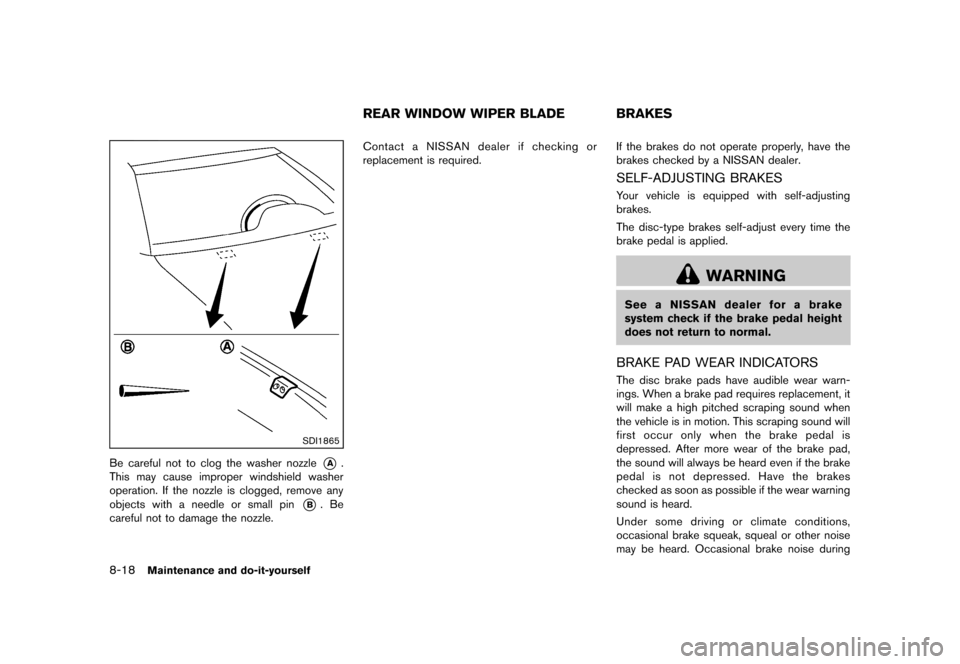

SDI1865
Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If t NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (260,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-18Maintenance and do-it-yourself
SDI1865
Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If t](/img/5/395/w960_395-261.png)
Black plate (260,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-18Maintenance and do-it-yourself
SDI1865
Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B. Be
careful not to damage the nozzle.
S35-D-110201-1FC3D998-09C7-4922-B13A-8E5CB6338E4AContact a NISSAN dealer if checking or
replacement is required.S35-D-110201-B17410A9-2500-4B28-BA04-D63D7380523CIf the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
SELF-ADJUSTING BRAKESS35-D-110201-028DE896-EA01-45A9-899A-FB7698AAB5E4Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake
system check if the brake pedal height
does not return to normal.
BRAKE PAD WEAR INDICATORSS35-D-110201-8E781783-BE59-4675-AE08-8F80EAB3AD6DThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.
Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
REAR WINDOW WIPER BLADE BRAKES
Condition:
Page 263 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (261,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (261,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should](/img/5/395/w960_395-262.png)
Black plate (261,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.For additional information, see the
maintenance log section of your “NISSAN
Service and Maintenance Guide”.
S35-D-110201-72D2AD23-7C13-452F-9C08-5ED0D5BC2474
SDI2107
ENGINE COMPARTMENTS35-D-110201-EF7088A6-CC7C-4081-9EF3-60446453E90D
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Open the engine hood.
3. Remove the air cleaner duct. (See “Engine
compartment check locations” (P.8-6) .)
4. Remove the fuse/fusible link holder cover using a suitable tool
*1and pushing the tab
*2.
5. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
Maintenance and do-it-yourself8-19
FUSES
Condition:
Page 264 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (262,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-20Maintenance and do-it-yourself
SDI1753
6. If the fuse is open*A, replace it with a new
fuse
*B.
7. If a new fuse also opens, have the electr NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (262,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-20Maintenance and do-it-yourself
SDI1753
6. If the fuse is open*A, replace it with a new
fuse
*B.
7. If a new fuse also opens, have the electr](/img/5/395/w960_395-263.png)
Black plate (262,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-20Maintenance and do-it-yourself
SDI1753
6. If the fuse is open*A, replace it with a new
fuse
*B.
7. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible linksS35-D-110201-236AFFF2-6A85-4D86-8CB6-6A361FB7E742If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
SDI2133
PASSENGER COMPARTMENTS35-D-110201-ADA929EC-C7B9-4E8D-B793-60C0DEBB37E3
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Pull to remove the fuse box cover
*1.
3. Remove the fuse with the fuse puller
*2.
Condition:
Page 265 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (263,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SDI1753
4. If the fuse is open*A, replace it with a new
fuse
*B.
5. If a new fuse also opens, have the electrical system checked and repaired by NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (263,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SDI1753
4. If the fuse is open*A, replace it with a new
fuse
*B.
5. If a new fuse also opens, have the electrical system checked and repaired by](/img/5/395/w960_395-264.png)
Black plate (263,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SDI1753
4. If the fuse is open*A, replace it with a new
fuse
*B.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
JVM0089X
Extended storage fuse switch (if so
equipped)
GUID-C7B28862-47E7-4FAE-A01A-DE7370C1F373To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the “Shipping mode
on, Push storage fuse” warning may appear in
the vehicle information display. See “11. Ex-
tended storage fuse warning” (P.2-20) .
If any electrical equipment does not operate,
remove the extended storage switch and check for an open fuse.
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage fuse switch,
be sure the ignition switch is in the “OFF” or
“LOCK” position.
2. Be sure the headlight switch is in the “OFF” position.
3. Remove the fuse box cover.
4. Pinch the storage fuse switch and pull it in the direction illustrated.
Maintenance and do-it-yourself8-21
Condition:
Page 266 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (264,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-22Maintenance and do-it-yourself
S35-D-110201-0DEB0410-1191-4FAE-9DC8-B9019D7525D8
CAUTION
Be careful not to allow children to
swallow the bat NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (264,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-22Maintenance and do-it-yourself
S35-D-110201-0DEB0410-1191-4FAE-9DC8-B9019D7525D8
CAUTION
Be careful not to allow children to
swallow the bat](/img/5/395/w960_395-265.png)
Black plate (264,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-22Maintenance and do-it-yourself
S35-D-110201-0DEB0410-1191-4FAE-9DC8-B9019D7525D8
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
SDI2134
KEYFOBGUID-A56F8FC6-0D6C-4580-A2AB-B2756D83072FReplace the battery in the keyfob as follows:
1. Remove the screw.
2. Insert a small screwdriver into the slit of thecorner and twist it to separate the upper part
from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR1620 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom case.
4. Close the lid securely and install the screw.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
BATTERY REPLACEMENT
Condition:
Page 267 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (265,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

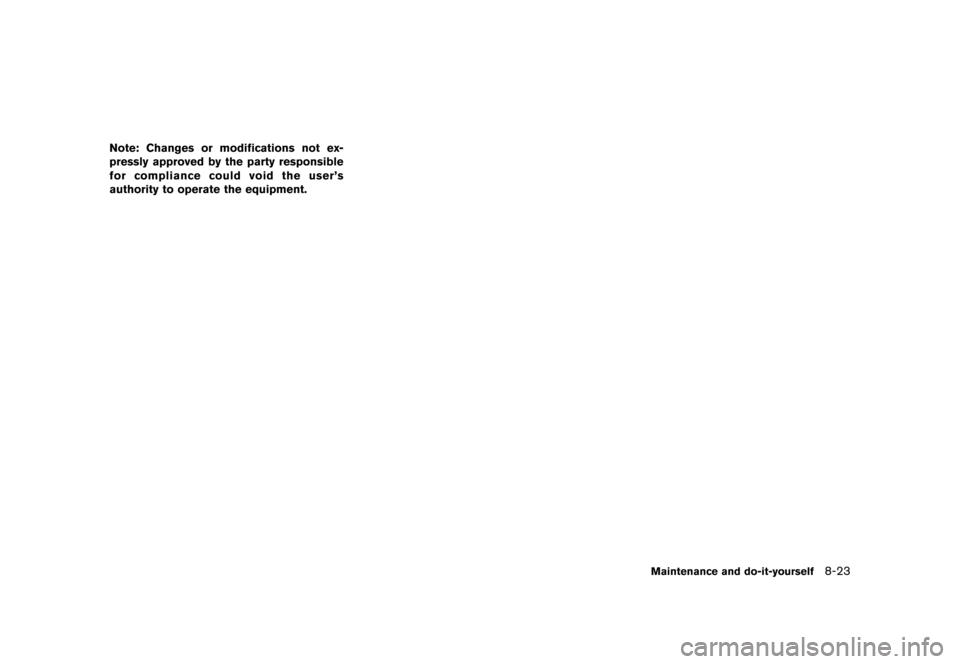

Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (265,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the](/img/5/395/w960_395-266.png)
Black plate (265,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
Maintenance and do-it-yourself8-23
Condition:
Page 268 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (266,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-24Maintenance and do-it-yourself
S35-D-110201-DD4272B1-CED8-4C46-8F26-0A48F1D0C89C
SDI2668
1. Headlight (high-beam)
2. Front turn signal/parki NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (266,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-24Maintenance and do-it-yourself
S35-D-110201-DD4272B1-CED8-4C46-8F26-0A48F1D0C89C
SDI2668
1. Headlight (high-beam)
2. Front turn signal/parki](/img/5/395/w960_395-267.png)

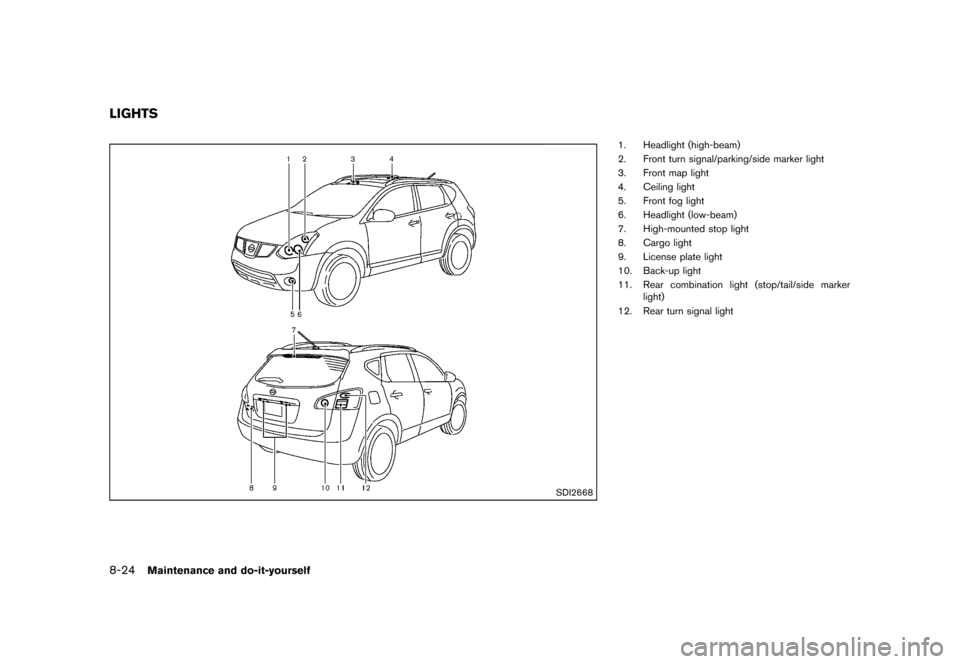

Black plate (266,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-24Maintenance and do-it-yourself
S35-D-110201-DD4272B1-CED8-4C46-8F26-0A48F1D0C89C
SDI2668
1. Headlight (high-beam)
2. Front turn signal/parking/side marker light
3. Front map light
4. Ceiling light
5. Front fog light
6. Headlight (low-beam)
7. High-mounted stop light
8. Cargo light
9. License plate light
10. Back-up light
11.Rear combination light (stop/tail/side marker
light)
12. Rear turn signal light
LIGHTS
Condition:
Page 269 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (267,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
HEADLIGHTSS35-D-110201-FA3BA1AA-EEA0-42B6-9AC0-27B2DC9FEC37Fog may temporarily form inside the lens of the
exterior lights in the rain or in a c NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (267,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
HEADLIGHTSS35-D-110201-FA3BA1AA-EEA0-42B6-9AC0-27B2DC9FEC37Fog may temporarily form inside the lens of the
exterior lights in the rain or in a c](/img/5/395/w960_395-268.png)
Black plate (267,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
HEADLIGHTSS35-D-110201-FA3BA1AA-EEA0-42B6-9AC0-27B2DC9FEC37Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingS35-D-110201-88130121-CB19-405B-AC32-F8B7A74D8318The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust- ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed: Low beam:Wattage: 55
Bulb no.: H11
High beam: Wattage: 60
Bulb no.: HB3
SDI2137
Disconnect the battery negative cable before
replacing bulbs.
*AHigh-beam bulb
*BLow-beam bulb
Maintenance and do-it-yourself8-25
Condition:
Page 270 of 323
![NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (268,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-26Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSS35-D-110201-57CCB661-474F-4B16-A4E0-FA7B38594BB2
ItemWattage (W)Bulb No.
Front t NISSAN ROGUE SELECT 2014 2.G Owners Manual Black plate (268,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-26Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSS35-D-110201-57CCB661-474F-4B16-A4E0-FA7B38594BB2
ItemWattage (W)Bulb No.
Front t](/img/5/395/w960_395-269.png)

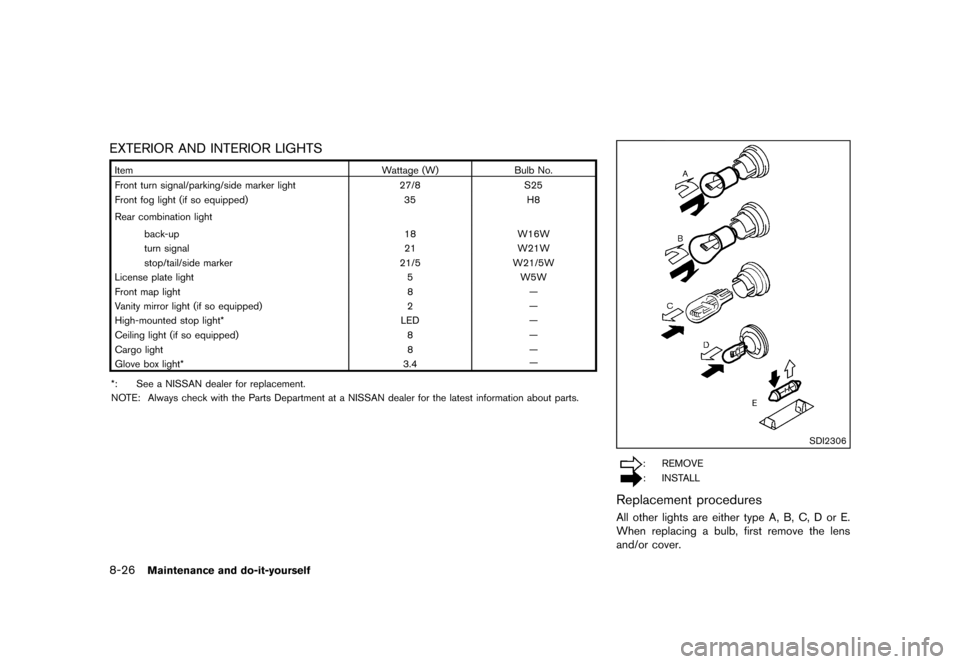

Black plate (268,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-26Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSS35-D-110201-57CCB661-474F-4B16-A4E0-FA7B38594BB2
ItemWattage (W)Bulb No.
Front turn signal/parking/side marker light 27/8S25
Front fog light (if so equipped) 35H8
Rear combination light
back-up 18W16W
turn signal 21W21W
stop/tail/side marker 21/5W21/5W
License plate light 5W5W
Front map light 8—
Vanity mirror light (if so equipped) 2—
High-mounted stop light* LED—
Ceiling light (if so equipped) 8—
Cargo light 8—
Glove box light* 3.4—
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
SDI2306
: REMOVE
: INSTALL
Replacement proceduresS35-D-110201-CFA652EC-DF34-4605-85FA-A4F826DD3B31All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
Condition:
