SEATBACK POCKETS (if so
equipped)
The seatback pockets are located on the back of
the driver’s and passenger’s seats. The pockets
can be used to store maps.
CUP HOLDERS
Adjust the cup holder size by turning the adjust-
ment knob and sliding the cup holder divider to
the desired position.
Type A
LIC1116
Type B
LIC1328
Front
LIC1027
Instruments and controls2-27
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


CAUTION
●Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
●Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Lower the rear center armrest to access the cup
holders.
GLOVE BOX
Open the glove box by pulling the handle.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
Rear (if so equipped)
WIC1097WIC1487
2-28Instruments and controls
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


CONSOLE BOX
To open the console box, press in on the lever1
and raise the lid2.
To close, push the lid down until the lock latches.
COMPACT DISC HOLDER (if so
equipped)
To use the compact disc holder, lower the driver
side visor. The holder can be removed by pulling
down on the tab.
CAUTION
Do not leave compact discs in direct sun-
light. The heat may damage the compact
discs.
TRUNK DIVIDER (if so equipped)
CAUTION
The trunk divider does not contain any
secure locking mechanisms so it should
not be used as a secure storage for
valuables.
The trunk divider allows for the creation of a
hidden storage compartment in the trunk or when
lowered, a temporary storage surface for wet
items.
The trunk divider can be accessed through the
lowering of the rear seats or through the trunk.
LIC1026LIC1028
Instruments and controls2-29
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Once the rear seats have been lowered, the trunk
divider can be opened by pressing down on the
securing latch and pushing the divider toward the
rear of the vehicle. For more information on the
lowering of rear seats, see “Interior trunk access”
in the “Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.Access the trunk divider by opening the trunk. To
remove the trunk divider, press down on securing
latch
1and lower the trunk divider to about 45°.
Pull and lift the divider out of the holding brackets
2to remove from the trunk.
CARGO NET (if so equipped)
WARNING
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
●Be sure to secure all four hooks into the
retainers. The cargo restrained in the
net must not exceed 30 lbs. (13.6 kg) or
the net may not stay secured.
Accessing through rear seats
LIC1030
Accessing through trunk
LIC1031WIC1032
2-30Instruments and controls
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


The cargo net helps keep packages in the cargo
area from moving around while the vehicle is in
motion.
To install the cargo net, attach the net to the
retainers.
To remove the cargo net, detach the net from the
cargo net retainers.
GROCERY HOOKS (if so equipped)
The grocery hooks are located in the trunk and
can be used to hang a standard size plastic
grocery bag.
CAUTION
Do not apply a total load of more than 20
lbs (9 kg) to a single grocery hook.
LIC0802LIC0748
Instruments and controls2-31
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


POWER WINDOWS (if so equipped)
WARNING
●Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch
to prevent unexpected use of the power
windows.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls and become
trapped in a window. Unattended chil-
dren could become involved in serious
accidents.
The power windows operate when the ignition
switch is placed in the ON position, or for about
45 seconds after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
1. Window lock button
2. Power door lock switch
3. Front passenger’s side window switch
4. Right rear passenger’s window switch
5. Left rear passenger’s window switch
6. Driver’s side automatic switch
Driver’s side power window switch
The driver’s side control panel is equipped with
switches to open or close the front and rear
passenger windows.
To open a window, push the switch to the first
detent and continue to hold it down until the
desired window position is reached. To close a
window, pull the switch to the first detent and
continue to hold up until the desired window
position is reached.
WIC1100
WINDOWS
2-32Instruments and controls
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window, push the switch to the first detent
and continue to hold it down until the desired
window position is reached
1. To close the
window, pull the switch to the first detent and
continue to hold it up until the desired window
position is reached
2.
Rear power window switch
The rear power window switches open or close
only the corresponding windows. To open the
window, push the switch and hold it down
1.To
close the window, pull the switch up
2.
Locking passengers’ windows
When the window lock button is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
Automatic operation
To fully open a window equipped with automatic
operation, press the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.
To fully close a window equipped with automatic
operation, pull the switch up to the second detent
and release it; it need not be held. The window
automatically closes all the way. To stop the win-
dow, press the switch down while the window is
closing.
WIC1129LIC0718LIC0410
Instruments and controls2-33
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

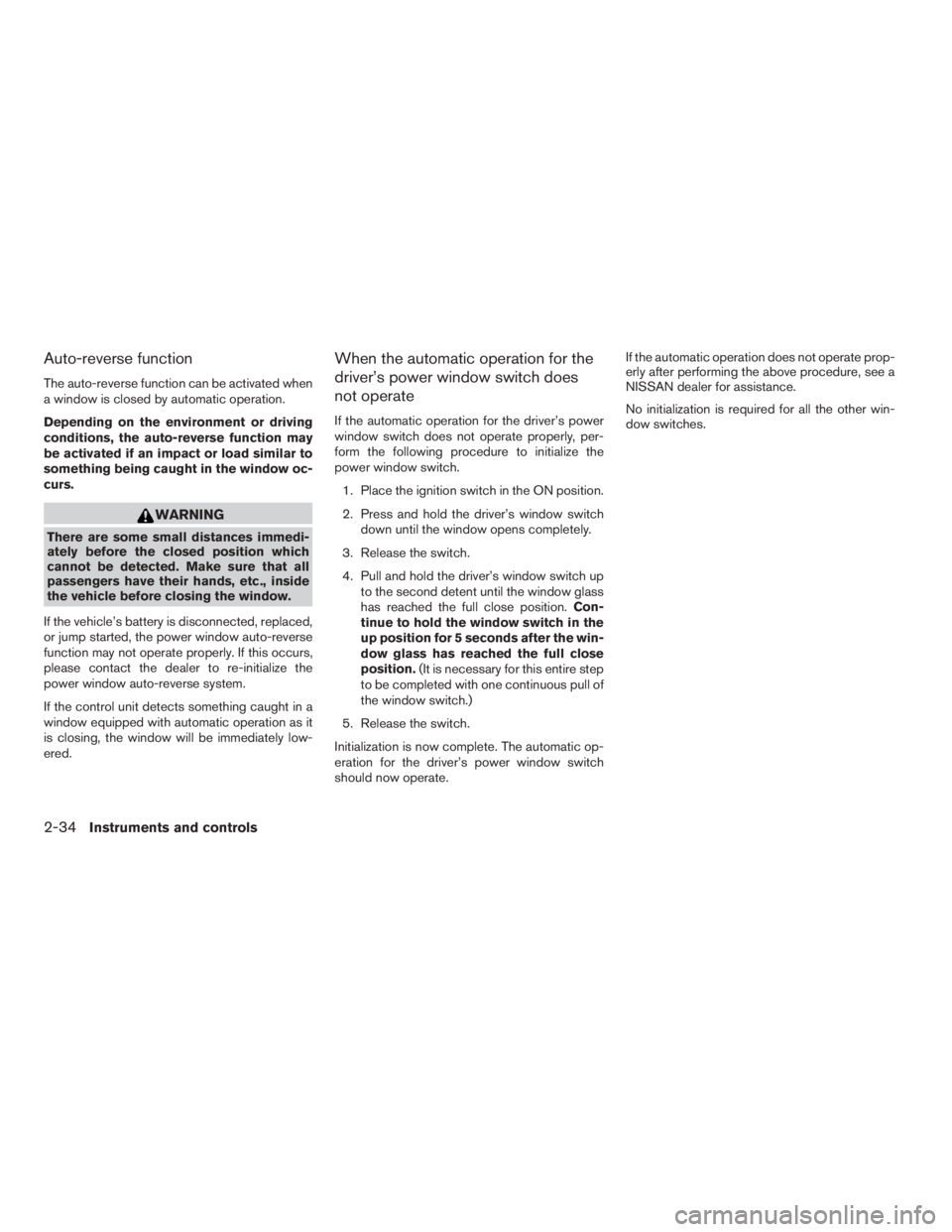

Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact the dealer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
When the automatic operation for the
driver’s power window switch does
not operate
If the automatic operation for the driver’s power
window switch does not operate properly, per-
form the following procedure to initialize the
power window switch.
1. Place the ignition switch in the ON position.
2. Press and hold the driver’s window switch
down until the window opens completely.
3. Release the switch.
4. Pull and hold the driver’s window switch up
to the second detent until the window glass
has reached the full close position.Con-
tinue to hold the window switch in the
up position for 5 seconds after the win-
dow glass has reached the full close
position.(It is necessary for this entire step
to be completed with one continuous pull of
the window switch.)
5. Release the switch.
Initialization is now complete. The automatic op-
eration for the driver’s power window switch
should now operate.If the automatic operation does not operate prop-
erly after performing the above procedure, see a
NISSAN dealer for assistance.
No initialization is required for all the other win-
dow switches.
2-34Instruments and controls
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


MANUAL WINDOWS (if so equipped)
The side windows can be opened or closed by
turning the hand crank on each door.
ELECTRIC MOONROOF
This moonroof only operates with the ignition
switch placed in the ON position.
NOTE:
If the battery is discharged or is discon-
nected, the moonroof may not operate cor-
rectly, and must be reset.
See “Resetting the moonroof switch” later in this
section.
Sliding the moonroof
To open the moonroof, push and hold the switch
toward DOWN/OPEN. The moonroof will stop
when the switch is released or when the moon-
roof is fully open.
To close the moonroof, push and hold the switch
toward UP/CLOSE. The moonroof will stop when
the switch is released or when the moonroof is
fully closed.
Tilting the moonroof
Close the moonroof by pushing and holding the
switch toward UP/CLOSE. Release the switch,
then push and hold the UP/CLOSE switch to tilt
the moonroof up. The moonroof will stop when
the switch is released or when the moonroof
reaches the maximum tilt position.
To tilt the moonroof down, push and hold the
switch toward DOWN/OPEN. The moonroof will
stop when the switch is released or when the
moonroof is fully closed.
WIC0263WIC1482
MOONROOF (if so equipped)
Instruments and controls2-35
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

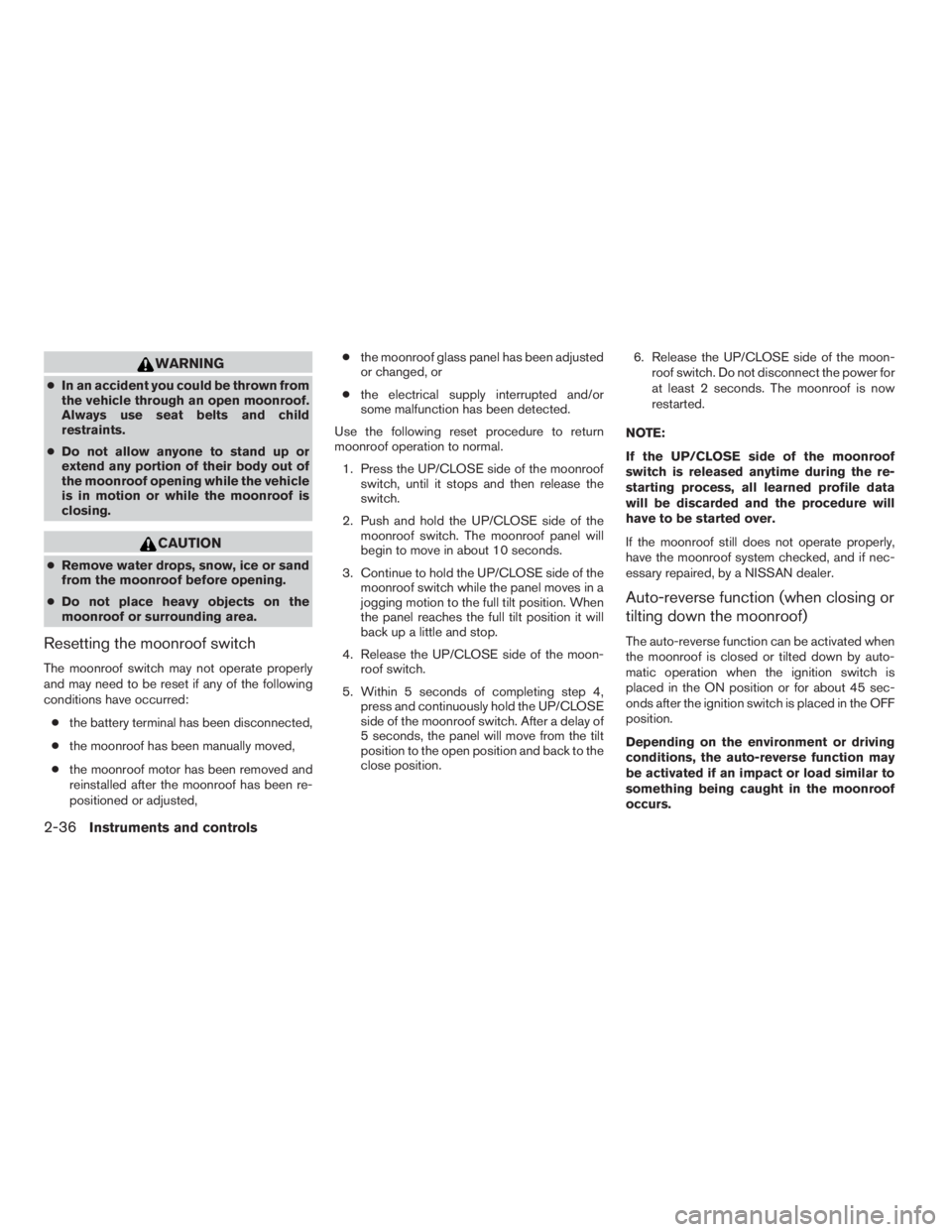

WARNING
●In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
●Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
●Do not place heavy objects on the
moonroof or surrounding area.
Resetting the moonroof switch
The moonroof switch may not operate properly
and may need to be reset if any of the following
conditions have occurred:
●the battery terminal has been disconnected,
●the moonroof has been manually moved,
●the moonroof motor has been removed and
reinstalled after the moonroof has been re-
positioned or adjusted,●the moonroof glass panel has been adjusted
or changed, or
●the electrical supply interrupted and/or
some malfunction has been detected.
Use the following reset procedure to return
moonroof operation to normal.
1. Press the UP/CLOSE side of the moonroof
switch, until it stops and then release the
switch.
2. Push and hold the UP/CLOSE side of the
moonroof switch. The moonroof panel will
begin to move in about 10 seconds.
3. Continue to hold the UP/CLOSE side of the
moonroof switch while the panel moves in a
jogging motion to the full tilt position. When
the panel reaches the full tilt position it will
back up a little and stop.
4. Release the UP/CLOSE side of the moon-
roof switch.
5. Within 5 seconds of completing step 4,
press and continuously hold the UP/CLOSE
side of the moonroof switch. After a delay of
5 seconds, the panel will move from the tilt
position to the open position and back to the
close position.6. Release the UP/CLOSE side of the moon-
roof switch. Do not disconnect the power for
at least 2 seconds. The moonroof is now
restarted.
NOTE:
If the UP/CLOSE side of the moonroof
switch is released anytime during the re-
starting process, all learned profile data
will be discarded and the procedure will
have to be started over.
If the moonroof still does not operate properly,
have the moonroof system checked, and if nec-
essary repaired, by a NISSAN dealer.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for about 45 sec-
onds after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
2-36Instruments and controls
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie
