NISSAN SENTRA 2009 Owner´s Manual

Locking doors
1. Place the ignition switch in the LOCK posi-
tion.
2. Close all doors.
3. Push the
button on the Intelligent
Key.
4. The hazard warning lights flash twice and
the horn beeps once.
5. All doors will be locked.
CAUTION
After locking the doors using the Intelli-
gent Key, be sure that the doors have been
securely locked by operating the door
handles.
Unlocking doors
1. Push thebutton on the Intelligent Key.
2. The hazard warning lights flash once.
3. Push the
button again within 60 sec-
onds to unlock all doors.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the
button.
●Opening any doors.
●Pushing the ignition switch.
●Inserting the mechanical key into the ignition
switch.
WPD0359WPD0360
Pre-driving checks and adjustments3-17
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


The interior light illuminates for a maximum of 30
seconds when a door is unlocked and the room
light switch is in the DOOR position.
The light can be turned off without waiting for 30
seconds by performing one of the following op-
erations.
●Placing the ignition switch in the ON posi-
tion.
●Locking the doors with the remote controller.
●Switching the room light switch to the OFF
position.
Releasing the trunk lid
Push thebutton for longer than 0.5 sec-
onds to open the trunk lid. The trunk release
button will not operate when the ignition switch is
in the ON position.
Using the panic alarm
If you are near your vehicle and feel threatened,
you may activate the panic alarm to call attention
by pushing and holding the
button on the
Intelligent Key forlonger than 0.5 seconds.
The panic alarm and headlights will stay on for 25
seconds.
The panic alarm stops when:
●it has run for 25 seconds, or
●any button is pushed on the Intelligent Key.
●pressing the request switch on the driver or
passenger door with the Intelligent Key in
range of the door handle.
WPD0364WPD0361
3-18Pre-driving checks and adjustments
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Silencing the horn beep feature
If desired, the horn beep feature can be deacti-
vated using the Intelligent Key.
To deactivate:Press and hold the
andbuttonsfor at least 2 seconds.
The hazard warning lights will flash 3 times to
confirm that the horn beep feature has been
deactivated.
To activate:Press and hold the
andbuttonsfor at least 2 seconds
once more.The hazard warning lights will flash once and the
horn will sound once to confirm that the horn
beep feature has been reactivated.
Deactivating the horn beep feature does not si-
lence the horn if the alarm is triggered.
1P (Park) position selecting warning
light (CVT models)
2NISSAN Intelligent Key™ warning light
WARNING LIGHTS AND AUDIBLE
REMINDERS
The Intelligent Key is equipped with a function
that is designed to minimize improper operations
and to help prevent the vehicle from being stolen.
The warning buzzer sounds and the warning light
illuminates when improper operations are de-
tected.
WPD0362WPD0382
Pre-driving checks and adjustments3-19
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

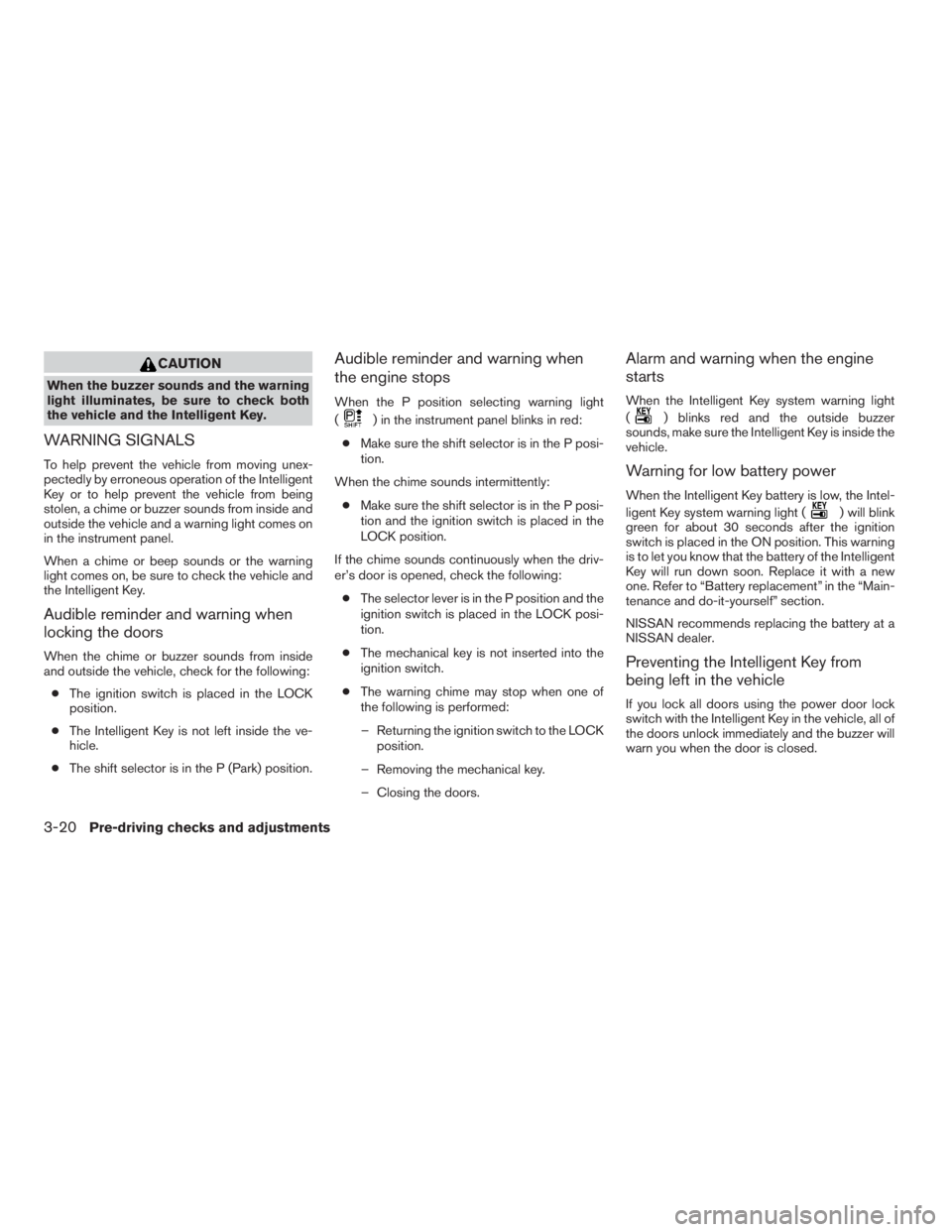

CAUTION
When the buzzer sounds and the warning
light illuminates, be sure to check both
the vehicle and the Intelligent Key.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key or to help prevent the vehicle from being
stolen, a chime or buzzer sounds from inside and
outside the vehicle and a warning light comes on
in the instrument panel.
When a chime or beep sounds or the warning
light comes on, be sure to check the vehicle and
the Intelligent Key.
Audible reminder and warning when
locking the doors
When the chime or buzzer sounds from inside
and outside the vehicle, check for the following:
●The ignition switch is placed in the LOCK
position.
●The Intelligent Key is not left inside the ve-
hicle.
●The shift selector is in the P (Park) position.
Audible reminder and warning when
the engine stops
When the P position selecting warning light
(
) in the instrument panel blinks in red:
●Make sure the shift selector is in the P posi-
tion.
When the chime sounds intermittently:
●Make sure the shift selector is in the P posi-
tion and the ignition switch is placed in the
LOCK position.
If the chime sounds continuously when the driv-
er’s door is opened, check the following:
●The selector lever is in the P position and the
ignition switch is placed in the LOCK posi-
tion.
●The mechanical key is not inserted into the
ignition switch.
●The warning chime may stop when one of
the following is performed:
– Returning the ignition switch to the LOCK
position.
– Removing the mechanical key.
– Closing the doors.
Alarm and warning when the engine
starts
When the Intelligent Key system warning light
(
) blinks red and the outside buzzer
sounds, make sure the Intelligent Key is inside the
vehicle.
Warning for low battery power
When the Intelligent Key battery is low, the Intel-
ligent Key system warning light (
) will blink
green for about 30 seconds after the ignition
switch is placed in the ON position. This warning
is to let you know that the battery of the Intelligent
Key will run down soon. Replace it with a new
one. Refer to “Battery replacement” in the “Main-
tenance and do-it-yourself” section.
NISSAN recommends replacing the battery at a
NISSAN dealer.
Preventing the Intelligent Key from
being left in the vehicle
If you lock all doors using the power door lock
switch with the Intelligent Key in the vehicle, all of
the doors unlock immediately and the buzzer will
warn you when the door is closed.
3-20Pre-driving checks and adjustments
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

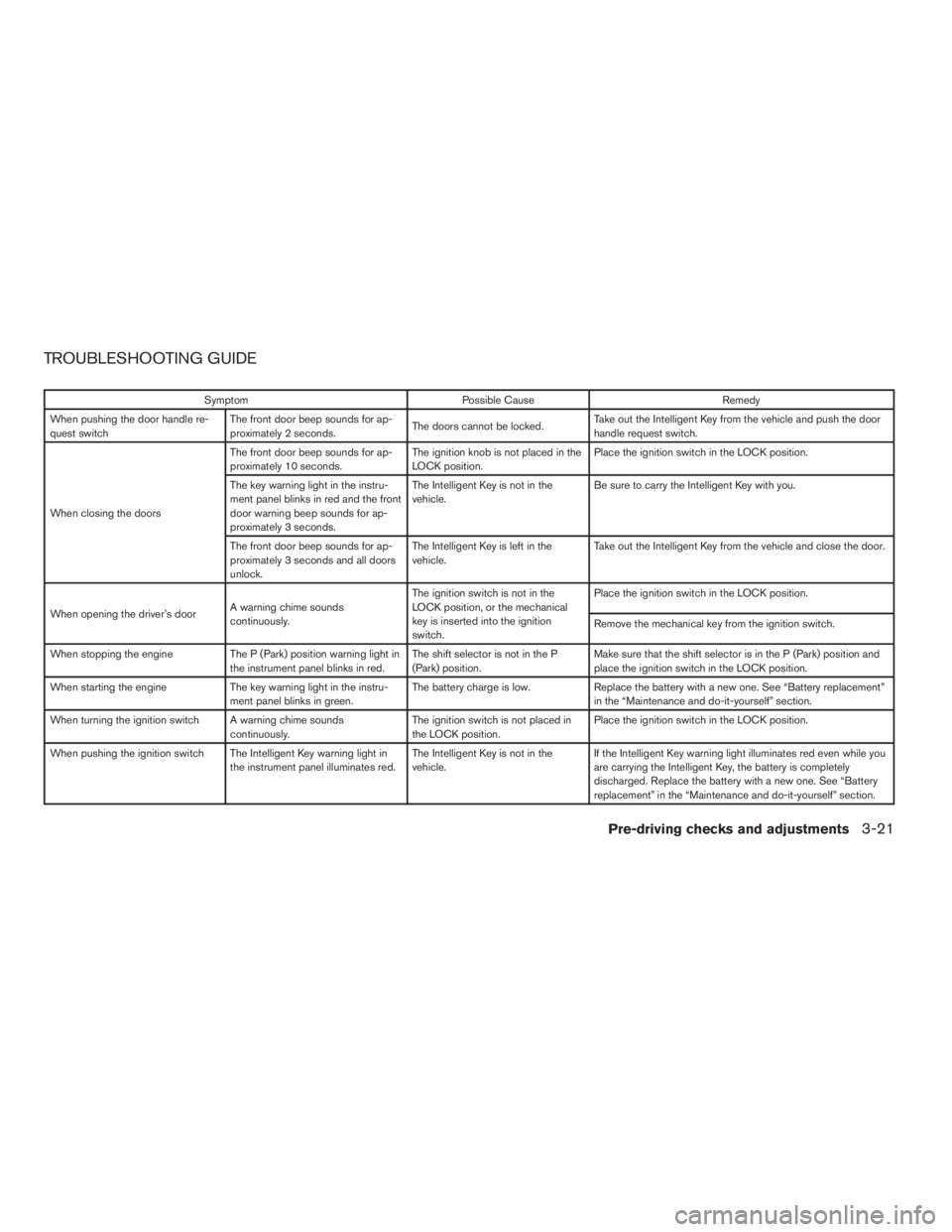

TROUBLESHOOTING GUIDE
Symptom Possible Cause Remedy
When pushing the door handle re-
quest switchThe front door beep sounds for ap-
proximately 2 seconds.The doors cannot be locked.Take out the Intelligent Key from the vehicle and push the door
handle request switch.
When closing the doorsThe front door beep sounds for ap-
proximately 10 seconds.The ignition knob is not placed in the
LOCK position.Place the ignition switch in the LOCK position.
The key warning light in the instru-
ment panel blinks in red and the front
door warning beep sounds for ap-
proximately 3 seconds.The Intelligent Key is not in the
vehicle.Be sure to carry the Intelligent Key with you.
The front door beep sounds for ap-
proximately 3 seconds and all doors
unlock.The Intelligent Key is left in the
vehicle.Take out the Intelligent Key from the vehicle and close the door.
When opening the driver’s doorA warning chime sounds
continuously.The ignition switch is not in the
LOCK position, or the mechanical
key is inserted into the ignition
switch.Place the ignition switch in the LOCK position.
Remove the mechanical key from the ignition switch.
When stopping the engine The P (Park) position warning light in
the instrument panel blinks in red.The shift selector is not in the P
(Park) position.Make sure that the shift selector is in the P (Park) position and
place the ignition switch in the LOCK position.
When starting the engine The key warning light in the instru-
ment panel blinks in green.The battery charge is low. Replace the battery with a new one. See “Battery replacement”
in the “Maintenance and do-it-yourself” section.
When turning the ignition switch A warning chime sounds
continuously.The ignition switch is not placed in
the LOCK position.Place the ignition switch in the LOCK position.
When pushing the ignition switch The Intelligent Key warning light in
the instrument panel illuminates red.The Intelligent Key is not in the
vehicle.If the Intelligent Key warning light illuminates red even while you
are carrying the Intelligent Key, the battery is completely
discharged. Replace the battery with a new one. See “Battery
replacement” in the “Maintenance and do-it-yourself” section.
Pre-driving checks and adjustments3-21
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

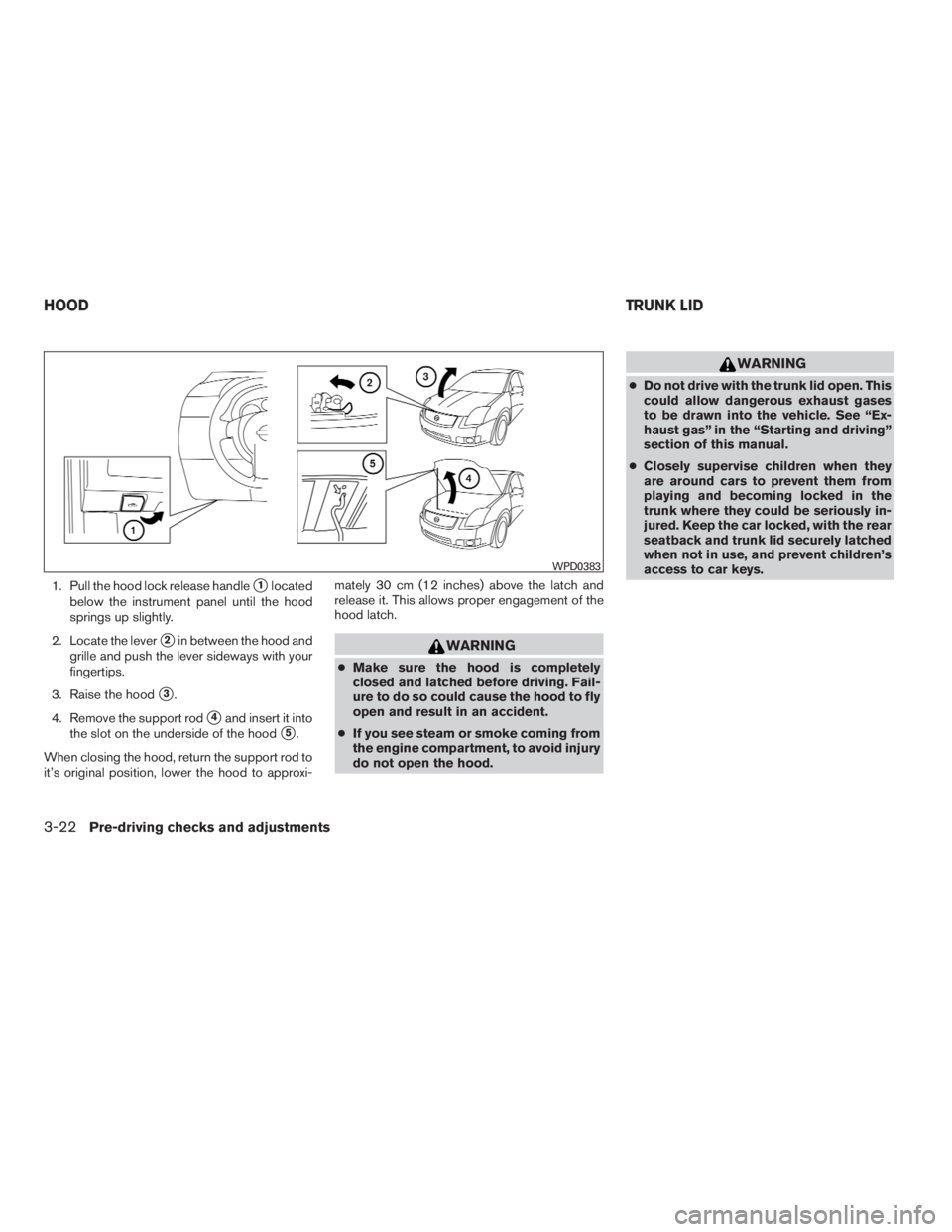

1. Pull the hood lock release handle1located
below the instrument panel until the hood
springs up slightly.
2. Locate the lever
2in between the hood and
grille and push the lever sideways with your
fingertips.
3. Raise the hood
3.
4. Remove the support rod
4and insert it into
the slot on the underside of the hood
5.
When closing the hood, return the support rod to
it’s original position, lower the hood to approxi-mately 30 cm (12 inches) above the latch and
release it. This allows proper engagement of the
hood latch.
WARNING
●Make sure the hood is completely
closed and latched before driving. Fail-
ure to do so could cause the hood to fly
open and result in an accident.
●If you see steam or smoke coming from
the engine compartment, to avoid injury
do not open the hood.
WARNING
●Do not drive with the trunk lid open. This
could allow dangerous exhaust gases
to be drawn into the vehicle. See “Ex-
haust gas” in the “Starting and driving”
section of this manual.
●Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
WPD0383
HOODTRUNK LID
3-22Pre-driving checks and adjustments
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

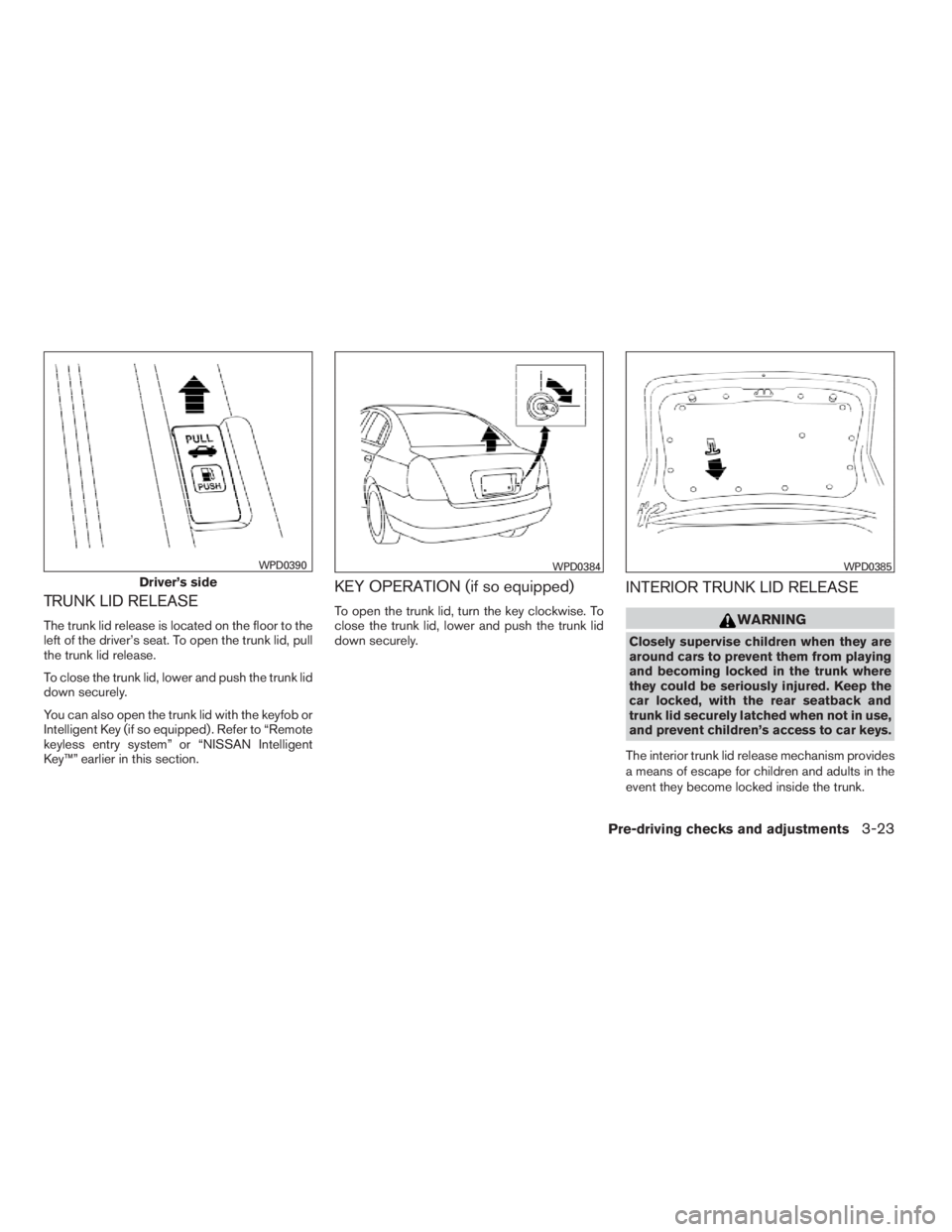

TRUNK LID RELEASE
The trunk lid release is located on the floor to the
left of the driver’s seat. To open the trunk lid, pull
the trunk lid release.
To close the trunk lid, lower and push the trunk lid
down securely.
You can also open the trunk lid with the keyfob or
Intelligent Key (if so equipped) . Refer to “Remote
keyless entry system” or “NISSAN Intelligent
Key™” earlier in this section.
KEY OPERATION (if so equipped)
To open the trunk lid, turn the key clockwise. To
close the trunk lid, lower and push the trunk lid
down securely.
INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where
they could be seriously injured. Keep the
car locked, with the rear seatback and
trunk lid securely latched when not in use,
and prevent children’s access to car keys.
The interior trunk lid release mechanism provides
a means of escape for children and adults in the
event they become locked inside the trunk.
Driver’s side
WPD0390WPD0384WPD0385
Pre-driving checks and adjustments3-23
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

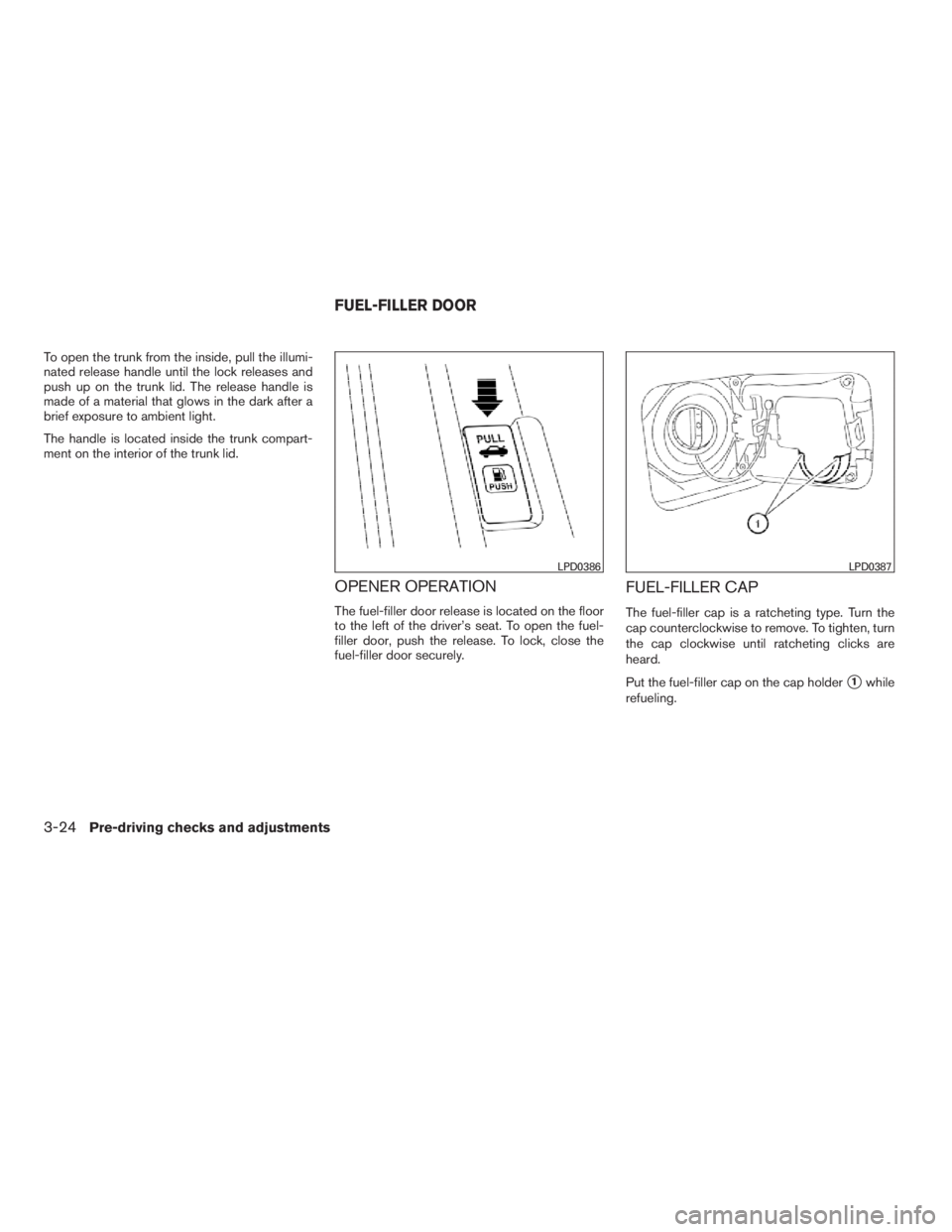

To open the trunk from the inside, pull the illumi-
nated release handle until the lock releases and
push up on the trunk lid. The release handle is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle is located inside the trunk compart-
ment on the interior of the trunk lid.
OPENER OPERATION
The fuel-filler door release is located on the floor
to the left of the driver’s seat. To open the fuel-
filler door, push the release. To lock, close the
fuel-filler door securely.
FUEL-FILLER CAP
The fuel-filler cap is a ratcheting type. Turn the
cap counterclockwise to remove. To tighten, turn
the cap clockwise until ratcheting clicks are
heard.
Put the fuel-filler cap on the cap holder
1while
refueling.
LPD0386LPD0387
FUEL-FILLER DOOR
3-24Pre-driving checks and adjustments
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

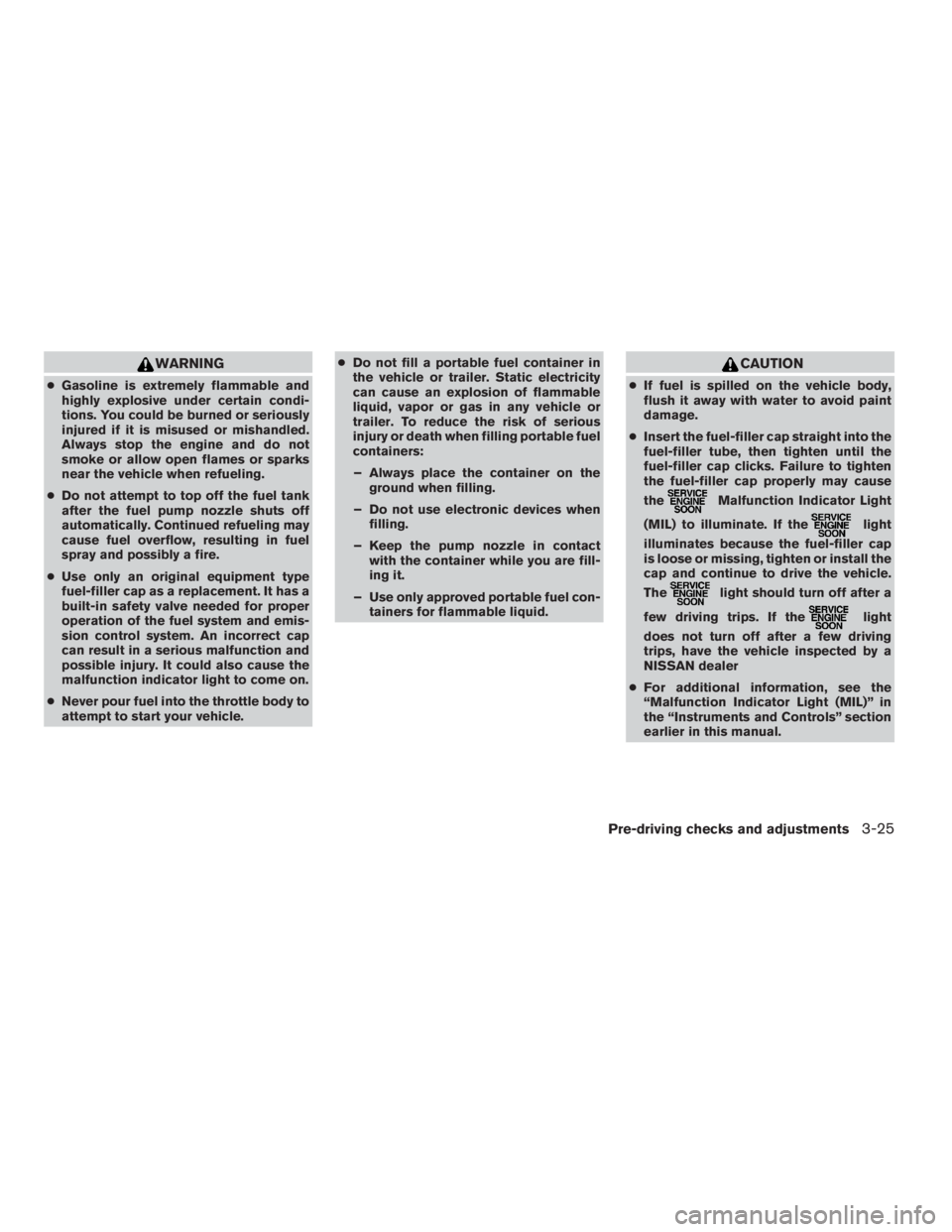

WARNING
●Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled.
Always stop the engine and do not
smoke or allow open flames or sparks
near the vehicle when refueling.
●Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
●Use only an original equipment type
fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emis-
sion control system. An incorrect cap
can result in a serious malfunction and
possible injury. It could also cause the
malfunction indicator light to come on.
●Never pour fuel into the throttle body to
attempt to start your vehicle.●Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
– Always place the container on the
ground when filling.
– Do not use electronic devices when
filling.
– Keep the pump nozzle in contact
with the container while you are fill-
ing it.
– Use only approved portable fuel con-
tainers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
●Insert the fuel-filler cap straight into the
fuel-filler tube, then tighten until the
fuel-filler cap clicks. Failure to tighten
the fuel-filler cap properly may cause
the
Malfunction Indicator Light
(MIL) to illuminate. If the
light
illuminates because the fuel-filler cap
is loose or missing, tighten or install the
cap and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light
does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer
●For additional information, see the
“Malfunction Indicator Light (MIL)” in
the “Instruments and Controls” section
earlier in this manual.
Pre-driving checks and adjustments3-25
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


TILT OPERATION
Push the lock lever1down and adjust the
steering wheel up or down
2to the desired
position.
Pull the lock lever up to lock the steering wheel in
place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.To block out glare from the front, swing down the
sun visor1.
To block glare from the side, disconnect the sun
visor from the center mount and swing it to the
side
2.
VANITY MIRRORS (if so equipped)
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. Some vanity
mirrors are illuminated and turn on when the
mirror cover is open.
LPD0388
SIC2872
LPD0389
STEERING WHEEL SUN VISORS
3-26Pre-driving checks and adjustments
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie
