NISSAN SENTRA 2009 Owner´s Manual

REARVIEW MIRROR
The night position1reduces glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
Electric control type (if so equipped)
The outside mirror remote control only operates
when the ignition switch is in the ACC or ON
position.
Rotate the control lever to select the right or left
mirror. Adjust the mirror to the desired position by
moving the control lever.
WPD0126WPD0274
MIRRORS
Pre-driving checks and adjustments3-27
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Manual control type (if so equipped)
The outside mirror can be moved in any direction
for a better rear view.
Heated mirrors (Canada only)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. Press the
rear window defroster switch to activate the heat-
ing function. Press the switch again to deactivate,
or the heating function will automatically turn off
after approximately 15 minutes.
LPD0029
3-28Pre-driving checks and adjustments
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie

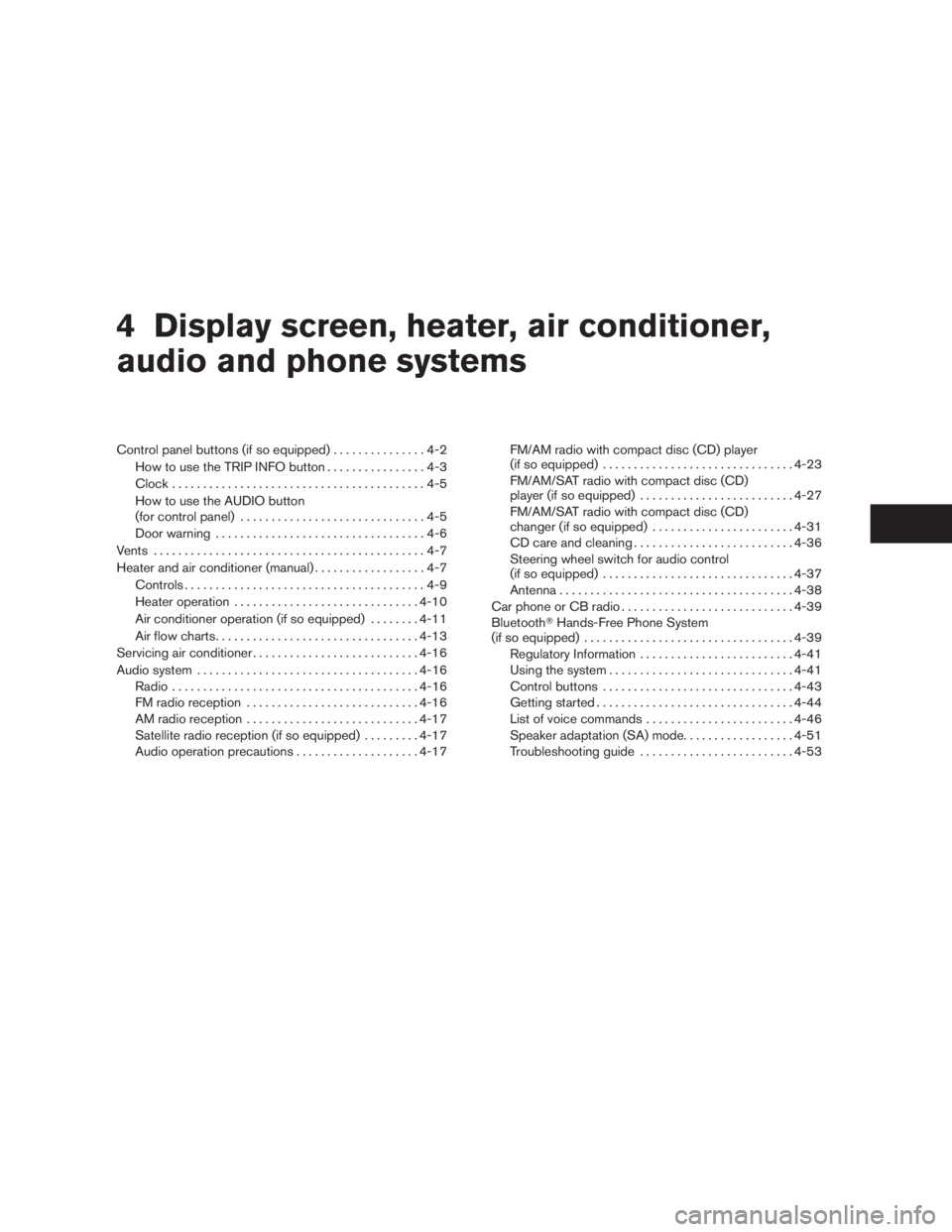

4 Display screen, heater, air conditioner,
audio and phone systems
Control panel buttons (if so equipped)...............4-2
How to use the TRIP INFO button................4-3
Clock.........................................4-5
How to use the AUDIO button
(for control panel)..............................4-5
Door warning..................................4-6
Vents............................................4-7
Heater and air conditioner (manual)..................4-7
Controls.......................................4-9
Heater operation..............................4-10
Air conditioner operation (if so equipped)........4-11
Air flow charts.................................4-13
Servicing air conditioner...........................4-16
Audio system . . ..................................4-16
Radio........................................4-16
FM radio reception............................4-16
AM radio reception............................4-17
Satellite radio reception (if so equipped).........4-17
Audio operation precautions....................4-17FM/AM radio with compact disc (CD) player
(if so equipped)...............................4-23
FM/AM/SAT radio with compact disc (CD)
player (if so equipped).........................4-27
FM/AM/SAT radio with compact disc (CD)
changer (if so equipped) . . .....................4-31
CD care and cleaning..........................4-36
Steering wheel switch for audio control
(if so equipped)...............................4-37
Antenna......................................4-38
Car phone or CB radio............................4-39
BluetoothHands-Free Phone System
(if so equipped)..................................4-39
Regulatory Information.........................4-41
Using the system..............................4-41
Control buttons...............................4-43
Getting started................................4-44
List of voice commands........................4-46
Speaker adaptation (SA) mode..................4-51
Troubleshooting guide.........................4-53
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


WARNING
●Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
●Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
●In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
WHA0700

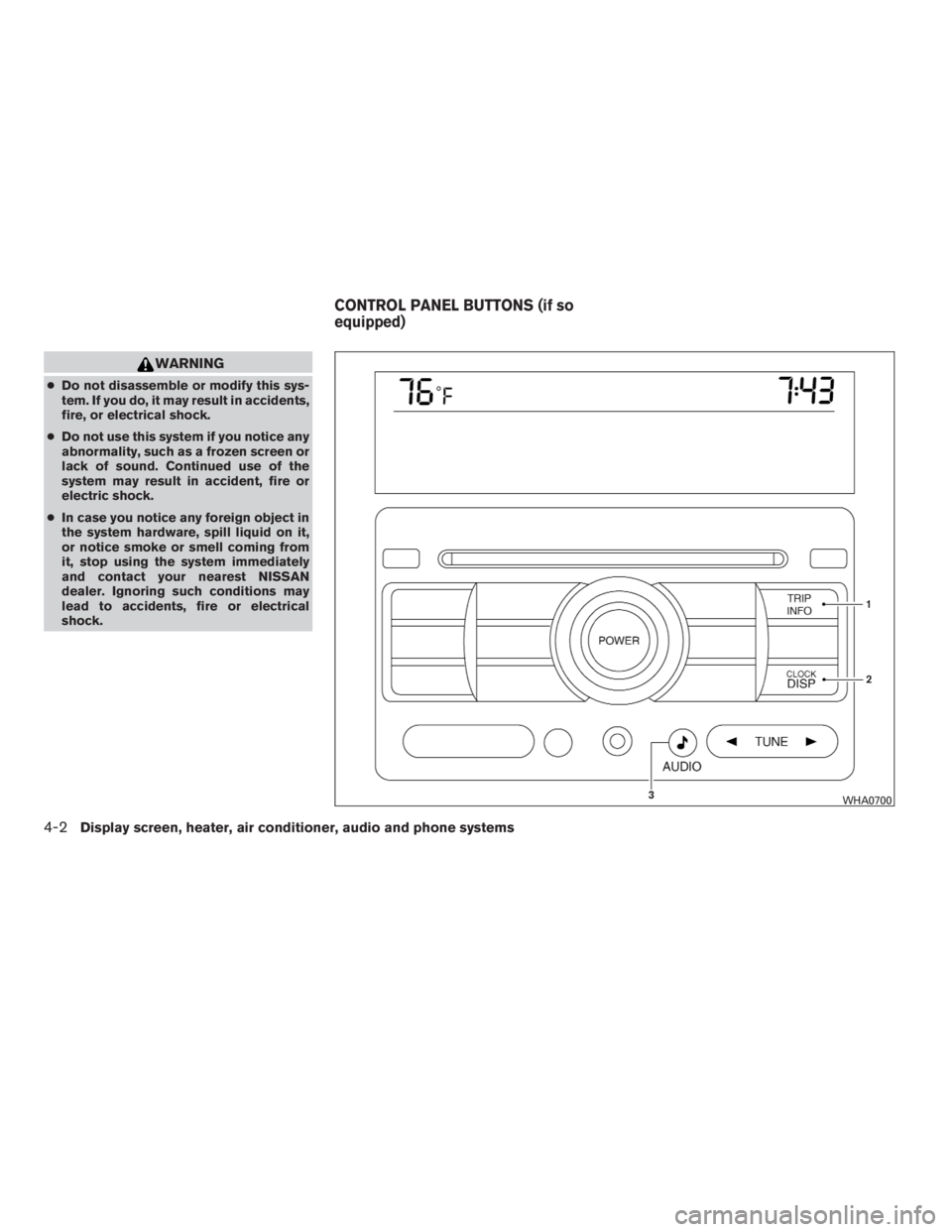

CONTROL PANEL BUTTONS (if so
equipped)
4-2Display screen, heater, air conditioner, audio and phone systems
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


1. TRIP INFO button (P. 4-3)
2. CLOCK DISP button (P. 4-5)
3.
AUDIO button (P. 4-5)
CAUTION
●The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass breaks, do
not touch the liquid crystalline material,
which contains a small amount of mer-
cury. In case of contact with skin, wash
immediately with soap and water.
●To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
●Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.Reference symbols:
TRIP INFO button — This is a button on the
control panel. By pressing this button you can
select the item or perform this action.HOW TO USE THE TRIP INFO
BUTTON
When the TRIP INFO button is pressed, the
following modes will display on the screen.
Dist. to Empty→Average Speed→Fuel
Economy→Trip Time→Audio→Dist. to Empty
Distance to empty (MI or km)
The Distance To Empty (DTE) mode provides you
with an estimation of the distance that can be
driven before refueling. The DTE is constantly
calculated based on the amount of fuel in the fuel
tank and the actual fuel consumption. The display
is updated every 30 seconds. When the fuel level
is low, the DTE display will change to — .
WHA0701
Display screen, heater, air conditioner, audio and phone systems4-3
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/27/08—tbrooks


NOTE:
●If the amount of fuel added while the ignition
switch is OFF is small, the display just before
the ignition switch is turned OFF may con-
tinue to be displayed.
●When driving uphill or rounding curves, the
fuel in the tank shifts, which may momentarily
change the display.
Average speed (MPH or km/h)
The Average Speed mode shows the average
speed since the last reset. To calculate the aver-
age speed, driving distance is divided by driving
time.
For approximately the first 30 seconds after a
reset or reconnecting the battery cables, the
display will show —.
Resetting average speed
The average speed calculation can be reset to 0.
Press the TRIP INFO button for more than ap-
proximately 2 seconds.
Fuel economy (MPG or L/100 km)
The Fuel Economy mode shows the average fuel
economy since the last reset.
For approximately the first 30 seconds and 1/3
mile (500 m) after a reset or connecting the
battery cables, the display will show —.
Resetting fuel economy
The fuel economy calculation can be reset to 0.
Press the TRIP INFO button for more than ap-
proximately 2 seconds.
WHA0702WHA0703
4-4Display screen, heater, air conditioner, audio and phone systems
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Trip time
The trip time mode displays the trip time since the
last reset.
The maximum time that can be displayed by the
Trip Time screen is 99 hours : 59 minutes : 59
seconds.
Resetting trip time
The Trip Time calculation can be reset to 0. Press
the TRIP INFO button for more than approxi-
mately 2 seconds.
CLOCK
The digital clock displays the time when the igni-
tion switch is in the ACC or ON position.
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
Adjusting the time
To adjust the time, press and hold the CLOCK
DISP button for more than approximately 1.5
seconds. Hour Adjust will appear on the screen
and the hours will start flashing.
Press the SEEK or TUNE button to adjust the
hour.
Press the CLOCK DISP button again. Minute
Adjust will appear on the screen and the minutes
will start flashing.
Press the SEEK or TUNE button to adjust the
minutes.
Press the CLOCK DISP button again. Clock Is
Set will appear on the screen.NOTE:
If you enter the clock adjustment mode and
do not press any button for approximately 7
seconds, the screen will change to Clock Is
Set. The screen will exit out of the clock
adjustment mode and return to the audio or
off screen.
HOW TO USE THE AUDIO BUTTON
(for control panel)
The audio system must be turned on to access
this menu.
Pressing the
AUDIO button will change
the settings menu as follows:
Bass→Mid→Treble→Fade→Balance→
Speed Sense Volume→Beep ON/OFF→Lan-
guage→Audio→Bass
For additional information, see “Audio System”
later in this section.
Beep on/off
To turn off the beep, press the TUNE button to
select “OFF”. This will disable the beep sound
during menu selection (except some caution
beep sounds) .
WHA0704
Display screen, heater, air conditioner, audio and phone systems4-5
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Language
The language can be changed to “English”,
“Français” or “Español” by pressing the TUNE
button.
DOOR WARNING
The DOOR OPEN screen will be automatically
displayed any time a door or the trunk is open and
the ignition switch is in the ACC or ON position.
If the door is open for longer than 10 seconds the
screen will no longer display which door is open,
but the DOOR OPEN warning will remain until
the door is closed.
WHA0705
4-6Display screen, heater, air conditioner, audio and phone systems
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


Adjust air flow direction for the driver’s and pas-
senger’s side
1, and center2ventilators by
moving the ventilator slide and/or ventilator as-
semblies.
Open or close the ventilators
1by using the dial.
Move the dial toward the
to open the ven-
tilators or toward the
to close them.
WARNING
●The air conditioner cooling function op-
erates only when the engine is running.
●Do not leave children or adults who
would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
●Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
WHA0772
VENTSHEATER AND AIR CONDITIONER
(manual)
Display screen, heater, air conditioner, audio and phone systems4-7
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie


1. Fan control dial
2. Air recirculation button
3. Temperature control dial
4. Air flow control dial
5. Rear window defroster
Type A
WHA0470
4-8Display screen, heater, air conditioner, audio and phone systems
REVIEW COPY—2009 Sentra(sen)
Owners Manual—USA_English(nna)
10/23/08—debbie
