Page 181 of 402

NISSAN SENTRA 2015 B17 / 7.G Owners Manual LHA2513LHA2514
4-22Monitor, climate, audio, phone and voice recognition systems

Page 182 of 402

NISSAN SENTRA 2015 B17 / 7.G Owners Manual LHA3535
Monitor, climate, audio, phone and voice recognition systems4-23

Page 183 of 402

NISSAN SENTRA 2015 B17 / 7.G Owners Manual 1. Temperature control buttons (driver’sside)
2.
(front defroster) button
3.
(rear window and outside mirror
defroster) switch 4. Display screen
5. MODE (manual air flow control) button
6.
Fresh air

Page 184 of 402

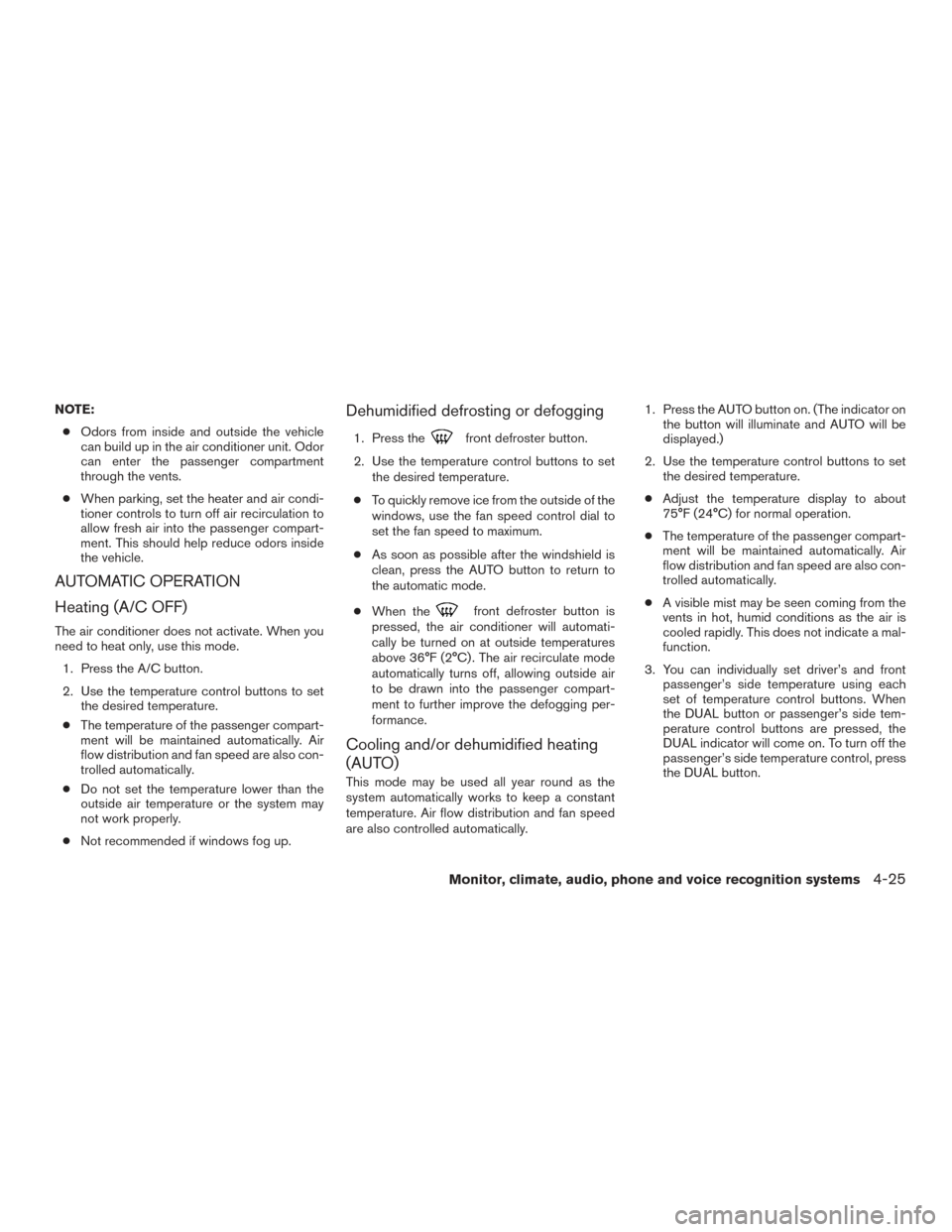

NISSAN SENTRA 2015 B17 / 7.G Owners Manual NOTE:● Odors from inside and outside the vehicle
can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.
● When parking, set the heater and air condi-

Page 185 of 402

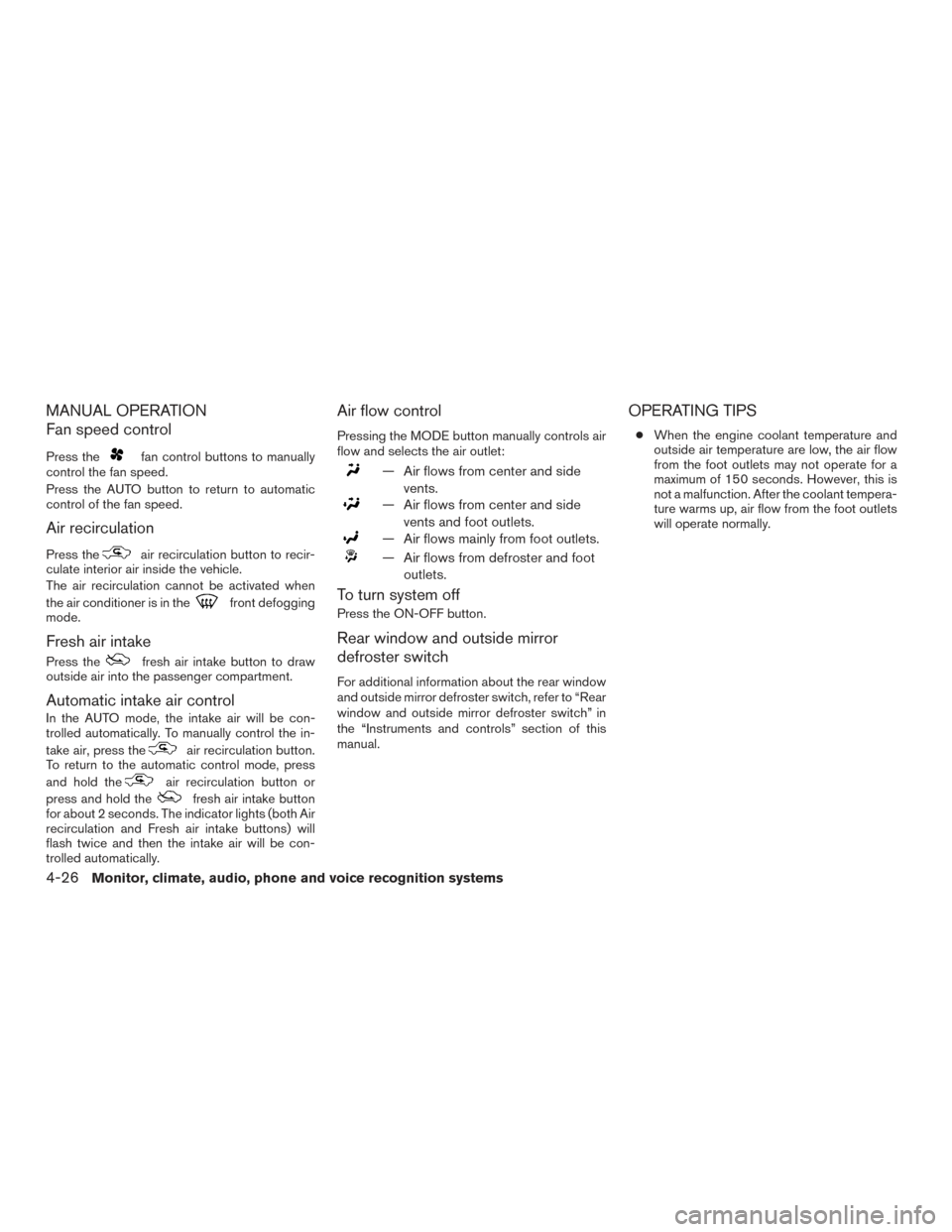

NISSAN SENTRA 2015 B17 / 7.G Owners Manual MANUAL OPERATION
Fan speed control
Press thefan control buttons to manually
control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed.
Air recirculation
Press theair

Page 186 of 402

NISSAN SENTRA 2015 B17 / 7.G Owners Manual The sunload sensor (if so equipped) , located on
the top passenger’s side of the instrument panel,
helps the system maintain a constant tempera-
ture. Do not put anything on or around this sen-
sor.

Page 187 of 402

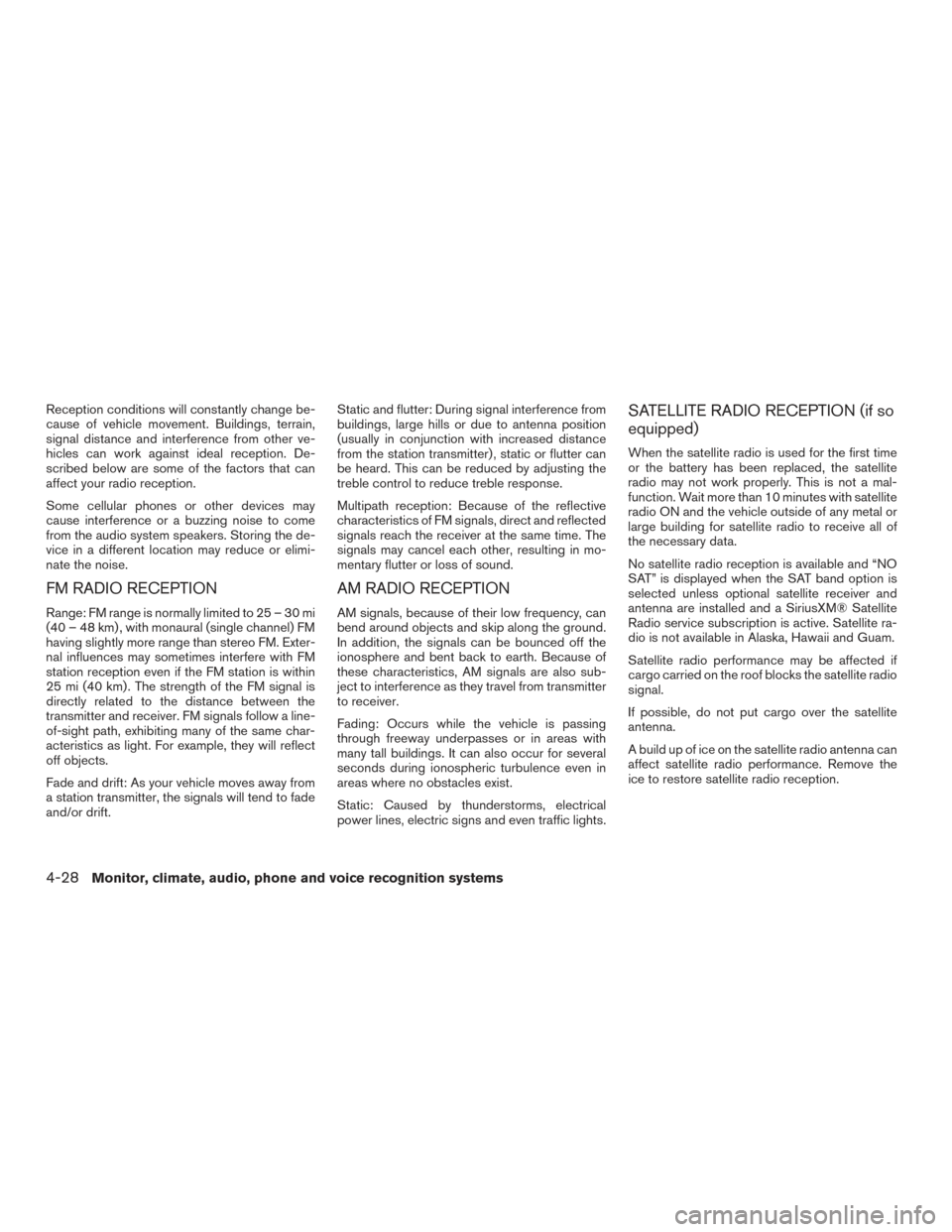

NISSAN SENTRA 2015 B17 / 7.G Owners Manual Reception conditions will constantly change be-
cause of vehicle movement. Buildings, terrain,
signal distance and interference from other ve-
hicles can work against ideal reception. De-
scribed belo

Page 188 of 402

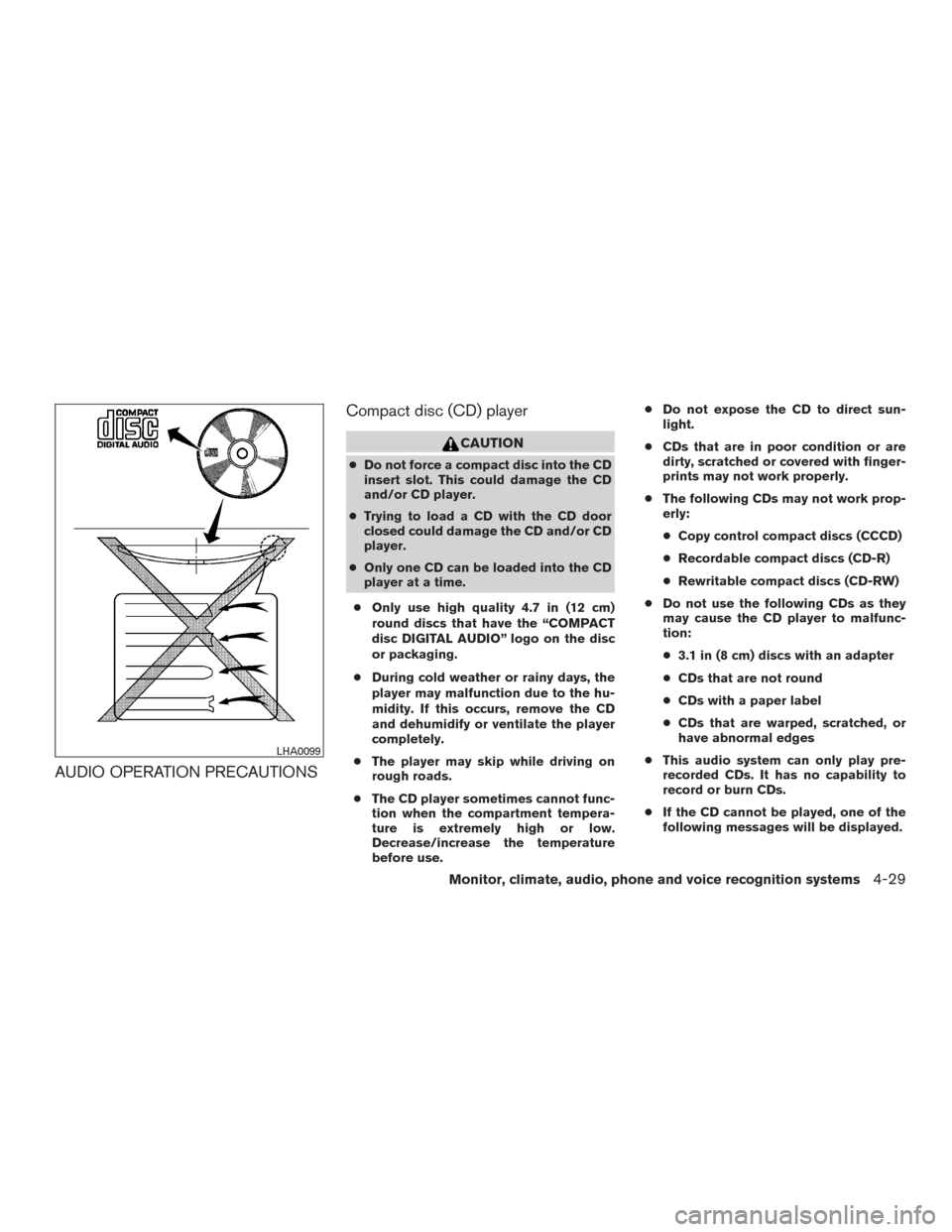

NISSAN SENTRA 2015 B17 / 7.G Owners Manual AUDIO OPERATION PRECAUTIONSCompact disc (CD) player
CAUTION
●
Do not force a compact disc into the CD
insert slot. This could damage the CD
and/or CD player.
● Trying to load a CD with the CD door

Page 189 of 402

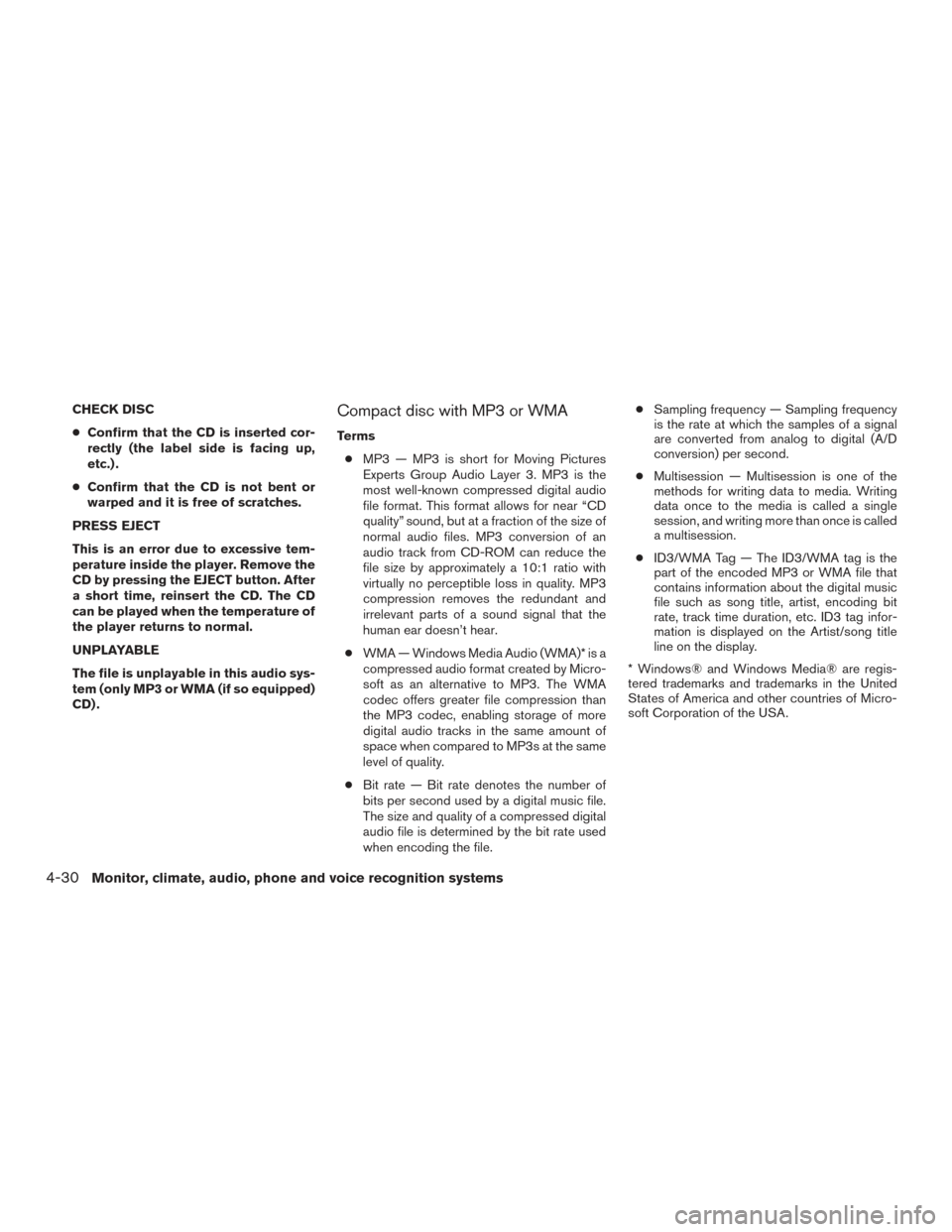

NISSAN SENTRA 2015 B17 / 7.G Owners Manual CHECK DISC
●Confirm that the CD is inserted cor-
rectly (the label side is facing up,
etc.) .
● Confirm that the CD is not bent or
warped and it is free of scratches.
PRESS EJECT
This is an error

Page 190 of 402

NISSAN SENTRA 2015 B17 / 7.G Owners Manual Playback order
Music playback order of a CD with MP3 or WMA
files is as illustrated.● The names of folders not containing MP3 or
WMA files are not shown in the display.
● If there is a file in the
