NISSAN TEANA 2003 Service Manual

WARNING LAMPS
DI-35
C
D
E
F
G
H
I
J
L
MA
B
DI

WARNING LAMPSPFP:24814
System DescriptionBKS003R5

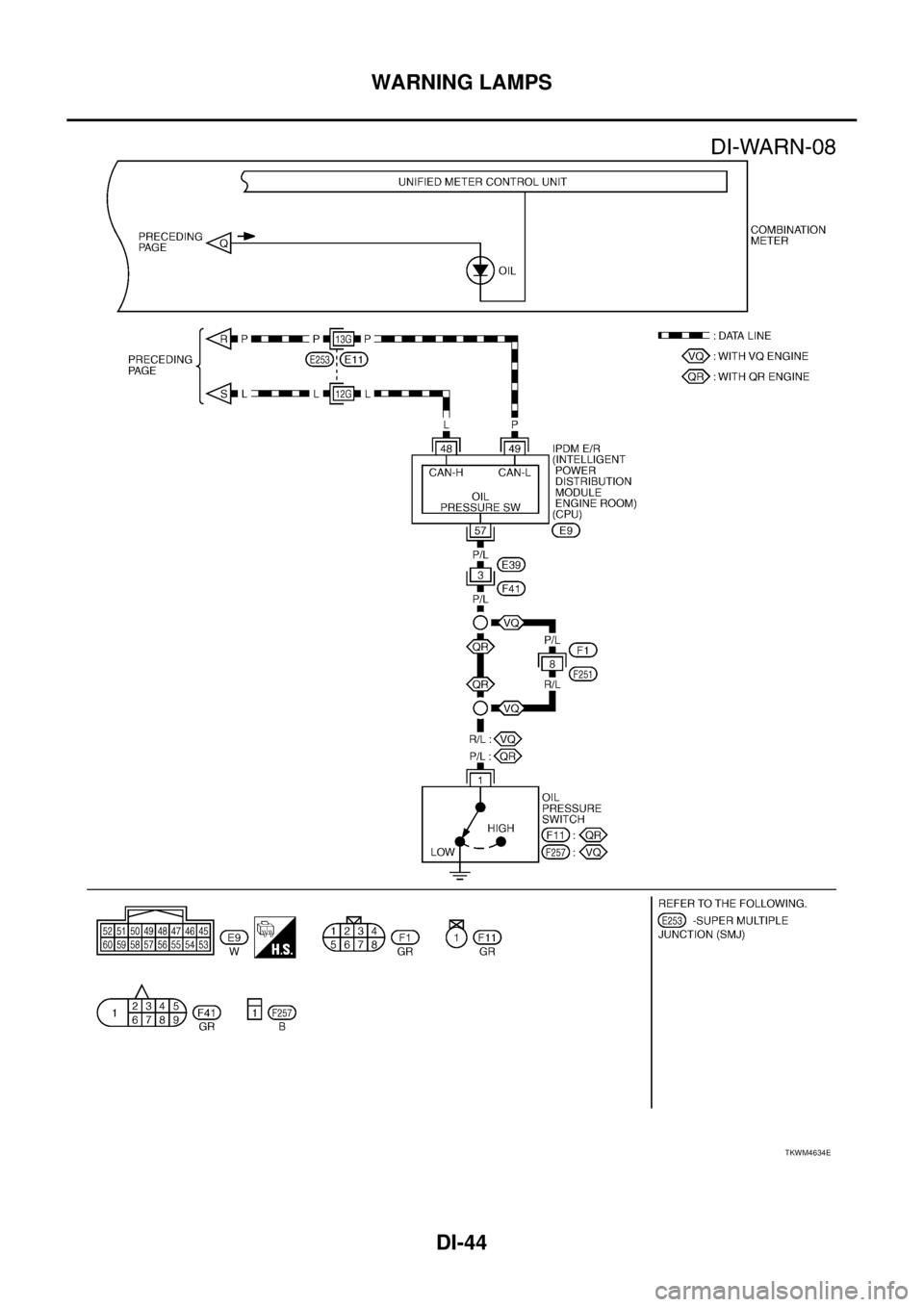

OIL PRESSURE WARNING LAMP
Oil pressure warning lamp turns ON when reducing engine oil pressure abnormally.

IPDM E/R inputs oil pressure switch signal from oil pressure switch, and transmits the signal to unified
meter and A/C amp. through BCM with CAN communication.

Unified meter and A/C amp. transmits oil pressure switch signal to combination meter with communication
line.

Let the combination meter turn oil pressure warning lamp ON with received oil pressure switch signal.

DI-36
WARNING LAMPS

SchematicBKS001SQ
TKWM4627E

WARNING LAMPS
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI

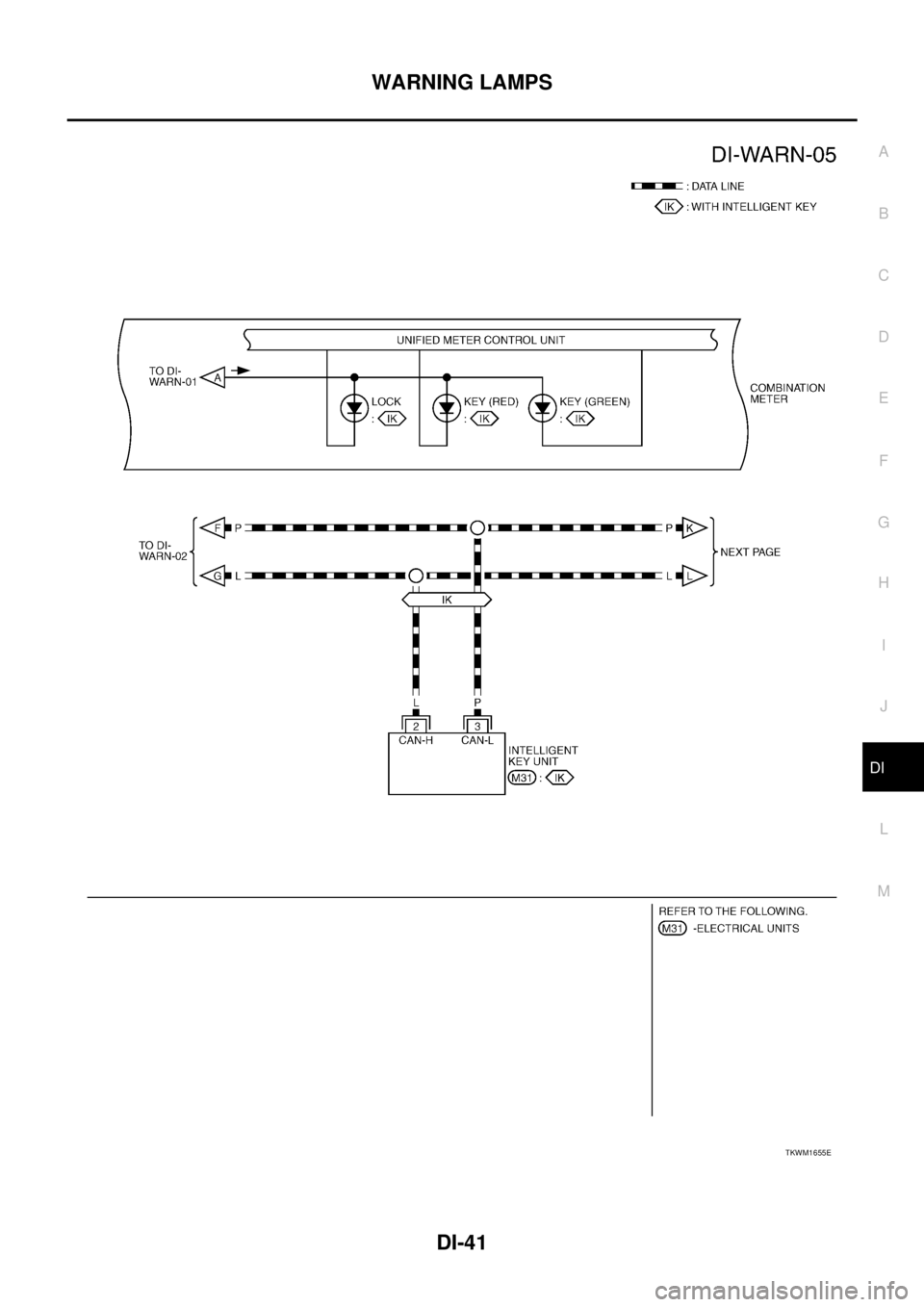

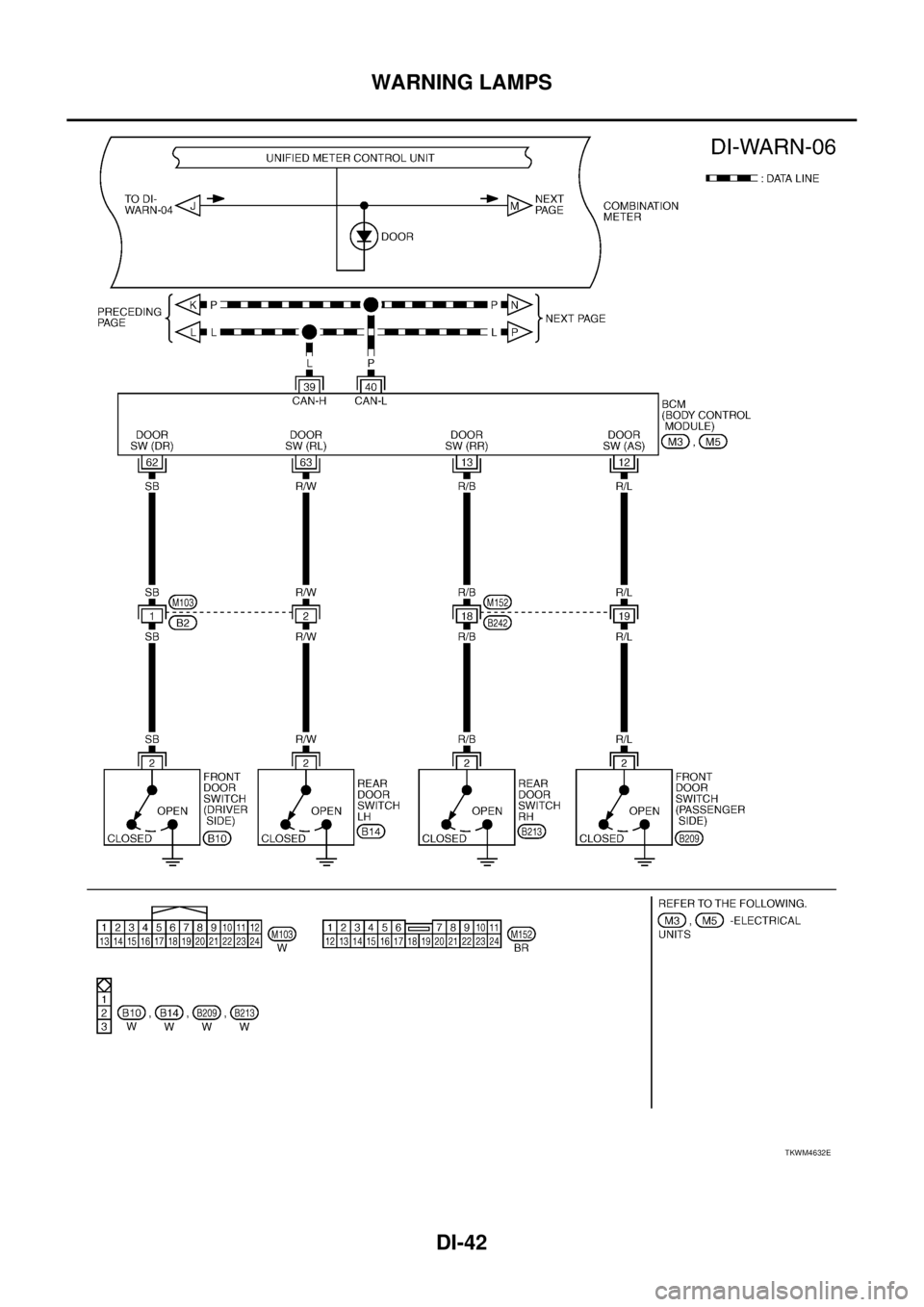

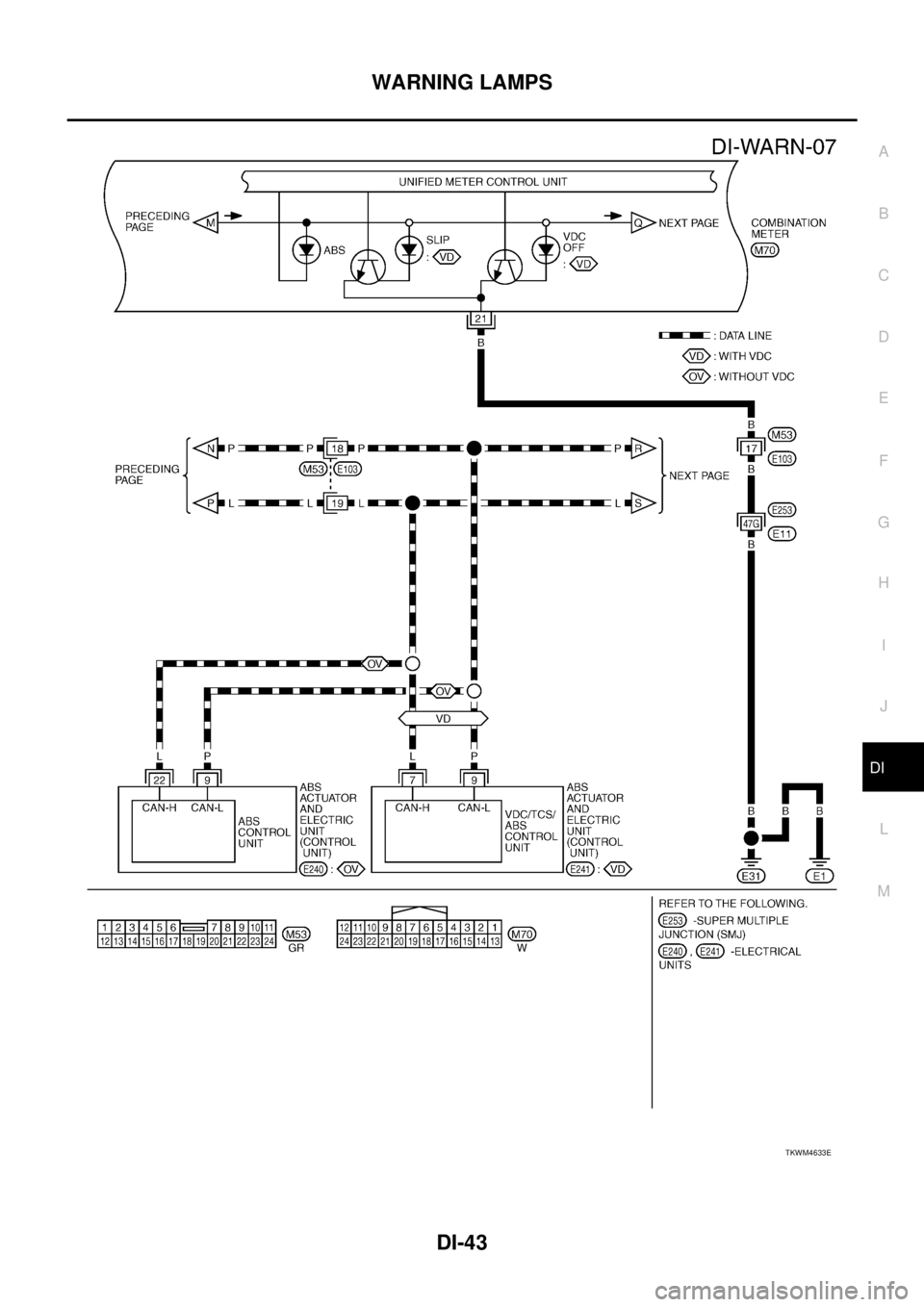

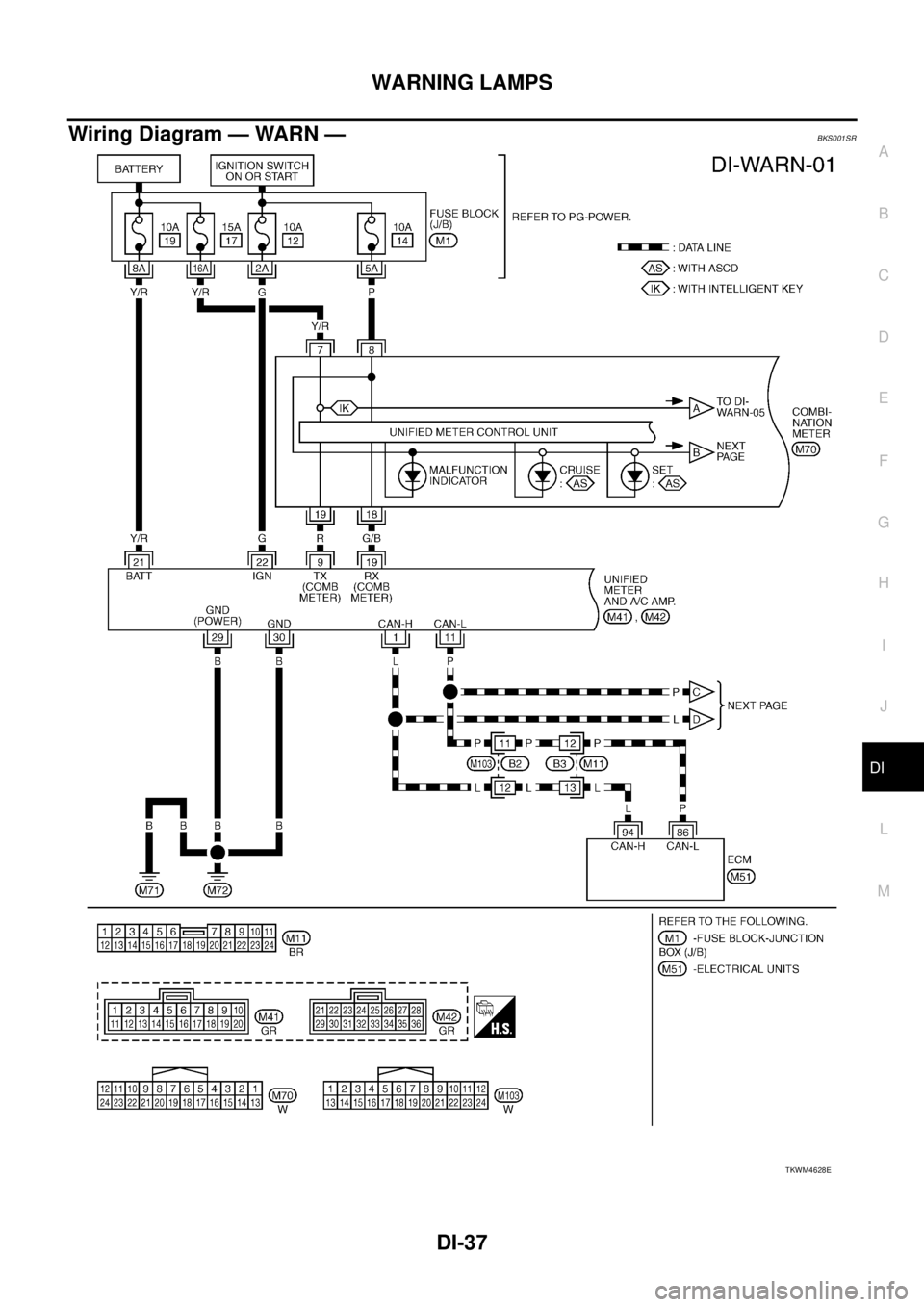

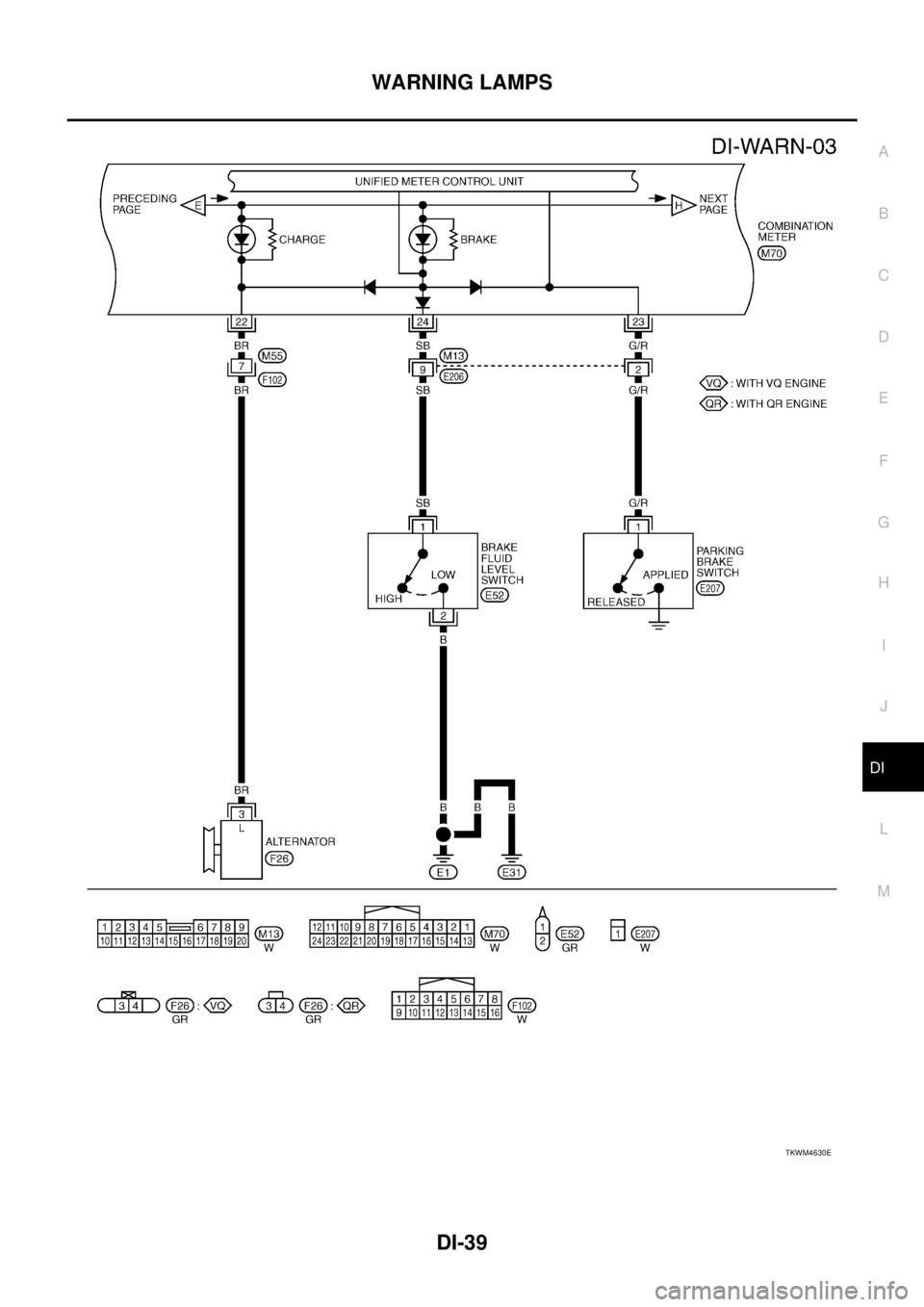

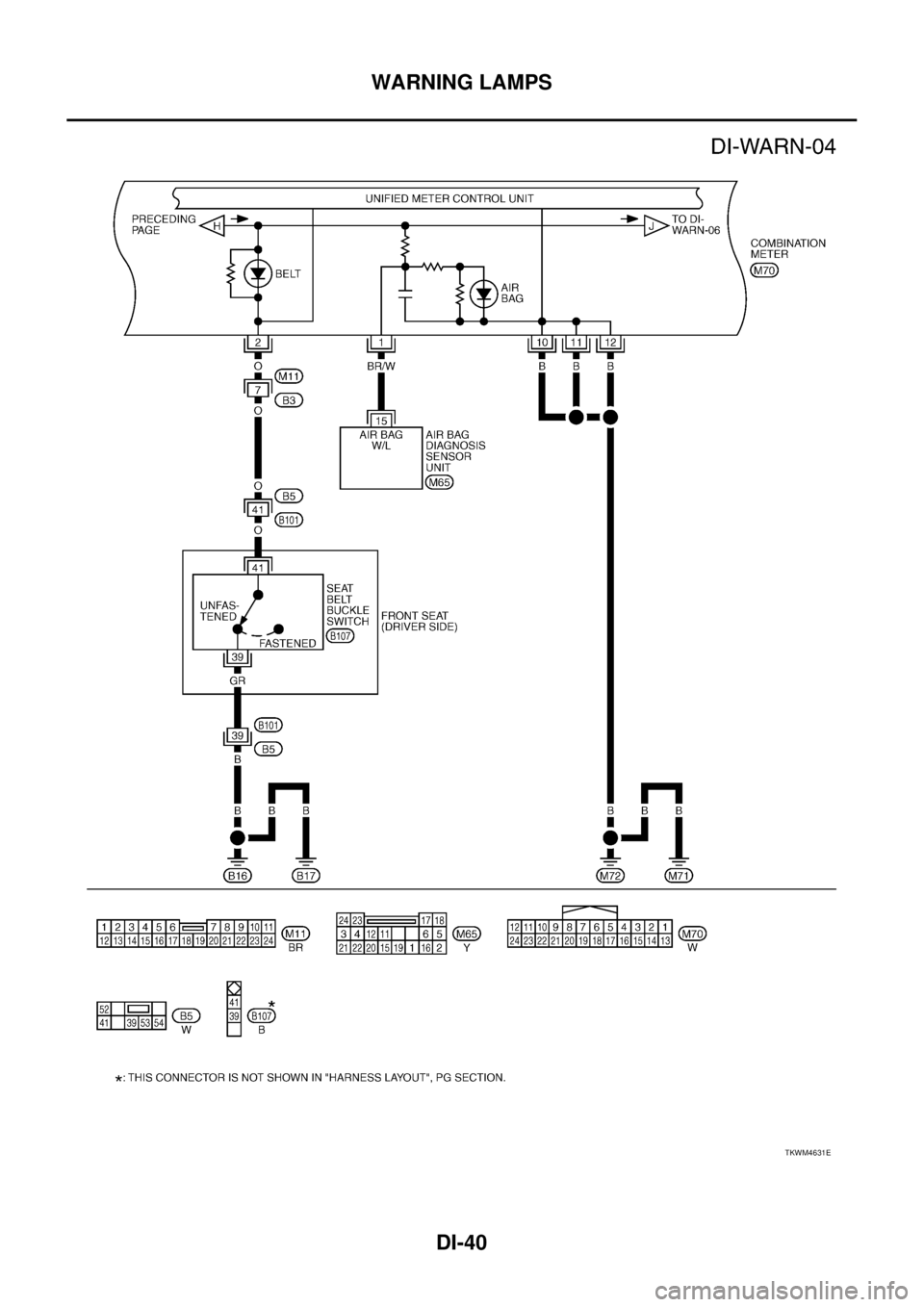

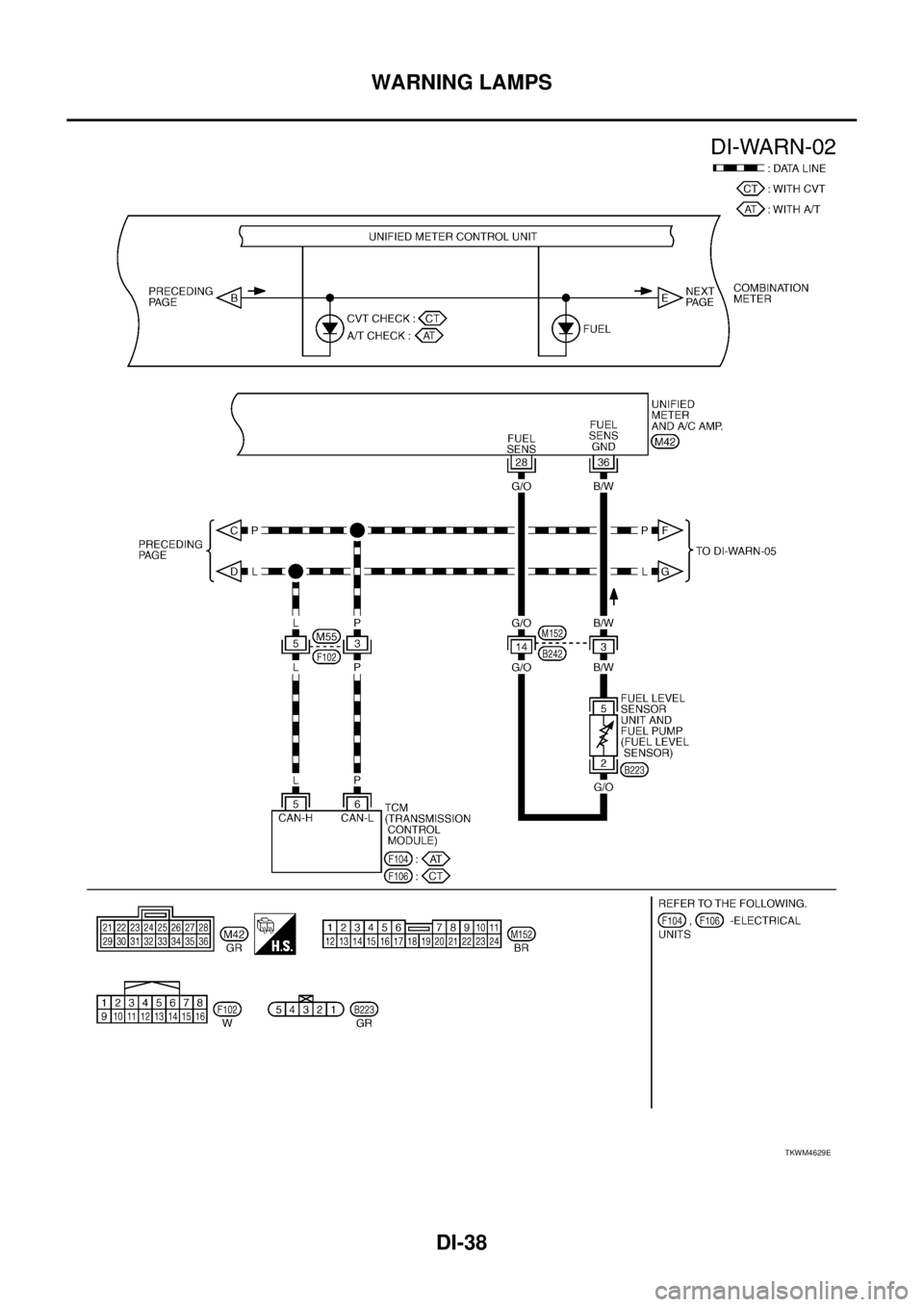

Wiring Diagram — WARN —BKS001SR
TKWM4628E

DI-38
WARNING LAMPS

TKWM4629E

WARNING LAMPS
DI-39
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWM4630E

DI-40
WARNING LAMPS

TKWM4631E

WARNING LAMPS
DI-41
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWM1655E

DI-42
WARNING LAMPS

TKWM4632E

WARNING LAMPS
DI-43
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWM4633E

DI-44
WARNING LAMPS

TKWM4634E
