WARNING CHIME
DI-75
C
D
E
F
G
H
I
J
L
MA
B
DI
5. CHECK IGNITION KNOB SWITCH
Check continuity between ignition knob switch, key switch and key
lock solenoid connector M20 terminals 2 and 7.
OK or NG
OK >> GO TO 6.
NG >> Replace ignition knob switch, key switch and key lock
solenoid.
6. CHECK IGNITION KNOB SWITCH CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit harness connector
M31 terminal 27 and ignition knob switch, key switch and key
lock solenoid harness connector M20 terminal 2.
3. Check continuity between Intelligent Key unit harness connector
M31 terminal 27 and ground.
OK or NG
OK >> Replace Intelligent Key unit. Refer to BL-117, "Removal
and Installation of Intelligent Key Unit" .
NG >> Repair harness or connector.
Light Warning Chime Does Not OperateBKS001TC
1. CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of light warning chime operation.
Dose warning chime sound?
YES >> GO TO 2.
NO >> Go to DI-67, "
Key Warning Chime and Light Warning Chime Does Not Operated" .
2. CHECK BCM INPUT SIGNAL
1. Select “BCM” on CONSULT-II.
2. With “DATA MONITOR” of “BUZZER”, confirm “LIGHT SW 1ST”
when the lighting switch is operated.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check the lighting switch. Refer to LT- 1 7 6 , "
Removal
and Installation" . 2 – 7
When ignition knob
switch is pushed: Continuity should exist.
When ignition knob
switch is withdrawn: Continuity should not exist.

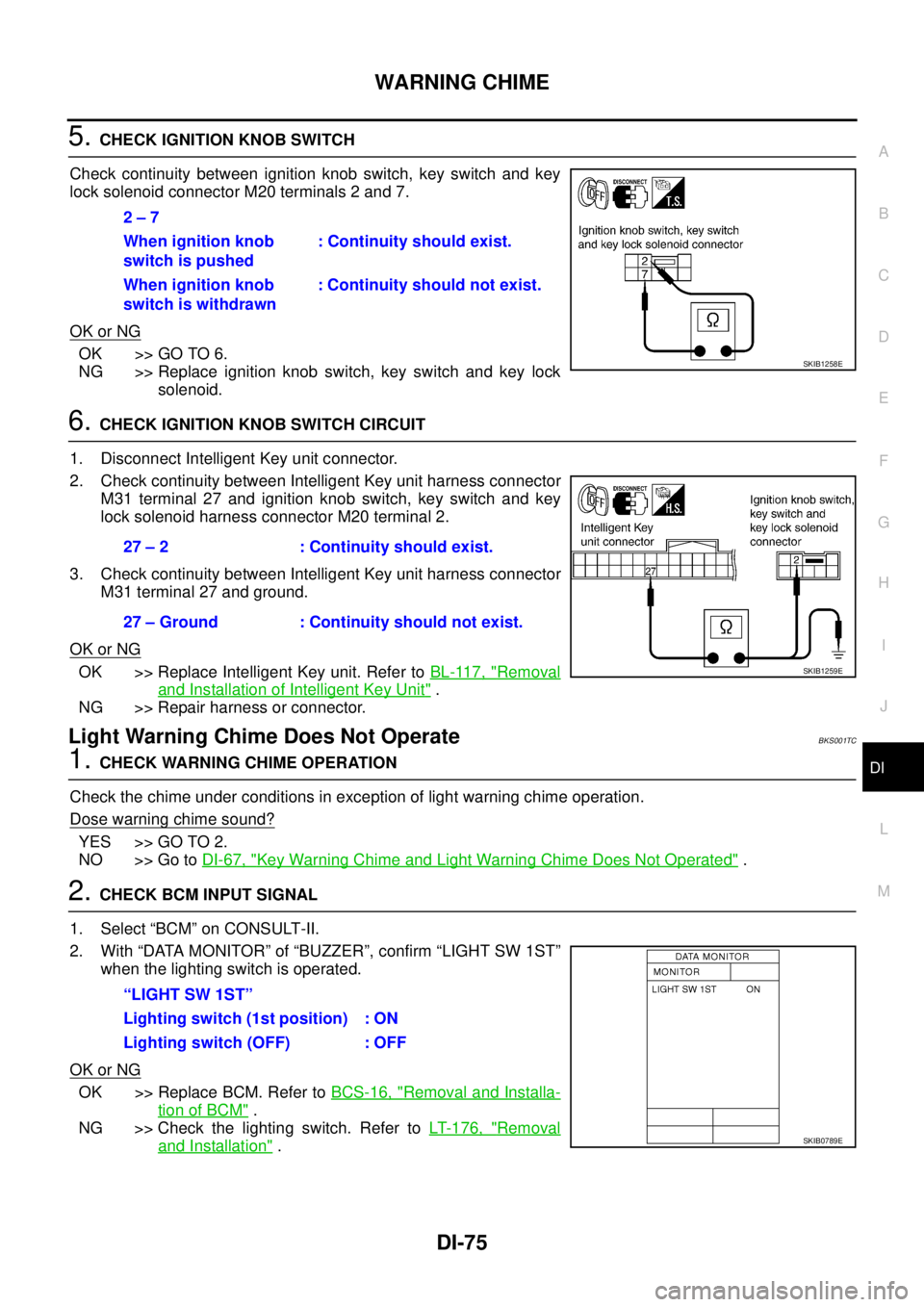

SKIB1258E
27 – 2 : Continuity should exist.
27 – Ground : Continuity should not exist.
SKIB1259E
“LIGHT SW 1ST”
Lighting switch (1st position) : ON
Lighting switch (OFF) : OFF
SKIB0789E
