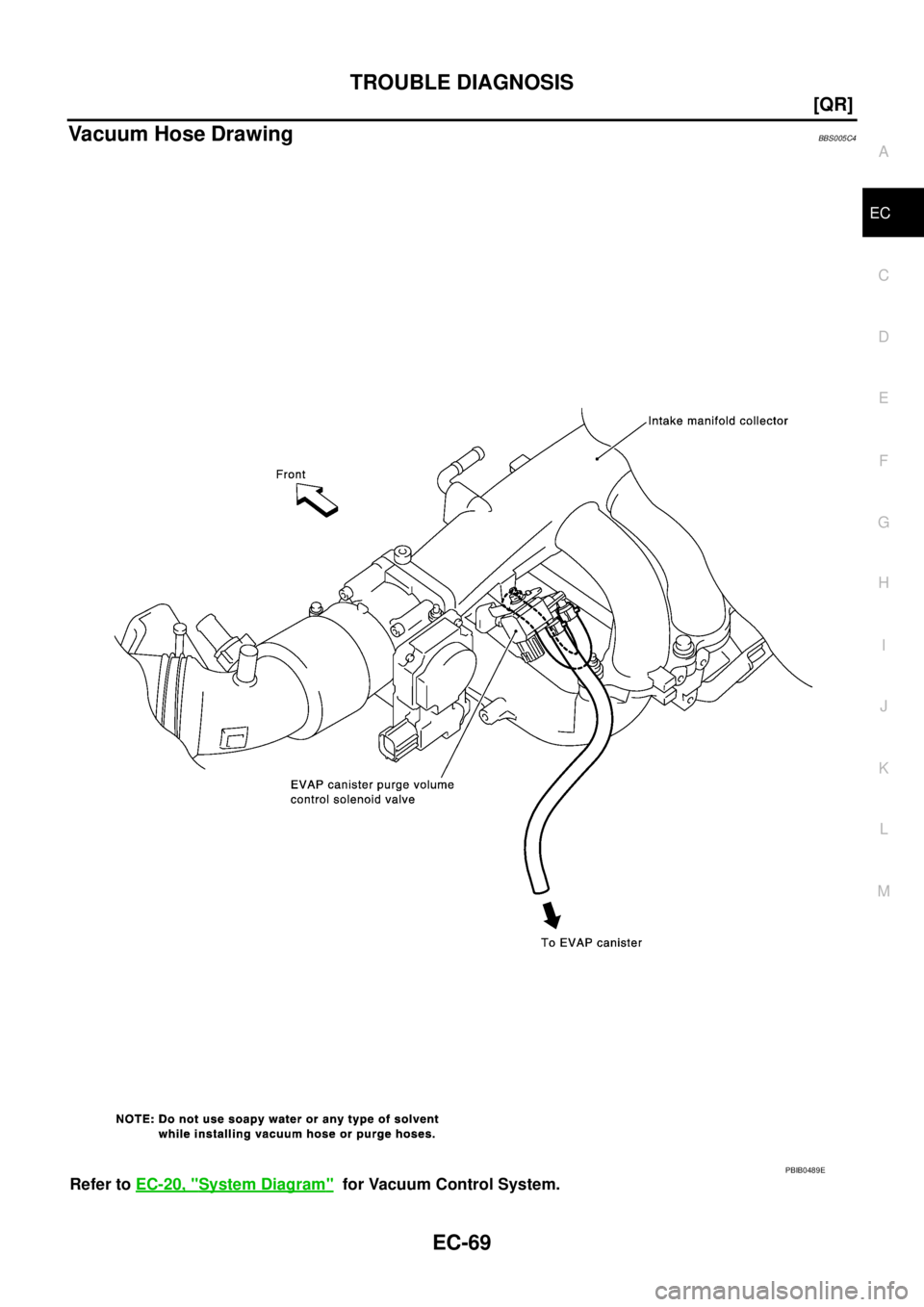

Vacuum Hose DrawingBBS005C4
Refer to EC-20, "System Diagram" for Vacuum Control System.
PBIB0489E

EC-70
[QR]
TROUBLE DIAGNOSIS

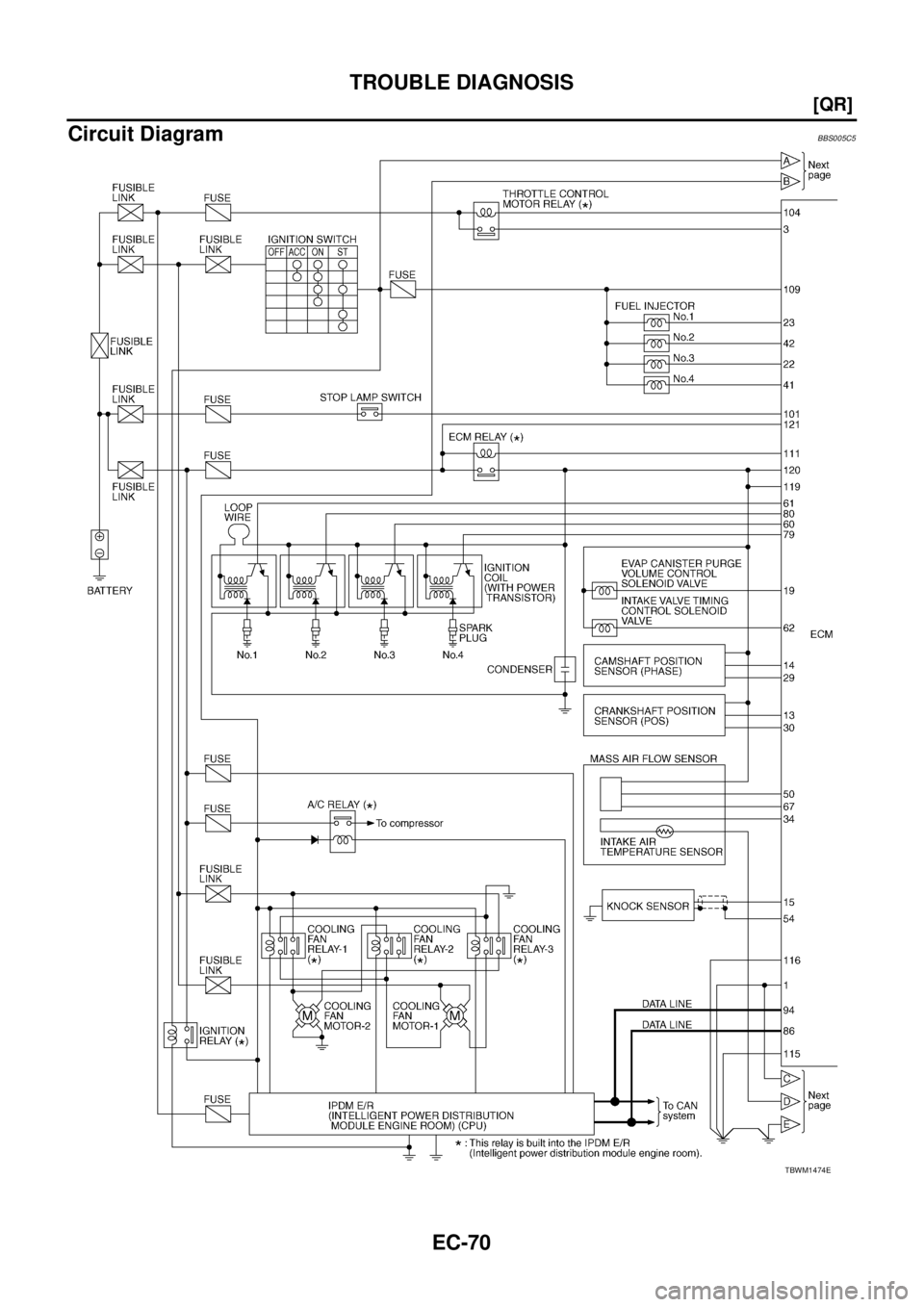

Circuit DiagramBBS005C5
TBWM1474E

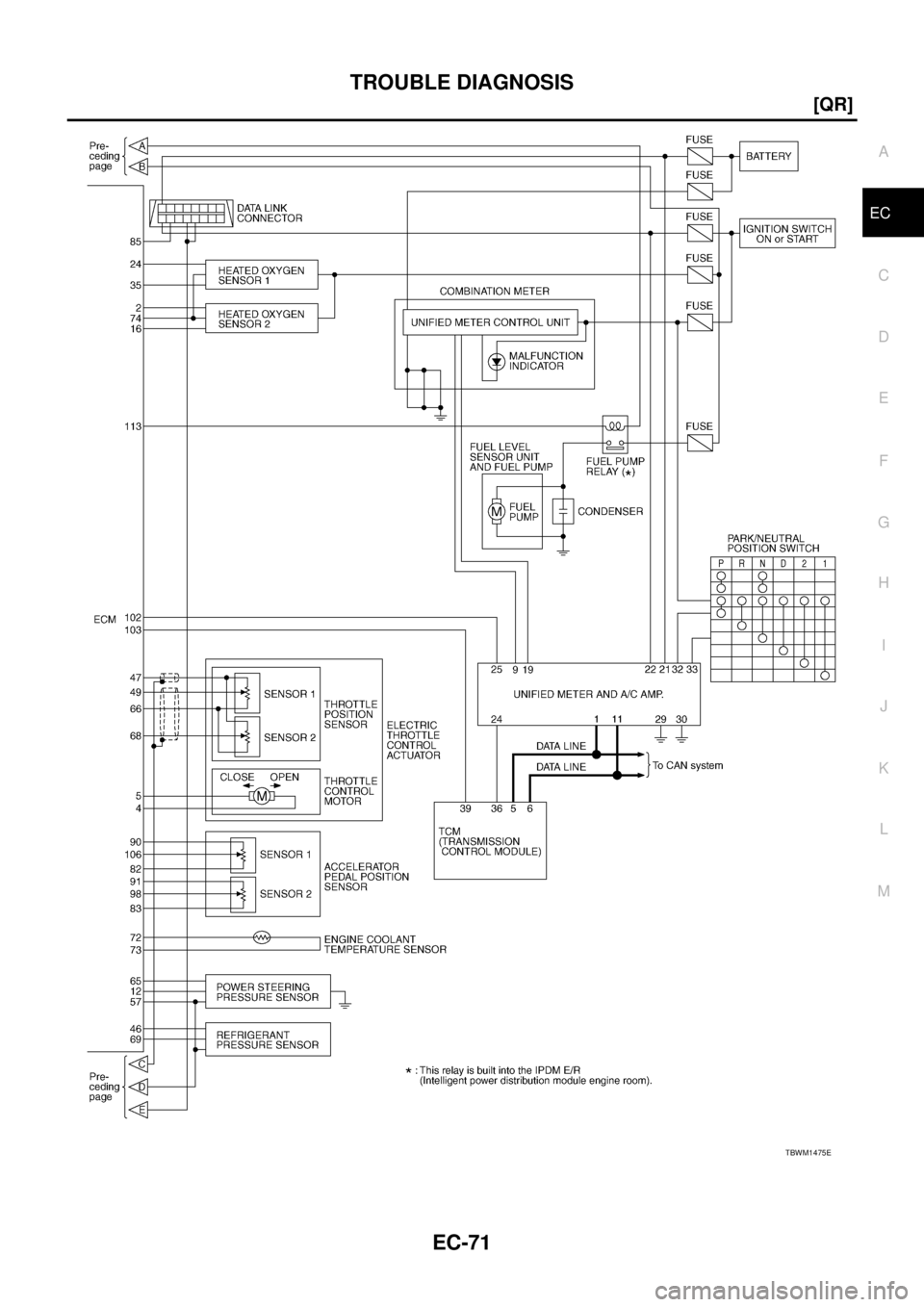

TROUBLE DIAGNOSIS
EC-71
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

TBWM1475E

EC-72
[QR]
TROUBLE DIAGNOSIS

ECM Harness Connector Terminal LayoutBBS005C6
ECM Terminals and Reference ValueBBS005C7
PREPARATION
1. ECM is located behind the glove box. For this inspection,
remove glove box.
2. Remove ECM harness protector.
3. When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown at right.
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at 1 time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
PBIB2464E
PBIB2466E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]

Idle speedBody ground

TROUBLE DIAGNOSIS
EC-73
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

2R/LHeated oxygen sensor 2
heater[Engine is running]

Engine speed: Below 3,800 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for
1 minute under no load0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,800 rpmBATTERY VOLTAGE
(11 - 14V)
3 G/WThrottle control motor relay
power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4LThrottle control motor
(Close)[Ignition switch: ON]

Engine stopped

Shift lever: D

Accelerator pedal: Fully released0 - 14V
5YThrottle control motor
(Open)[Ignition switch: ON]

Engine stopped

Shift lever: D

Accelerator pedal: Fully depressed0 - 14V
12 WPower steering pressure
sensor[Engine is running]

Steering wheel: Being turned0.5 - 4.0V
[Engine is running]

Steering wheel: Not being turned0.4 - 0.8V
13 WCrankshaft position
sensor (POS)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idleApproximately 3.0V
[Engine is running]

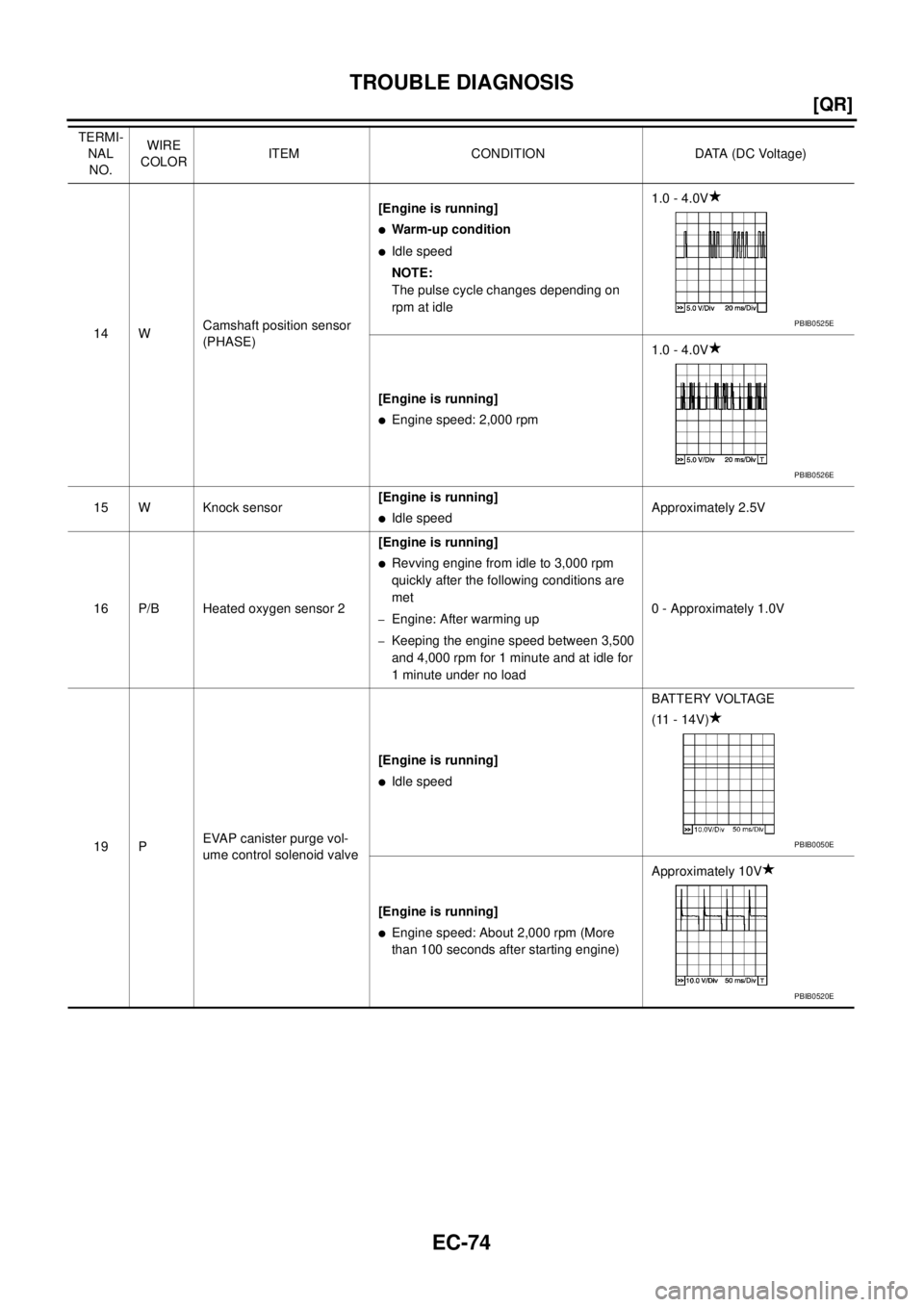

Engine speed: 2,000 rpmApproximately 3.0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1104E
PBIB1105E
PBIB0527E
PBIB0528E

EC-74
[QR]
TROUBLE DIAGNOSIS

14 WCamshaft position sensor
(PHASE)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idle1.0 - 4.0V
[Engine is running]

Engine speed: 2,000 rpm1.0 - 4.0V
15 W Knock sensor[Engine is running]

Idle speedApproximately 2.5V
16 P/B Heated oxygen sensor 2[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for
1 minute under no load0 - Approximately 1.0V
19 PEVAP canister purge vol-
ume control solenoid valve[Engine is running]

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More

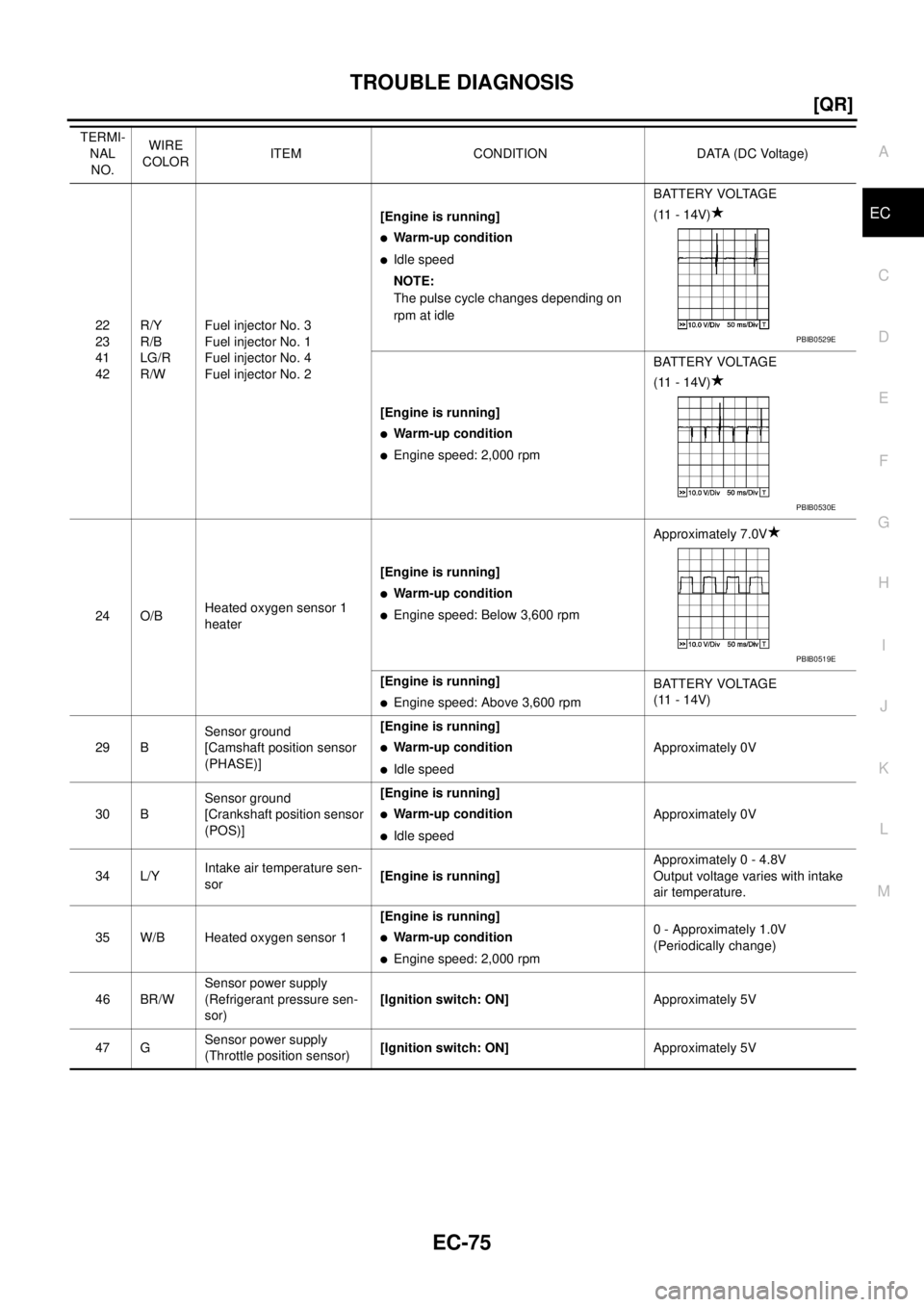

than 100 seconds after starting engine)Approximately 10V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0525E
PBIB0526E
PBIB0050E
PBIB0520E

TROUBLE DIAGNOSIS
EC-75
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

22
23
41
42R/Y
R/B
LG/R
R/WFuel injector No. 3
Fuel injector No. 1
Fuel injector No. 4
Fuel injector No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
24 O/BHeated oxygen sensor 1
heater[Engine is running]

Warm-up condition

Engine speed: Below 3,600 rpmApproximately 7.0V
[Engine is running]

Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
29 BSensor ground
[Camshaft position sensor
(PHASE)][Engine is running]

Warm-up condition

Idle speedApproximately 0V
30 BSensor ground
[Crankshaft position sensor
(POS)][Engine is running]

Warm-up condition

Idle speedApproximately 0V
34 L/YIntake air temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
35 W/B Heated oxygen sensor 1[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0 - Approximately 1.0V
(Periodically change)
46 BR/WSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
47 GSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0529E
PBIB0530E
PBIB0519E

EC-76
[QR]
TROUBLE DIAGNOSIS

49 W Throttle position sensor 1[Ignition switch: ON]

Engine stopped

Shift lever: D

Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]

Engine stopped

Shift lever: D

Accelerator pedal: Fully depressedLess than 4.75V
50 W Mass air flow sensor[Ignition switch: ON]Approximately 0.4V
[Engine is running]

Warm-up condition

Idle speed0.7 - 1.0V
[Engine is running]

Warm-up condition

Engine: Revving from idle to about 4,000
rpm0.7 - 1.0 to Approximately 2.4V
(Check for liner voltage rise in
response to engine being
increased to about 4,000 rpm.)
54 —Sensor ground
(Knock sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
57 BSensor ground
(IAT sensor/ PSP sensor/
Refrigerant pressure sen-
sor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
60
61
79
80L/R
Y/R
G/Y
G/RIgnition signal No. 3
Ignition signal No. 1
Ignition signal No. 4
Ignition signal No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idle0 - 0.1V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0 - 0.2V
62 GIntake valve timing
control solenoid valve[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmApproximately 4V - BATTERY
VOLTAGE (11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0521E
PBIB0522E
PBIB1790E

TROUBLE DIAGNOSIS
EC-77
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
65 LG/BSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
66 BSensor ground
(Throttle position sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
67 BSensor ground
(Mass air flow sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
68 R Throttle position sensor 2[Ignition switch: ON]

Shift lever: D

Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]

Shift lever: D

Accelerator pedal: Fully depressedMore than 0.36V
69 W Refrigerant pressure sensor[Engine is running]

Warm-up condition

Both A/C switch and blower fan switch:
ON
(Compressor operates)1.0 - 4.0V
72 LGEngine coolant tempera-
ture sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with engine
coolant temperature.
73 B/WSensor ground
(Engine coolant tempera-
ture sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
74 BSensor ground
(Heated oxygen sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
82 BSensor ground
(Accelerator pedal position
sensor 1)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
83 GSensor ground
(Accelerator pedal position
sensor 2)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
85 O DATA link connector[Ignition switch: ON]

CONSULT-II: DisconnectedBATTERY VOLTAGE
(11 - 14V)
86 P CAN communication line[Ignition switch: ON]1.0 - 2.5V
90 R/WSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch: ON]Approximately 5V
91 PSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
94 L CAN communication line[Ignition switch: ON]2.5 - 4.0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

EC-78
[QR]
TROUBLE DIAGNOSIS

98 LGAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.28 - 0.48V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressedMore than 2.0V
101 R/G Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
102 G/W PNP switch[Ignition switch: ON]

Shift lever: P or NApproximately 0V
[Ignition switch: ON]

Except above positionBATTERY VOLTAGE
(11 - 14V)
103 W/LTachometer signal
output[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idle.10 - 11V
[Engine is running]

Engine speed is 2,000 rpm10 - 11V
104 O Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.65 - 0.87V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressedMore than 4.3V
109 R Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
