NISSAN TEANA 2003 Service Manual

DTC P0605 ECM
EC-539
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

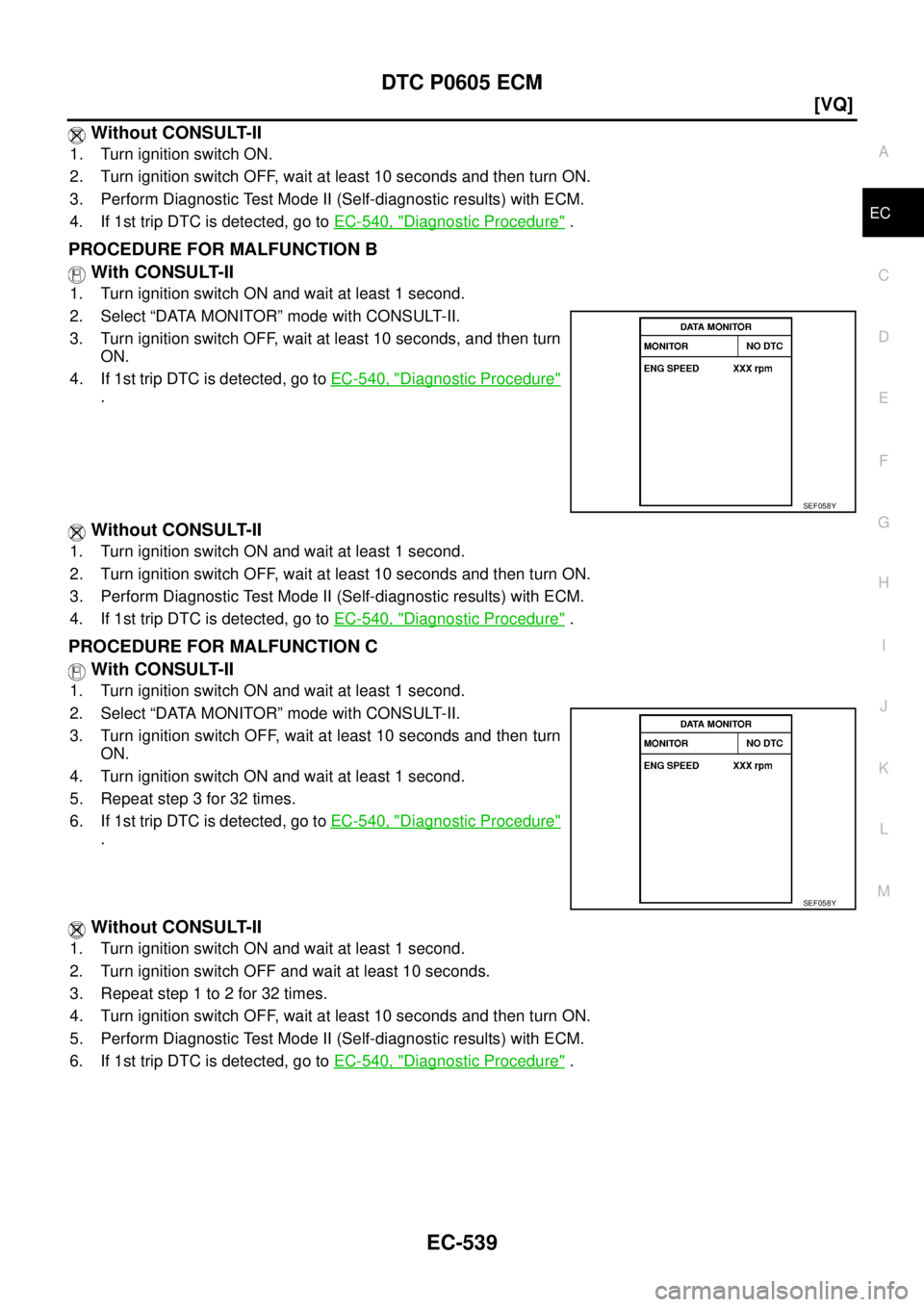

Without CONSULT-II
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If 1st trip DTC is detected, go to EC-540, "
Diagnostic Procedure" .
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
4. If 1st trip DTC is detected, go to EC-540, "
Diagnostic Procedure"
.
Without CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If 1st trip DTC is detected, go to EC-540, "
Diagnostic Procedure" .
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn
ON.
4. Turn ignition switch ON and wait at least 1 second.
5. Repeat step 3 for 32 times.
6. If 1st trip DTC is detected, go to EC-540, "
Diagnostic Procedure"
.
Without CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Repeat step 1 to 2 for 32 times.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
6. If 1st trip DTC is detected, go to EC-540, "
Diagnostic Procedure" .
SEF058Y
SEF058Y

EC-540
[VQ]
DTC P0605 ECM

Diagnostic ProcedureBBS0051J
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-538, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P0605 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-378, "
How to Set Diag-
nostic Test Mode II (Self-diagnostic Results)" .
3.Perform DTC Confirmation Procedure.
See EC-538, "
DTC Confirmation Procedure" .
4. Is the 1st trip DTC 0605 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >>INSPECTION END
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-142, "
ECM
Re-Communicating Function" .
3. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-389, "
Throttle Valve Closed Position Learning" .
5. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END

DTC P1065 ECM POWER SUPPLY
EC-541
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1065 ECM POWER SUPPLYPFP:23710

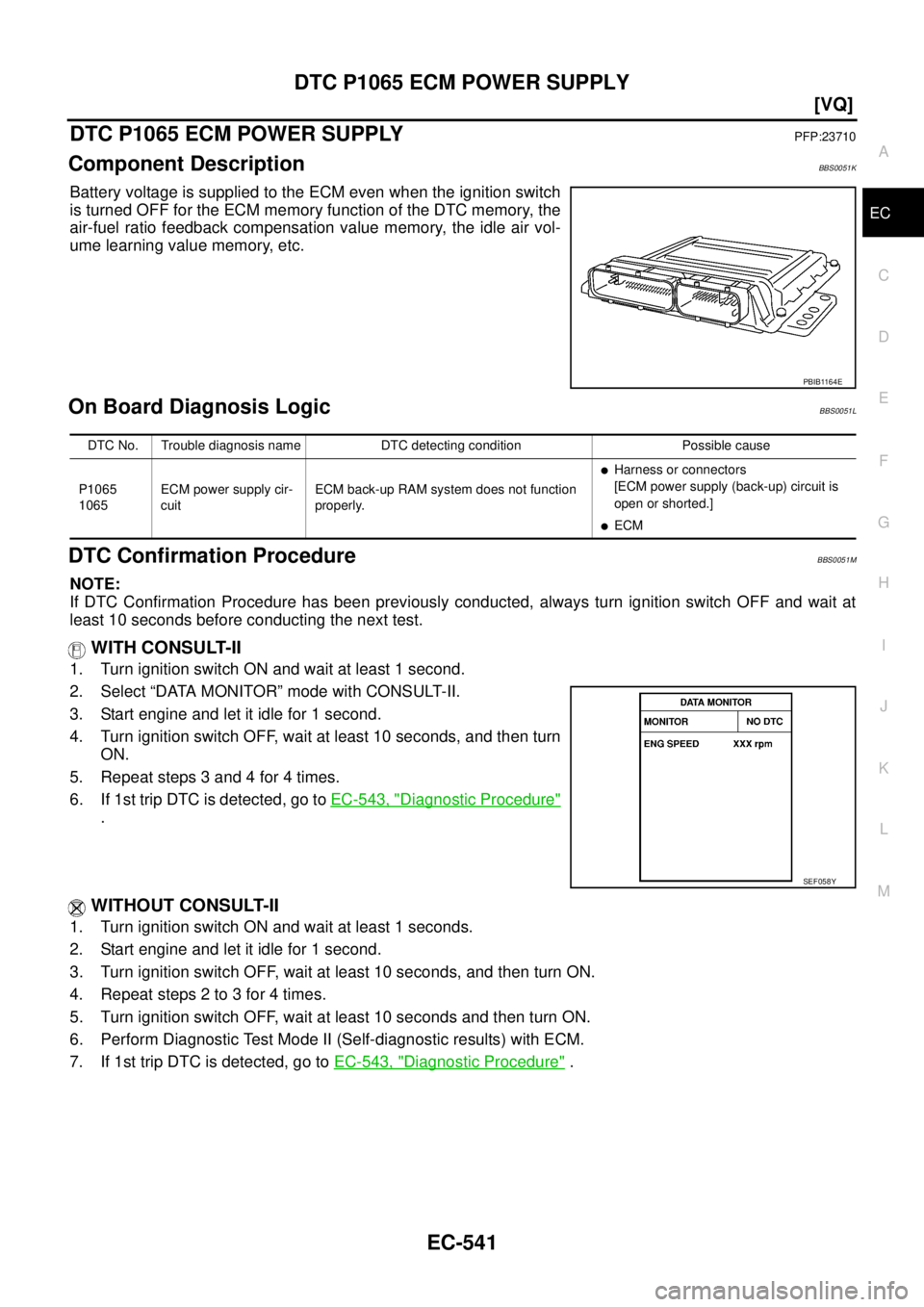

Component DescriptionBBS0051K
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicBBS0051L
DTC Confirmation ProcedureBBS0051M
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
5. Repeat steps 3 and 4 for 4 times.
6. If 1st trip DTC is detected, go to EC-543, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 1 seconds.
2. Start engine and let it idle for 1 second.
3. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
4. Repeat steps 2 to 3 for 4 times.
5. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
6. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
7. If 1st trip DTC is detected, go to EC-543, "
Diagnostic Procedure" .
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065ECM power supply cir-
cuitECM back-up RAM system does not function
properly.

Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]

ECM
SEF058Y

EC-542
[VQ]
DTC P1065 ECM POWER SUPPLY

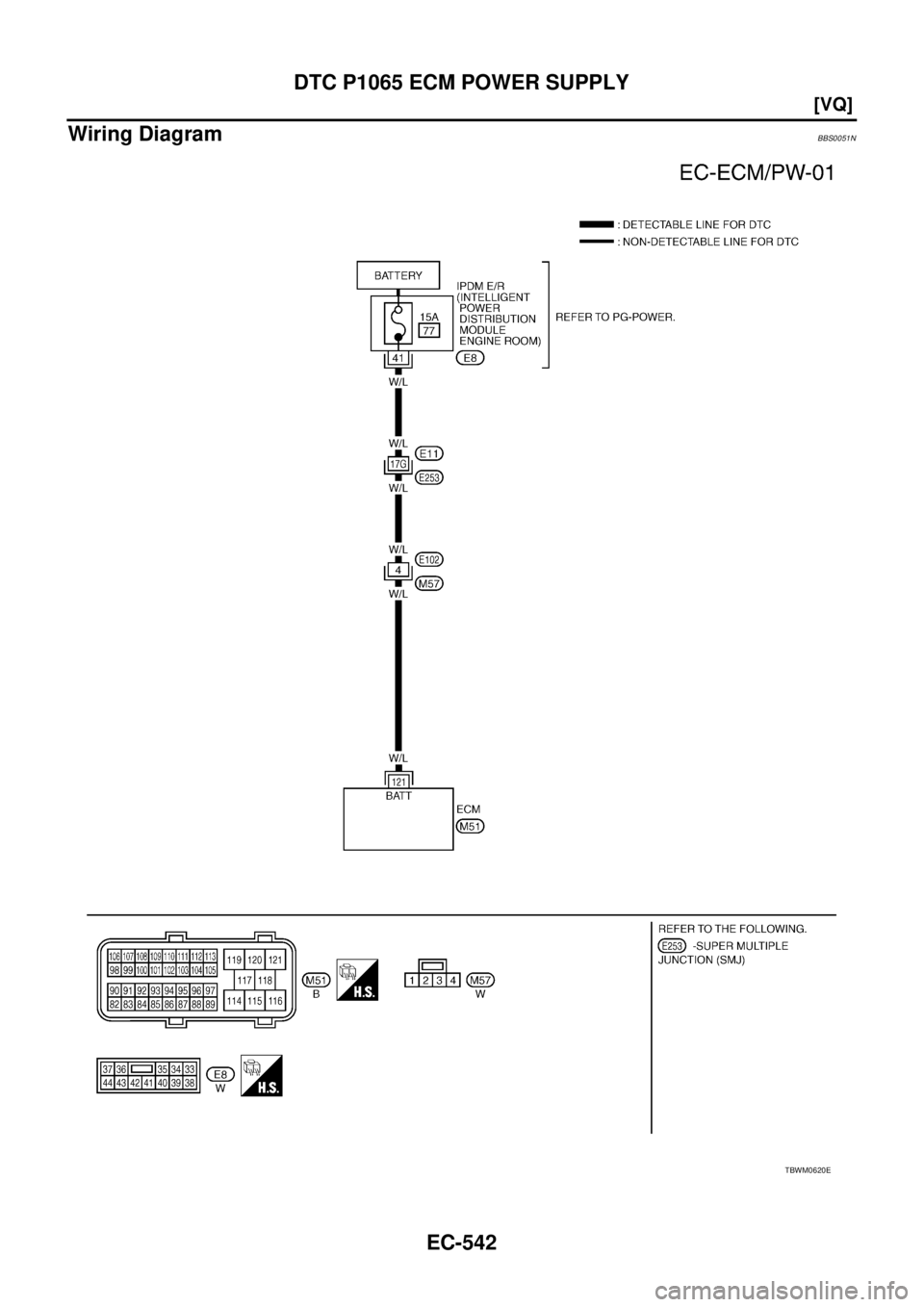

Wiring DiagramBBS0051N
TBWM0620E

DTC P1065 ECM POWER SUPPLY
EC-543
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

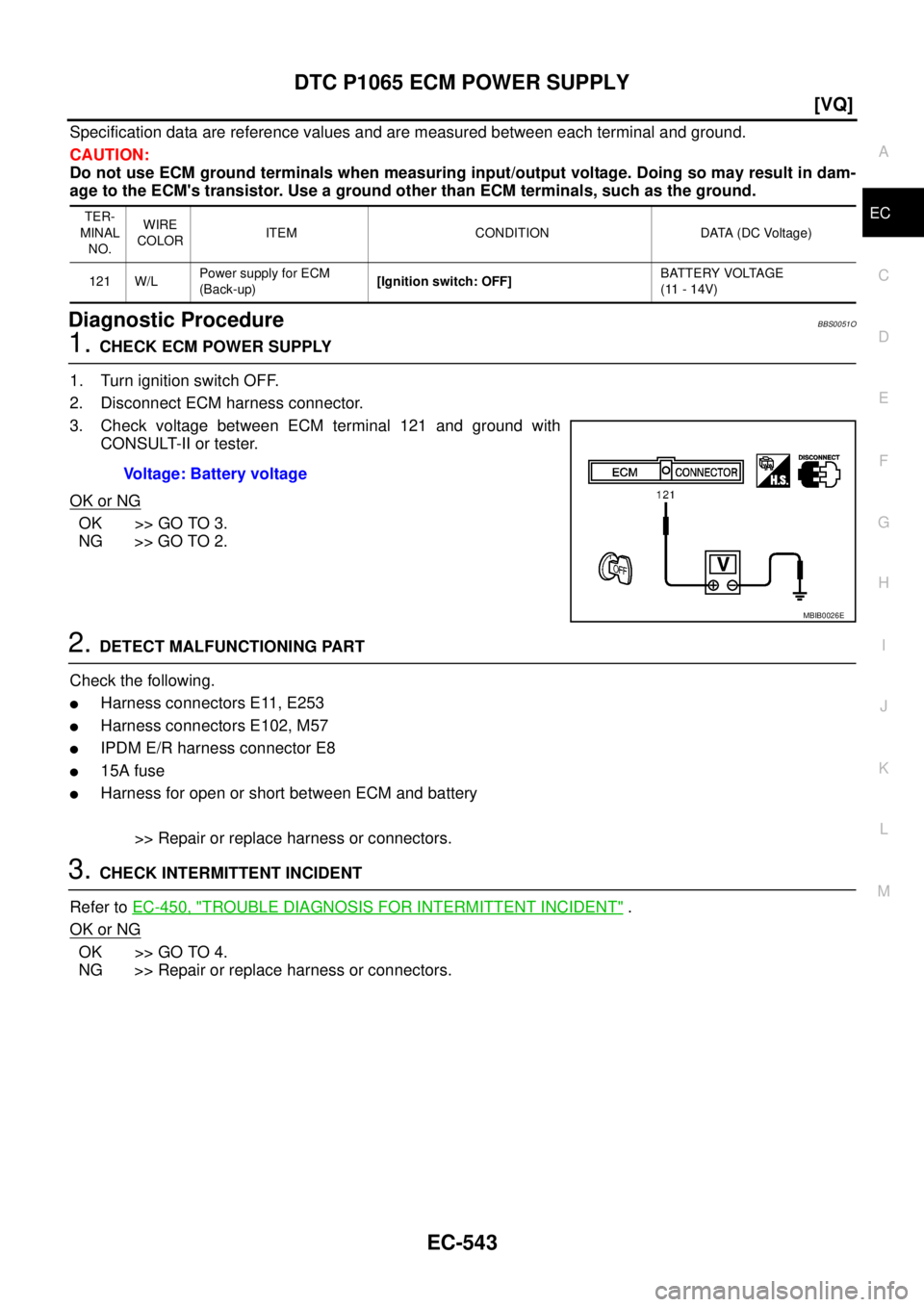

Diagnostic ProcedureBBS0051O
1. CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E11, E253

Harness connectors E102, M57

IPDM E/R harness connector E8

15A fuse

Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
121 W/LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E

EC-544
[VQ]
DTC P1065 ECM POWER SUPPLY

4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-541, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P1065 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-378, "
How to Set Diag-
nostic Test Mode II (Self-diagnostic Results)" .
3.Perform DTC Confirmation Procedure.
See EC-541, "
DTC Confirmation Procedure" .
4. Is the 1st trip DTC 1065 displayed again?
Ye s o r N o
Yes >> GO TO 5.
No >>INSPECTION END
5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-142, "
ECM
Re-Communicating Function" .
3. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-389, "
Throttle Valve Closed Position Learning" .
5. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END

DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-545
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

D T C P 1111 , P 11 3 6 I V T C O N T R O L SO L E N O I D VA LV EPFP:23796

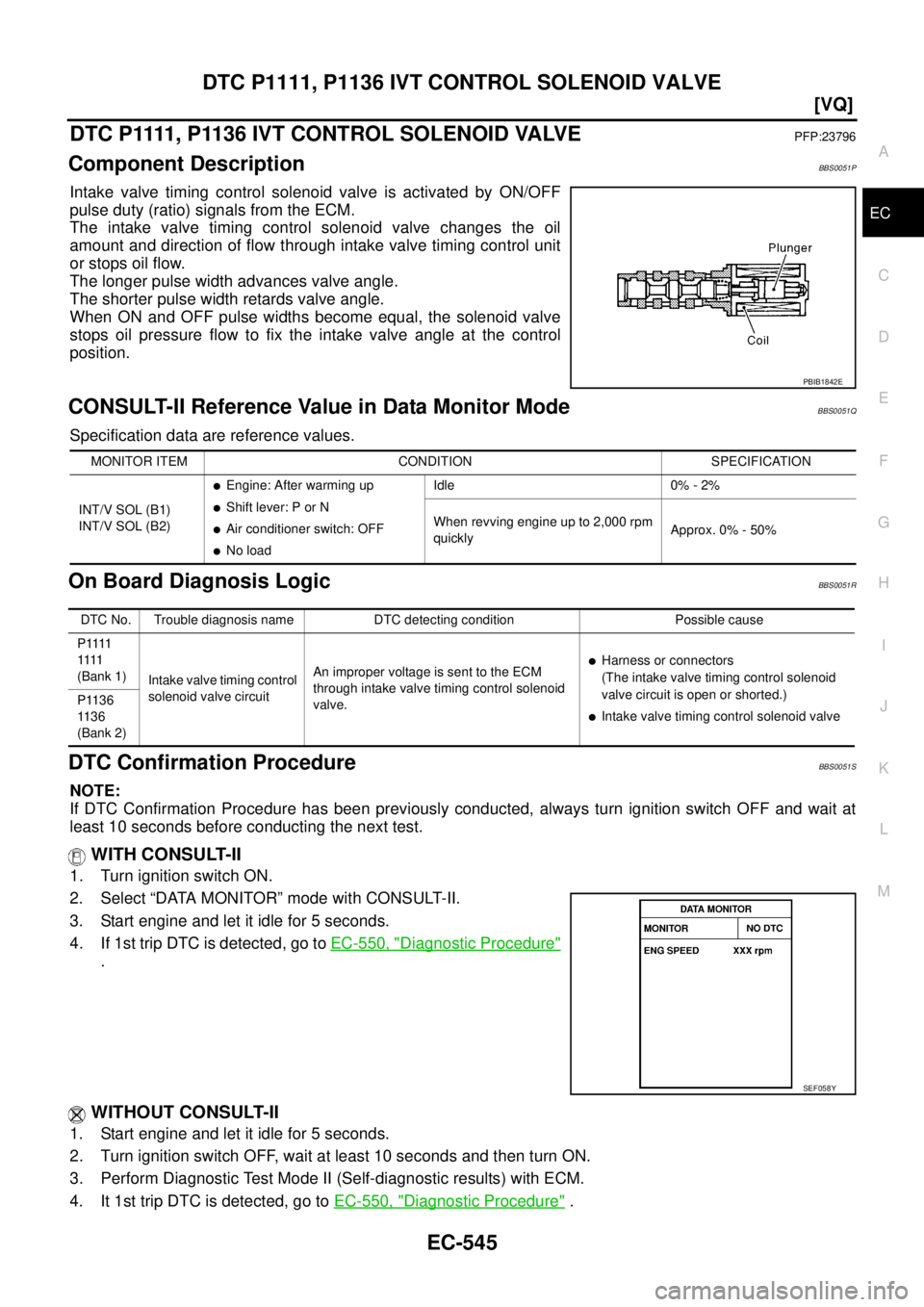

Component DescriptionBBS0051P
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeBBS0051Q
Specification data are reference values.
On Board Diagnosis LogicBBS0051R
DTC Confirmation ProcedureBBS0051S
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-550, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine and let it idle for 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. It 1st trip DTC is detected, go to EC-550, "
Diagnostic Procedure" .
PBIB1842E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
INT/V SOL (B2)

Engine: After warming up

Shift lever: P or N

Air conditioner switch: OFF

No loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111
(Bank 1)
Intake valve timing control
solenoid valve circuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.

Harness or connectors
(The intake valve timing control solenoid
valve circuit is open or shorted.)

Intake valve timing control solenoid valve P1136
11 3 6
(Bank 2)
SEF058Y

EC-546
[VQ]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE

Wiring DiagramBBS0051T
BANK 1
TBWM1453E

DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-547
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

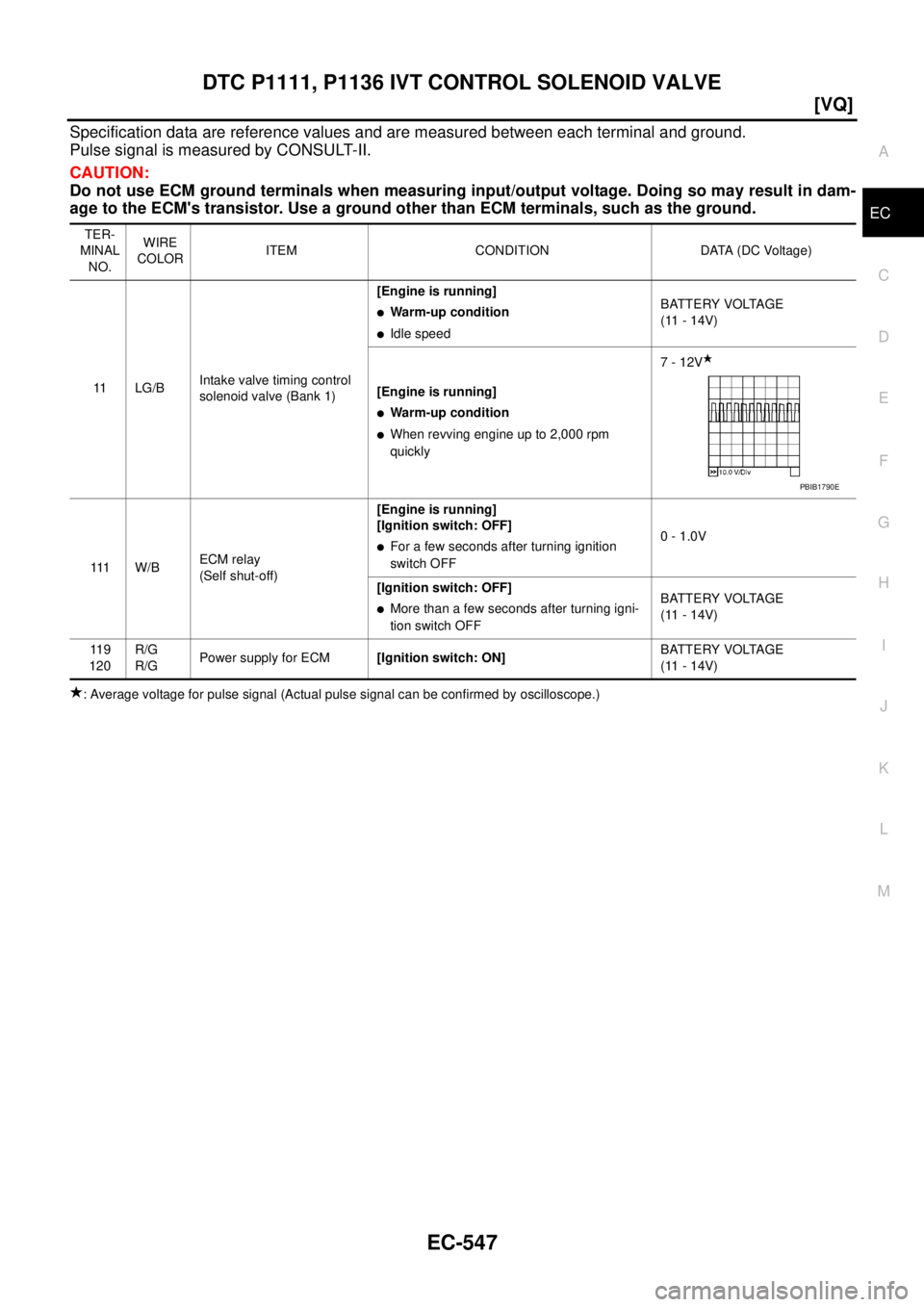

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 L G / BIntake valve timing control
solenoid valve (Bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

When revving engine up to 2,000 rpm
quickly7 - 12V
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120R/G
R/GPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIB1790E

EC-548
[VQ]
DTC P1111, P1136 IVT CONTROL SOLENOID VALVE

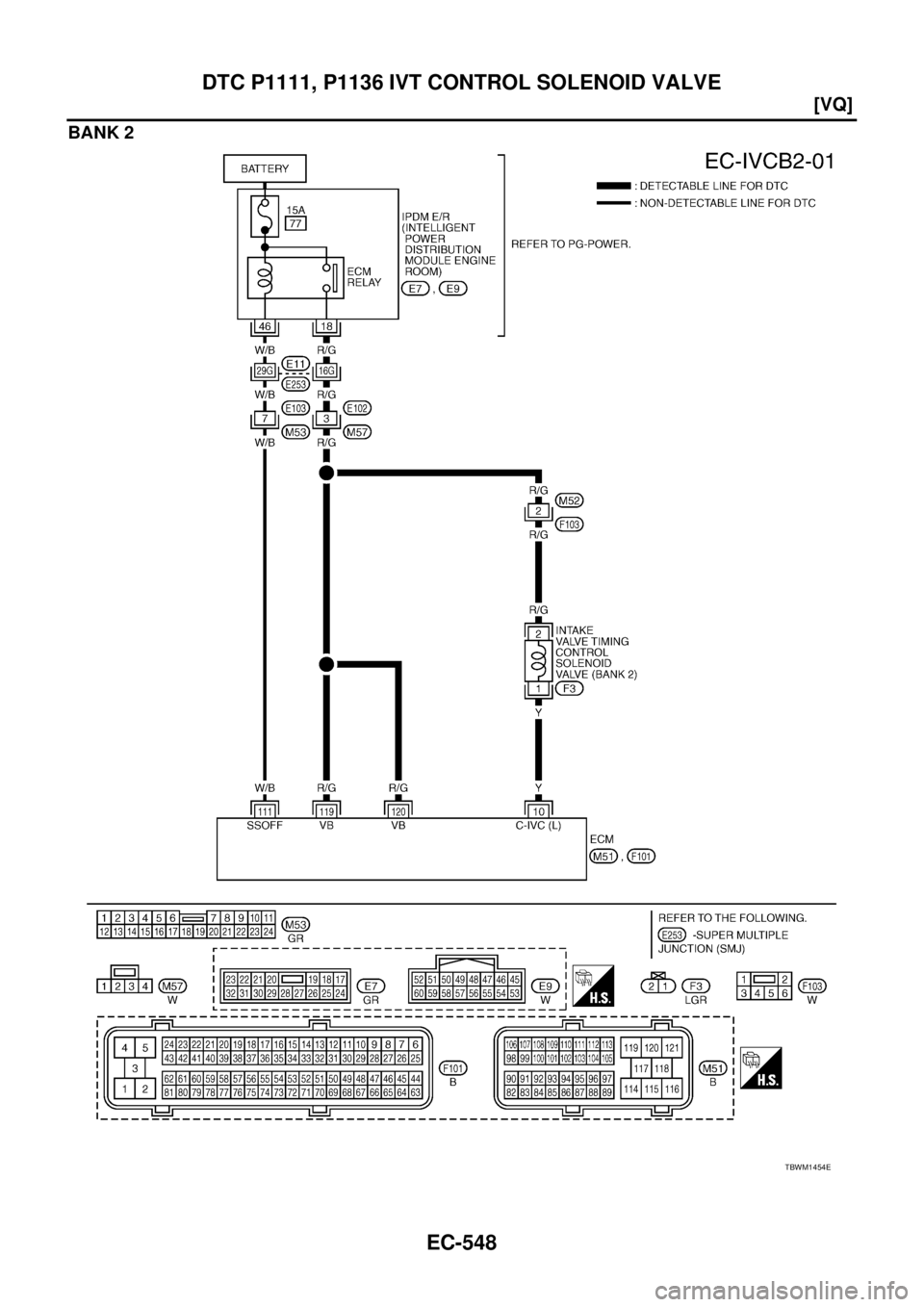

BANK 2
TBWM1454E
