DTC P1217 ENGINE OVER TEMPERATURE
EC-579
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

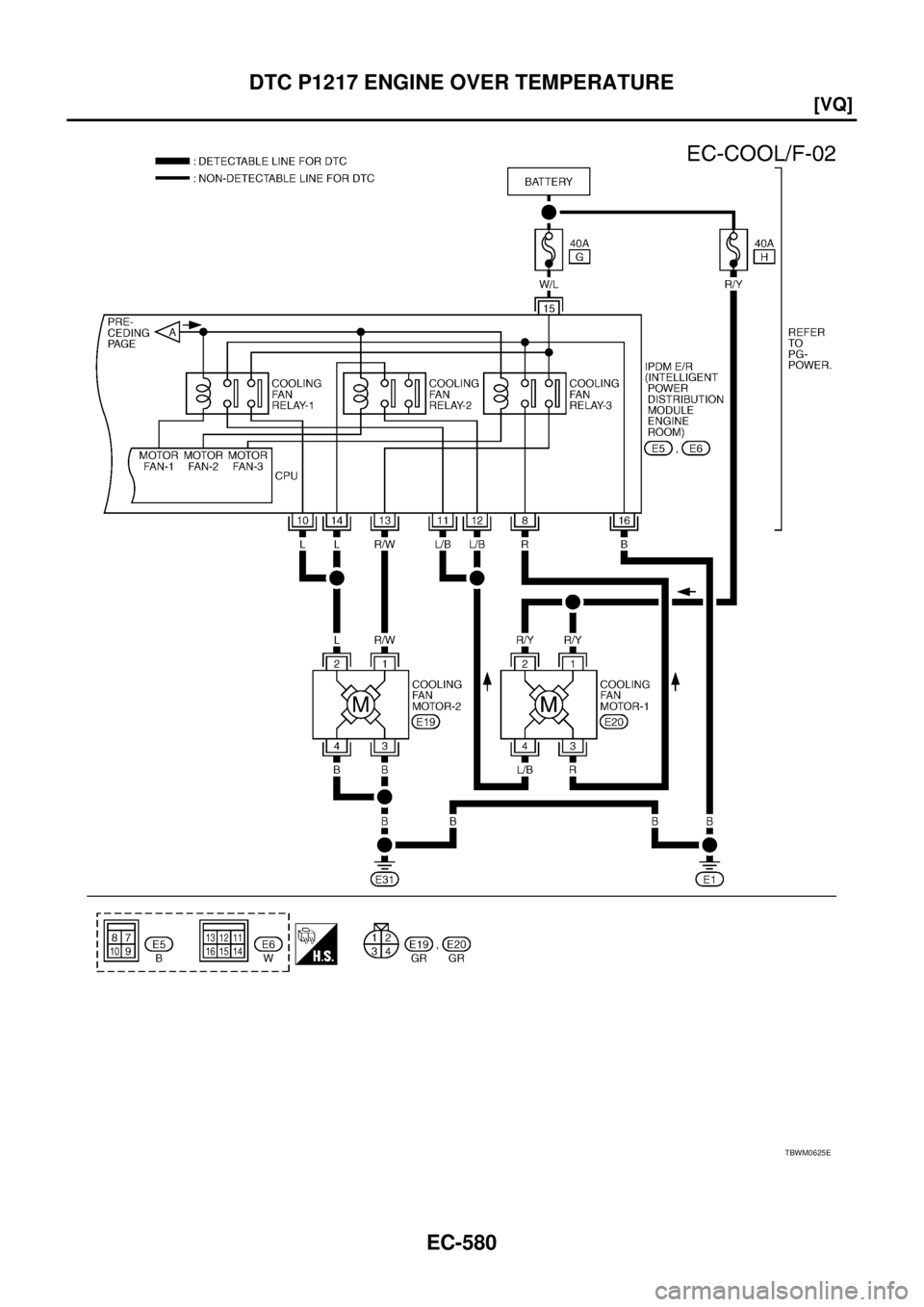

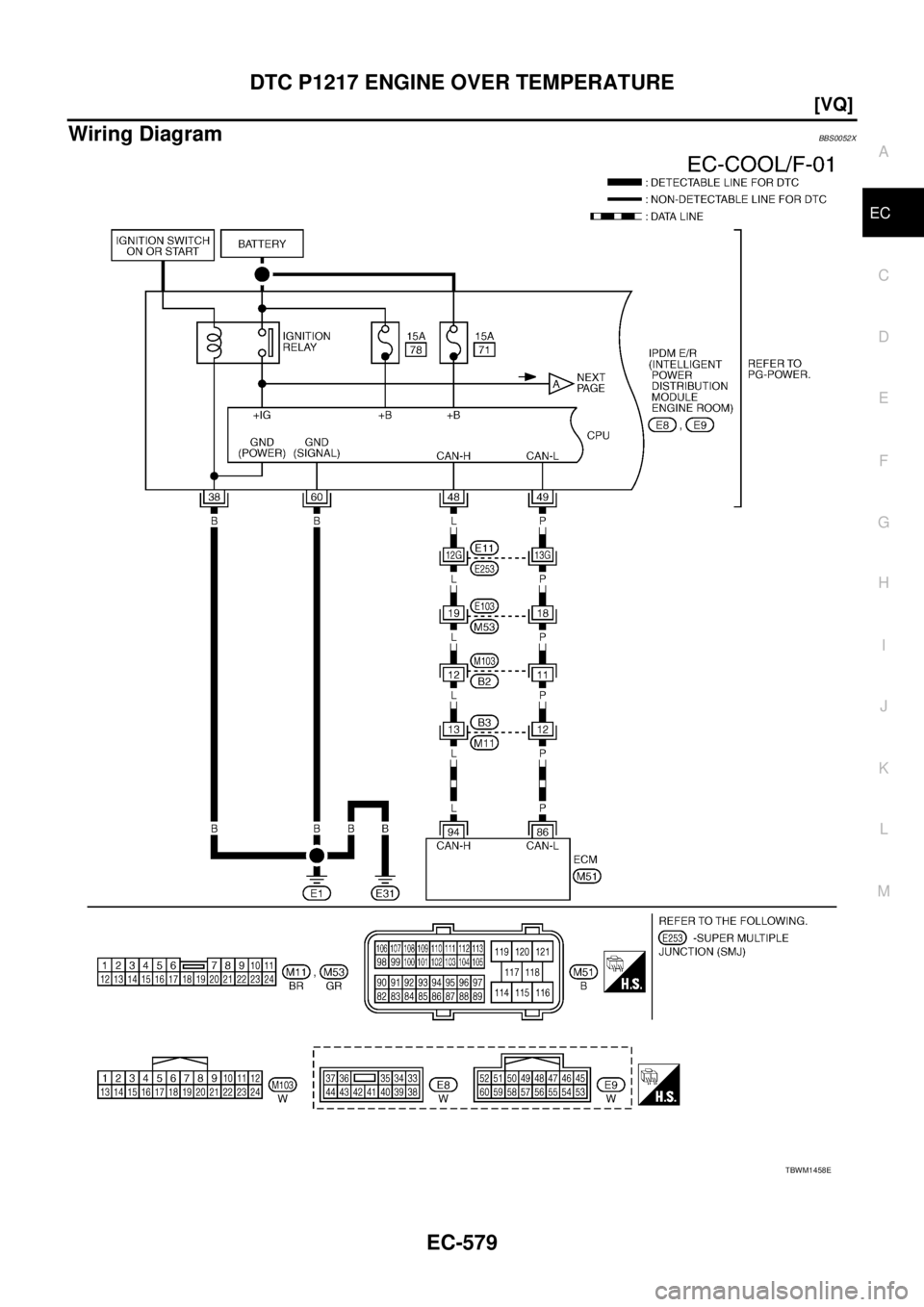

Wiring DiagramBBS0052X
TBWM1458E

EC-580
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

TBWM0625E

DTC P1217 ENGINE OVER TEMPERATURE
EC-581
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureBBS0052Y
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 3.

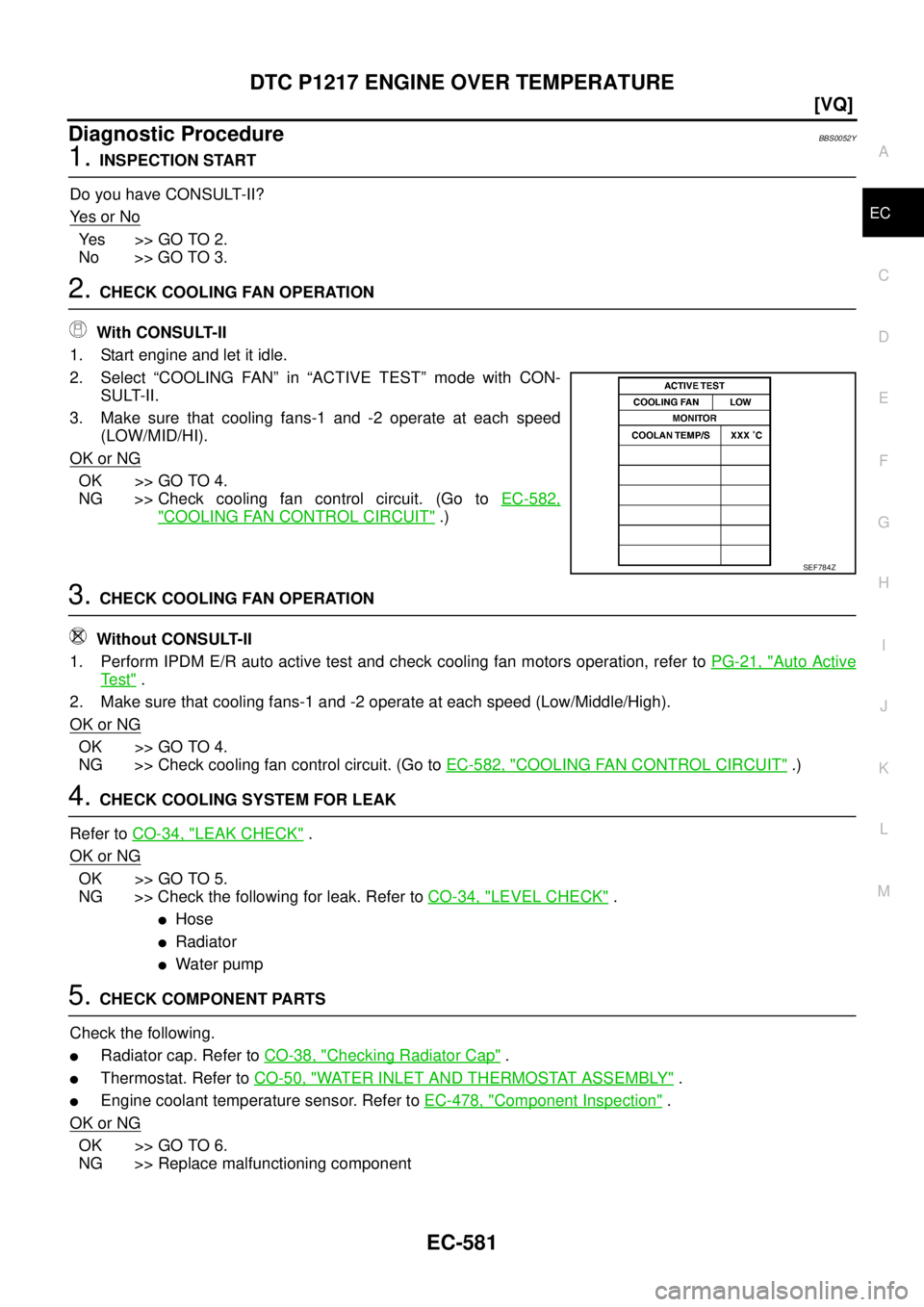

2. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Start engine and let it idle.
2. Select “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
3. Make sure that cooling fans-1 and -2 operate at each speed
(LOW/MID/HI).
OK or NG
OK >> GO TO 4.
NG >> Check cooling fan control circuit. (Go to EC-582,
"COOLING FAN CONTROL CIRCUIT" .)
3. CHECK COOLING FAN OPERATION
Without CONSULT-II
1. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to PG-21, "
Auto Active
Te s t" .
2. Make sure that cooling fans-1 and -2 operate at each speed (Low/Middle/High).
OK or NG
OK >> GO TO 4.
NG >> Check cooling fan control circuit. (Go to EC-582, "
COOLING FAN CONTROL CIRCUIT" .)
4. CHECK COOLING SYSTEM FOR LEAK
Refer to CO-34, "
LEAK CHECK" .
OK or NG
OK >> GO TO 5.
NG >> Check the following for leak. Refer to CO-34, "
LEVEL CHECK" .

Hose

Radiator

Water pump
5. CHECK COMPONENT PARTS
Check the following.

Radiator cap. Refer to CO-38, "Checking Radiator Cap" .

Thermostat. Refer to CO-50, "WATER INLET AND THERMOSTAT ASSEMBLY" .

Engine coolant temperature sensor. Refer to EC-478, "Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning component
SEF784Z

EC-582
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

6. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-584, "
Main 12 Causes of Overheating" .
>>INSPECTION END
COOLING FAN CONTROL CIRCUIT
1. CHECK COOLILNG FAN POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connectors E6.
3. Check voltage between IPDM E/R terminal 15 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

40A fusible link

Harness for open or short between IPDM E/R and battery
>> Repair open circuit or short to ground in harness or connectors.
3. CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between IPDM E/R terminal 16 and ground.
Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to power in harness or connectors.Voltage: Battery voltage
PBIB1681E
Continuity should exist.

DTC P1217 ENGINE OVER TEMPERATURE
EC-583
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK COOLING FAN MOTOR-1 CIRCUIT-I
1. Disconnect cooling fan motor-1 harness connector.
2. Check voltage between cooling fan motor-1 terminals 1, 2 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

40A fusible link

Harness for open or short between cooling fan motor-1 and battery
>> Repair open circuit or short to ground in harness or connectors.
6. CHECK COOLING FAN MOTOR-1 CIRCUIT-II FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E5.
3. Check harness continuity between cooling fan motor-1 terminal 3 and IPDM E/R terminal 8, cooling fan
motor-1 terminal 4 and IPDM E/R terminals 11, 12.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2130E
Voltage: Battery voltage
PBIB1670E
Continuity should exist.

EC-584
[VQ]
DTC P1217 ENGINE OVER TEMPERATURE

7. CHECK COOLING FAN MOTOR-2 CIRCUIT-I FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect cooling fan motor-2 harness connector.
3. Check harness continuity between cooling fan motor-2 terminals
3, 4 and ground.
Refer to Wiring Diagram.
4. Also check harness short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to power in harness or con-
nectors.
8. CHECK COOLING FAN MOTOR-2 CIRCUIT-II FOR OPEN AND SHORT
1. Check harness continuity between cooling fan motor-2 terminal 1 and IPDM E/R terminal 13, cooling fan
motor-2 terminal 2 and IPDM E/R terminals 10, 14.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK COOLING FAN MOTORS
Refer to EC-585, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace cooling fan motors.
10. CHECK INTERMITTENT INCIDENT
Perform EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connector.
Main 12 Causes of OverheatingBBS0052Z
Continuity should exist.
PBIB2130E
Continuity should exist.
Engine Step Inspection item Equipment Standard Reference page
OFF 1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual No blocking —
2

Coolant mixture
Coolant tester 50 - 50% coolant mixtureMA-15, "Anti-Freeze
Coolant Mixture Ratio"
3
Coolant level
Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckCO-34, "LEVEL CHECK"
4
Radiator cap
Pressure tester 78 - 98 kPa
(0.78 - 0.98 bar, 0.8 - 1.0
kg/cm
2 , 9 - 14 psi) (Limit)CO-38, "
Checking Radia-
tor Cap"

DTC P1217 ENGINE OVER TEMPERATURE
EC-585
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-30, "
OVERHEATING CAUSE ANALYSIS" .

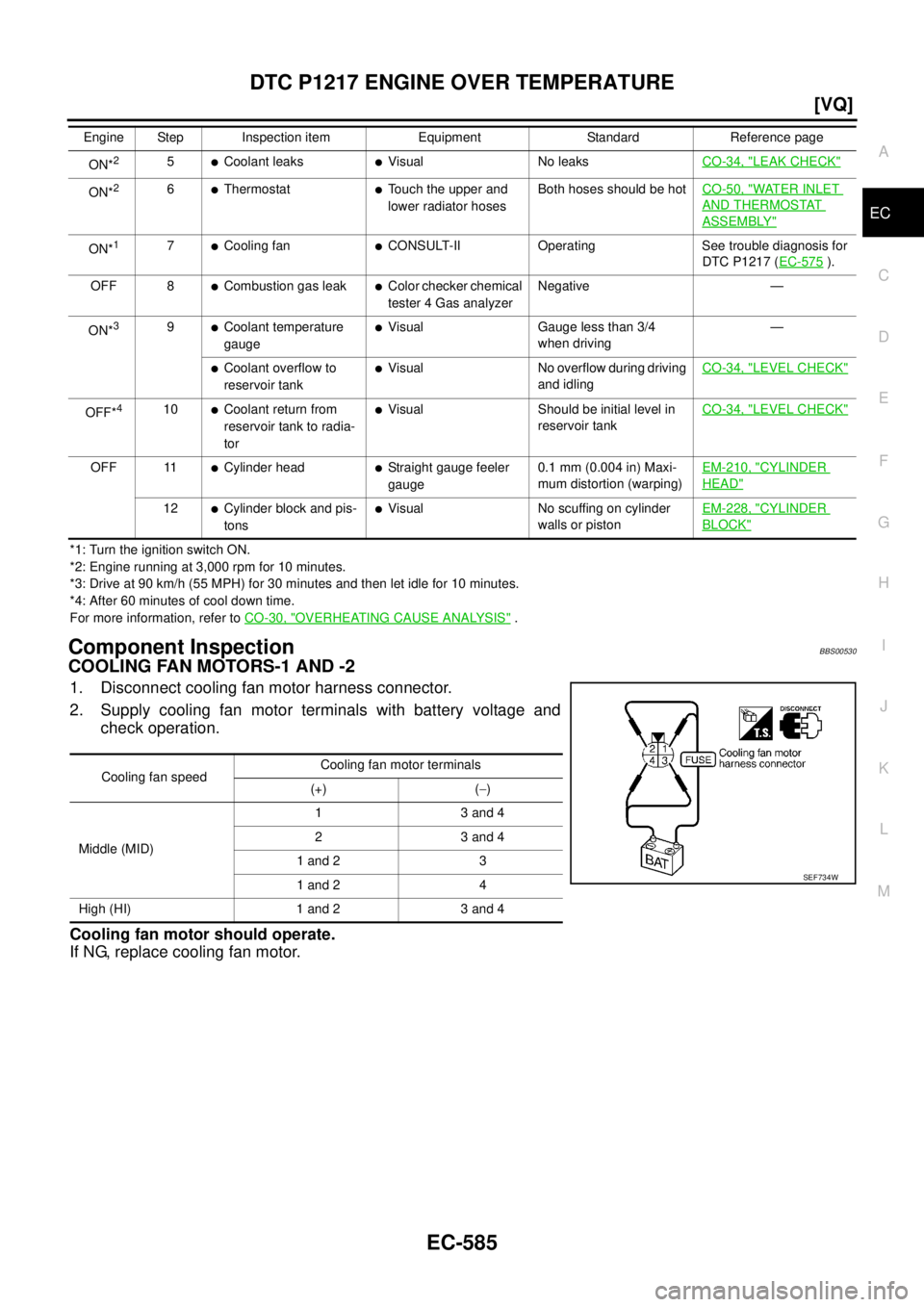

Component InspectionBBS00530
COOLING FAN MOTORS-1 AND -2
1. Disconnect cooling fan motor harness connector.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
ON*25
Coolant leaks
Visual No leaksCO-34, "LEAK CHECK"
ON*26
Thermostat
Touch the upper and
lower radiator hosesBoth hoses should be hotCO-50, "WATER INLET
AND THERMOSTAT
ASSEMBLY"
ON*17
Cooling fan
CONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-575
).
OFF 8

Combustion gas leak
Color checker chemical
tester 4 Gas analyzerNegative —
ON*
39
Coolant temperature
gauge
Visual Gauge less than 3/4
when driving—

Coolant overflow to
reservoir tank
Visual No overflow during driving
and idlingCO-34, "LEVEL CHECK"
OFF*410
Coolant return from
reservoir tank to radia-
tor
Visual Should be initial level in
reservoir tankCO-34, "LEVEL CHECK"
OFF 11
Cylinder head
Straight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)EM-210, "CYLINDER
HEAD"
12
Cylinder block and pis-
tons
Visual No scuffing on cylinder
walls or pistonEM-228, "CYLINDER
BLOCK"
Engine Step Inspection item Equipment Standard Reference page
Cooling fan speedCooling fan motor terminals
(+) (−)
Middle (MID)1 3 and 4
2 3 and 4
1 and 2 3
1 and 2 4
High (HI) 1 and 2 3 and 4
SEF734W

EC-586
[VQ]
DTC P1225 TP SENSOR

DTC P1225 TP SENSORPFP:16119
Component DescriptionBBS00531

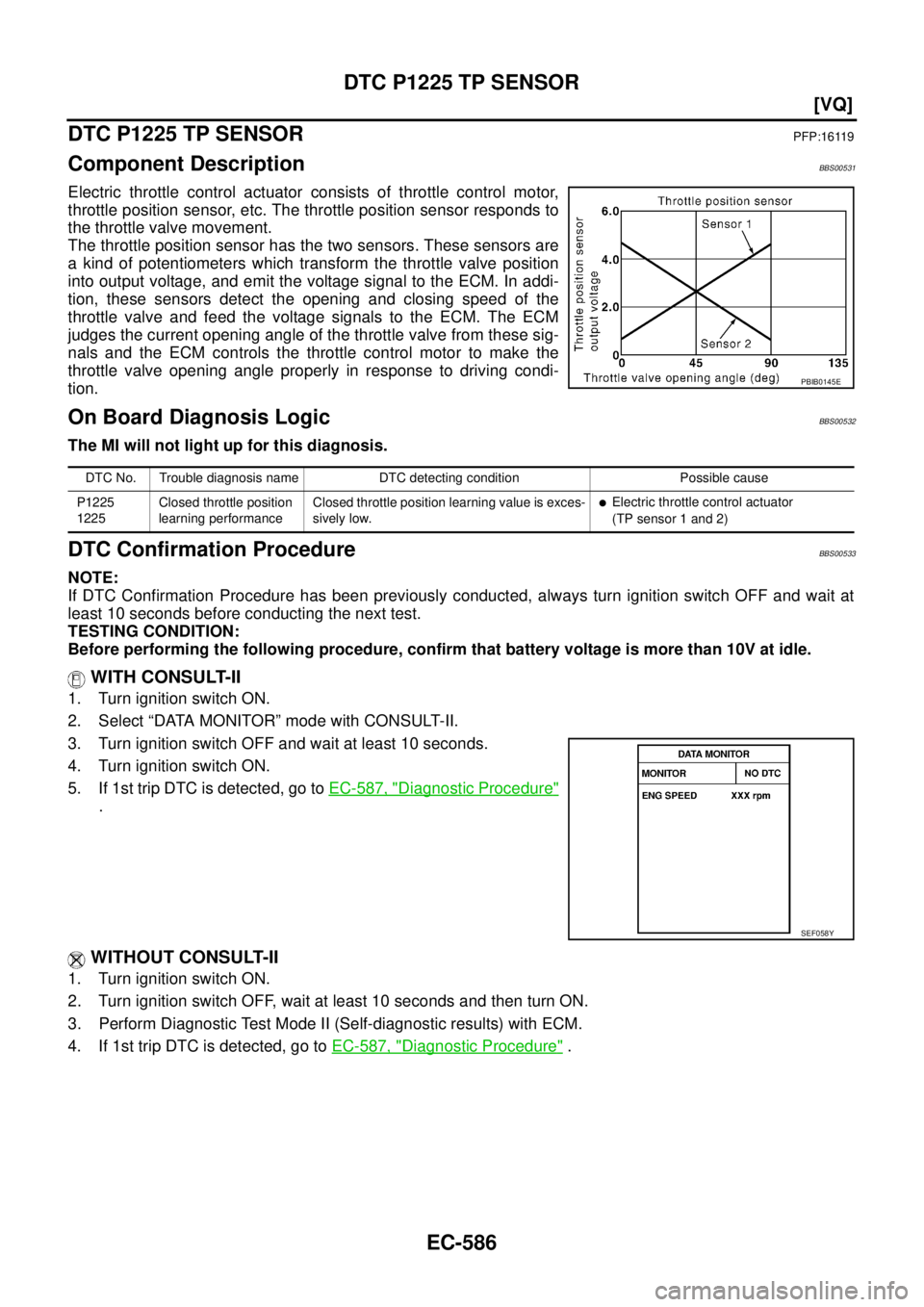

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicBBS00532
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureBBS00533
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. If 1st trip DTC is detected, go to EC-587, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If 1st trip DTC is detected, go to EC-587, "
Diagnostic Procedure" .
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position
learning performanceClosed throttle position learning value is exces-
sively low.

Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y

DTC P1225 TP SENSOR
EC-587
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

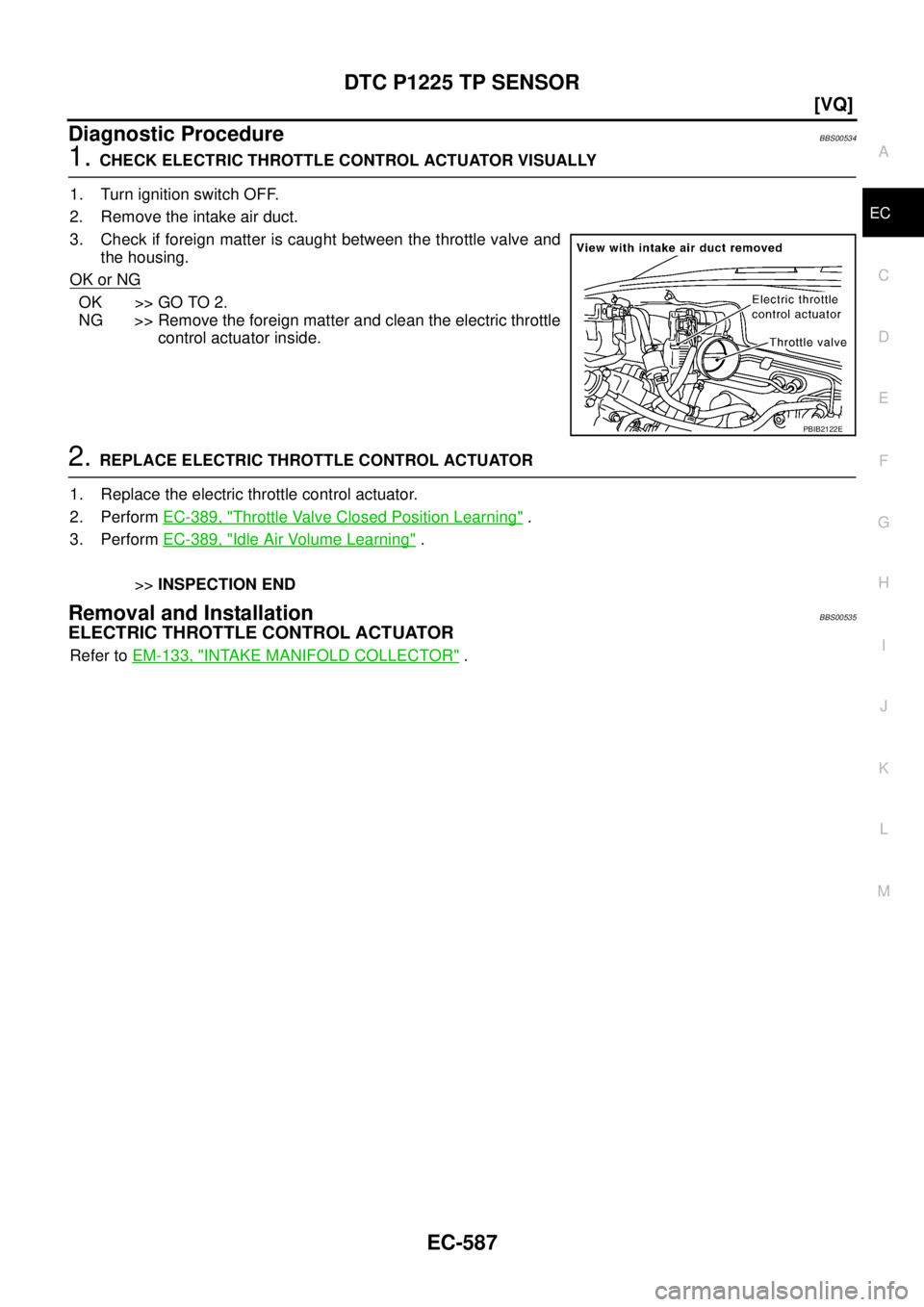

Diagnostic ProcedureBBS00534
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-389, "
Throttle Valve Closed Position Learning" .
3. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationBBS00535
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
PBIB2122E

EC-588
[VQ]
DTC P1226 TP SENSOR

DTC P1226 TP SENSORPFP:16119

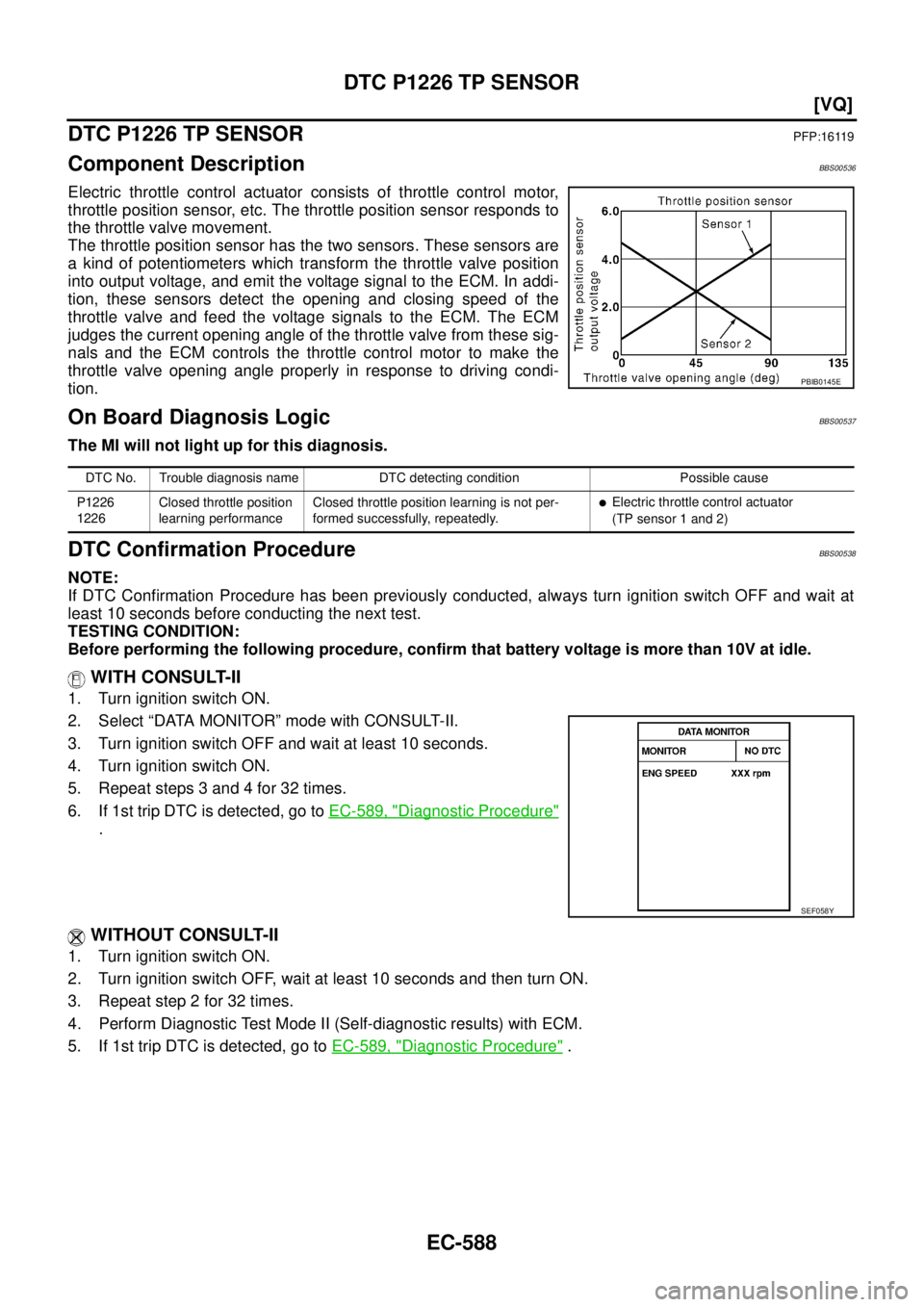

Component DescriptionBBS00536
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicBBS00537
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureBBS00538
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Repeat steps 3 and 4 for 32 times.
6. If 1st trip DTC is detected, go to EC-589, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Repeat step 2 for 32 times.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
5. If 1st trip DTC is detected, go to EC-589, "
Diagnostic Procedure" .
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226
1226Closed throttle position
learning performanceClosed throttle position learning is not per-
formed successfully, repeatedly.

Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
