DTC P1572 ASCD BRAKE SWITCH
EC-609
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

8. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.

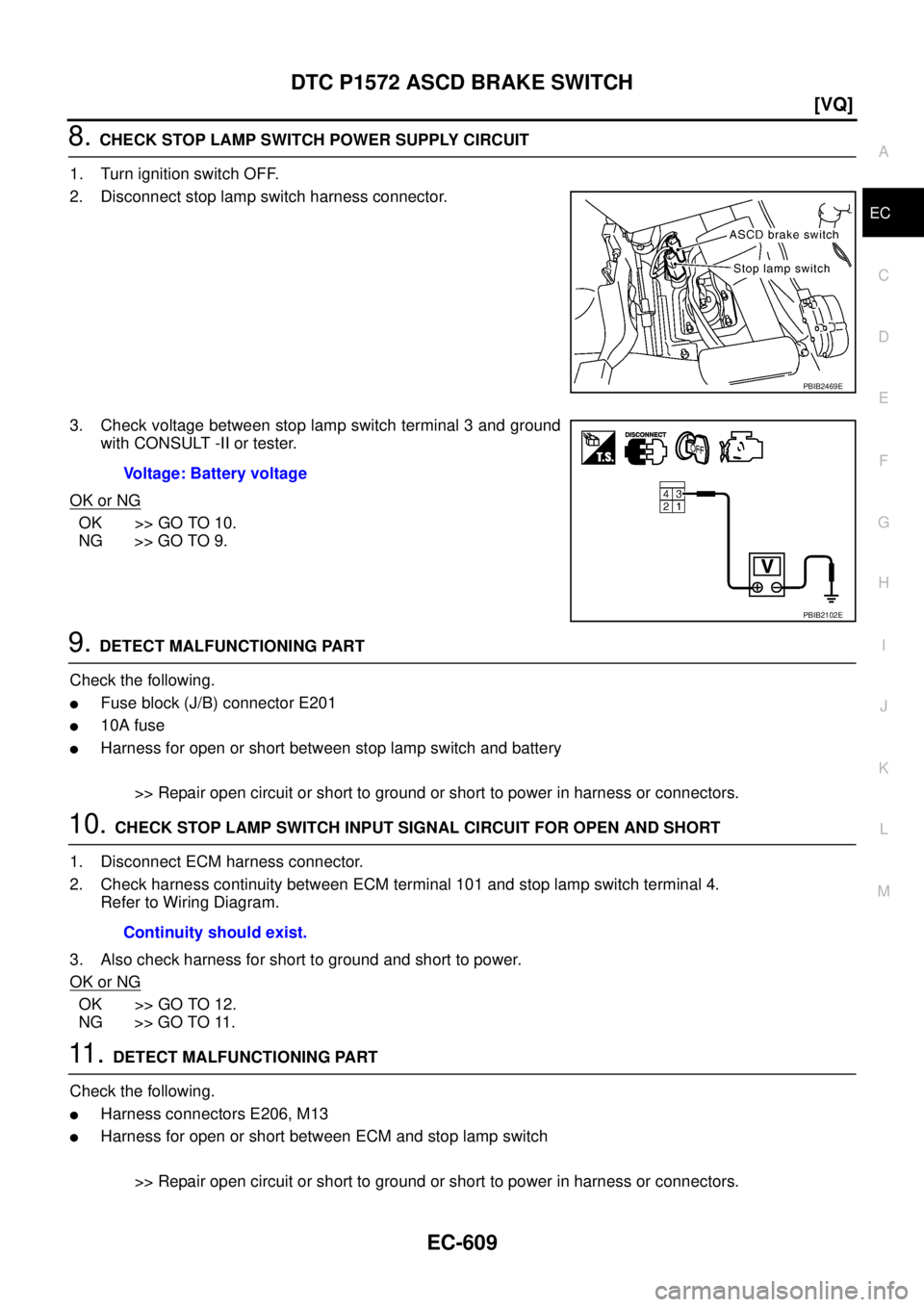

3. Check voltage between stop lamp switch terminal 3 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E201

10A fuse

Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2469E
Voltage: Battery voltage
PBIB2102E
Continuity should exist.

EC-610
[VQ]
DTC P1572 ASCD BRAKE SWITCH

12. CHECK STOP LAMP SWITCH
Refer to EC-610, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace stop lamp switch.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionBBS0053T
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.

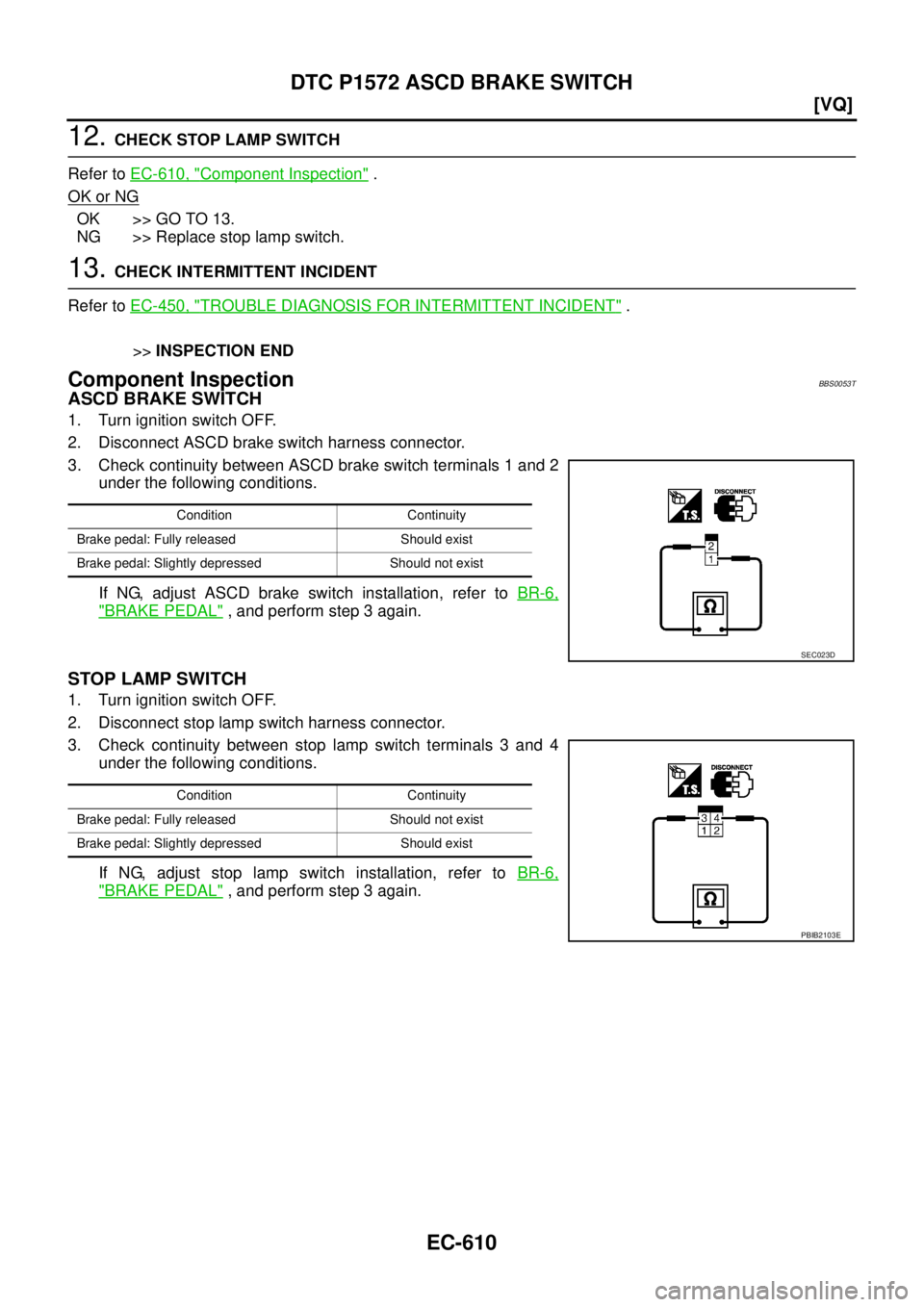

3. Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 3 and 4
under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
Brake pedal: Fully released Should exist
Brake pedal: Slightly depressed Should not exist
SEC023D
Condition Continuity
Brake pedal: Fully released Should not exist
Brake pedal: Slightly depressed Should exist
PBIB2103E

DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-611
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionBBS0053U
The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “unified
meter and A/C amp.” and the other is from TCM (Transmission control module). The ECM uses these signals
for ASCD control. Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for ASCD functions.
On Board Diagnosis LogicBBS0053V
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-458, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-538, "
DTC P0605 ECM"
DTC Confirmation ProcedureBBS0053W
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25 MPH).
4. If DTC is detected, go to EC-612, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
TESTING CONDITION:
Step 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
1. Start engine.
2. Drive the vehicle at more than 40 km/h (25 MPH).
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1574
1574ASCD vehicle speed
sensorECM detects a difference between two vehicle
speed signals is out of the specified range.

Harness or connectors
(The CAN communication line is open or
shorted.)

Unified meter and A/C amp.

ABS actuator and electric unit (control unit)

Wheel sensor

TCM

ECM
SEF058Y

EC-612
[VQ]
DTC P1574 ASCD VEHICLE SPEED SENSOR

5. If DTC is detected, go to EC-612, "Diagnostic Procedure" .
Diagnostic ProcedureBBS0053X
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 4 , "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-8, "
TROUBLE DIAGNOSIS" or BRC-44, "TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK DTC WITH UNIFIED METER AND A/C AMP.
Refer to DI-27, "
UNIFIED METER AND A/C AMP" .
>>INSPECTION END

DTC P1700 CVT CONTROL SYSTEM
EC-613
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1700 CVT CONTROL SYSTEMPFP:31036
DescriptionBBS005AY
This DTC is displayed with other DTC regarding TCM. Perform the trouble diagnosis for displayed other DTC.
Refer to CVT-24, "
TROUBLE DIAGNOSIS" .
When this DTC is detected, the ASCD control is canceled.

EC-614
[VQ]
DTC P1706 PNP SWITCH

DTC P1706 PNP SWITCHPFP:32006
Component DescriptionBBS0053Y
When the gear position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeBBS0053Z
Specification data are reference values.
On Board Diagnosis LogicBBS00540
Overall Function CheckBBS00541
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-618, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.
3. If NG, go to EC-618, "
Diagnostic Procedure" .
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW

Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position
switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.

Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]

Park/neutral position (PNP) switch

Unified meter and A/C amp.
Position (Shift lever) Known-good signal
P or N position ON
Except above OFF
SEF212Y
Position (Shift lever) Voltage V (Known-good data)
P or N position Approx. 0
Except aboveBATTERY VOLTAGE
(11 - 14V)
MBIB0043E

DTC P1706 PNP SWITCH
EC-615
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

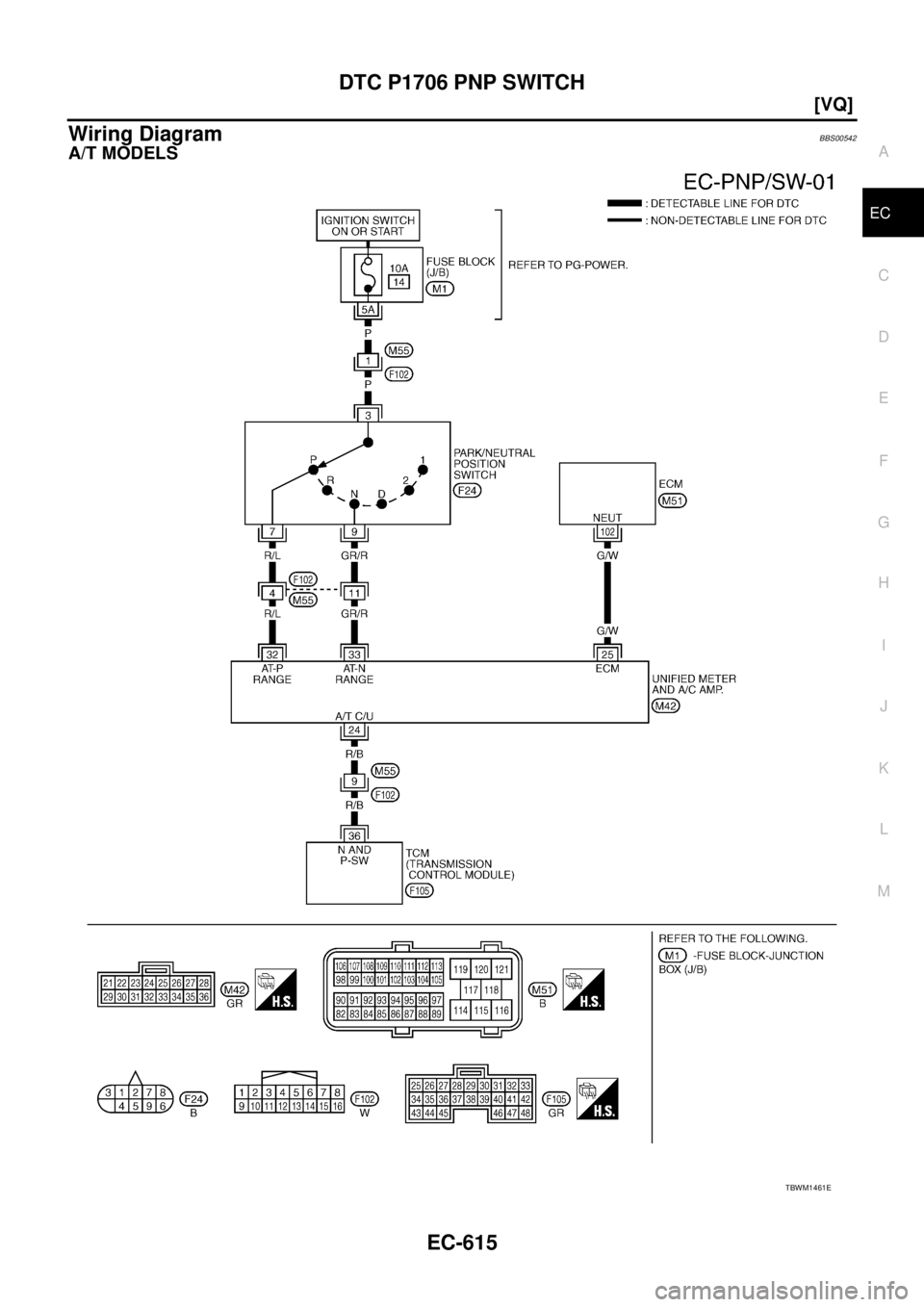

Wiring DiagramBBS00542
A/T MODELS
TBWM1461E

EC-616
[VQ]
DTC P1706 PNP SWITCH

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch[Ignition switch: ON]

Shift lever: N or PApproximately 0V
[Ignition switch: ON]

Except above positionBATTERY VOLTAGE
(11 - 14V)

DTC P1706 PNP SWITCH
EC-617
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

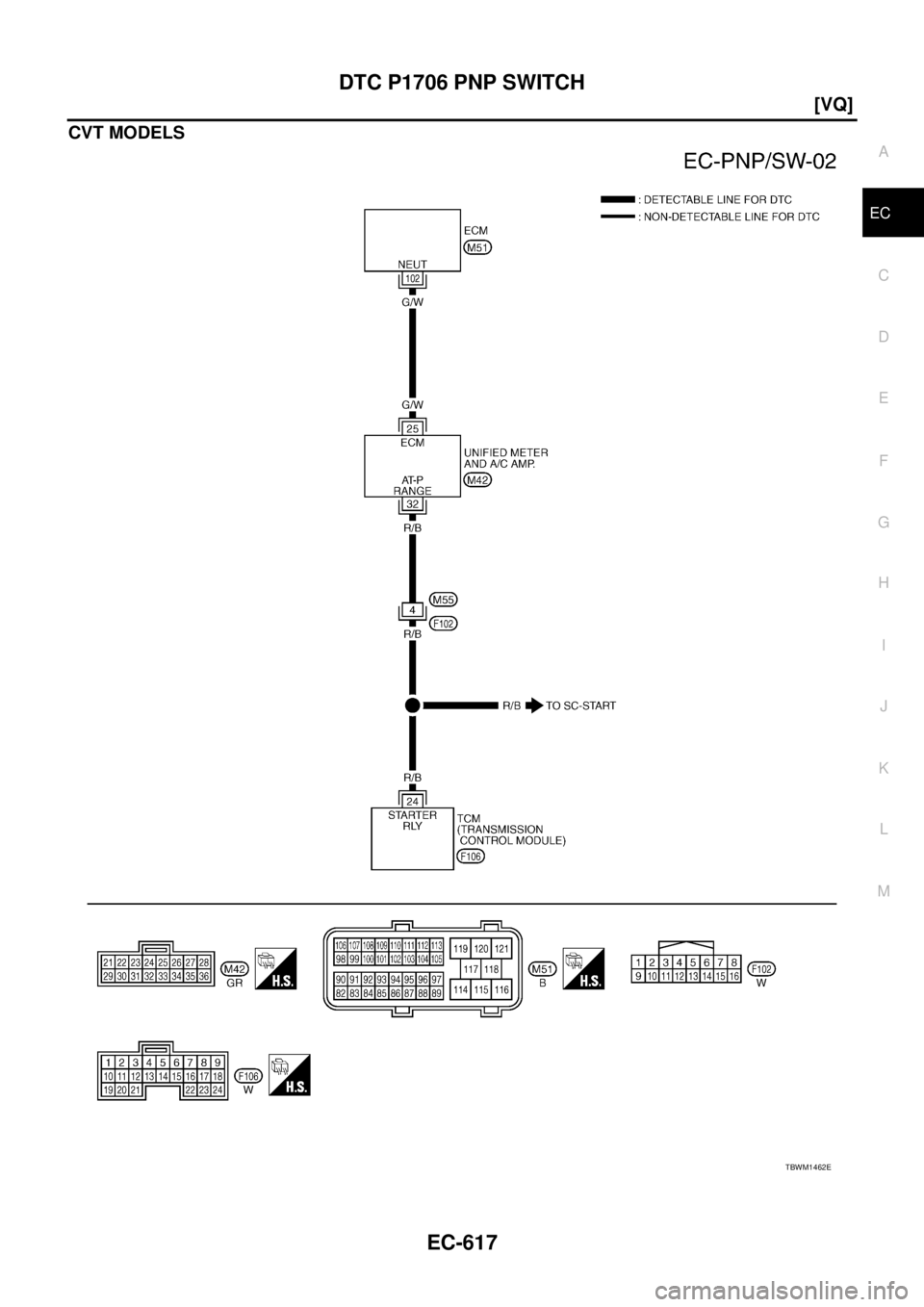

CVT MODELS
TBWM1462E

EC-618
[VQ]
DTC P1706 PNP SWITCH

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00543
A/T MODELS
1. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector M42.
3. Turn ignition switch ON.
4. Check voltage between “unified meter and A/C amp.” terminals
32, 33 and ground with CONSULT-II or tester under the follow-
ing conditions.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK PNP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between PNP switch terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/W PNP switch[Ignition switch: ON]

Shift lever: N or PApproximately 0V
[Ignition switch: ON]

Except above positionBATTERY VOLTAGE
(11 - 14V)
Condition (Shift position)Voltage
Te r m i n a l 3 2 Te r m i n a l 3 3
P positionBATTERY VOLTAGE
(11 - 14V)Approximately 0 V
N position Approximately 0 VBATTERY VOLTAGE
(11 - 14V)
Except above position Approximately 0 V Approximately 0 V
PBIB1675E
Voltage: Battery voltage
PBIB1881E
