NISSAN TEANA 2003 Service Manual

SPARK PLUG(PLATINUM-TIPPED TYPE)
EM-33
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAUTION:

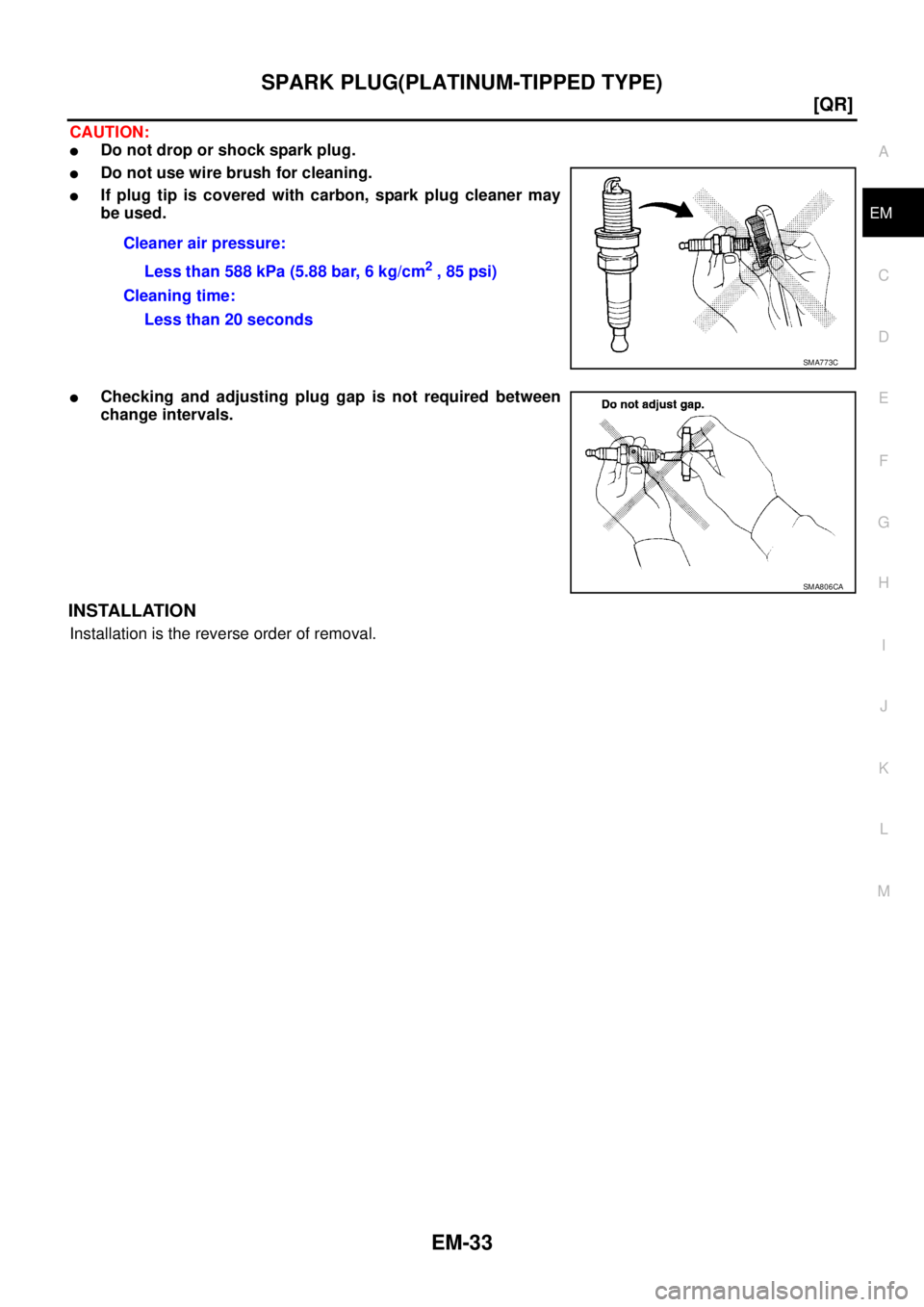

Do not drop or shock spark plug.

Do not use wire brush for cleaning.

If plug tip is covered with carbon, spark plug cleaner may
be used.

Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Installation is the reverse order of removal.Cleaner air pressure:
Less than 588 kPa (5.88 bar, 6 kg/cm
2 , 85 psi)
Cleaning time:
Less than 20 seconds
SMA773C
SMA806CA

EM-34
[QR]
FUEL INJECTOR AND FUEL TUBE

FUEL INJECTOR AND FUEL TUBEPFP:16600
Removal and InstallationBBS00593
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
REMOVAL
WARNING:

Put a “CAUTION: FLAMMABLE” sign in the workshop.

Be sure to work in a well ventilated area and furnish workshop with a CO2 fire extinguisher.

Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
1. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" .
2. Remove air cleaner case (upper) with mass air flow sensor and air duct assembly. Refer to EM-17, "
AIR
CLEANER AND AIR DUCT" .
3. Disconnect quick connectors at engine side and vehicle side as
follows, and remove fuel feed hose.
CAUTION:
Disconnect quick connector by using quick connector
release (SST), not by picking out retainer tabs.
NOTE:
There is quick connector for the engine side and for the vehicle
side, and they have different shapes. But disconnection is same
procedure. The following procedure shows the engine side.

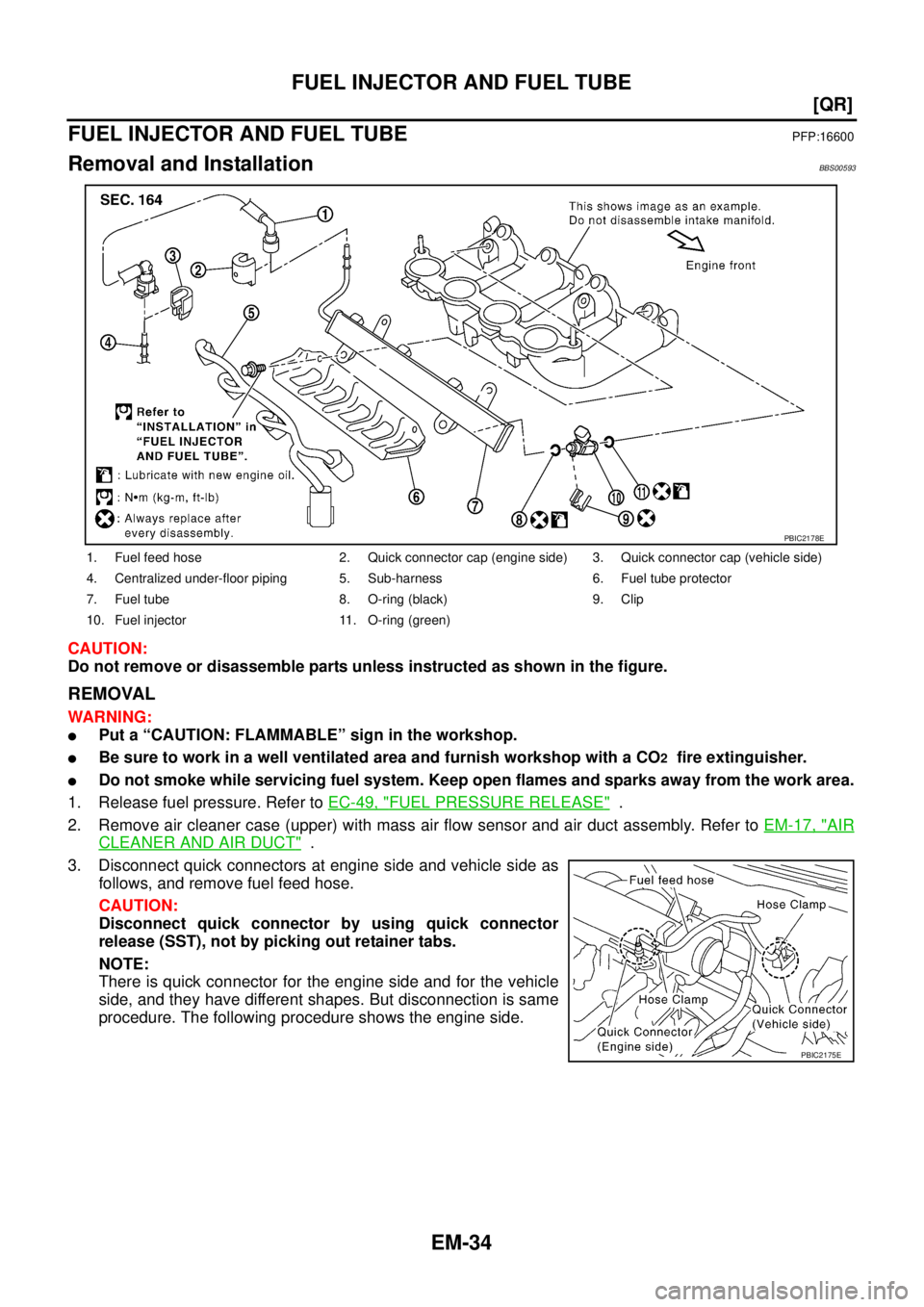

1. Fuel feed hose 2. Quick connector cap (engine side) 3. Quick connector cap (vehicle side)
4. Centralized under-floor piping 5. Sub-harness 6. Fuel tube protector
7. Fuel tube 8. O-ring (black) 9. Clip
10. Fuel injector 11. O-ring (green)
PBIC2178E
PBIC2175E

FUEL INJECTOR AND FUEL TUBE
EM-35
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

a. Remove quick connector cap (engine side).

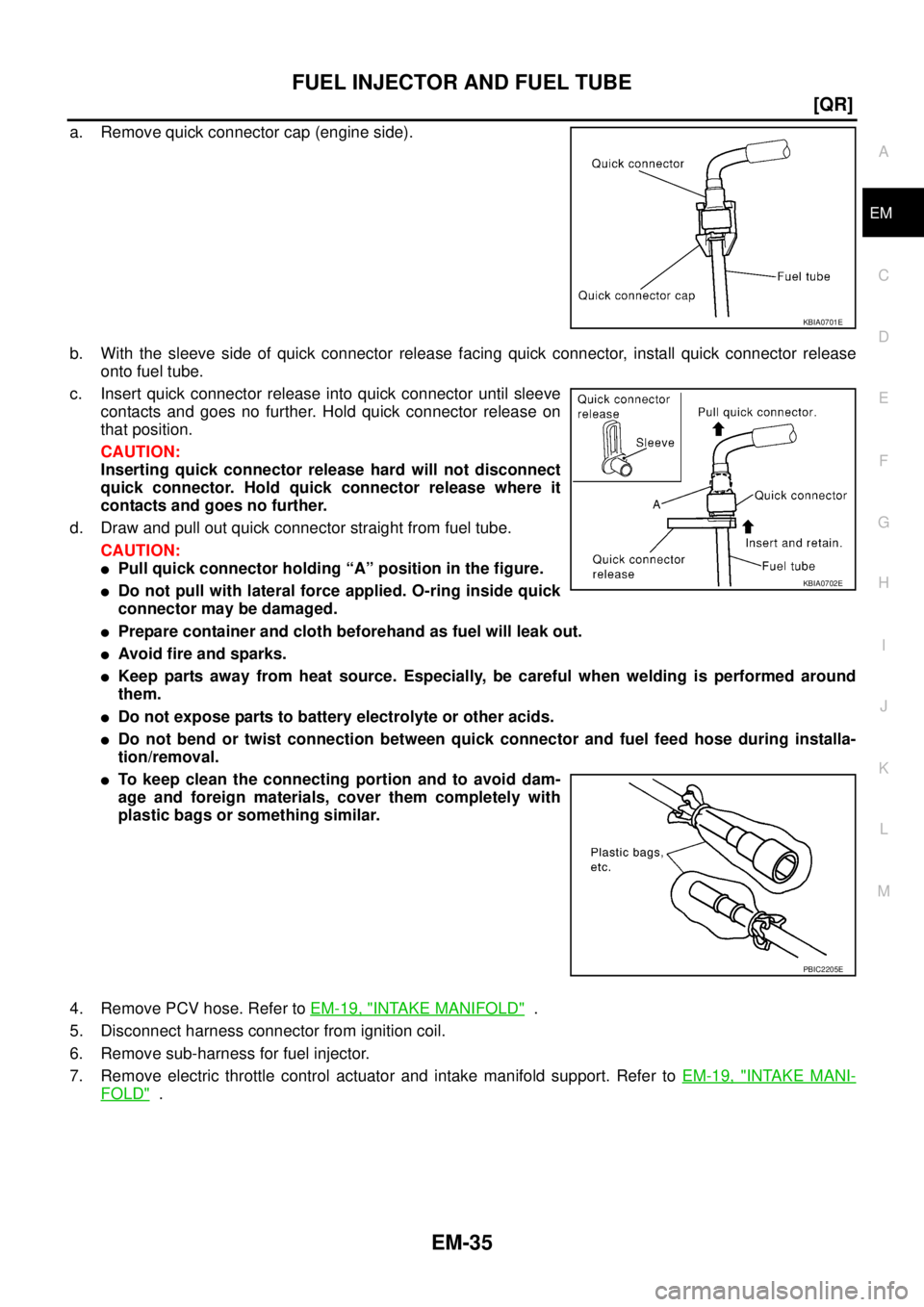

b. With the sleeve side of quick connector release facing quick connector, install quick connector release
onto fuel tube.
c. Insert quick connector release into quick connector until sleeve
contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
d. Draw and pull out quick connector straight from fuel tube.
CAUTION:

Pull quick connector holding “A” position in the figure.

Do not pull with lateral force applied. O-ring inside quick
connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose during installa-
tion/removal.

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
4. Remove PCV hose. Refer to EM-19, "
INTAKE MANIFOLD" .
5. Disconnect harness connector from ignition coil.
6. Remove sub-harness for fuel injector.
7. Remove electric throttle control actuator and intake manifold support. Refer to EM-19, "
INTAKE MANI-
FOLD" .
KBIA0701E
KBIA0702E
PBIC2205E

EM-36
[QR]
FUEL INJECTOR AND FUEL TUBE

8. Loosen mounting bolts in reverse order as shown in the figure.
9. Remove fuel tube protector.
10. Pull out fuel tube and fuel injector assembly rearward of engine.
CAUTION:

When removing, be careful to avoid any interference with fuel injector.

Use a shop cloth to absorb any fuel leaks from fuel tube.
11. Remove fuel injector from fuel tube with the following procedure:
a. Open and remove clip.
b. Remove fuel injector from fuel tube by pulling straight.
CAUTION:

Be careful with remaining fuel that may go out from fuel
tube.

Be careful not to damage fuel injector nozzle during
removal.

Do not bump or drop fuel injector.

Do not disassemble fuel injector.
INSTALLATION
1. Note the following, and install O-rings to fuel injector.
CAUTION:

Upper and lower O-rings are different. Be careful not to confuse them.

Handle O-ring with bare hands. Do not wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert O-ring straight into fuel tube. Do not decenter or twist it.
PBIC2180E
SBIA0364E
Fuel tube side : Black
Nozzle side : Green

FUEL INJECTOR AND FUEL TUBE
EM-37
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

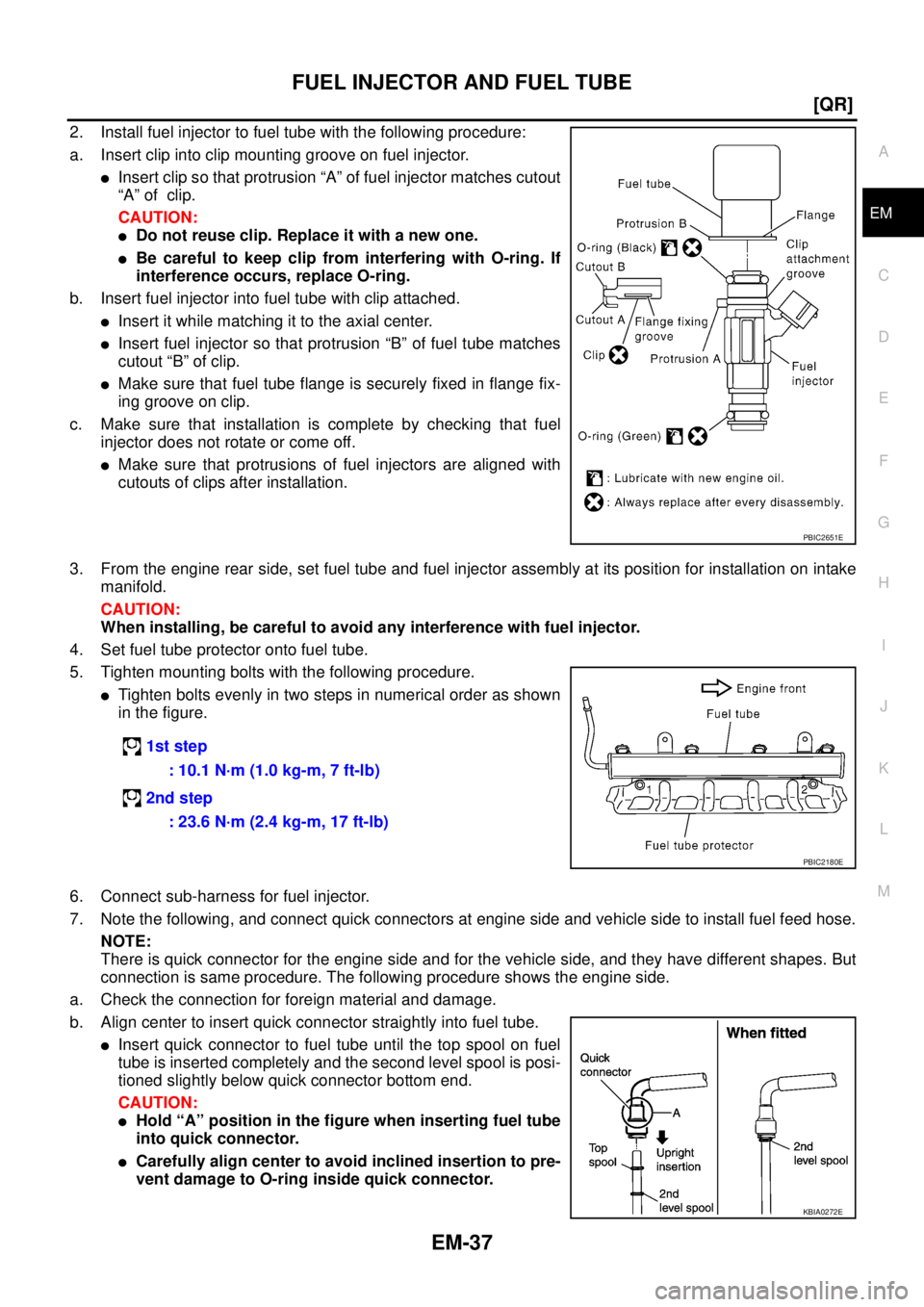

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that protrusion “A” of fuel injector matches cutout
“A” of clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that protrusion “B” of fuel tube matches
cutout “B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.

Make sure that protrusions of fuel injectors are aligned with
cutouts of clips after installation.
3. From the engine rear side, set fuel tube and fuel injector assembly at its position for installation on intake
manifold.
CAUTION:
When installing, be careful to avoid any interference with fuel injector.
4. Set fuel tube protector onto fuel tube.
5. Tighten mounting bolts with the following procedure.

Tighten bolts evenly in two steps in numerical order as shown
in the figure.
6. Connect sub-harness for fuel injector.
7. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.

Insert quick connector to fuel tube until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
PBIC2651E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PBIC2180E
KBIA0272E

EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE


Insert until you hear a “click” sound and actually feel the engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.

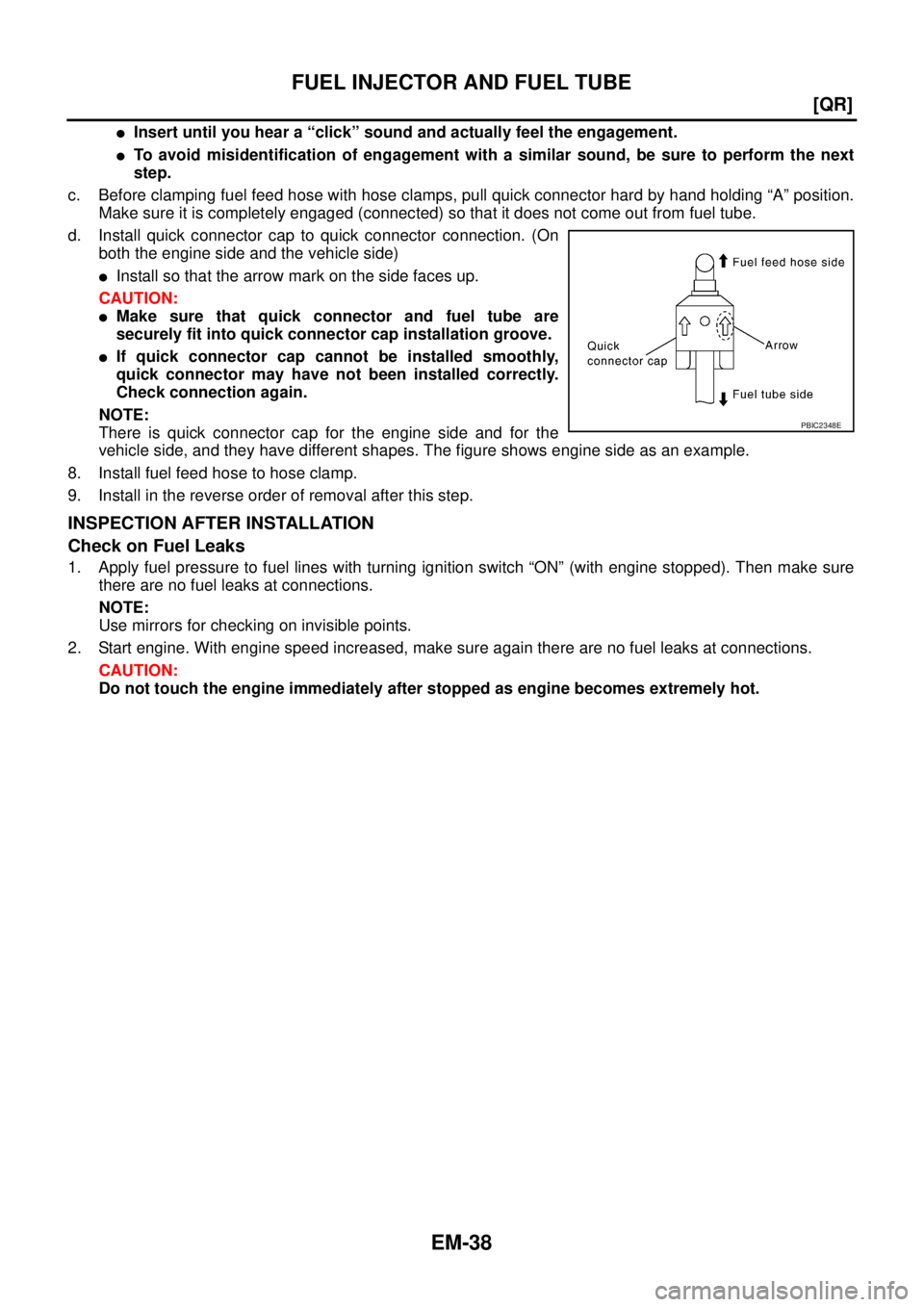

d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
8. Install fuel feed hose to hose clamp.
9. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

ROCKER COVER
EM-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

ROCKER COVERPFP:13264
Removal and InstallationBBS00594
REMOVAL
1. Remove engine cover. Refer to EM-19, "INTAKE MANIFOLD" .
2. Disconnect PCV hoses from rocker cover.
3. Remove ignition coil. Refer to EM-31, "
IGNITION COIL" .
4. Remove PCV valve and O-ring from rocker cover, if necessary.
5. Remove oil filler cap from rocker cover, if necessary.
6. Loosen bolts in reverse order shown in the figure.
7. Remove rocker cover gasket from rocker cover.
8. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
CAUTION:
Do not scratch or damage the mating surface when cleaning off old liquid gasket.
1. PCV hose 2. O-ring 3. PCV valve
4. PCV hose 5. Oil filler cap 6. Rocker cover
7. Rocker cover gasket
PBIC2623E
KBIA0242E

EM-40
[QR]
ROCKER COVER

INSTALLATION

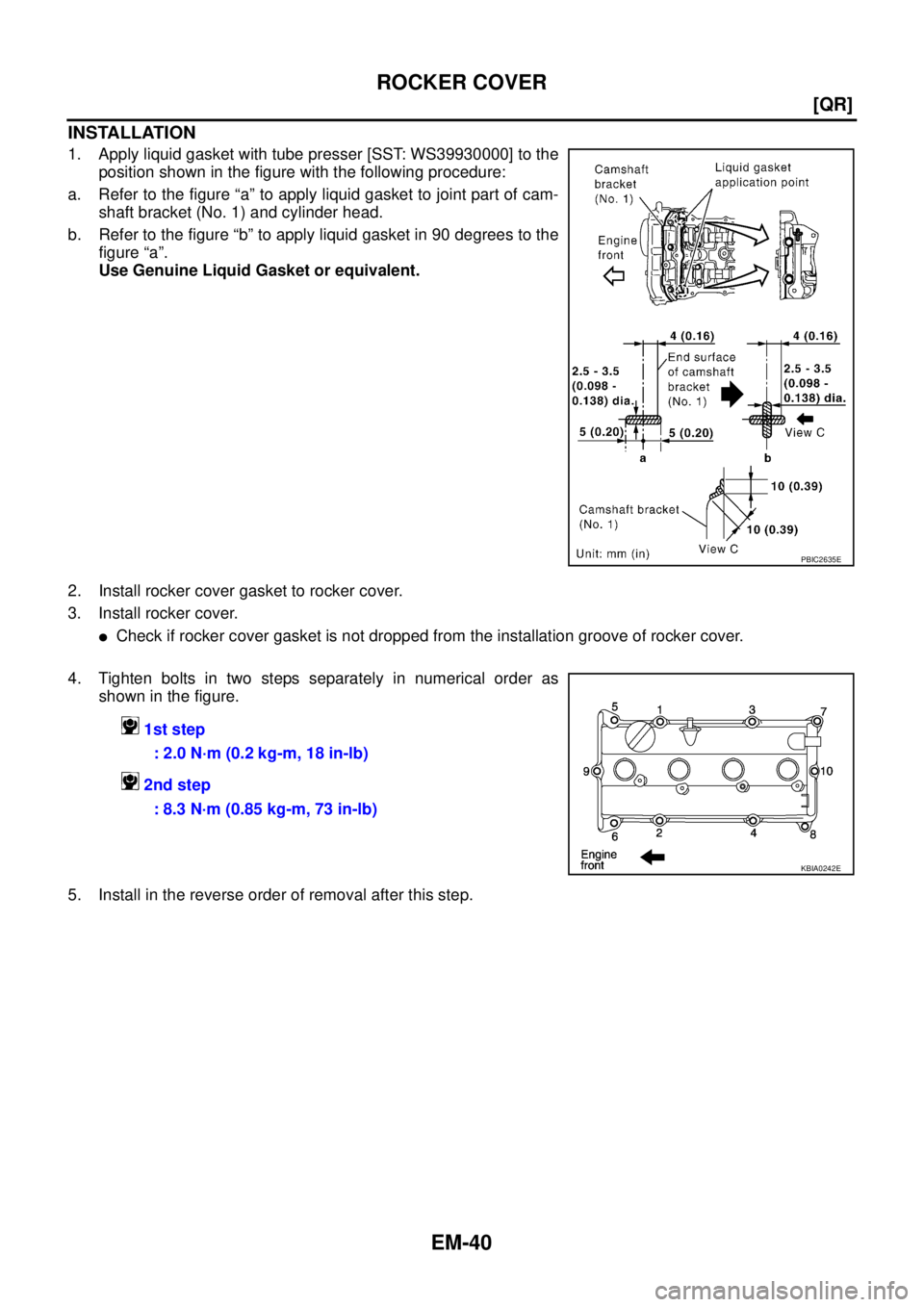

1. Apply liquid gasket with tube presser [SST: WS39930000] to the
position shown in the figure with the following procedure:
a. Refer to the figure “a” to apply liquid gasket to joint part of cam-
shaft bracket (No. 1) and cylinder head.
b. Refer to the figure “b” to apply liquid gasket in 90 degrees to the
figure “a”.
Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover gasket to rocker cover.
3. Install rocker cover.

Check if rocker cover gasket is not dropped from the installation groove of rocker cover.
4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
5. Install in the reverse order of removal after this step.
PBIC2635E
1st step
: 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step
: 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA0242E

CAMSHAFT
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAMSHAFTPFP:13001
Removal and InstallationBBS00595

Refer to GI-10, "Components" for symbol marks in the figure.
NOTE:
This section describes removal/installation procedure of camshaft without removing front cover. If front cover
is removed or installed, removal of camshaft bracket (No. 1) is easier before step 9 and installation is easier
after step 3. Regarding removal and installation of front cover, refer to EM-53, "
TIMING CHAIN" .
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" .
2. Remove the following parts.

Engine cover; Refer to EM-19, "INTAKE MANIFOLD" .

Ignition coil; Refer to EM-31, "IGNITION COIL" .

Rocker cover; Refer to EM-39, "ROCKER COVER" .
3. Remove reservoir tank of radiator from bracket, and move it aside. Refer to CO-13, "
RADIATOR" .
1. Front cover 2. Chain guide 3. Chain tensioner
4. Spring 5. Chain tensioner plunger 6. O-ring
7. Camshaft bracket (No. 1) 8. Camshaft (INT) 9. Camshaft bracket (No. 2 to 5)
10. Camshaft sprocket (INT) 11. Oil ring 12. O-ring
13.Intake valve timing control solenoid
valve14. Intake valve timing control cover 15. O-ring
16. Camshaft position sensor (PHASE) 17. O-ring 18. Camshaft (EXH)
19. Valve lifter 20. Camshaft sprocket (EXH)
A. Refer to EM-47
PBIC4734E

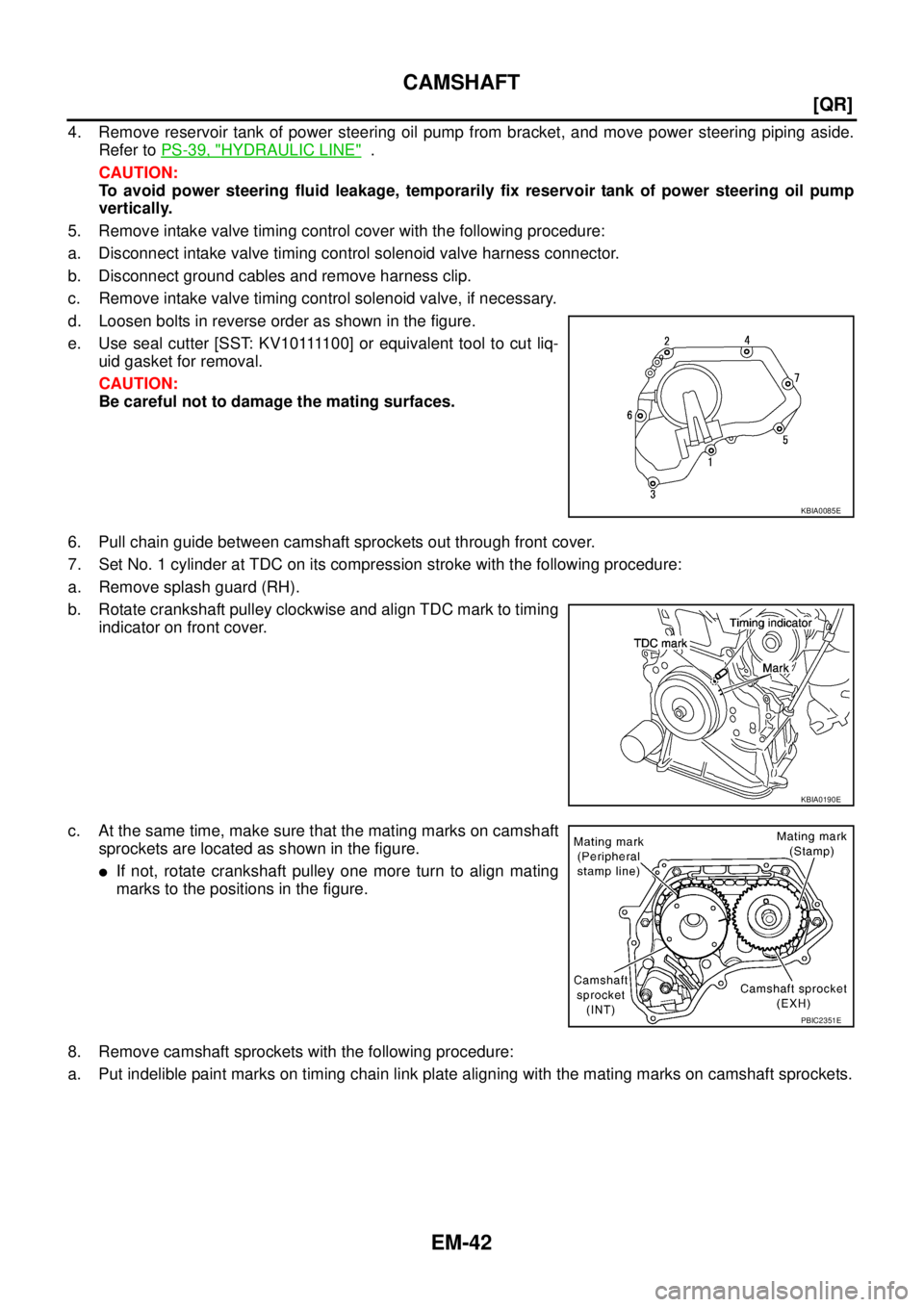

EM-42
[QR]
CAMSHAFT

4. Remove reservoir tank of power steering oil pump from bracket, and move power steering piping aside.
Refer to PS-39, "
HYDRAULIC LINE" .
CAUTION:
To avoid power steering fluid leakage, temporarily fix reservoir tank of power steering oil pump
vertically.
5. Remove intake valve timing control cover with the following procedure:
a. Disconnect intake valve timing control solenoid valve harness connector.
b. Disconnect ground cables and remove harness clip.
c. Remove intake valve timing control solenoid valve, if necessary.
d. Loosen bolts in reverse order as shown in the figure.
e . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q -
uid gasket for removal.
CAUTION:
Be careful not to damage the mating surfaces.
6. Pull chain guide between camshaft sprockets out through front cover.
7. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Remove splash guard (RH).
b. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
c. At the same time, make sure that the mating marks on camshaft
sprockets are located as shown in the figure.

If not, rotate crankshaft pulley one more turn to align mating
marks to the positions in the figure.
8. Remove camshaft sprockets with the following procedure:
a. Put indelible paint marks on timing chain link plate aligning with the mating marks on camshaft sprockets.
KBIA0085E
KBIA0190E
PBIC2351E
