NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
EM-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Use the Chart Below to Help You Find the Cause of the Symptom.BBS0058R
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseType of
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTicking or
clickingCA—AB—Tappet
noiseValve clearanceEM-50
Rattle C A — A B CCamshaft
bearing
noiseCamshaft journal oil
clearance
Camshaft runoutEM-44EM-44
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—BB—Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bush-
ing oil clearanceEM-99
EM-101
Slap or
rapA ——BBAPiston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-104EM-100
EM-100
EM-101
Knock A B C B B BConnect-
ing rod
bearing
noiseConnecting rod bush-
ing oil clearance
Connecting rod bear-
ing oil clearanceEM-101EM-105
Knock A B — A B CMain
bearing
noiseMain bearing oil clear-
ance
Crankshaft runoutEM-106EM-105
Front of
engine
Front
coverTapping or
tickingA A —BBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-57
EM-53
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belt
(Sticking
or slip-
ping)Drive belt deflection
EM-14
CreakingA B ABABDrive belt
(Slipping)Idler pulley bearing
operation
Squall
CreakA B —BABWater
pump
noiseWater pump operationCO-22,
"WATER
PUMP"

EM-14
[QR]
DRIVE BELTS

DRIVE BELTSPFP:02117
Checking Drive BeltsBBS0058S
WARNING:
Be sure to perform this step when the engine is stopped.

Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use
range (between three line notches on moving side).
NOTE:

Check the drive belt auto-tensioner indication when engine is cold.

When new drive belt is installed, the indicator (notch on fixed side) should be within the range “a” in the
figure.

Visually check entire belt for wear, damage or cracks.

If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
Tension AdjustmentBBS0058T
Belt tensioning is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Removal and InstallationBBS0058U
REMOVAL
1. Remove splash guard (RH).
2. With box wrench, and while securely holding the hexagonal part
in center of drive belt auto-tensioner pulley, move the wrench
handle in the direction of arrow (loosening direction of ten-
sioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto-tensioner pulley (Do not turn it counterclockwise). If
turned counterclockwise, the complete drive belt auto-
tensioner must be replaced as a unit, including the pul-
ley.
3. Insert a rod approximately 6 mm (0.24 in) in diameter such as short-length screwdriver into the hole of the
retaining boss to fix drive belt auto-tensioner pulley.
4. Loosen drive belt from water pump pulley in sequence, and remove it.
PBIC2622E
PBIC2169E

DRIVE BELTS
EM-15
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
1. With box wrench, and while securely holding the hexagonal part
in center of drive belt auto-tensioner pulley, move the wrench
handle in the direction of arrow (loosening direction of ten-
sioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto-tensioner pulley (Do not turn it counterclockwise). If
turned counterclockwise, the complete drive belt auto-
tensioner must be replaced as a unit, including the pul-
ley.
2. Insert a rod approximately 6 mm (0.24 in) in diameter such as short-length screwdriver into the hole of
retaining boss to fix drive belt auto-tensioner pulley.
3. Hook drive belt onto all pulleys except for water pump, and then onto water pump pulley finally.
CAUTION:

Confirm belt is completely set to pulleys.

Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each
pulley groove.
4. Release drive belt auto-tensioner, and apply tension to drive belt.
5. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
6. Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to
EM-14, "
Checking Drive Belts" .
Removal and Installation of Drive Belt Auto-TensionerBBS0058V
CAUTION:
The complete drive belt auto-tensioner must be replaced as a unit, including the pulley.
REMOVAL
1. Remove splash guard (RH).
2. Remove drive belt. Refer to EM-14, "
Removal and Installation" .
3. Release the fixed drive belt auto-tensioner pulley.
4. Remove drive belt auto-tensioner.
PBIC2627E
1. Drive belt auto-tensioner 2. Water pump pulley
PBIC2170E

EM-16
[QR]
DRIVE BELTS

CAUTION:
Do not loosen the hexagonal part in center of drive belt auto-tensioner pulley (Do not turn it counter-
clockwise). If turned counterclockwise, the complete drive belt auto-tensioner must be replaced as a
unit, including the pulley.
INSTALLATION
Note the following, and install in the reverse order of removal.

When installing drive belt auto-tensioner, be careful not to interfere with water pump pulley.
CAUTION:

If there is damage greater than peeled paint, replace drive belt auto-tensioner.

Do not swap the pulley between new and old drive belt auto-tensioner.

AIR CLEANER AND AIR DUCT
EM-17
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

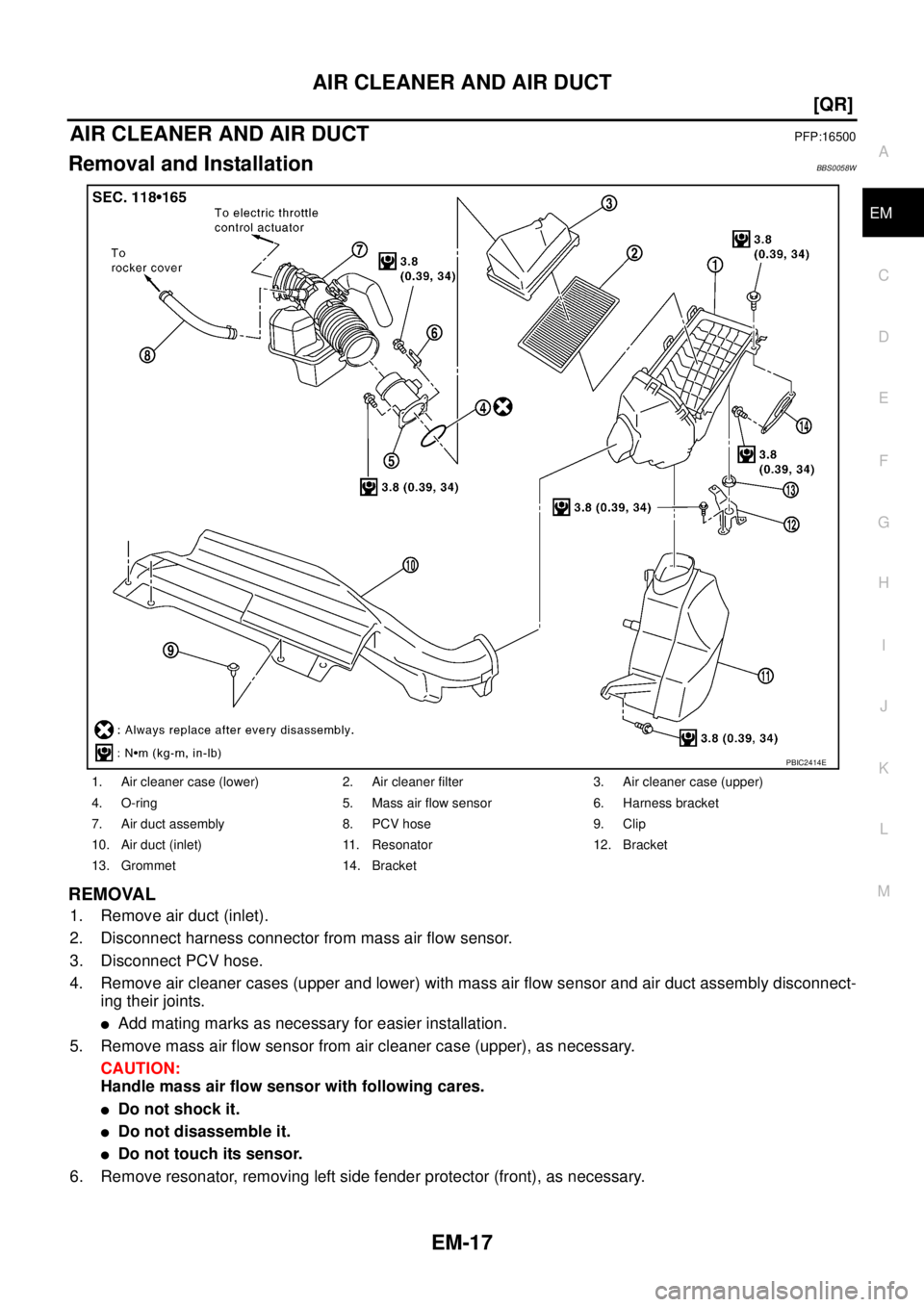

AIR CLEANER AND AIR DUCTPFP:16500
Removal and InstallationBBS0058W
REMOVAL
1. Remove air duct (inlet).
2. Disconnect harness connector from mass air flow sensor.
3. Disconnect PCV hose.
4. Remove air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly disconnect-
ing their joints.

Add mating marks as necessary for easier installation.
5. Remove mass air flow sensor from air cleaner case (upper), as necessary.
CAUTION:
Handle mass air flow sensor with following cares.

Do not shock it.

Do not disassemble it.

Do not touch its sensor.
6. Remove resonator, removing left side fender protector (front), as necessary.
1. Air cleaner case (lower) 2. Air cleaner filter 3. Air cleaner case (upper)
4. O-ring 5. Mass air flow sensor 6. Harness bracket
7. Air duct assembly 8. PCV hose 9. Clip
10. Air duct (inlet) 11. Resonator 12. Bracket
13. Grommet 14. Bracket
PBIC2414E

EM-18
[QR]
AIR CLEANER AND AIR DUCT

INSPECTION AFTER REMOVAL
Inspect air duct assembly for crack or tear.

Replace air duct assembly, if necessary.
INSTALLATION
Note the following, and install in the reverse order of removal.

Align marks. Attach each joint. Screw clamps firmly.
Changing Air Cleaner FilterBBS0058X
REMOVAL
1. Unhook air cleaner case (lower) side clips and lift up air cleaner case (upper).
2. Remove air cleaner filter.
INSTALLATION
Installation is the reverse order of removal.
PBIC2452E

INTAKE MANIFOLD
EM-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

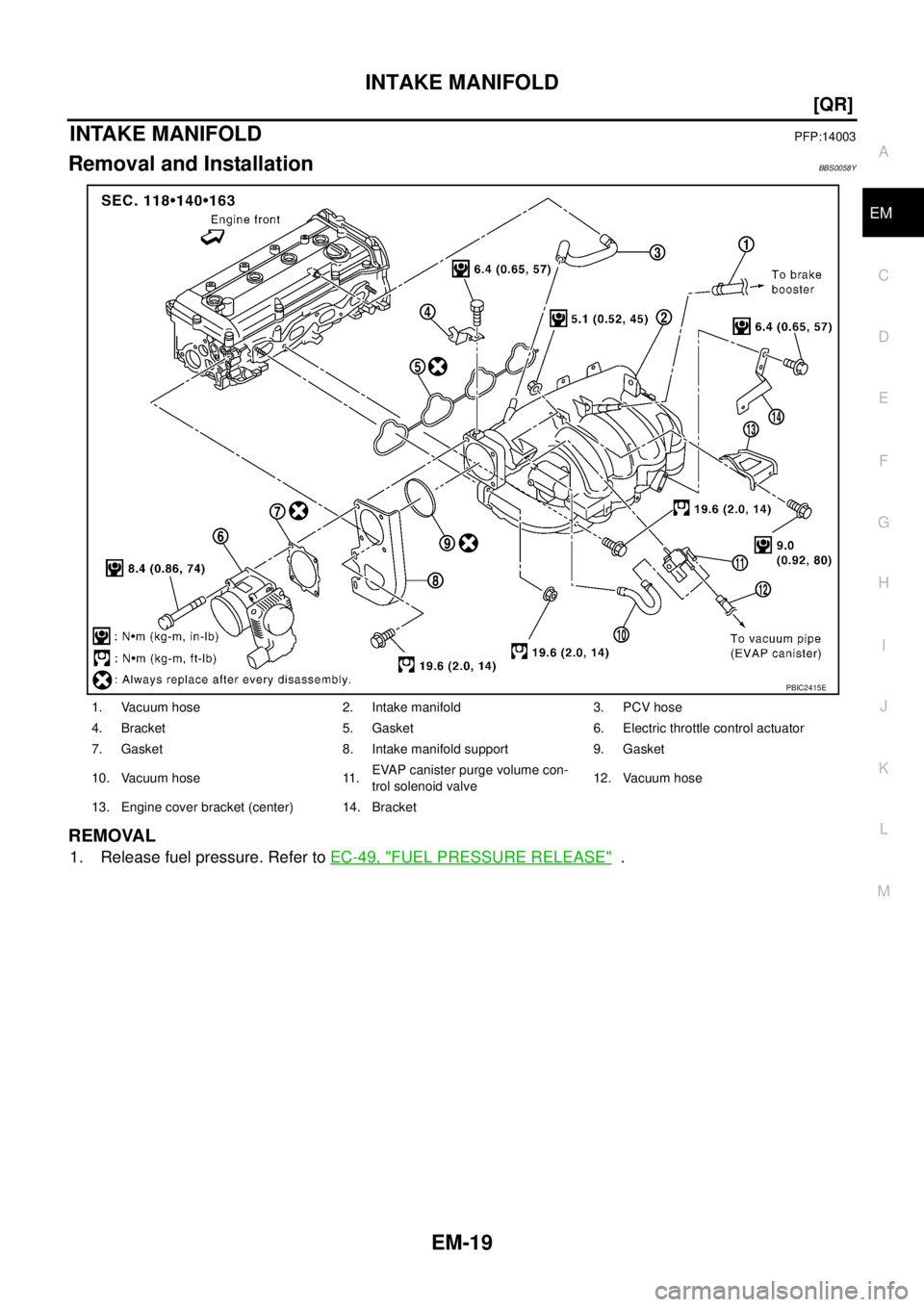

INTAKE MANIFOLDPFP:14003
Removal and InstallationBBS0058Y
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" .
1. Vacuum hose 2. Intake manifold 3. PCV hose
4. Bracket 5. Gasket 6. Electric throttle control actuator
7. Gasket 8. Intake manifold support 9. Gasket
10. Vacuum hose 11.EVAP canister purge volume con-
trol solenoid valve12. Vacuum hose
13. Engine cover bracket (center) 14. Bracket
PBIC2415E

EM-20
[QR]
INTAKE MANIFOLD

2. Remove engine cover.
CAUTION:
Be careful not to damage or scratch engine cover.
3. Remove air cleaner case (upper) with mass air flow sensor and air duct assembly. Refer to EM-17, "
AIR
CLEANER AND AIR DUCT" .
4. Remove quick connector cap, and disconnect quick connector
at engine side. Refer to EM-34, "
FUEL INJECTOR AND FUEL
TUBE" .
5. Remove electric throttle control actuator with the following procedure:
a. Disconnect harness connector.
b. Loosen mounting bolts in reverse order as shown in the figure,
and remove electric throttle control actuator and gasket.
CAUTION:

Handle carefully to avoid any shock to electric throttle
control actuator.

Do not disassemble.
6. Disconnect harness, power steering piping, vacuum hose and PCV hose from intake manifold, and move
them aside.
7. Remove intake manifold support and gasket.
8. Disconnect sub-harness from fuel injector. Refer to EM-34, "
FUEL INJECTOR AND FUEL TUBE" .
9. Remove fuel tube and fuel injector assembly from intake manifold. Refer to EM-34, "
FUEL INJECTOR
AND FUEL TUBE" .
PBIC2423E
PBIC2175E
EMJ1612D

INTAKE MANIFOLD
EM-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

10. Loosen mounting nuts and bolts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:

Do not disassemble intake manifold.

Cover engine openings to avoid entry of foreign materi-
als.
NOTE:
Disregard No. 6 when loosening.
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Check if gasket is not dropped from the installation groove of intake manifold.

Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
Intake Manifold Support
Tighten mounting bolt from “A” to “B” in order as shown in the figure.
NOTE:
Tighten “A” in the figure together with electric throttle control actua-
tor. Refer to EM-21, "
Electric Throttle Control Actuator" for the tight-
ening procedure.
Electric Throttle Control Actuator

Tighten mounting bolts equally and diagonally in several steps
and in numerical order as shown in the figure.

Perform the “Throttle Valve Closed Position Learning” when har-
ness connector of electric throttle control actuator is discon-
nected. Refer to EC-47, "
Throttle Valve Closed Position
Learning" .

Perform the “Idle Air Volume Learning” and “Throttle Valve
Closed Position Learning” when electric throttle control actuator
is replaced. Refer to EC-47, "
Idle Air Volume Learning" .
PBIC2173E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
PBIC2173E
PBIC2628E
EMJ1612D

EM-22
[QR]
INTAKE MANIFOLD

INSPECTION AFTER INSTALLATION
Make sure there are no fuel leaks at connections with the following procedure:
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
