FLOOR TRIM
EI-53
C
D
E
F
G
H
J
K
L
MA
B
EI

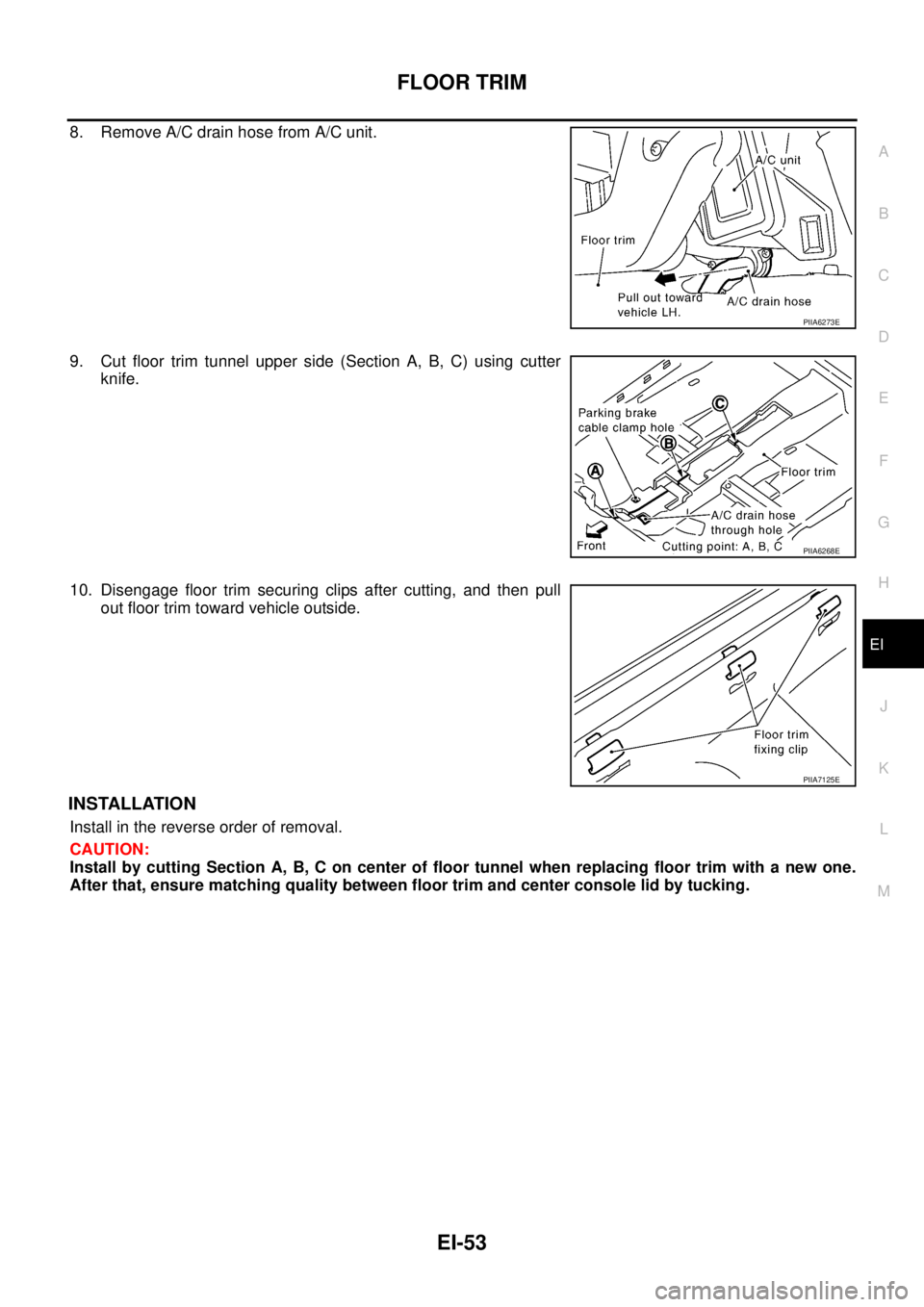

8. Remove A/C drain hose from A/C unit.
9. Cut floor trim tunnel upper side (Section A, B, C) using cutter
knife.
10. Disengage floor trim securing clips after cutting, and then pull
out floor trim toward vehicle outside.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Install by cutting Section A, B, C on center of floor tunnel when replacing floor trim with a new one.
After that, ensure matching quality between floor trim and center console lid by tucking.
PIIA6273E
PIIA6268E
PIIA7125E

EI-54
HEADLINING

HEADLININGPFP:73910
Removal and InstallationBIS0011Y
PIIB1765E

HEADLINING
EI-55
C
D
E
F
G
H
J
K
L
MA
B
EI

REMOVAL
1. Remove front seat belt floor anchor bolt and rear seat belt floor ancher bolt. Refer to SB-3, "SEAT BELTS"
and SB-5, "Removal and Installation of Rear Seat Belt" .
2. Remove rear seat. Refer to SE-112, "
REAR SEAT" .
3. Remove front pillar garnish (LH/RH). Refer to EI-38, "
BODY SIDE TRIM" .

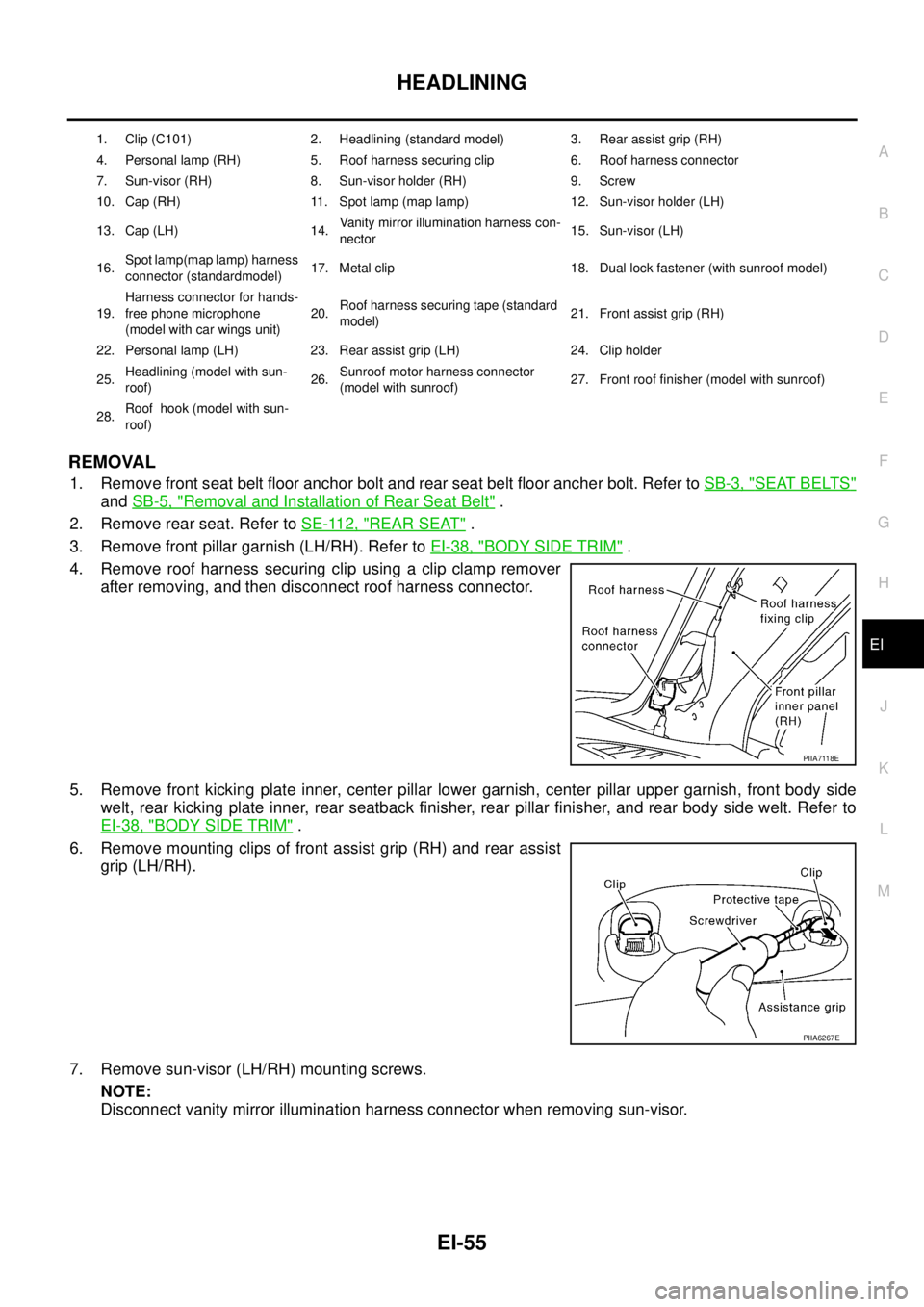

4. Remove roof harness securing clip using a clip clamp remover
after removing, and then disconnect roof harness connector.
5. Remove front kicking plate inner, center pillar lower garnish, center pillar upper garnish, front body side
welt, rear kicking plate inner, rear seatback finisher, rear pillar finisher, and rear body side welt. Refer to
EI-38, "
BODY SIDE TRIM" .
6. Remove mounting clips of front assist grip (RH) and rear assist
grip (LH/RH).
7. Remove sun-visor (LH/RH) mounting screws.
NOTE:
Disconnect vanity mirror illumination harness connector when removing sun-visor.

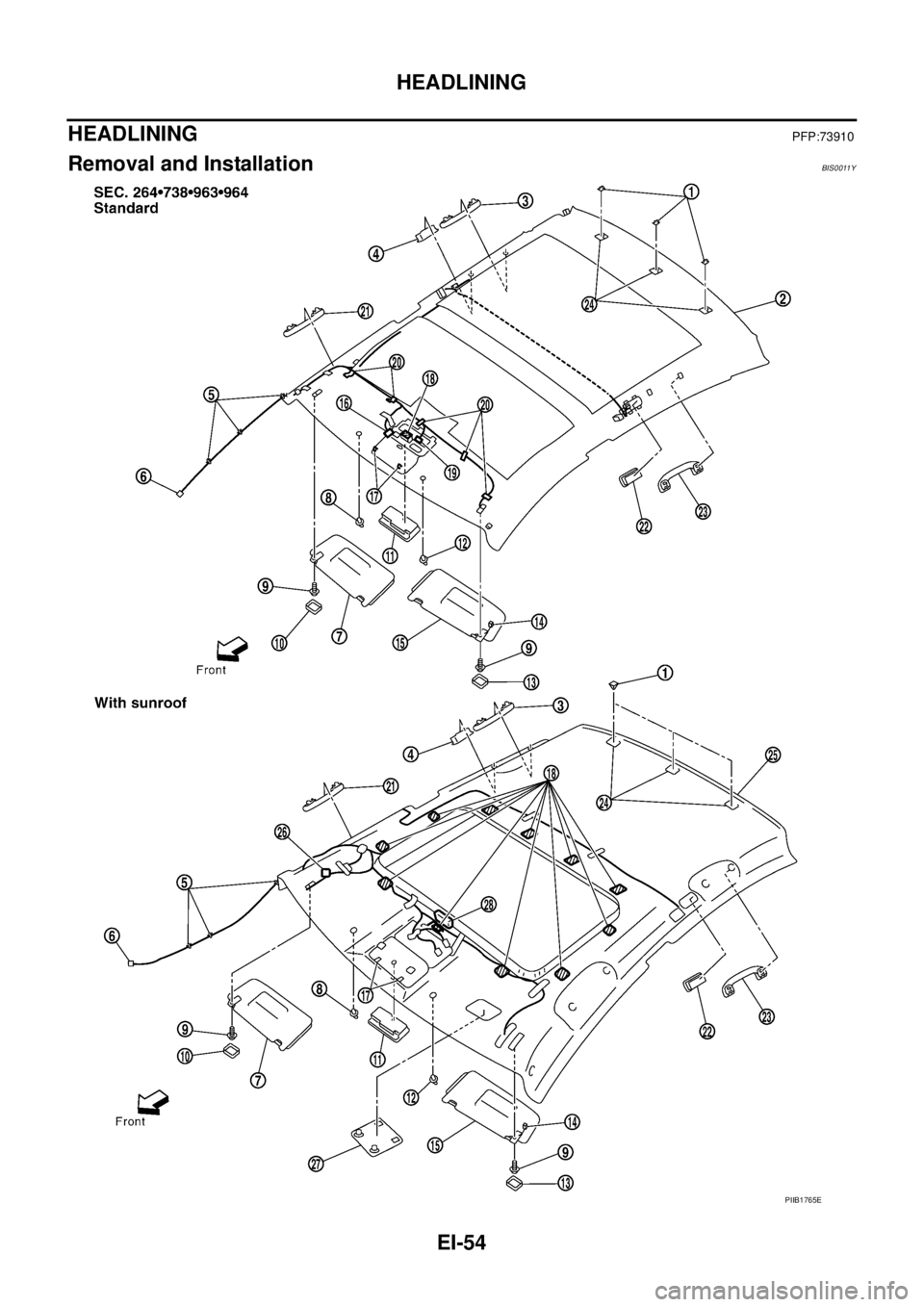

1. Clip (C101) 2. Headlining (standard model) 3. Rear assist grip (RH)
4. Personal lamp (RH) 5. Roof harness securing clip 6. Roof harness connector
7. Sun-visor (RH) 8. Sun-visor holder (RH) 9. Screw
10. Cap (RH) 11. Spot lamp (map lamp) 12. Sun-visor holder (LH)
13. Cap (LH) 14.Vanity mirror illumination harness con-
nector15. Sun-visor (LH)
16.Spot lamp(map lamp) harness
connector (standardmodel)17. Metal clip 18. Dual lock fastener (with sunroof model)
19.Harness connector for hands-
free phone microphone
(model with car wings unit)20.Roof harness securing tape (standard
model)21. Front assist grip (RH)
22. Personal lamp (LH) 23. Rear assist grip (LH) 24. Clip holder
25.Headlining (model with sun-
roof)26.Sunroof motor harness connector
(model with sunroof)27. Front roof finisher (model with sunroof)
28.Roof hook (model with sun-
roof)
PIIA7118E
PIIA6267E

EI-56
HEADLINING

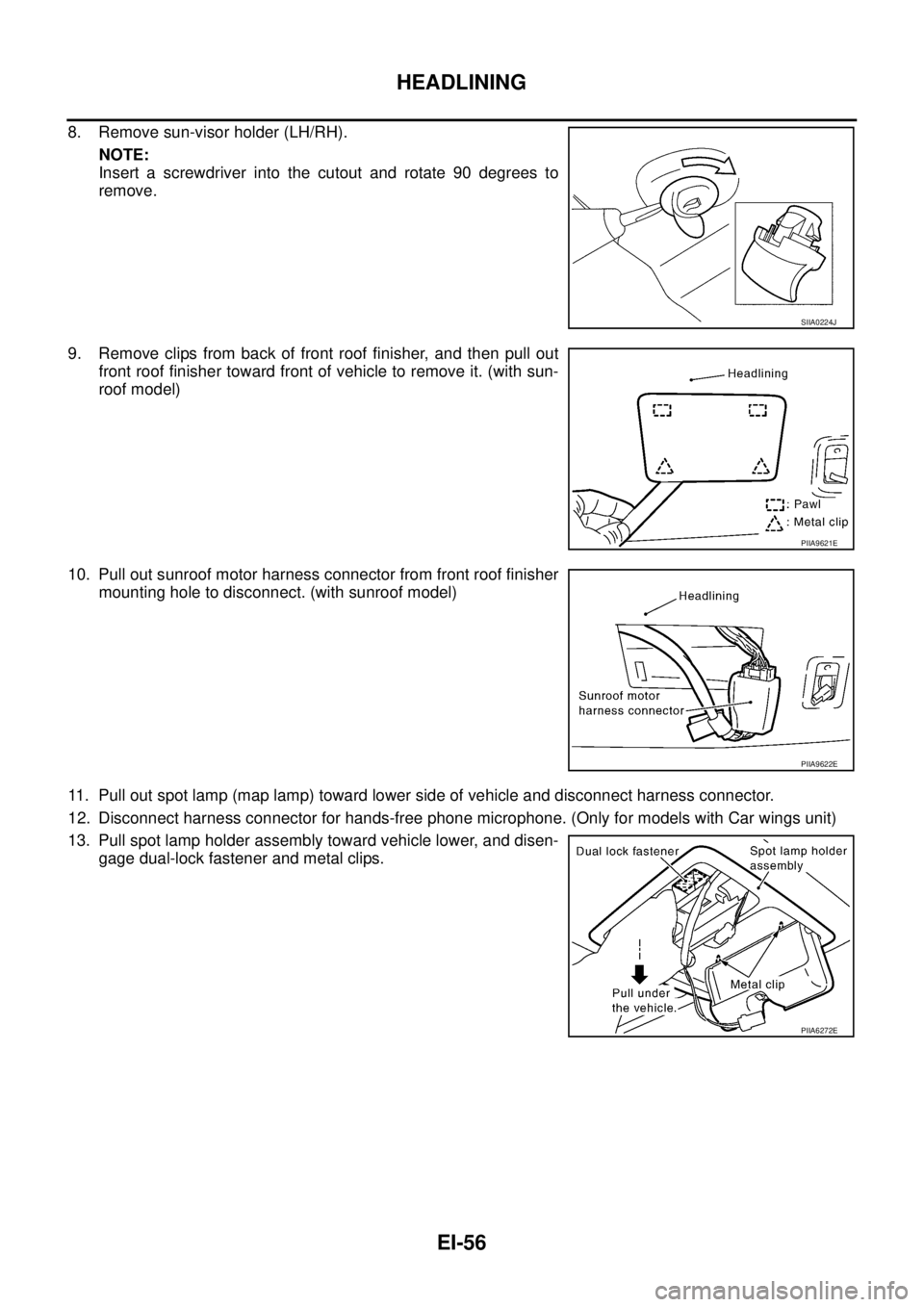

8. Remove sun-visor holder (LH/RH).
NOTE:
Insert a screwdriver into the cutout and rotate 90 degrees to
remove.
9. Remove clips from back of front roof finisher, and then pull out
front roof finisher toward front of vehicle to remove it. (with sun-
roof model)
10. Pull out sunroof motor harness connector from front roof finisher
mounting hole to disconnect. (with sunroof model)
11. Pull out spot lamp (map lamp) toward lower side of vehicle and disconnect harness connector.
12. Disconnect harness connector for hands-free phone microphone. (Only for models with Car wings unit)
13. Pull spot lamp holder assembly toward vehicle lower, and disen-
gage dual-lock fastener and metal clips.
SIIA0224J
PIIA9621E
PIIA9622E
PIIA6272E

HEADLINING
EI-57
C
D
E
F
G
H
J
K
L
MA
B
EI

14. Push headlining toward rear of vehicle after removing, Pull out
clip holder of headlining rear end from clips and remove roof
hook on front of sunroof opening at the same time.
15. Remove front end of headlining right side from front door LH
opening so as to avoid center console finisher upper surface
after pulling out.

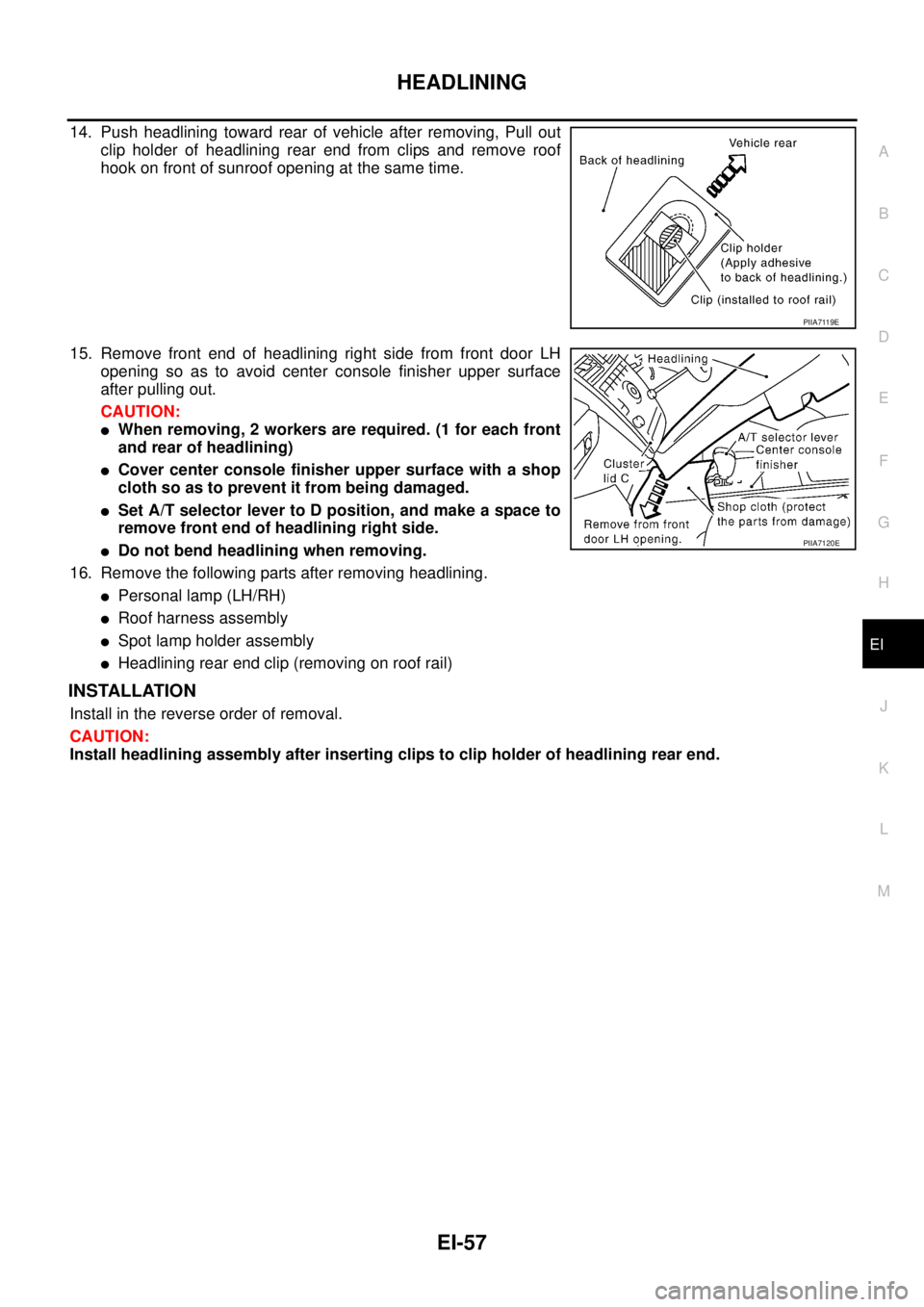

CAUTION:

When removing, 2 workers are required. (1 for each front
and rear of headlining)

Cover center console finisher upper surface with a shop
cloth so as to prevent it from being damaged.

Set A/T selector lever to D position, and make a space to
remove front end of headlining right side.

Do not bend headlining when removing.
16. Remove the following parts after removing headlining.

Personal lamp (LH/RH)

Roof harness assembly

Spot lamp holder assembly

Headlining rear end clip (removing on roof rail)
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Install headlining assembly after inserting clips to clip holder of headlining rear end.
PIIA7119E
PIIA7120E

EI-58
TRUNK ROOM TRIM & TRUNK LID FINISHER

TRUNK ROOM TRIM & TRUNK LID FINISHERPFP:84920
Removal and Installation for Trunk Room TrimBIS0011Z
REMOVAL
1. Fully open trunk lid assembly.
2. Remove trunk lid weatherstrip.
3. Remove trunk floor carpet.
4. Remove trunk box assembly.
5. Remove trunk floor spacer (LH/RH).

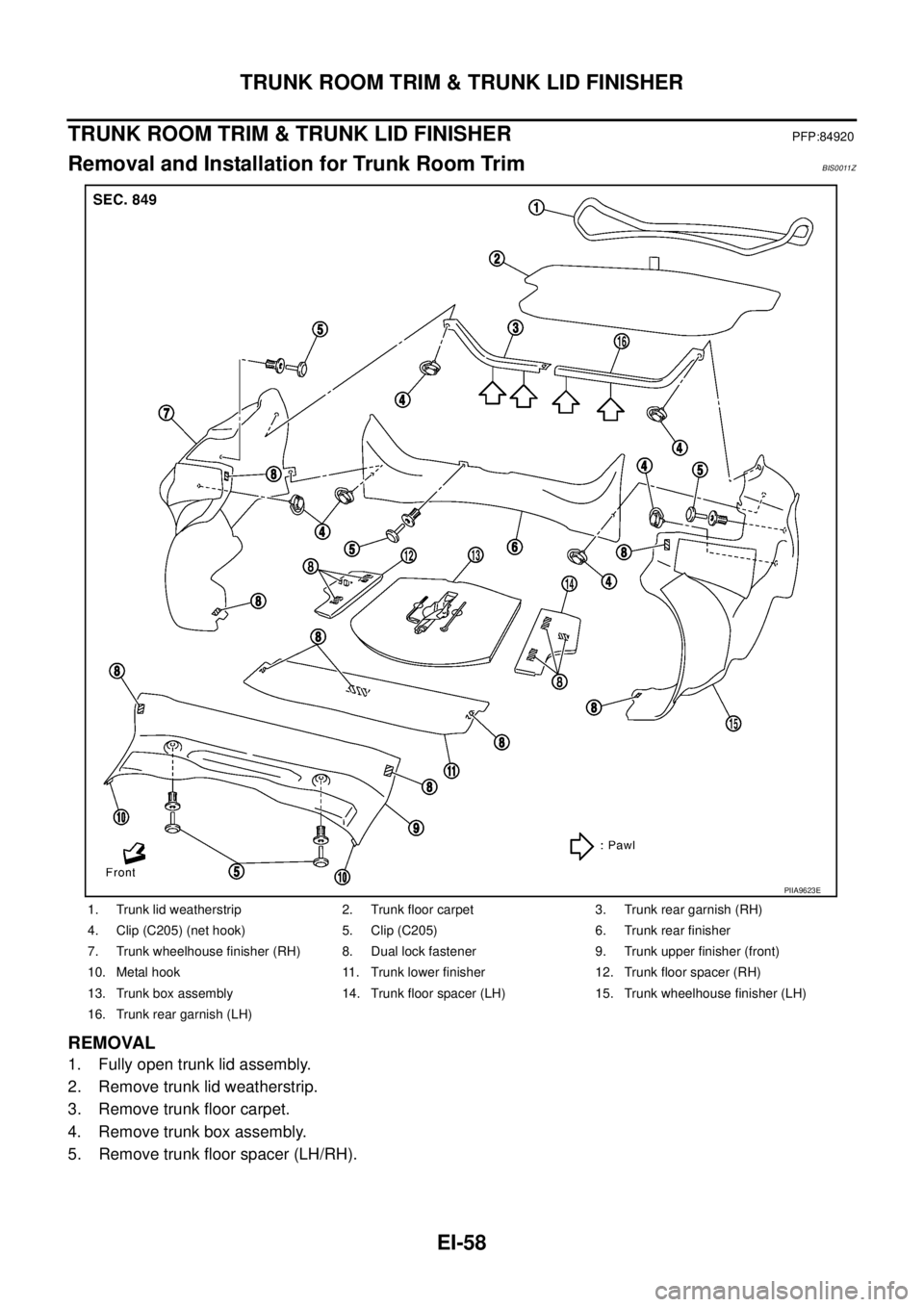

1. Trunk lid weatherstrip 2. Trunk floor carpet 3. Trunk rear garnish (RH)
4. Clip (C205) (net hook) 5. Clip (C205) 6. Trunk rear finisher
7. Trunk wheelhouse finisher (RH) 8. Dual lock fastener 9. Trunk upper finisher (front)
10. Metal hook 11. Trunk lower finisher 12. Trunk floor spacer (RH)
13. Trunk box assembly 14. Trunk floor spacer (LH) 15. Trunk wheelhouse finisher (LH)
16. Trunk rear garnish (LH)
PIIA9623E

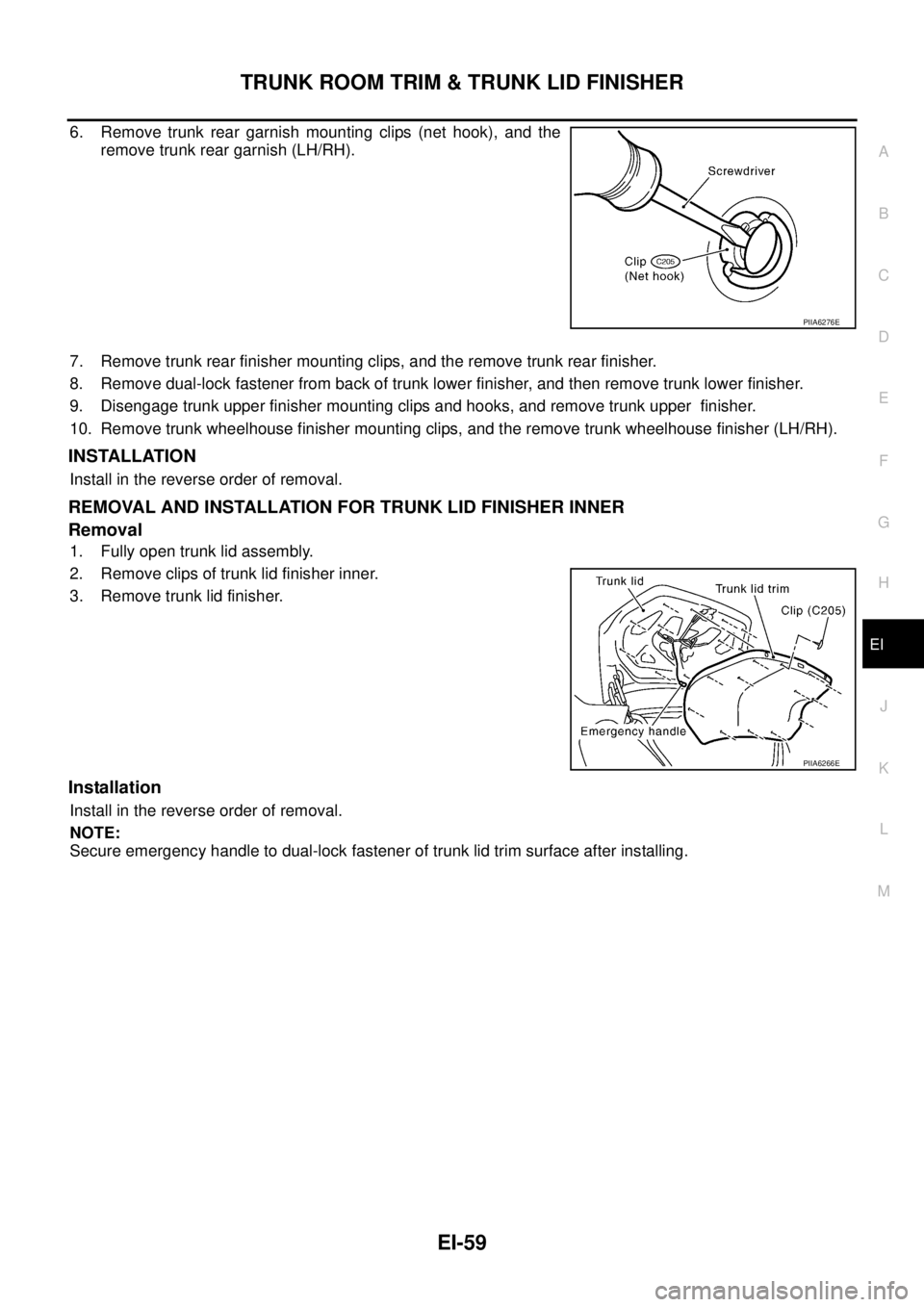

TRUNK ROOM TRIM & TRUNK LID FINISHER
EI-59
C
D
E
F
G
H
J
K
L
MA
B
EI

6. Remove trunk rear garnish mounting clips (net hook), and the
remove trunk rear garnish (LH/RH).
7. Remove trunk rear finisher mounting clips, and the remove trunk rear finisher.
8. Remove dual-lock fastener from back of trunk lower finisher, and then remove trunk lower finisher.
9. Disengage trunk upper finisher mounting clips and hooks, and remove trunk upper finisher.
10. Remove trunk wheelhouse finisher mounting clips, and the remove trunk wheelhouse finisher (LH/RH).
INSTALLATION
Install in the reverse order of removal.
REMOVAL AND INSTALLATION FOR TRUNK LID FINISHER INNER
Removal
1. Fully open trunk lid assembly.
2. Remove clips of trunk lid finisher inner.
3. Remove trunk lid finisher.
Installation
Install in the reverse order of removal.
NOTE:
Secure emergency handle to dual-lock fastener of trunk lid trim surface after installing.
PIIA6276E
PIIA6266E

EI-60
TRUNK ROOM TRIM & TRUNK LID FINISHER
