NISSAN TEANA 2003 Service Manual

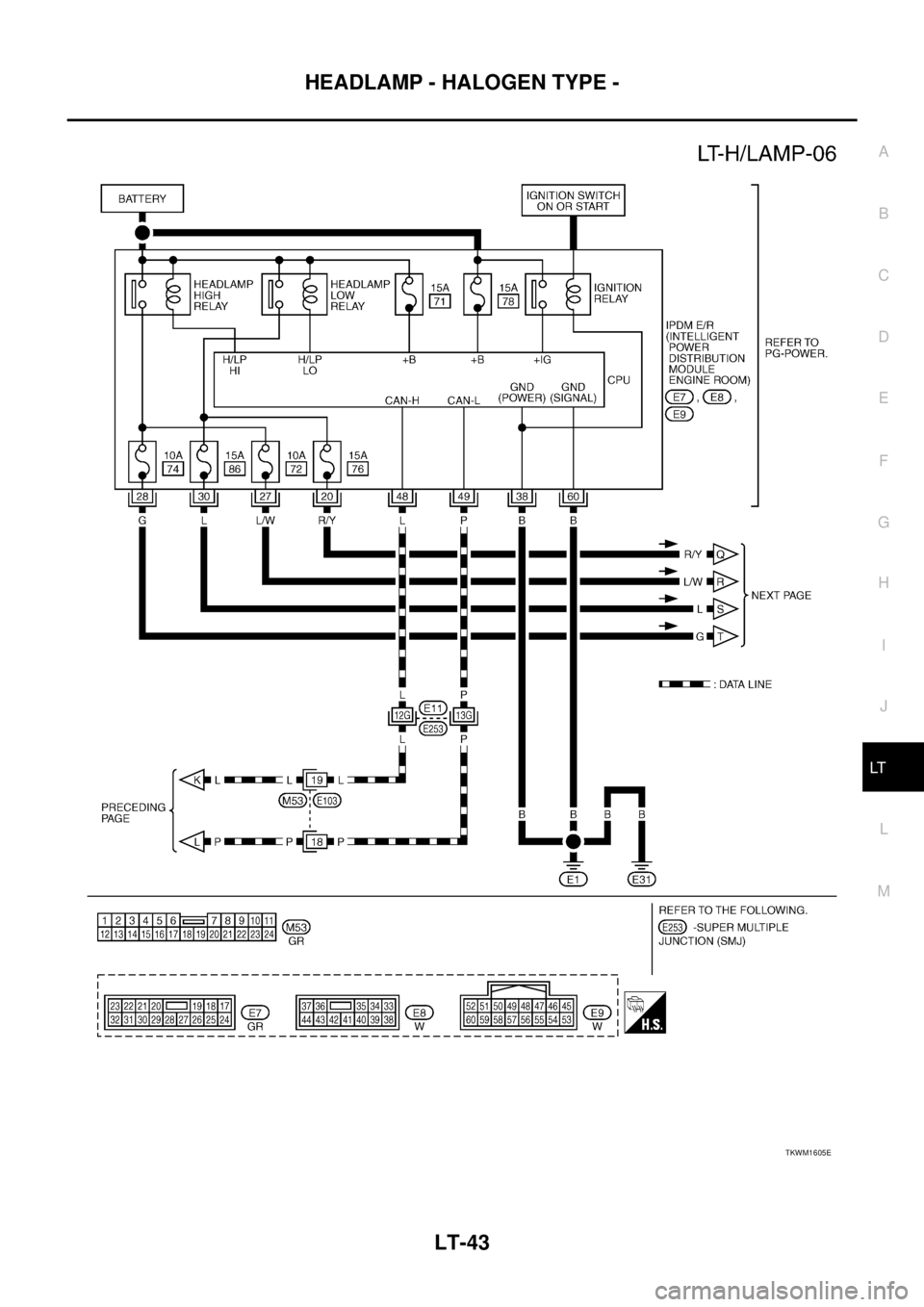

HEADLAMP - HALOGEN TYPE -
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM1605E

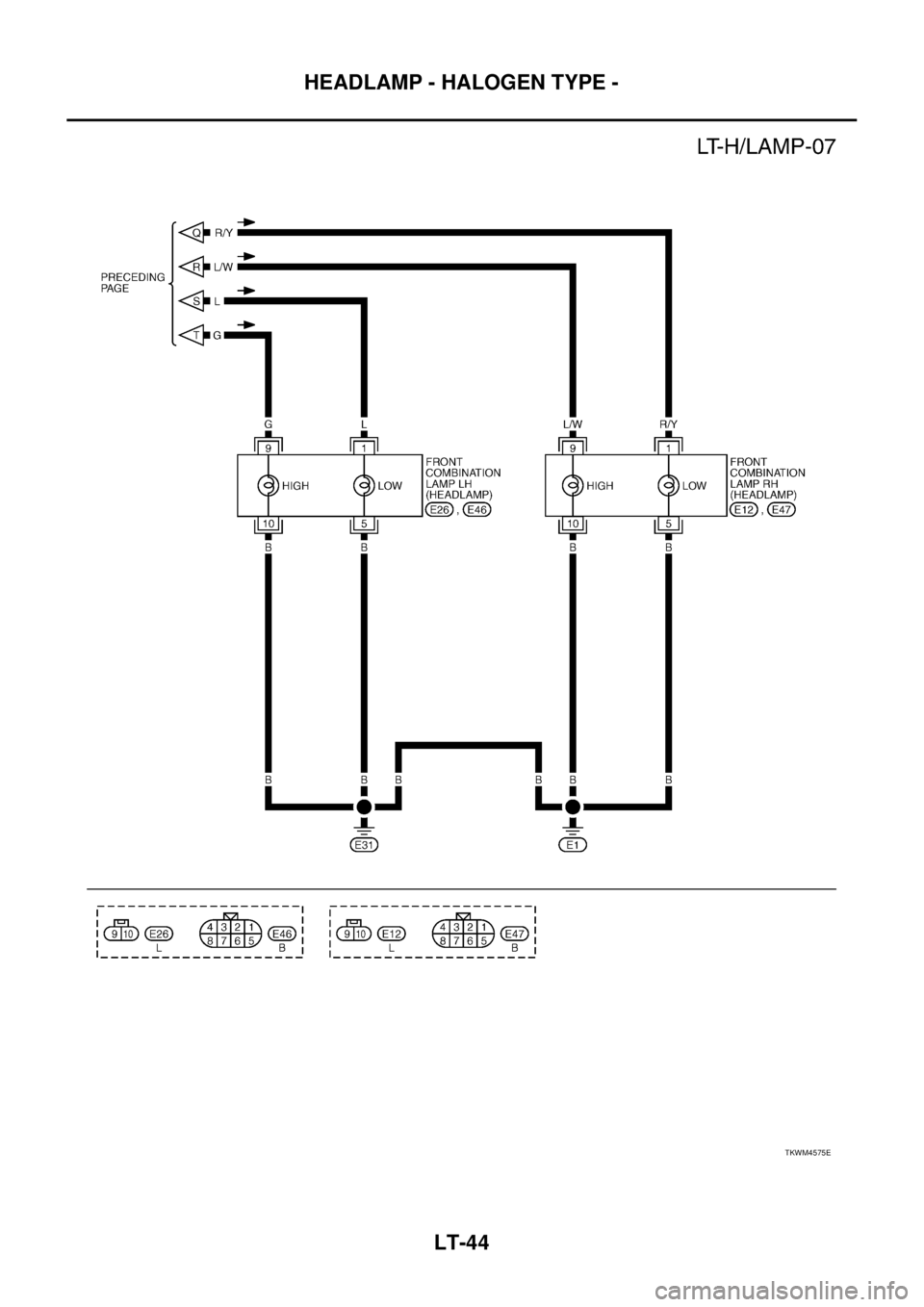

LT-44
HEADLAMP - HALOGEN TYPE -

TKWM4575E

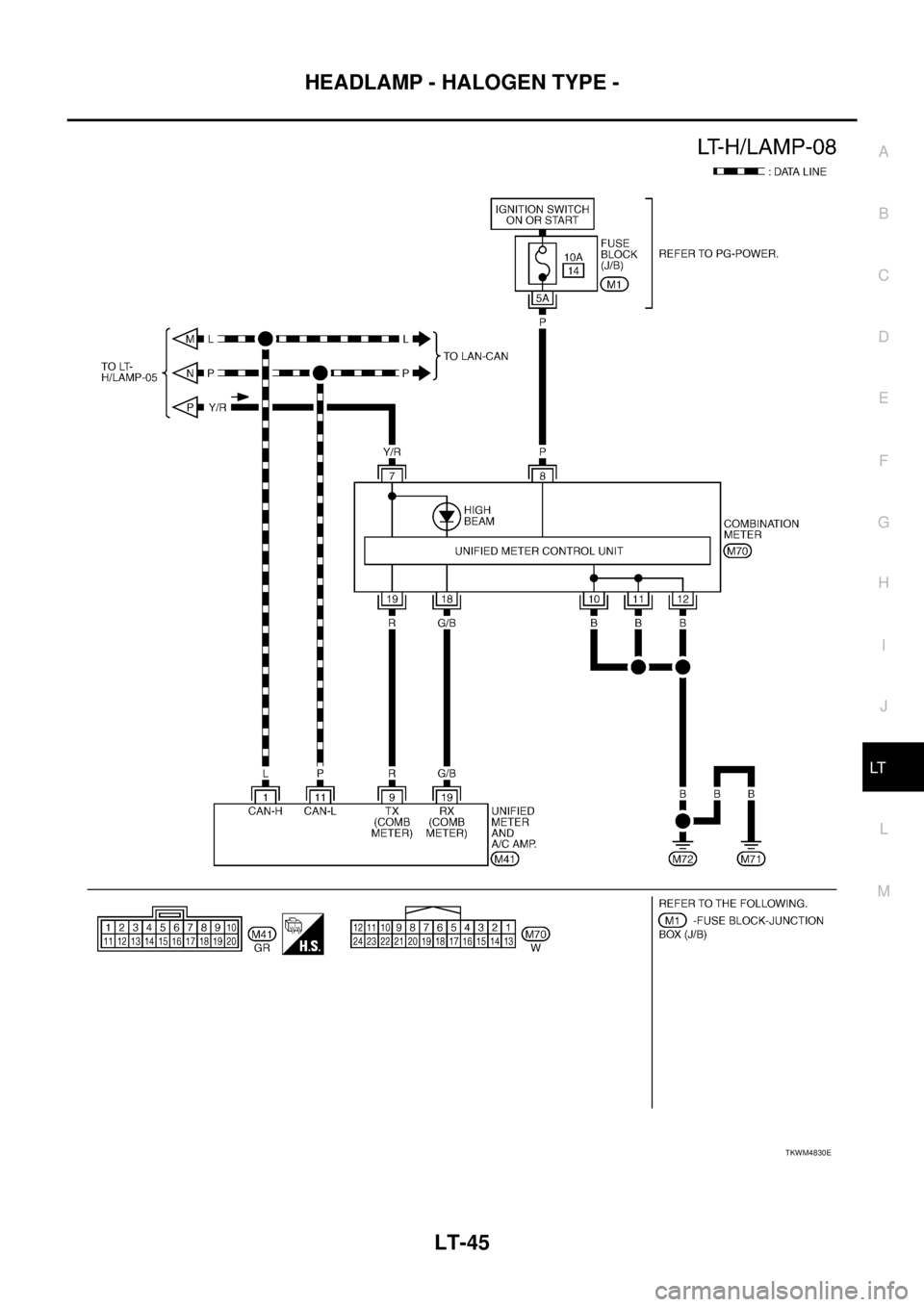

HEADLAMP - HALOGEN TYPE -
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM4830E

LT-46
HEADLAMP - HALOGEN TYPE -

Terminals and Reference Values for BCMBKS001NP
CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to LT-
184, "DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2BRCombination switch
input 5ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Lighting switch HIGH
BEAM position
(Operates only HIGH
BEAM switch)
Approx. 1.0 V
Lighting switch 2ND
position
Approx. 2.0 V
3R/YCombination switch
input 4ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Any of the conditions below

Lighting switch 2ND
position

Lighting switch PASSING
position
(Operates only PASSING
switch)
Approx. 1.0 V
11 V Ignition switch (ACC) ACC — Battery voltage
PKIB4959J
PKIC4459J
PKIB4959J

HEADLAMP - HALOGEN TYPE -
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT

34 L/WCombination switch
output 3ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND
position

Lighting switch HI BEAM
position
(Operates only HI BEAM
switch)
Approx. 1.2 V
35 G/BCombination switch
output 2ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND
position

Lighting switch PASSING
position
(Operates only PASSING
switch)
Approx. 1.2 V
38 R Ignition switch (ON) ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
42 Y/R Battery power supply OFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 W/B Battery power supply OFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

LT-48
HEADLAMP - HALOGEN TYPE -

Terminals and Reference Values for IPDM E/RBKS001NQ
How to Perform Trouble DiagnosisBKS001NR
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 8 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 4 8 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckBKS001NS
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to LT-42, "Wiring Diagram — H/LAMP —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/Y Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
27 L/W Headlamp high (RH) ONLighting switch HI BEAM or
PASSING positionOFF Approx. 0 V
ON Battery voltage
28 G Headlamp high (LH) ONLighting switch HI BEAM or
PASSING positionOFF Approx. 0 V
ON Battery voltage
30 L Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN− H— — —
49 P CAN− L— — —
60 B Ground ON — Approx. 0 V
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ACC or ON position 6
Ignition switch ON or START position 1
IPDM E/R Battery72
74
76
86

HEADLAMP - HALOGEN TYPE -
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT

2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)BKS001NT
Refer to LT- 1 8 , "CONSULT-II Functions (BCM)" .
CONSULT-II Functions (IPDM E/R)BKS001NU
Refer to LT- 2 0 , "CONSULT-II Functions (IPDM E/R)" .
Terminals Ignition switch position
(+)
(-) OFF ACC ON
BCM
connectorTerminal
M311
GroundApprox. 0 VBattery
voltageBattery
voltage
38 Approx. 0 V Approx. 0 VBattery
voltage
M442Battery
voltageBattery
voltageBattery
voltage
55Battery
voltageBattery
voltageBattery
voltage
PKIA5204E
BCM connector Terminal
GroundContinuity
M4 52 Yes
PKIA6256E

LT-50
HEADLAMP - HALOGEN TYPE -

Headlamp High Do Not Illuminate (Both Sides)BKS001NV
1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
4. Check high beam headlamp operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Check high beam headlamp operation.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. PERFORM BCM SELF-DIAGNOSIS
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>GO TO 3.
CAN COMM CIRCUIT>>Refer to LAN-49, "
CAN System Specifica-
tion Chart" .
3. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HI BEAM SW” turns ON-OFF according to light-
ing switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" . High beam headlamp should operate
(High beam headlamp repeats ON–OFF every 1 second).
High beam headlamp should operate.
SKIA5774E
PKIA7627E
When lighting switch is in
the HIGH BEAM position: HI BEAM SW ON
PKIA7585E

HEADLAMP - HALOGEN TYPE -
LT-51
C
D
E
F
G
H
I
J
L
MA
B
LT

4. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front combination lamp (RH and LH) connector.
3. Check continuity between IPDM E/R harness connector (A) and
front combination lamp (RH and LH) harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK IPDM E/R OUTPUT VOLTAGE
With CONSULT-II
1. Connect IPDM E/R connector.
2. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “LAMPS” on “SELECT TEST ITEM” screen.
4. Touch “HI” screen.
5. When high beam headlamp is operating, check voltage between
IPDM E/R harness connector and ground (Headlamp high beam
repeats ON–OFF every 1 second).
Without CONSULT-II
1. Connect IPDM E/R connector.
2. Start auto active test. Refer to PG-21, "
Auto Active Test" .
3. When high beam headlamp is operating, check voltage between IPDM E/R harness connector and
ground.
OK or NG
OK >> GO TO 6.
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E727 E12 9
Ye s
LH 28 E26 9
A
GroundContinuity
Connector Terminal
RH
E727
No
LH 28
PKID0084E
Terminals
Voltage
(Approx.) (+)
(−)
IPDM E/R connector Terminal
RH
E727
Ground Battery voltage
LH 28
Terminals
Voltage
(Approx.) (+)
(−)
IPDM E/R connector Terminal
RH
E727
Ground Battery voltage
LH 28
PKID0080E

LT-52
HEADLAMP - HALOGEN TYPE -

6. CHECK CIRCUIT BETWEEN FRONT COMBINATION LAMP AND GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp (RH and LH)
harness connector and ground.
OK or NG
OK >> Check headlamp bulb.
NG >> Repair harness or connector.
Front combination lamp
connectorTerminal
GroundContinuity
RH E12 10
Ye s
LH E26 10
PKIA6262E
