TROUBLE DIAGNOSIS
AT-59
D
E
F
G
H
I
J
K
L
MA
B
AT

Slips/Will Not
EngageVehicle will not
run in “R” position
(but runs in “D”,
“3”, “2” and “1”
positions). Clutch
slips.
Very poor accel-
eration.ON vehicle1. A/T positionAT- 2 1 5
2. Stall testAT- 4 3
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT- 1 2 6
5. Control valve assemblyAT- 2 2 5
OFF vehicle6. Reverse clutchAT- 2 9 6
7. High clutchAT- 3 0 1
8. Forward clutchAT- 3 0 7
9. Overrun clutchAT- 3 0 7
10. Low & reverse brakeAT- 3 1 5
Vehicle will not
run in “D”, “3” and
“2” positions (but
runs in “1” and
“R” positions).ON vehicle 1. A/T positionAT- 2 1 5
OFF vehicle 2. Low one-way clutchAT- 2 5 5
Vehicle will not
run in “D”, “3”, “2”
and “1” positions
(but runs in “R”
position). Clutch
slips.
Very poor accel-
eration.ON vehicle1. A/T fluid levelAT- 1 4
2. Stall testAT- 4 3
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT- 1 2 6
5. Control valve assemblyAT- 2 2 5
6. N-D accumulatorAT- 2 2 5
OFF vehicle7. Reverse clutchAT- 2 9 6
8. High clutchAT- 3 0 1
9. Forward clutchAT- 3 0 7
10. Forward one-way clutchAT- 3 1 9
11. Low one-way clutchAT- 2 5 5
Clutches or
brakes slip some-
what in starting.ON vehicle1. A/T fluid levelAT- 1 4
2. A/T positionAT- 2 1 5
3. Accelerator pedal position sensor
EC-272*1, EC-652*2
4. Line pressure testAT- 4 6
5. Line pressure solenoid valveAT- 1 2 6
6. Control valve assemblyAT- 2 2 5
7. N-D accumulatorAT- 2 2 5
OFF vehicle8. Forward clutchAT- 3 0 7
9. Reverse clutchAT- 2 9 6
10. Low & reverse brakeAT- 3 1 5
11. Oil pumpAT- 2 7 5
12. Torque converterAT- 2 5 5
Items Symptom Condition Diagnostic item Reference page

AT-60
TROUBLE DIAGNOSIS

Slips/Will Not
EngageNo creep at all.
AT- 1 7 9
, AT-181
ON vehicle1. A/T fluid levelAT- 1 42. Line pressure testAT- 4 6
3. Control valve assemblyAT-225
OFF vehicle4. Forward clutchAT-3075. Oil pumpAT-275
6. Torque converterAT-255
Almost no shock
or clutches slip-
ping in change
from D
1 to D2 .ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Accumulator servo releaseAT-225
5. Control valve assemblyAT-225
OFF vehicle 6. Brake bandAT-329
Almost no shock
or slipping in
change from D
2
to D
3 .ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Control valve assemblyAT-225
OFF vehicle5. High clutchAT-3016. Forward clutchAT-307
Almost no shock
or slipping in
change from D
3
to D
4 .ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Control valve assemblyAT-225
OFF vehicle 5. Brake bandAT-329
Races extremely
fast or slips in
changing from D
4
to D
3 when
depressing pedal.ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT-126
5. Shift solenoid valve AAT- 9 0
6. Control valve assemblyAT-225
OFF vehicle7. Brake bandAT-3298. Forward clutchAT-307
Races extremely
fast or slips in
changing from D
4
to D
2 when
depressing pedal.ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT-126
5. Shift solenoid valve AAT- 9 0
6. Shift solenoid valve BAT- 9 5
7. Control valve assemblyAT-225
OFF vehicle8. Brake bandAT-3299. Forward clutchAT-307
Items Symptom Condition Diagnostic item Reference page

TROUBLE DIAGNOSIS
AT-61
D
E
F
G
H
I
J
K
L
MA
B
AT

Slips/Will Not
EngageRaces extremely
fast or slips in
changing from D
3
to D
2 when
depressing pedal. ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT- 1 2 6
5. Shift solenoid valve BAT- 9 5
6. Control valve assemblyAT- 2 2 5
OFF vehicle7. Brake bandAT- 3 2 98. High clutchAT- 3 0 1
Races extremely
fast or slips in
changing from D
4
or D
3 to D 1
when depressing
pedal.ON vehicle1. A/T fluid levelAT- 1 4
2. Accelerator pedal position sensor
EC-272*1, EC-652*2
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT- 1 2 6
5. Shift solenoid valve AAT- 9 0
6. Shift solenoid valve BAT- 9 5
7. Control valve assemblyAT- 2 2 5
OFF vehicle8. Forward clutchAT- 3 0 79. Forward one-way clutchAT- 3 1 9
10. Low one-way clutchAT- 2 5 5
Vehicle will not
run in any posi-
tion.ON vehicle1. A/T fluid levelAT- 1 4
2. A/T positionAT- 2 1 5
3. Line pressure testAT- 4 6
4. Line pressure solenoid valveAT- 1 2 6
OFF vehicle5. Oil pumpAT- 2 7 5
6. High clutchAT- 3 0 1
7. Brake bandAT- 3 2 9
8. Low & reverse brakeAT- 3 1 5
9. Torque converterAT- 2 5 5
10. Parking componentsAT- 2 4 6
OthersEngine cannot be
started in “P” and
“N” positions.
AT-175
ON vehicle1. Ignition switch and starterPG-3
, SC-14 .
2. A/T positionAT- 2 1 5
3. PNP switchAT- 1 6 1
Engine starts in
positions other
than “P” and “N”.ON vehicle1. A/T positionAT- 2 1 5
2. PNP switchAT- 1 6 1
Transaxle noise
in “P” and “N”
positions.ON vehicle1. A/T fluid levelAT- 1 4
2. Line pressure testAT- 4 6
3. Accelerator pedal position sensor
EC-272*1, EC-652*2
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 8 0, AT- 8 6
OFF vehicle5. Oil pumpAT- 2 7 56. Torque converterAT- 2 5 5
Items Symptom Condition Diagnostic item Reference page

TROUBLE DIAGNOSIS
AT-63
D
E
F
G
H
I
J
K
L
MA
B
AT

OthersMaximum speed
not attained.
Acceleration
poor.ON vehicle1. A/T fluid levelAT- 1 4
2. PNP switchAT- 1 6 1
3. 3rd position switchAT- 1 6 1
4. Accelerator pedal position sensor
EC-272*1, EC-652*2
5. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 8 0, AT- 8 6
6. Shift solenoid valve AAT- 9 0
7. Shift solenoid valve BAT- 9 5
8. Control valve assemblyAT- 2 2 5
OFF vehicle9. Reverse clutchAT- 2 9 6
10. High clutchAT- 3 0 1
11. Brake bandAT- 3 2 9
12. Low & reverse brakeAT- 3 1 5
13. Oil pumpAT- 2 7 5
14. Torque converterAT- 2 5 5
Transaxle noise
in “D”, “3”, “2”, “1”
and “R” positions.ON vehicle 1. A/T fluid levelAT- 1 4
OFF vehicle 2. Torque converterAT- 2 5 5
Engine brake
does not operate
in “1” position.ON vehicle1. PNP switchAT- 1 6 1
2. A/T positionAT- 2 1 5
3. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 8 0, AT- 8 6
4. Control valve assemblyAT- 2 2 5
5. Overrun clutch solenoid valveAT- 1 0 0
OFF vehicle6. Overrun clutchAT- 3 0 77. Low & reverse brakeAT- 3 1 5
Transaxle over-
heats.ON vehicle1. A/T fluid levelAT- 1 4
2. Engine idle speed
EC-45*1, EC-387*2
3. Accelerator pedal position sensor
EC-272*1, EC-652*2
4. Line pressure testAT- 4 6
5. Line pressure solenoid valveAT- 1 2 6
6. Control valve assemblyAT- 2 2 5
OFF vehicle7. Oil pumpAT- 2 7 5
8. Reverse clutchAT- 2 9 6
9. High clutchAT- 3 0 1
10. Brake bandAT- 3 2 9
11. Forward clutchAT- 3 0 7
12. Overrun clutchAT- 3 0 7
13. Low & reverse brakeAT- 3 1 5
14. Torque converterAT- 2 5 5
Items Symptom Condition Diagnostic item Reference page

TROUBLE DIAGNOSIS
AT-65
D
E
F
G
H
I
J
K
L
MA
B
AT

10 Y Power source
or When turning ignition switch ON. Battery voltage
When turning ignition switch OFF. 0 V
11 R/Y Shift solenoid valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
12 LG/B Shift solenoid valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
19 Y Power source
or When turning ignition switch ON. Battery voltage
When turning ignition switch OFF. 0 V
20 BR/YOverrun clutch sole-
noid valveWhen overrun clutch solenoid valve
operates. (When overrun clutch dis-
engaged.)Battery voltage
When overrun clutch solenoid valve
does not operate.(When overrun
clutch engaged.)0V
25 B Ground Always 0 V
26 V/WPNP switch “1” posi-
tion
and When setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 P/BPNP switch “2” posi-
tionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
28 Y/RPower source
(Memory back-up)Always Battery voltage
29 W/R Revolution sensor When moving at 20 km/h (12 MPH) 450 Hz
30 ** BR/Y CONSULT- II (RX) — —
31 ** Y/B CONSULT- II (TX) — —
34 BRPNP switch “D” posi-
tion
and When setting selector lever to “D”
and “3” positions.Battery voltage
When setting selector lever to other
positions.0V
35 G/WPNP switch “R” posi-
tionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 R/BPNP switch “N” or “P”
positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V Terminal Wire color Item ConditionJudgement stan-
dard (Approx.)

AT-66
TROUBLE DIAGNOSIS

*: These terminals are connected to the ECM.
**: These terminals are connected to the data link connector.38 G/BTurbine revolution
sensor (power train
revolution sensor)When moving at 20 km/h (12 MPH) 240 Hz
39 * W/L Engine speed signal Refer to EC-72
(QR engine) or EC-415 (VQ engine)
40 L/B Vehicle speed sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0 V and
more than 4.5 V
42 B Sensor ground Always 0 V
47 GA/T fluid temperature
sensor
and When ATF temperature is 20°C
(68°F).1.5 V
When ATF temperature is 80°C
(176°F).0.5 V
48 B Ground Always 0 V Terminal Wire color Item ConditionJudgement stan-
dard (Approx.)

TROUBLE DIAGNOSIS
AT-67
D
E
F
G
H
I
J
K
L
MA
B
AT

CONSULT-II Function (A/T) BCS0010D
CONSULT-II can display each diagnostic item using the diagnostic test models shown following.
FUNCTION
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
CONSULT-II REFERENCE VALUE
Diagnostic test mode Function Reference page
Work supportThis mode enables a technician to adjust some devices faster and more accurately by
following the indications on CONSULT-II.—
Self-diagnostic results Self-diagnostic results can be read and erased quickly.AT- 6 9
Data monitor Input/Output data in the ECM can be read.AT- 7 0
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.AT- 7 2
Function testPerformed by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”.—
DTC work support Select the operating condition to confirm Diagnosis Trouble Codes.AT- 7 2
TCM part number TCM part number can be read. —
Item name Condition Display value (Approx.)
VHCL/S SE-A/T
During drivingApproximately matches the speedometer
reading.
VHCL/S SE-MTR
THROTTLE POSIReleased accelerator pedal. 0.0/8
Fully depressed accelerator pedal. 8.0/8
FLUID TEMP SE When ATF temperature is 20°C (68°F). 1.5 V
When ATF temperature is 80°C (176°F). 0.5 V
BATTERY VOLT When turning ignition switch to ON. Battery voltage
ENGINE SPEED Engine runningApproximately matches the tachometer
reading.
TURBINE REV During driving (lock-up ON) Approximately matches the engine speed.
OVERDRIVE SWWhen setting selector lever to “3” and “2” posi-
tions.ON
When setting selector lever to other positions. OFF
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF

TROUBLE DIAGNOSIS
AT-69
D
E
F
G
H
I
J
K
L
MA
B
AT

CONSULT-II SETTING PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
SELF-DIAGNOSTIC RESULT MODE
After performing AT- 7 6 , "Diagnostic Procedure Without CONSULT-II" , place check marks for results on the
AT- 3 8 , "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.
Display shows malfunction experienced since the last erasing
operation.
Display Items List
BCIA0031E
Items (CONSULT-II screen terms) Malfunction is detected when... Reference page
CAN COMM CIRCUIT

When TCM is not transmitting or receiving CAN communication signal
for 2 second or more.AT- 1 3 3
VHCL SPEED SEN-A/T
TCM does not receive the proper voltage signal from the sensor.AT- 8 0
VHCL SPEED SEN-MTR
TCM does not receive the proper voltage signal from the sensor.AT- 8 6
TURBINE SENSOR
TCM does not receive proper voltage signal from sensorAT- 1 2 0
SHIFT SOLENOID/V A
TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.AT- 9 0
SHIFT SOLENOID/V B
TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.AT- 9 5
OVERRUN CLUTCH S/V
TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.AT- 1 0 0
T/C CLUTCH SOL/V
TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.AT- 1 0 5
BATT/FLUID TEMP SEN
TCM receives an excessively low or high voltage from the sensor.AT- 11 0
ENGINE SPEED SIG
TCM does not receive the proper voltage signal from the ECM.AT- 11 6
A/T 1ST GR FNCTN
A/T cannot be shifted to the 1st gear position even if electrical circuit is
good.AT- 1 3 6
A/T 2ND GR FNCTN
A/T cannot be shifted to the 2nd gear position even if electrical circuit is
good.AT- 1 4 0
A/T 3RD GR FNCTN
A/T cannot be shifted to the 3rd gear position even if electrical circuit is
good.AT- 1 4 3
A/T 4TH GR FNCTN
A/T cannot be shifted to the 4th gear position even if electrical circuit is
good.AT- 1 4 6
A/T TCC S/V FNCTN
A/T cannot perform lock-up even if electrical circuit is good.AT- 1 5 1
LINE PRESSURE S/V
TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.AT- 1 2 6
CONTROL UNIT (RAM)
TCM memory (RAM) is malfunctioningAT- 1 5 6
CONTROL UNIT (ROM)
TCM memory (ROM) is malfunctioningAT- 1 5 7
No failure
(NO SELF DIAGNOSTIC FAILURE
INDICATED FURTHER TESTING
MAY BE REQUIRED)

No failure has been detected. —

AT-70
TROUBLE DIAGNOSIS

HOW TO ERASE SELF-DIAGNOSTIC RESULTS
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.
2. Touch “ERASE”. (The self-diagnostic results will be erased.)
DATA MONITOR MODE
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
NOTE:
When malfunction is detected, CONSULT-II performs
“REAL-TIME DIAGNOSIS”. Also, any malfunction detected
while in this mode will be displayed at real time.
Display Items List
X: Standard, —: Not applicable, : Option
BCIA0031E
SCIA4849E
BCIA0031E
Monitor item (Unit)SELECT MONITOR ITEM
Remarks
TCM INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION FROM
MENU
VHCL/S SE-A/T (km/h) X — Revolution sensor
VHCL/S SE-MTR (km/h) X —Vehicle speed display may not be accu-
rate under approx. 10 km/h (6 mph). It
may not indicate 0 km/h (0 mph) when
vehicle is stationary.
THRTL POS SEN (V) X —
FLUID TEMP SE (V) X —
BATTERY VOLT (V) X —
ENGINE SPEED (rpm) X X
TURBINE REV (rpm) X —

TROUBLE DIAGNOSIS
AT-77
D
E
F
G
H
I
J
K
L
MA
B
AT

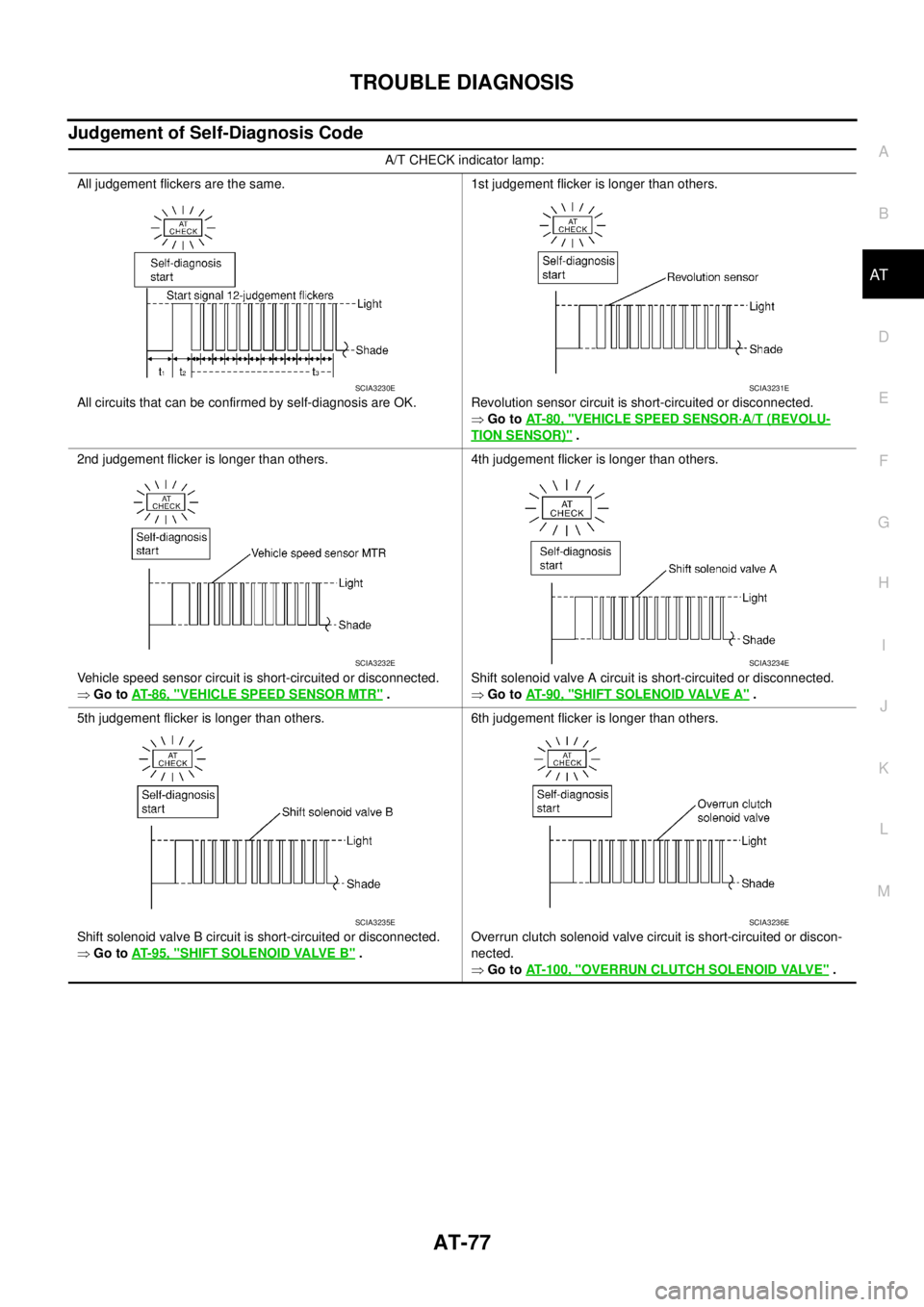

Judgement of Self-Diagnosis Code
A/T CHECK indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
Revolution sensor circuit is short-circuited or disconnected.

Go to AT-80, "
VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR)" .
2nd judgement flicker is longer than others.
Vehicle speed sensor circuit is short-circuited or disconnected.

Go to AT- 8 6 , "
VEHICLE SPEED SENSOR MTR" .4th judgement flicker is longer than others.
Shift solenoid valve A circuit is short-circuited or disconnected.

Go to AT-90, "SHIFT SOLENOID VALVE A" .
5th judgement flicker is longer than others.
Shift solenoid valve B circuit is short-circuited or disconnected.

Go to AT- 9 5 , "
SHIFT SOLENOID VALVE B" .6th judgement flicker is longer than others.
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.

Go to AT-100, "
OVERRUN CLUTCH SOLENOID VALVE" .
SCIA3230ESCIA3231E
SCIA3232ESCIA3234E
SCIA3235ESCIA3236E
