sensor NISSAN TEANA 2003 Workshop Manual

AT-122

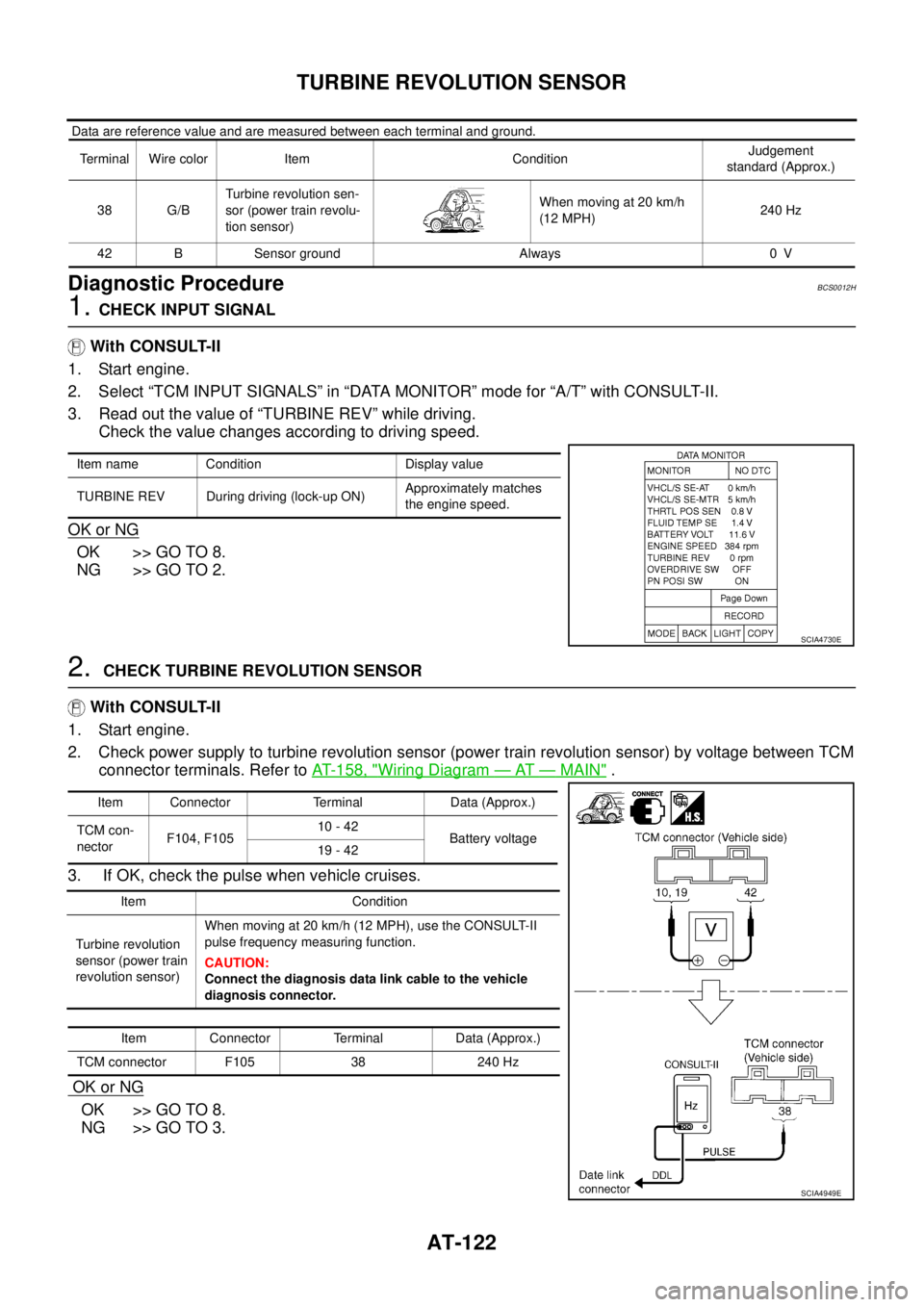

TURBINE REVOLUTION SENSOR

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0012H
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “TURBINE REV” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK TURBINE REVOLUTION SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to turbine revolution sensor (power train revolution sensor) by voltage between TCM
connector terminals. Refer to AT- 1 5 8 , "
Wiring Diagram — AT — MAIN" .
3. If OK, check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Terminal Wire color Item ConditionJudgement
standard (Approx.)
38 G/BTurbine revolution sen-
sor (power train revolu-
tion sensor)When moving at 20 km/h
(12 MPH)240 Hz
42 B Sensor ground Always 0 V
Item name Condition Display value
TURBINE REV During driving (lock-up ON)Approximately matches
the engine speed.
SCIA4730E
Item Connector Terminal Data (Approx.)
TCM con-
nectorF104, F10510 - 42
Battery voltage
19 - 42
Item Condition
Turbine revolution
sensor (power train
revolution sensor)When moving at 20 km/h (12 MPH), use the CONSULT-II
pulse frequency measuring function.
CAUTION:
Connect the diagnosis data link cable to the vehicle
diagnosis connector.
Item Connector Terminal Data (Approx.)
TCM connector F105 38 240 Hz
SCIA4949E

TURBINE REVOLUTION SENSOR
AT-123
D
E
F
G
H
I
J
K
L
MA
B
AT

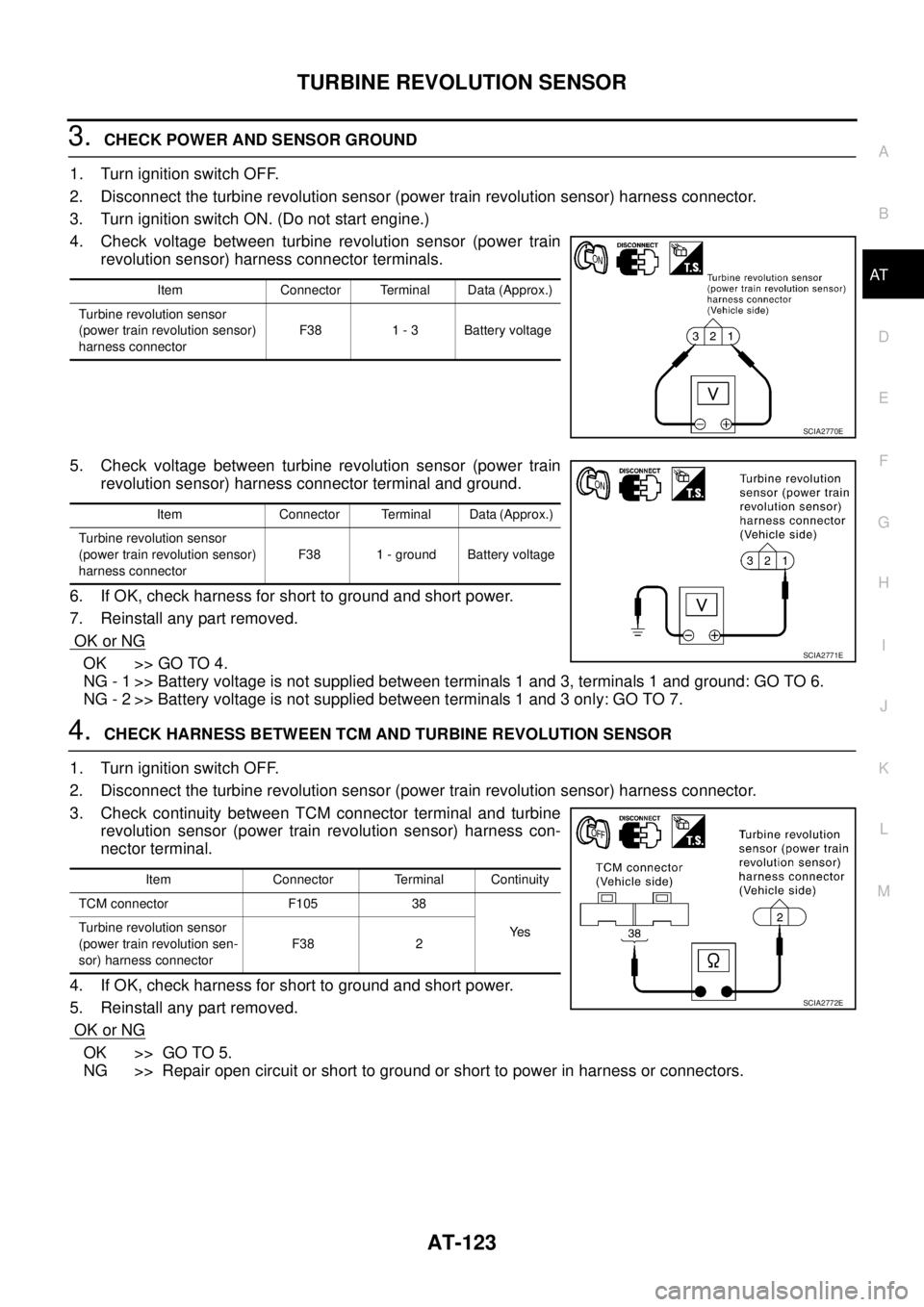

3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Turn ignition switch ON. (Do not start engine.)
4. Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminals.
5. Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminal and ground.
6. If OK, check harness for short to ground and short power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Data (Approx.)
Turbine revolution sensor
(power train revolution sensor)
harness connectorF38 1 - 3 Battery voltage
SCIA2770E
Item Connector Terminal Data (Approx.)
Turbine revolution sensor
(power train revolution sensor)
harness connectorF38 1 - ground Battery voltage
SCIA2771E
Item Connector Terminal Continuity
TCM connector F105 38
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 2
SCIA2772E

AT-124
TURBINE REVOLUTION SENSOR

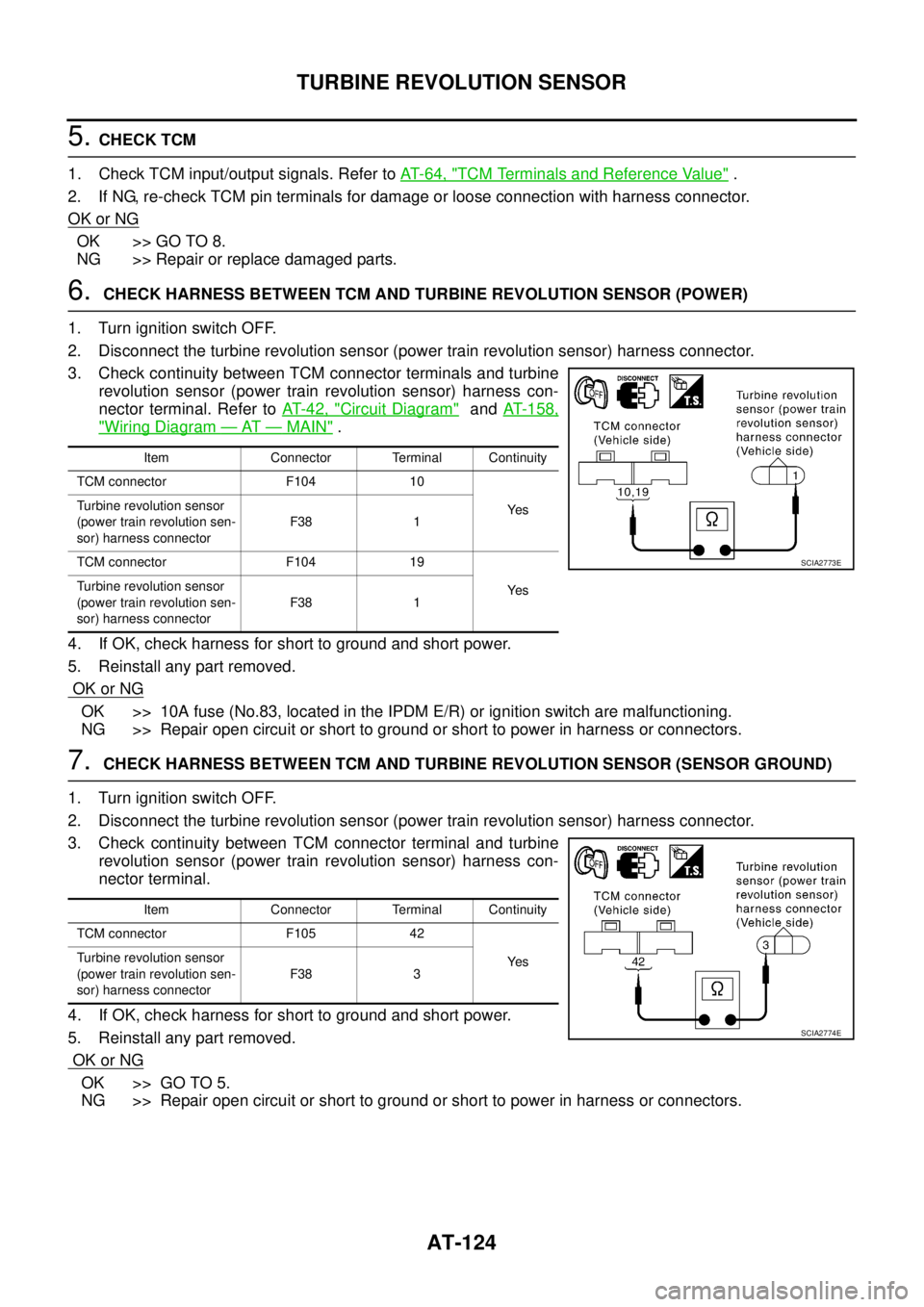

5. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
6. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminals and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal. Refer to AT- 4 2 , "
Circuit Diagram" and AT- 1 5 8 ,
"Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector Terminal Continuity
TCM connector F104 10
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 1
TCM connector F104 19
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 1
SCIA2773E
Item Connector Terminal Continuity
TCM connector F105 42
Ye s Turbine revolution sensor
(power train revolution sen-
sor) harness connectorF38 3
SCIA2774E

TURBINE REVOLUTION SENSOR
AT-125
D
E
F
G
H
I
J
K
L
MA
B
AT

8. CHECK DTC
Perform AT- 1 2 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.

AT-136
A/T 1ST GEAR FUNCTION

A/T 1ST GEAR FUNCTIONPFP:31940
DescriptionBCS00131

This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when the A/T does not shift into first gear position as instructed by TCM. This
is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as
control valve sticking, improper solenoid valve operation, etc.
On Board Diagnosis LogicBCS00132

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (1st) supposed by TCM, the slip ratio will be more
than normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when either shift solenoid valve A is stuck open or shift solenoid valve B is
stuck open.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1 , 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2* , 2, 3 and 3 positions
In case of gear position with shift solenoid valve B stuck open: 4* , 3, 3 and 4 positions to each gear posi-
tion above
*: “A/T 1ST GR FNCTN” is detected.

Diagnostic trouble code “A/T 1ST GR FNCTN” with CONSULT-II is detected when A/T cannot be shifted
to the 1st gear position even if electrical circuit is good.
Possible CauseBCS00133

Shift solenoid valve A

Shift solenoid valve B

Each clutch

Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)

A/T 1ST GEAR FUNCTION
AT-137
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC Confirmation ProcedureBCS00134
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease the voltage (warm up
the fluid) or stop engine to increase the voltage (cool down the
fluid).
3. Select “1ST GR FNCTN P0731” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 20 to 25 km/h (12 to 16 MPH) under the following condition and release accelerator
pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “2” after releasing pedal.
5. Depress accelerator pedal to WOT (more than 7.0/8 of “THROTTLE POSI”) quickly from a speed of 20 to
25 km/h (12 to 16 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETED”. (It will take
approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 3 8 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to the following step.
–Make sure that “GEAR” shows “1” when depressing accelerator pedal to WOT.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T 1ST GR FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 3 8 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed Which Gear Shifting Occurs" .
BCIA0031E
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists. 1 → 2 → 3 → 4
Malfunction for “A/T 1ST GR
FNCTN ” exists.2 → 2 → 3 → 3
4 → 3 → 3 → 4

AT-140
A/T 2ND GEAR FUNCTION

A/T 2ND GEAR FUNCTIONPFP:31940
DescriptionBCS00136

This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when A/T does not shift into second gear position as instructed by TCM. This
is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as
control valve sticking, improper solenoid valve operation, etc.
On Board Diagnosis LogicBCS00137

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (2nd) supposed by TCM, the slip ratio will be more
than normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve B is stuck open.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2 , 3 and 4 positions
In case of gear position with shift solenoid valve B stuck open: 4, 3* , 3 and 4 positions to each gear posi-
tion above
*: “A/T 2ND GR FNCTN” is detected.

Diagnostic trouble code “A/T 2ND GR FNCTN” with CONSULT-II is detected when A/T cannot be shifted
to the 2nd gear position even if electrical circuit is good.
Possible CauseBCS00138

Shift solenoid valve B

Each clutch

Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)

A/T 2ND GEAR FUNCTION
AT-141
D
E
F
G
H
I
J
K
L
MA
B
AT

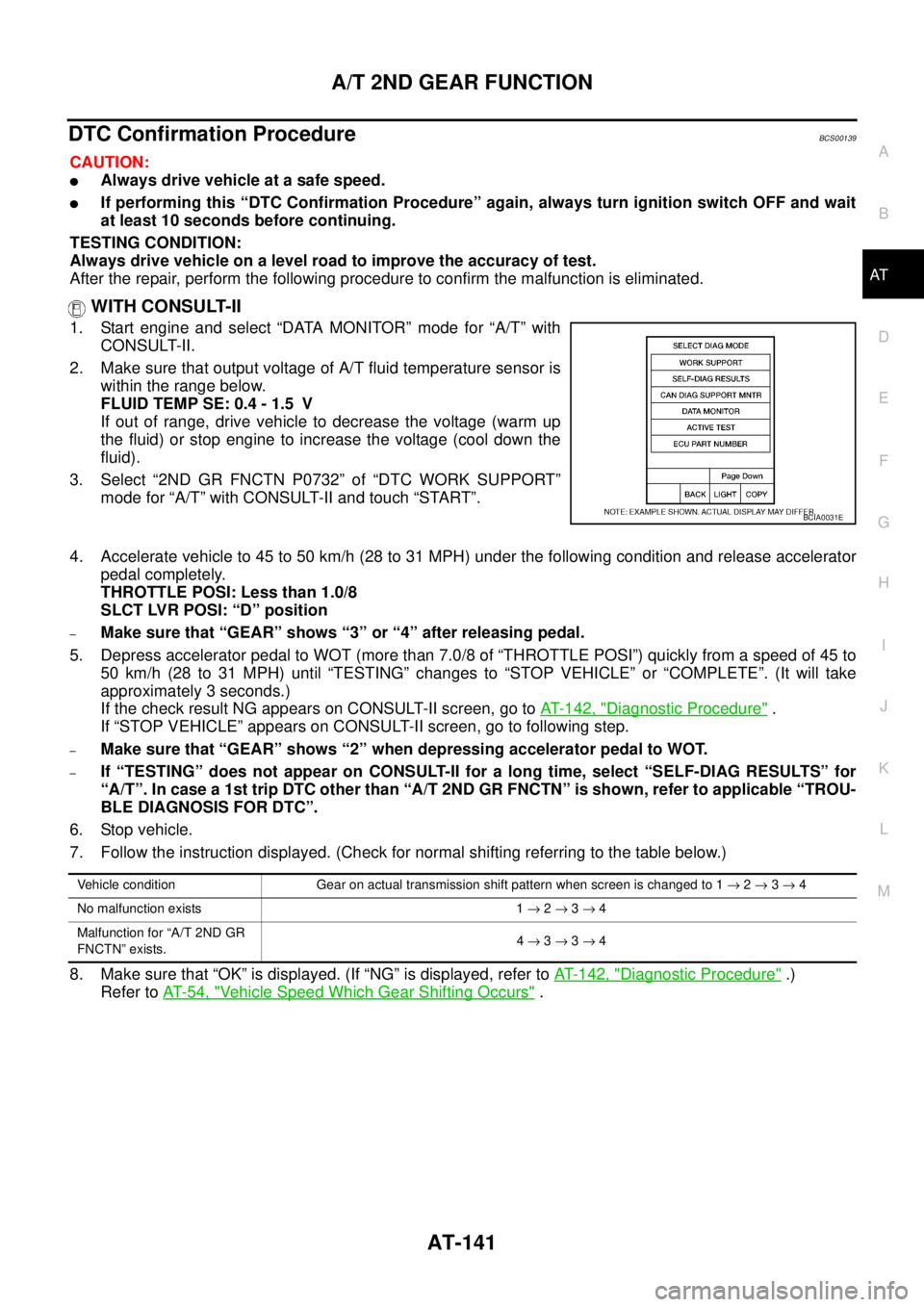

DTC Confirmation ProcedureBCS00139
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease the voltage (warm up
the fluid) or stop engine to increase the voltage (cool down the
fluid).
3. Select “2ND GR FNCTN P0732” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 45 to 50 km/h (28 to 31 MPH) under the following condition and release accelerator
pedal completely.
THROTTLE POSI: Less than 1.0/8
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “3” or “4” after releasing pedal.
5. Depress accelerator pedal to WOT (more than 7.0/8 of “THROTTLE POSI”) quickly from a speed of 45 to
50 km/h (28 to 31 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETE”. (It will take
approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 4 2 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
–Make sure that “GEAR” shows “2” when depressing accelerator pedal to WOT.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T 2ND GR FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 4 2 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed Which Gear Shifting Occurs" .
BCIA0031E
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for “A/T 2ND GR
FNCTN” exists.4 → 3 → 3 → 4

A/T 3RD GEAR FUNCTION
AT-143
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T 3RD GEAR FUNCTIONPFP:31940
DescriptionBCS0013B

This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when A/T does not shift into third gear position as instructed by TCM. This is
not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as con-
trol valve sticking, improper solenoid valve operation, malfunctioning servo piston or brake band, etc.
On Board Diagnosis LogicBCS0013C

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed by TCM, the slip ratio will be more
than normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve A is stuck closed.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck closed: 1, 1, 4* and 4 positions to each gear
position above
*: “A/T 3RD GR FNCTN” is detected.

Diagnostic trouble code “A/T 3RD GR FNCTN” with CONSULT-II is detected when A/T cannot be shifted
to the 3rd gear position even if electrical circuit is good.
Possible CauseBCS0013D

Shift solenoid valve A

Each clutch

Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)

AT-144
A/T 3RD GEAR FUNCTION

DTC Confirmation ProcedureBCS0013E
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease the voltage (warm up
the fluid) or stop engine to increase the voltage (cool down the
fluid).
3. Select “3RD GR FNCTN P0733” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 60 to 75 km/h (37 to 47 MPH) under the following condition and release accelerator
pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “4” after releasing pedal.
5. Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of “THROTTLE POSI” from a speed of 60 to 75 km/h
(37 to 47 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 4 5 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
–Make sure that “GEAR” shows “3” when depressing accelerator pedal with 3.5/8 - 4.5/8 of
“THROTTLE POSI”.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T 3RD GR FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 4 5 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed Which Gear Shifting Occurs" .
BCIA0031E
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists. 1 → 2 → 3 → 4
Malfunction for “A/T 3RD GR
FNCTN” exists.1 → 1 → 4 → 4
