TROUBLE DIAGNOSIS
SRS-27
C
D
E
F
G
I
J
K
L
MA
B
SRS

PRE-TEN FRONT RH
[OPEN]
[B1081]
Front RH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
[B1082]

Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]

Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]

Front RH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT LH
[OPEN]
[B1086]

Front LH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
[B1087]

Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]

Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]

Front LH pre-tensioner circuit is shorted between lines.
SATELLITE SENS RH
[UNIT FAIL]
[B1113]
SATELLITE SENS RH
[COMM FAIL]
[B1115]

RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS LH
[UNIT FAIL]
[B1118]
SATELLITE SENS LH
[COMM FAIL]
[B1120]

LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
CURTAIN MODULE RH
[OPEN]
[B1145]

RH side curtain air bag module circuit is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH side curtain air bag
module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. CURTAIN MODULE RH
[VB-SHORT]
[B1146]

RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]

RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]

RH side curtain air bag module circuit is shorted between lines. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

SRS-28
TROUBLE DIAGNOSIS

CURTAIN MODULE LH
[OPEN]
[B1150]
LH side curtain air bag module circuit is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace LH side curtain air bag
module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. CURTAIN MODULE LH
[VB-SHORT]
[B1151]

LH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE LH
[GND-SHORT]
[B1152]

LH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE LH
[SHORT]
[B1153]

LH side curtain air bag module circuit is shorted between lines.
CRASH ZONE SEN
[UNIT FAIL]
[B1033]
CRASH ZONE SEN
[COMM FAIL]
[B1035]

Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the crash zone sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

TROUBLE DIAGNOSIS
SRS-29
C
D
E
F
G
I
J
K
L
MA
B
SRS

Trouble Diagnosis without CONSULT-IIBHS0004B
DIAGNOSTIC PROCEDURE 6
Inspecting SRS Malfunctioning Parts by Using “AIR BAG” Warning Lamp — Diagnosis Mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.
1. Turn ignition switch ON.
2. After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
3. Wait more than 3 seconds.
4. Repeat the steps 1 to 3 two times.
5. Turn ignition switch ON.
SRS is now in Diagnosis mode.
“AIR BAG” warning lamp operates in Diagnosis mode as follows:

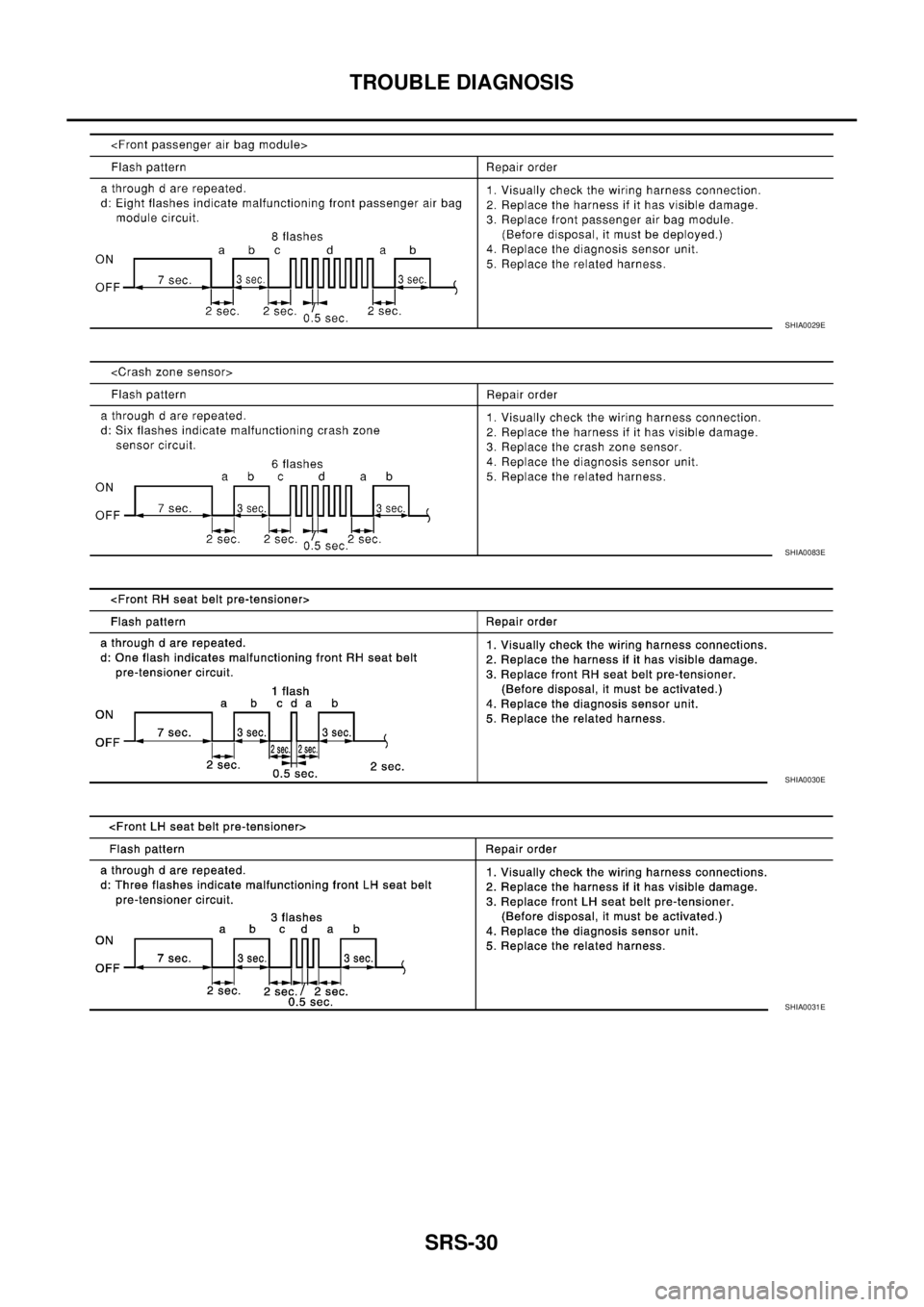

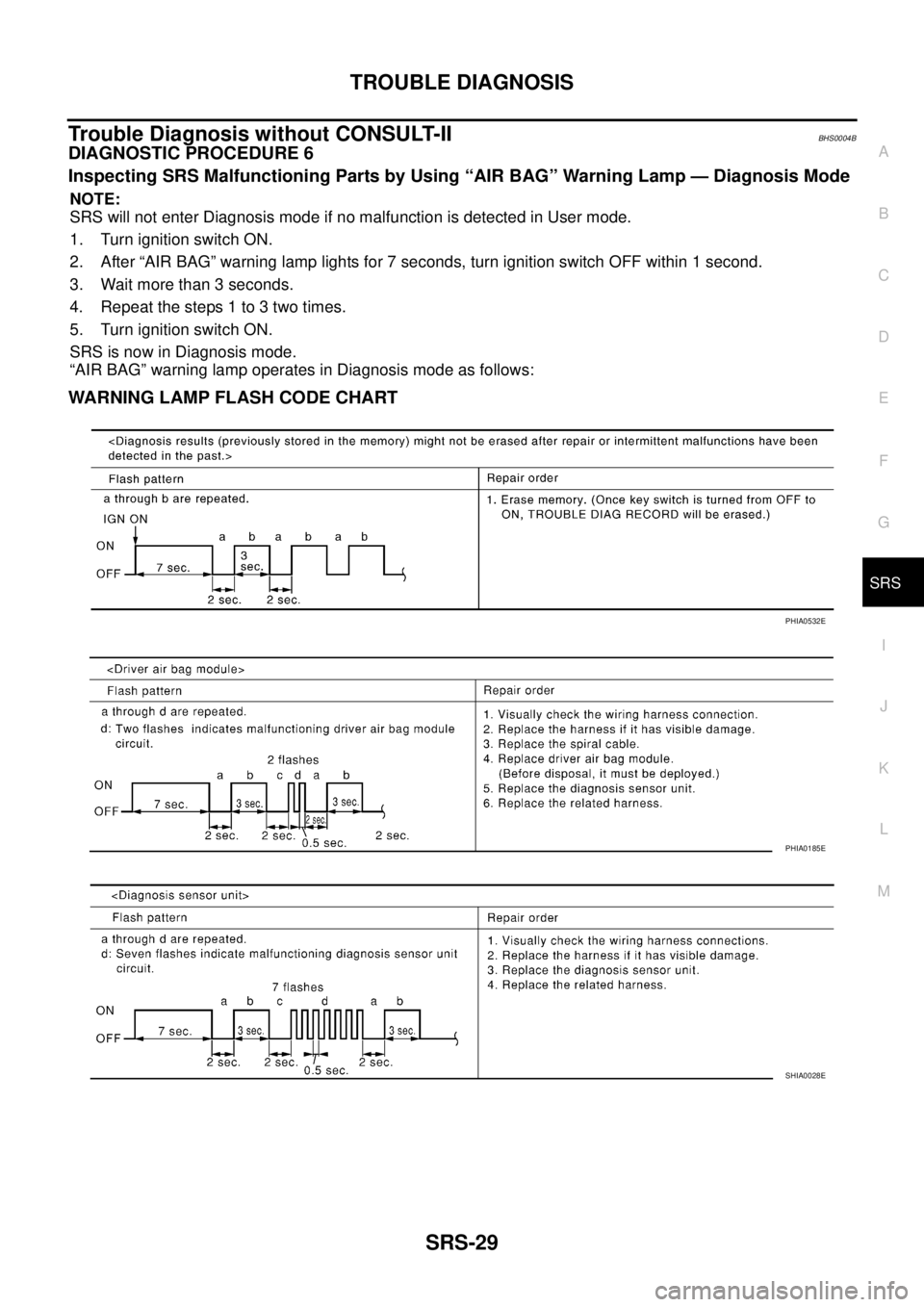

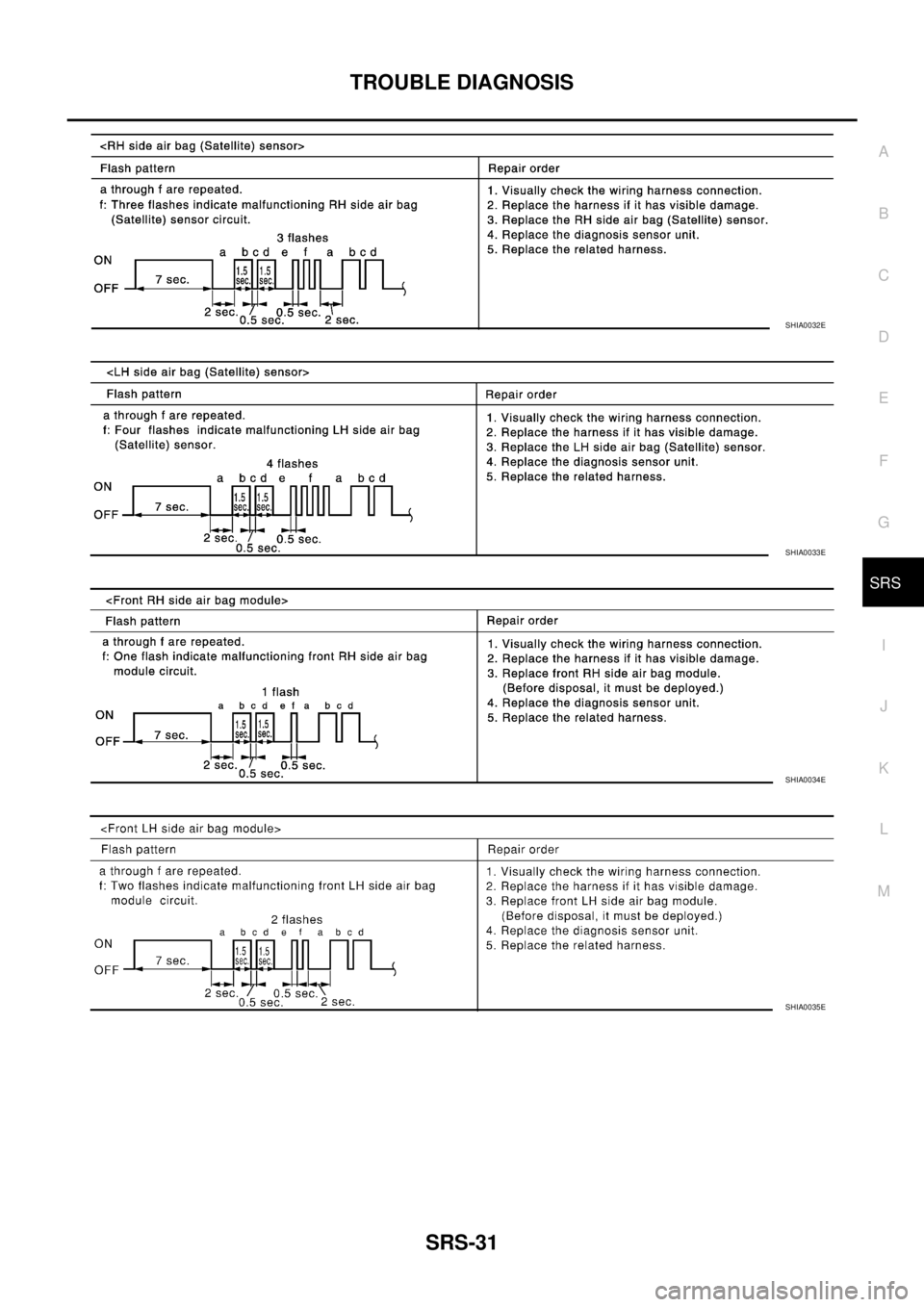

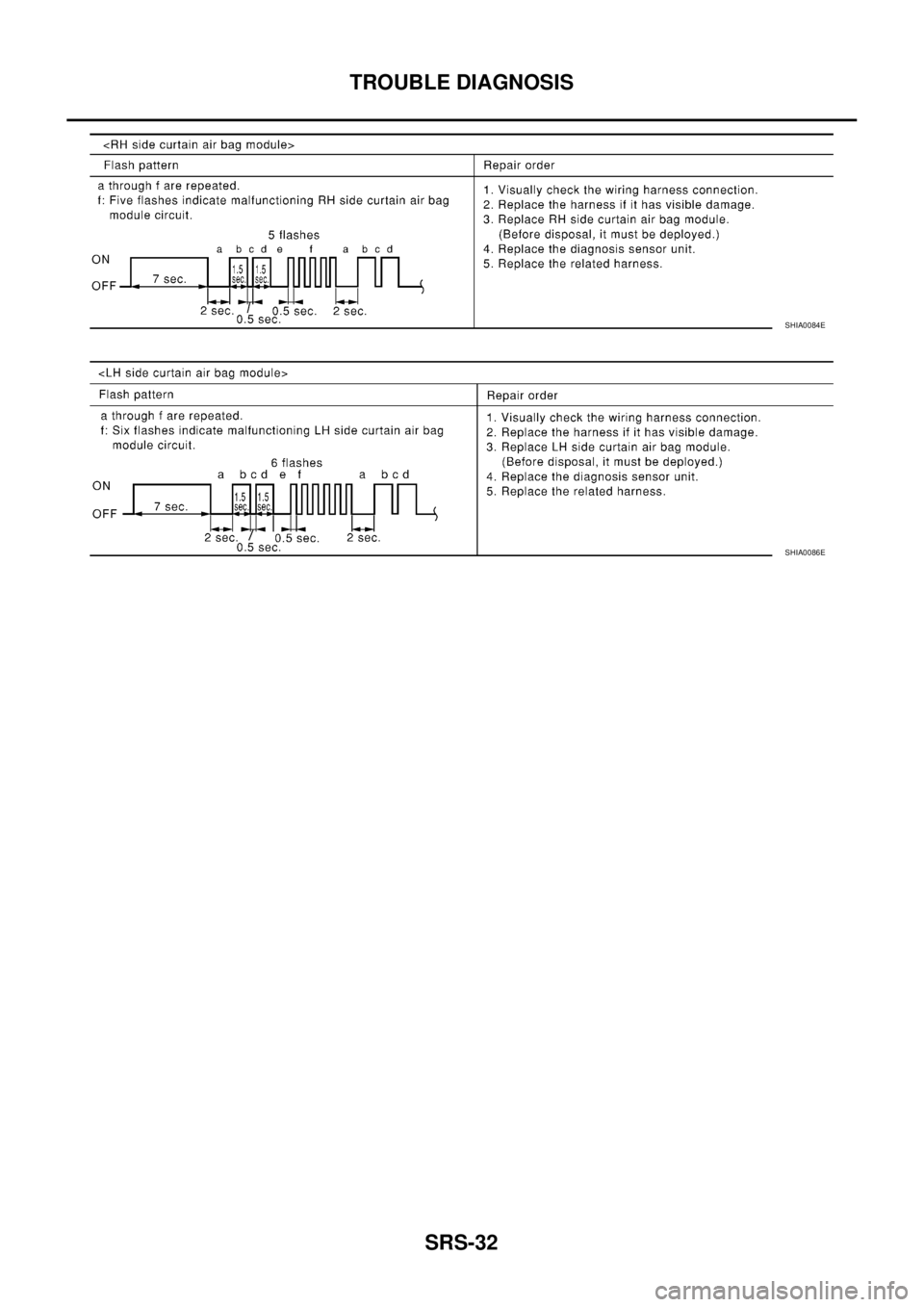

WARNING LAMP FLASH CODE CHART
PHIA0532E
PHIA0185E
SHIA0028E

SRS-30
TROUBLE DIAGNOSIS

SHIA0029E
SHIA0083E
SHIA0030E
SHIA0031E

TROUBLE DIAGNOSIS
SRS-31
C
D
E
F
G
I
J
K
L
MA
B
SRS

SHIA0032E
SHIA0033E
SHIA0034E
SHIA0035E

SRS-32
TROUBLE DIAGNOSIS

SHIA0084E
SHIA0086E

TROUBLE DIAGNOSIS
SRS-33
C
D
E
F
G
I
J
K
L
MA
B
SRS

Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OFFBHS0004C
DIAGNOSTIC PROCEDURE 7
1. CHECK THE DEPLOYMENT OF AIR BAG MODULE
Is air bag module deployed?
YES or NO
YES >> Refer to SRS-55, "COLLISION DIAGNOSIS" .
NO >> GO TO 2.
2. CHECK THE AIR BAG FUSE
Check 10A fuse [No.13, located in fuse block (J/B)].
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK AIR BAG FUSE AGAIN
Replace “AIR BAG” fuse and turn ignition switch ON.
Does the
“AIR BAG” fuse blow again?
YES >> Repair or replace main harness.
NO >>INSPECTION END
4. CHECK DIAGNOSIS SENSOR UNIT
Connect CONSULT-II and touch “START”.
Is
“AIR BAG” displayed on CONSULT-ll?
YES >> GO TO 5.
NO >> Visually check the wiring harness connection of diagno-
sis sensor unit. If the harness connection check result is
OK, replace diagnosis sensor unit.
5. CHECK HARNESS CONNECTION
Is harness connection between warning lamp and diagnosis sensor unit OK?
OK or NG
OK >> Replace diagnosis sensor unit.
NG >> Connect “AIR BAG” warning lamp and diagnosis sensor unit connector properly. If “AIR BAG”
warning lamp still does not go off, replace harness.
BCIA0030E

SRS-34
TROUBLE DIAGNOSIS

Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn ONBHS0004D
DIAGNOSTIC PROCEDURE 8
1. CHECK “METER” FUSE
Check 10A fuse [No.14, located in fuse block (J/B)].
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK “METER” FUSE AGAIN
Replace 10A fuse [No.14, located in fuse block (J/B)] and turn ignition switch ON.
Does the meter fuse blow again?
YES >> Repair or replace the related harness.
NO >>INSPECTION END
3. CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND COMBINATION
METER
Disconnect diagnosis sensor unit connector and turn ignition switch ON.
Does
“AIR BAG” warning lamp turn ON?
YES >> Replace diagnosis sensor unit.
NO >> Replace combination meter assembly.

DRIVER AIR BAG MODULE
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS

DRIVER AIR BAG MODULEPFP:K8510
Removal and InstallationBHS0004E
REMOVAL
CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

Always work from the side of driver air bag module.
1. Remove the side lids.
2. Remove the right and left side TORX bolts (T30).
3. Lift up the driver air bag module.
4. Disconnect the air bag harness connector, and remove the
driver air bag module.
CAUTION:

For installing / removing driver air bag module connector,
insert thin screwdriver wrapped in tape into notch, lift
lock and remove connector.

Install connector with lock raised, and push lock into
connector.
PHIA0592E

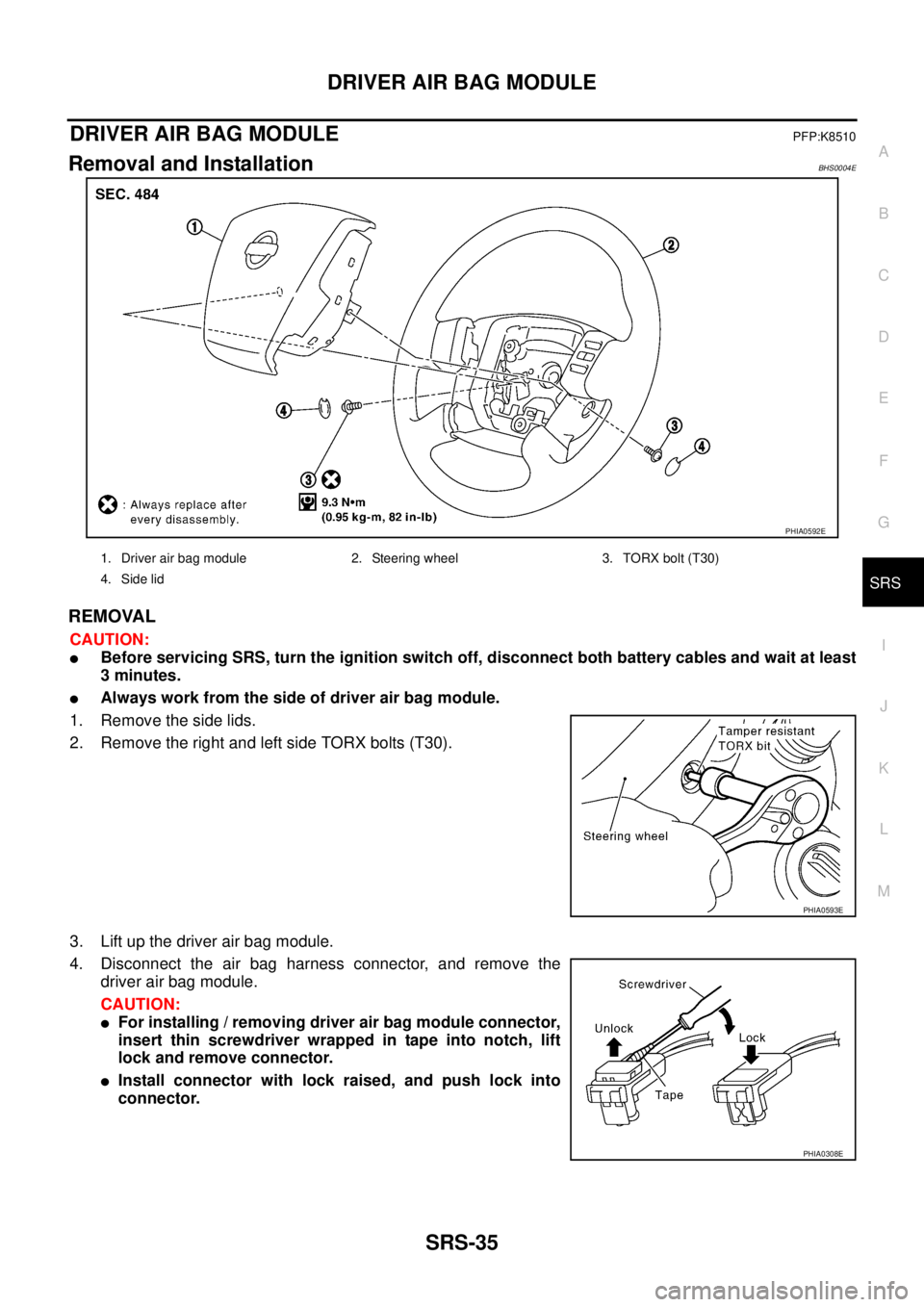

1. Driver air bag module 2. Steering wheel 3. TORX bolt (T30)
4. Side lid
PHIA0593E
PHIA0308E

SRS-36
DRIVER AIR BAG MODULE

CAUTION:

Always work from the side of driver air bag module.

Always place driver air bag module with pad side facing
upward.

Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module.

Do not disassemble driver air bag module.

Do not use old bolts after removal; replace with new bolts.

Do not expose the driver air bag module to temperatures
exceeding 90°C (194°F).

Replace driver air bag module if it has been dropped or sus-
tained an impact.

Do not allow oil, grease or water to come in contact with the
driver air bag module.
INSTALLATION
1. Connect harness connector to air bag module.
CAUTION:
Fix air bag harness on the hook for harness fixing.
2. Install the air bag module with new TORX bolts (T30).
NOTE:
Align air bag module side hole with steering wheel side hole, and then tighten special bolts when installing
air bag module. Thread is damaged and installation is incorrect if both holes are not aligned.
3. Install side lids.
4. Connect both battery cables.
5. Check SRS air bag warning lamp to make sure that the system works normally after finishing work.
6. If SRS air bag warning lamp indicates a DTC exists, reset with self-diagnosis and erase the memory using
CONSULT-II.
7. After the work is completed, perform self-diagnosis to make sure that no malfunction is detected. Refer to
SRS-16, "
SRS Operation Check" .
PHIA0594E
SBF814E
PHIA0595E
