NISSAN TEANA 2003 Service Manual

REAR SEAT
SE-115
C
D
E
F
G
H
J
K
L
MA
B
SE

1. Seatback mat 2. Head rest 3. Head rest holder (free)
4. Head rest holder (locked) 5. Seatback trim (LH) 6. Seatback trim (RH)
7. Seatback pad 8. Bolt 9. Seatback under trim
10. Seatback under pad 11. Seat cushion trim 12. Seat cushion pad
13. Seat heater unit 14. Armrest 15. Armrest screw
16. Bush 17. Bolt 18. Armrest bracket
19. Cup holder 20. Heater switch (RH) 21. Seat switch
22. Heater switch (LH) 23. Audio switch 24. Armrest lid
25. Screw 26. Seatback screen 27. Seatback center bracket
28. Bolt 29. Nut 30. Heater control unit

SE-116
REAR SEAT

Removal and Installation of Seat CushionBIS0014N
REMOVAL
1. Pull plastic hook LH/RH on seat cushion bottom, and then pull seat cushion up and remove it.
2. Disconnect seat heater harness connector (only with the seat heater).
3. Remove seat cushion assembly from the vehicle.
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
INSTALLATION
Install in the reverse order of removal.
Disassembly and Assembly of Seat CushionBIS0014O
DISASSEMBLY
Remove hog rings (non-reusable parts) to separate the trim and pad and seat heater unit.
ASSEMBLY
Assembly in the reverse order of disassembly.

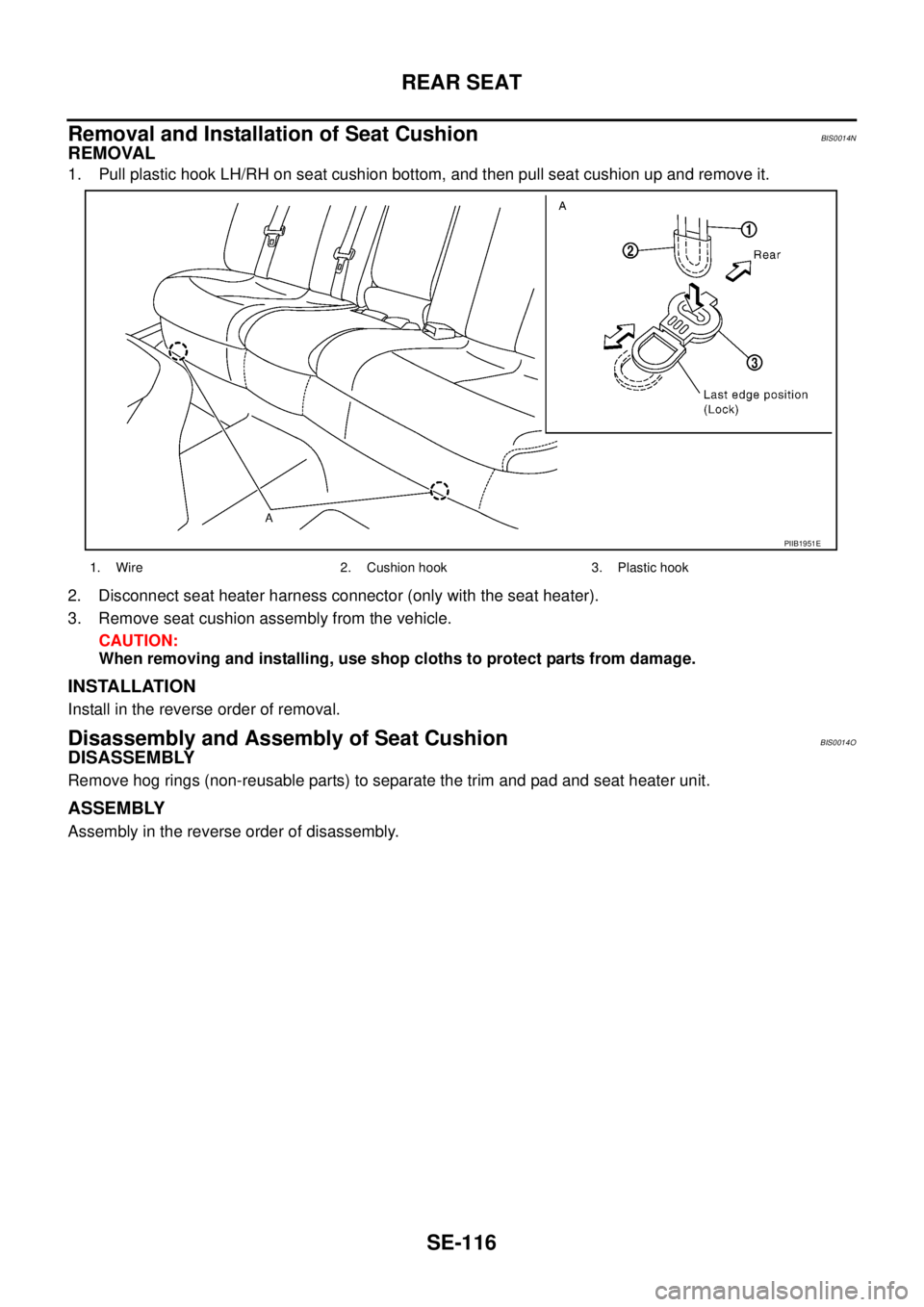

1. Wire 2. Cushion hook 3. Plastic hook
PIIB1951E

REAR SEAT
SE-117
C
D
E
F
G
H
J
K
L
MA
B
SE

Removal and Installation of SeatbackBIS0014P
REMOVAL

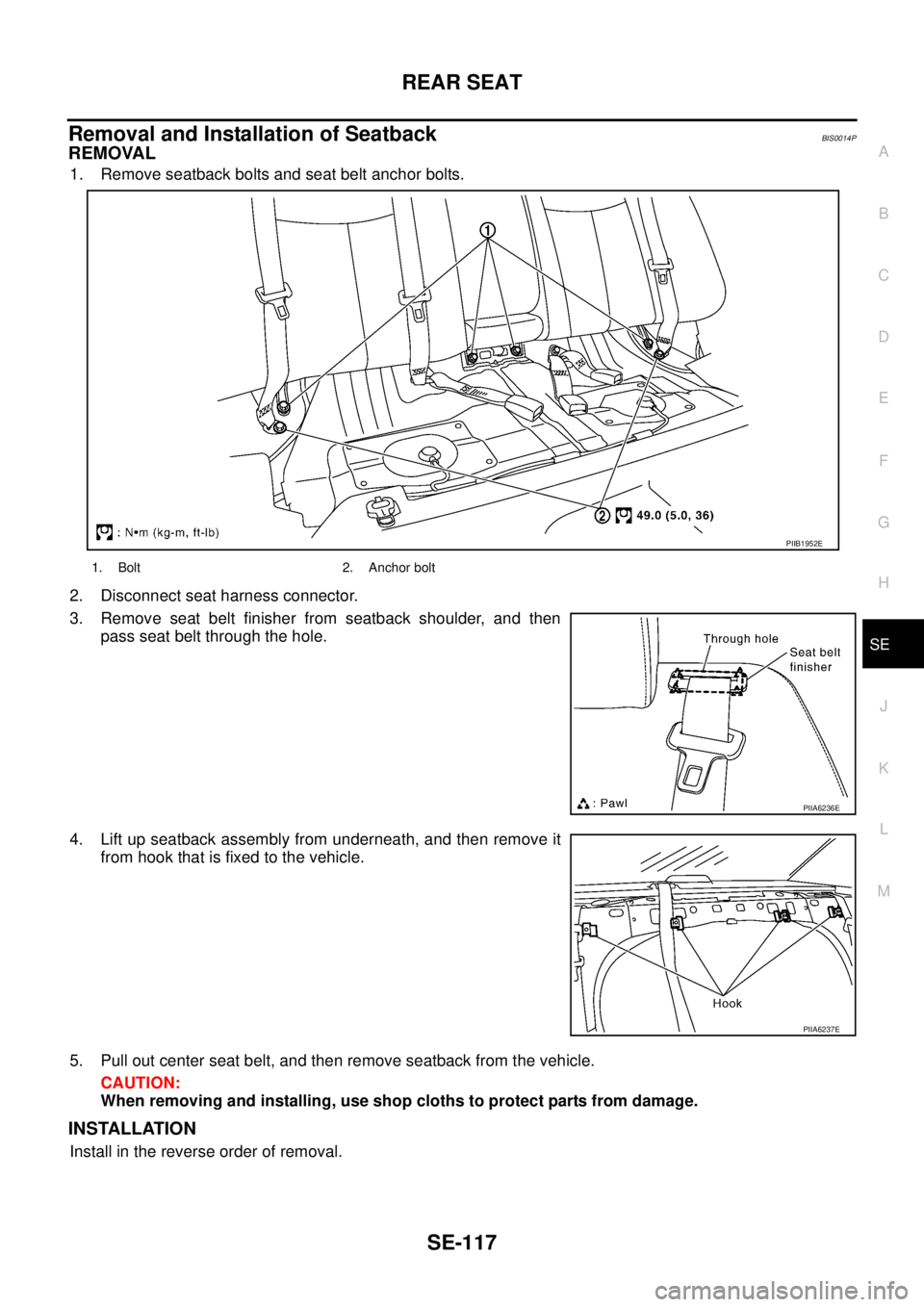

1. Remove seatback bolts and seat belt anchor bolts.
2. Disconnect seat harness connector.
3. Remove seat belt finisher from seatback shoulder, and then
pass seat belt through the hole.
4. Lift up seatback assembly from underneath, and then remove it
from hook that is fixed to the vehicle.
5. Pull out center seat belt, and then remove seatback from the vehicle.
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
INSTALLATION
Install in the reverse order of removal.
1. Bolt 2. Anchor bolt
PIIB1952E
PIIA6236E
PIIA6237E

SE-118
REAR SEAT

Disassembly and Assembly of Seatback (Headrest Fixed Type and Headrest
Removed and Installed Type)
BIS0014Q
DISASSEMBLY
1. Remove headrest (headrest removed and installed type seat only).

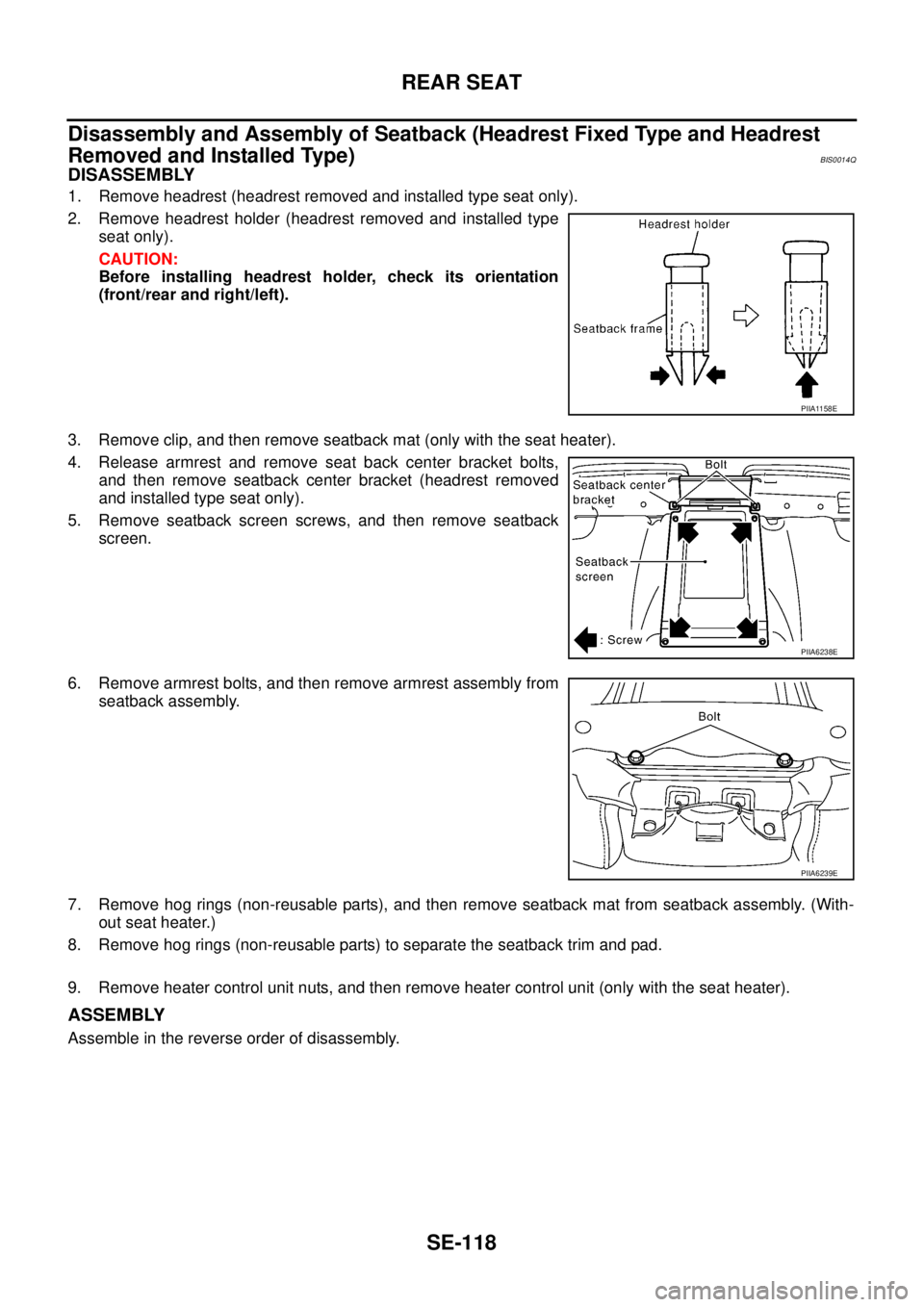

2. Remove headrest holder (headrest removed and installed type
seat only).
CAUTION:
Before installing headrest holder, check its orientation
(front/rear and right/left).
3. Remove clip, and then remove seatback mat (only with the seat heater).
4. Release armrest and remove seat back center bracket bolts,
and then remove seatback center bracket (headrest removed
and installed type seat only).
5. Remove seatback screen screws, and then remove seatback
screen.
6. Remove armrest bolts, and then remove armrest assembly from
seatback assembly.
7. Remove hog rings (non-reusable parts), and then remove seatback mat from seatback assembly. (With-
out seat heater.)
8. Remove hog rings (non-reusable parts) to separate the seatback trim and pad.
9. Remove heater control unit nuts, and then remove heater control unit (only with the seat heater).
ASSEMBLY
Assemble in the reverse order of disassembly.
PIIA1158E
PIIA6238E
PIIA6239E

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SRS
A
B
SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ................................................... 5
Front Seat Belt Pre-Tensioner with 2 Stage Load
Limiter ...................................................................... 6
Front Side Air Bag .................................................... 6
Side Curtain Air Bag ................................................. 6
TROUBLE DIAGNOSIS .............................................. 7
Trouble Diagnosis Introduction ................................. 7
DIAGNOSIS FUNCTION ....................................... 7
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR ............... 7
WORK FLOW ........................................................ 8
Component Parts Location ....................................... 9
Schematic .............................................................. 10
Wiring Diagram — SRS — ...................................... 11
CONSULT-II Function ............................................ 14
DIAGNOSIS MODE FOR CONSULT-II ............... 14
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II .............................................. 14
HOW TO ERASE SELF-DIAGNOSIS RESULTS ... 15
Self-Diagnosis Function (Without CONSULT-II) ..... 15
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITHOUT CONSULT-II ...................................... 15
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 15
SRS Operation Check ............................................ 16
DIAGNOSTIC PROCEDURE 1 ........................... 16
Trouble Diagnosis with CONSULT-II ...................... 18
DIAGNOSTIC PROCEDURE 2 ........................... 18
DIAGNOSTIC PROCEDURE 3 ........................... 22
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2) .............. 24
DIAGNOSTIC PROCEDURE 5 ........................... 24
Trouble Diagnosis without CONSULT-II ................. 29
DIAGNOSTIC PROCEDURE 6 ........................... 29
WARNING LAMP FLASH CODE CHART ........... 29
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF ......................................................... 33
DIAGNOSTIC PROCEDURE 7 ........................... 33
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON ........................................................... 34
DIAGNOSTIC PROCEDURE 8 ........................... 34
DRIVER AIR BAG MODULE .................................... 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 36
SPIRAL CABLE ........................................................ 37
Removal and Installation ........................................ 37
REMOVAL ........................................................... 37
INSTALLATION ................................................... 38
FRONT PASSENGER AIR BAG MODULE .............. 39
Removal and Installation ........................................ 39
REMOVAL ........................................................... 39
INSTALLATION ................................................... 39
FRONT SIDE AIR BAG MODULE ............................ 40
Removal and Installation ........................................ 40
REMOVAL ........................................................... 40
INSTALLATION ................................................... 41
SIDE CURTAIN AIR BAG MODULE ........................ 42
Removal and Installation ........................................ 42
REMOVAL ........................................................... 42
INSTALLATION ................................................... 43
CRASH ZONE SENSOR ........................................... 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 44
SIDE AIR BAG (SATELLITE) SENSOR ................... 45
Removal and Installation ........................................ 45
REMOVAL ........................................................... 45
INSTALLATION ................................................... 45

SRS-2 FRONT SEAT BELT PRE-TENSIONER ................... 46
Removal and Installation ........................................ 46
DIAGNOSIS SENSOR UNIT ..................................... 47
Removal and Installation ........................................ 47
REMOVAL ........................................................... 47
INSTALLATION .................................................... 47
ECU DISCRIMINATED NO. ................................. 47
DISPOSAL OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER ..................................................... 48
Caution for Air Bag Module and Seat Belt Pre-Ten-
sioner ...................................................................... 48
CHECKING DEPLOYMENT TOOL ..................... 48
DEPLOYMENT PROCEDURES FOR AIR BAG
MODULE (OUTSIDE OF VEHICLE) ................... 49
DEPLOYMENT PROCEDURES FOR SEAT
BELT PRE-TENSIONER (OUTSIDE OF VEHI-CLE) ..................................................................... 53
DEPLOYMENT OF AIR BAG MODULE AND
SEAT BELT PRE-TENSIONER WHILE
MOUNTED IN VEHICLE ...................................... 54
DISPOSING OF AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER ...................................... 54
COLLISION DIAGNOSIS .......................................... 55
For Frontal Collision ................................................ 55
SRS INSPECTION (FOR FRONTAL COLLI-
SION) ................................................................... 55
For Side Collision .................................................... 57
WHEN THE SIDE AIR BAG IS ACTIVATED IN A
SIDE COLLISION: ............................................... 57
WHEN SRS IS NOT ACTIVATED IN A SIDE COL-
LISION: ................................................................ 57
SRS INSPECTION (FOR SIDE COLLISION) ...... 57

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BHS0003U
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceBHS0003V

Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

Before servicing the SRS, turn ignition switch OFF, and disconnect both battery cables. Then wait at least
3 minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.

Diagnosis sensor unit must always be installed with their arrow marks “⇐” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformations or rust before
installation and replace if required.

The spiral cable must be set to the neutral position since its rotations are limited. Do not attempt to turn
steering wheel or column, if steering gear was disconnected from the column shaft.

Handle air bag module carefully. Always put a driver air bag module with the pad side facing upward.

Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

After an air bag is deployed, the front instrument panel assembly should be replaced if damaged.

Always replace instrument panel pad following front passenger air bag deployment.

SRS-4
PREPARATION

PREPARATIONPFP:00002
Special Service ToolsBHS0003X
Commercial Service ToolsBHS0003Y
Tool number
Tool nameDescription
KV99105300
Air bag module bracketAnchoring air bag module
KV99106400
Deployment toolDisposing of air bag module and front seat
belt pre-tensioner
KV99109700

Deployment tool adapter for
driver air bag module

Deployment tool adapter for side
curtain air bag module

Deployment tool adapter for pre-
tensioner seat belt

Connecting between the deployment tool
and driver air bag module

Connecting between the deployment tool
and side curtain air bag module

Connecting between the deployment tool
and pre-tensioner seat belt
KV99108300
Deployment tool adapter for front
passenger air bag moduleConnecting between the deployment tool
and front passenger air bag module
KV99109000
Deployment tool adapter for front
side air bag moduleConnecting between the deployment tool
and front side air bag module
S-NT354
S-NT357
SHIA0038J
ZZA1166D
ZZA1190D
Tool name Description
Tamper resistant TORX bit Size: T30
S-NT757

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-5
C
D
E
F
G
I
J
K
L
MA
B
SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)PFP:28556
SRS ConfigurationBHS0003Z
The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ON or START posi-
tion.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module and front passenger air bag module are activated in a frontal col-
lision but not in a side collision.
SRS configurations which are activated for some collision modes are as follows:
PHIA0775E
SRS configuration Frontal collision Left side collision Right side collision
Driver air bag module×——
Front passenger air bag module×——
Front LH seat belt pre-tensioner×——
Front RH seat belt pre-tensioner×——
Front LH side air bag module —×—
Front RH side air bag module — —×
LH side curtain air bag module —×—
RH side curtain air bag module — —×

SRS-6
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Front Seat Belt Pre-Tensioner with 2 Stage Load LimiterBHS00040
The seat belt pre-tensioner system with 2 stage load limiter is
installed for both the driver's seat and the front passenger's seat. It
operates simultaneously with the SRS air bag system in the event of
a frontal collision with an impact exceeding a specified level.
When the frontal collision with an impact exceeding a specified level
occurs, seat belt slack resulting from clothing or other factors is
immediately taken up by the pre-tensioner. Vehicle passengers are
securely restrained.
When passengers in a vehicle are thrown forward in a collision and
the restraining force of the seat belt exceeds a specified level, the 2
stage load limiter permits the specified extension of the seat belt by
the twisting of the ELR shaft, and a relaxation of the chest-area seat
belt webbing tension while maintaining force.
Front Side Air BagBHS00041
Front side air bag is built-in type.
The front seatbacks with built-in type side air bag have the labels as
shown.
Side Curtain Air BagBHS00042
The side curtain air bags have the labels as shown.
PHIA0113E
PHIA0590E
BF-2006D
