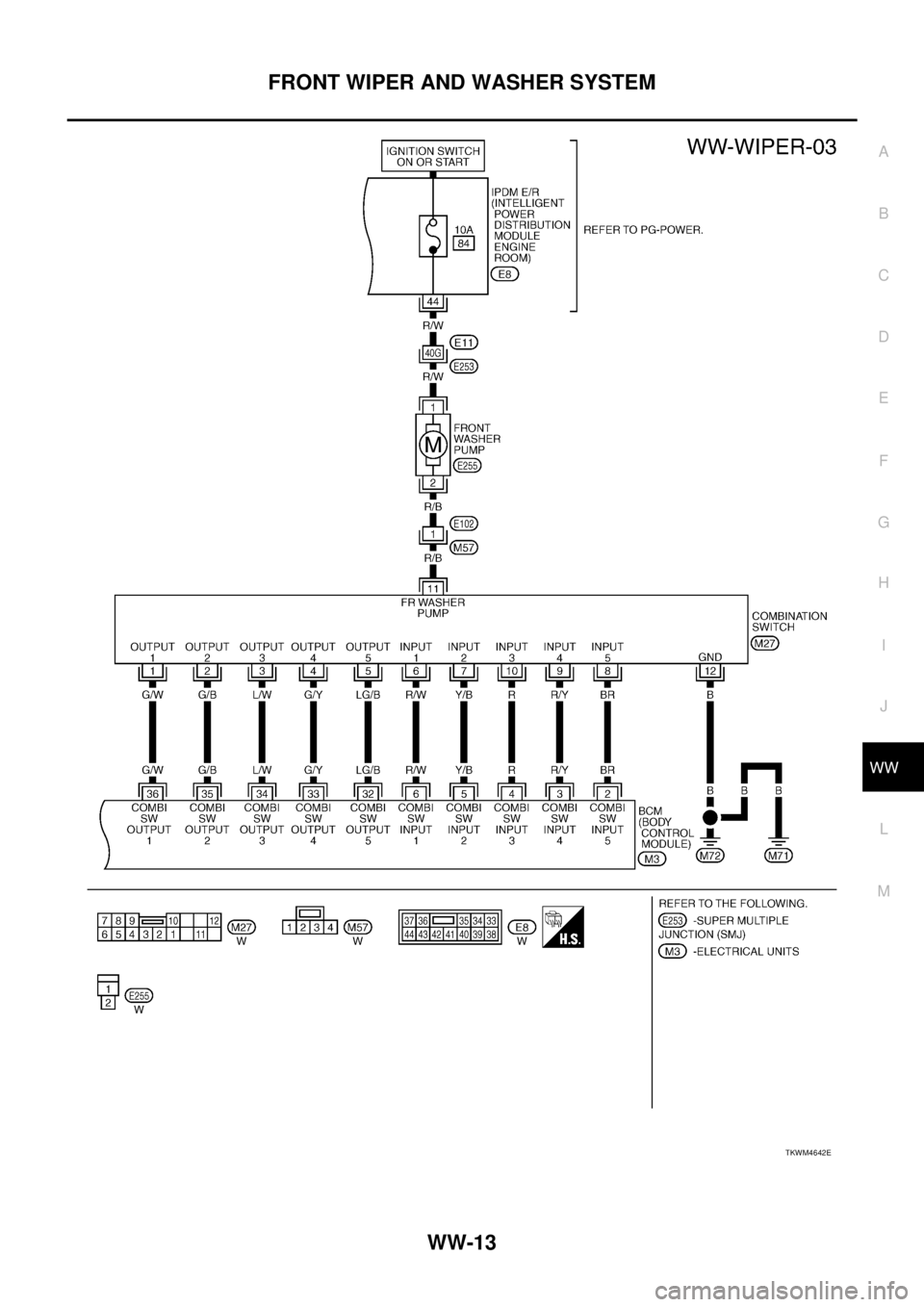

FRONT WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW

TKWM4642E

WW-14
FRONT WIPER AND WASHER SYSTEM

Terminals and Reference Values for BCMBKS001TL
CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to
WW-19, "
DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition

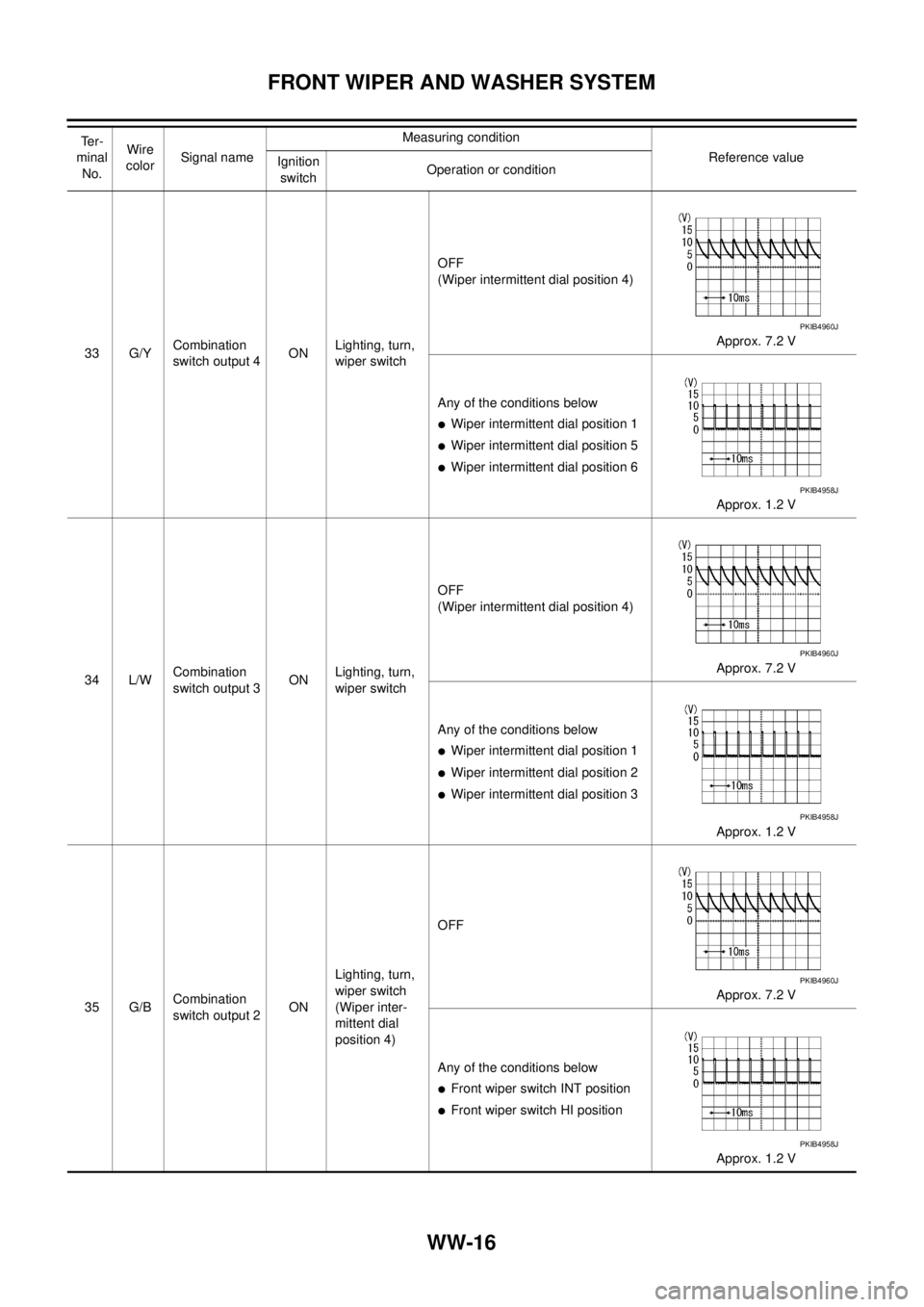

4RCombination
switch input 3ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below

Front wiper switch MIST position

Front wiper switch INT position

Front wiper switch LO position
Approx. 1.0 V
5Y/BCombination
switch input 2ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)Approx. 0 V
Any of the conditions below

Front washer switch ON position
(Wiper intermittent dial position 4)

Wiper intermittent dial position 1

Wiper intermittent dial position 5

Wiper intermittent dial position 6
Approx. 1.0 V
PKIB4959J
PKIB4959J

FRONT WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW

6R/WCombination
switch input 1ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)Approx. 0 V
Any of the conditions below

Front wiper switch HI position
(Wiper intermittent dial position 4)

Wiper intermittent dial position 3
Approx. 1.0 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2
Approx. 1.7 V
Any of the conditions below

Wiper intermittent dial position 6

Wiper intermittent dial position 7
Approx. 0.8 V

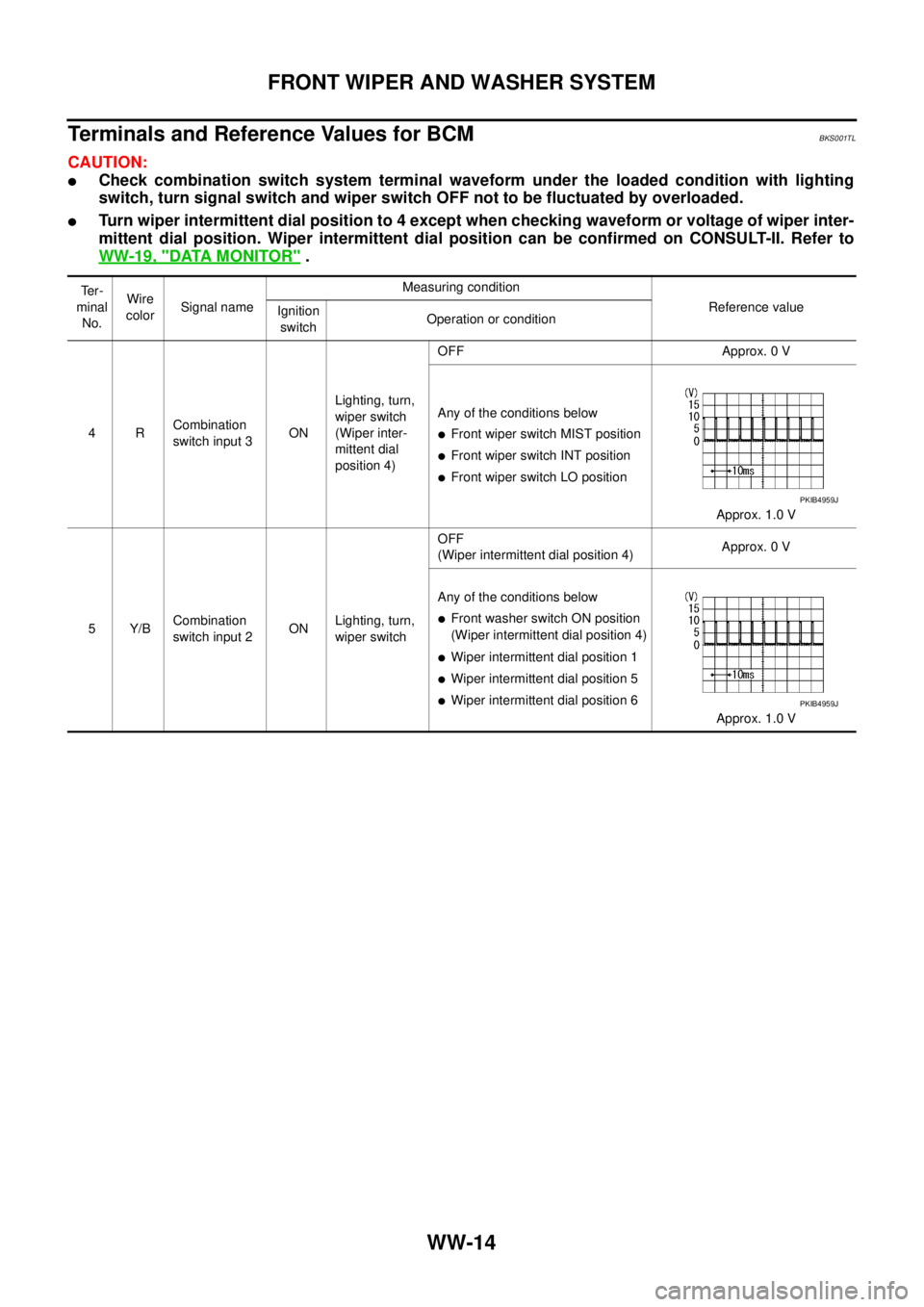

32 LG/BCombination
switch output 5ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 6

Wiper intermittent dial position 7
Approx. 1.0 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4959J
PKIB4952J
PKIB4955J
PKIB4960J
PKIB4956J

WW-16
FRONT WIPER AND WASHER SYSTEM

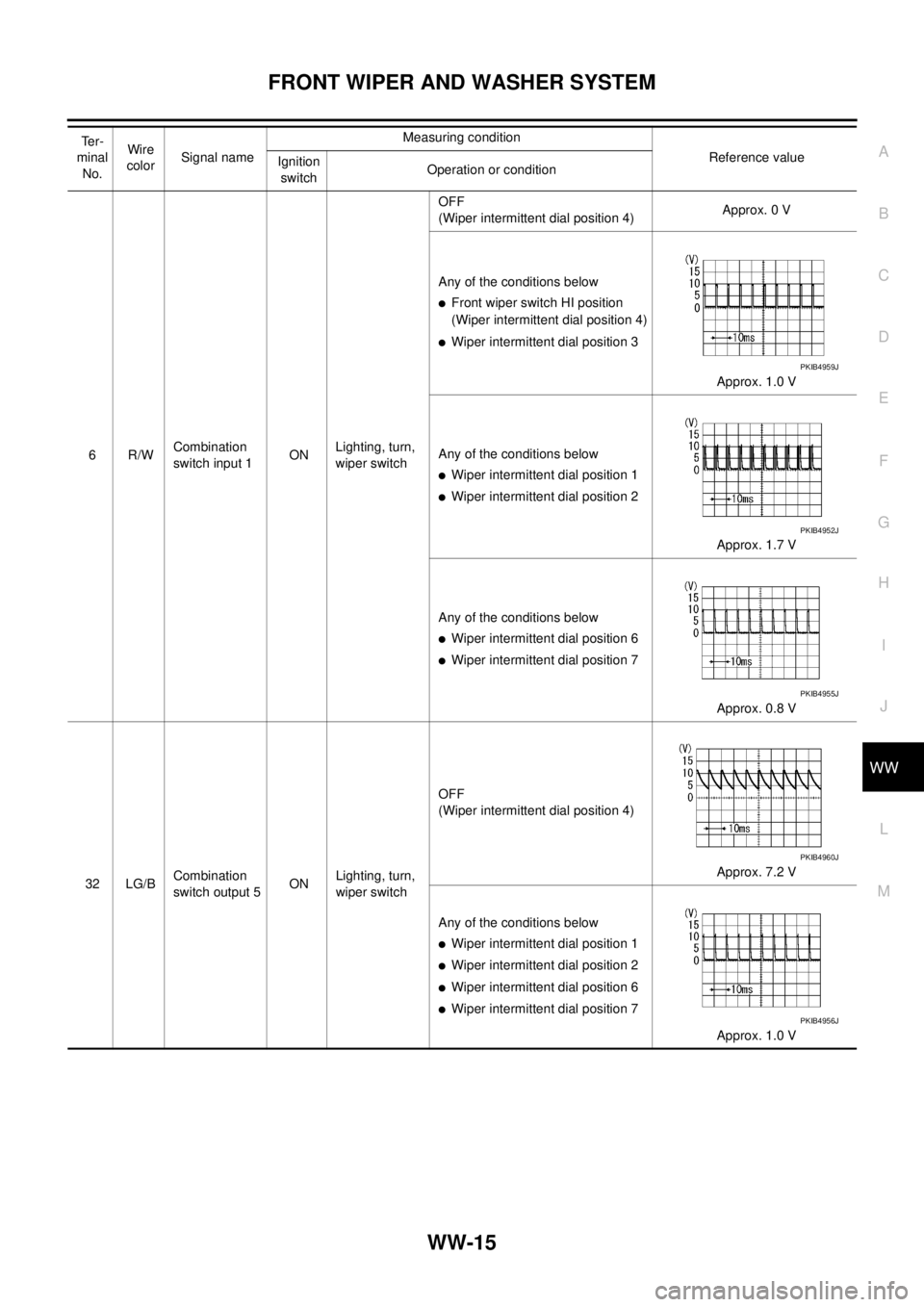

33 G/YCombination
switch output 4ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 5

Wiper intermittent dial position 6
Approx. 1.2 V
34 L/WCombination
switch output 3ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below

Wiper intermittent dial position 1

Wiper intermittent dial position 2

Wiper intermittent dial position 3
Approx. 1.2 V
35 G/BCombination
switch output 2ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below

Front wiper switch INT position

Front wiper switch HI position
Approx. 1.2 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

FRONT WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW

Terminals and Reference Values for IPDM E/RBKS001TM
36 G/WCombination
switch output 1ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below

Front wiper switch MIST position

Front wiper switch LO position

Front washer switch position
Approx. 1.2 V
38 RIgnition switch
(ON)ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
42 Y/RBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 W/BBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
21 L/R Low speed signal ONFront wiper switch
positionOFF Approx. 0 V
LO Battery voltage
31 L/B High speed signal ONFront wiper switch
positionOFF Approx. 0 V
HI Battery voltage
32 L/Y Front wiper motor auto-stop signal ONFront wiper operating Battery voltage
Front wiper stopped Approx. 0 V
38 B Ground — — Approx. 0 V
44 R/W Front washer pump power supply ON — Battery voltage
48 L CAN-H — — —
49 P CAN-L — — —
60 B Ground — — Approx. 0 V

WW-18
FRONT WIPER AND WASHER SYSTEM

How to Perform Trouble DiagnosesBKS001TN
1. Confirm the symptoms and customer complaint.
2. Understand operation description and function description. Refer to WW-4, "
System Description" .
3. Perform the Preliminary Check. Refer to WW-18, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the front wiper and washer operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckBKS001TO
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to WW-11, "Wiring Diagram — WIPER —" .
OK or NG
OK >> GO TO 2
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .

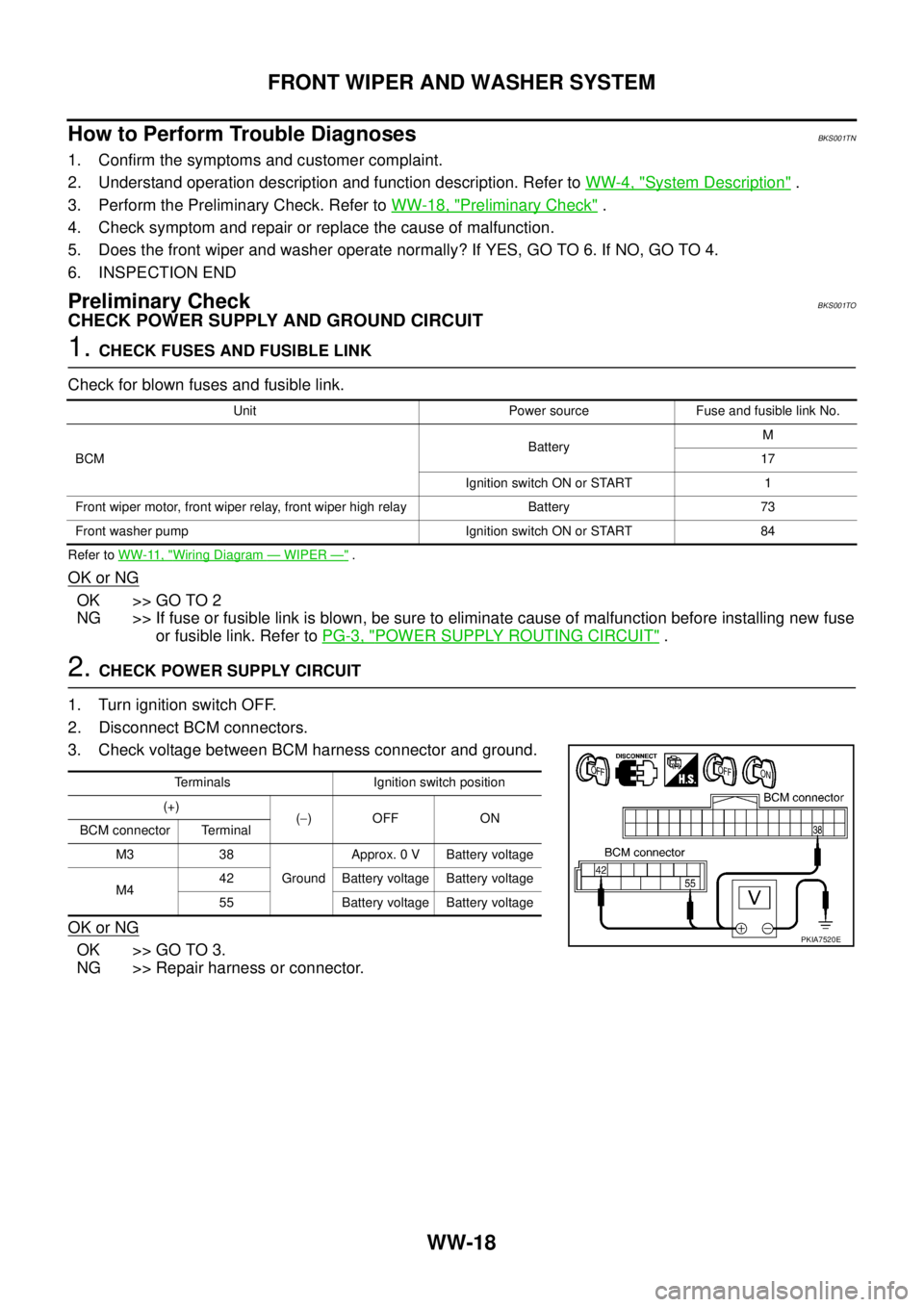

2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ON or START 1
Front wiper motor, front wiper relay, front wiper high relay Battery 73
Front washer pump Ignition switch ON or START 84
Terminals Ignition switch position
(+)
(−)OFF ON
BCM connector Terminal
M3 38
GroundApprox. 0 V Battery voltage
M442 Battery voltage Battery voltage
55 Battery voltage Battery voltage
PKIA7520E

FRONT WIPER AND WASHER SYSTEM
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW

3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)BKS001TP
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
WORK SUPPORT
Operation Procedure
1. Touch “WIPER” on “SELECT TEST ITEM” screen.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch “WIPER SPEED SETTING” on “SELECT WORK ITEM” screen.
4. Touch “START”.
5. Touch “CHANGE SETT”.
6. The setting will be changed and “CURRENT SETTING” will be displayed.
7. Touch “END”.
Work Support Setting Item
DATA MONITOR
Operation Procedure
1. Touch “WIPER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “ALL SIGNALS” is selected, all items will be monitored. When “SELECTION FROM MENU” is
selected, touch individual items to be monitored.
5. Touch “START”.
BCM connector Terminal
GroundContinuity
M4 52 Yes
SKIB5125E
BCM diagnosis position Diagnosis mode Description
WIPERWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BCMSELF-DIAG RESULTS BCM performs self-diagnosis of CAN communication.
CAN DIAG SUPPORT
MNTRThe result of transmit/receive diagnosis of CAN communication can be read.
Item Description CONSULT-II Factory setting
WIPER SPEED
SETTINGVehicle speed sensing type wiper control mode can be changed in this mode
between ON and OFF.ON×
OFF —
ALL SIGNALS Monitors all the items.
SELECTION FROM MENU Selects items and monitors them.

WW-20
FRONT WIPER AND WASHER SYSTEM

6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
NOTE:
This item is displayed, but cannot be monitored.
ACTIVE TEST
Operation Procedure
1. Touch “WIPER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested, and check operation of the selected item.
4. During operation check, touching “OFF” deactivates the operation.
Display Item List
NOTE:
1. The intermittent operation is operated at low speed only one time
2. This item is displayed, but no operation is performed.Monitor item Contents
IGN ON SW “ON/OFF”Displays status (ignition switch IGN position: ON/other: OFF) of ignition switch judged from
the ignition switch signal.
IGN SW CAN “ON/OFF”Displays status (ignition switch IGN position: ON/other: OFF) of ignition switch judged from
the ignition switch signal (CAN communication lines).
FR WIPER HI “ON/OFF”Displays status (front wiper switch high position: ON/other: OFF) of front wiper high switch
judged from the front wiper switch signal.
FR WIPER LOW “ON/OFF”Displays status (front wiper switch low position: ON/other: OFF) of front wiper low switch
judged from the front wiper switch signal.
FR WIPER INT “ON/OFF”Displays status (front wiper switch intermittent position: ON/other: OFF) of front wiper intermit-
tent switch judged from the front wiper switch signal.
FR WASHER SW “ON/OFF”Displays status (front washer switch ON position: ON/other: OFF) of front washer switch
judged from the front wiper switch signal.
INT VOLUME “1 - 7”Displays status (wiper intermittent dial position setting 1- 7) of intermittent volume switch
judged from the front wiper switch signal.
FR WIPER STOP “ON/OFF”Displays status (front wiper stop position: ON/move: OFF) of front wiper motor stop judged
from the front wiper auto stop signal.
VEHICLE SPEED “km/h” Displays status vehicle speed as judged from vehicle speed signal.
RR WIPER ON
NOTE “OFF” —
RR WIPER INT
NOTE“OFF” —
RR WASHER SW
NOTE“OFF” —
RR WIPER STOP
NOTE“OFF” —
H/L WASH SW “ON/OFF”Displays status (headlamp washer switch ON position: ON/other: OFF) of headlamp washer
switch judged from headlamp washer switch signal.
CONSULT-II screen
displayTest item Description
FR WIPERFront wiper (HI, LO, INT)
operation
NOTE1Front wiper relay and front wiper high relay are operated by switching
operation (OFF: OFF, HI: high speed, LO: low speed, INT: intermittent).
RR WIPER
Rear wiper operation
NOTE2—
HEAD LAMP WASHER Headlamp washer operation Headlamp washer relay can be operated by any ON-OFF operation.

FRONT WIPER AND WASHER SYSTEM
WW-21
C
D
E
F
G
H
I
J
L
MA
B
WW

CONSULT-II Functions (IPDM E/R)BKS001TQ
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE ” screen.
2. Touch “ALL SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM”
screen.
3. When “ALL SIGNALS” is selected, all items will be monitored. When “MAIN SIGNALS” is selected, pre-
determined items will be monitored. When “SELECTION FROM MENU” is selected, touch individual items
to be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording,
touch “STOP”.
Display Item List
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may not be correct.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch item to be tested, and check operation.
4. Touch “OFF” while testing to stop the operation.
Diagnosis mode Description
SELF- DIAG RESULTS Refer to PG-19, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of the IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.
ALL SIGNALS Monitors all items.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Select items and monitors them.
Monitor item Contents
HL WASHER REQ “OFF/ON”Status (headlamp washer switch ON position: ON/others: OFF) of headlamp washer switch
judged from headlamp washer request signal through CAN communication is displayed.
FR WIP REQ“STOP/1LOW/
LOW/HI”Status (wiper switch OFF position: STOP/INT position: 1 LOW/LO or MIST position: LOW/HI
position: HI) of front wiper switch judged from front wiper request signal through the CAN
communication is displayed.
WIP AUTO STOP “ACT P/STOP P”Status (front wiper operate: ACT P/stopped: STOP P) judged from front wiper auto stop signal
is displayed.
WIP PROT “OFF/BLOCK”Status (front wiper not protect: OFF/protect: BLOCK) judged from front wiper operation status
is displayed.
CONSULT-II
screen displayTest item Description
FRONT WIPER Front wiper (HI, LO) operationFront wiper relay and front wiper high relay are operated by switching operation
(OFF: OFF, HI: high speed, LO: low speed).

WW-22
FRONT WIPER AND WASHER SYSTEM

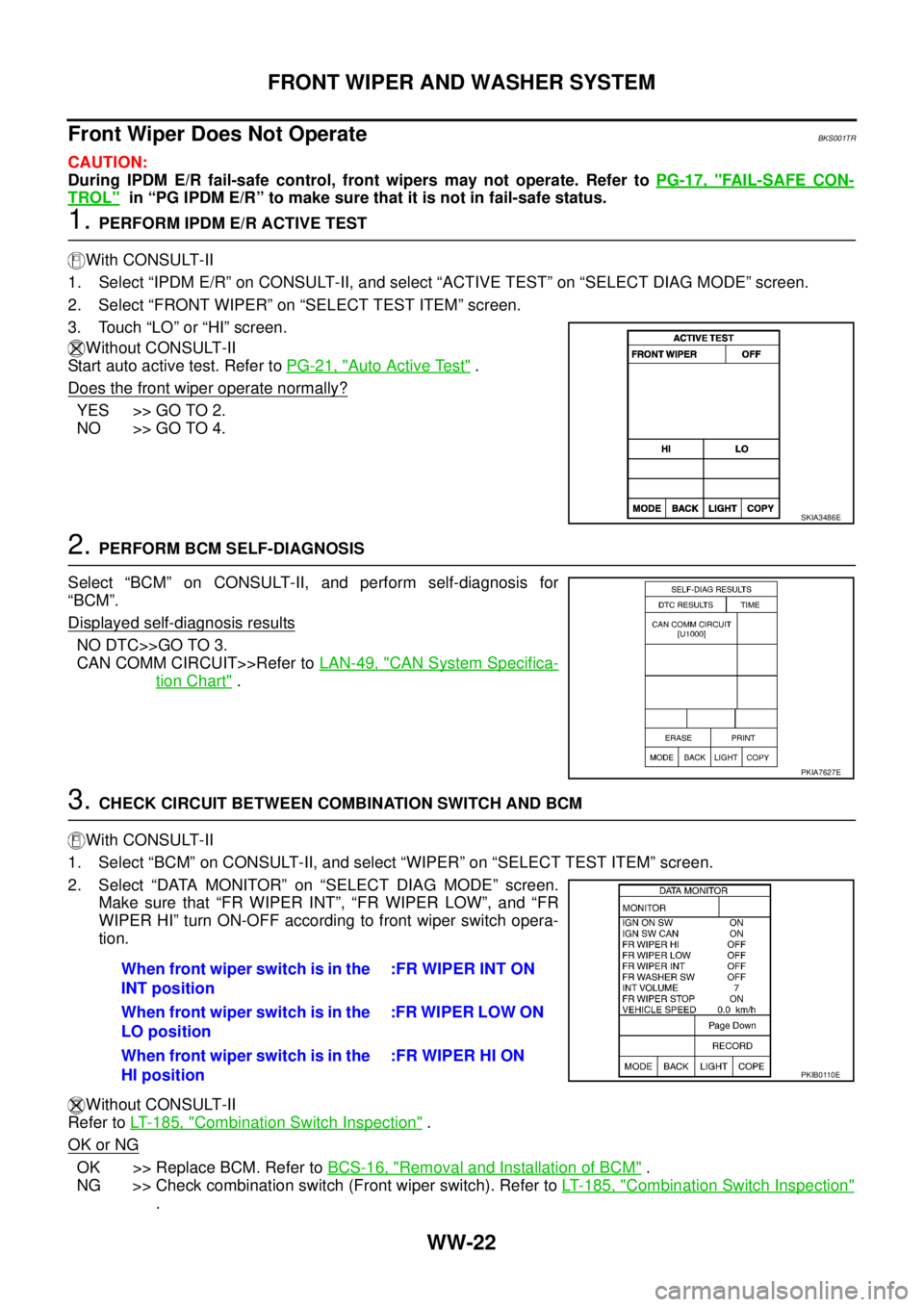

Front Wiper Does Not OperateBKS001TR
CAUTION:
During IPDM E/R fail-safe control, front wipers may not operate. Refer to PG-17, "
FAIL-SAFE CON-
TROL" in “PG IPDM E/R” to make sure that it is not in fail-safe status.
1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” or “HI” screen.
Without CONSULT-II
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does the front wiper operate normally?
YES >> GO TO 2.
NO >> GO TO 4.
2. PERFORM BCM SELF-DIAGNOSIS
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>GO TO 3.
CAN COMM CIRCUIT>>Refer to LAN-49, "
CAN System Specifica-
tion Chart" .
3. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WIPER INT”, “FR WIPER LOW”, and “FR
WIPER HI” turn ON-OFF according to front wiper switch opera-
tion.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installation of BCM" .
NG >> Check combination switch (Front wiper switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection"
.
SKIA3486E
PKIA7627E
When front wiper switch is in the
INT position:FR WIPER INT ON
When front wiper switch is in the
LO position:FR WIPER LOW ON
When front wiper switch is in the
HI position:FR WIPER HI ON
PKIB0110E
